Keyless Access System
Your vehicle may have a Keyless Access System that
operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules and with
Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.If you ever notice a decrease in the keyless access
transmitter range, try doing one of the following:Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy or
snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” under
Keyless Access System Operation on page 2-8.
Check to make sure that an electronic device such
as a cellular phone or lap top computer is not causing
interference.
If you are still having trouble, see your dealer/retailer
or a qualied technician for service.
Keyless Access System Operation
The Keyless Access System transmitter functions
will work up to 195 feet (60 m) away from the vehicle.
The Keyless Access System lets you lock and unlock the
doors and access the trunk without removing the remote
transmitter from your pocket, purse, briefcase, etc. The
keyless access transmitter must be within 3 feet (1 m) of
the door or trunk being opened.
2-8

Keyless Unlocking
With the keyless access transmitter in range, approach
the front door to unlock it and pull the handle to open
the door. All doors will unlock when you approach the
vehicle with the keyless access transmitter and open the
driver’s door.
With the keyless access transmitter in range, pull the
rear door handle once to unlock the door and a second
time to open the door.
To customize which doors unlock when the driver’s door
handle is pulled, see “Keyless Unlock” underDIC Vehicle
Customization on page 3-72.
Keyless Locking
The doors lock after several seconds if all doors are
closed and at least one keyless access transmitter
has been removed from the interior of the vehicle.
To customize whether the doors automatically lock
when you exit the vehicle, see “Keyless Locking”
underDIC Vehicle Customization on page 3-72.
Keyless Trunk Opening
Press the trunk release button located on the trunk
lid above the license plate to open the trunk if the
keyless access transmitter is within range.
There are other conditions which can affect the
performance of the transmitter. SeeKeyless Access
System on page 2-8.
Q(Lock):Press once to
lock the doors. The turn
signal indicators ash.
When
Qis pressed twice,
the turn signal indicators
ash twice, and the
horn sounds once
to conrm locking.
To program the vehicle so the turn signal indicators
do not ash and the horn does not sound when pressing
Qon the keyless access transmitter, see “Remote Door
Lock” underDIC Vehicle Customization on page 3-72.
K(Unlock):Press once to unlock only the driver door.
The turn signal indicators ash twice.
Press
Ktwice within ve seconds to unlock all the
doors. The interior lamps may come on.
To program the vehicle so the turn signal indicators do
not ash and the fog lamps and reverse lamps remain on
steady for about 20 seconds when the keyless access
transmitter is used to unlock the vehicle, see″Remote
Door Unlock″underDIC Vehicle Customization on
page 3-72. With Remote Start
Shown, Without Similar
2-9

For vehicles with the memory feature, pressKon the
keyless access transmitter to program and recall the
memory settings. SeeMemory Seat, Mirrors and Steering
Wheel on page 1-8for more information.
/(Remote Start):Press to operate the remote start
feature. SeeRemote Vehicle Start on page 2-14
for additional information.
G(Trunk):Press and hold for about one second to
unlock the trunk. If the engine is running, the shift lever
must be in P (Park) for an automatic transmission or in
Neutral with the parking brake set for a manual
transmission.
L(Vehicle Locator/Panic Alarm):Press and release
to locate the vehicle. The horn sounds three times
and the turn signal lamps ash three times.
Press and hold
Lfor three seconds to sound the panic
alarm. The horn sounds and the turn signal lamps ash
for 30 seconds. Press and release
Lagain to stop the
alarm.
The vehicle comes with two transmitters. Each
transmitter will have a number on top of it, “1” or “2”.
These numbers correspond to the driver of the vehicle.
For example, the memory seat position for driver 1 will be
recalled when using the transmitter labeled “1”, if enabled
through the DIC. SeeMemory Seat, Mirrors and Steering
Wheel on page 1-8andDIC Vehicle Customization
onpage 3-72.
Programming Transmitters to the
Vehicle
Only keyless access transmitters programmed to the
vehicle will work. If a transmitter is lost or stolen,
a replacement can be purchased and programmed
through your dealer/retailer. The vehicle can be
reprogrammed so that lost or stolen transmitters no
longer work. Each vehicle can have up to four
transmitters matched to it.
Programming with a Recognized
Transmitter
A new transmitter can be programmed to the vehicle
when there is one recognized transmitter. For vehicles
sold in Canada, two recognized transmitters are required
to program a new transmitter.
1. The vehicle must be off.
2. Both the recognized and new transmitters must be
with you.
3. Insert the vehicle key into the key lock cylinder
located on the outside of the driver door.
2-10

4. Turn the key to the unlock position ve times within
ve seconds.
5. The Driver Information Center (DIC) displays Ready
To Learn Electronic Key #2, 3 or 4.
6. Place the new transmitter into the transmitter
pocket with the buttons facing the front of the
vehicle. The transmitter pocket is inside the center
console storage area located between the driver
and front passenger seats.7. A beep sounds once the transmitter is programmed.
The DIC displays Ready To Learn Electronic
Key #3 or 4, or Maximum # Electronic Keys
Learned.
8. Press the ignition control knob to exit
programming mode.
9. Remove the transmitter from the transmitter pocket
and press
Kon the keyless access transmitter
two times.
10. To program additional transmitters, repeat Steps 6
through 9.
Programming without a Recognized
Transmitter
United States owners are permitted to program a new
transmitter to their vehicle when a recognized transmitter
is not available. The Canadian immobilizer standard
requires that Canadian owners see their dealer/retailer
for programming new transmitters when two recognized
transmitters are not available.
2-11

The procedure requires three, ten minute cycles to
complete the matching process.
1. The vehicle must be off.
2. Place the new transmitter into the transmitter
pocket with the buttons facing the front of the
vehicle. The transmitter pocket is inside the center
console storage area located between the driver
and front passenger seats.
3. Insert the vehicle key into the key lock cylinder
located on the driver door.
4. Turn the key to the unlock position ve times within
ve seconds.
5. The DIC displays Press Start Control To Learn Keys.6. Press the ignition switch in.
7. The DIC reads Learn Delay Active Wait XX Min and
counts down to zero.
8. The DIC displays Press Start Control To Learn
Keys again.
9. Press the ignition switch in again.
10. Repeat Steps 7, 8 and 9.
11. The DIC reads Learn Delay Active Wait XX Min and
counts down to zero.
12. A beep sounds and the DIC reads Ready To Learn
Electronic Key # X. All previously known transmitter
programming has been erased.
13. A beep sounds once programming is complete. The
DIC displays Ready To Learn Electronic Key # 2.
To program additional transmitters, insert each
transmitter in the pocket until a beep is heard and
the DIC advances to the next electronic key number.
Up to four transmitters can be programmed. The
DIC displays Maximum # Electronic Keys Learned
and exits the programming mode.
Press the ignition control knob to complete the
process.
14. Press the ignition control knob if programming is
complete.
15. Press
Kon each newly programmed transmitter to
complete the process.
2-12

Starting the Vehicle with a Low
Transmitter Battery
Replace the battery if the Replace Battery In Remote
Key message displays in the DIC. See “Replace Battery
In Remote Key” underDIC Warnings and Messages
on page 3-58for additional information.
If the transmitter battery is weak, the DIC may display
Electronic Key Not Detected when you try to start the
vehicle. To start the vehicle, place the transmitter in the
center console storage area transmitter pocket with the
buttons facing to the front of the vehicle. Then, with the
vehicle in P (Park) or N (Neutral), press the brake pedal
and the ignition control knob. SeeStarting the Engine on
page 2-33, for additional information about the vehicle’s
electronic keyless ignition with push start. Replace the
transmitter battery as soon as possible.
Battery Replacement
Notice:When replacing the battery, do not touch
any of the circuitry on the transmitter. Static
from your body could damage the transmitter.
1. Separate the transmitter with a at, thin object
inserted into the slot on the side or back of the
transmitter.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing down.
Replace with a CR2032 or equivalent battery.
4. Snap the transmitter back together.
2-13

The remote vehicle start feature provides two separate
starts, each with 10 minutes of engine running, or it
provides one start with 10 minutes of engine running
that may be extended 10 more minutes. If the transmitter
lock button is pressed and released and then the
remote start button is pressed and held again before
the rst 10 minutes of engine running time has expired,
10 minutes are added to the remaining minutes.
For example, if the lock button and then the remote
start buttons are pressed again after ve minutes of the
engine run time, 10 minutes are added and you now
have 15 minutes of engine running. The added ten
minutes are considered a second remote vehicle start.
Once two remote starts or a single start with a time
extension have been used, the vehicle must be started
normally before the remote start feature can be used
again.
The remote start feature does not operate if any of the
following occur:
The ignition is in any position other than LOCK/OFF.
A keyless access transmitter is inside the vehicle.
The hood is open.
There is an emission control system malfunction.
The remote start feature is not enabled. See
“Remote Start” underDIC Vehicle Customization on
page 3-72.
The engine turns off during a remote vehicle start if the
coolant temperature gets too high, or the oil pressure
is too low.
This vehicle was shipped from the factory with the
remote vehicle start system enabled. The system may
be disabled through the Driver Information Center (DIC).
See “Remote Start” underDIC Vehicle Customization
on page 3-72for additional information.
If this vehicle has the remote start feature, the RKE
transmitter functions have an increased range of
operation. However, the range may be less while the
vehicle is running.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-5orKeyless Access
System on page 2-8for additional information.
SeeEngine Exhaust on page 2-50for important safety
information when using remote start in a closed garage.
2-15

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving vehicle.
When a door is locked, the handle will not open
it. You increase the chance of being thrown out
of the vehicle in a crash if the doors are not
locked. So, wear safety belts properly and lock
the doors whenever you drive.
Young children who get into unlocked vehicles
may be unable to get out. A child can be
overcome by extreme heat and can suffer
permanent injuries or even death from heat
stroke. Always lock your vehicle whenever you
leave it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
Locking your doors can help prevent this from
happening.There are several ways to lock and unlock the vehicle.
From the inside, use the manual lock levers located
on the door panels near the windows.
Push down on the manual lock lever to lock the door.
To unlock the door, pull up on the lever.
If the windows are down and the doors are locked,
do not reach in to manually unlock the vehicle because
you will set off the alarm.
From the outside, use the key, or press the lock or
unlock button on the Remote Keyless Entry (RKE)
transmitter. SeeRemote Keyless Entry (RKE) System
Operation on page 2-6for more information.
On vehicles with the Remote Keyless Access system,
the door unlocks by pulling the door handle when
you have the transmitter with you. SeeKeyless Access
System Operation on page 2-8for more information.
Central Door Unlocking System
The vehicle has a central door unlocking feature.
When unlocking the driver door, the other doors can be
unlocked by holding the key in the turned position for a
few seconds or by quickly turning the key twice in the
lock cylinder.
2-16

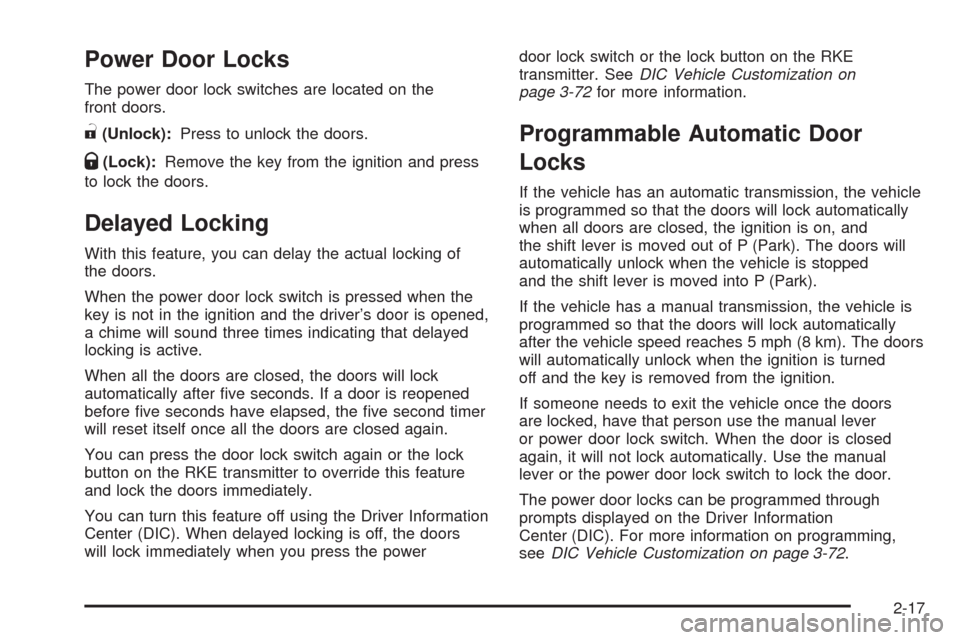

Power Door Locks
The power door lock switches are located on the
front doors.
"(Unlock):Press to unlock the doors.
Q(Lock):Remove the key from the ignition and press
to lock the doors.
Delayed Locking
With this feature, you can delay the actual locking of
the doors.
When the power door lock switch is pressed when the
key is not in the ignition and the driver’s door is opened,
a chime will sound three times indicating that delayed
locking is active.
When all the doors are closed, the doors will lock
automatically after ve seconds. If a door is reopened
before ve seconds have elapsed, the ve second timer
will reset itself once all the doors are closed again.
You can press the door lock switch again or the lock
button on the RKE transmitter to override this feature
and lock the doors immediately.
You can turn this feature off using the Driver Information
Center (DIC). When delayed locking is off, the doors
will lock immediately when you press the powerdoor lock switch or the lock button on the RKE
transmitter. SeeDIC Vehicle Customization on
page 3-72for more information.
Programmable Automatic Door
Locks
If the vehicle has an automatic transmission, the vehicle
is programmed so that the doors will lock automatically
when all doors are closed, the ignition is on, and
the shift lever is moved out of P (Park). The doors will
automatically unlock when the vehicle is stopped
and the shift lever is moved into P (Park).
If the vehicle has a manual transmission, the vehicle is
programmed so that the doors will lock automatically
after the vehicle speed reaches 5 mph (8 km). The doors
will automatically unlock when the ignition is turned
off and the key is removed from the ignition.
If someone needs to exit the vehicle once the doors
are locked, have that person use the manual lever
or power door lock switch. When the door is closed
again, it will not lock automatically. Use the manual
lever or the power door lock switch to lock the door.
The power door locks can be programmed through
prompts displayed on the Driver Information
Center (DIC). For more information on programming,
seeDIC Vehicle Customization on page 3-72.
2-17

Rear Door Security Locks
The vehicle has rear door security locks. These prevent
passengers from opening the rear doors from the inside.
The rear door security
locks are located on the
inside edge of each
rear door. The rear doors
must be open to access
them. The label showing
lock and unlock positions is
located near the lock.To set the locks, do the following:
1. Insert the key into the security lock slot and turn it
so the slot is in the horizontal position.
2. Close the door.
When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the Remote Keyless Entry
(RKE) or Keyless Access System transmitter, if the
vehicle has one, the power door lock switch, or the
rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot and turn it
so the slot is in the vertical position.
Lock Label shown
2-18
