CADILLAC CTS 2012 2.G Owners Manual

Black plate (13,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Service and Maintenance 11-13
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Use only engine oil licensed to the dexos1 specfication, or equivalent, of
the proper SAE viscosity grade. ACDelco dexos1 Synthetic Blend is
recommended. See
Engine Oil on page 10‑10.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See
Engine Coolant on page 10‑18.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 88862806, in
Canada 88862807).
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System GM Power Steering Fluid (GM Part No. 89021184, in Canada 89021186).
Hydraulic Clutch System DOT 4 Hydraulic Clutch Fluid (GM Part No. 88958860, in
Canada 88901244).
Manual Transmission (CTS) SAE 75W-90 GL5 Gear Oil (GM Part No. 88862475, in Canada 88862476).
Manual Transmission (CTS-V) Manual Transmission Fluid (GM Part No. 88861800, in Canada 88861801). Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Rear Drive Module and Transfer Case (All‐Wheel Drive) Transfer Case Fluid (GM Part No. 88861950, in Canada 88861951).

Black plate (14,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
11-14 Service and Maintenance

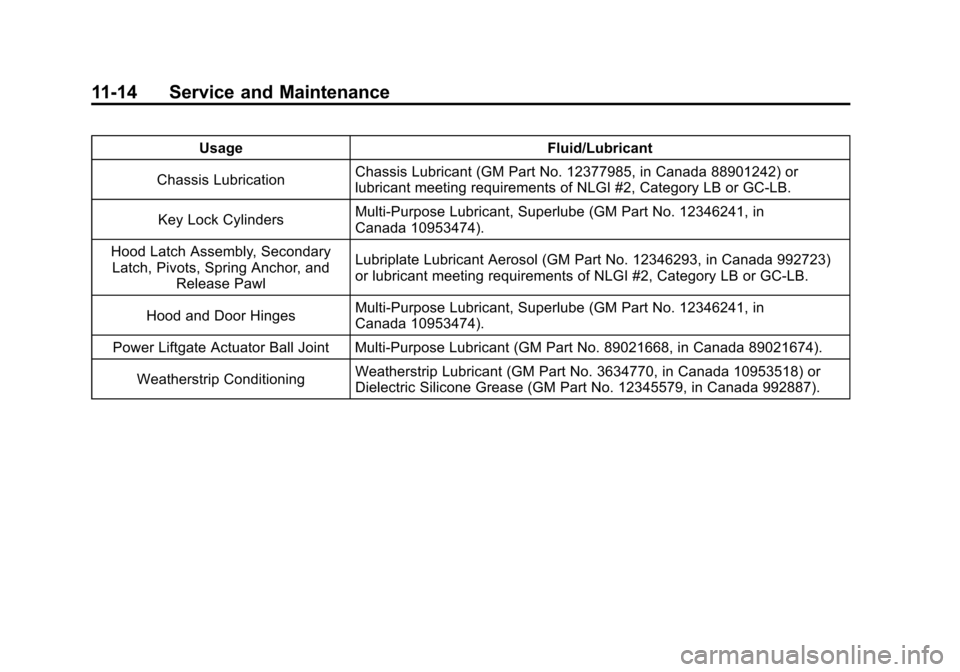

UsageFluid/Lubricant
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 12346293, in Canada 992723)
or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Power Liftgate Actuator Ball Joint Multi-Purpose Lubricant (GM Part No. 89021668, in Canada 89021674).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
Dielectric Silicone Grease (GM Part No. 12345579, in Canada 992887).

Black plate (15,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Service and Maintenance 11-15
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
3.0L V6 Engine 15875795 A3096C
3.6L V6 Engine 15875795 A3096C
6.2L V8 Engine 25898499 A3105C
Engine Oil Filter
3.0L V6 Engine 25177917 PF2129
3.6L V6 Engine 25177917 PF2129
6.2L V8 Engine 89017524 PF48
Passenger Compartment Air Filter Element 19130403 CF133
Spark Plugs
3.0L V6 Engine 12622561 41-109
3.6L V6 Engine 12622561 41-109
6.2L V8 Engine 12571165 41-104

Black plate (16,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
11-16 Service and Maintenance

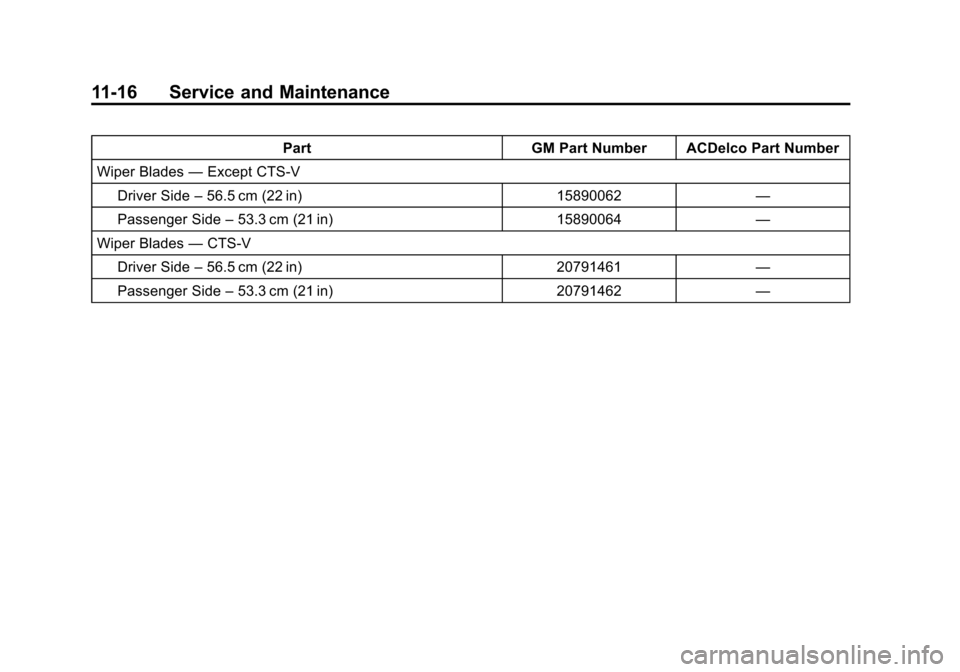

PartGM Part Number ACDelco Part Number
Wiper Blades —Except CTS-V
Driver Side –56.5 cm (22 in) 15890062—
Passenger Side –53.3 cm (21 in) 15890064—
Wiper Blades —CTS-V
Driver Side –56.5 cm (22 in) 20791461—
Passenger Side –53.3 cm (21 in) 20791462—

Black plate (17,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Service and Maintenance 11-17
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (18,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
11-18 Service and Maintenance
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (19,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Service and Maintenance 11-19
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (20,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
11-20 Service and Maintenance
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (1,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the spare tire cover,
has the following information:
.Vehicle Identification
Number (VIN).
.Model designation.
.Paint information.
.Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
12-2 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants on page 11‑13 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Cooling System —Engine
3.0L V6 Engine 10.3 L 10.9 qt
3.6L V6 Engine 11.3 L 11.9 qt
6.2L V8 Engine 11.8 L 12.5 qt
Cooling System —Intercooler, 6.2L V8 Engine 2.3 L 2.4 qt
Engine Oil with Filter 3.0L V6 Engine 5.7 L 6.0 qt
3.6L V6 Engine 5.7 L 6.0 qt
6.2L V8 Engine 5.7 L 6.0 qt
