CADILLAC DEVILLE 2001 8.G User Guide

ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important for
you and your
passengers
whenever your
vehicle is driven:
CHILD
RESTRAINT
TOP STRAP
ANCHOR
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.

For
a More
Detailed Look at
What's Under the Hood
See Section 6
Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6Remote Fuel
Door Release
See Section 6
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Alternate
Fuel Door Release
See Section 6
Battery
See Section 6
Tire Pressure
See Section 6
Fuel
Use unleaded only.
See Section 6
for octane ratings.

1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-9 Safety Belts: They're for Everyone
1
-14 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-15 How to Wear Safety Belts Properly
1
-15 Driver Position
1
-22 Safety Belt Use During Pregnancy
1
-23 Right Front Passenger Position
1
-23 Air Bag Systems
1
-33 Safety Belt Pretensioners
1
-33 Center Front Passenger Position1
-34 Rear Seat Passengers
1
-38 Rear Safety Belt Comfort Guides for Children
and Small Adults
1
-40 Children
1
-44 Restraint Systems for Children
1
-55 Older Children
1
-58 Safety Belt Extender
1
-58 Checking Your Restraint Systems
1
-58 Replacing Restraint System Parts After
a Crash

1-2
Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them, and also about the reclining front seatbacks,
memory seats, lumbar adjustments and heated seats.
Power Seats
The power seat controls
are located on the
outboard side of the
front seat cushions.

Move the front of the seat control up or down to
adjust the front portion of the cushion.

Move the rear of the seat control up or down to
adjust the rear portion of the cushion.

Lift up or push down on the center of the seat control
to move the entire seat up or down.

To move the seat forward or rearward, slide the seat
control forward or rearward.
Four Way Power Lumbar Control
(If Equipped)
If you have this feature, the
driver's and passenger's
seatback lumbar support
can be adjusted four ways
by moving a single switch
located on the outboard side
of the seat.
To increase or decrease support, hold the switch forward
or rearward. To move the lumbar up or down, hold the
switch up or down.
Keep in mind that as your seating position changes, as it
may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.

1-3 Massaging Lumbar (If Equipped)
Push the top of the lumbar
control located on the
outboard side of the seat
where it is marked AUTO
briefly to activate the
massage feature.
The massage cycle will run continuously for up to
10 minutes and can be interrupted by pushing the
lumbar control down briefly. The lumbar support can
be adjusted during the massage cycle by moving the
switch forward to increase support and rearward to
decrease support. The massage cycle will continue
to run even if the ignition is turned to OFF,
unless interrupted.
Four-Way Rear Power Lumbar
(If Equipped)
Four-way lumbar, without
the massage feature, is also
available for the outboard
rear seating positions.
To activate the rear lumbar feature, push forward on the
switch located on the rear door trim to increase support
or rearward to decrease support. The lumbar switch can
also be moved up and down to adjust the location of
the support.

1-4 Adaptive Seat Control (Option)
The adaptive seat control is
located on the outboard side
of the driver's seat. Use the
power seat control first to
get the proper position.When the ignition is turned to ON, press the top of
the power lumbar control where it is marked AUTO to
activate the adaptive feature. The seatback and cushion
will inflate to adjust to the driver's body positioning in
four
-minute cycles.
To reshape the lower seatback, press the lumbar
control forward to increase support and rearward to
decrease support.
To turn off the adaptive seat feature, press the control
down. The seat will deflate when the adaptive seat
control or the ignition is turned off.

1-5 Memory Seat, Mirrors and Steering
Wheel (Option)
The controls for these
features are located on the
driver's door panel, and are
used to program and recall
memory settings for the
driver's seating positions.
Adjust the driver's seat (including the seatback recliner,
lumbar and shoulder belt height adjustments), both the
outside mirrors and steering wheel to a comfortable
position and then press the MEMORY SET button.
Within five seconds, press button ª1º (for driver 1).A second mirror, seating and steering wheel position
can be programmed by repeating the above steps and
pressing button ª2º (for driver 2). Each time a memory
button is pressed, a single beep will sound. Each time
button 1 or 2 is pressed and released while the vehicle
is in PARK (P), the memory positions will be recalled.
Each time button 1 or 2 is pressed and held while the
vehicle is out of PARK (P), the memory positions will
be recalled.
To stop recall movement of the memory seat and
steering wheel at any time, press one of the power seat,
steering wheel or mirror controls.
Two personalized exit positions can be set by first
recalling the driving position (by pressing 1 or 2),
then positioning the steering wheel and seat in the
desired exit positions and then pressing and releasing
the MEMORY SET button and, within five seconds,
pressing the EXIT button. With the vehicle in PARK (P),
the exit position for either previously set driver can be
recalled by pressing the EXIT button. The mirrors,
power lumbar and shoulder belt height positions will
not be stored or recalled for the exit positions.

1-6
If you use the remote keyless entry transmitter to enter
your vehicle, automatic seat and mirror movement will
occur. The numbers on the back of the transmitters,
1 and 2, correspond to the numbers on the buttons
on the door panel.
When the key is placed in the ignition in OFF or when
the unlock button is pressed on the remote keyless entry
transmitter, the seats and mirrors will automatically
adjust to the programmed position.
Programming for automatic seat, steering wheel and
mirror movement is done through the Driver Information
Center (DIC). You can choose to either select or not
select automatic seat and mirror movement using the
remote keyless entry transmitter, placing your key in
the ignition, or by exiting the vehicle. For programming
information, see ªVehicle Programming and
Personalization Featuresº in the Index.Heated Seats (If Equipped)

1-7
Your vehicle may have heated front and rear seats. The
buttons are located on the armrests. The HEAT/OFF
button controls the temperature settings HI, MED
and LO. The other button is to choose BACK ONLY
heating. The LO setting warms the seatback and cushion
until the seat approximates body temperature. The MED
and HI settings heat the seatback and seat cushion to a
slightly higher temperature, and the BACK ONLY heats
only the seatback. The temperature can be adjusted
by pushing the button from HI to LO or, until the
desired setting is reached. You will be able to feel heat
in approximately two minutes. To heat just the seatback,
push the BACK ONLY button once, after first activating
the heated seat feature. To turn off the heat in the
seatback, push the button again. The feature will
also shut off when the ignition is turned to OFF.Reclining Front Seatbacks
Press the recliner control
located on the outboard
side of the seat, forward
or rearward to adjust
the seatback.
Push the recliner control up or down to adjust the
shoulder belt height. See ªShoulder Belt Height
Adjusterº in the Index for more information.

1-8

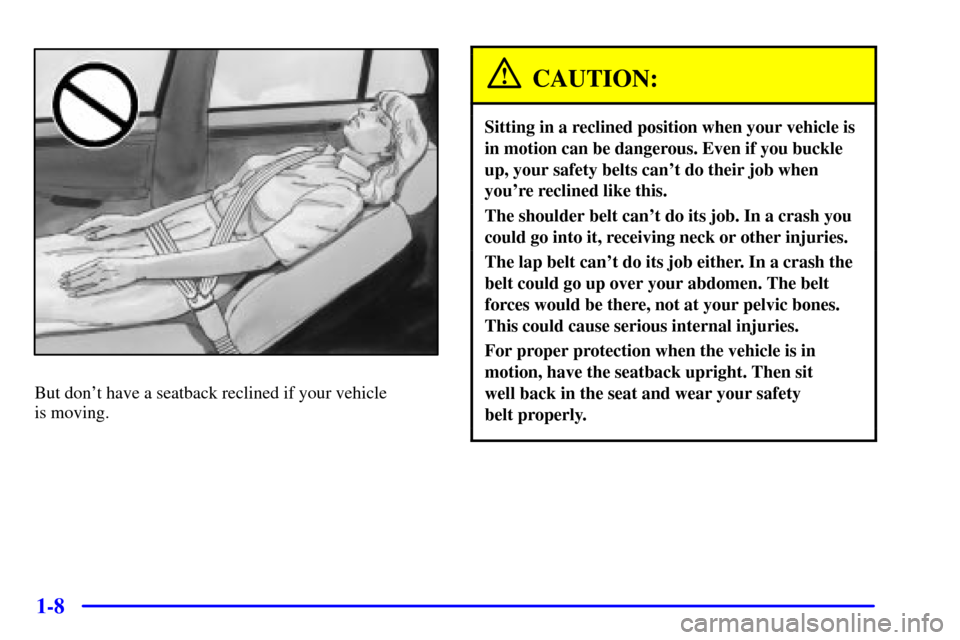

But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
