Mirror Adjustment
1. Press (C) to unfold the mirrors out to the drivingposition.
2. Press (D) to fold the mirrors toward the vehicle.
Resetting the Power Foldaway Mirrors
Reset the power foldaway mirrors if:
.The mirrors are accidentally obstructed while
folding.
.They are accidentally manually folded/unfolded.
.The mirrors do not stay in the unfolded position.
.The mirrors vibrate at normal driving speeds.
Fold and unfold the mirrors one time using the mirror
controls to reset them to their normal position. A noise
may be heard during the resetting of the power
foldaway mirrors. This sound is normal after a manual
folding operation.
Turn Signal Indicator (If Equipped)
The vehicle may have a turn signal indicator lamp that
is built into the mirror. The turn signal lamp flashes with
the use of the vehicle's turn signal and hazard flashers.
Outside Automatic Dimming Mirror
If the vehicle has this feature, the driver side mirror
adjusts for the glare of headlamps behind you. This
feature is controlled by the on and off settings on the
automatic dimming rearview mirror.
Side Blind Zone Alert (SBZA)
If the vehicle has the Side Blind Zone Alert (SBZA)
system, see Side Blind Zone Alert (SBZA)on
page 3‑42for more information.
Park Tilt Mirrors
If your vehicle is equipped with memory mirrors, it is
capable of performing the park tilt mirror feature. This
feature allows the driver and passenger side mirror to
tilt to a factory programmed position when the vehicle is
in R (Reverse). This feature may be useful in allowing
you to view the curb when you are parallel parking.
When the vehicle is shifted out of R (Reverse) and
either a five-second delay has occurred, or the ignition
is turned to LOCK/OFF, the driver and passenger side
mirror will return to its original position.
This feature can be enabled/disabled through the
Driver Information Center (DIC). See DIC Vehicle
Customization
on page 4‑77for more information.
3-37
Page 142 of 470

Black plate (38,1)Cadillac DTS Owner Manual - 2011
Outside Convex Mirror
{WARNING:
A convex mirror can make things, like other
vehicles, look farther away than they really are.
If you cut too sharply into the right lane, you could
hit a vehicle on the right. Check the inside mirror
or glance over your shoulder before changing
lanes.
The passenger side mirror is convex shaped. A convex
mirror's surface is curved so more can be seen from the
driver seat.
Outside Heated Mirrors
=(Rear Window Defogger): Press to heat the
mirrors. See “Rear Window Defogger” underDual
Climate Control System
on page 4‑34for more
information.
Object Detection Systems
Ultrasonic Front and Rear Parking
Assist (UFRPA)
For vehicles with the Ultrasonic Front and Rear Parking
Assist (UFRPA) system, it operates at speeds less than
8 km/h (5mph), and assists the driver with parking and
avoiding objects. It can determine how close objects are
to the front bumper, up to 1.2 m (4 ft.) in front of the
vehicle and the rear bumper, up to 2.5 m (8 ft.) behind
the vehicle. The distance sensors are located on the
front and rear bumper.
3-38
Page 143 of 470

Black plate (39,1)Cadillac DTS Owner Manual - 2011
{WARNING:
The Ultrasonic Front and Rear Park Assist
(UFRPA) system does not replace driver vision.
It cannot detect:
.objects that are below the bumper, underneath
the vehicle, or if they are too close or far from
the vehicle
.children, pedestrians, bicyclists, or pets.
If you do not use proper care before moving
forward and while backing; vehicle damage, injury,
or death could occur. Even with UFRPA, always
check in front of the vehicle before moving
forward and behind the vehicle before backing up.
While moving forward and backing, be sure to
look for objects and check the vehicle's mirrors.

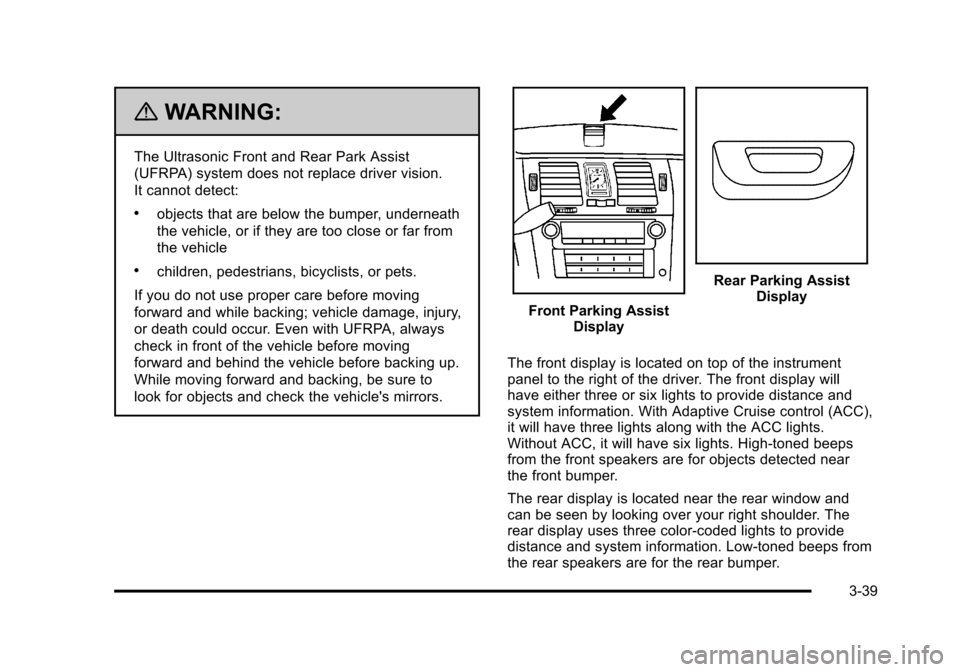

Front Parking Assist Display
Rear Parking AssistDisplay
The front display is located on top of the instrument
panel to the right of the driver. The front display will
have either three or six lights to provide distance and
system information. With Adaptive Cruise control (ACC),
it will have three lights along with the ACC lights.
Without ACC, it will have six lights. High-toned beeps
from the front speakers are for objects detected near
the front bumper.
The rear display is located near the rear window and
can be seen by looking over your right shoulder. The
rear display uses three color-coded lights to provide
distance and system information. Low-toned beeps from
the rear speakers are for the rear bumper.
3-39
Page 144 of 470

Black plate (40,1)Cadillac DTS Owner Manual - 2011

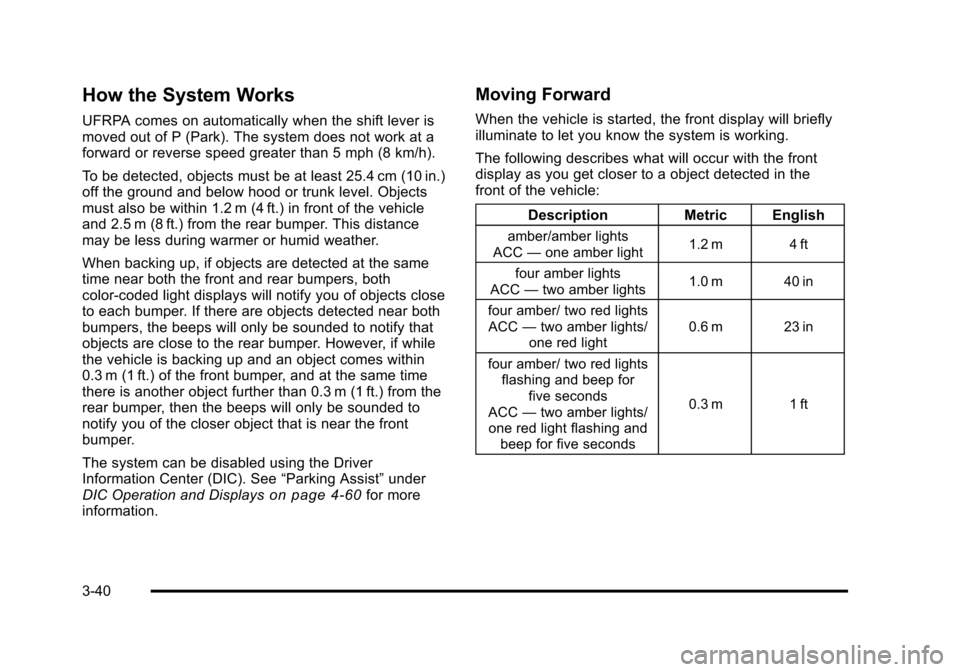

How the System Works
UFRPA comes on automatically when the shift lever is
moved out of P (Park). The system does not work at a
forward or reverse speed greater than 5 mph (8 km/h).
To be detected, objects must be at least 25.4 cm (10 in.)
off the ground and below hood or trunk level. Objects
must also be within 1.2 m (4 ft.) in front of the vehicle
and 2.5 m (8 ft.) from the rear bumper. This distance
may be less during warmer or humid weather.
When backing up, if objects are detected at the same
time near both the front and rear bumpers, both
color-coded light displays will notify you of objects close
to each bumper. If there are objects detected near both
bumpers, the beeps will only be sounded to notify that
objects are close to the rear bumper. However, if while
the vehicle is backing up and an object comes within
0.3 m (1 ft.) of the front bumper, and at the same time
there is another object further than 0.3 m (1 ft.) from the
rear bumper, then the beeps will only be sounded to
notify you of the closer object that is near the front
bumper.
The system can be disabled using the Driver
Information Center (DIC). See“Parking Assist”under
DIC Operation and Displays
on page 4‑60for more
information.
Moving Forward
When the vehicle is started, the front display will briefly
illuminate to let you know the system is working.
The following describes what will occur with the front
display as you get closer to a object detected in the
front of the vehicle:
Description Metric English
amber/amber lights
ACC —one amber light 1.2 m 4 ft
four amber lights
ACC —two amber lights 1.0 m 40 in
four amber/ two red lights ACC —two amber lights/
one red light 0.6 m 23 in
four amber/ two red lights flashing and beep for five seconds
ACC —two amber lights/
one red light flashing and
beep for five seconds 0.3 m 1 ft
3-40
Page 145 of 470

Black plate (41,1)Cadillac DTS Owner Manual - 2011
Backing
Ultrasonic Rear Parking Assist (URPA) comes on
automatically when the shift lever is moved into
R (Reverse). The rear display will then briefly illuminate
to let you know the system is working.
The following describes what will occur with the rear
display as you get closer to an object detected in the
rear of your vehicle:Description Metric English
amber light 2.5 m 8 ft.
amber/amber lights 1.0 m 40 in.
amber/amber/red lights and continuous beeping for five seconds 0.6 m 23 in.
amber/amber/red lights
flashing and continuous
beeping for five seconds 0.3 m 1 ft.
The system can be disabled through the Driver
Information Center (DIC). See
“Parking Assist”under
DIC Operation and Displays
on page 4‑60for more
information.
When the System Does Not Seem to
Work Properly
If the URPA system will not activate due to a temporary
condition, the message PARK ASSIST OFF will be
displayed on the DIC and a red light will be shown on
the rear URPA display when the shift lever is moved
into R (Reverse). This occurs under the following
conditions:
.The driver disables the system.
.The ultrasonic sensors are not clean. Keep the
vehicle's rear bumper free of mud, dirt, snow, ice
and slush. For cleaning instructions, see Washing
Your Vehicle on page 6‑98.
.A trailer was attached to the vehicle, or a bicycle or
an object was hanging out of the trunk during the
last drive cycle, the red light may illuminate in the
rear display. Once the attached object is removed,
URPA will return to normal operation.
.A tow bar is attached to the vehicle.
.The vehicle's bumper is damaged. Take the vehicle
to your dealer to repair the system.
.Other conditions may affect system performance,
such as vibrations from a jackhammer or the
compression of air brakes on a very large truck.
If the system is still disabled after driving forward at
least 25 km/h (15 mph), take the vehicle to your dealer.
3-41
Page 146 of 470

Black plate (42,1)Cadillac DTS Owner Manual - 2011
Side Blind Zone Alert (SBZA)
The vehicle may have a Side Blind Zone Alert (SBZA)
system. Read this entire section before using the
system.
{WARNING:
SBZA is only a lane changing aid and does not
replace driver vision. SBZA does not detect:
.Vehicles outside the side blind zones which
may be rapidly approaching.
.Pedestrians, bicyclists, or animals.
Failure to use proper care when changing lanes
may result in damage to the vehicle, injury,
or death. Always check the outside and rearview
mirrors, glance over your shoulder, and use the
turn signal before changing lanes.
When the system detects a vehicle in the side blind
zone, amber SBZA displays will light up in the side
mirrors. This indicates that it may be unsafe to change
lanes. Before making a lane change, always check the SBZA display, check the outside and rearview mirrors,
look over your shoulder for vehicles and hazards, and
use the turn signal.
SBZA Detection Zones
The SBZA sensor covers a zone of approximately
one lane over from both sides of the vehicle, 3.5 m
(11 ft). This zone starts at each side mirror and goes
back approximately 5 m (16 ft). The height of the zone is
approximately between 0.5 m (1.5 ft) and 2.0 m (6 ft) off
the ground.
3-42
Page 147 of 470

Black plate (43,1)Cadillac DTS Owner Manual - 2011
The SBZA detection zones do not change if the vehicle
is towing a trailer. So be extra careful when changing
lanes while towing a trailer.
How the System Works
Left Side Mirror DisplayRight Side Mirror Display
When the vehicle is started, both outside mirror displays
will briefly come on to indicate that the system is
operating. While driving forward, the left or right side
mirror SBZA display will light up if a vehicle is detected
in that blind zone. If you activate a turn signal and a
vehicle has been detected on the same side, the SBZA
display will flash to give you extra warning not to
change lanes.
SBZA displays do not come on while the vehicle is
approaching or passing other vehicles. At speeds
greater then 20 mph (32 km/h), SBZA displays may
come on when a vehicle you have passed remains in or
drops back into the detection zone. SBZA can be disabled through the Driver Information
Center (DIC). See
Driver Information Center (DIC)
on
page 4‑59for more information. If the SBZA is disabled
by the driver, the SBZA mirror displays will not light up
during normal driving.
When the System Does Not Seem To Work
Properly
Occasional missed alerts can occur under normal
circumstances and will increase in wet conditions.
The system does not need to be serviced due to an
occasional missed alert. The number of missed alerts
will increase with increased rainfall or road spray.
If the SBZA displays do not light up when the system is
on and vehicles are in the blind zone, the system may
need service. Take the vehicle to your dealer.
SBZA is designed to ignore stationary objects; however,
the system may occasionally light up due to guard rails,
signs, trees, shrubs, and other stationary objects. This
is normal system operation, the vehicle does not need
service.
SBZA does not operate when the left or right corners of
the rear bumper are covered with mud, dirt, snow, ice,
slush, or in heavy rainstorms. For cleaning instructions,
see Washing Your Vehicle
on page 6‑98. If the DIC
still displays the SIDE BLIND ZONE SYSTEM
UNAVAILABLE message after cleaning the bumper,
see your dealer.
3-43
Page 148 of 470

Black plate (44,1)Cadillac DTS Owner Manual - 2011
The SBZA displays may remain on if a trailer is
attached to the vehicle, or a bicycle or object is
extending out to either side of the vehicle.
When SBZA is disabled for any reason other than the
driver turning it off, the driver will not be able to turn
SBZA back on using the DIC. The SIDE BLIND ZONE
ALERT ON option will not be selectable if the conditions
for normal system operation are not met. Until normal
operating conditions for SBZA are met, you should not
rely upon SBZA while driving.
SBZA Error Messages
The following messages may appear in the DIC:
SIDE BLIND ZONE ALERT SYSTEM OFF:This
message indicates that the driver has turned the
system off.
SIDE BLIND ZONE SYSTEM UNAVAILABLE: This
message indicates that the SBZA system is disabled
because the sensor is blocked and cannot detect
vehicles in the blind zone. The sensor may be
blocked by mud, dirt, snow, ice, slush, or even heavy
rainstorms. This message may also activate during
heavy rain or due to road spray. The vehicle does not
need service. For cleaning, see Washing Your Vehicle
on page 6‑98. SERVICE SIDE BLIND ZONE ALERT SYSTEM:
If this
message appears, both SBZA displays will remain on
indicating there is a problem with the SBZA system.
If these displays remain on after continued driving, the
system needs service. Take the vehicle to your dealer.
FCC Information
See Radio Frequency Statementon page 8‑18for information regarding Part 15 of the Federal
Communications Commission (FCC) rules and Industry
Canada Standards RSS-210/220/310.
Frequency of operation: 24.05GHz –24.25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3 m.
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's
authority to operate the equipment.
3-44
Page 149 of 470

Black plate (45,1)Cadillac DTS Owner Manual - 2011
Lane Departure Warning (LDW)
The vehicle may have a Lane Departure Warning
(LDW) system. Read this entire section before using the
system.
{WARNING:
The Lane Departure Warning (LDW) system does
not steer the vehicle and is only an aid to help you
stay in your driving lane. The LDW system
may not:
.Provide you with enough time to avoid a lane
change collision.
.Be loud enough for you to hear the warning
beeps.
.Work properly under bad weather conditions
or if the windshield is not kept clean.
.Detect lane markings and will not detect road
edges.
.Warn you that your vehicle is crossing a lane
marking if the system does not detect the lane
marking.(Continued)
WARNING: (Continued)
LDW will indicate the system is working whenever
it detects either the left or right lane marking. So if
you depart on the side of the lane that LDW is not
detecting, LDW will not warn you.
If you do not carefully maintain your vehicle
position within the lane, vehicle damage, injury,
or death could occur. Even with LDW, always
keep your attention on the road and maintain
proper vehicle position within the lane. Always
keep the windshield clean and do not use LDW in
bad weather conditions.
When the vehicle crosses a detected lane marking, the
LDW symbol will flash and you will hear three beeps.
LDW will not warn you if the turn signal is on or if you
make a sharp maneuver. Before making a lane change,
check the vehicle's mirrors, glance over your shoulder
for vehicles and hazards, and start the turn signal
before changing lanes.
3-45
Page 150 of 470

Black plate (46,1)Cadillac DTS Owner Manual - 2011
How the System Works
LDW uses a camera located between the inside
rearview mirror and the windshield to detect the lane
markings.
@(Lane Departure Warning):To turn LDW on and
off, press the LDW control, located by the exterior
headlamp control. An indicator on the control will light to
indicate that LDW is on.
When the vehicle is started, the LDW symbol, located
in the instrument panel cluster, will briefly come on to
indicate that the light is operational. LDW only operates at speeds of 35 mph (56 km)
or greater. If LDW is turned on when traveling at
these speeds, the LDW symbol will appear green
if the system detects a left or right lane marking.
This symbol will change to amber and flash and
three beeps will sound if you cross a detected lane
marking without using the turn signal.
If the LDW symbol does not appear, LDW is not
currently operating and will not warn you.
To change the volume of the warning chime, see Chime
Volume under
DIC Vehicle Customization
on page 4‑77for more information.
When the System Does Not Seem To Work
Properly
The LDW symbol will not appear when the system is
having difficulty seeing the lines on the road or if the
view of the camera on the windshield is blocked with
mud, dirt, snow, ice, or slush, if the windshield is
damaged, or when weather limits visibility, such as
while driving in fog, rain, or snow conditions. This is
normal operation, the vehicle does not need service.
For cleaning instructions, see Washing Your Vehicle
on
page 6‑98.
3-46
