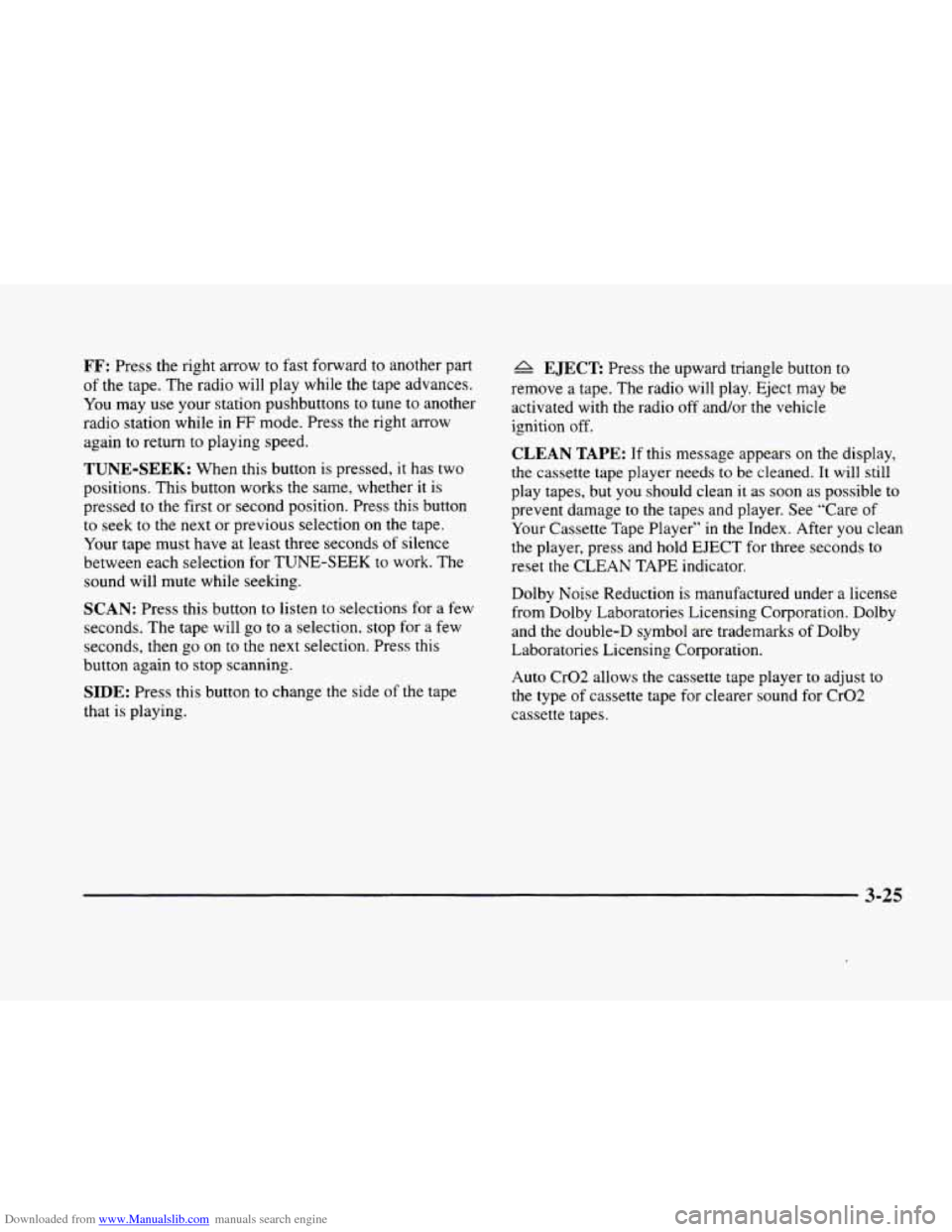

Downloaded from www.Manualslib.com manuals search engine FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune
to another
radio station while in
FF mode. Press the right arrow
again
to return to playing speed.
TUNE-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed
to the first or second position. Press this button
to seek to the next or previous selection
on the tape.
Your tape must have
at least three seconds of silence
between each selection
for TUNE-SEEK to work. The
sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds.
The tape will go to a selection. stop for a few
seconds, then go on to the next selection. Press this
button again
to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing.
/1 EJECT Press the upward triangle button to
remove a tape. The radio will play. Eject may be
activated with the radio
off and/or the vehicle
ignition off.
CLEAN TAPE: If this message appears on the display,
the cassette tape player needs
to be cleaned. It will still
play tapes, but
you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care
of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for three seconds to
reset the CLEAN TAPE indicator.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Auto Cr02 allows the cassette tape player
to adjust to
the type of cassette tape for clearer sound for Cr02
cassette tapes.
3-25

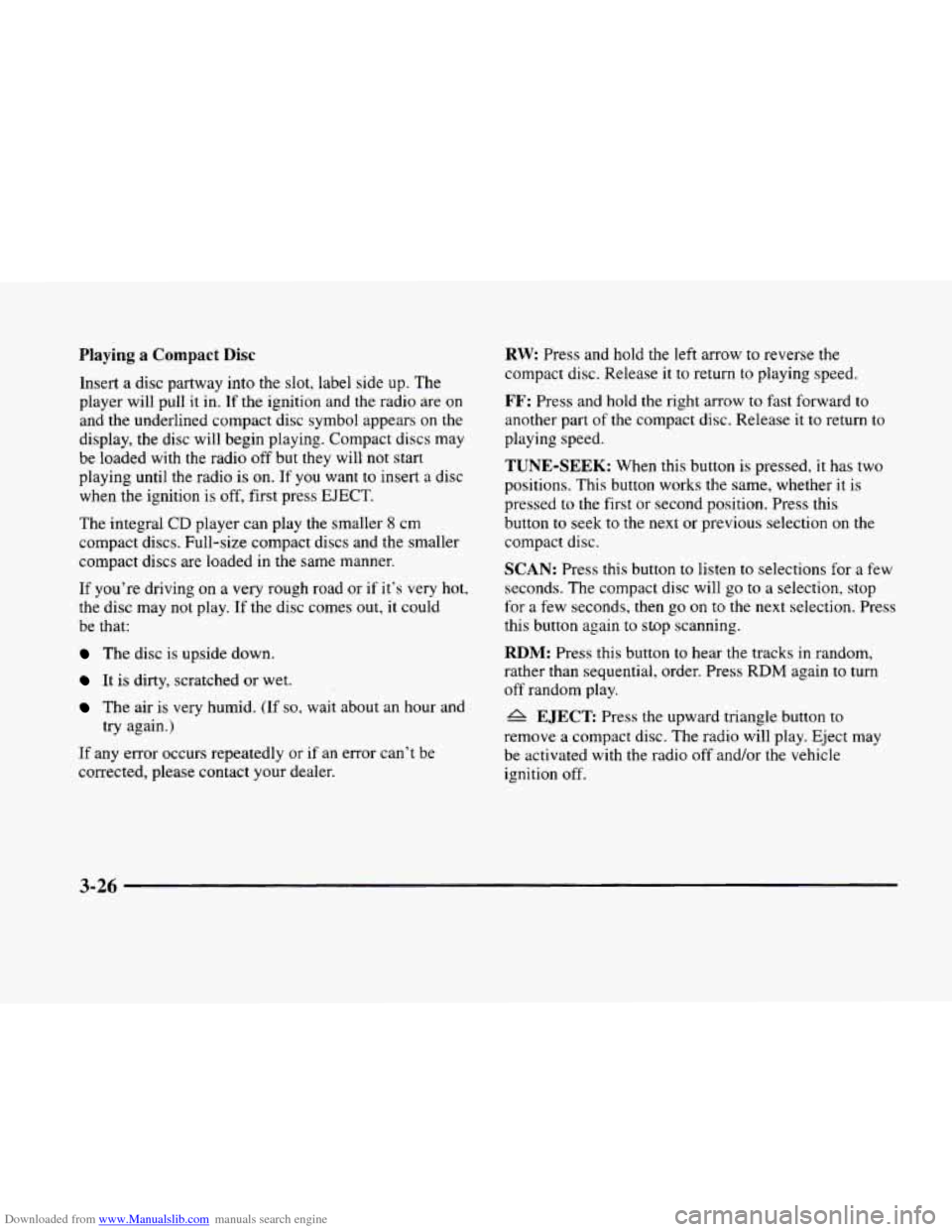

Downloaded from www.Manualslib.com manuals search engine Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on
and the underlined compact disc symbol appears on the
display, the disc will begin playing. Compact discs may
be loaded with the radio off but they will
not start
playing until the radio
is on. If you want to insert a disc
when the ignition is off, first press
EJECT.
The integral CD player can play the smaller 8 cm
compact discs. Full-size compact discs and the smaller
compact discs are loaded in the same manner.
If you’re driving on a very rough road or if it’s very hot,
the disc
may not play. If the disc comes out, it could
be that:
The disc is upside down.
It is dirty, scratched or wet.
The air is very humid. (If so, wait about an hour and
try again.)
If any error occurs repeatedly
or if an error can’t be
corrected, please contact your dealer.
RW: Press and hold the left arrow to reverse the
compact disc. Release it
to return to playing speed,
FF: Press and hold the right arrow to fast forward to
another part
of the compact disc. Release it to return to
playing speed.
TUNE-SEEK: When this button is pressed, it has two
positions. This button works
the same, whether it is
pressed
to the first or second position. Press this
button
to seek to the next or previous selection on the
compact disc.
SCAN: Press this button to listen to selections for a few
seconds. The compact disc will
go to a selection, stop
for a few seconds, then
go on to the next selection. Press
this button again
to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press RDM again
to turn
off random play.
A EJECT: Press the upward triangle button to
remove a compact disc. The radio will play. Eject may
be activated with the radio
off and/or the vehicle
ignition
off.
3-26

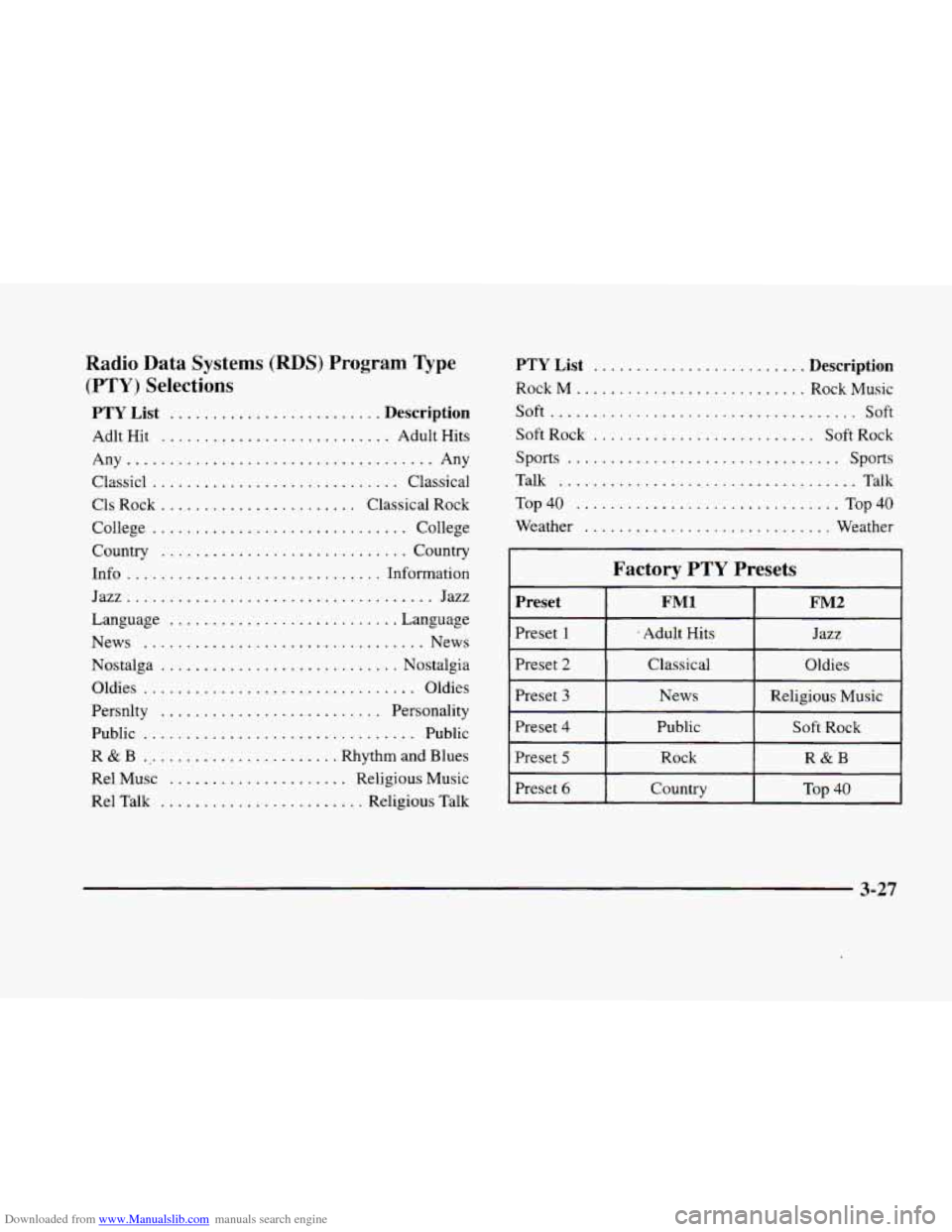

Downloaded from www.Manualslib.com manuals search engine Radio Data Systems (RDS) Program Type
(PTY) Selections
PTY List ......................... Description
Adlt Hit ........................... Adult Hits
Any
.................................... Any
Classic1
............................. Classical
Cls Rock ....................... Classical Rock
College
.............................. College
Country
............................. Country
Info
.............................. Information
Jazz,
................................... Jazz
Language ........................... Language
News
................................. News
Nostalga
............................ Nostalgia
Oldies
................................ Oldies
Persnlty
.......................... Personality
Public
................................ Public
R & B ........................ Rhythm and Blues
Re1 Musc
..................... Religious Music
Re1 Talk
........................ Religious Talk
PTY List ......................... Description
Rock M ........................... Rock Music
Soft
......... + , .......................... Soft
Soft Rock .......................... Soft Rock
sports ................................ sports
Talk
................................... Talk
Top40 ............................... Top40
Weather
............................. Weather
Factory PTY Presets
Preset I FMl I FM2
Preset 1 ~ Adult Hits Jazz
Preset 2 Classical Oldies
Preset
3 News Religious Music
Preset
4 Public Soft Rock
Preset
5 Rock R&B
Preset
6 Country Top
40
3-27

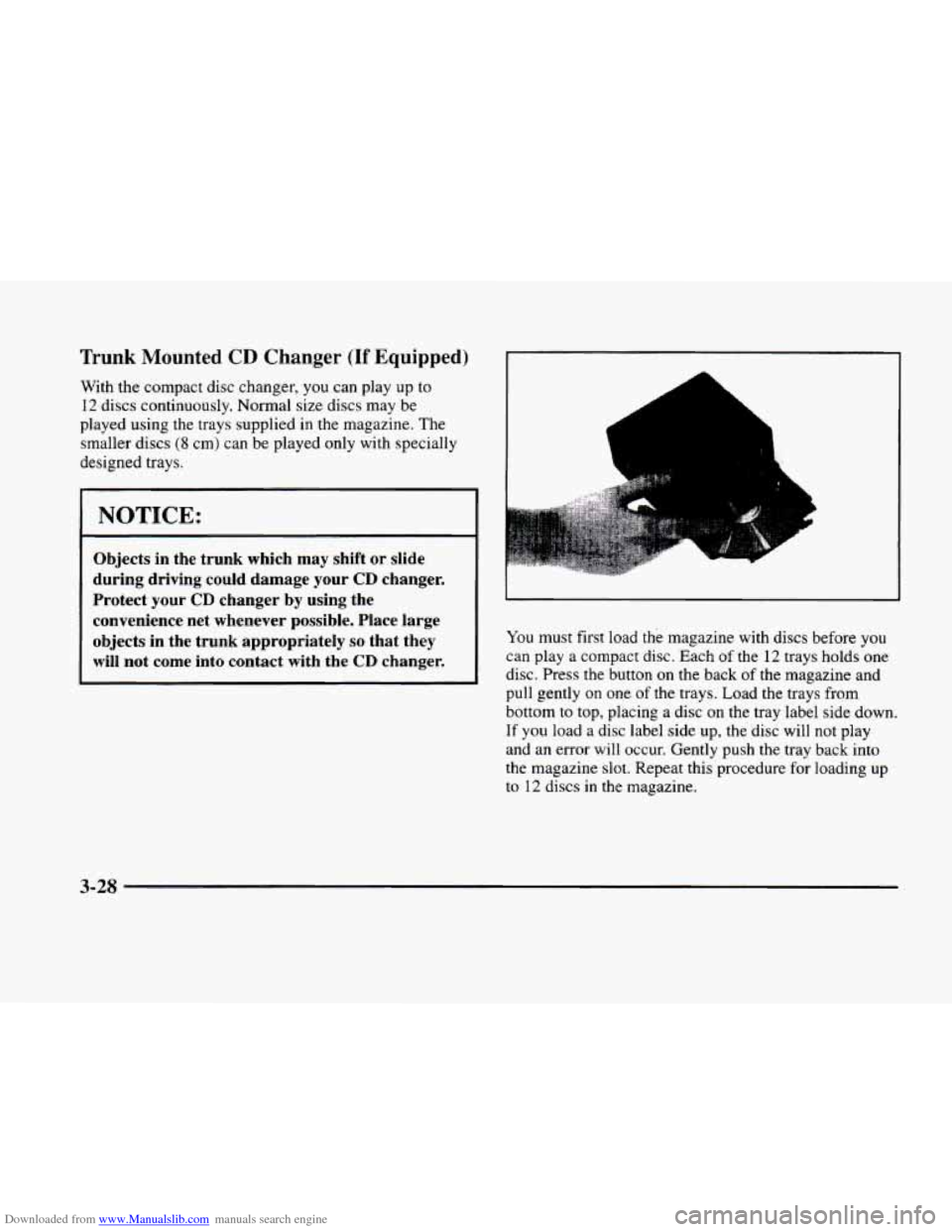

Downloaded from www.Manualslib.com manuals search engine Trunk Mounted CD Changer (If Equipped)
With the compact disc changer, you can play up to
12 discs continuously. Normal size discs may be
played using the trays supplied in
the magazine. The
smaller discs
(8 cm) can be played only with specially
designed
trays.
NOTICE:
Objects in the trunk which may shift or slide
during driving could damage your
CD changer.
Protect your
CD changer by using the
convenience net whenever possible. Place large
objects in the trunk appropriately
so that they
will not come into contact
with the CD changer.
A
i
k
L
You must first load the magazine with discs before you
can play a compact disc. Each
of the 12 trays holds one
disc. Press the button
on the back of the magazine and
pull gently
on one of the trays. Load the trays from
bottom to top, placing a disc on the tray label side down.
If you load a disc label side up, the disc will not play
and an error
will occur. Gently push the tray back into
the magazine slot. Repeat this procedure for loading up
to
12 discs in the magazine.
3-28

Downloaded from www.Manualslib.com manuals search engine , "i *Ad

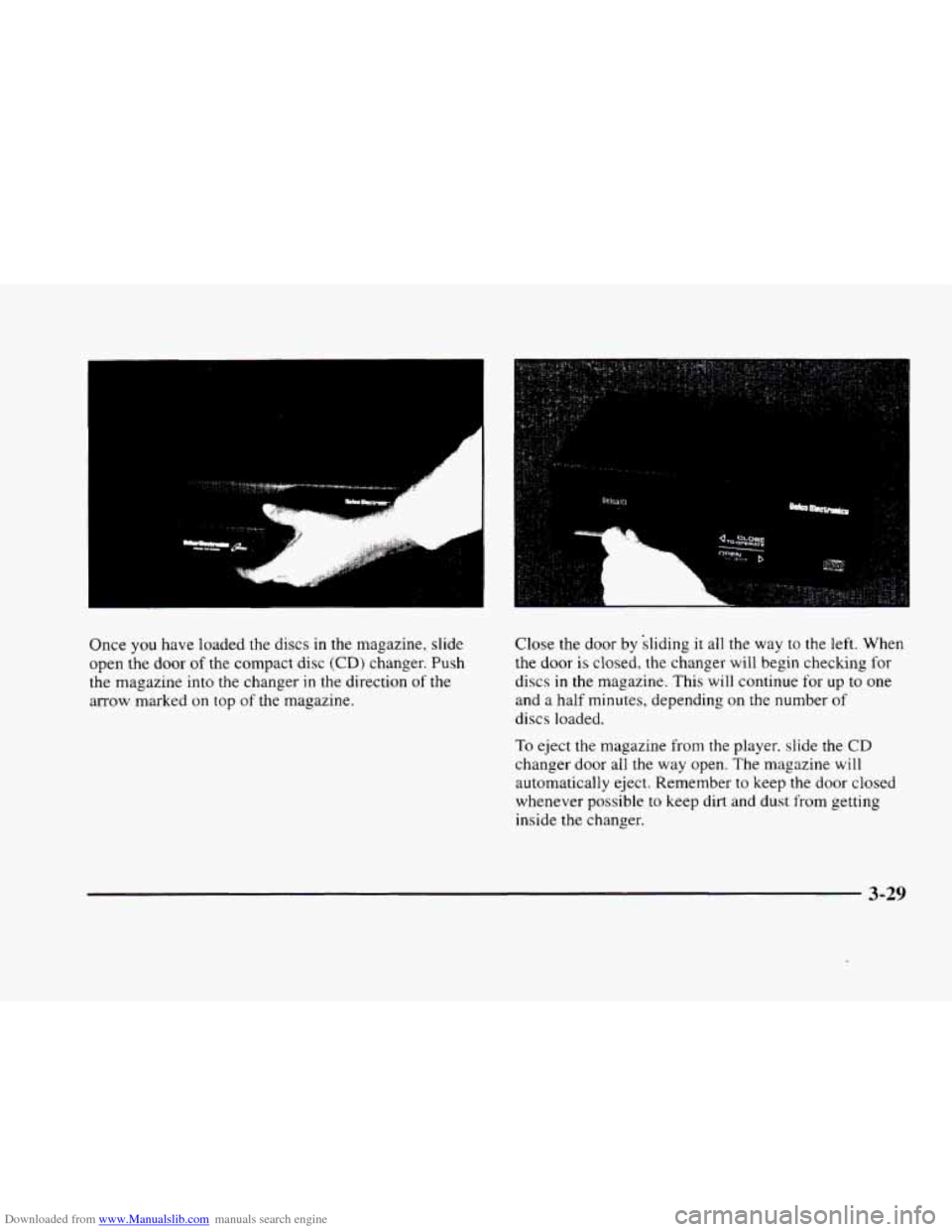

Once you have loaded the discs in the magazine, slide
open the door
of the compact disc (CD) changer. Push
the magazine into the changer
in the direction of the
arrow marked on top
of the magazine. Close
the door by sliding
it all the way to the left. When
the door is closed, the changer will begin checking
for
discs in the magazine. This will continue for up to one
and a half minutes, depending on the number
of
discs loaded.
To eject the magazine from the player. slide the CD
changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.
3-29

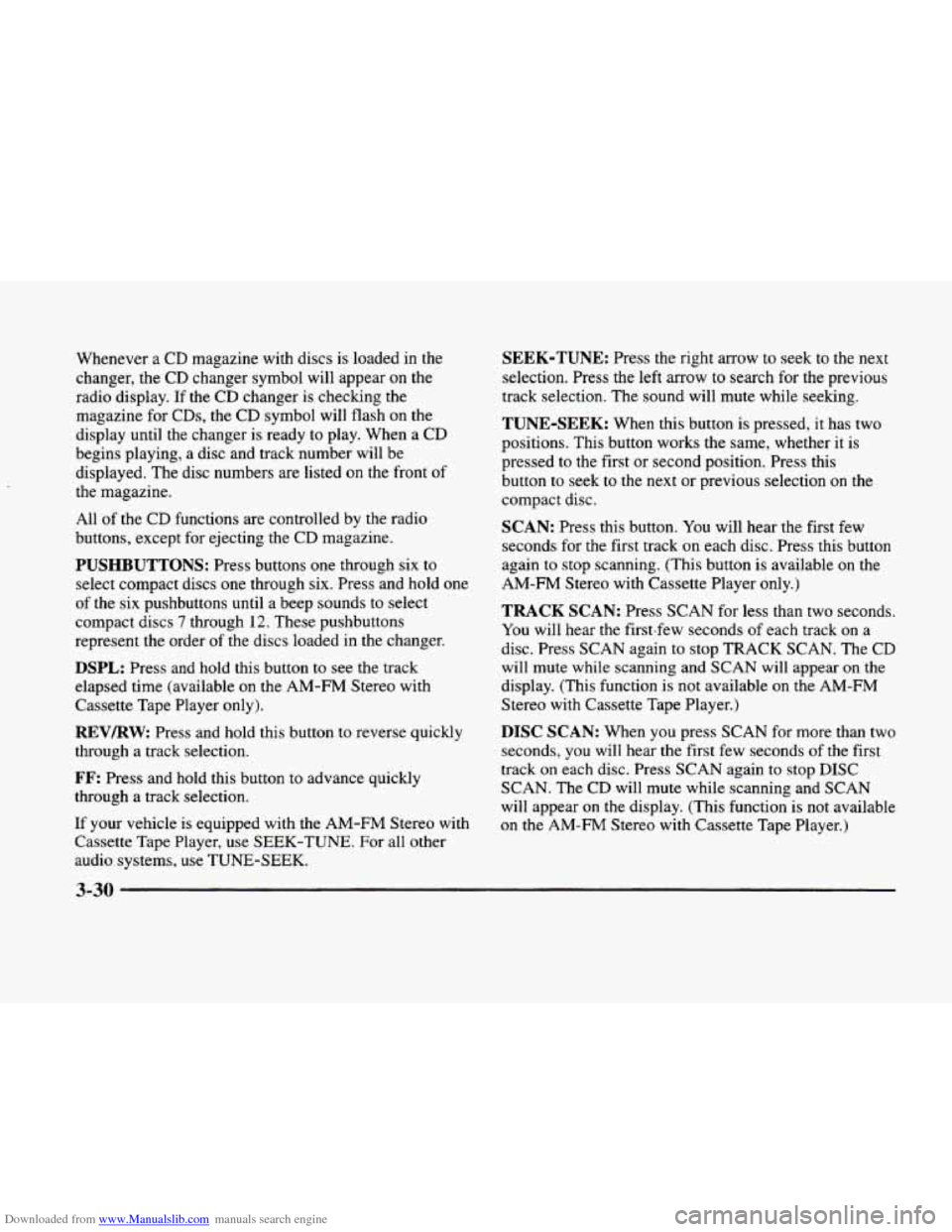

Downloaded from www.Manualslib.com manuals search engine Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the
CD changer is checking the
magazine for
CDs, the CD symbol will flash on the
display until the changer is ready to play. When
a CD
begins playing, a disc and track number will be
displayed. The disc numbers are listed
on the front of
the magazine.
All
of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to
select compact discs one through six. Press and hold one
of the six pushbuttons until a beep sounds to select
compact discs
7 through 12. These pushbuttons
represent the order
of the discs loaded in the changer.
DSPL: Press and hold this button to see the track
elapsed time (available on the AM-FM Stereo with
Cassette Tape Player
only).
REV/RW Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
If your vehicle is equipped with the AM-FM Stereo with
Cassette Tape Player, use SEEK-TUNE. For all other
audio systems, use TUNE-SEEK.
SEEK-TUNE: Press the right arrow to seek to the next
selection. Press the left arrow to search for the previous
track selection. The sound will mute while seeking.
TUNE-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to
the first or second position. Press this
button to seek to the next or previous selection on
the
compact disc.
SCAN: Press this button. You will hear the first few
seconds for the first track on each disc. Press this button
again
to stop scanning. (This button is available on the
AM-FM Stereo with Cassette Player only.)
TRACK SCAN: Press SCAN for less than two seconds.
You will hear the first-few seconds
of each track on a
disc. Press SCAN again
to stop TRACK SCAN. The CD
will mute while scanning and SCAN will appear on the
display. (This function
is not available on the AM-FM
Stereo with Cassette Tape Player.)
DISC SCAN: When you press SCAN for more than two
seconds,
you will hear the first few seconds of the first
track
on each disc. Press SCAN again to stop DISC
SCAN. The
CD will mute while scanning and SCAN
will appear on the display. (This function is not available
on the
AM-FM Stereo with Cassette Tape Player.)

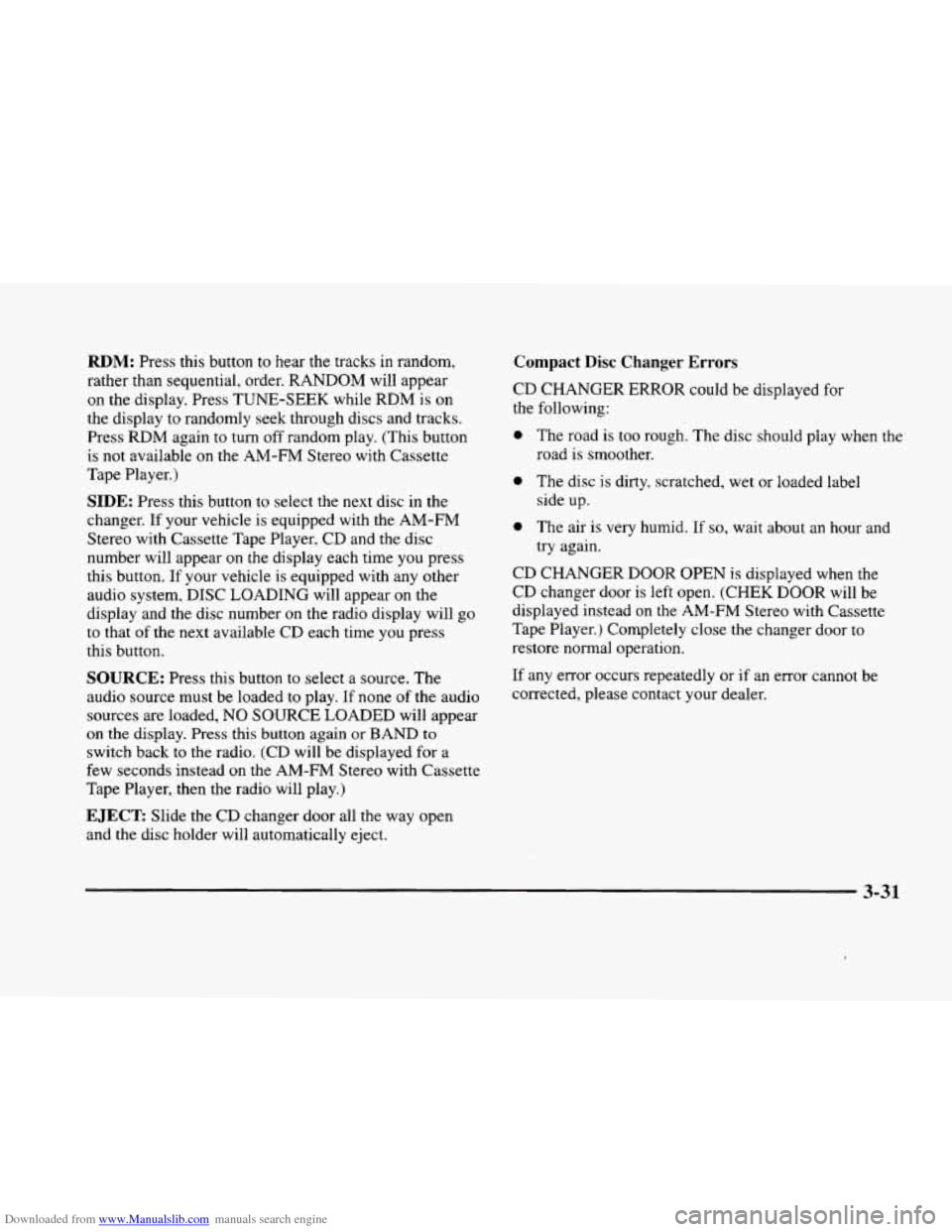

Downloaded from www.Manualslib.com manuals search engine RDM: Press this button to hear the tracks in random.
rather than sequential, order. RANDOM will appear
on the display. Press TUNE-SEEK while RDM is on
the display to randomly seek through discs and tracks.
Press
RDM again to turn off random play. (This button
is not available
on the AM-FM Stereo with Cassette
Tape Player.)
SIDE: Press this button to select the next disc in the
changer. If your vehicle is equipped with the AM-FM
Stereo with Cassette Tape P1aye.r. CD and
the disc
number will appear
on the display each time you press
this button. If
your vehicle is equipped with any other
audio system, DISC LOADING will appear
on the
display and the disc number on the radio display will
go
to that of the next available CD each time you press
this button.
SOURCE: Press this button to select a source. The
audio source must be loaded
to play. If none of the audio
sources are loaded,
NO SOURCE LOADED will appear
on the display. Press this button again or BAND to
switch back to the radio. (CD will be displayed for a
few seconds instead
on the AM-FM Stereo with Cassette
Tape Player, then the radio will play.)
EJECT Slide the CD changer door all the way open
and the disc holder will automatically eject.
Compact Disc Changer Errors
CD CHANGER ERROR could be displayed for
the following:
0 The road is too rough. The disc should play when the
road is smoother.
0 The disc is dirty. scratched, wet or loaded label
side up.
0 The air is very humid. If so, wait about an hour and
try again.
CD CHANGER DOOR OPEN
is displayed when the
CD changer door is left open. (CHEK DOOR will be
displayed instead on the
AM-FM Stereo with Cassette
Tape Player.) Completely
close the changer door to
restore normal operation.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
3-31

Downloaded from www.Manualslib.com manuals search engine CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
To activate the bypass feature, use the following steps:
0 Turn the ignition to RUN or ACCESSORY.
Turn the radio off.
Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three
times, indicating the feature is active.
0 Insert the adapter.
This override routine will remain active until EJECT
is pressed.
Radio Personalization (If Equipped)
If your vehicle is equipped with the AM-FM Stereo with
Cassette Tape Player and
1 (H or A) or 2 (H or A)
appears in the display when the radio
is first turned on,
your vehicle is equipped with this feature. If your
vehicle is equipped with any other audio system and
DRIVER
1 (HOME or AWAY) PRESETS or DRIVER 2
(HOME or AWAY) PRESETS appears in the display
when the radio is first turned on, your vehicle is
equipped with
this feature. With
this feature, your vehcle will recall the latest radio
settings as adjusted the last time your vehicle was
operated. This feature allows two different drivers
to
store and recall their own radio settings. The settings
recalled by the radio are determined by which
RKE
transmitter (“1” or “2”) was used to enter the vehicle.
The number
on the back of the RKE transmitter
corresponds to driver
1 or to driver 2. The radio settings
will automatically adjust
to where they were last set by
the identified driver. The settings can also be recalled by
briefly pressing the memory seat buttons
1 or 2 located
on the driver’s door.
Your radio can store home and away presets. Home and
away presets allow you
to use one set of preset radio
settings
in the area where you live, and another set when
you go out of town. That way, you will not need to
reprogram your presets every time you travel. With the
radio off and the clock displayed, use
FF and RW to
select home or away presets. To select the away presets,
press and hold
FF for five counts until you hear a beep.
The next time the radio comes on, the away presets will
be active.
To select the home presets, press and hold RW
for five counts until you hear a beep. The next time the
radio comes
on, the home presets will be active.
3-32

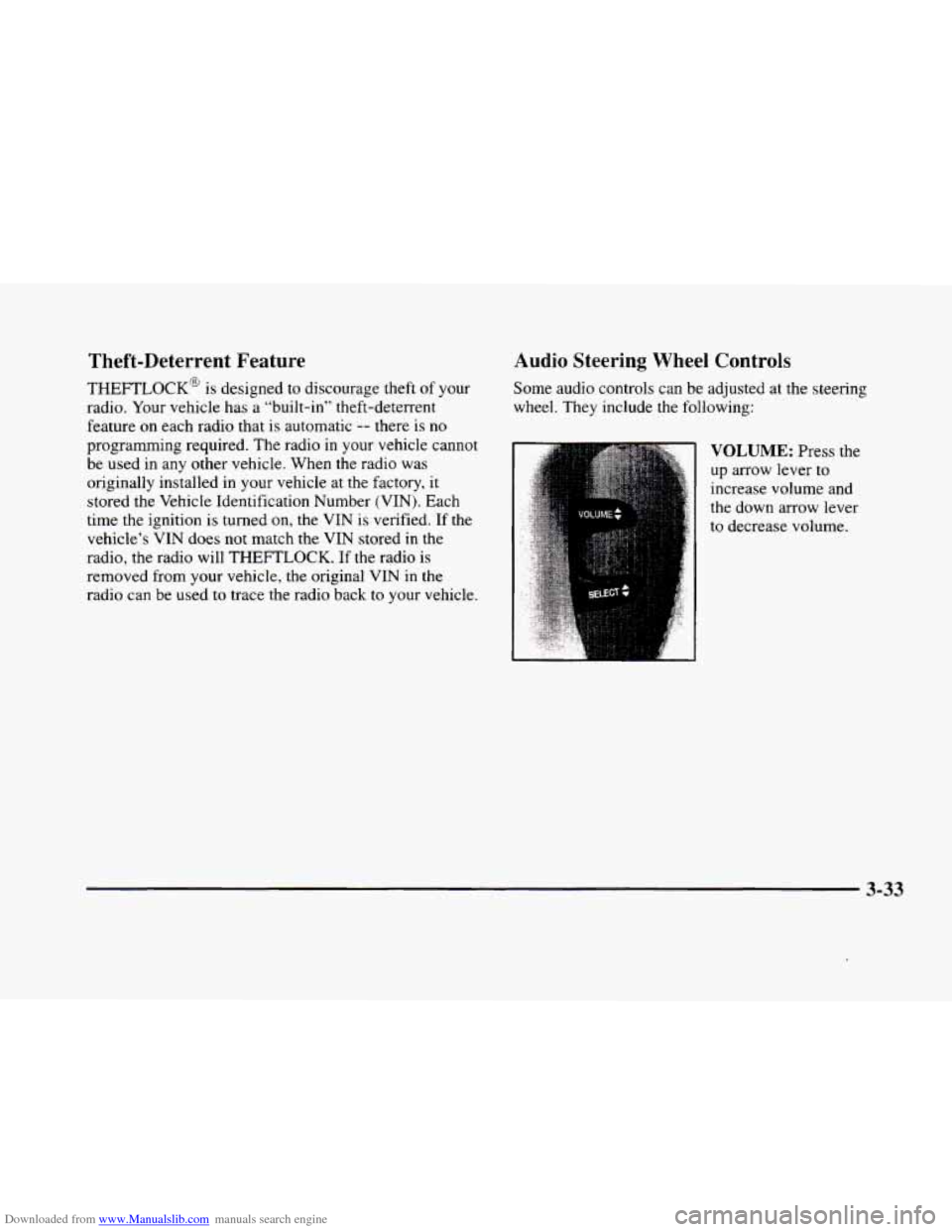

Downloaded from www.Manualslib.com manuals search engine Theft-Deterrent Feature
THEFTLOCK@ is designed to discourage theft of your
radio. Your vehicle has
a “built-in” theft-deterrent
feature on each radio that
is automatic -- there is no
programming required. The radio in your vehicle cannot
be used
in any other vehicle. When the radio was
originally installed in your vehicle at the factory, it
stored the Vehicle Identification Number (VIN). Each
time the ignition
is turned on, the VIN is verified. If the
vehicle’s
VIN does not match the VIN stored in the
radio, the radio will
THEFTLOCK. If the radio is
removed from your vehicle,
the original VIN in the
radio can be used to trace the radio back to your vehicle.
Audio Steering Wheel Controls
Some audio controls can be adjusted at the steering
wheel. They include the following:
VOLUME: Press the
up arrow lever to
increase volume and
the down arrow lever
to decrease volume.
3-33

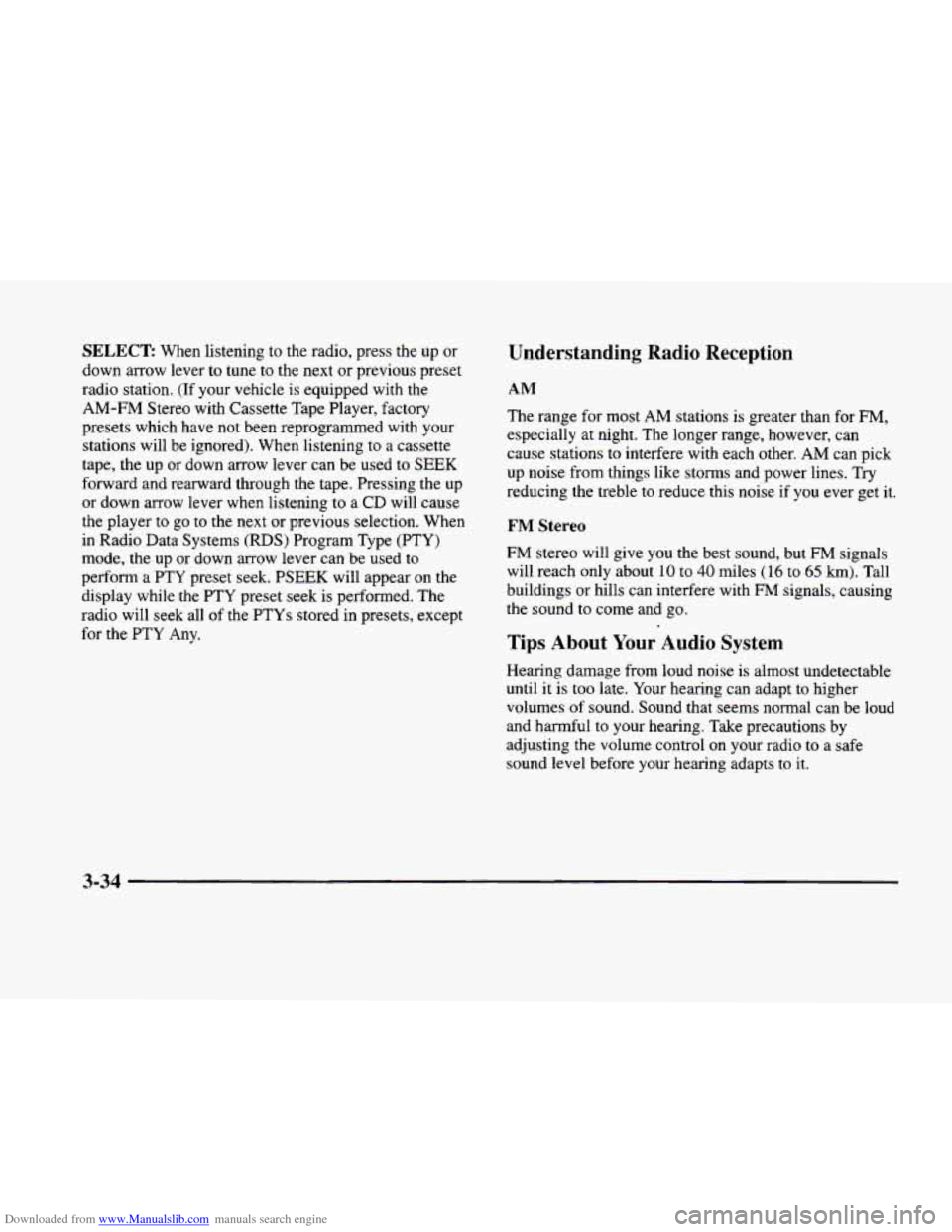

Downloaded from www.Manualslib.com manuals search engine SELECT When listening to the radio, press the up or
down arrow lever to tune to the next or previous preset
radio station. (If your vehicle is equipped with
the
AM-FM Stereo with Cassette Tape Player, factory
presets which have not been reprogrammed with your
stations will be ignored). When listening to a cassette
tape, the up or down arrow lever can be used
to SEEK
forward and rearward through the tape. Pressing the up
or down arrow lever when listening
to a CD will cause
the player to
go to the next or previous selection. When
in Radio Data Systems
(RDS) Program Type (PTY)
mode, the up or down arrow lever can be used to
perform a PTY preset seek.
PSEEK will appear on the
display while the
PTY preset seek is performed. The
radio will seek all
of the PTYs stored in presets, except
for the
PTY Any.
Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations
to interfere with each other. AM can pick
up noise from things like storms and power lines.
Try
reducing the treble to reduce this noise if you ever get it.
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach
only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with
FM signals, causing
the sound to come and go.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is
too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful to your hearing.
Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts
to it.
3-34
