CADILLAC ELDORADO 2002 10.G Owners Manual

6-31
What to Add
When you do need brake fluid, use only DOT
-3 brake
fluid. Use new brake fluid from a sealed container only.
See ªRecommended Fluids and Lubricantsº in the Index.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir.
CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a
few drops of mineral
-based oil, such as
engine oil, in your brake system can
damage brake system parts so badly that
they'll have to be replaced. Don't let
someone put in the wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake
fluid on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.

6-32 Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built
-in wear indicators that make
a high
-pitched warning sound when the brake pads are
worn and new pads are needed. The sound may come
and go or be heard all the time your vehicle is moving
(except when you are pushing on the brake pedal firmly).
CAUTION:
The brake wear warning sound means that soon
your brakes won't work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a
brake squeal when the brakes are first applied or
lightly applied. This does not mean something is
wrong with your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated,
inspect brake pads for wear and evenly tighten wheel
nuts in the proper sequence to GM torque specifications.
Brake linings should always be replaced as complete
axle sets.
See ªBrake System Inspectionº in Section 7 of this
manual under Part C ªPeriodic Maintenance Inspections.º

6-33 Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex.
Its many parts have to be of top quality and work
well together if the vehicle is to have really good
braking. Your vehicle was designed and tested with
top
-quality GM brake parts. When you replace parts of
your braking system
-- for example, when your brake
linings wear down and you need new ones put in
-- be
sure you get new approved GM replacement parts.
If you don't, your brakes may no longer work properly. For example, if someone puts in brake linings that
are wrong for your vehicle, the balance between your
front and rear brakes can change
-- for the worse.
The braking performance you've come to expect can
change in many other ways if someone puts in the
wrong replacement brake parts.
Battery
Your new vehicle comes with a maintenance free
ACDelco
battery. When it's time for a new battery,
get one that has the replacement number shown on the
original battery's label. We recommend an ACDelco
battery. See ªEngine Compartment Overviewº in the
Index for battery location.
WARNING: Battery posts, terminals and related
accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.

6-34 Vehicle Storage
If you're not going to drive your vehicle for 25 days
or more, remove the black, negative (
-) cable from
the battery. This will help keep your battery from
running down.
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see ªTheft
-Deterrent
Featureº in the Index.
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer.
For the proper type of replacement bulb,
see ªReplacement Bulbsº in the Index.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb package.

6-35 Headlamps
1. To access the headlamps, turn the lock tabs in
the direction of the arrows as shown on the
headlamp cover.
2. Lift off the cover.
3. Reach behind the lamp assembly and turn the
headlamp housing socket counterclockwise to
unlock the socket from the lamp housing.

6-36
4. Remove the headlamp housing socket.5. After removing the wiring harness from the
headlamp housing socket, reinstall a new bulb
in the socket. Reconnect it to the wiring harness
and reinstall the headlamp housing socket into the
headlamp assembly.
6. Reinstall the headlamp assembly by reversing
Steps 1 and 2.

6-37 Front Turn Signal Lamps
1. The turn signal lamps are located on the outboard
side of the headlamps. To access them, turn the lock
tabs on the headlamp cover in the direction of the
arrows and then lift off the cover. (See Steps 1 and 2
under ªHeadlampsº listed previously.)
2. Turn the housing socket counterclockwise to unlock
the socket from the lamp housing.
3. Remove the turn signal lamp housing socket and
replace the bulb.
4. Reverse Steps 1 through 2 to reinstall.

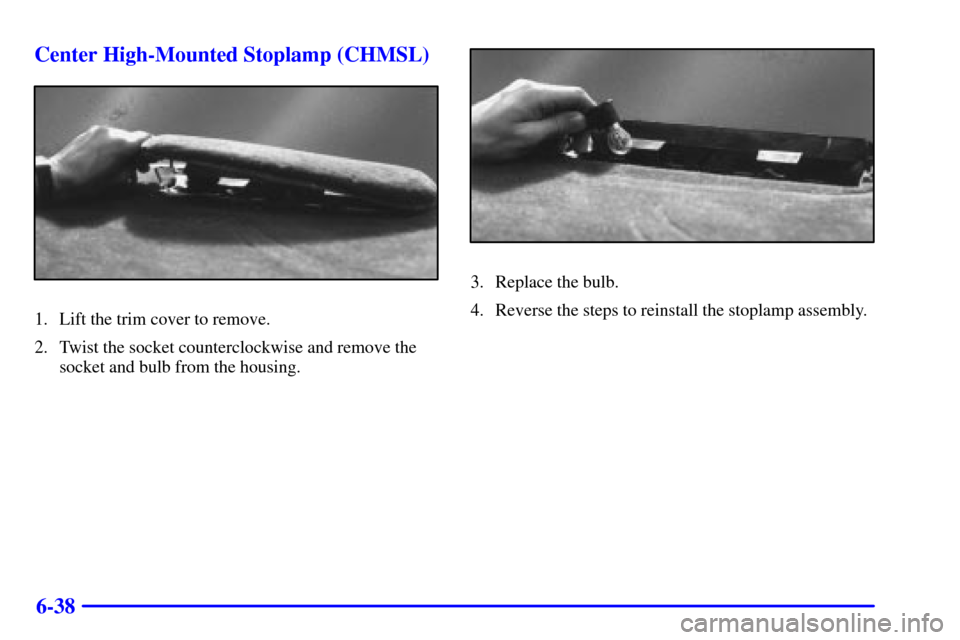

6-38 Center High-Mounted Stoplamp (CHMSL)
1. Lift the trim cover to remove.
2. Twist the socket counterclockwise and remove the
socket and bulb from the housing.
3. Replace the bulb.
4. Reverse the steps to reinstall the stoplamp assembly.

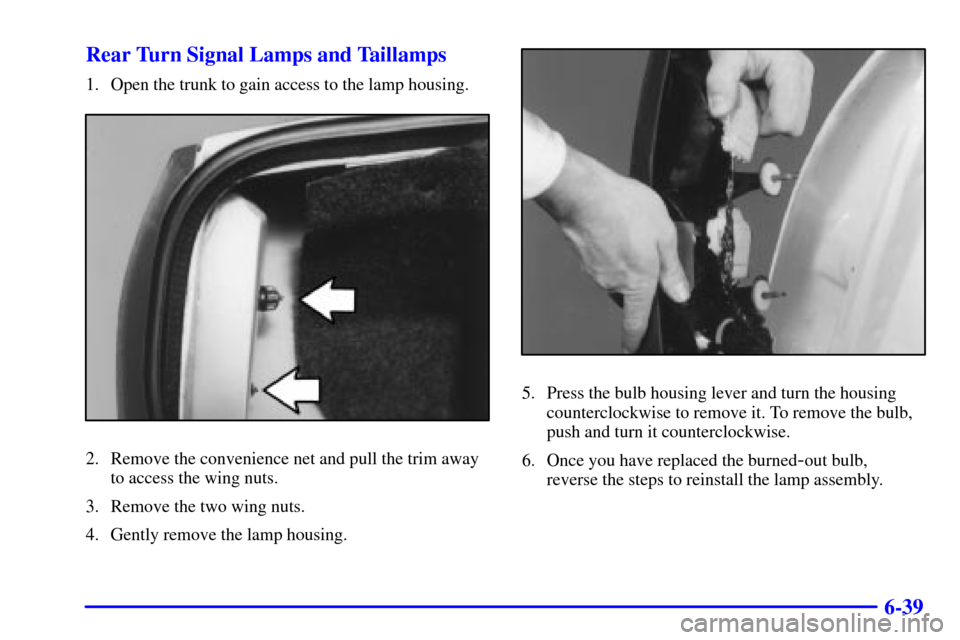

6-39 Rear Turn Signal Lamps and Taillamps
1. Open the trunk to gain access to the lamp housing.
2. Remove the convenience net and pull the trim away
to access the wing nuts.
3. Remove the two wing nuts.
4. Gently remove the lamp housing.
5. Press the bulb housing lever and turn the housing
counterclockwise to remove it. To remove the bulb,
push and turn it counterclockwise.
6. Once you have replaced the burned
-out bulb,
reverse the steps to reinstall the lamp assembly.

6-40
Windshield Wiper Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See ªWiper Blade
Checkº in the Index for more information.
It's a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, see ªNormal
Maintenance Replacement Partsº in the Index.
To replace the wiper blade assembly:
1. Turn the ignition key to ACCESSORY and turn the
wipers on. Position the wipers on the windshield in
the ªmidº wipe position. Then with the door open,
turn the key to OFF.
2. Insert a screwdriver into the slot as shown and press
down to release the wiper blade assembly.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap it into place to install.
