SBZA Detection Zones
The SBZA sensor covers a zone of approximatelyone lane over from both sides of the vehicle,3.5 m (11 ft). This zone starts at each side mirror andgoes back approximately 16 ft. (5.0 m). The height ofthe zone is approximately between 0.5 m (1.5 ft) and2.0 m (6 ft) off the ground.
Use caution while changing lanes when towing a trailer,as the SBZA detection zones do not change when atrailer is towed.
How the System Works
Left Side Mirror DisplayRight Side Mirror Display
When the vehicle is started, both outside mirrordisplays will briefly come on to indicate that the systemis operating. When the vehicle is moving forward, theleft or right side mirror SBZA display will light up if avehicle is detected in that blind zone.
If the turn signal is activated and a vehicle is alsodetected on the same side, the SBZA display will flashto give you extra warning not to change lanes.
SBZA displays do not come on while the vehicle isapproaching or passing other vehicles. At speedsgreater then 32 km/h (20 mph), SBZA displays maycome on when a vehicle you have passed remains in ordrops back into the detection zone.
SBZA can be disabled through the Driver InformationCenter (DIC). SeeDriver Information Center (DIC)onpage 4!41for more information. If the SBZA is disabledby the driver, the SBZA mirror displays will not light upduring normal driving.
When the System Does Not Seem To Work
Properly
Occasional missed alerts can occur under normalcircumstances and will increase in wet conditions.The system does not need to be serviced due to anoccasional missed alert. The number of missed alertswill increase with increased rainfall or road spray.
If the SBZA displays do not light up when the system ison and vehicles are in the blind zone, the system mayneed service. Take the vehicle to your dealer/retailer.
3-49
Page 174 of 616

SBZA is designed to ignore stationary objects; however,the system may occasionally light up due to guard rails,signs, trees, shrubs, and other stationary objects.This is normal system operation, the vehicle does notneed service.
SBZA does not operate when the left or right cornersof the rear bumper are covered with mud, dirt, snow,ice, slush, or in heavy rainstorms. For cleaninginstructions, seeWashing Your Vehicleon page 7!102.If the DIC still displays the SIDE BLIND ZONE SYSTEMUNAVAILABLE message after cleaning the bumper, seeyour dealer/retailer.
The SBZA displays may remain on if a trailer isattached to the vehicle, or a bicycle or object isextending out to either side of the vehicle.
When SBZA is disabled for any reason other than thedriver turning it off, the driver will not be able to turnSBZA back on using the DIC. The SIDE BLIND ZONEALERT ON option will not be selectable if the conditionsfor normal system operation are not met. Until normaloperating conditions for SBZA are met, you should notrely upon SBZA while driving.
SBZA Error Messages
The following messages may appear in the DIC:
SIDE BLIND ZONE ALERT SYSTEM OFF :Thismessage indicates that the driver has turned thesystem off.
SIDE BLIND ZONE SYSTEM UNAVAILABLE :Thismessage indicates that the SBZA system is disabledeither because the sensor is blocked and cannot detectvehicles in your blind zone, or the vehicle is passingthrough an open field of view area, such as the desert,where there is insufficient data for operation. Thesensor may be blocked by mud, dirt, snow, ice, slush,or even heavy rainstorms. This message may alsoactivate during heavy rain or due to road spray. Thevehicle does not need service. For cleaning, seeWashing Your Vehicle on page 7!102.
SERVICE SIDE BLIND ZONE ALERT SYSTEM :If thismessage appears, both SBZA displays will remain onindicating there is a problem with the SBZA system.If these displays remain on after continued driving,the system needs service. Take the vehicle toyour dealer/retailer.
3-50
Page 204 of 616

Turn the headlamp control to off and then back to theheadlamp on position to make the headlamps stay onfor an additional 10 minutes.
IntelliBeam®Intelligent High-Beam
Headlamp Control System
For vehicles with this feature, be sure to read thisentire section before using it.
IntelliBeam®is an enhancement to the vehicle'sheadlamp system. Using a digital light sensor on therearview mirror, this system will turn the vehicle'shigh-beam headlamps on and off according tosurrounding traffic conditions.
The IntelliBeam®system turns the high-beamheadlamps on when it is dark enough, there is no othertraffic present, and the IntelliBeam®system is enabled.
Turning On and Enabling IntelliBeam®
Press and release the IntelliBeam®button on the insiderear view mirror. The IntelliBeam®indicator on themirror will turn on to let you know the system has beenturned on. Once the system has been turned on, it willremain on each time the vehicle is started. Additionally,the IntelliBeam®system must be enabled.
To enable the IntelliBeam®system, turn the exteriorlamp control to AUTO, with the turn signal/multifunctionlever in its neutral position. The High-Beam On Lightwill appear on the instrument panel cluster when thehigh-beams are on. SeeHighbeam On Lightonpage 4!40.
Driving with IntelliBeam®
IntelliBeam®will only activate your high-beams whendriving over 20 mph (32 km/h).
The high-beam headlamps will remain on, under theautomatic control of IntelliBeam®, until any of thefollowing situations occur:
.The system detects an approaching vehicle'sheadlamps.
.The system detects a preceding vehicle'staillamps.
.The outside light is bright enough that high-beamheadlamps are not required.
.The vehicle's speed drops below 15 mph(24 km/h).
4-12
Page 205 of 616

.The headlamp stalk is moved forward to thehigh-beam position. SeeHeadlamp High/Low-Beam Changero n p a g e 4!5.
When either of these conditions occur, theIntelliBeam®feature will be disabled and theIntelliBeam®light in the mirror will turn off until thehigh-beam stalk is returned to the neutral position.
.If IntelliBeam®was using low-beams prior to thisaction, the IntelliBeam®feature will be temporarilydisabled until the stalk is returned to the neutralposition.
.The exterior lamp control is turned to any settingexcept AUTO.
When this occurs, IntelliBeam®will be disableduntil the control is turned back to the AUTOposition.
.The IntelliBeam®system is turned off at the insiderearview mirror.
IntelliBeam®may not turn off the high-beams if thesystem cannot detect other vehicle's lamps because ofany of the following:
.The others vehicle's lamp(s) are missing,damaged, obstructed from view or otherwiseundetected.
.The other vehicle's lamp(s) are covered with dirt,snow and/or road spray.
.The other vehicle's lamp(s) cannot be detecteddue to dense exhaust, smoke, fog, snow, roadspray, mist or other airborne obstructions.
.Your vehicle's windshield is dirty, cracked orobstructed by something that blocks the view ofthe IntelliBeam light sensor.
.Your vehicle's windshield is covered with ice, dirt,haze or other obstructions.
.Your vehicle is loaded such that the front end ofthe vehicle points upward, causing the IntelliBeamsensor to aim high and not detect headlamps andtaillamps.
.You are driving on winding or hilly roads.
You may need to manually disable or cancel thehigh-beam headlamps by turning the low-beamheadlamps on, if any of the above conditions exist.
4-13
Page 206 of 616

Disabling and Resetting IntelliBeam®at the
Rearview Mirror
IntelliBeam®can be disabled by using the controls onthe inside rearview mirror.
AUTO3(On/Off):To disable the system, press this
button on the inside rearview mirror. The IntelliBeam®
indicator will turn off and will not come back on until theIntelliBeam®button is pressed again.
(Stalk Disable) :When IntelliBeam®has turned on thehigh-beams, pull or push the high-beam stalk. This willdisable IntelliBeam®. The IntelliBeam®indicator on themirror will turn off. To re-enable IntelliBeam®, press theIntelliBeam®button on the mirror.
A different sensitivity setting is available for dealerdiagnostics. This is done by pushing and holding thisbutton for 20 seconds until the IntelliBeam®indicatorlight flashes three times. If you accidentally activatethis, the vehicle's setting will automatically be reseteach time the ignition is turned off and then on again.
Cleaning the IntelliBeam®Light Sensor
The light sensor is locatedon the inside of thevehicle in front of theinside rearview mirror.
Clean the light sensor window, periodically, using glasscleaner on a soft cloth. Gently wipe the sensor window.Do not spray glass cleaner directly on the surface of thesensor window.
4-14
Page 207 of 616

Headlamps on Reminder
If a door is open, a reminder chime sounds when theheadlamps or parking lamps are manually turned onand the key is out of the ignition. To turn off the chime,turn the headlamp switch to off or AUTO and then backon, or close and re-open the door. In the AUTO mode,the headlamps turn off once the ignition is in LOCK/OFFor remains on until the headlamp delay ends (if enabledin the DIC). See“Exit Lighting”underDIC VehicleCustomization on page 4!57.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier forothers to see the front of your vehicle during the day.Fully functional daytime running lamps are required onall vehicles first sold in Canada.
The DRL system comes on when the followingconditions are met:
.The ignition is on.
.The exterior lamps control is in AUTO.
.The engine is running.
.The light sensor determines it is daytime.
When the DRL system is on, only the DRL lamps areon. The taillamps, sidemarker, instrument panel lights,and other lamps will not be on.
When it begins to get dark, the automatic headlampsystem switches from DRL to the headlamps.
To turn off the DRL lamps, turn the exterior lampscontrol to the OFF position and then release. Forvehicles first sold in Canada, the transmission must bein the P (Park) position, before the DRL lamps can beturned off.
Automatic Headlamp System
When it is dark enough outside, the automaticheadlamp system turns on the headlamps at the normalbrightness, along with the taillamps, sidemarker, parkinglamps, and the instrument panel lights. The radio lightswill also be dim.
To turn off the automatic headlamp system, turn theexterior lamps switch to the off position and thenrelease it. For vehicles first sold in Canada, thetransmission must be in the P (Park) position, beforethe automatic headlamp system can be turned off.
The vehicle has a light sensor located on the top of theinstrument panel in the defroster grille that regulateswhen the automatic headlamps turn on. Do not coverthe sensor or the headlamps will come on whenever theignition is on.
The system may also turn on the headlamps whendriving through a parking garage, heavy overcastweather, or a tunnel. This is normal.
4-15
Page 208 of 616

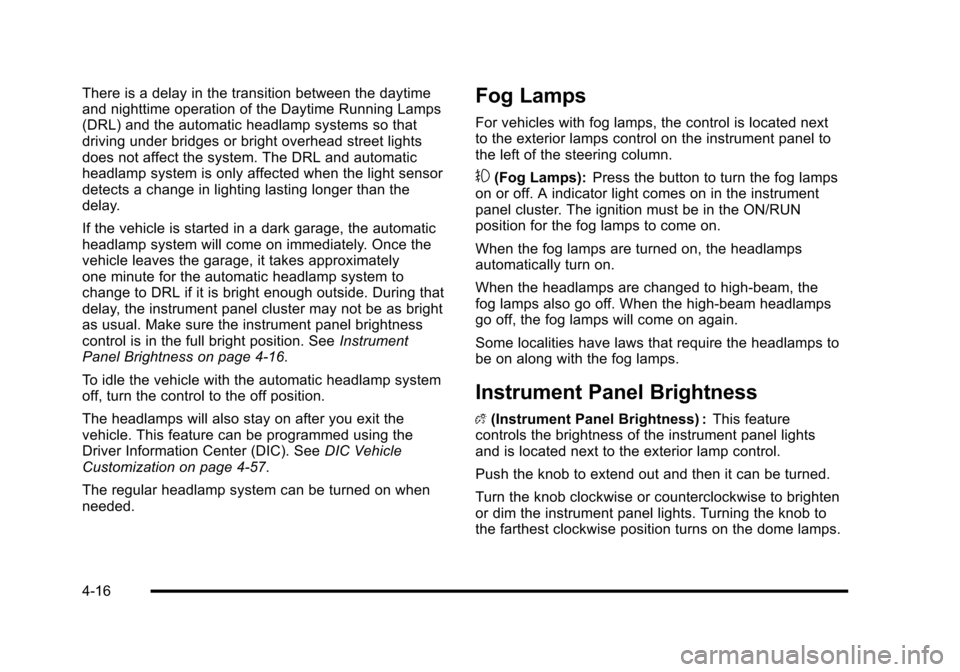

There is a delay in the transition between the daytimeand nighttime operation of the Daytime Running Lamps(DRL) and the automatic headlamp systems so thatdriving under bridges or bright overhead street lightsdoes not affect the system. The DRL and automaticheadlamp system is only affected when the light sensordetects a change in lighting lasting longer than thedelay.
If the vehicle is started in a dark garage, the automaticheadlamp system will come on immediately. Once thevehicle leaves the garage, it takes approximatelyone minute for the automatic headlamp system tochange to DRL if it is bright enough outside. During thatdelay, the instrument panel cluster may not be as brightas usual. Make sure the instrument panel brightnesscontrol is in the full bright position. SeeInstrumentPanel Brightness on page 4!16.
To idle the vehicle with the automatic headlamp systemoff, turn the control to the off position.
The headlamps will also stay on after you exit thevehicle. This feature can be programmed using theDriver Information Center (DIC). SeeDIC VehicleCustomization on page 4!57.
The regular headlamp system can be turned on whenneeded.
Fog Lamps
For vehicles with fog lamps, the control is located nextto the exterior lamps control on the instrument panel tothe left of the steering column.
#(Fog Lamps):Press the button to turn the fog lampson or off. A indicator light comes on in the instrumentpanel cluster. The ignition must be in the ON/RUNposition for the fog lamps to come on.
When the fog lamps are turned on, the headlampsautomatically turn on.
When the headlamps are changed to high-beam, thefog lamps also go off. When the high-beam headlampsgo off, the fog lamps will come on again.
Some localities have laws that require the headlamps tobe on along with the fog lamps.
Instrument Panel Brightness
D(Instrument Panel Brightness) :This featurecontrols the brightness of the instrument panel lightsand is located next to the exterior lamp control.
Push the knob to extend out and then it can be turned.
Turn the knob clockwise or counterclockwise to brightenor dim the instrument panel lights. Turning the knob tothe farthest clockwise position turns on the dome lamps.
4-16
Page 214 of 616

Automatic Operation
AUTO (Automatic) :When automatic operation isactive the system will control the inside temperature, theair delivery, and the fan speed.
Use the steps below to place the entire system inautomatic mode:
1. Press the AUTO button.
When AUTO is selected, the display will change toshow the current temperature(s) and AUTO comeon the display. The current delivery mode and fanspeed will also be displayed for approximatelyfive seconds.
When AUTO is selected, the air conditioningoperation and air inlet will be automaticallycontrolled. The air conditioning compressor willrun when the outside temperature is over about4°C (40°F). The air inlet will normally be set tooutside air. If it is hot outside, the air inlet mayautomatically switch to recirculate inside air tohelp quickly cool down the vehicle. The lighton the button comes on in recirculation.
2. Set the driver's and passenger's temperature.
To find your comfort setting, start with a 23°C(74°F) temperature setting and allow about20 minutes for the system to regulate. Use thedriver or passenger temperature buttons to adjustthe temperature setting as necessary. If atemperature setting of 15°C (60°F) is chosen, thesystem remains at the maximum cooling setting.If a temperature setting of 32°C (90°F) is chosen,the system remains at the maximum heat setting.Choosing either maximum setting will not causethe vehicle to heat or cool any faster.
Be careful not to cover the sensor located on the top ofthe instrument panel near the windshield. This sensorregulates air temperature based on sun load and alsoturns on the headlamps.
To avoid blowing cold air in cold weather, the systemwill delay turning on the fan until warm air is available.The length of delay depends on the engine coolanttemperature. Pressing the fan switch will override thisdelay and change the fan to a selected speed.
4-22
Page 222 of 616

Passenger Safety Belt Reminder Light
For vehicles equipped with the passenger safety beltreminder light, several seconds after the engine isstarted, a chime sounds for several seconds to remindthe front passenger to buckle their safety belt. Thepassenger safety belt light, located on the overheadconsole, comes on and stays on for several seconds,flashes for several more seconds and then comes onsolid for several more.
This chime and lightsequence is repeated ifthe passenger remainsunbuckled and the vehicleis in motion.
If the passenger safety belt is buckled, neither thechime nor the light comes on.
The front passenger safety belt warning light and chimemay turn on if an object is put on the seat such as abriefcase, handbag, grocery bag, laptop or otherelectronic device. To turn off the warning light and orchime, remove the object from the seat or buckle thesafety belt.
Airbag Readiness Light
The system checks the airbag's electrical system forpossible malfunctions. If the light stays on it indicatesthere is an electrical problem. The system checkincludes the airbag sensor, the pretensioners, theairbag modules, the wiring and the crash sensing anddiagnostic module. For more information on the airbagsystem, seeAirbag System on page 2!74.
The airbag readiness lightcomes on solid for a fewseconds when the engineis started. If the light doesnot come on then, have itfixed immediately.
4-30
Page 247 of 616

SIDE BLIND ZONE SYSTEM
UNAVAILABLE
If your vehicle has the Side Blind Zone Alert (SBZA)system, this message displays when the SBZA systemis disabled because the sensor is blocked and cannotdetect vehicles in your blind zone. The sensor may beblocked by mud, dirt, snow, ice, or slush. This messagemay also display during heavy rain or due to road spray.It may also come on when driving in isolated areas withno guardrails, trees, or road signs and light traffic.Your vehicle does not need service. For cleaninginstructions, seeWashing Your Vehicleon page 7!102.SeeSide Blind Zone Alert (SBZA)on page 3!48formore information.
STABILITRAK OFF
If your vehicle has StabiliTrak, this message displayswhen you turn off StabiliTrak, or when the stabilitycontrol has been automatically disabled. To limit wheelspin and realize the full benefits of the stabilityenhancement system, you should normally leaveStabiliTrak on. However, you should turn StabiliTrak offif your vehicle gets stuck in sand, mud, ice, or snow andyou want to rock your vehicle to attempt to free it, or if
you are driving in extreme off-road conditions andrequire more wheel spin. SeeIf Your Vehicle is Stuck inSand, Mud, Ice, or Snowon page 6!30. To turn theStabiliTrak system on or off, seeStabiliTrak®Systemo n p a g e 6!6.
There are several conditions that can cause thismessage to appear.
.One condition is overheating, which could occur ifStabiliTrak activates continuously for an extendedperiod of time.
.The message also displays if the brake systemwarning light is on. SeeBrake System WarningLight on page 4!33.
.The message could display if the stability systemtakes longer than usual to complete its diagnosticchecks due to driving conditions.
.The message displays if an engine or vehiclerelated problem has been detected and the vehicleneeds service. See your dealer/retailer.
The message turns off as soon as the conditions thatcaused the message to be displayed are no longerpresent.
4-55
