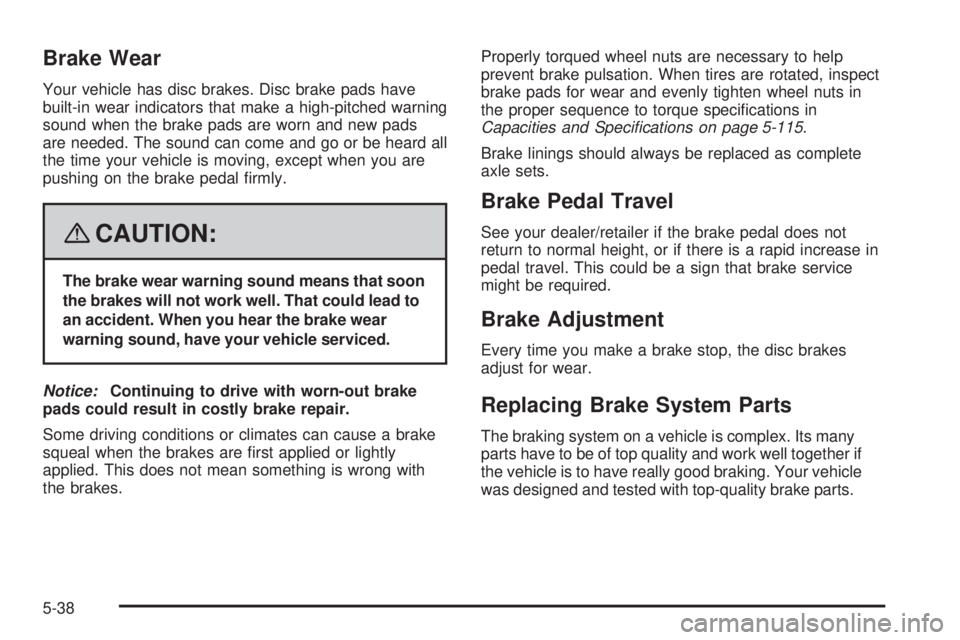

Brake Wear Your vehicle has disc brakes. Disc brake pads have
built-in wear indicators that make a high-pitched warning
sound when the brake pads are worn and new pads
are needed. The sound can come and go or be heard all
the time your vehicle is moving, except when you are
pushing on the brake pedal rmly.
{ CAUTION: The brake wear warning sound means that soon
the brakes will not work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
Notice: Continuing to drive with worn-out brake
pads could result in costly brake repair.
Some driving conditions or climates can cause a brake
squeal when the brakes are rst applied or lightly
applied. This does not mean something is wrong with
the brakes. Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to torque specications in
Capacities and Specifications on page 5-115 .
Brake linings should always be replaced as complete
axle sets.
Brake Pedal Travel See your dealer/retailer if the brake pedal does not
return to normal height, or if there is a rapid increase in
pedal travel. This could be a sign that brake service
might be required.
Brake Adjustment Every time you make a brake stop, the disc brakes
adjust for wear.
Replacing Brake System Parts The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was designed and tested with top-quality brake parts.
5-38

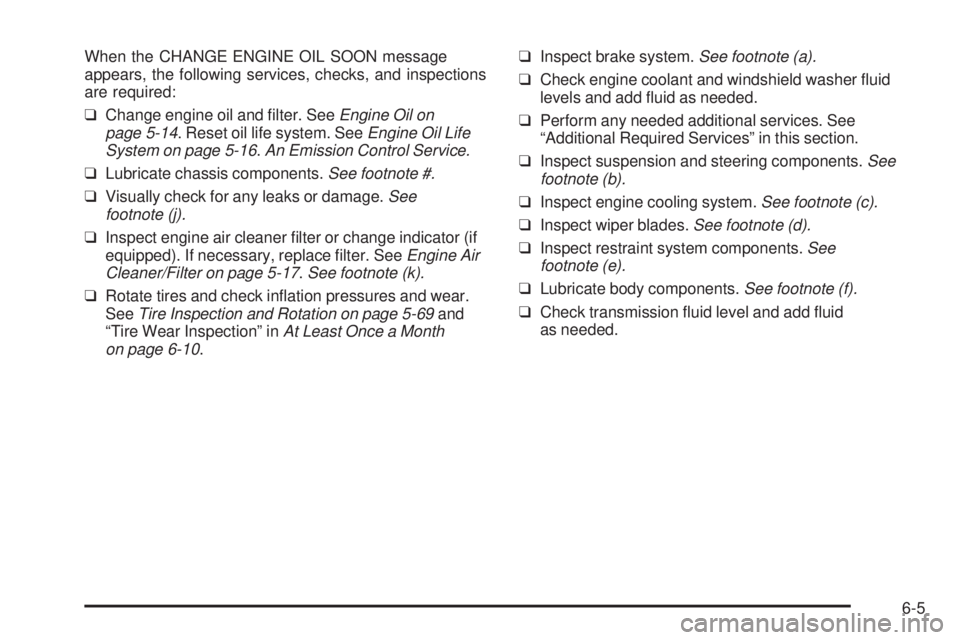

When the CHANGE ENGINE OIL SOON message
appears, the following services, checks, and inspections
are required:
❑ Change engine oil and lter. See Engine Oil on
page 5-14 . Reset oil life system. See Engine Oil Life
System on page 5-16 . An Emission Control Service.
❑ Lubricate chassis components. See footnote #.
❑ Visually check for any leaks or damage. See
footnote (j).
❑ Inspect engine air cleaner lter or change indicator (if
equipped). If necessary, replace lter. See Engine Air
Cleaner/Filter on page 5-17 . See footnote (k).
❑ Rotate tires and check ination pressures and wear.
See Tire Inspection and Rotation on page 5-69 and
“Tire Wear Inspection” in At Least Once a Month
on page 6-10 . ❑ Inspect brake system. See footnote (a).
❑ Check engine coolant and windshield washer uid
levels and add uid as needed.
❑ Perform any needed additional services. See
“Additional Required Services” in this section.
❑ Inspect suspension and steering components. See
footnote (b).
❑ Inspect engine cooling system. See footnote (c).
❑ Inspect wiper blades. See footnote (d).
❑ Inspect restraint system components. See
footnote (e).
❑ Lubricate body components. See footnote (f).
❑ Check transmission uid level and add uid
as needed.
6-5

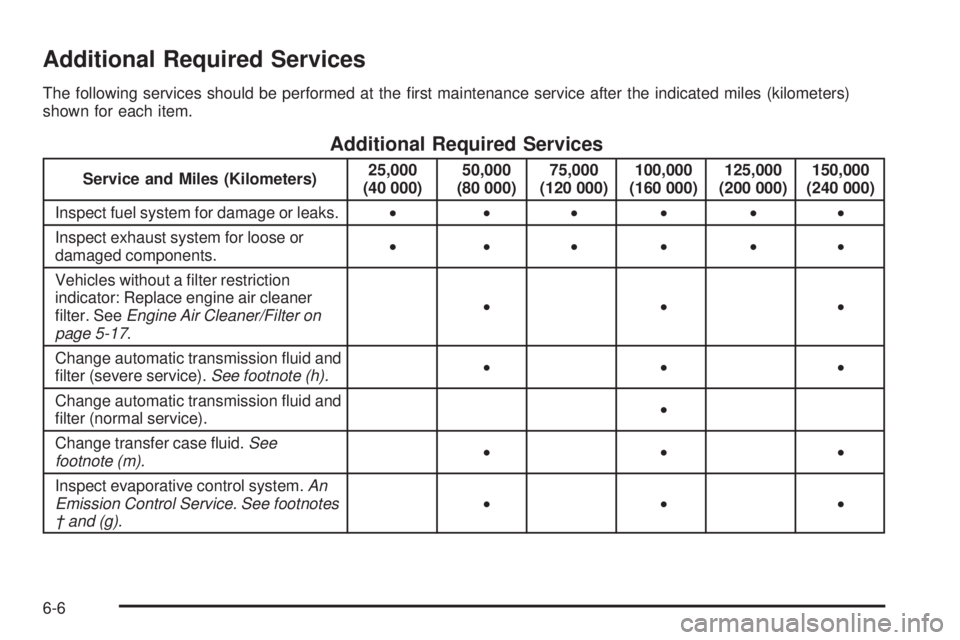

Additional Required Services The following services should be performed at the rst maintenance service after the indicated miles (kilometers)
shown for each item.
Additional Required ServicesService and Miles (Kilometers) 25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Inspect fuel system for damage or leaks. • •••••
Inspect exhaust system for loose or
damaged components. • •••••
Vehicles without a lter restriction
indicator: Replace engine air cleaner
lter. See Engine Air Cleaner/Filter on
page 5-17 . •••
Change automatic transmission uid and
lter (severe service). See footnote (h). •••
Change automatic transmission uid and
lter (normal service). •
Change transfer case uid. See
footnote (m). •••
Inspect evaporative control system. An
Emission Control Service. See footnotes
† and (g). •••
6-6

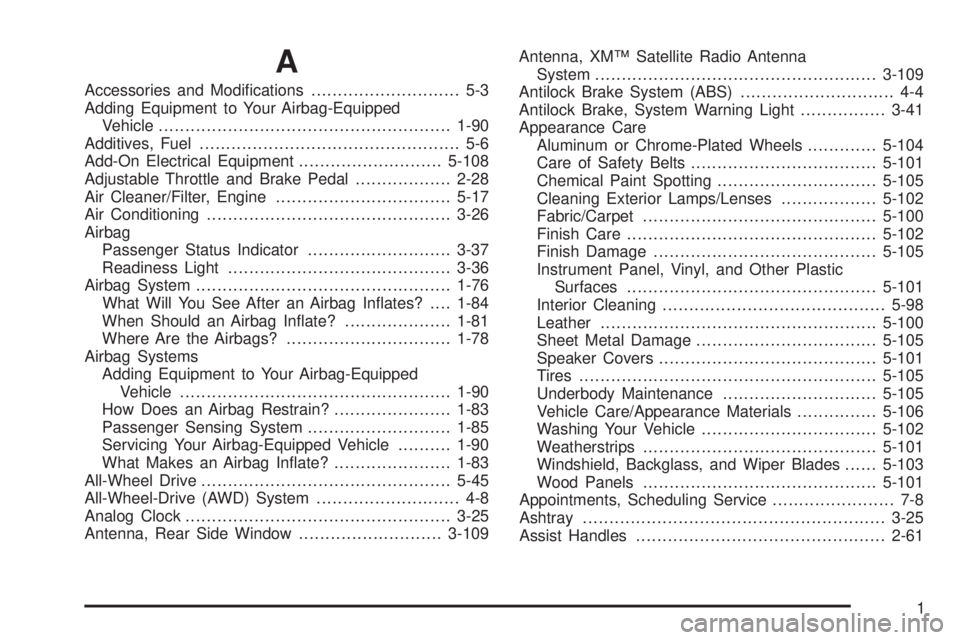

AAccessories and Modications ............................ 5-3
Adding Equipment to Your Airbag-Equipped
Vehicle ....................................................... 1-90
Additives, Fuel ................................................. 5-6
Add-On Electrical Equipment ........................... 5-108
Adjustable Throttle and Brake Pedal .................. 2-28
Air Cleaner/Filter, Engine ................................. 5-17
Air Conditioning .............................................. 3-26
Airbag
Passenger Status Indicator ........................... 3-37
Readiness Light .......................................... 3-36
Airbag System ................................................ 1-76
What Will You See After an Airbag Inates? .... 1-84
When Should an Airbag Inate? .................... 1-81
Where Are the Airbags? ............................... 1-78
Airbag Systems
Adding Equipment to Your Airbag-Equipped
Vehicle ................................................... 1-90
How Does an Airbag Restrain? ...................... 1-83
Passenger Sensing System ........................... 1-85
Servicing Your Airbag-Equipped Vehicle .......... 1-90
What Makes an Airbag Inate? ...................... 1-83
All-Wheel Drive ............................................... 5-45
All-Wheel-Drive (AWD) System ........................... 4-8
Analog Clock .................................................. 3-25
Antenna, Rear Side Window ........................... 3-109 Antenna, XM™ Satellite Radio Antenna
System ..................................................... 3-109
Antilock Brake System (ABS) ............................. 4-4
Antilock Brake, System Warning Light ................ 3-41
Appearance Care
Aluminum or Chrome-Plated Wheels ............. 5-104
Care of Safety Belts ................................... 5-101
Chemical Paint Spotting .............................. 5-105
Cleaning Exterior Lamps/Lenses .................. 5-102
Fabric/Carpet ............................................ 5-100
Finish Care ............................................... 5-102
Finish Damage .......................................... 5-105
Instrument Panel, Vinyl, and Other Plastic
Surfaces ............................................... 5-101
Interior
Cleaning .......................................... 5-98
Leather .................................................... 5-100
Sheet Metal Damage .................................. 5-105
Speaker Covers ......................................... 5-101
Tires ........................................................ 5-105
Underbody Maintenance ............................. 5-105
Vehicle Care/Appearance Materials ............... 5-106
Washing Your Vehicle ................................. 5-102
Weatherstrips ............................................ 5-101
Windshield, Backglass, and Wiper Blades ...... 5-103
Wood Panels ............................................ 5-101
Appointments, Scheduling Service ....................... 7-8
Ashtray ......................................................... 3-25
Assist Handles ............................................... 2-61
1

Loss of Control ............................................... 4-11
Luggage Carrier .............................................. 2-61
Lumbar
Power Controls ............................................. 1-3
MMaintenance Schedule
Additional Required Services ........................... 6-6
At Each Fuel Fill ........................................... 6-9
At Least Once a Month ................................ 6-10
At Least Once a Year .................................. 6-10
Introduction .................................................. 6-2
Maintenance Footnotes .................................. 6-7
Maintenance Record .................................... 6-17
Maintenance Replacement Parts .................... 6-15
Maintenance Requirements ............................. 6-2
Owner Checks and Services ........................... 6-9
Recommended Fluids and Lubricants ............. 6-13
Scheduled Maintenance ................................. 6-4
Using .......................................................... 6-2
Your Vehicle and the Environment ................... 6-2
Malfunction Indicator Light ................................ 3-43
Manual, Using .................................................... iii
Memory Seat, Mirrors, and Pedals ...................... 1-6
Message
DIC Warnings and Messages ........................ 3-53 Mirrors
Automatic Dimming Mirror with Intellibeam™,
OnStar ®
, Compass, and Temperature
Display ................................................... 2-41
Automatic Dimming Rearview with OnStar ®
,
Compass and Temperature Display ............. 2-43
Outside Power Foldaway Mirrors .................... 2-45
MP3 ............................................................. 3-90
MyGMLink.com ................................................ 7-4
N Navigation System, Privacy .............................. 7-17
Navigation/Radio System,
see Navigation Manual ................................. 3-95
New Vehicle Break-In ...................................... 2-24
O Odometer ...................................................... 3-35
Odometer, Trip ............................................... 3-35
Off-Road Driving ............................................. 4-12
Off-Road Recovery .......................................... 4-11
Oil
Engine ....................................................... 5-14
Pressure Light ............................................. 3-46
Oil, Engine Oil Life System .............................. 5-16
Older Children, Restraints ................................ 1-50
Online Owner Center ........................................ 7-4
8

OnStar, Privacy .............................................. 7-17
OnStar ®
System, see OnStar ®
Manual ............... 2-50
Operation, Universal Home Remote System ........ 2-54
Other Warning Devices ...................................... 3-6
Outlet Adjustment ............................................ 3-31
Outlets
Accessory Power ......................................... 3-24
Outside
Power Foldaway Mirrors ............................... 2-45
Overheated Engine Protection
Operating Mode .......................................... 5-28
Owner Checks and Services .............................. 6-9
Owners, Canadian ............................................... ii
PPaint, Damage .............................................. 5-105
Park Aid ........................................................ 2-48
Park Brake .................................................... 2-35
Park (P)
Shifting Into ................................................ 2-36
Shifting Out of ............................................ 2-37
Parking
Assist ........................................................ 2-48
Over Things That Burn ................................. 2-38
Passenger Airbag Status Indicator ..................... 3-37 Passenger Sensing System .............................. 1-85
Passing ......................................................... 4-11
PASS-Key ®
III+ .............................................. 2-22
PASS-Key ®
III+ Operation ................................ 2-23
Perchlorate Materials Requirements, California ...... 5-4
Power
Door Locks ................................................. 2-10
Electrical System ....................................... 5-108
Liftgate ...................................................... 2-14
Lumbar Controls ........................................... 1-3
Reclining Seatbacks ...................................... 1-7
Retained Accessory (RAP) ............................ 2-26
Running Boards .......................................... 2-17
Seat ............................................................ 1-2
Steering Fluid ............................................. 5-34
Windows .................................................... 2-19
Privacy .......................................................... 7-15
Event Data Recorders .................................. 7-16
Navigation System ....................................... 7-17
OnStar ....................................................... 7-17
Radio Frequency Identication ....................... 7-17
Programmable Automatic Door Locks ................. 2-11
9

VVehicle
Control ........................................................ 4-3
Damage Warnings ........................................... iv
Loading ...................................................... 4-35
Symbols ......................................................... iv
Vehicle Customization, DIC .............................. 3-61
Vehicle Data Recording and Privacy .................. 7-15
Vehicle Identication
Number (VIN) ............................................ 5-107
Service Parts Identication Label .................. 5-107
Vehicle, Remote Start ....................................... 2-7
Ventilation Adjustment ...................................... 3-31
Visors ........................................................... 2-20
WWarning Lights, Gages and Indicators ................ 3-33
Warnings
DIC Warnings and Messages ........................ 3-53
Hazard Warning Flashers ............................... 3-6
Other Warning Devices .................................. 3-6
Safety and Symbols ......................................... iii
Vehicle Damage .............................................. iv
Wheels
Alignment and Tire Balance .......................... 5-75
Different Size .............................................. 5-73
Replacement ............................................... 5-76 Where to Put the Restraint ............................... 1-60
Windows ....................................................... 2-18
Power ........................................................ 2-19
Windshield
Backglass, and Wiper Blades, Cleaning ........ 5-103
Rainsense™ II Wipers .................................. 3-10
Washer ...................................................... 3-11
Washer Fluid .............................................. 5-35
Wiper Blade Replacement ............................. 5-54
Wiper Fuses ............................................. 5-108
Wipers ......................................................... 3-9
Windshield, Rear Washer/Wiper ........................ 3-12
Winter Driving ................................................ 4-30
X XM Radio Messages ....................................... 3-94
XM™ Satellite Radio Antenna System .............. 3-109
Y Your Vehicle and the Environment ....................... 6-2
14
