Keys .............................................................. .2-3
Remote Keyless Entry (RKE) System ............... .2-4
Remote Keyless Entry (RKE) System
Operation .................................................. .2-4
Remote Vehicle Start ..................................... .2-7
Doors and Locks ........................................... .2-10
Door Locks ................................................. .2-10
Power Door Locks ....................................... .2-10
Delayed Locking .......................................... .2-11
Programmable Automatic Door Locks ............. .2-11
Rear Door Security Locks ............................. .2-11
Lockout Protection ....................................... .2-12
Liftgate/Liftglass ........................................... .2-13
Power Liftgate ............................................. .2-14
Power Running Boards ................................. .2-17
Windows ....................................................... .2-18
Power Windows ........................................... .2-19
Sun Visors .................................................. .2-20
Theft-Deterrent Systems ................................. .2-20
Content Theft-Deterrent ................................ .2-21
PASS-Key ®
III+ ........................................... .2-22
PASS-Key ®
III+ Operation ............................. .2-23 Starting and Operating Your Vehicle ............... .2-24
New Vehicle Break-In ................................... .2-24
Ignition Positions ......................................... .2-25
Retained Accessory Power (RAP) .................. .2-26
Starting the Engine ...................................... .2-26
Adjustable Throttle and Brake Pedal ............... .2-28
Engine Coolant Heater ................................. .2-28
Automatic Transmission Operation .................. .2-30
Tow/Haul Mode ........................................... .2-34
Parking Brake ............................................. .2-35
Shifting Into PARK (P) .................................. .2-36
Shifting Out of PARK (P) .............................. .2-37
Parking Over Things That Burn ...................... .2-38
Engine Exhaust ........................................... .2-39
Running the Engine While Parked .................. .2-40
Mirrors .......................................................... .2-41
Automatic Dimming Rearview Mirror with
Intellibeam ®
, OnStar ®
, Compass, and
Temperature Display ................................. .2-41
Automatic Dimming Rearview Mirror with
OnStar ®
, Compass and Temperature
Display ................................................... .2-43
Outside Power Foldaway Mirrors .................... .2-45Section 2 Features and Controls
2-1

After your vehicles engine has been started two times
using the remote vehicle start button, or a single remote
start with one time extension, the vehicle must be
started with the key.
After the key is removed from the ignition, the vehicle
can be remote started again.
The vehicle cannot be remote started if the key is in the
ignition, the hood is not closed, or if there is an
emission control system malfunction and the check
engine light comes on.
Also, the engine will turn off during a remote vehicle
start if the coolant temperature gets too high or if the oil
pressure gets low.
Vehicles that have the remote vehicle start feature are
shipped from the factory with the remote vehicle
start system enabled. The system may be enabled or
disabled through the DIC. See “REMOTE START” under
DIC Vehicle Customization on page 3-61 for additional
information. Remote Start Ready If your vehicle does not have the remote vehicle start
feature, it may have the remote start ready feature. This
feature allows your dealer/retailer to add the
manufacturer’s remote vehicle start feature.
If your vehicle has the remote start ready feature, your
RKE transmitter will have extended range that will
allow you to lock or unlock your vehicle from
approximately 197 feet (60 m) away.
See your dealer/retailer if you would like to add the
manufacturer’s remote vehicle start feature to your
vehicle.
2-9

Adjustable Throttle and Brake Pedal Your vehicle has an adjustable throttle and brake
pedal that lets you change their positions. This feature
is designed for shorter drivers, since the pedals can
not move farther away from the standard position, but
can move toward the driver for better pedal reach.
The feature will not operate when the vehicle is
in REVERSE (R) or while using the cruise control.
The switch used to adjust the pedals is located on the
center console below the climate control system.
Press the right and left arrows to move the pedals either
closer or further from your body. Before you start driving, fully press the brake pedal to
conrm the adjustment is right for you. While driving,
make only small adjustments.
Your vehicle has a memory function which allows the
pedals to be saved and recalled. See Memory Seat,
Mirrors, and Pedals on page 1-6 for more information.
Engine Coolant Heater The engine coolant heater, if available, can help in cold
weather conditions at or below 0°F ( − 18°C) for easier
starting and better fuel economy during engine warm-up.
Plug in the coolant heater at least four hours before
starting your vehicle. An internal thermostat in the
plug-end of the cord may exist which will prevent
engine coolant heater operation at temperatures
above 0°F ( − 18°C).
2-28

To Use the Engine Coolant Heater 1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The cord is located on the driver’s side of the
engine compartment, near the power steering
uid reservoir.
3. Plug the cord into a normal, grounded 110-volt
AC outlet.
{ CAUTION: Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the
wrong kind of extension cord could overheat
and cause a re. You could be seriously
injured. Plug the cord into a properly grounded
three-prong 110-volt AC outlet. If the cord will
not reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps. 4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you do not, it could be
damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead
of trying to list everything here, we ask that you contact
your dealer/retailer in the area where you will be
parking your vehicle. The dealer/retailer can give you
the best advice for that particular area.
2-29

Instrument Panel Overview .............................. .3-4
Hazard Warning Flashers ............................... .3-6
Other Warning Devices .................................. .3-6
Horn ............................................................ .3-6
Tilt Wheel .................................................... .3-6
Heated Steering Wheel .................................. .3-7
Turn Signal/Multifunction Lever ........................ .3-7
Turn and Lane-Change Signals ....................... .3-8
Headlamp High/Low-Beam Changer ................. .3-9
Windshield Wipers ......................................... .3-9
Rainsense™ II Wipers .................................. .3-10
Windshield Washer ...................................... .3-11
Rear Window Wiper/Washer .......................... .3-12
Cruise Control ............................................. .3-13
Exterior Lamps ............................................ .3-16
Headlamps on Reminder ............................... .3-19
Daytime Running Lamps (DRL) ...................... .3-20
Automatic Headlamp System ......................... .3-20
Fog Lamps ................................................. .3-21
Instrument Panel Brightness .......................... .3-21
Dome Lamps .............................................. .3-22
Dome Lamp Override ................................... .3-22
Entry Lighting .............................................. .3-22
Exit Lighting ................................................ .3-22
Reading Lamps ........................................... .3-22
Electric Power Management .......................... .3-23 Battery Run-Down Protection ......................... .3-23
Accessory Power Outlet(s) ............................ .3-24
Ashtray(s) and Cigarette Lighter ..................... .3-25
Analog Clock .............................................. .3-25
Climate Controls ........................................... .3-26
Dual Automatic Climate Control System .......... .3-26
Outlet Adjustment ........................................ .3-31
Rear Air Conditioning and Heating System and
Electronic Climate Controls ........................ .3-31
Warning
Lights, Gages, and Indicators ........... .3-33
Instrument Panel Cluster ............................... .3-34
Speedometer and Odometer .......................... .3-35
Trip Odometer ............................................. .3-35
Tachometer ................................................ .3-35
Safety Belt Reminders .................................. .3-35
Airbag Readiness Light ................................. .3-36
Passenger Airbag Status Indicator .................. .3-37
Charging System Light ................................. .3-39
Brake System Warning Light ......................... .3-40
Antilock Brake System Warning Light .............. .3-41
StabiliTrak ®
Indicator Light ............................. .3-41
Engine Coolant Temperature Gage ................. .3-42
Tire Pressure Light ...................................... .3-42
Malfunction Indicator Lamp ............................ .3-43
Oil Pressure Light ........................................ .3-46Section 3 Instrument Panel
3-1

Automatic Operation AUTO (Automatic): When automatic operation is
active the system will control the inside temperature, the
air delivery, and the fan speed.
Use the steps below to place the entire system in
automatic mode:
1. Press the AUTO button.
When AUTO is selected, the display will change to
show the current temperature(s) and AUTO
come on the display. The current delivery mode and
fan speed will also be displayed for approximately
ve seconds.
When AUTO is selected, the air conditioning
operation and air inlet will be automatically
controlled. The air conditioning compressor will run
when the outside temperature is over about
40°F (4°C). The air inlet will normally be set to
outside air. If it is hot outside, the air inlet may
automatically switch to recirculate inside air to help
quickly cool down your vehicle. The light on the
button will come on in recirculation.
2. Set the driver’s and passenger’s temperature.
To nd your comfort setting, start with a 74°F (23°C)
temperature setting and allow about 20 minutes
for the system to regulate. Use the driver’s or
passenger’s temperature buttons to adjust the temperature setting as necessary. If you choose the
temperature setting of 60°F (15°C), the system
will remain at the maximum cooling setting. If you
choose the temperature setting of 90°F (32°C),
the system will remain at the maximum heat setting.
Choosing either maximum setting will not cause
the vehicle to heat or cool any faster.
Be careful not to cover the sensor located on the top of
the instrument panel near the windshield. This sensor
regulates air temperature based on sun load and
also turns on your headlamps.
To avoid blowing cold air in cold weather, the system
will delay turning on the fan until warm air is available.
The length of delay depends on the engine coolant
temperature. Pressing the fan switch will override this
delay and change the fan to a selected speed.
O (Off): Press the driver’s side temperature knob to
turn off the climate control system. Outside air will
still enter the vehicle, and will be directed to the oor.
This direction can be changed by pressing the mode
button. The temperature can also be adjusted using
either temperature knob. Press the up or down arrows
on the fan switch, the defrost button, the AUTO
button, driver’s side temperature knob, or the air
conditioning button to turn the system on when it is off.
3-27

Engine Coolant Temperature Gage This gage shows the
engine coolant
temperature.
If the indicator on the gage moves towards the shaded
in thermostat, it means that your engine coolant has
overheated. If you have been operating your vehicle
under normal driving conditions, you should pull off the
road, stop your vehicle and turn off the engine as
soon as possible.
See Engine Overheating on page 5-26 . Tire Pressure Light This light comes on briey
when the engine is started.
This light will also come on when one or more of your
tires are signicantly underinated.
A tire pressure message in the Driver Information Center
(DIC), may accompany the light. See DIC Warnings and
Messages on page 3-53 for more information.
Stop and check your tires as soon as it is safe to do so.
If underinated, inate to the proper pressure. See
Tires on page 5-56 for more information.
If a problem is detected with the Tire Pressure Monitor
System, this light will ash for approximately
60 seconds and then stay on solid for the remainder of
the ignition cycle. See Tire Pressure Monitor System
on page 5-64 for more information.
3-42

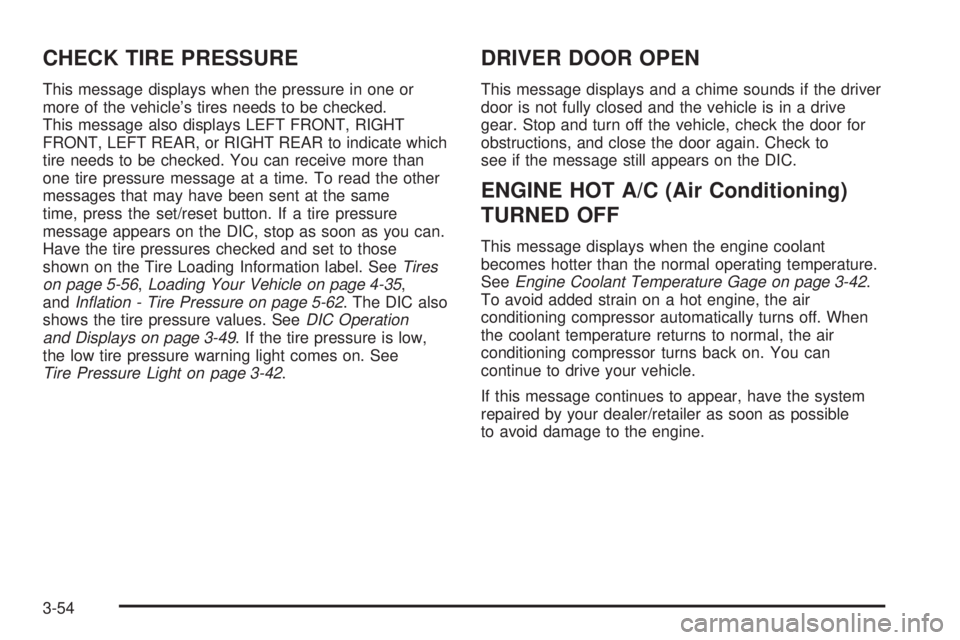

CHECK TIRE PRESSURE This message displays when the pressure in one or
more of the vehicle’s tires needs to be checked.
This message also displays LEFT FRONT, RIGHT
FRONT, LEFT REAR, or RIGHT REAR to indicate which
tire needs to be checked. You can receive more than
one tire pressure message at a time. To read the other
messages that may have been sent at the same
time, press the set/reset button. If a tire pressure
message appears on the DIC, stop as soon as you can.
Have the tire pressures checked and set to those
shown on the Tire Loading Information label. See Tires
on page 5-56 , Loading Your Vehicle on page 4-35 ,
and Inflation - Tire Pressure on page 5-62 . The DIC also
shows the tire pressure values. See DIC Operation
and Displays on page 3-49 . If the tire pressure is low,
the low tire pressure warning light comes on. See
Tire Pressure Light on page 3-42 . DRIVER DOOR OPEN This message displays and a chime sounds if the driver
door is not fully closed and the vehicle is in a drive
gear. Stop and turn off the vehicle, check the door for
obstructions, and close the door again. Check to
see if the message still appears on the DIC.
ENGINE HOT A/C (Air Conditioning)
TURNED OFF This message displays when the engine coolant
becomes hotter than the normal operating temperature.
See Engine Coolant Temperature Gage on page 3-42 .
To avoid added strain on a hot engine, the air
conditioning compressor automatically turns off. When
the coolant temperature returns to normal, the air
conditioning compressor turns back on. You can
continue to drive your vehicle.
If this message continues to appear, have the system
repaired by your dealer/retailer as soon as possible
to avoid damage to the engine.
3-54

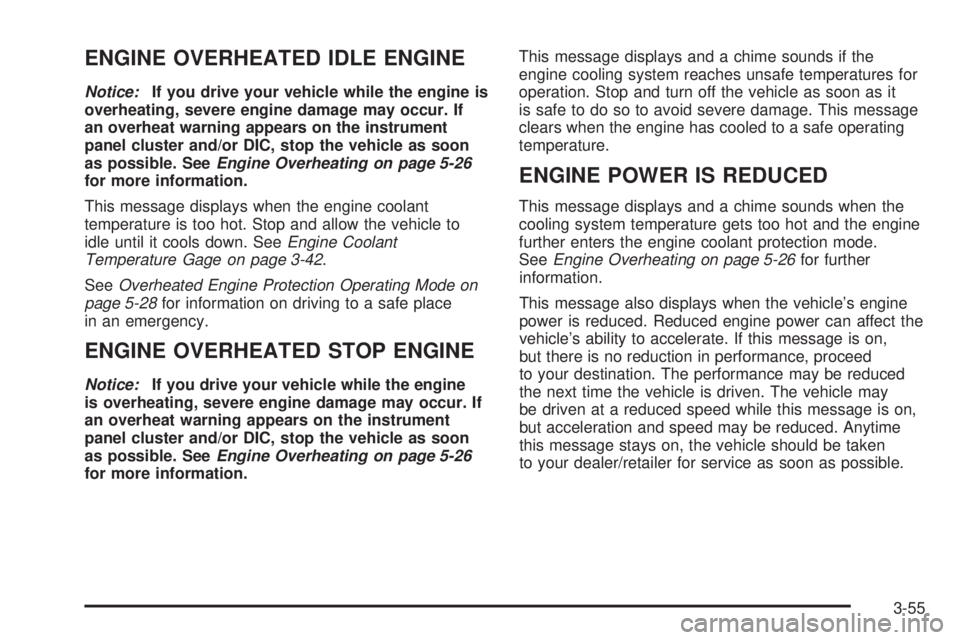

ENGINE OVERHEATED IDLE ENGINE Notice: If you drive your vehicle while the engine is
overheating, severe engine damage may occur. If
an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon
as possible. See Engine Overheating on page 5-26
for more information.
This message displays when the engine coolant
temperature is too hot. Stop and allow the vehicle to
idle until it cools down. See Engine Coolant
Temperature Gage on page 3-42 .
See Overheated Engine Protection Operating Mode on
page 5-28 for information on driving to a safe place
in an emergency.
ENGINE OVERHEATED STOP ENGINE Notice: If you drive your vehicle while the engine
is overheating, severe engine damage may occur. If
an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon
as possible. See Engine Overheating on page 5-26
for more information. This message displays and a chime sounds if the
engine cooling system reaches unsafe temperatures for
operation. Stop and turn off the vehicle as soon as it
is safe to do so to avoid severe damage. This message
clears when the engine has cooled to a safe operating
temperature.
ENGINE POWER IS REDUCED This message displays and a chime sounds when the
cooling system temperature gets too hot and the engine
further enters the engine coolant protection mode.
See Engine Overheating on page 5-26 for further
information.
This message also displays when the vehicle’s engine
power is reduced. Reduced engine power can affect the
vehicle’s ability to accelerate. If this message is on,
but there is no reduction in performance, proceed
to your destination. The performance may be reduced
the next time the vehicle is driven. The vehicle may
be driven at a reduced speed while this message is on,
but acceleration and speed may be reduced. Anytime
this message stays on, the vehicle should be taken
to your dealer/retailer for service as soon as possible.
3-55

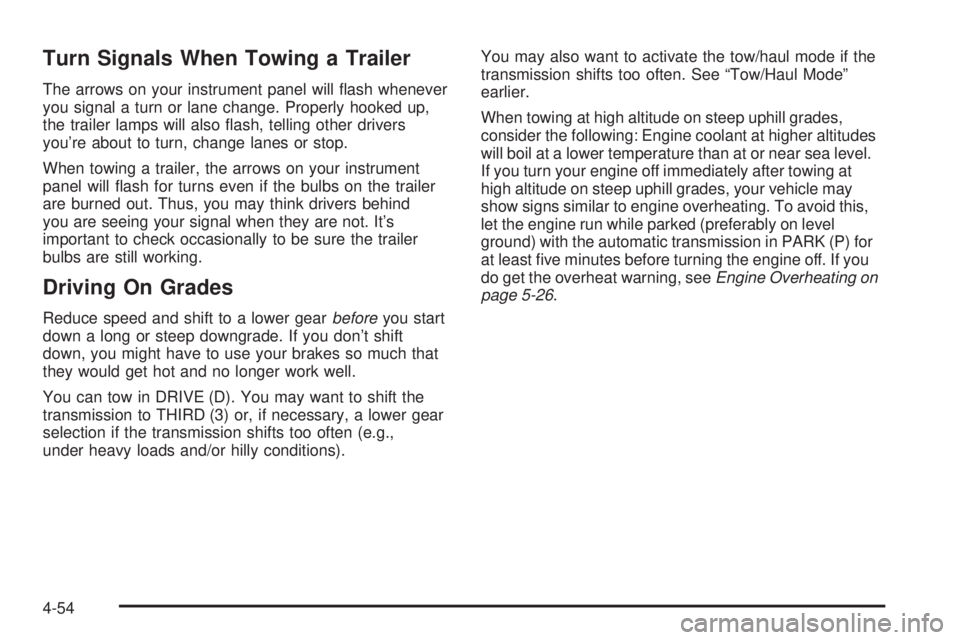

Turn Signals When Towing a Trailer The arrows on your instrument panel will ash whenever
you signal a turn or lane change. Properly hooked up,
the trailer lamps will also ash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will ash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
You can tow in DRIVE (D). You may want to shift the
transmission to THIRD (3) or, if necessary, a lower gear
selection if the transmission shifts too often (e.g.,
under heavy loads and/or hilly conditions). You may also want to activate the tow/haul mode if the
transmission shifts too often. See “Tow/Haul Mode”
earlier.
When towing at high altitude on steep uphill grades,
consider the following: Engine coolant at higher altitudes
will boil at a lower temperature than at or near sea level.
If you turn your engine off immediately after towing at
high altitude on steep uphill grades, your vehicle may
show signs similar to engine overheating. To avoid this,
let the engine run while parked (preferably on level
ground) with the automatic transmission in PARK (P) for
at least ve minutes before turning the engine off. If you
do get the overheat warning, see Engine Overheating on
page 5-26 .
4-54
