Black plate (11,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

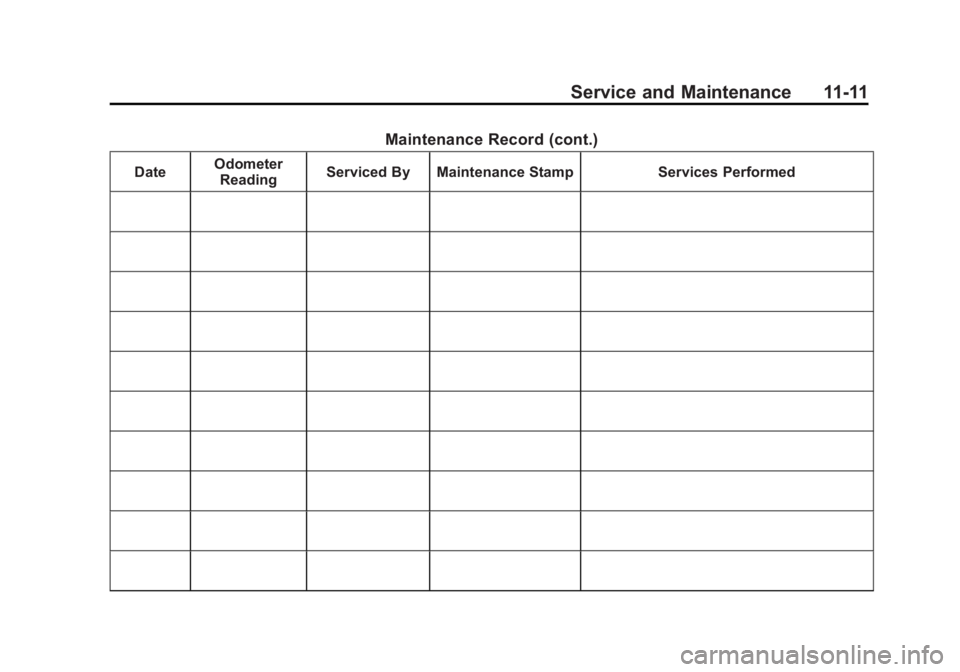

Service and Maintenance 11-11Maintenance Record (cont.)Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (12,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
11-12 Service and Maintenance Maintenance Record (cont.)Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (1,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Technical Data 12-1
Technical Data Vehicle Identification Vehicle Identification
Number (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data Capacities and
Specifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-3 Vehicle Identification Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration. Engine Identification The eighth character in the
VIN is the engine code. This
code identifies the vehicle's engine,
specifications, and replacement
parts. See “ Engine Specifications ”
under Capacities and Specifications
on page 12 ‑ 2 for the vehicle's
engine code.
Service Parts
Identification Label This label, on the inside of the glove
box, has the following information: .
Vehicle Identification
Number (VIN). .
Model designation. .
Paint information. .
Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
12-2 Technical Data
Vehicle Data Capacities and Specifications The following approximate capacities are given in metric and English conversions. See Recommended Fluids and
Lubricants on page 11 ‑ 7 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the
hood. See your dealer for more information.
Cooling System 16.7 L 17.6 qt
Engine Oil with Filter 5.7 L † 6.0 qt †
Fuel Tank
Regular 98.4 L 26.0 gal
Extended 119.2 L 31.5 gal
Transmission Fluid (Pan Removal and Replacement) 5.7 L 6.0 qt
Transfer Case Fluid 1.4 L 1.5 qt
Wheel Nut Torque 190 Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid after filling.
† Oil filter should be changed at every oil change.

Black plate (3,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Technical Data 12-3Engine SpecificationsEngine VIN Code Transmission Spark Plug Gap
6.2L V8 F Automatic 1.02 mm (0.040 in)
Engine Drive Belt Routing
If the vehicle is a hybrid, see the
hybrid supplement for more
information.

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
12-4 Technical Data
2 NOTES

Black plate (1,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Customer Information 13-1
Customer
Information Customer Information Customer Satisfaction
Procedure (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-1
Customer Satisfaction
Procedure (Mexico) . . . . . . . . 13-3
Customer Assistance Offices
(U.S. and Canada) . . . . . . . . . 13-5
Customer Assistance Offices
(Mexico) . . . . . . . . . . . . . . . . . . . . 13-5
Customer Assistance for Text
Telephone (TTY) Users (U.S.
and Canada) . . . . . . . . . . . . . . . 13-6
Online Owner Center . . . . . . . . 13-6
GM Mobility Reimbursement
Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-7
Roadside Service (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-7
Roadside Service
(Mexico) . . . . . . . . . . . . . . . . . . 13-10
Scheduling Service
Appointments (U.S. and
Canada) . . . . . . . . . . . . . . . . . . 13-10 Courtesy Transportation
Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . 13-11
Collision Damage Repair
(U.S. and Canada) . . . . . . . . 13-12
Service Publications
Ordering Information . . . . . . 13-15
Reporting Safety Defects Reporting Safety Defects to
the United States
Government . . . . . . . . . . . . . . . 13-16
Reporting Safety Defects to
the Canadian
Government . . . . . . . . . . . . . . . 13-17
Reporting Safety Defects to
General Motors . . . . . . . . . . . 13-17
Vehicle Data Recording and
Privacy Vehicle Data Recording and
Privacy . . . . . . . . . . . . . . . . . . . . 13-17
Event Data Recorders . . . . . . 13-18
OnStar ®
. . . . . . . . . . . . . . . . . . . . 13-19
Navigation System . . . . . . . . . 13-19
Radio Frequency
Identification (RFID) . . . . . . . 13-19
Radio Frequency
Statement . . . . . . . . . . . . . . . . . 13-19 Customer Information Customer Satisfaction
Procedure
(U.S. and Canada) Your satisfaction and goodwill are
important to the dealer and to
Cadillac. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by the dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE: Discuss your
concern with a member of
dealership management. Normally,
concerns can be quickly resolved at
that level. If the matter has already
been reviewed with the sales,
service or parts manager, contact
the owner of the dealership or the
general manager.

Black plate (2,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
13-2 Customer Information STEP TWO: If after contacting a
member of dealership management,
it appears your concern cannot be
resolved by the dealership without
further help, in the U.S., call the
Cadillac Customer Assistance
Center at 1 ‐ 800 ‐ 458 ‐ 8006. In
Canada, call the Canadian
Cadillac Customer Communication
Centre at 1-888-446-2000.
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Have the
following information available to
give the Customer Assistance
representative: .
Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, or the plate at the top left of
the instrument panel and visible
through the windshield. .
Dealership name and location. .
Vehicle delivery date and
present mileage. When contacting Cadillac,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest
following Step One first.
STEP THREE — U.S. Owners:
Both General Motors and the dealer
are committed to making sure you
are completely satisfied with the
new vehicle. However, if you
continue to remain unsatisfied after
following the procedure outlined
in Steps One and Two, you can
file with the Better Business
Bureau (BBB) Auto Line ®
Program
to enforce your rights.
The BBB Auto Line Program is an
out-of-court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs
or the interpretation of the New
Vehicle Limited Warranty. Although
you may be required to resort to this
informal dispute resolution program
prior to filing a court action, use of
the program is free of charge and your case will generally be heard
within 40 days. If you do not agree
with the decision given in your case,
you may reject it and proceed with
any other venue for relief available
to you.
You may contact the BBB Auto
Line Program using the toll-free
telephone number or write them at
the following address:
BBB Auto Line Program
Council of Better Business
Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
www.dr.bbb.org/goauto
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage and other
factors. General Motors reserves
the right to change eligibility
limitations and/or discontinue its
participation in this program.

Black plate (3,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Customer Information 13-3STEP THREE — Canadian
Owners: In the event that you do
not feel your concerns have been
addressed after following the
procedure outlined in Steps One
and Two, General Motors of Canada
Limited wants you to be aware of its
participation in a no-charge
mediation/arbitration program.
General Motors of Canada Limited
has committed to binding arbitration
of owner disputes involving
factory-related vehicle service
claims. The program provides for
the review of the facts involved by
an impartial third party arbiter, and
may include an informal hearing
before the arbiter. The program is
designed so that the entire dispute
settlement process, from the time
you file your complaint to the final
decision, should be completed in
approximately 70 days. We believe
our impartial program offers
advantages over courts in most
jurisdictions because it is informal,
quick, and free of charge. For further information concerning
eligibility in the Canadian Motor
Vehicle Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685, or call
the General Motors Customer
Communication Centre,
1-800-263-3777 (English),
1-800-263-7854 (French),
or write to:
Mediation/Arbitration Program
c/o Customer Communication
Centre
General Motors of Canada Limited
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
The inquiry should be accompanied
by the Vehicle Identification
Number (VIN). Customer Satisfaction
Procedure (Mexico)
Did you get the Warranty Extension
Plan? This plan is recommended by
General Motors to supplement the
warranty included with the new
vehicle purchase.
See your dealer for details.

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
13-4 Customer Information Customer Assistance
Procedure Owner satisfaction and goodwill are
very important to your dealer and
General Motors.
Normally, any problem with the
transaction, sale, or usage of the
vehicle must be handled by your
dealer sales or service departments.
However, we recognize that despite
the good intentions of all parties
involved, sometimes a
misunderstanding may occur.
If you have a problem that has not
been satisfactorily handled through
the normal means, we suggest the
following steps: STEP ONE
Explain your case to the dealer
service agent, service manager,
dealer sales agent, or sales
manager, depending on your case.
Make sure that they have all
necessary information. They are
interested in your continual
satisfaction.
STEP TWO
If you are not satisfied, please
contact the general manager or the
dealership owner to ask for their
help. If they are not able to resolve
your case, ask them to contact the
right people at General Motors for
support, if needed. STEP THREE
If your case is not resolved in a
reasonable amount of time by your
dealer, please call the General
Motors Customer Assistance
Center (CAC) and provide the
following information: .
Name .
Address .
Phone number .
Model year .
Brand .
Vehicle Identification
Number (VIN) .
Mileage .
Delivery date .
Description of the problem .
Dealership name .
Dealership address
