Black plate (69,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-69To access the spare tire:
A. Hoist Assembly
B. Hoist Shaft
C. Hoist Shaft Access Cover/Hole
D. Jack Handle Extensions
E. Wheel Wrench
F. Hoist Cable
G. Tire/Wheel Retainer
H. Spare Tire (Valve Stem
Pointed Down)
I. Hoist Shaft Access Hole J. Hoist End of Extension Tool
K. Spare Tire Lock
1. To reach the hoist shaft access
cover (C), you will first need to
remove the hitch cover. Remove
it by turning the two fasteners
located at the bottom of the
cover counterclockwise and then
pull the cover down and rotate
towards you.
2. Open the hoist shaft access
cover (C) on the bumper to
access the spare tire lock (K). 3. To remove the spare tire lock
insert the ignition key, turn it
clockwise and then pull the
lock out.
4. Assemble the two jack handle
extensions (D) and wheel
wrench (E) as shown.

Black plate (70,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-70 Vehicle Care

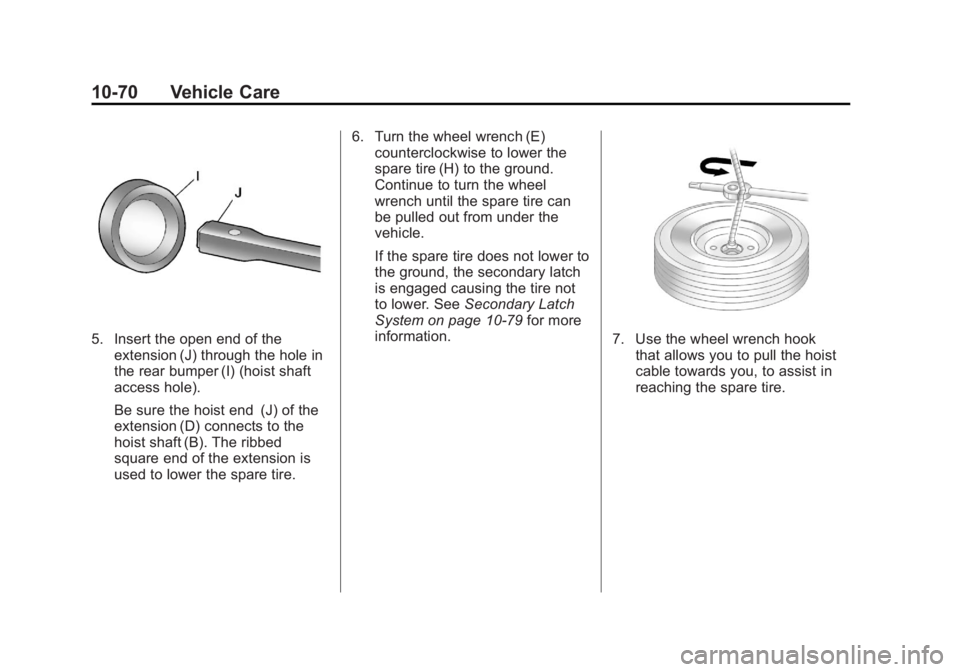

5. Insert the open end of the
extension (J) through the hole in
the rear bumper (I) (hoist shaft
access hole).
Be sure the hoist end (J) of the
extension (D) connects to the
hoist shaft (B). The ribbed
square end of the extension is
used to lower the spare tire. 6. Turn the wheel wrench (E)
counterclockwise to lower the
spare tire (H) to the ground.
Continue to turn the wheel
wrench until the spare tire can
be pulled out from under the
vehicle.
If the spare tire does not lower to
the ground, the secondary latch
is engaged causing the tire not
to lower. See Secondary Latch
System on page 10 ‑ 79 for more
information.
7. Use the wheel wrench hook
that allows you to pull the hoist
cable towards you, to assist in
reaching the spare tire.

Black plate (71,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-71

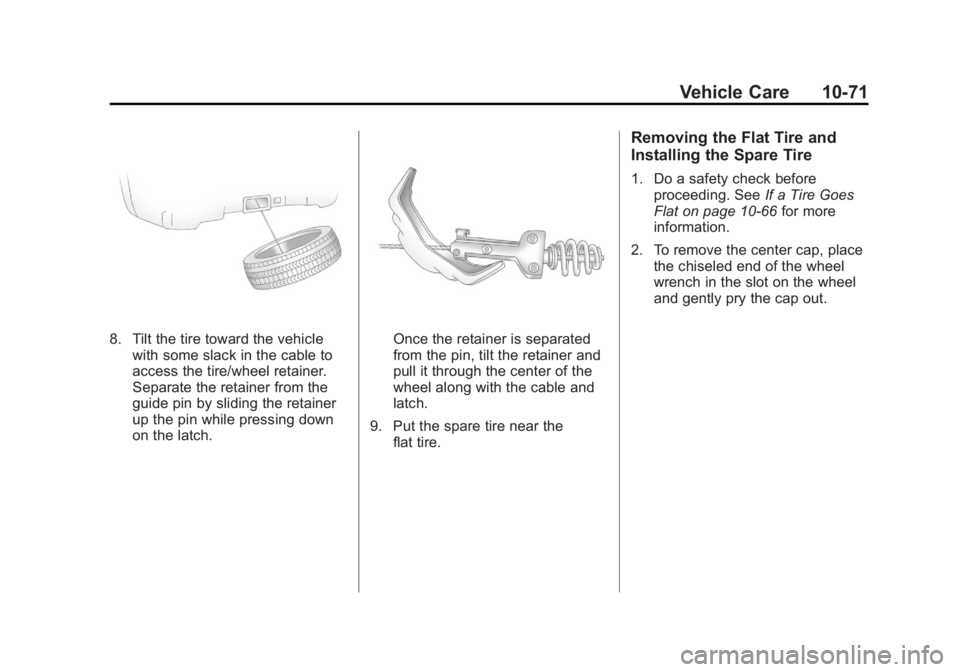

8. Tilt the tire toward the vehicle
with some slack in the cable to
access the tire/wheel retainer.
Separate the retainer from the
guide pin by sliding the retainer
up the pin while pressing down
on the latch. Once the retainer is separated
from the pin, tilt the retainer and
pull it through the center of the
wheel along with the cable and
latch.
9. Put the spare tire near the
flat tire. Removing the Flat Tire and
Installing the Spare Tire 1. Do a safety check before
proceeding. See If a Tire Goes
Flat on page 10 ‑ 66 for more
information.
2. To remove the center cap, place
the chiseled end of the wheel
wrench in the slot on the wheel
and gently pry the cap out.

Black plate (72,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-72 Vehicle Care
3. Use the wheel wrench to loosen
all the wheel nuts. Turn the
wheel wrench counterclockwise
to loosen the wheel nuts. Do not
remove the wheel nuts yet. Jacking Locations (Overall View)
A. Front Position
B. Rear Position
{ WARNING
Getting under a vehicle when it is
jacked up is dangerous. If the
vehicle slips off the jack, you
could be badly injured or killed.
Never get under a vehicle when it
is supported only by a jack. { WARNINGRaising the vehicle with the jack
improperly positioned can
damage the vehicle and even
make the vehicle fall. To help
avoid personal injury and vehicle
damage, be sure to fit the jack lift
head into the proper location
before raising the vehicle.
4. Position the jack under the
vehicle as shown.

Black plate (73,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-73
Front Position
Front Tire Flat: If the flat tire is
on a front tire of the vehicle,
you will need to use the jack
handle and only one jack handle
extension. Attach the wheel
wrench to the jack handle
extension. Attach the jack
handle to the jack (A). Position
the jack on the frame behind the
flat tire where the frame sections
overlap. Turn the wheel wrench
clockwise to raise the vehicle. Raise the vehicle far enough off
the ground so there is enough
room for the spare tire to clear
the ground.
Rear Position
Rear Tire Flat: If the flat tire is
on a rear tire of the vehicle,
you will need to use the jack
handle (B) and both jack handle extensions (C). Attach the wheel
wrench (D) to the jack handle
extensions (C). Attach the jack
handle (B) to the jack (A). Use
the jacking pad (E) provided on
the rear axle. Turn the wheel
wrench (D) clockwise to raise the
vehicle. Raise the vehicle far
enough off the ground so there
is enough room for the spare tire
to clear the ground.

Black plate (74,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-74 Vehicle Care

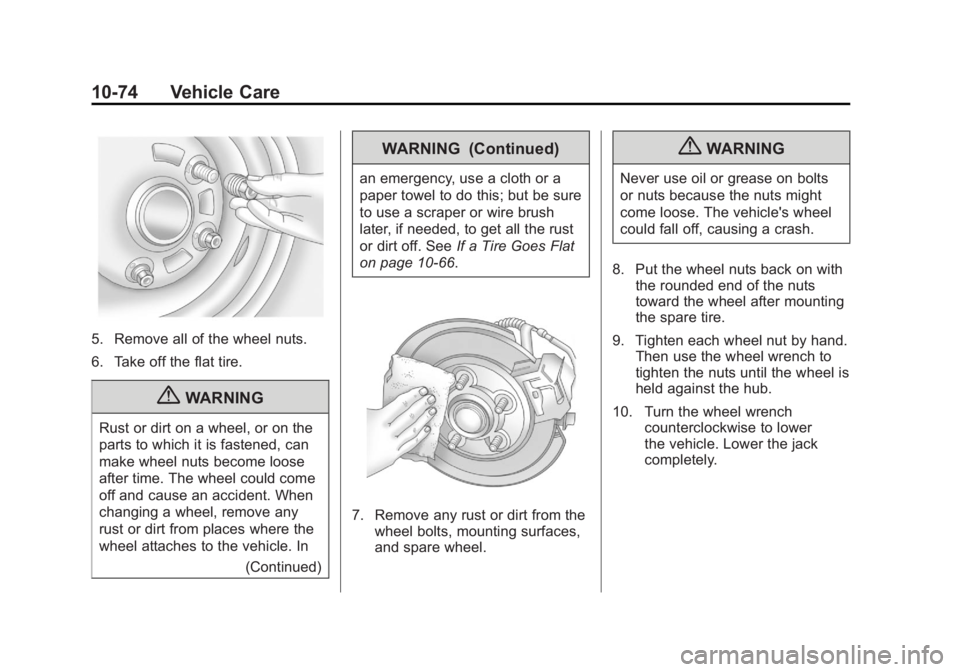

5. Remove all of the wheel nuts.
6. Take off the flat tire.
{ WARNING
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
changing a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle. In
(Continued) WARNING (Continued) an emergency, use a cloth or a
paper towel to do this; but be sure
to use a scraper or wire brush
later, if needed, to get all the rust
or dirt off. See If a Tire Goes Flat
on page 10 ‑ 66 .
7. Remove any rust or dirt from the
wheel bolts, mounting surfaces,
and spare wheel. { WARNINGNever use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle's wheel
could fall off, causing a crash.
8. Put the wheel nuts back on with
the rounded end of the nuts
toward the wheel after mounting
the spare tire.
9. Tighten each wheel nut by hand.
Then use the wheel wrench to
tighten the nuts until the wheel is
held against the hub.
10. Turn the wheel wrench
counterclockwise to lower
the vehicle. Lower the jack
completely.

Black plate (75,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-75

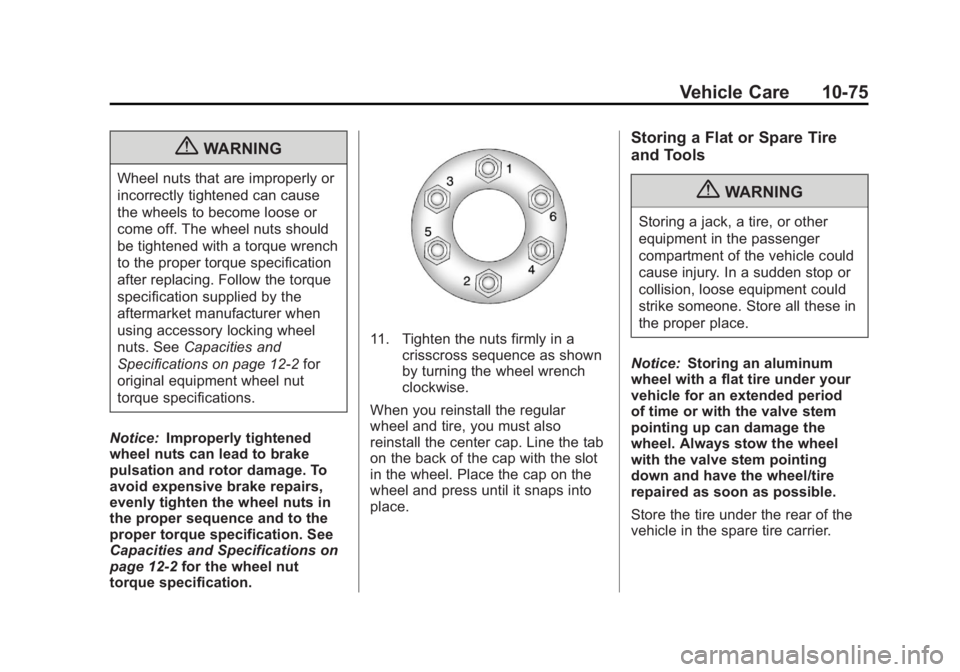

{ WARNINGWheel nuts that are improperly or
incorrectly tightened can cause
the wheels to become loose or
come off. The wheel nuts should
be tightened with a torque wrench
to the proper torque specification
after replacing. Follow the torque
specification supplied by the
aftermarket manufacturer when
using accessory locking wheel
nuts. See Capacities and
Specifications on page 12 ‑ 2 for
original equipment wheel nut
torque specifications.
Notice: Improperly tightened
wheel nuts can lead to brake
pulsation and rotor damage. To
avoid expensive brake repairs,
evenly tighten the wheel nuts in
the proper sequence and to the
proper torque specification. See
Capacities and Specifications on
page 12 ‑ 2 for the wheel nut
torque specification. 11. Tighten the nuts firmly in a
crisscross sequence as shown
by turning the wheel wrench
clockwise.
When you reinstall the regular
wheel and tire, you must also
reinstall the center cap. Line the tab
on the back of the cap with the slot
in the wheel. Place the cap on the
wheel and press until it snaps into
place. Storing a Flat or Spare Tire
and Tools
{ WARNINGStoring a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.
Notice: Storing an aluminum
wheel with a flat tire under your
vehicle for an extended period
of time or with the valve stem
pointing up can damage the
wheel. Always stow the wheel
with the valve stem pointing
down and have the wheel/tire
repaired as soon as possible.
Store the tire under the rear of the
vehicle in the spare tire carrier.

Black plate (76,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-76 Vehicle Care

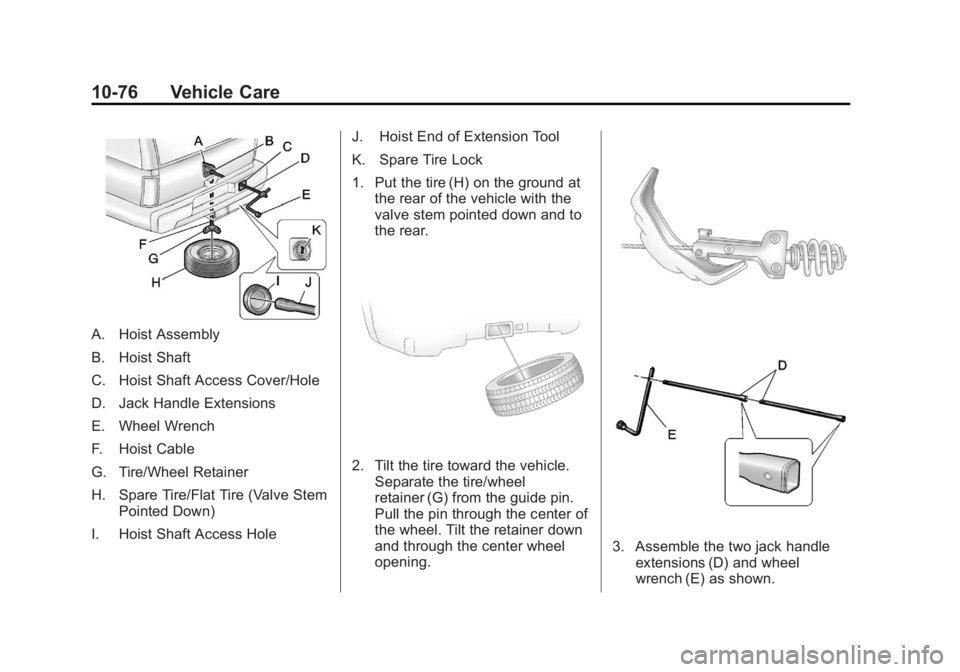

A. Hoist Assembly
B. Hoist Shaft
C. Hoist Shaft Access Cover/Hole
D. Jack Handle Extensions
E. Wheel Wrench
F. Hoist Cable
G. Tire/Wheel Retainer
H. Spare Tire/Flat Tire (Valve Stem
Pointed Down)
I. Hoist Shaft Access Hole J. Hoist End of Extension Tool
K. Spare Tire Lock
1. Put the tire (H) on the ground at
the rear of the vehicle with the
valve stem pointed down and to
the rear.
2. Tilt the tire toward the vehicle.
Separate the tire/wheel
retainer (G) from the guide pin.
Pull the pin through the center of
the wheel. Tilt the retainer down
and through the center wheel
opening. 3. Assemble the two jack handle
extensions (D) and wheel
wrench (E) as shown.

Black plate (77,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-77

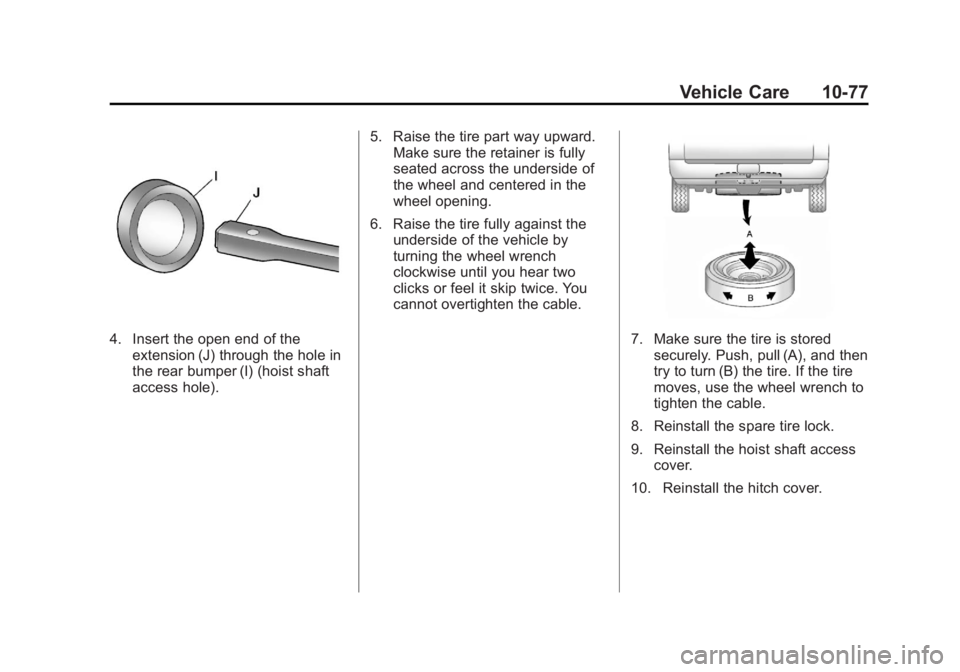

4. Insert the open end of the
extension (J) through the hole in
the rear bumper (I) (hoist shaft
access hole). 5. Raise the tire part way upward.
Make sure the retainer is fully
seated across the underside of
the wheel and centered in the
wheel opening.
6. Raise the tire fully against the
underside of the vehicle by
turning the wheel wrench
clockwise until you hear two
clicks or feel it skip twice. You
cannot overtighten the cable.
7. Make sure the tire is stored
securely. Push, pull (A), and then
try to turn (B) the tire. If the tire
moves, use the wheel wrench to
tighten the cable.
8. Reinstall the spare tire lock.
9. Reinstall the hoist shaft access
cover.
10. Reinstall the hitch cover.

Black plate (78,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-78 Vehicle Care To store the tools:
A. Wheel Blocks
B. Tool Bag with Jack Tools
C. Retaining Bracket
D. Wing Nut Retaining Tool Bag
E. Jack F. Wing Nut Retaining Wheel
Blocks
G. Jack Knob
1. Return the tools (wheel wrench,
jack handle, and jack handle
extensions) to the tool bag (B).
2. Assemble wheel blocks (A)
and jack (E) together with the
wing nut (F).
3. Position the jack (E) and wheel
blocks (A) in the driver side trim
panel over the wheelhouse.
4. Turn the jack knob (G) clockwise
until the jack is secured tight in
the mounting bracket. Be sure to
position the holes in the base of
the jack onto the pin in the
mounting bracket.
5. Use the retaining bracket (C) to
fasten the tool bag (B) on the
stud and turn the wing nut (D)
clockwise to secure. Regular Wheelbase shown,
Extended Wheelbase similar.
6. Return the storage tray to its
original stored position.
