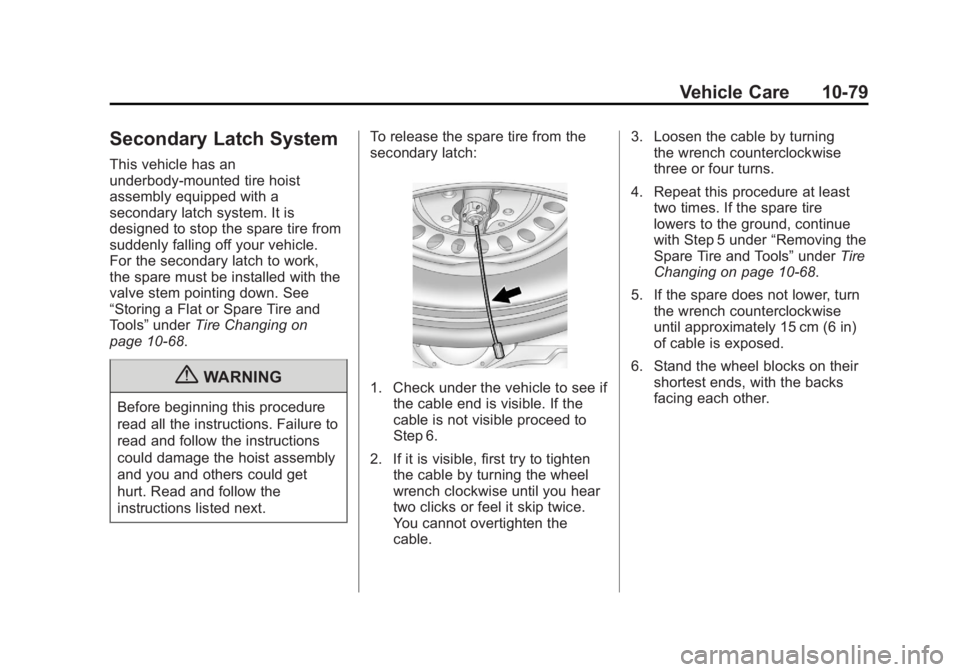

Secondary Latch System This vehicle has an
underbody-mounted tire hoist
assembly equipped with a
secondary latch system. It is
designed to stop the spare tire from
suddenly falling off your vehicle.
For the secondary latch to work,
the spare must be installed with the
valve stem pointing down. See
“ Storing a Flat or Spare Tire and
Tools ” under Tire Changing on
page 10 ‑ 68 .
{ WARNING
Before beginning this procedure
read all the instructions. Failure to
read and follow the instructions
could damage the hoist assembly
and you and others could get
hurt. Read and follow the
instructions listed next. To release the spare tire from the
secondary latch:
1. Check under the vehicle to see if
the cable end is visible. If the
cable is not visible proceed to
Step 6.
2. If it is visible, first try to tighten
the cable by turning the wheel
wrench clockwise until you hear
two clicks or feel it skip twice.
You cannot overtighten the
cable. 3. Loosen the cable by turning
the wrench counterclockwise
three or four turns.
4. Repeat this procedure at least
two times. If the spare tire
lowers to the ground, continue
with Step 5 under “ Removing the
Spare Tire and Tools ” under Tire
Changing on page 10 ‑ 68 .
5. If the spare does not lower, turn
the wrench counterclockwise
until approximately 15 cm (6 in)
of cable is exposed.
6. Stand the wheel blocks on their
shortest ends, with the backs
facing each other.

Black plate (80,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-80 Vehicle Care

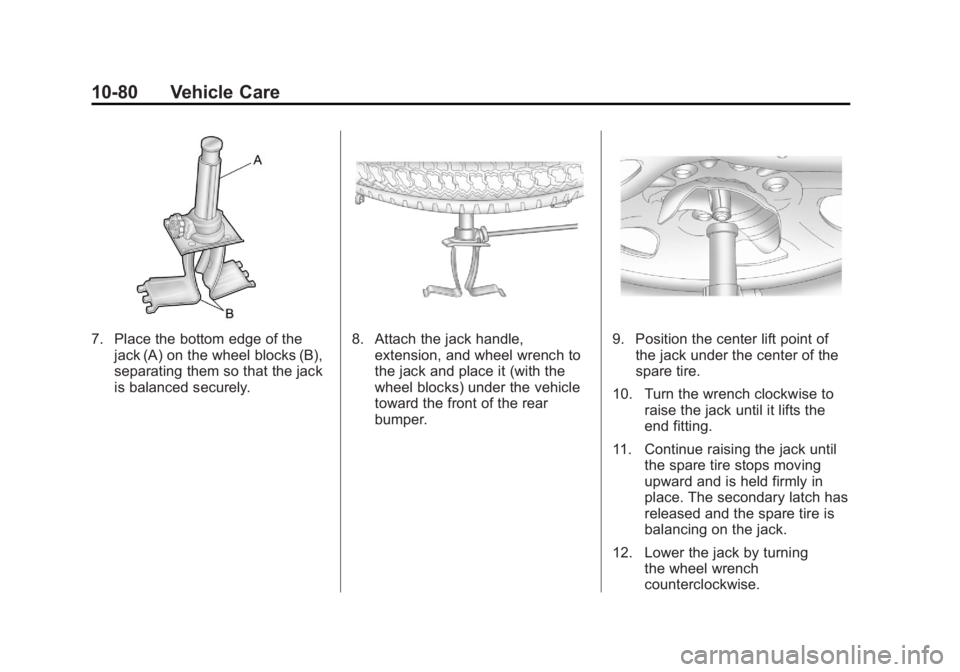

7. Place the bottom edge of the
jack (A) on the wheel blocks (B),
separating them so that the jack
is balanced securely. 8. Attach the jack handle,
extension, and wheel wrench to
the jack and place it (with the
wheel blocks) under the vehicle
toward the front of the rear
bumper. 9. Position the center lift point of
the jack under the center of the
spare tire.
10. Turn the wrench clockwise to
raise the jack until it lifts the
end fitting.
11. Continue raising the jack until
the spare tire stops moving
upward and is held firmly in
place. The secondary latch has
released and the spare tire is
balancing on the jack.
12. Lower the jack by turning
the wheel wrench
counterclockwise.

Black plate (81,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

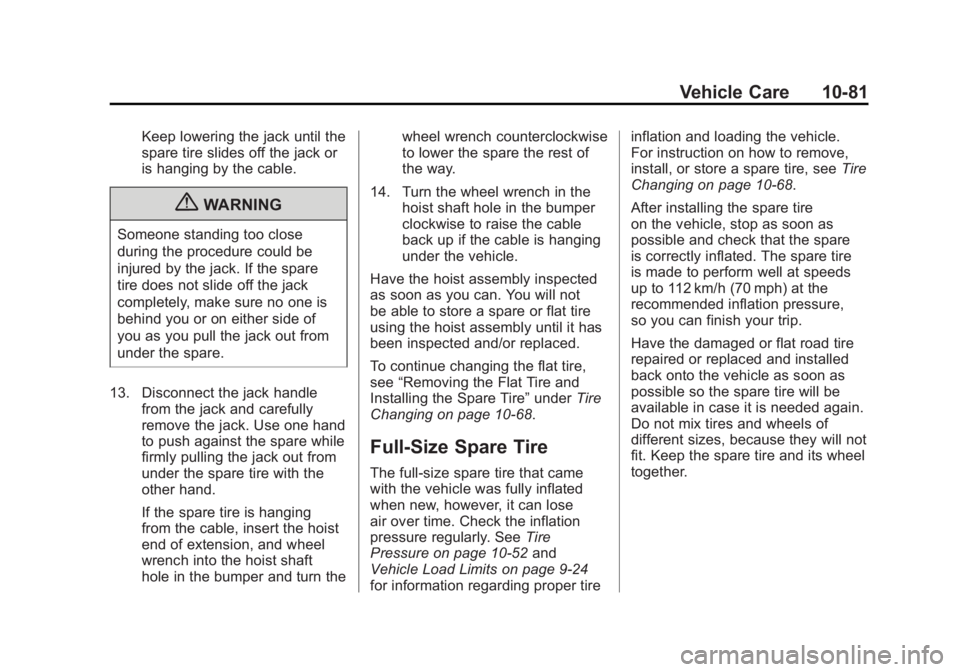

Vehicle Care 10-81Keep lowering the jack until the
spare tire slides off the jack or
is hanging by the cable.
{ WARNINGSomeone standing too close
during the procedure could be
injured by the jack. If the spare
tire does not slide off the jack
completely, make sure no one is
behind you or on either side of
you as you pull the jack out from
under the spare.
13. Disconnect the jack handle
from the jack and carefully
remove the jack. Use one hand
to push against the spare while
firmly pulling the jack out from
under the spare tire with the
other hand.
If the spare tire is hanging
from the cable, insert the hoist
end of extension, and wheel
wrench into the hoist shaft
hole in the bumper and turn the wheel wrench counterclockwise
to lower the spare the rest of
the way.
14. Turn the wheel wrench in the
hoist shaft hole in the bumper
clockwise to raise the cable
back up if the cable is hanging
under the vehicle.
Have the hoist assembly inspected
as soon as you can. You will not
be able to store a spare or flat tire
using the hoist assembly until it has
been inspected and/or replaced.
To continue changing the flat tire,
see “ Removing the Flat Tire and
Installing the Spare Tire ” under Tire
Changing on page 10 ‑ 68 .
Full-Size Spare Tire The full-size spare tire that came
with the vehicle was fully inflated
when new, however, it can lose
air over time. Check the inflation
pressure regularly. See Tire
Pressure on page 10 ‑ 52 and
Vehicle Load Limits on page 9 ‑ 24
for information regarding proper tire inflation and loading the vehicle.
For instruction on how to remove,
install, or store a spare tire, see Tire
Changing on page 10 ‑ 68 .
After installing the spare tire
on the vehicle, stop as soon as
possible and check that the spare
is correctly inflated. The spare tire
is made to perform well at speeds
up to 112 km/h (70 mph) at the
recommended inflation pressure,
so you can finish your trip.
Have the damaged or flat road tire
repaired or replaced and installed
back onto the vehicle as soon as
possible so the spare tire will be
available in case it is needed again.
Do not mix tires and wheels of
different sizes, because they will not
fit. Keep the spare tire and its wheel
together.

Black plate (82,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-82 Vehicle Care
Jump Starting For more information about the
vehicle battery, see Battery on
page 10 ‑ 27 .
If the vehicle is a hybrid, see the
hybrid supplement for more
information.
If the vehicle's battery has run
down, you may want to use another
vehicle and some jumper cables to
start your vehicle. Be sure to use
the following steps to do it safely.
{ WARNINGBatteries can hurt you. They can
be dangerous because: .
They contain acid that can
burn you. .
They contain gas that can
explode or ignite. .
They contain enough
electricity to burn you.
If you do not follow these steps
exactly, some or all of these
things can hurt you. Notice: Ignoring these steps
could result in costly damage to
the vehicle that would not be
covered by the warranty.
Trying to start the vehicle by
pushing or pulling it will not
work, and it could damage the
vehicle.
1. Check the other vehicle. It must
have a 12-volt battery with a
negative ground system.
Notice: Only use a vehicle that
has a 12-volt system with a
negative ground for jump
starting. If the other vehicle does
not have a 12-volt system with a
negative ground, both vehicles
can be damaged.
2. Get the vehicles close enough
so the jumper cables can reach,
but be sure the vehicles are
not touching each other. If they
are, it could cause a ground
connection you do not want.

Black plate (83,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-83You would not be able to start
your vehicle, and the bad
grounding could damage the
electrical systems.
To avoid the possibility of the
vehicles rolling, set the parking
brake firmly on both vehicles
involved in the jump start
procedure. Put the automatic
transmission in P (Park) or
a manual transmission in
N (Neutral) before setting the
parking brake. If you have a
four-wheel-drive vehicle, be sure
that the transfer case is in a
drive gear, not in N (Neutral). Notice: If the radio or other
accessories are left on during
the jump starting procedure, they
could be damaged. The repairs
would not be covered by the
warranty. Always turn off the
radio and other accessories when
jump starting the vehicle.
3. Turn off the ignition on both
vehicles. Unplug unnecessary
accessories plugged into the
cigarette lighter or the accessory
power outlets. Turn off the radio
and all the lamps that are not
needed. This avoids sparks and
helps save both batteries. And it
could save the radio! 4. Open the hood on the other
vehicle and locate the
positive (+) and negative ( − )
terminal locations on that
vehicle.
Your vehicle has a remote
positive (+) jump starting
terminal and a remote
negative ( − ) jump starting
terminal. You should always use
these remote terminals instead
of the terminals on the battery.
If the vehicle has a remote
positive (+) terminal, it is located
under a red plastic cover at the
positive battery post. To uncover
the remote positive (+) terminal,
open the red plastic cover.

Black plate (84,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-84 Vehicle Care
The remote negative ( − ) terminal
is a stud located on the right
front of the engine, where the
negative battery cable attaches.
See Engine Compartment
Overview on page 10 ‑ 6 for more
information on the location of the
remote positive (+) and remote
negative ( − ) terminals. { WARNINGAn electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing and tools away from any
underhood electric fan.
{ WARNINGUsing an open flame near a
battery can cause battery gas to
explode. People have been hurt
doing this, and some have been
blinded. Use a flashlight if you
need more light.
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a battery
has filler caps, be sure the right
amount of fluid is there. If it is low,
(Continued) WARNING (Continued) add water to take care of that
first. If you do not, explosive gas
could be present.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{ WARNING
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Check that the jumper cables
do not have loose or missing
insulation. If they do, you could
get a shock. The vehicles could
be damaged too.

Black plate (85,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-85Before you connect the cables,
here are some basic things you
should know. Positive (+) will go
to positive (+) or to a remote
positive (+) terminal if the vehicle
has one. Negative ( − ) will go to a
heavy, unpainted metal engine
part or to a remote negative ( − )
terminal if the vehicle has one.
Do not connect positive (+) to
negative ( − ) or you will get a
short that would damage the
battery and maybe other parts
too. And do not connect the
negative ( − ) cable to the
negative ( − ) terminal on the
dead battery because this can
cause sparks. 6. Connect the red positive (+)
cable to the positive (+) terminal
of the vehicle with the dead
battery. Use a remote
positive (+) terminal if the
vehicle has one.
7. Do not let the other end
touch metal. Connect it to
the positive (+) terminal of the
good battery. Use a remote
positive (+) terminal if the vehicle
has one. 8. Now connect the black
negative ( − ) cable to the
negative ( − ) terminal of the
good battery. Use a remote
negative ( − ) terminal if the
vehicle has one.
Do not let the other end touch
anything until the next step. The
other end of the negative ( − )
cable does not go to the dead
battery. It goes to a heavy,
unpainted metal engine part
or to the remote negative ( − )
terminal on the vehicle with the
dead battery.
9. Connect the other end of the
negative ( − ) cable to the remote
negative ( − ) terminal, on the
vehicle with the dead battery.
10. Now start the vehicle with
the good battery and run the
engine for a while.

Black plate (86,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-86 Vehicle Care 11. Try to start the vehicle that
had the dead battery. If it will
not start after a few tries, it
probably needs service.
Notice: If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct
order, making sure that the
cables do not touch each other
or other metal. Jumper Cable Removal
A. Heavy, Unpainted Metal Engine
Part or Remote Negative ( − )
Terminal
B. Good Battery or Remote
Positive (+) and Remote
Negative ( − ) Terminals
C. Dead Battery or Remote
Positive (+) Terminal To disconnect the jumper cables
from both vehicles do the following:
1. Disconnect the black
negative ( − ) cable from the
vehicle that had the bad battery.
2. Disconnect the black
negative ( − ) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+)
cable from the vehicle with the
good battery.
4. Disconnect the red positive (+)
cable from the other vehicle.
5. Return the remote positive (+)
terminal cover, if the vehicle has
one, to its original position.

Black plate (87,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-87

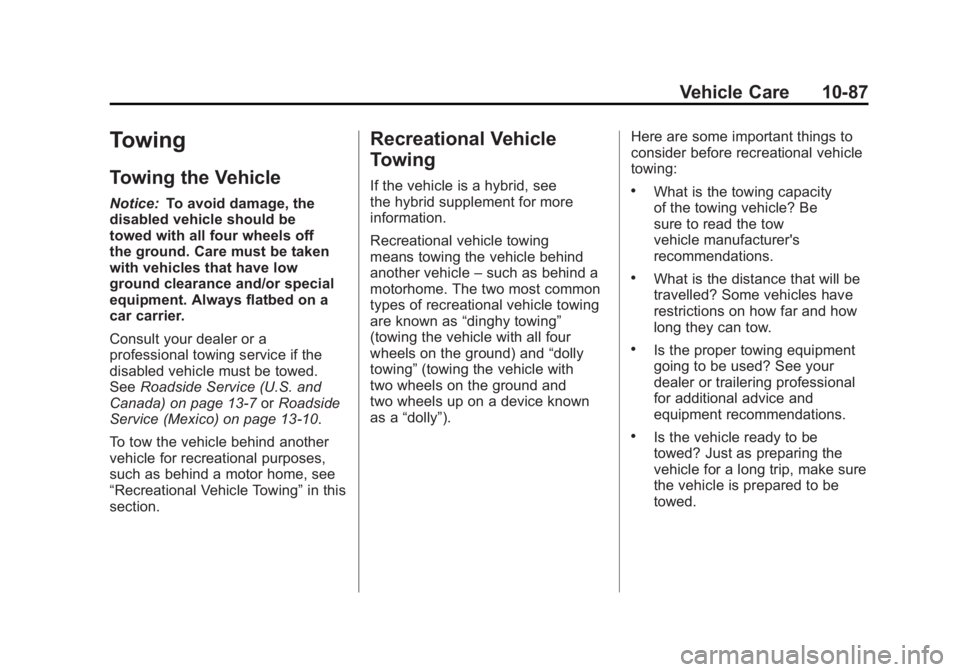

Towing Towing the Vehicle Notice: To avoid damage, the
disabled vehicle should be
towed with all four wheels off
the ground. Care must be taken
with vehicles that have low
ground clearance and/or special
equipment. Always flatbed on a
car carrier.
Consult your dealer or a
professional towing service if the
disabled vehicle must be towed.
See Roadside Service (U.S. and
Canada) on page 13 ‑ 7 or Roadside
Service (Mexico) on page 13 ‑ 10 .
To tow the vehicle behind another
vehicle for recreational purposes,
such as behind a motor home, see
“ Recreational Vehicle Towing ” in this
section. Recreational Vehicle
Towing If the vehicle is a hybrid, see
the hybrid supplement for more
information.
Recreational vehicle towing
means towing the vehicle behind
another vehicle – such as behind a
motorhome. The two most common
types of recreational vehicle towing
are known as “ dinghy towing ”
(towing the vehicle with all four
wheels on the ground) and “ dolly
towing ” (towing the vehicle with
two wheels on the ground and
two wheels up on a device known
as a “ dolly ” ). Here are some important things to
consider before recreational vehicle
towing: .
What is the towing capacity
of the towing vehicle? Be
sure to read the tow
vehicle manufacturer's
recommendations. .
What is the distance that will be
travelled? Some vehicles have
restrictions on how far and how
long they can tow. .
Is the proper towing equipment
going to be used? See your
dealer or trailering professional
for additional advice and
equipment recommendations. .
Is the vehicle ready to be
towed? Just as preparing the
vehicle for a long trip, make sure
the vehicle is prepared to be
towed.

Black plate (88,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

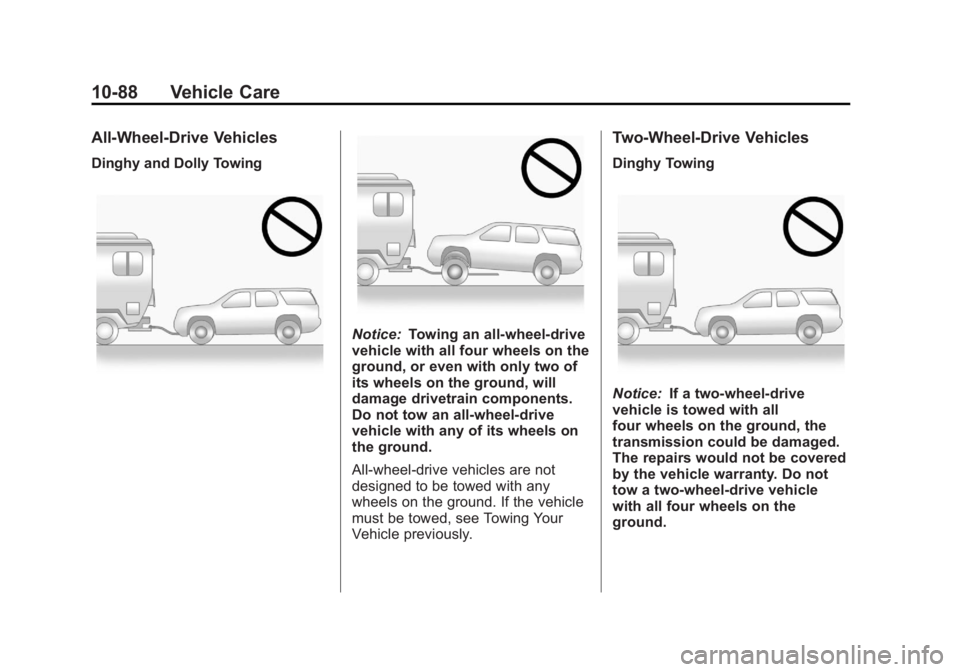

10-88 Vehicle Care All-Wheel-Drive Vehicles Dinghy and Dolly Towing
Notice: Towing an all-wheel-drive
vehicle with all four wheels on the
ground, or even with only two of
its wheels on the ground, will
damage drivetrain components.
Do not tow an all-wheel-drive
vehicle with any of its wheels on
the ground.
All-wheel-drive vehicles are not
designed to be towed with any
wheels on the ground. If the vehicle
must be towed, see Towing Your
Vehicle previously. Two-Wheel-Drive Vehicles Dinghy Towing
Notice: If a two-wheel-drive
vehicle is towed with all
four wheels on the ground, the
transmission could be damaged.
The repairs would not be covered
by the vehicle warranty. Do not
tow a two-wheel-drive vehicle
with all four wheels on the
ground.
