7. Tilt the tire with slack in the cable to access the
tire/wheel retainer (D). Separate the retainer from
the guide pin by sliding the retainer up the pin
while pressing down on the latch. When the
retainer is separated from the guide pin, tilt the
retainer and pull it through the center of the wheel
along with the cable and guide pin.
8. Put the spare tire near the at tire.
5-83

Removing the Flat Tire and
Installing the Spare Tire
The tools that are needed include the jack (A), the
wheel blocks (B), the jack handle (C), the jack handle
extensions (D), and the wheel wrench (E).
1. Do a safety check before proceeding. SeeChanging
a Flat Tire on page 5-78for more information.2. To remove the center cap, place the chiseled end
of the wheel wrench in the slot on the wheel and
gently pry the cap out.
5-84

3. Use the wheel
wrench to loosen
all the wheel nuts.
Turn the wheel wrench
counterclockwise to
loosen the wheel nuts.
Do not remove the
wheel nuts yet.
A. Front Position
B. Rear Position
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
Jacking Locations (Overall View)
5-85

{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle.
4. Position the jack under the vehicle as shown.
Front Tire Flat:If the at tire is on a front tire of the
vehicle, you will need to use the jack handle (B) and
only one jack handle extension (C). Attach the wheel
wrench (D) to the jack handle extension (C). Attach
the jack handle (B) to the jack (A). Position the jack
on the frame behind the at tire near the front body
mount (E) as shown. Turn the wheel wrench (D)
clockwise to raise the vehicle. Raise the vehicle far
enough off the ground so there is enough room for
the spare tire to clear the ground.Front Position
5-86

Rear Tire Flat:If the at tire is on a rear tire of
the vehicle, use the jack handle (B) and both jack
handle extensions (C). Attach the wheel wrench (D)
to the jack handle extensions (C). Attach the
jack handle (B) to the jack (A). Use the jacking
pad provided on the rear axle. Turn the wheel
wrench (D) clockwise to raise the vehicle. Raise
the vehicle far enough off the ground so there is
enough room for the spare tire to clear the ground.5. Remove all the
wheel nuts.
6. Take off the at tire.
Rear Position
5-87

{CAUTION:
Rust or dirt on a wheel, or on the parts to which
it is fastened, can make wheel nuts become
loose after time. The wheel could come off and
cause an accident. When you change a wheel,
remove any rust or dirt from places where the
wheel attaches to the vehicle. In an emergency,
you can use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if needed, to get all the rust or dirt off.
SeeChanging a Flat Tire on page 5-78.
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces,
and spare wheel.8. Install the spare tire.{CAUTION:
Never use oil or grease on studs or nuts.
Because the nuts might come loose. The
vehicle’s wheel could fall off, causing a crash.
9. Put the wheel nuts back on with the rounded end
of the nuts toward the wheel after mounting the
spare tire.
10. Tighten each wheel nut by hand. Then use the
wheel wrench to tighten the wheel nuts until the
wheel is held against the hub.
11. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely.
5-88

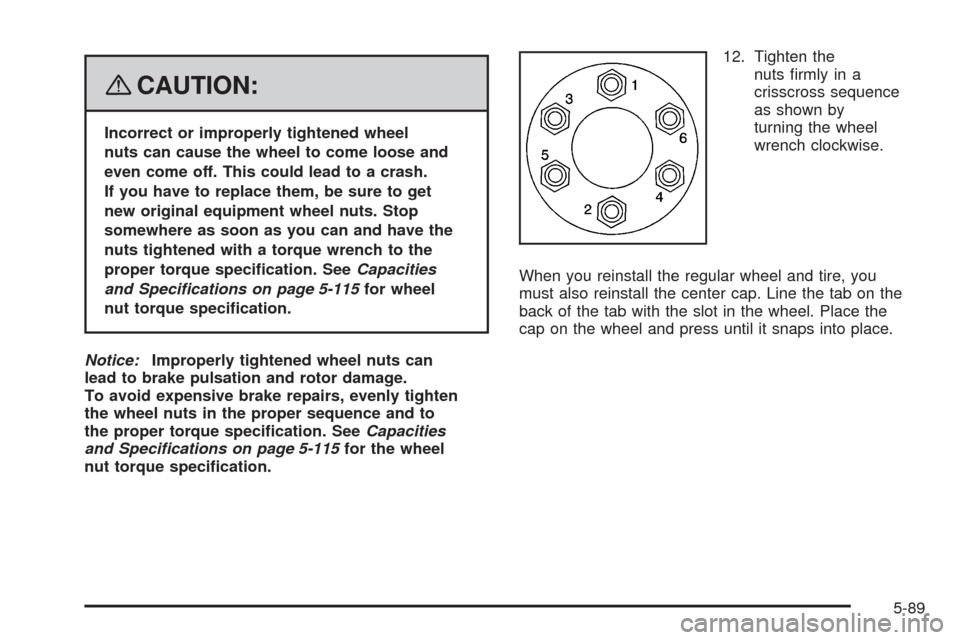

{CAUTION:
Incorrect or improperly tightened wheel
nuts can cause the wheel to come loose and
even come off. This could lead to a crash.
If you have to replace them, be sure to get
new original equipment wheel nuts. Stop
somewhere as soon as you can and have the
nuts tightened with a torque wrench to the
proper torque specication. SeeCapacities
and Specifications on page 5-115for wheel
nut torque specication.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage.
To avoid expensive brake repairs, evenly tighten
the wheel nuts in the proper sequence and to
the proper torque specication. SeeCapacities
and Specifications on page 5-115for the wheel
nut torque specication.12. Tighten the
nuts rmly in a
crisscross sequence
as shown by
turning the wheel
wrench clockwise.
When you reinstall the regular wheel and tire, you
must also reinstall the center cap. Line the tab on the
back of the tab with the slot in the wheel. Place the
cap on the wheel and press until it snaps into place.
5-89

Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch system.
It is designed to stop the spare tire from suddenly falling
off your vehicle. For the secondary latch to work, the
spare must be installed with the valve stem pointing
down. SeeStoring a Flat or Spare Tire and Tools
on page 5-94.
{CAUTION:
Before beginning this procedure read all the
instructions. Failure to read and follow the
instructions could damage the hoist assembly
and you and others could get hurt. Read and
follow the instructions listed next.To release the spare tire from the secondary latch:
1. Check under the
vehicle to see if the
cable end is visible.
If the cable is not visible
proceed to Step 6.
2. If it is visible, rst try to tighten the cable by
turning the wheel wrench clockwise until you
hear two clicks or feel it skip twice. You cannot
overtighten the cable.
3. Loosen the cable by turning the wrench
counterclockwise three or four turns.
5-90

4. Repeat this procedure at least two times. If the
spare tire lowers to the ground, continue with
Step 5 ofRemoving the Spare Tire and Tools
on page 5-79.
5. If the spare does not lower, turn the wrench
counterclockwise until approximately 6 inches
(15 cm) of cable is exposed.
6. Stand the wheel blocks on their shortest ends,
with the backs facing each other.
7. Place the bottom
edge of the jack (A) on
the wheel blocks (B),
separating them so
that the jack is
balanced securely.
8. Attach the jack handle, extension, and wheel
wrench to the jack and place it (with the wheel
blocks) under the vehicle toward the front of the
rear bumper.
5-91

9. Position the center lift point of the jack under the
center of the spare tire.10. Turn the wrench clockwise to raise the jack until
it lifts the end tting.
11. Continue raising the jack until the spare tire
stops moving upward and is held rmly in place.
The secondary latch has released and the spare
tire is balancing on the jack.
12. Lower the jack by turning the wheel wrench
counterclockwise. Keep lowering the jack until
the spare tire slides off the jack or is hanging
by the cable.
