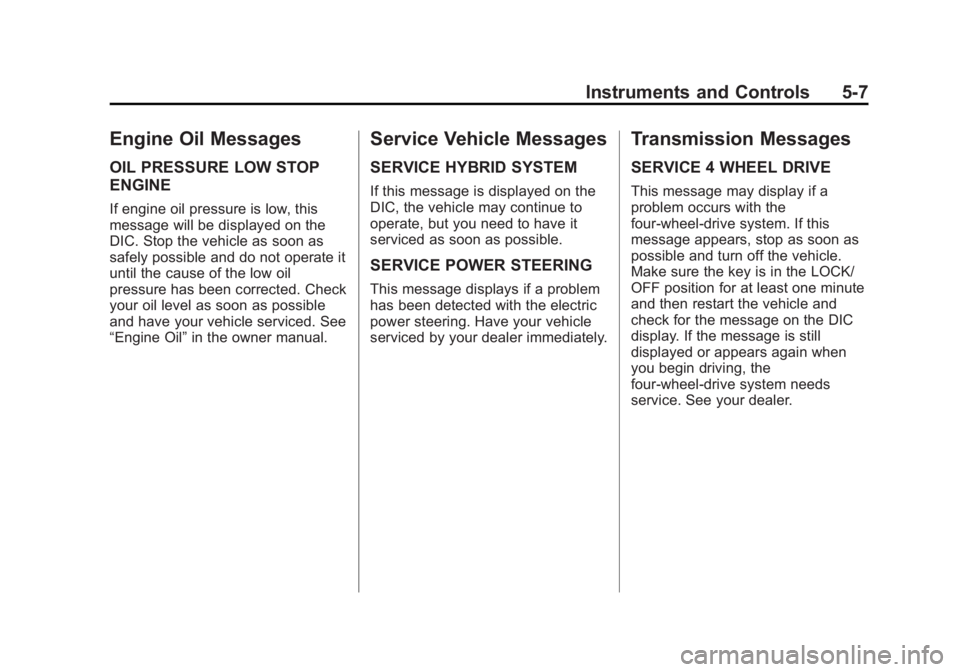

Engine Oil Messages OIL PRESSURE LOW STOP
ENGINE If engine oil pressure is low, this
message will be displayed on the
DIC. Stop the vehicle as soon as
safely possible and do not operate it
until the cause of the low oil
pressure has been corrected. Check
your oil level as soon as possible
and have your vehicle serviced. See
“ Engine Oil ” in the owner manual. Service Vehicle Messages SERVICE HYBRID SYSTEM If this message is displayed on the
DIC, the vehicle may continue to
operate, but you need to have it
serviced as soon as possible.
SERVICE POWER STEERING This message displays if a problem
has been detected with the electric
power steering. Have your vehicle
serviced by your dealer immediately. Transmission Messages SERVICE 4 WHEEL DRIVE This message may display if a
problem occurs with the
four-wheel-drive system. If this
message appears, stop as soon as
possible and turn off the vehicle.
Make sure the key is in the LOCK/
OFF position for at least one minute
and then restart the vehicle and
check for the message on the DIC
display. If the message is still
displayed or appears again when
you begin driving, the
four-wheel-drive system needs
service. See your dealer.

Black plate (8,1)Cadillac Escalade Hybrid - 2011
5-8 Instruments and Controls
2 NOTES

Black plate (1,1)Cadillac Escalade Hybrid - 2011
Infotainment System 7-1
Infotainment
System Introduction Introduction . . . . . . . . . . . . . . . . . . . 7-1
Introduction The vehicle has a navigation radio
system. See the owner manual for
more information.
Press the CONFIG button on the
radio to display the hybrid screen. The screen shows: .
Auto Stop .
Battery Charging .
Engine Idle .
2 ‐ Wheel and 4 ‐ Wheel Drive
Modes for:
‐ Engine Power
‐ Battery Power
‐ Hybrid Power

Black plate (2,1)Cadillac Escalade Hybrid - 2011
7-2 Infotainment System
2 NOTES

Black plate (1,1)Cadillac Escalade Hybrid - 2011

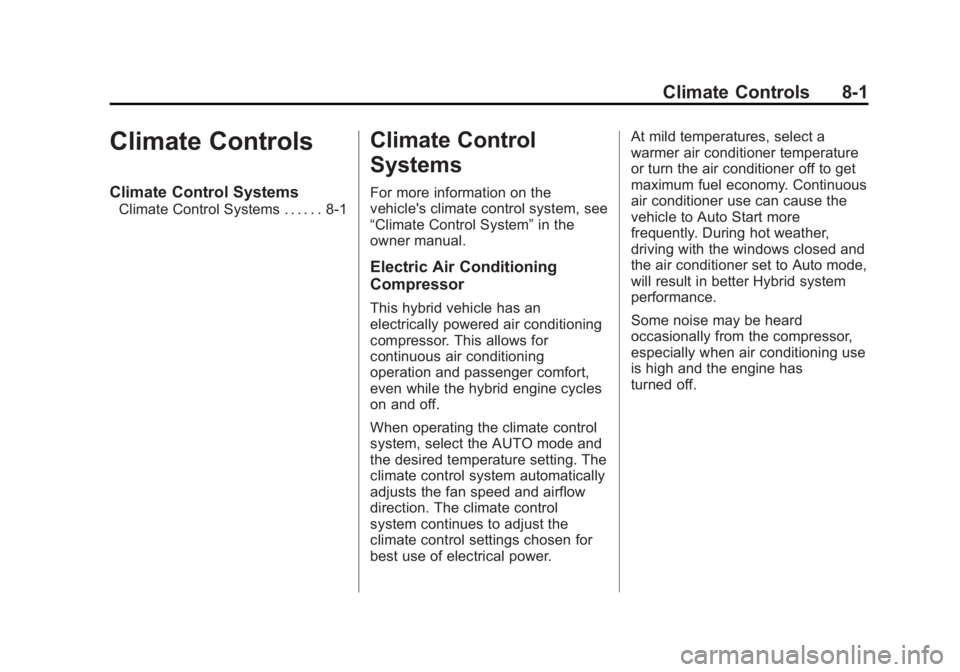

Climate Controls 8-1
Climate Controls Climate Control Systems Climate Control Systems . . . . . . 8-1
Climate Control
Systems For more information on the
vehicle's climate control system, see
“ Climate Control System ” in the
owner manual.
Electric Air Conditioning
Compressor This hybrid vehicle has an
electrically powered air conditioning
compressor. This allows for
continuous air conditioning
operation and passenger comfort,
even while the hybrid engine cycles
on and off.
When operating the climate control
system, select the AUTO mode and
the desired temperature setting. The
climate control system automatically
adjusts the fan speed and airflow
direction. The climate control
system continues to adjust the
climate control settings chosen for
best use of electrical power. At mild temperatures, select a
warmer air conditioner temperature
or turn the air conditioner off to get
maximum fuel economy. Continuous
air conditioner use can cause the
vehicle to Auto Start more
frequently. During hot weather,
driving with the windows closed and
the air conditioner set to Auto mode,
will result in better Hybrid system
performance.
Some noise may be heard
occasionally from the compressor,
especially when air conditioning use
is high and the engine has
turned off.

Black plate (2,1)Cadillac Escalade Hybrid - 2011
8-2 Climate Controls
2 NOTES

Black plate (1,1)Cadillac Escalade Hybrid - 2011
Driving and Operating 9-1
Driving and
Operating Driving Information Steering . . . . . . . . . . . . . . . . . . . . . . . 9-1
Starting and Operating Starting the Vehicle . . . . . . . . . . . 9-2
Engine Coolant Heater . . . . . . . . 9-4
Shifting Into Park . . . . . . . . . . . . . 9-5
Engine Exhaust Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . 9-7 Automatic Transmission Automatic Transmission . . . . . . . 9-7
Manual Mode . . . . . . . . . . . . . . . . 9-10
Drive Systems Four-Wheel Drive . . . . . . . . . . . . 9-11
Brakes Regenerative Braking . . . . . . . . 9-16
Towing Trailer Towing . . . . . . . . . . . . . . . . 9-16
Towing Equipment . . . . . . . . . . . 9-17
Driving Information Steering This vehicle has On-Demand
Electric-Assist Power Steering
instead of conventional full-time
hydraulic power steering. It uses
electricity supplied by the same
battery which is re-charged by the
regenerative braking system.
Because the system is On-Demand
Electric-Assist, energy is used only
when the steering wheel is turned,
or when the steering gear is used to
help isolate the forces of rough
roads. This system does not use
power steering fluid, making it
maintenance-free.

Black plate (2,1)Cadillac Escalade Hybrid - 2011
9-2 Driving and Operating

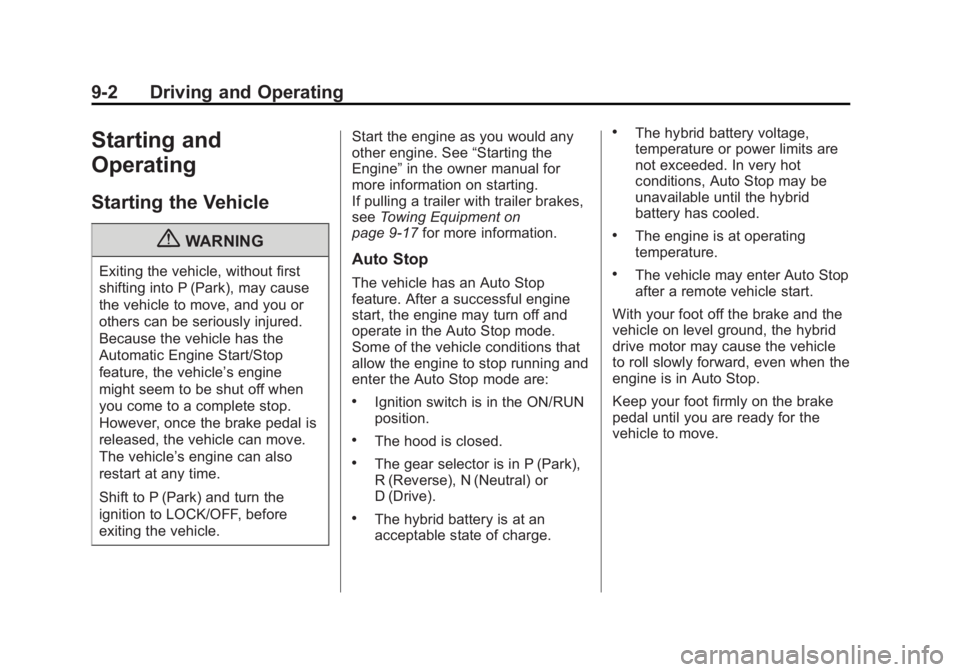

Starting and
Operating Starting the Vehicle
{ WARNINGExiting the vehicle, without first
shifting into P (Park), may cause
the vehicle to move, and you or
others can be seriously injured.
Because the vehicle has the
Automatic Engine Start/Stop
feature, the vehicle ’ s engine
might seem to be shut off when
you come to a complete stop.
However, once the brake pedal is
released, the vehicle can move.
The vehicle ’ s engine can also
restart at any time.
Shift to P (Park) and turn the
ignition to LOCK/OFF, before
exiting the vehicle. Start the engine as you would any
other engine. See “ Starting the
Engine ” in the owner manual for
more information on starting.
If pulling a trailer with trailer brakes,
see Towing Equipment on
page 9 ‑ 17 for more information.
Auto Stop The vehicle has an Auto Stop
feature. After a successful engine
start, the engine may turn off and
operate in the Auto Stop mode.
Some of the vehicle conditions that
allow the engine to stop running and
enter the Auto Stop mode are: .
Ignition switch is in the ON/RUN
position. .
The hood is closed. .
The gear selector is in P (Park),
R (Reverse), N (Neutral) or
D (Drive). .
The hybrid battery is at an
acceptable state of charge. .
The hybrid battery voltage,
temperature or power limits are
not exceeded. In very hot
conditions, Auto Stop may be
unavailable until the hybrid
battery has cooled. .
The engine is at operating
temperature. .
The vehicle may enter Auto Stop
after a remote vehicle start.
With your foot off the brake and the
vehicle on level ground, the hybrid
drive motor may cause the vehicle
to roll slowly forward, even when the
engine is in Auto Stop.
Keep your foot firmly on the brake
pedal until you are ready for the
vehicle to move.

Black plate (3,1)Cadillac Escalade Hybrid - 2011

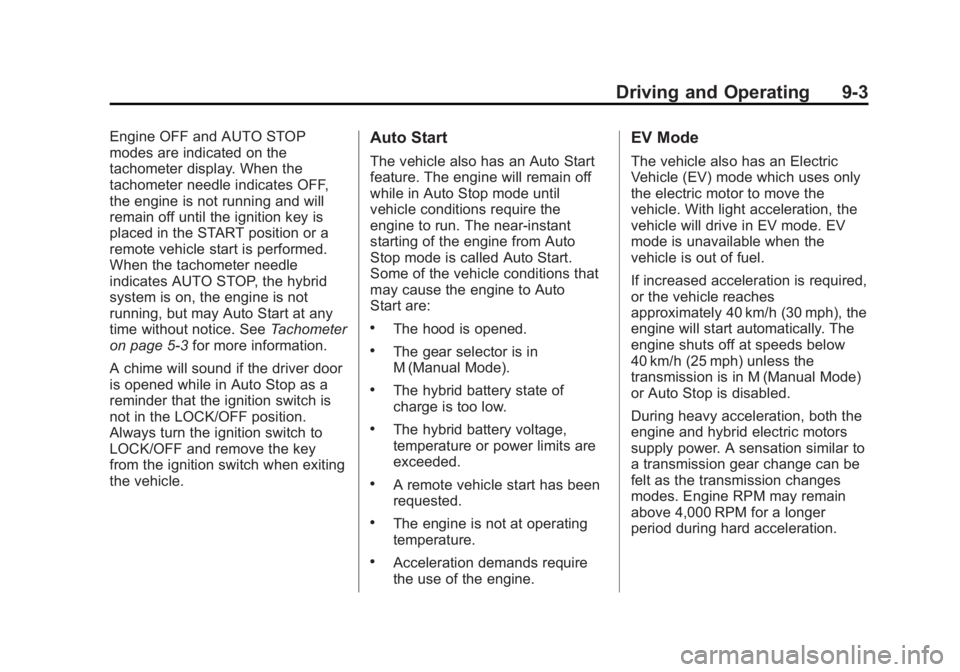

Driving and Operating 9-3Engine OFF and AUTO STOP
modes are indicated on the
tachometer display. When the
tachometer needle indicates OFF,
the engine is not running and will
remain off until the ignition key is
placed in the START position or a
remote vehicle start is performed.
When the tachometer needle
indicates AUTO STOP, the hybrid
system is on, the engine is not
running, but may Auto Start at any
time without notice. See Tachometer
on page 5 ‑ 3 for more information.
A chime will sound if the driver door
is opened while in Auto Stop as a
reminder that the ignition switch is
not in the LOCK/OFF position.
Always turn the ignition switch to
LOCK/OFF and remove the key
from the ignition switch when exiting
the vehicle. Auto Start The vehicle also has an Auto Start
feature. The engine will remain off
while in Auto Stop mode until
vehicle conditions require the
engine to run. The near-instant
starting of the engine from Auto
Stop mode is called Auto Start.
Some of the vehicle conditions that
may cause the engine to Auto
Start are: .
The hood is opened. .
The gear selector is in
M (Manual Mode). .
The hybrid battery state of
charge is too low. .
The hybrid battery voltage,
temperature or power limits are
exceeded. .
A remote vehicle start has been
requested. .
The engine is not at operating
temperature. .
Acceleration demands require
the use of the engine. EV Mode The vehicle also has an Electric
Vehicle (EV) mode which uses only
the electric motor to move the
vehicle. With light acceleration, the
vehicle will drive in EV mode. EV
mode is unavailable when the
vehicle is out of fuel.
If increased acceleration is required,
or the vehicle reaches
approximately 40 km/h (30 mph), the
engine will start automatically. The
engine shuts off at speeds below
40 km/h (25 mph) unless the
transmission is in M (Manual Mode)
or Auto Stop is disabled.
During heavy acceleration, both the
engine and hybrid electric motors
supply power. A sensation similar to
a transmission gear change can be
felt as the transmission changes
modes. Engine RPM may remain
above 4,000 RPM for a longer
period during hard acceleration.

Black plate (4,1)Cadillac Escalade Hybrid - 2011
9-4 Driving and Operating
Engine Coolant Heater The engine coolant heater can
provide easier starting and better
fuel economy during engine
warm-up in cold weather conditions
at or below − 18°C (0°F). Vehicles
with an engine heater should be
plugged in at least four hours before
starting. An internal thermostat in
the plug-end of the cord may exist
which will prevent engine coolant
heater operation at temperatures
above − 18°C (0°F).
Using the Engine Coolant
Heater 1. Turn off the engine.
2. Open the hood and unwrap the
electrical cord. The cord is
secured to a wiring harness
between the engine and the
Hybrid Auxiliary Underhood
Fuse Block with a clip. Carefully
remove the wire tie which
secures the electrical cord. Do
not cut the electrical cord. 3. Plug the cord into a normal,
grounded 110-volt AC outlet.
{ WARNINGPlugging the cord into an
ungrounded outlet could cause an
electrical shock. Also, the wrong
kind of extension cord could
overheat and cause a fire. You
could be seriously injured. Plug
the cord into a properly grounded
three-prong 110-volt AC outlet.
If the cord will not reach, use a
heavy-duty three-prong extension
cord rated for at least 15 amps. 4. Before starting the engine, be
sure to unplug and store the
cord as it was before to keep it
away from moving engine parts.
If you do not, it could be
damaged.
The length of time the heater should
remain plugged in depends on
several factors. Ask a dealer in the
area where you will be parking the
vehicle for the best advice on this.
