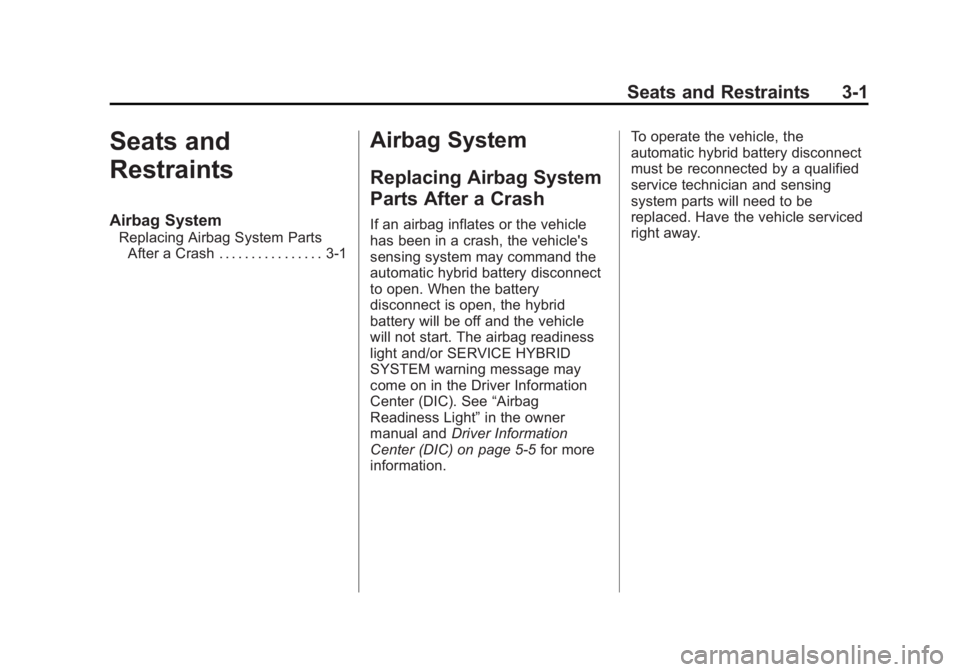

Seats and Restraints 3-1
Seats and
Restraints Airbag System Replacing Airbag System Parts
After a Crash . . . . . . . . . . . . . . . . 3-1
Airbag System Replacing Airbag System
Parts After a Crash If an airbag inflates or the vehicle
has been in a crash, the vehicle's
sensing system may command the
automatic hybrid battery disconnect
to open. When the battery
disconnect is open, the hybrid
battery will be off and the vehicle
will not start. The airbag readiness
light and/or SERVICE HYBRID
SYSTEM warning message may
come on in the Driver Information
Center (DIC). See “ Airbag
Readiness Light ” in the owner
manual and Driver Information
Center (DIC) on page 5 ‑ 5 for more
information. To operate the vehicle, the
automatic hybrid battery disconnect
must be reconnected by a qualified
service technician and sensing
system parts will need to be
replaced. Have the vehicle serviced
right away.

Black plate (2,1)Cadillac Escalade Hybrid - 2011
3-2 Seats and Restraints
2 NOTES

Black plate (1,1)Cadillac Escalade Hybrid - 2011

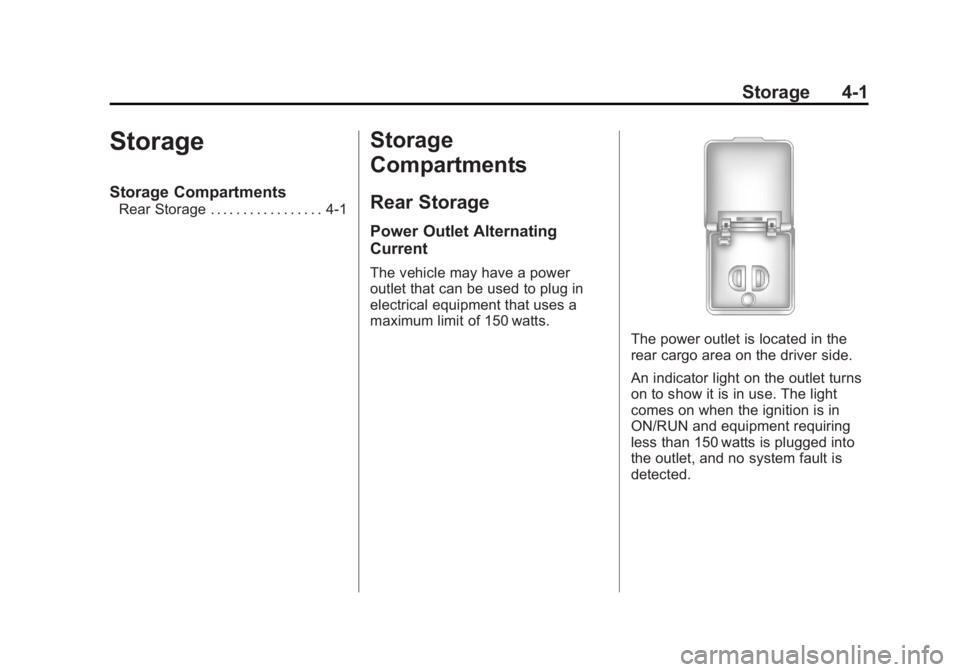

Storage 4-1
Storage Storage Compartments Rear Storage . . . . . . . . . . . . . . . . . 4-1
Storage
Compartments Rear Storage Power Outlet Alternating
Current The vehicle may have a power
outlet that can be used to plug in
electrical equipment that uses a
maximum limit of 150 watts.
The power outlet is located in the
rear cargo area on the driver side.
An indicator light on the outlet turns
on to show it is in use. The light
comes on when the ignition is in
ON/RUN and equipment requiring
less than 150 watts is plugged into
the outlet, and no system fault is
detected.

Black plate (2,1)Cadillac Escalade Hybrid - 2011
4-2 Storage The indicator light does not come on
when the ignition is in LOCK/OFF or
if no equipment is plugged into the
outlet.
If equipment is connected using
more than 150 watts, or a system
fault is detected, a protection circuit
shuts off the power supply and the
indicator light turns off. To reset the
circuit, unplug the item and plug it
back in or turn the Retained
Accessory Power (RAP) off and
then back on. The power restarts
when equipment using 150 watts or
less is plugged into the outlet and a
system fault is not detected. The power outlet is not designed for
the following electrical equipment
and may not work properly if these
items are plugged into the power
outlet: .
Equipment with high initial peak
wattage such as:
compressor-driven refrigerators
and electric power tools. .
Other equipment requiring an
extremely stable power supply
such as:
microcomputer-controlled
electric blankets, touch sensor
lamps, etc.
See High Voltage Devices and
Wiring on page 10 ‑ 15 .

Black plate (1,1)Cadillac Escalade Hybrid - 2011

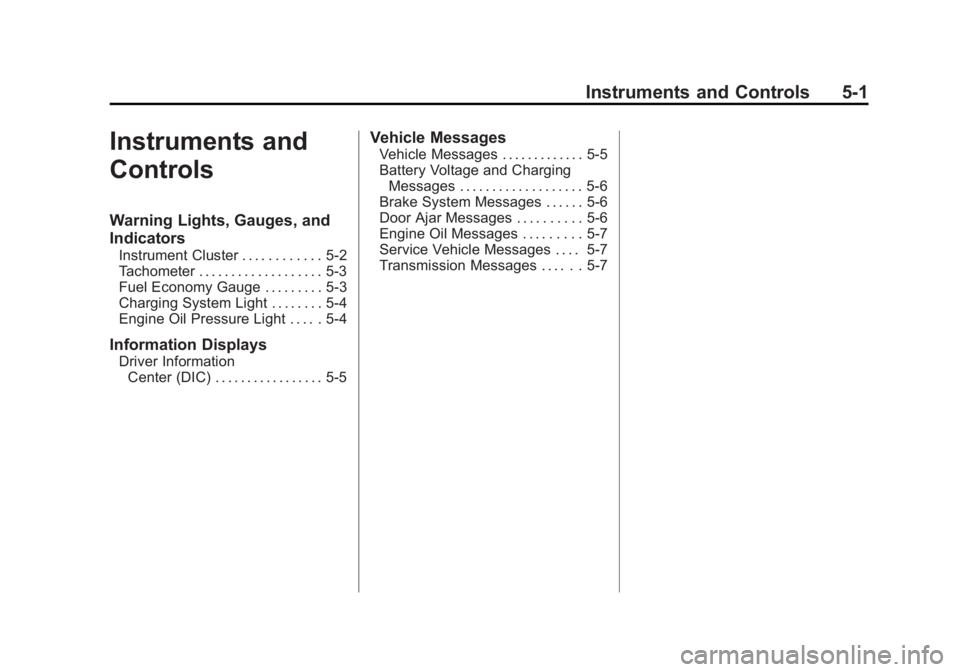

Instruments and Controls 5-1
Instruments and
Controls Warning Lights, Gauges, and
Indicators Instrument Cluster . . . . . . . . . . . . 5-2
Tachometer . . . . . . . . . . . . . . . . . . . 5-3
Fuel Economy Gauge . . . . . . . . . 5-3
Charging System Light . . . . . . . . 5-4
Engine Oil Pressure Light . . . . . 5-4
Information Displays Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . 5-5 Vehicle Messages Vehicle Messages . . . . . . . . . . . . . 5-5
Battery Voltage and Charging
Messages . . . . . . . . . . . . . . . . . . . 5-6
Brake System Messages . . . . . . 5-6
Door Ajar Messages . . . . . . . . . . 5-6
Engine Oil Messages . . . . . . . . . 5-7
Service Vehicle Messages . . . . 5-7
Transmission Messages . . . . . . 5-7

Black plate (2,1)Cadillac Escalade Hybrid - 2011
5-2 Instruments and Controls
Warning Lights, Gauges, and Indicators Instrument Cluster
English version shown, Metric similar

Black plate (3,1)Cadillac Escalade Hybrid - 2011
Instruments and Controls 5-3

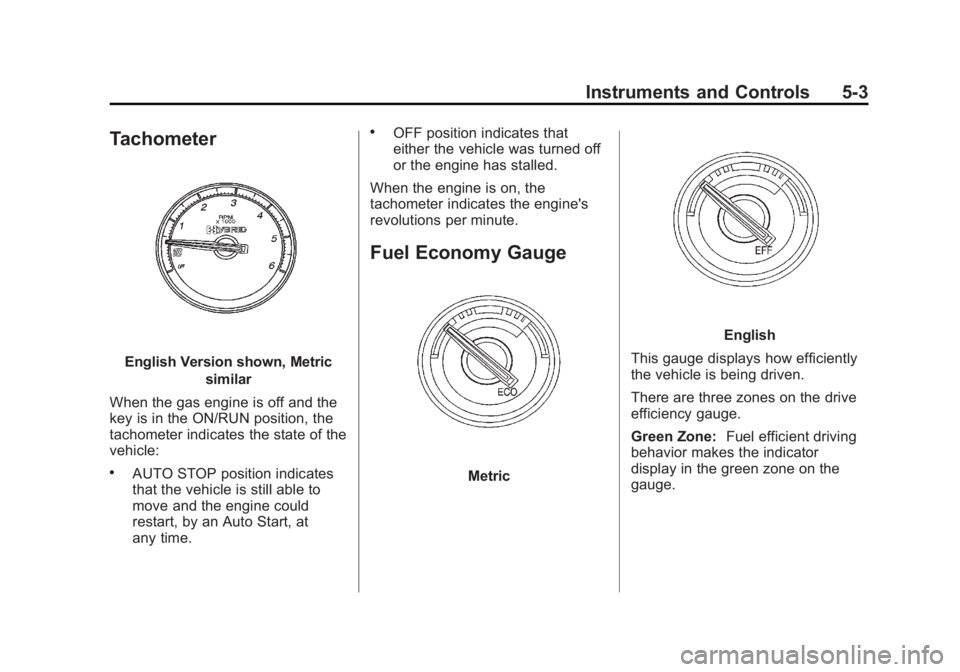

Tachometer
English Version shown, Metric
similar
When the gas engine is off and the
key is in the ON/RUN position, the
tachometer indicates the state of the
vehicle: .
AUTO STOP position indicates
that the vehicle is still able to
move and the engine could
restart, by an Auto Start, at
any time. .
OFF position indicates that
either the vehicle was turned off
or the engine has stalled.
When the engine is on, the
tachometer indicates the engine's
revolutions per minute.
Fuel Economy Gauge
Metric English
This gauge displays how efficiently
the vehicle is being driven.
There are three zones on the drive
efficiency gauge.
Green Zone: Fuel efficient driving
behavior makes the indicator
display in the green zone on the
gauge.

Black plate (4,1)Cadillac Escalade Hybrid - 2011
5-4 Instruments and Controls White Zones: Decreased fuel
efficiency driving behavior makes
the indicator display in the two white
zones. The indicator in the white
zone on the left side of the gauge
indicates decreased fuel efficiency
with a large amount of
decelerations. The indicator in the
white zone on the right side of the
gauge indicates decreased fuel
efficiency with a large amount of
accelerations.

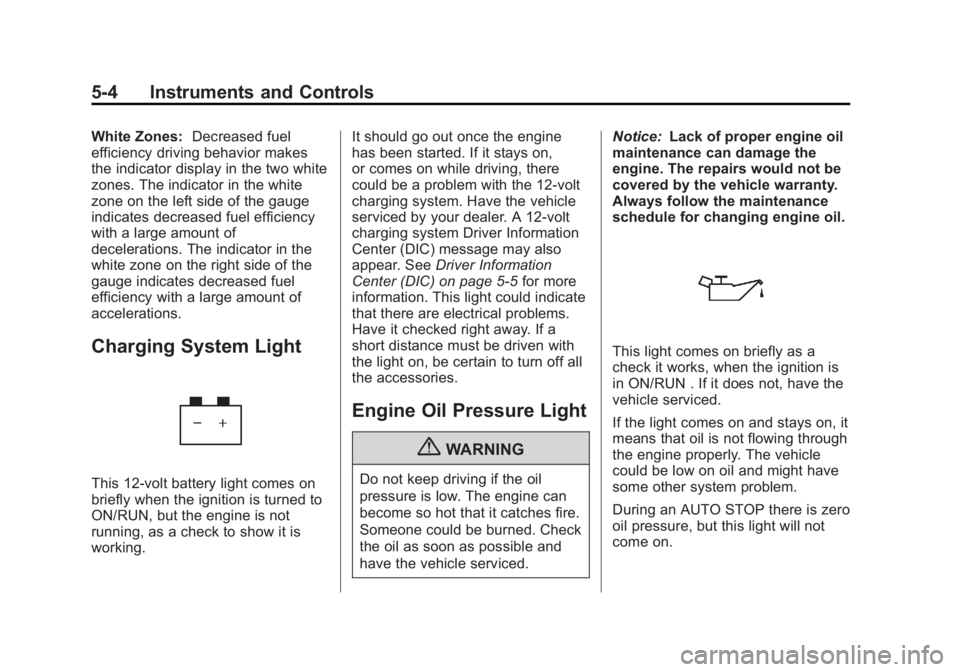

Charging System Light
This 12 ‐ volt battery light comes on
briefly when the ignition is turned to
ON/RUN, but the engine is not
running, as a check to show it is
working. It should go out once the engine
has been started. If it stays on,
or comes on while driving, there
could be a problem with the 12 ‐ volt
charging system. Have the vehicle
serviced by your dealer. A 12 ‐ volt
charging system Driver Information
Center (DIC) message may also
appear. See Driver Information
Center (DIC) on page 5 ‑ 5 for more
information. This light could indicate
that there are electrical problems.
Have it checked right away. If a
short distance must be driven with
the light on, be certain to turn off all
the accessories.
Engine Oil Pressure Light
{ WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced. Notice: Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
This light comes on briefly as a
check it works, when the ignition is
in ON/RUN . If it does not, have the
vehicle serviced.
If the light comes on and stays on, it
means that oil is not flowing through
the engine properly. The vehicle
could be low on oil and might have
some other system problem.
During an AUTO STOP there is zero
oil pressure, but this light will not
come on.

Black plate (5,1)Cadillac Escalade Hybrid - 2011
Instruments and Controls 5-5
Information Displays Driver Information
Center (DIC) Trip/Fuel Menu Items Press the trip/fuel button to display
the Trip/Fuel Menu items. For more
items see “ Driver Information Center
(DIC) ” in the owner manual.
Instantaneous Fuel Economy (IFE)
This display normally shows
instantaneous fuel economy. When
the vehicle is in Auto Stop mode
AUTO STOP or IFE = 0 L/100km or
IFE = 99 MPG will be displayed.
See Starting the Vehicle on
page 9 ‑ 2 for more information. Vehicle Information Menu
Items Press the vehicle information button
to display the Vehicle Information
Menu items. For more items see
“ Driver Information Center (DIC) ” in
the owner manual.
Coolant Temperature
Press the vehicle information button
until COOLANT TEMP displays.
This display shows the temperature
of the engine coolant in either
degrees Celsius (°C) or degrees
Fahrenheit (°F). Vehicle Messages Messages displayed on the DIC
indicate the status of the vehicle or
some action may be needed to
correct a condition. Multiple
messages may appear one after
another.
The messages that do not require
immediate action can be
acknowledged and cleared by
pressing
V (Set/Reset) or the trip
odometer reset stem.
The messages that require
immediate action cannot be cleared
until that action is performed.
All messages should be taken
seriously. Clearing the message
does not correct the problem.
The following are the possible
messages for the Hybrid and some
information about them. For
information on other DIC messages,
see “ Vehicle Messages ” in the
owner manual.

Black plate (6,1)Cadillac Escalade Hybrid - 2011
5-6 Instruments and Controls
Battery Voltage and
Charging Messages SERVICE BATTERY
CHARGING SYSTEM If the 12V battery system faults or
fails this message will appear on the
DIC. The battery/charging system
light will appear in the instrument
panel cluster. See “ Battery Warning
Light ” in the owner manual. Driving
with this message on could drain
the battery. Have the electrical
system checked as soon as
possible. Brake System Messages SERVICE BRAKE SYSTEM This message may be displayed if
there is a problem with the brake
system. You will still be able to
brake, but it will be noticeably more
difficult. Pull off the road to a safe
location and have your vehicle
towed to the nearest dealer for
service. See “ Brakes, ” “ Brake
System Warning Light, ” and “ ABS
Brake System Warning Light ” in the
owner manual.
This message may also come on
when you are towing a trailer. See
“ Trailer Brakes ” under Trailer Towing
on page 9 ‑ 16 for more information. Door Ajar Messages HOOD OPEN If the hood is not fully closed or
there is a problem with the hood
switch, this message will be
displayed. Close the hood to clear
the message. If the HOOD OPEN
message continues to be displayed
after verifying the hood is closed,
you should have the hood switch
serviced. Failure to service the hood
switch properly can result in an Auto
Start condition.
Auto Stops will be disabled when
this message is displayed. If the
vehicle is in auto stop mode when
this message appears, the engine
will instantly start.
