CADILLAC FLEETWOOD 1994 Owners Manual

A

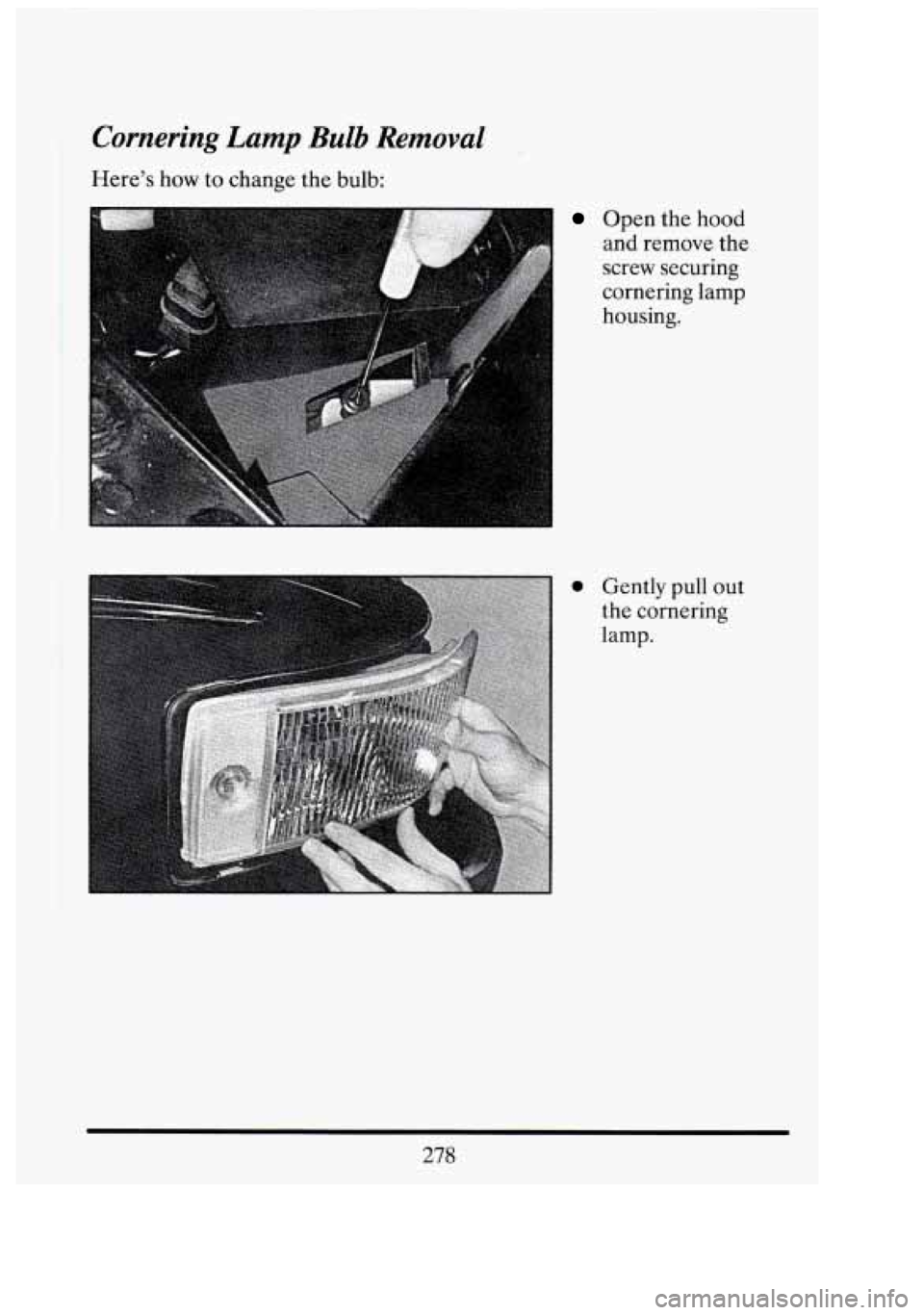

Cornering Lamp Bulb Removal
Here’s how to change the bulb:
Open the hood
and remove the
screw securing
cornering lamp
housing.
0 Gently pull out
the cornering
lamp.
278
r
i

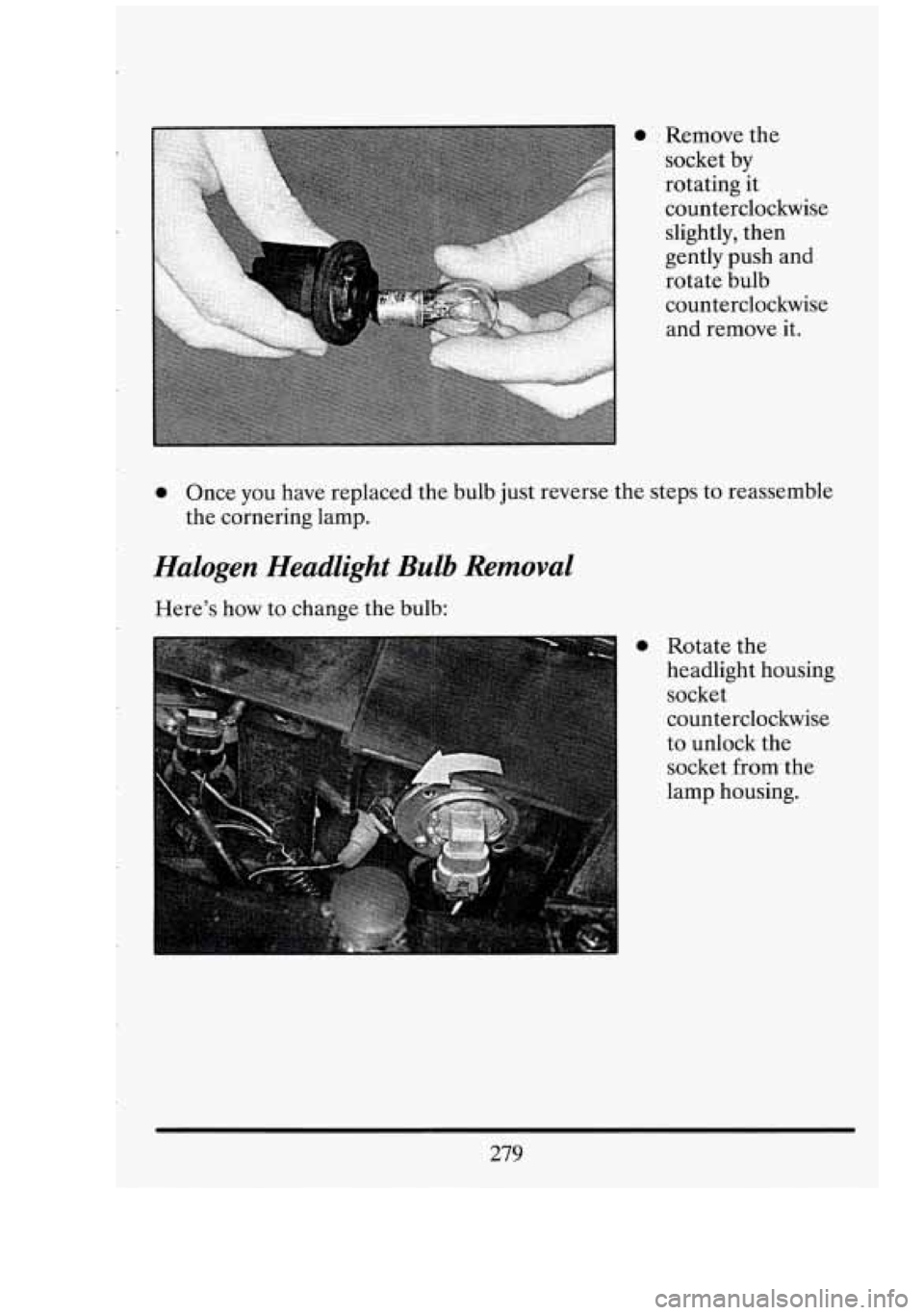

0. Remove the
socket by
.rotating it
counterclockwise
slightly, then
gently push and
rotate bulb
counterclockwise and remove it.
0 Once you have replaced the bulb just reverse the steps to reassemble
the cornering lamp.
Halogen Headlight Bulb Removal
Here’s how to change the bulb:
0 Rotate the
headlight housing
socket
counterclockwise
to unlock the
socket from the
lamp housing.
279

-

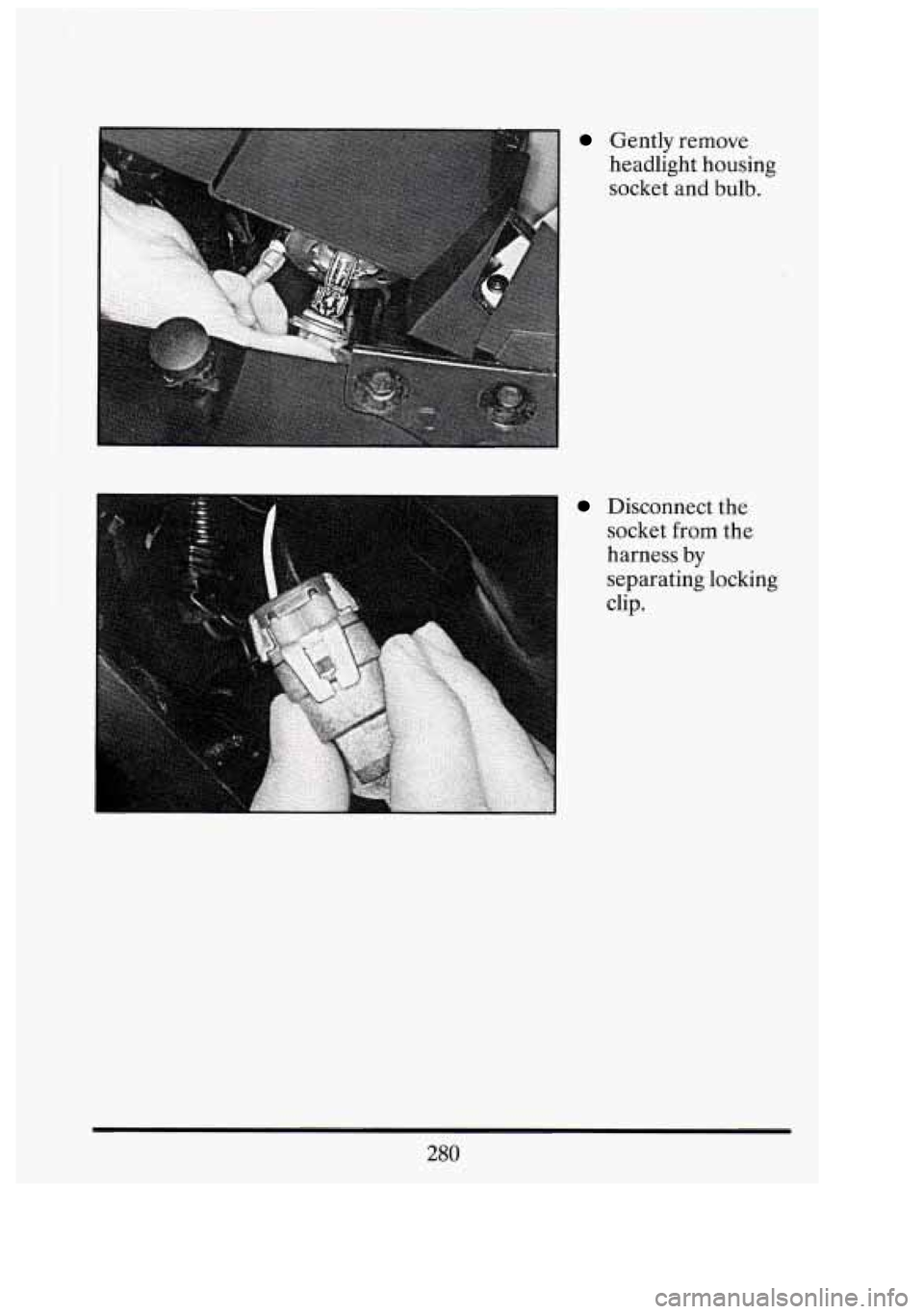

Gently remove
headlight housing
socket and bulb.
I
Disconnect the
socket from the
harness by
separating locking
clip.
280
-J
I
U
Li

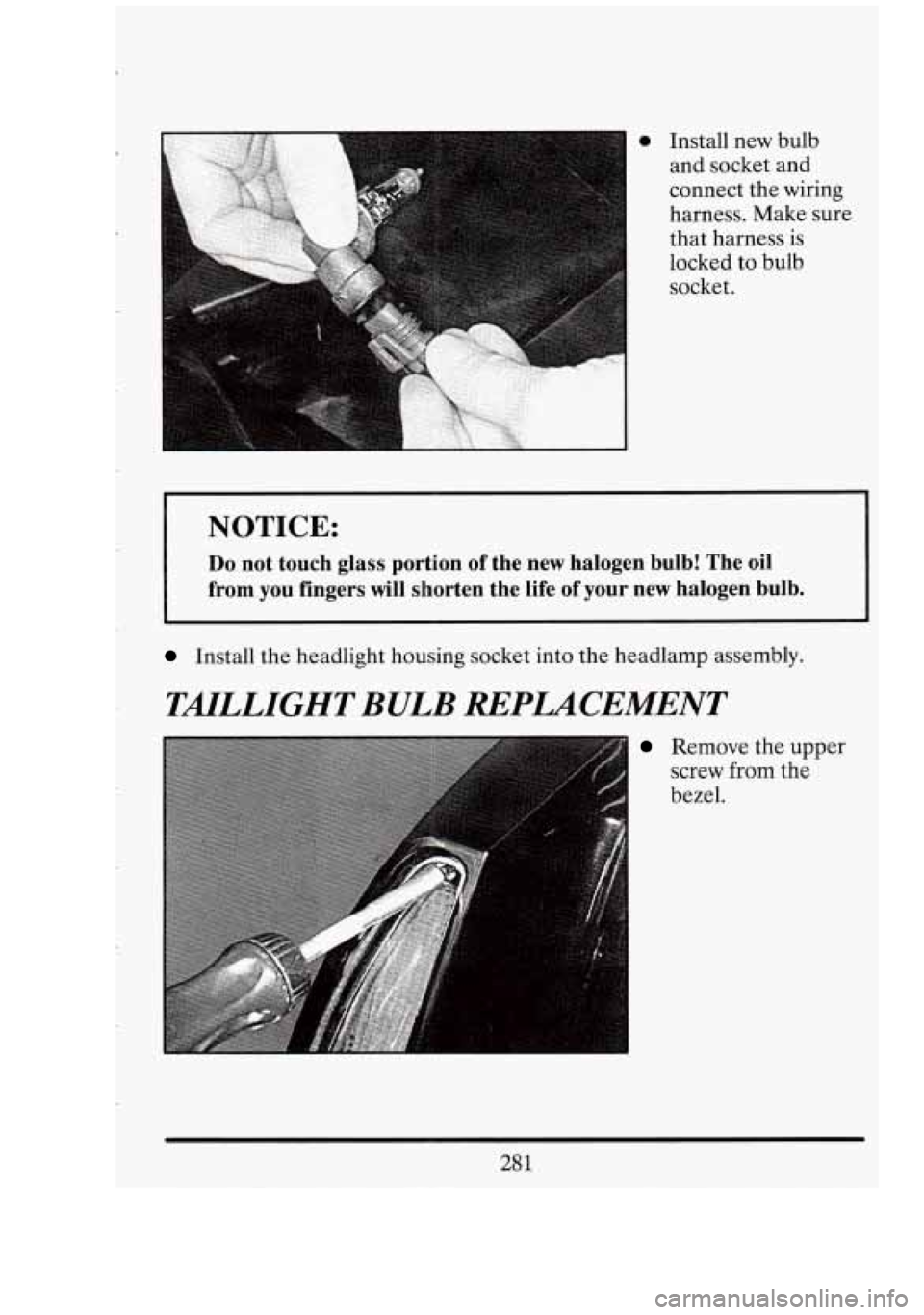

0 Install new bulb
and socket and
connect the wiring
harness. Make sure
that harness
is
locked to bulb
socket.
NOTICE:
Do not touch glass portion of the new halogen bulb! The oil
from you fingers
will shorten the life of your new halogen bulb.
Install the headlight housing socket into the headlamp assembly.
TMLLIGHT BULB REPLACEMENT
Remove the upper
screw from the
bezel.
281

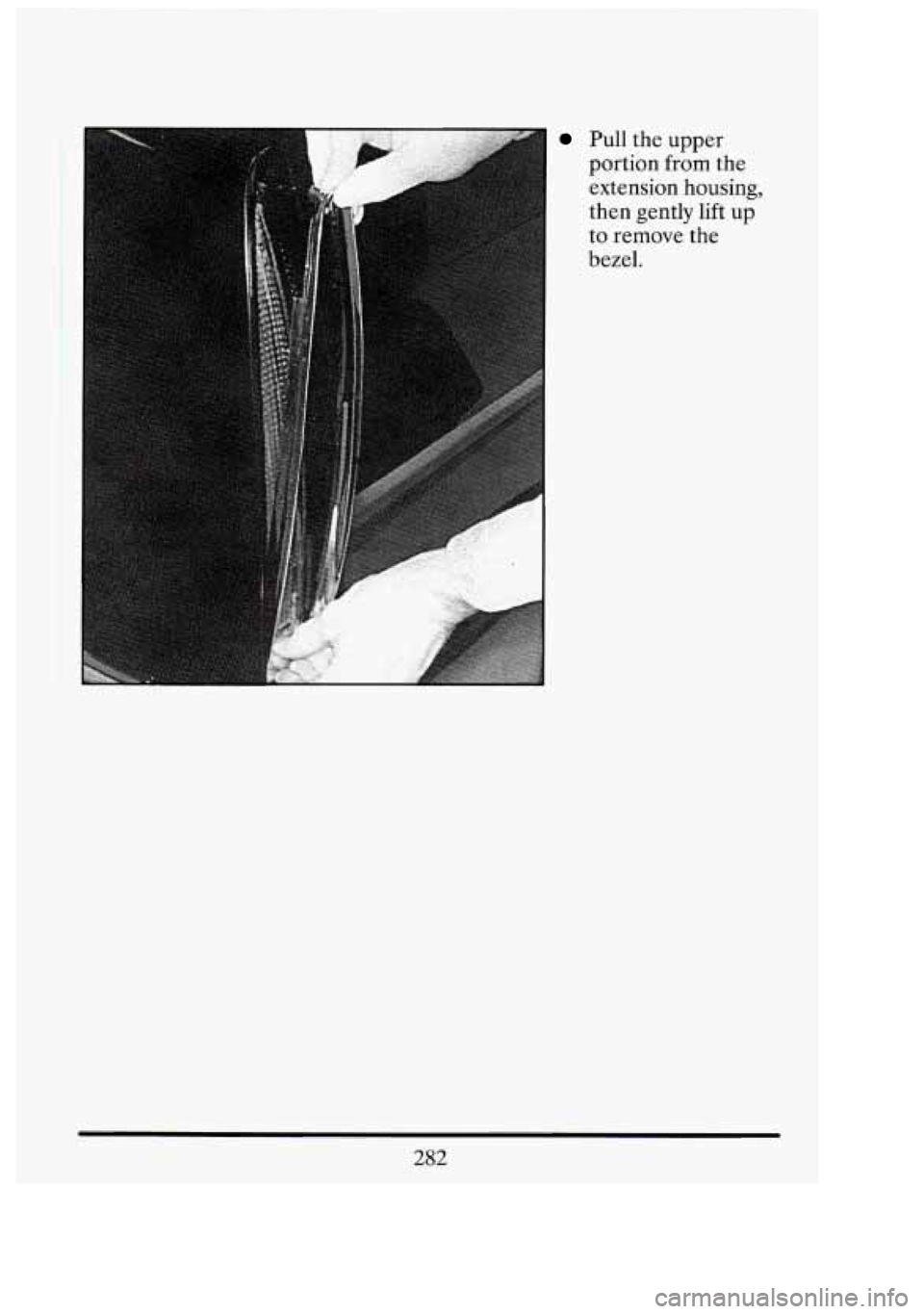

Pull the upper
portion from the
extension
housing,
then gently lift up
to remove
the
bezel.
n
if,
282

..
I I
I I

0
Gently tilt the top
portion
of taillight
housing out first,
and then gently
remove it.
Press the bulb
socket housing
lever and rotate the
socket housing
counterclockwise to
remove it. f U

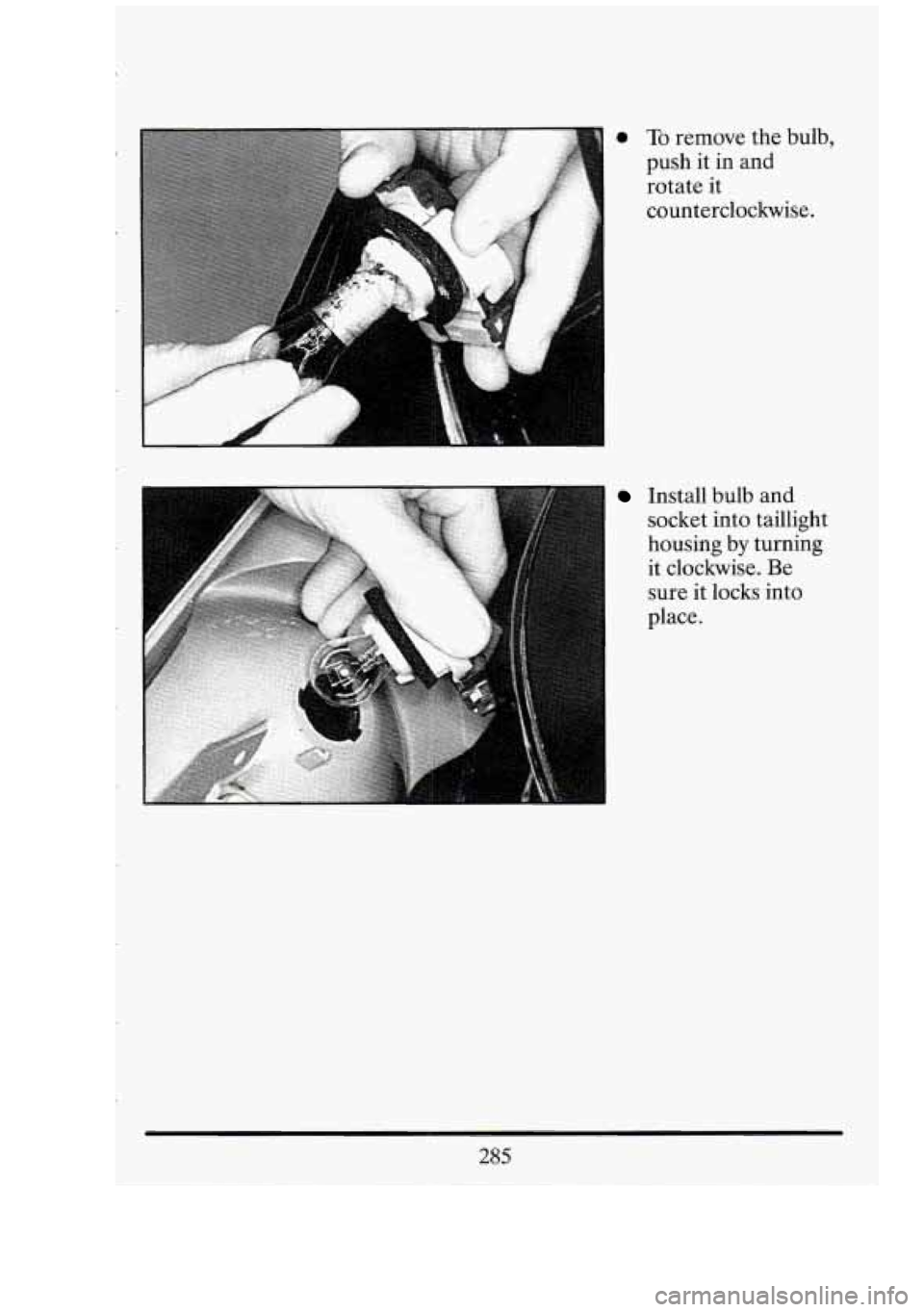

0 To remove the bulb,
push it in and
rotate it
counterclockwise.
Install bulb and
socket into taillight
housing
by turning
it clockwise. Be
sure it locks into
place.
285

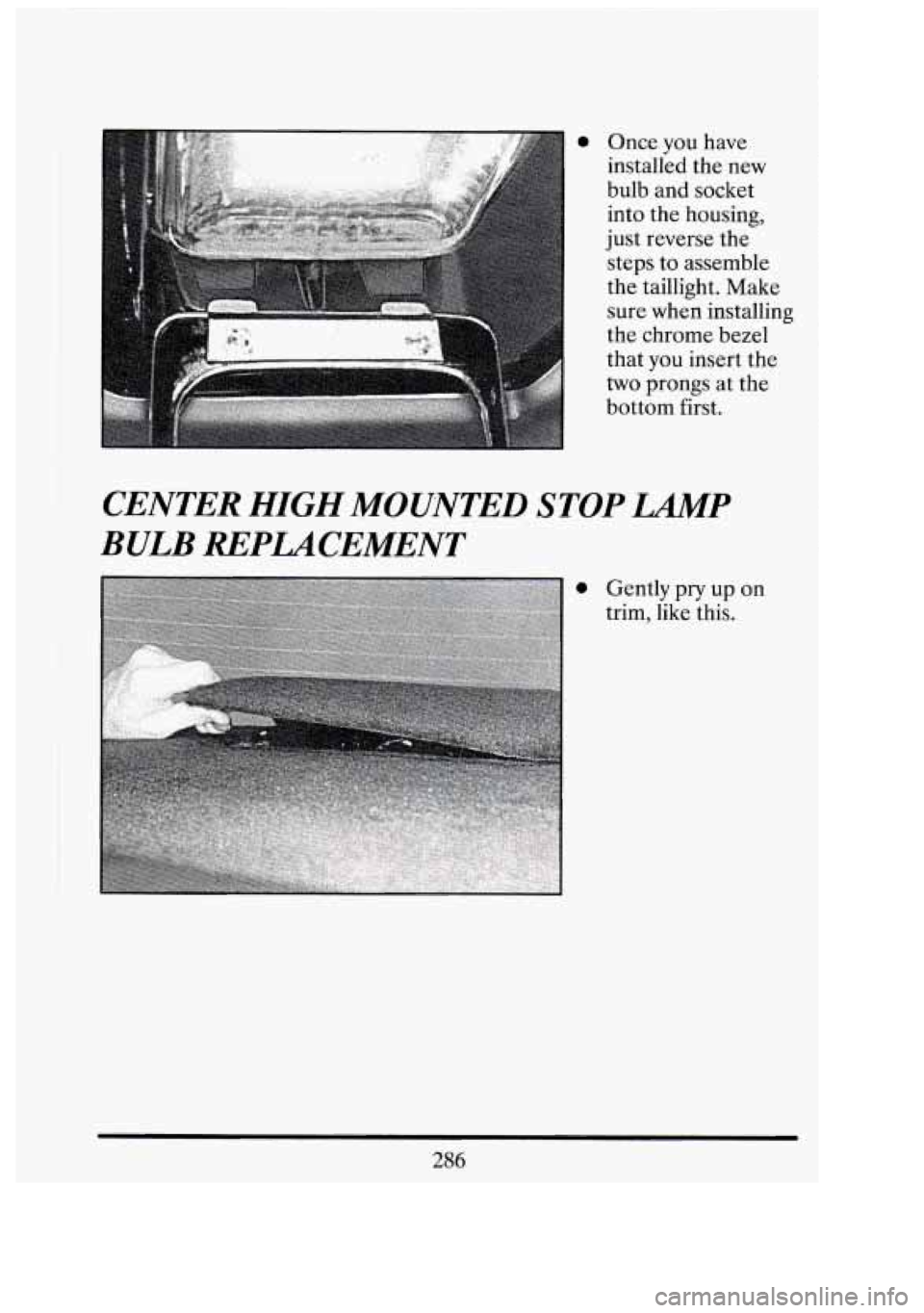

0 Once you have
installed the new
bulb and socket
into the housing,
just reverse the
steps to assemble
the taillight. Make
sure when installing
the chrome bezel
that
you insert the
two prongs at the
bottom first.
CENTER HIGH MOUNTED STOP LAMP
BULB REPLACEMENT
286
3
Ipi
I
I
-
i

r

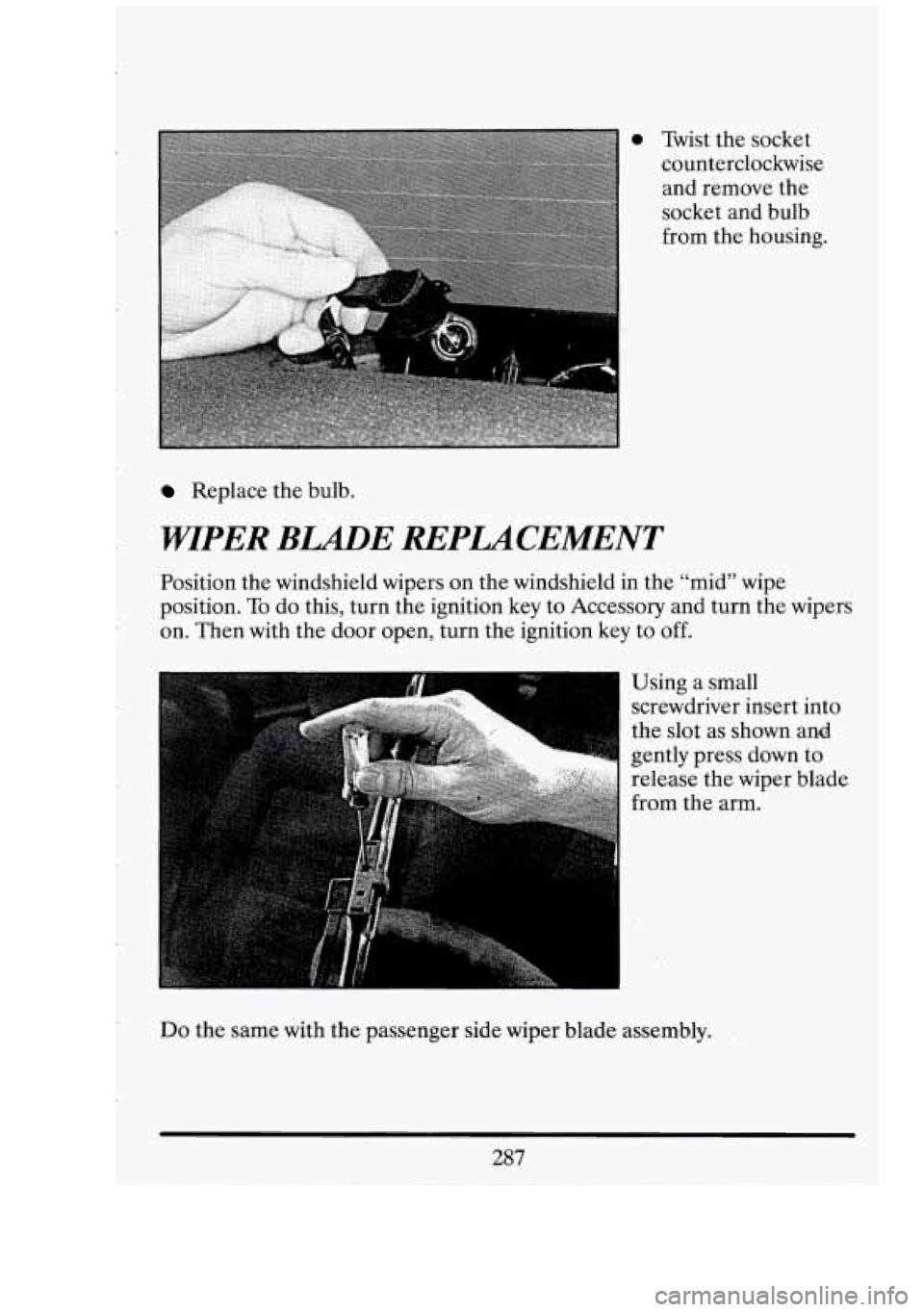

Replace the bulb.
WIPER BLADE REPLACEMENT
Position the windshield wipers on the windshield in the “mid” wipe
position. To do this, turn the ignition
key to Accessory and turn the wipers
on. Then with the door open, turn the ignition key to off.
I Using a small
screwdriver insert into
the slot as shown and
gently press down to
release the wiper blade
from the arm.
Do the same with the passenger side wiper blade assembly.
287
