370 Vehicle Care
Caution (Continued)
.Do not heavily saturate
the upholstery when
cleaning.
.Do not use solvents or
cleaners containing
solvents.
.Do not use disinfecting
wipes that are scented or
contain bleach. Do not use
wipes or cleaners that
show a color transfer to
the wipe or change the
appearance of the interior
surface when used.
.Do not use scented or
gel-type hand sanitizers.
If hand sanitizer comes in
contact with interior
surfaces of the vehicle,
blot immediately and clean
with a soft cloth
dampened with a mild
soap and water solution.
Interior Glass
To clean, use a microfiber
cloth fabric dampened with
water. Wipe droplets left
behind with a clean dry cloth.
If necessary, use a commercial
glass cleaner after cleaning
with plain water.
Caution
To prevent scratching, never
use abrasive cleaners on
automotive glass. Abrasive
cleaners or aggressive
cleaning may damage the
rear window defogger.
Cleaning the windshield with
water during the first three to
six months of ownership will
reduce tendency to fog.
Speaker Covers
Vacuum around a speaker
cover gently, so that the
speaker will not be damaged.
Clean spots with water and
mild soap.
Coated Moldings
Coated moldings should be
cleaned.
.When lightly soiled, wipe
with a sponge or soft,
lint-free cloth dampened
with water.
.When heavily soiled, use
warm soapy water.
Vinyl/Rubber
If equipped with vinyl floor and
rubber floor mats, use a soft
cloth and/or brush dampened
with water to remove dust and
loose dirt. For more thorough
cleaning, use a mild soap and
water solution.
{Warning
Do not use cleaners that
contain silicone, wax-based
products, or cleaners that
increase gloss on vinyl/
rubber floor and mats.
These cleaners can
permanently change the (Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 371
Warning (Continued)
appearance and feel of the
vinyl/rubber and can make
the floor slippery. Your foot
could slip while operating
the vehicle, and you could
lose control, resulting in a
crash. You or others could
be injured.
Fabric/Carpet/Suede
Start by vacuuming the
surface using a soft brush
attachment. If a rotating
vacuum brush attachment is
being used, only use it on the
floor carpet. Before cleaning,
gently remove as much of the
soil as possible:
.Gently blot liquids with a
paper towel. Continue
blotting until no more soil
can be removed.
.For solid soils, remove as
much as possible prior to
vacuuming.To clean:
1. Saturate a clean, lint-free colorfast cloth with water.
Microfiber cloth is
recommended to prevent
lint transfer to the fabric or
carpet.
2. Remove excess moisture by gently wringing until water
does not drip from the
cleaning cloth.
3. Start on the outside edge of the soil and gently rub
toward the center. Fold the
cleaning cloth to a clean
area frequently to prevent
forcing the soil into the
fabric.
4. Continue gently rubbing the soiled area until there is no
longer any color transfer
from the soil to the cleaning
cloth.
5. If the soil is not completely removed, use a mild soap
solution followed only by
plain water. If the soil is not completely
removed, it may be necessary
to use a commercial
upholstery cleaner or spot
lifter. Test a small hidden area
for colorfastness before using
a commercial upholstery
cleaner or spot lifter. If ring
formation occurs, clean the
entire fabric or carpet.
After cleaning, use a paper
towel to blot excess moisture.
Cleaning High Gloss
Surfaces and Vehicle
Information and Radio
Displays
Use a microfiber cloth on high
gloss surfaces or vehicle
displays. First, use a soft
bristle brush to remove dirt
that can scratch the surface.
Then gently clean by rubbing
with a microfiber cloth. Never
use window cleaners or
solvents. Periodically hand
wash the microfiber cloth
separately, using mild soap. Do

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
372 Vehicle Care
not use bleach or fabric
softener. Rinse thoroughly and
air dry before next use.
Caution
Do not attach a device with
a suction cup to the display.
This may cause damage and
would not be covered by the
vehicle warranty.
Instrument Panel, Leather,
Vinyl, Other Plastic
Surfaces, Low Gloss Paint
Surfaces, and Natural
Open Pore Wood
Surfaces
Use a soft bristle brush to
remove dust from knobs and
crevices on the instrument
cluster. Use a soft microfiber
cloth dampened with water to
remove dust and loose dirt.
For a more thorough cleaning,
use a soft microfiber cloth
dampened with a mild soap
and water solution.
Caution
Soaking or saturating
leather, especially
perforated leather, as well
as other interior surfaces,
may cause permanent
damage. Wipe excess
moisture from these
surfaces after cleaning and
allow them to dry naturally.
Never use heat, steam,
or spot removers. Do not
use liquids that contain
alcohol or solvents on
leather seats. Do not use
cleaners that contain
silicone or wax-based
products. Cleaners
containing these solvents
can permanently change the
appearance and feel of
leather or soft trim, and are
not recommended.
Do not use cleaners that
increase gloss, especially on
the instrument panel.
Reflected glare can decrease visibility through the
windshield under certain
conditions.
Caution
Use of air fresheners may
cause permanent damage to
plastics and painted
surfaces. If an air freshener
comes in contact with any
plastic or painted surface in
the vehicle, blot immediately
and clean with a soft cloth
dampened with a mild soap
solution. Damage caused by
air fresheners would not be
covered by the vehicle
warranty.
Cargo Cover and
Convenience Net
If equipped, wash with warm
water and mild detergent. Do
not use chlorine bleach. Rinse
with cold water, and then dry
completely.
Care of Seat Belts
Keep belts clean and dry.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 373
{Warning
Do not bleach or dye seat
belt webbing. It may severely
weaken the webbing. In a
crash, they might not be
able to provide adequate
protection. Clean and rinse
seat belt webbing only with
mild soap and lukewarm
water. Allow the webbing
to dry.
Floor Mats
{Warning
If a floor mat is the wrong
size or is not properly
installed, it can interfere
with the pedals. Interference
with the pedals can cause
unintended acceleration
and/or increased stopping
distance which can cause a
crash and injury. Make sure
the floor mat does not
interfere with the pedals.Use the following guidelines
for proper floor mat use:
.The original equipment floor
mats are designed for your
vehicle. If the floor mats
need to be replaced, it is
recommended that
GM-certified floor mats are
purchased. Non-GM floor
mats may not fit properly
and may interfere with the
pedals. Always check that
the floor mats do not
interfere with the pedals.
.Do not use a floor mat if the
vehicle is not equipped with
a floor mat retainer on the
driver side floor.
.Use the floor mat with the
correct side up. Do not turn
it over.
.Do not place anything on top
of the driver side floor mat.
.Use only a single floor mat
on the driver side.
.Do not place one floor mat
on top of another.
Removing and Replacing
the Floor Mats
The driver side floor mat is
held in place by two
button-type retainers.
The passenger side floor mat
is held in place by two
button-type retainers.
1. Pull up on the rear of the
floor mat to unlock each
retainer and remove.
2. Reinstall by lining up the floor mat retainer openings
over the carpet retainers
and snapping into position.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
374 Vehicle Care
3. Make sure the floor mat isproperly secured in place.
Verify the floor mat does
not interfere with the
pedals.
Cleaning Rubber Floor
Mats (All-Weather Mats
and Floor Liners)
See “Vinyl/Rubber” under
Interior Care 0369 for
important cleaning
information.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Service and Maintenance 375
Service and
Maintenance
General Information
General Information . . . . . . 375
Maintenance Schedule
MaintenanceSchedule . . . . . . . . . . . . . . . . . . . 376
Multi-Point Vehicle
Inspection (MPVI)
Multi-Point VehicleInspection (MPVI) . . . . . . . . 377
Owner Checks and
Services
Owner Checks andServices . . . . . . . . . . . . . . . . . . . . 378

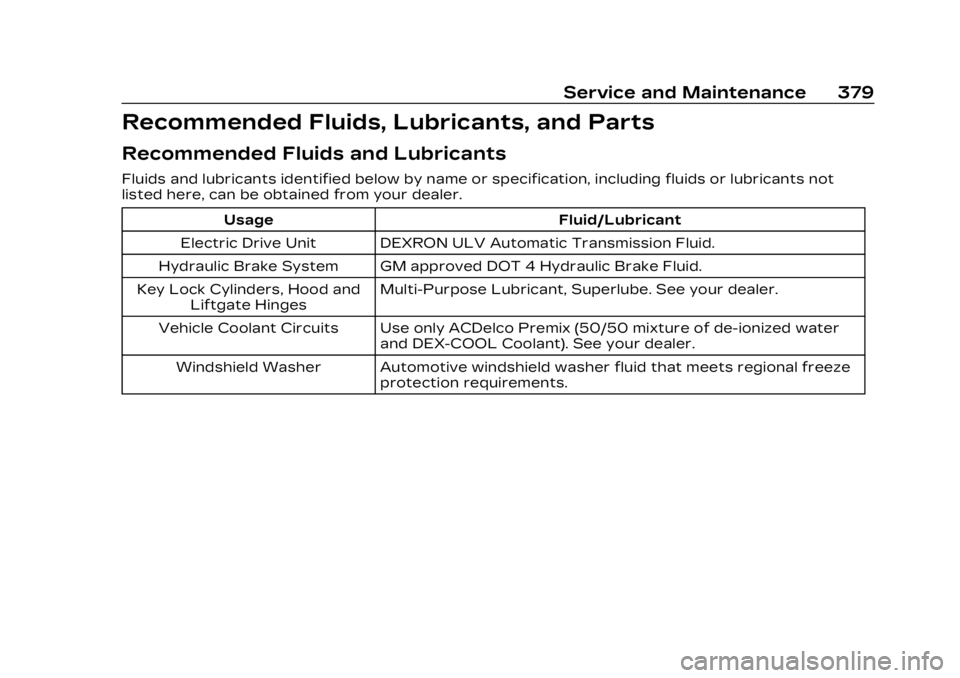

Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . 379
Maintenance Replacement Parts . . . . . 380
Maintenance Records
Maintenance Records . . . . 381
General
Information
Your vehicle is an important
investment. This section
describes the required
maintenance for the vehicle.
Follow this schedule to help
protect against major repair
expenses resulting from
neglect or inadequate
maintenance. It may also help
to maintain the value of the
vehicle if it is sold. It is the
responsibility of the owner to
have all required maintenance
performed.
Your dealer has trained
technicians who can perform
required maintenance using
genuine replacement parts.
They have up-to-date tools
and equipment for fast and
accurate diagnostics. Many
dealers have extended
evening and Saturday hours,
courtesy transportation, and
online scheduling to assist
with service needs. Your dealer recognizes the
importance of providing
competitively priced
maintenance and repair
services. With trained
technicians, the dealer is the
place for routine maintenance
such as tire rotations and
additional maintenance items
like tires, brakes, batteries,
and wiper blades.
Caution
Damage caused by improper
maintenance can lead to
costly repairs and may not
be covered by the vehicle
warranty. Maintenance
intervals, checks,
inspections, recommended
fluids, and lubricants are
important to keep the
vehicle in good working
condition.
Do not have chemical
flushes that are not
approved by GM performed
on the vehicle. The use of
(Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
376 Service and Maintenance
Caution (Continued)
flushes, solvents, cleaners,
or lubricants that are not
approved by GM could
damage the vehicle,
requiring expensive repairs
that are not covered by the
vehicle warranty.
The Tire Rotation and
Required Services are the
responsibility of the vehicle
owner. It is recommended to
have your dealer perform
these services every
12 000 km/7,500 mi. Proper
vehicle maintenance helps to
keep the vehicle in good
working condition.
The Additional Required
Services are for vehicles that:
.Carry passengers and cargo
within recommended limits
on the Tire and Loading
Information label. See
Vehicle Load Limits 0202.
.Are driven on reasonable
road surfaces within legal
driving limits.
{Warning
Performing maintenance
work can be dangerous and
can cause serious injury.
Perform maintenance work
only if the required
information, proper tools,
and equipment are available.
If they are not, see your
dealer to have a trained
technician do the work. See
Doing Your Own Service
Work 0309.
Maintenance
Schedule
Rotate Tires and Perform
Required Services Every
12 000 km (7,500 mi)
.Rotate the tires. Rotating
the tires helps achieve a
more uniform wear. The first
rotation is the most important. Anytime you
notice unusual tire wear,
rotate the tires as soon as
possible, check for proper
tire inflation pressure, and
check for damage to tires or
wheels. If unusual wear
continues after a rotation,
check the wheel alignment.
See When It Is Time for New
Tires
0349 and
Wheel Replacement 0354.
.Perform the Multi-Point
Vehicle Inspection. See
Multi-Point Vehicle
Inspection (MPVI) 0377.
.Lubricate body components.
See Exterior Care 0364.
Additional Required
Services —Normal
Service
Every 36 000 km (22,500 mi)
Replace the passenger
compartment air filter. Or
every 24 months, whichever
comes first. More frequent
passenger compartment air
filter replacement may be

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Service and Maintenance 377
needed if driving in areas with
heavy traffic, poor air quality,
high dust levels,
or environmental allergens.
Passenger compartment air
filter replacement may also be
needed if there is reduced
airflow, window fogging,
or odors. Your GM dealer can
help determine when to
replace the filter.
Every 161 000 km
(100,000 mi)
Replace the hood and/or body
lift support gas struts. Or
every 10 years, whichever
comes first. See Gas Strut(s)
0321.
Every 240 000 km
(150,000 mi)
Drain and fill the coolant
circuits. Or every five years,
whichever comes first. See
Cooling System 0313.Severe Conditions
Requiring More Frequent
Maintenance*
.Mainly driven in heavy city
traffic in hot weather.
.Mainly driven in hilly or
mountainous terrain.
.Frequently towing a trailer.
.Used for high speed or
competitive driving.
.Used for taxi, police,
or delivery service.
Additional Required
Services —Severe Service
Every 72 000 km (45,000 mi)
.Change electric drive unit
fluid. See Recommended
Fluids and Lubricants 0379.
Owner Checks and
Services
Every Five Years
Replace the brake fluid every
five years. See Brake Fluid
0316. Every Seven Years
Replace the air conditioning
desiccant every seven years.
This service helps the
longevity and efficient
operation of the air
conditioning system. This
service can be complex. See
your dealer.
Multi-Point Vehicle
Inspection (MPVI)
A Multi Point Vehicle
Inspection (MPVI) completed
by a GM dealer technician is a
maintenance assessment of
your vehicle. The benefit of
the MPVI is to identify and
inform the customer of service
items that require immediate
attention and those that may
require attention in the future.
The technician will perform the
following checks on your
vehicle. For a complete list of
checks, inspections, and
services, see your dealer.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
378 Service and Maintenance
Some items may not apply to
your vehicle and/or region.
Diagnostics
.OnStar active, if equipped
.Service history/recall check
Exterior Lights
.Visual inspection
Windshield and Wipers
.Visual inspection
Battery
.Battery visual inspection
.Battery test results
.Battery cables and
connections
Systems, Fluids, and
Visible Leak Inspection
.Electric Drive Unit
.Drive axle
.Transfer case
.Power electronics cooling
system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth,
and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration
date, if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional
Inspections
.Seat belt components
.Accelerator pedal
.Passenger compartment air
filter, if equipped
.Hoses
.Shocks and struts
.Steering components
.Axle boots or driveshaft and
u-joints
.Compartment lift struts,
if equipped
.Floor mats secured, no
interference with pedals
.Horn
.Starter switch
Lubricate
.Chassis components
Owner Checks and
Services
.At least twice a year, have
underbody flushing service
performed. See "Underbody
Maintenance" in Exterior
Care 0364.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Service and Maintenance 379
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name or specification, including fluids or lubricants not
listed here, can be obtained from your dealer.Usage Fluid/Lubricant
Electric Drive Unit DEXRON ULV Automatic Transmission Fluid.
Hydraulic Brake System GM approved DOT 4 Hydraulic Brake Fluid.
Key Lock Cylinders, Hood and Liftgate Hinges Multi-Purpose Lubricant, Superlube. See your dealer.
Vehicle Coolant Circuits Use only ACDelco Premix (50/50 mixture of de-ionized water and DEX-COOL Coolant). See your dealer.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
