330 Vehicle Care
Fuses Usage52 MTR WDW
LIFTER RT
–
Motor Window
Lifter Right
53 FRT WPR
–Front
Wiper
54 TRLR
HEAVYDUTY/
TRLR EUROPE
–
Trailer Battery
55 –
56 FOLD SEAT RT
MTR
–Fold Seat
Right Motor
57 EBCM–
Electronic
Brake Control
Module
58 FRT BLWR MTR
–
Front Blower
Motor
59 –
60 Horn 61 Rear Defog Fuses Usage
62 REAR BLWR MTR
–
Rear Blower
Motor
63 MTR S/ROOF &
SUNSHD
–Motor
Sunroof and
Motor Sunshade
64 PWR SEAT DRVR
–
Power Seat
Driver
65 PWR SEAT PASS
DRVR
–Power
Seat Passenger
Driver
66 CRFM
–
Condenser
Radiator Fan
Module
67 Heated Wiper
68 Spare
69 Spare
70 RELAY’S COIL Fuses Usage
71 REAR HTD/
SEAT 2
–Rear
Heated Seat 2
72 FRT HTD/SEAT 1
–
Front Heated
Seat 1
73 FOLD SEAT LT
MTR
–Fold Seat
Left Motor
74 TRLR INTERFACE
MDL BATT
SOURCE 2
–
Trailer Interface
Module Battery
Source 2
75 Spare
76 Spare 77 Spare
78 TRLR ST/TRN LT
& TRLR RT
–
Trailer Stop Turn
Left and Trailer
Stop Turn Right

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 331
Fuses Usage79 REAR HTD/SEAT 1
–
Rear Heated
Seat 1
80 FRT HTD/SEAT 2
–
Front Heated
Seat 2
81 OUT OF PRK
DSBL
–Out of
Park Disable
82 Wash Pump
(Front)
83 Camera Wash
Instrument Panel
Fuse Block
The instrument panel fuse
block is to the right of the
glove box.
To Access the Fuses: 1. Remove the panel, starting at the top.
2. Once the panel clips disengage, the tabs along
the bottom of the door can
disengage from the
instrument panel to remove
the door.
To reinstall the door, place the
bottom tabs into the slots, and
rotate the door into position,
engaging the clips.
See your dealer if additional
assistance is needed.
The vehicle may not be
equipped with all of the fuses
and features shown.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
332 Vehicle Care
Fuses UsageF1 –
F2 APO/CIGAR LTR –
Auxiliary Power
Outlet Instrument
Panel/Cigar
Lighter
F3 –
F4 USB PORT/APO AC 150W –
Universal Serial
Bus Port/Auxiliary
Power Outlet
Alternating
Current 150W
F5 STRG COL LOCK –RUN/CRANK
Steering
Column Lock
F6 ELM 1– Exterior
Lighting Module 1
F7 AMP-BASE –
Amplifier-Base
F8 RT DR LATCH –
Right Door Latch Fuses Usage
F9 LT DR LATCH –
Left Door Latch
F10 STRG COL POS MDL–Steering
Column Position
Module
F11 ACP 4 –ADAS
Compute
Platform 4
F12 –
F13 EUROPE-TRLR CON & ECP_E/
ECP_S/VICM –
RUN/CRANK
Europe –Trailer
Control and Elec-
trification Control
Processor
(Traction Power
Inverter 1 and 2)/
Vehicle Integration
Control Module
F14 HEADLAMPS –
RUN/CRANK
Headlamps Fuses Usage
F15 HDLP RT –
Headlamp Right
F16 STRG COL/ CLOCK SPRING –
Steering Column
Lock/Clock Spring
F17 SEAT FAN PASS & SEAT FAN
DRVR–RUN/
CRANK Seat Fan
Passenger and
Seat Fan Driver
F18 VCD & SRR –
Virtual Cockpit
Display and Short
Range Radar

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 333
Fuses UsageF19 MISC 2 & MISC 1 –
RUN/CRANK
Miscellaneous 2
Switch Bank/
Electronic Toll
Collection/Interior
Particulate Matter
Sensor/Reflective
Light Auxiliary
Display and
Miscellaneous 1
Electronic Brake
Control Module/
Exterior Lighting
Module/Sensing
and Diagnostic
Module/Inside
Rear View Mirror
F20 BCM 1 & VICM –
Body Control
Module 1 and
Vehicle Integration
Control Module Fuses Usage
F21 LRR-RR & EPBS/ ESM–Long
Range Radar –
Rear and Electric
Park Brake
Switch/Electronic
Transmission
Range Select
Shifter Module
F22 VKM/VKBM/AUX JACK & ACP3 –
Virtual Key
Module/Virtual
Key Backup
Module/
Auxiliary Jack
F23 T/LAMP RT & T/ LAMP LT –Tail
Lamp Right and
Tail Lamp Left Fuses Usage
F24 UPA/APA/SBZA & SDM/AOS –
Universal Park
Assist/Automatic
Park Assist/Side
Blind Zone Alert
and Sensing
Diagnostic
Module/Automatic
Occupant Sensing
Module
F25 ACP 2/EOCM_LC/ FCM/MFC & DMS/
CGM/DLC/VDM –
ADAS Compute
Platform 2/
External Object
Calculating
Module/Front
Camera Module/
Multi Function
Control and Driver
Monitoring
System/Central
Gateway Module/
Diagnostic Link
Connector/Vehicle
Data Monitor

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
334 Vehicle Care
Fuses UsageF26 ECP_E_BATT 2/ ACEC & HUD/
HVAC DISPLAY –
Electrification
Control Processor
Battery 2/Air
Condition Electric
Compressor and
Heads-Up Display/
Heating,
Ventilation and Air
Conditioning
Display
F27 BCM 3 –Body
Control Module 3
F28 BCM 2 –Body
Control Module 2
F29 AMP-UPLEVEL –
Amplifier-Uplevel
F30 BCM 4 –Body
Control Module 4 Fuses Usage
F31 VPM/SD CARD/ ILSS/OHC –Video
Processing
Module/SD Card/
Indicator Light and
Solar Sensor/Over
Head Console
F32 HSWM –Heated
Steering Wheel
Module
F33 LRR FR/LIDAR –
Long Range Radar
Front/Light
Detection and
Ranging
F34 ELM 2 –Exterior
Lighting Module 2
F35 HDLP LT –
Headlamp Left
F36 VCU BATT 1 –
Virtual Cockpit
Unit Battery 1
F37 TCP (OnStar) –
Telematics
Communication
Platform Fuses Usage
F38 WCM –Wireless
Charger Module
F39 HI VOLTAGE SYS LCKOUT –High
Voltage System
Lockout
F40 VCU Batt 2 –
Virtual Cockpit
Unit Battery 2
F41 ELM 6 –Exterior
Lighting Module 6
F42 –
Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer.
See the warranty manual
for information regarding
the tire warranty and
where to get service. For
additional information refer
to the tire manufacturer.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 335
{Warning
.Poorly maintained and
improperly used tires
are dangerous.
.Overloading the tires
can cause overheating
as a result of too much
flexing. There could be
a blowout and a serious
crash. See Vehicle Load
Limits0202.
.Underinflated tires
pose the same danger
as overloaded tires. The
resulting crash could
cause serious injury.
Check all tires
frequently to maintain
the recommended
pressure. Tire pressure
should be checked
when the tires are cold.
(Continued)
Warning (Continued)
.Overinflated tires are
more likely to be cut,
punctured, or broken by
a sudden impact —such
as when hitting a
pothole. Keep tires at
the recommended
pressure.
.Worn or old tires can
cause a crash. If the
tread is badly worn,
replace them.
.Replace any tires that
have been damaged by
impacts with potholes,
curbs, etc.
.Improperly repaired
tires can cause a crash.
Only your dealer or an
authorized tire service
center should repair,
replace, dismount, and
mount the tires.
(Continued)
Warning (Continued)
.Do not spin the tires in
excess of 56 km/h
(35 mph) on slippery
surfaces such as snow,
mud, ice, etc. Excessive
spinning may cause the
tires to explode.
All-Season Tires
This vehicle may come with
all-season tires. These tires
are designed to provide good
overall performance on most
road surfaces and weather
conditions. Original equipment
tires designed to GM's specific
tire performance criteria have
a TPC specification code
molded onto the sidewall.
Original equipment all-season
tires can be identified by the
last two characters of this
TPC code, which will be “MS.”
Consider installing winter tires
on the vehicle if frequent
driving on snow or ice-covered

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
336 Vehicle Care
roads is expected. All-season
tires provide adequate
performance for most winter
driving conditions, but they
may not offer the same level
of traction or performance as
winter tires on snow or
ice-covered roads. See Winter
Tires0336.

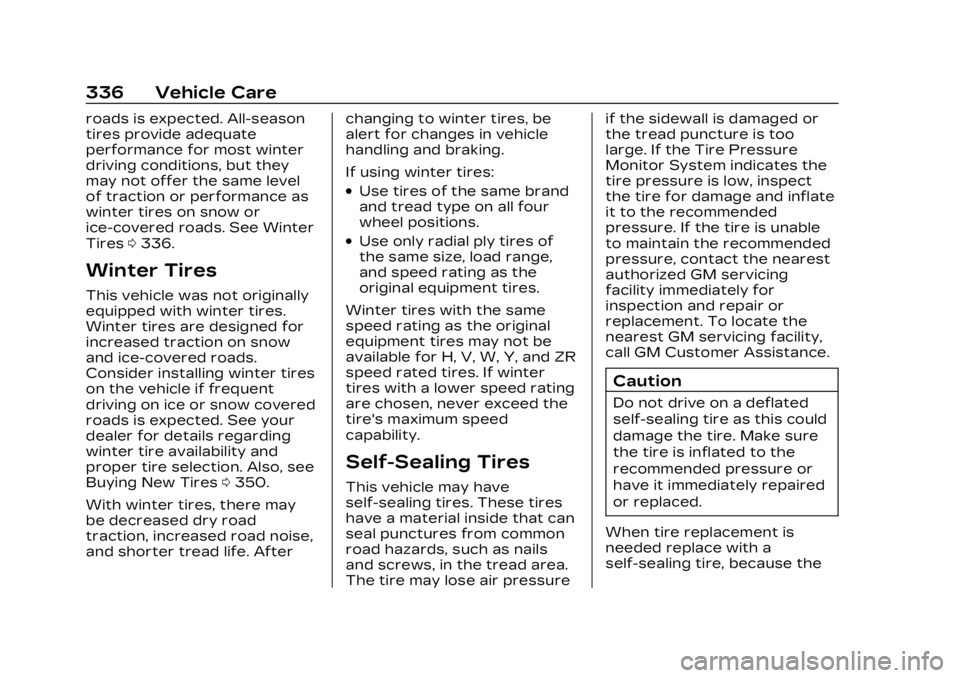

Winter Tires
This vehicle was not originally
equipped with winter tires.
Winter tires are designed for
increased traction on snow
and ice-covered roads.
Consider installing winter tires
on the vehicle if frequent
driving on ice or snow covered
roads is expected. See your
dealer for details regarding
winter tire availability and
proper tire selection. Also, see
Buying New Tires 0350.
With winter tires, there may
be decreased dry road
traction, increased road noise,
and shorter tread life. After changing to winter tires, be
alert for changes in vehicle
handling and braking.
If using winter tires:
.Use tires of the same brand
and tread type on all four
wheel positions.
.Use only radial ply tires of
the same size, load range,
and speed rating as the
original equipment tires.
Winter tires with the same
speed rating as the original
equipment tires may not be
available for H, V, W, Y, and ZR
speed rated tires. If winter
tires with a lower speed rating
are chosen, never exceed the
tire's maximum speed
capability.

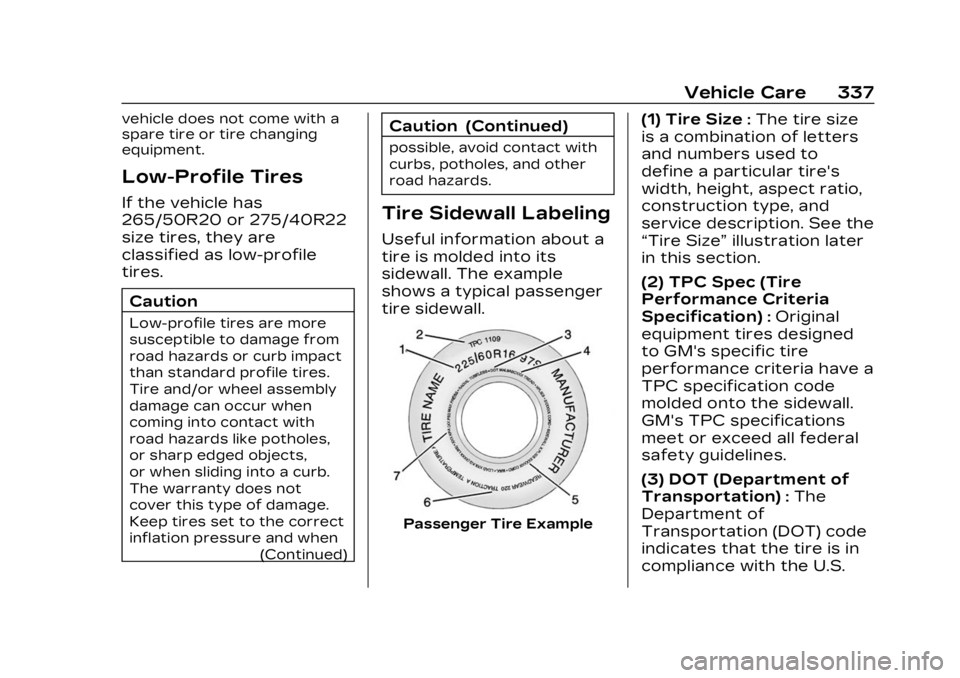

Self-Sealing Tires
This vehicle may have
self-sealing tires. These tires
have a material inside that can
seal punctures from common
road hazards, such as nails
and screws, in the tread area.
The tire may lose air pressure if the sidewall is damaged or
the tread puncture is too
large. If the Tire Pressure
Monitor System indicates the
tire pressure is low, inspect
the tire for damage and inflate
it to the recommended
pressure. If the tire is unable
to maintain the recommended
pressure, contact the nearest
authorized GM servicing
facility immediately for
inspection and repair or
replacement. To locate the
nearest GM servicing facility,
call GM Customer Assistance.
Caution
Do not drive on a deflated
self-sealing tire as this could
damage the tire. Make sure
the tire is inflated to the
recommended pressure or
have it immediately repaired
or replaced.
When tire replacement is
needed replace with a
self-sealing tire, because the

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 337
vehicle does not come with a
spare tire or tire changing
equipment.
Low-Profile Tires
If the vehicle has
265/50R20 or 275/40R22
size tires, they are
classified as low-profile
tires.Caution
Low-profile tires are more
susceptible to damage from
road hazards or curb impact
than standard profile tires.
Tire and/or wheel assembly
damage can occur when
coming into contact with
road hazards like potholes,
or sharp edged objects,
or when sliding into a curb.
The warranty does not
cover this type of damage.
Keep tires set to the correct
inflation pressure and when (Continued)
Caution (Continued)
possible, avoid contact with
curbs, potholes, and other
road hazards.
Tire Sidewall Labeling
Useful information about a
tire is molded into its
sidewall. The example
shows a typical passenger
tire sidewall.
Passenger Tire Example
(1) Tire Size:The tire size
is a combination of letters
and numbers used to
define a particular tire's
width, height, aspect ratio,
construction type, and
service description. See the
“Tire Size” illustration later
in this section.
(2) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall.
GM's TPC specifications
meet or exceed all federal
safety guidelines.
(3) DOT (Department of
Transportation)
:The
Department of
Transportation (DOT) code
indicates that the tire is in
compliance with the U.S.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
338 Vehicle Care
Department of
Transportation Motor
Vehicle Safety Standards.
DOT Tire Date of
Manufacture
:The last
four digits of the TIN
indicate the tire
manufactured date. The
first two digits represent
the week and the last two
digits, the year. For
example, the third week of
the year 2020 would have
a 4-digit DOT date of 0320.
Week 01 is the first full
week (Sunday through
Saturday) of each year.

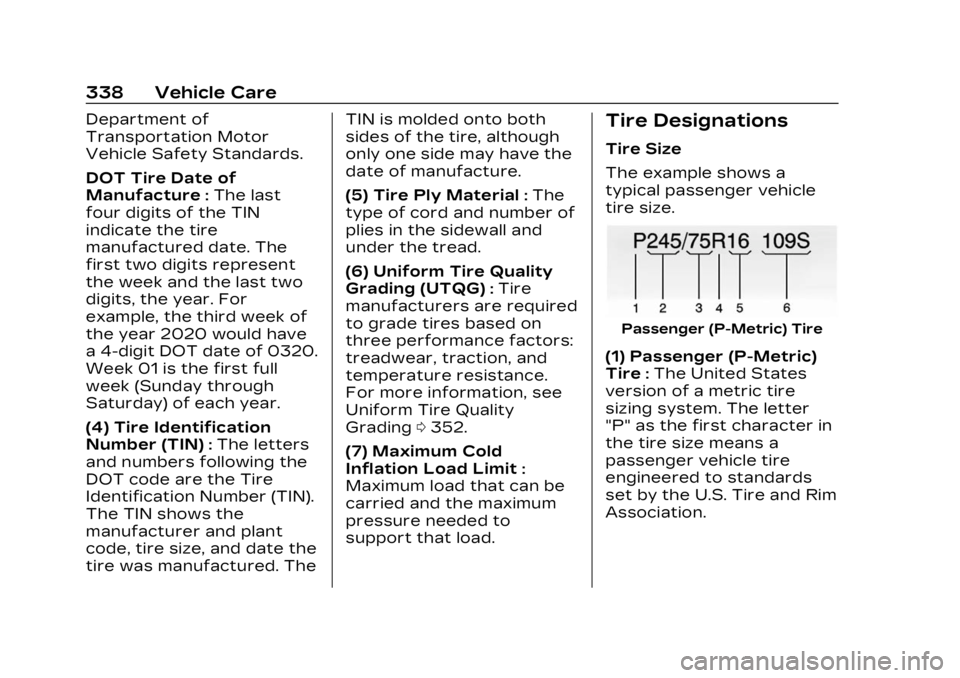

(4) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT code are the Tire
Identification Number (TIN).
The TIN shows the
manufacturer and plant
code, tire size, and date the
tire was manufactured. The TIN is molded onto both
sides of the tire, although
only one side may have the
date of manufacture.
(5) Tire Ply Material
:The
type of cord and number of
plies in the sidewall and
under the tread.
(6) Uniform Tire Quality
Grading (UTQG)
:Tire
manufacturers are required
to grade tires based on
three performance factors:
treadwear, traction, and
temperature resistance.
For more information, see
Uniform Tire Quality
Grading 0352.
(7) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load.
Tire Designations
Tire Size
The example shows a
typical passenger vehicle
tire size.
Passenger (P-Metric) Tire
(1) Passenger (P-Metric)
Tire
:The United States
version of a metric tire
sizing system. The letter
"P" as the first character in
the tire size means a
passenger vehicle tire
engineered to standards
set by the U.S. Tire and Rim
Association.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 339

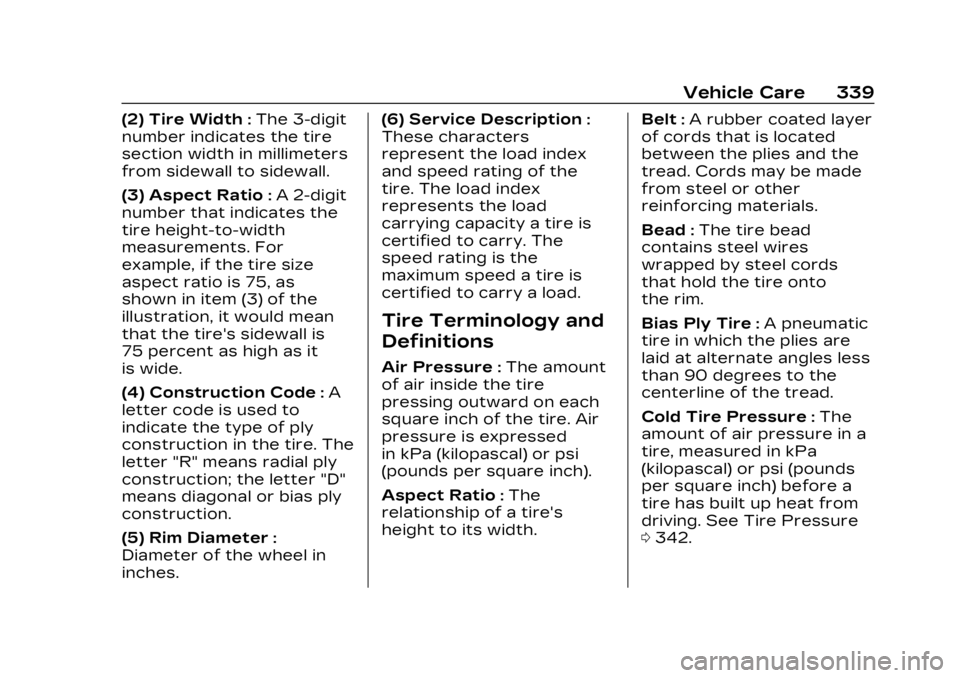

(2) Tire Width:The 3-digit
number indicates the tire
section width in millimeters
from sidewall to sidewall.
(3) Aspect Ratio
:A 2-digit
number that indicates the
tire height-to-width
measurements. For
example, if the tire size
aspect ratio is 75, as
shown in item (3) of the
illustration, it would mean
that the tire's sidewall is
75 percent as high as it
is wide.
(4) Construction Code
:A
letter code is used to
indicate the type of ply
construction in the tire. The
letter "R" means radial ply
construction; the letter "D"
means diagonal or bias ply
construction.
(5) Rim Diameter
:
Diameter of the wheel in
inches. (6) Service Description
:
These characters
represent the load index
and speed rating of the
tire. The load index
represents the load
carrying capacity a tire is
certified to carry. The
speed rating is the
maximum speed a tire is
certified to carry a load.
Tire Terminology and
Definitions
Air Pressure:The amount
of air inside the tire
pressing outward on each
square inch of the tire. Air
pressure is expressed
in kPa (kilopascal) or psi
(pounds per square inch).
Aspect Ratio
:The
relationship of a tire's
height to its width. Belt
:A rubber coated layer
of cords that is located
between the plies and the
tread. Cords may be made
from steel or other
reinforcing materials.
Bead
:The tire bead
contains steel wires
wrapped by steel cords
that hold the tire onto
the rim.
Bias Ply Tire
:A pneumatic
tire in which the plies are
laid at alternate angles less
than 90 degrees to the
centerline of the tread.
Cold Tire Pressure
:The
amount of air pressure in a
tire, measured in kPa
(kilopascal) or psi (pounds
per square inch) before a
tire has built up heat from
driving. See Tire Pressure
0 342.
