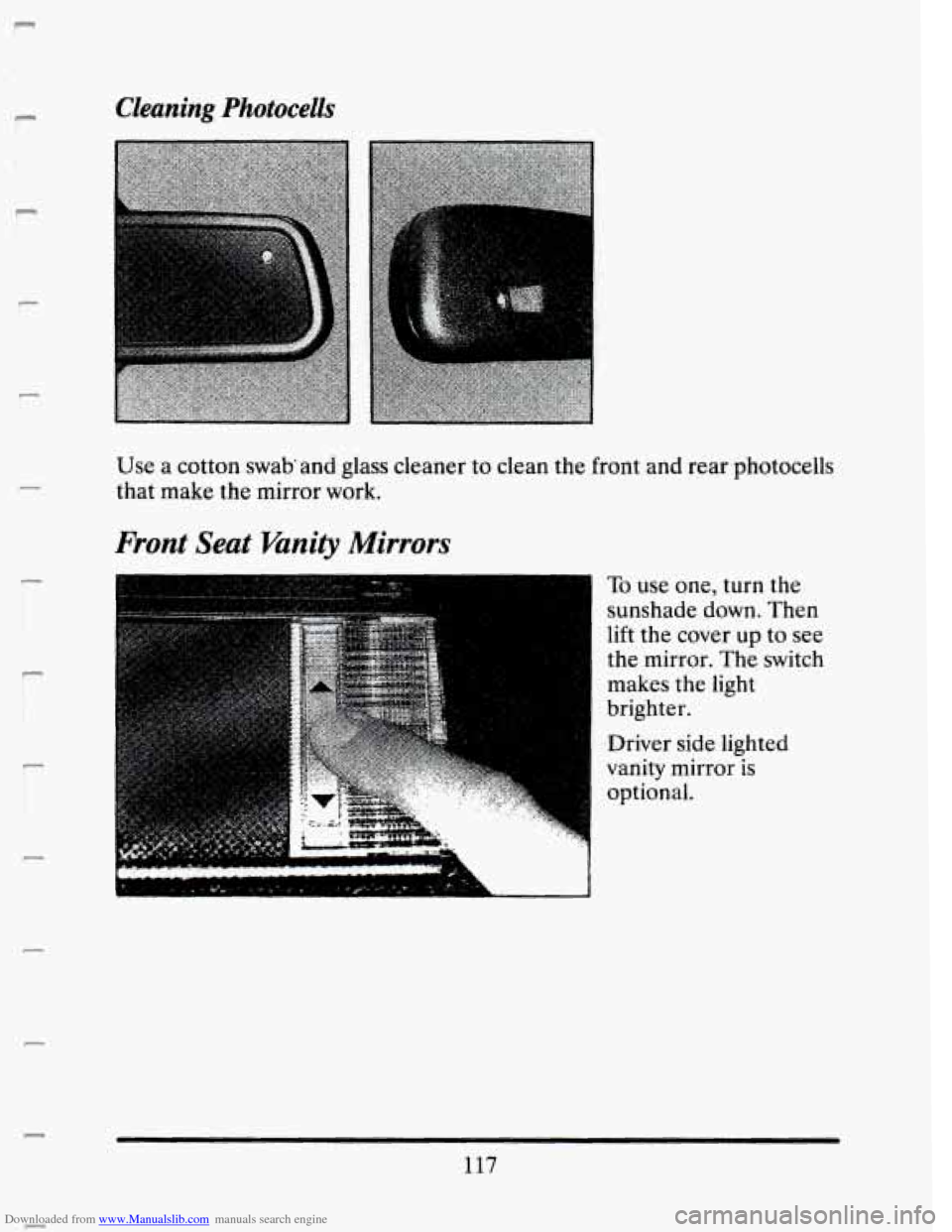

Cleaning Photocells
Use a cotton swab'and glass cleaner to clean the front and rear photocells
that make
the mirror work.
Front Seat Vanity Mirrors
- To use one, turn the
sunshade down. Then
lift the cover
up to see
the mirror. The switch
makes the light
brighter.
Driver side lighted
vanity mirror is
optional.
117

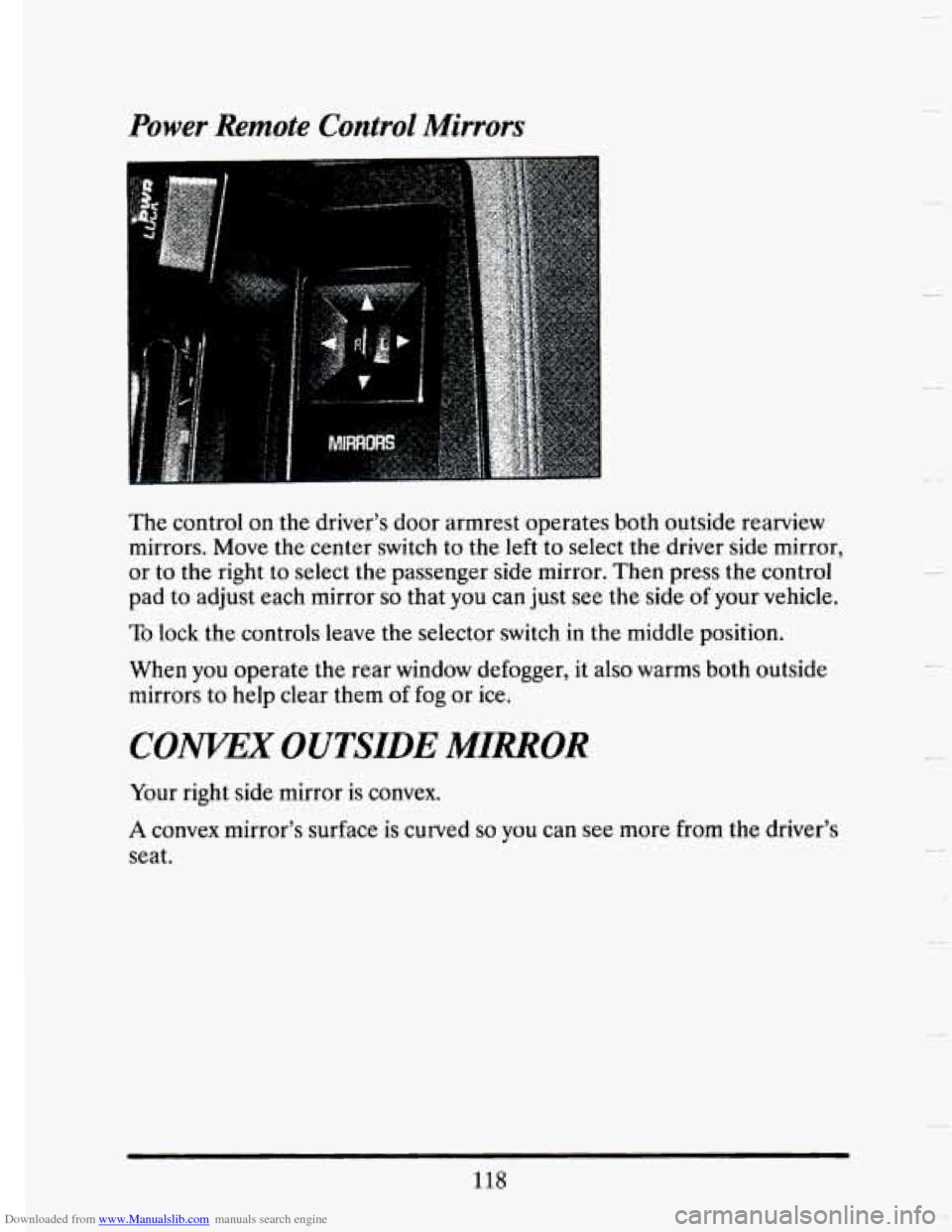

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors
The control on the driver’s door armrest operates both outside rearview
mirrors. Move
the center switch to the left to select the driver side mirror,
or to
the right to select the passenger side mirror. Then press the control
pad to adjust each mirror
so that you can just see the side of your vehicle.
To lock the controls leave the selector switch in the middle position.
When
you operate the rear window defogger, it also warms both outside
mirrors to help clear them of fog or ice.
CONVEX OUTSIDE MIRROR
Your right side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
118

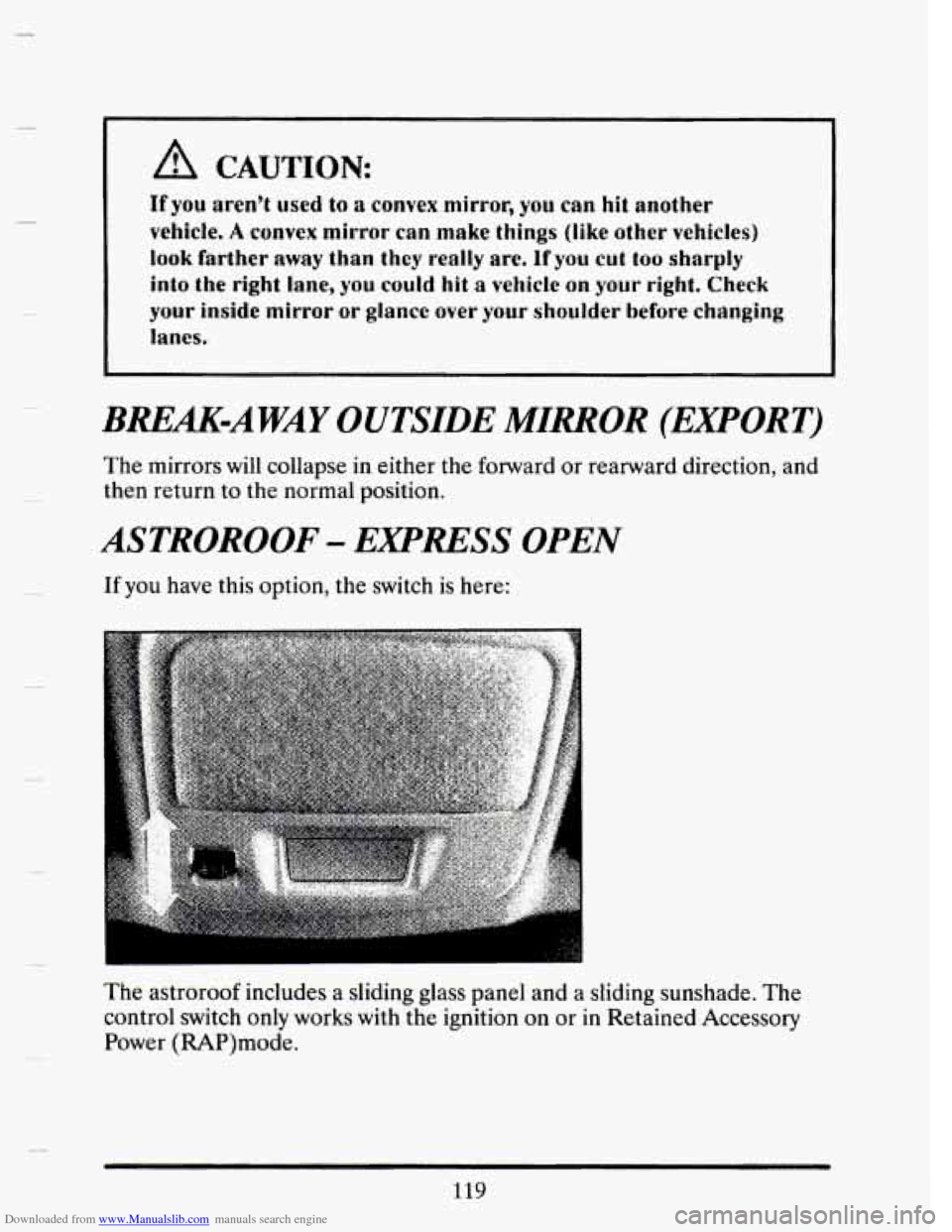

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
If you aren’t used to a convex mirror, you can hit another
vchicie. A convex mirror can make things (like other vehicles)
look farther away than they really are, if you cut tou sharply
into the right lane, you cuuld hit a vehicle on your right. Check
your inside mirror or glance over your shoulder before changing
lanes,
BREAK-AWAY OUTSIDE MIRROR (EXPORT)
The mirrors will collapse in either the forward or rearward direction, and
then return to the normal position.
ASTROROOF - EXPRESS OPEN
If you have this option, the switch is here:
The astroroof includes a sliding glass panel and a sliding sunshade. The
control switch
only works with the ignition on or in Retained Accessory
Power (RAP)mode.
119

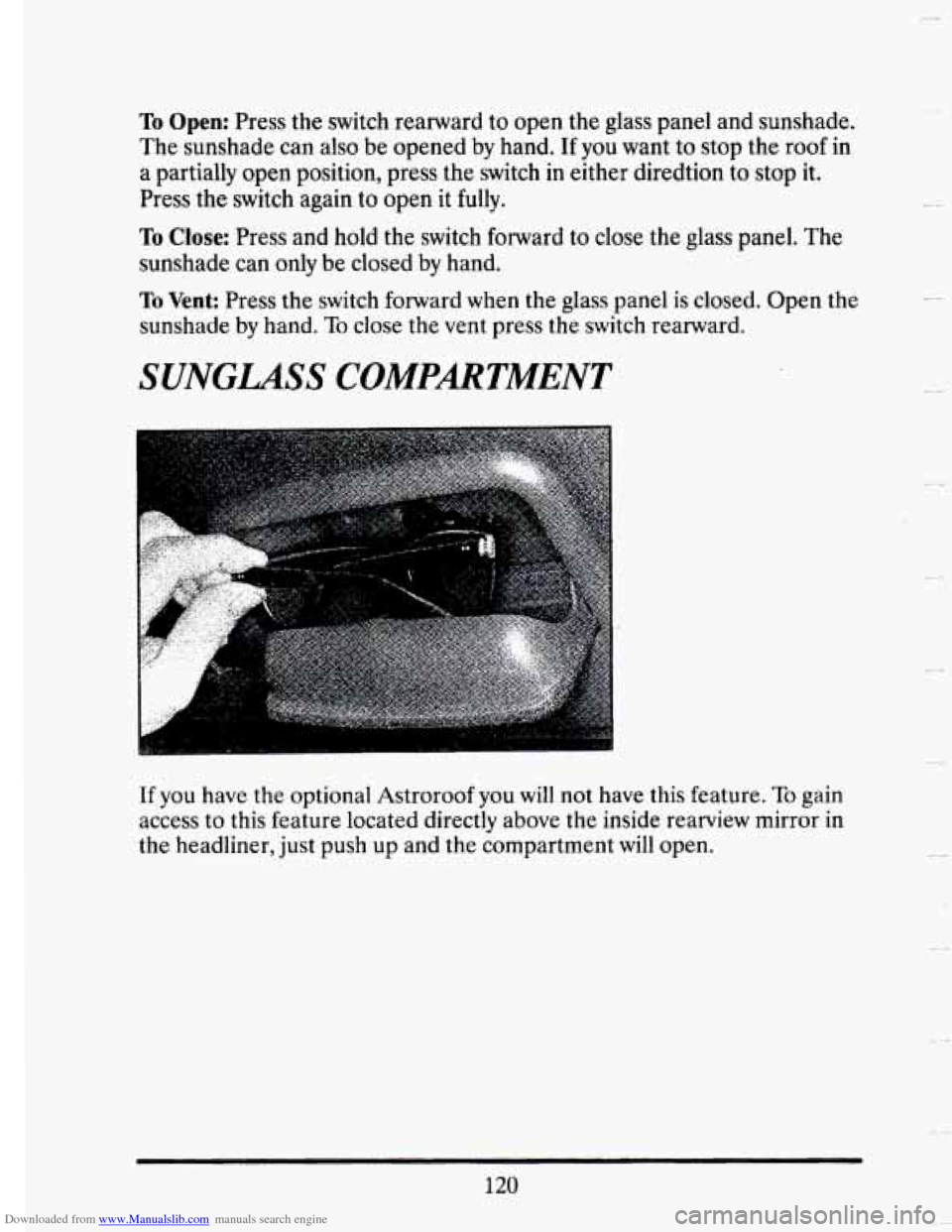

Downloaded from www.Manualslib.com manuals search engine To Open: Press the switch rearward to open the glass panel and sunshade.
The sunshade can also be opened by hand.
If you want to stop the roof in
a partially open position, press the switch in either diredtion to
stop it.
Press the switch again
to open it fully.
To Close: Press and hold the switch forward to close the glass panel. The
sunshade can only be closed by hand.
To Vent: Press the switch forward when the glass panel is closed. Open the
sunshade
by hand. To close the vent press the switch rearward.
SUNGLASS COMPRTMENT
If you have the optional Astroroof you will not have this feature. To gain
access
to this feature located directly above the inside rearview mirror in
the headliner, just push up and the compartment
will open.
120

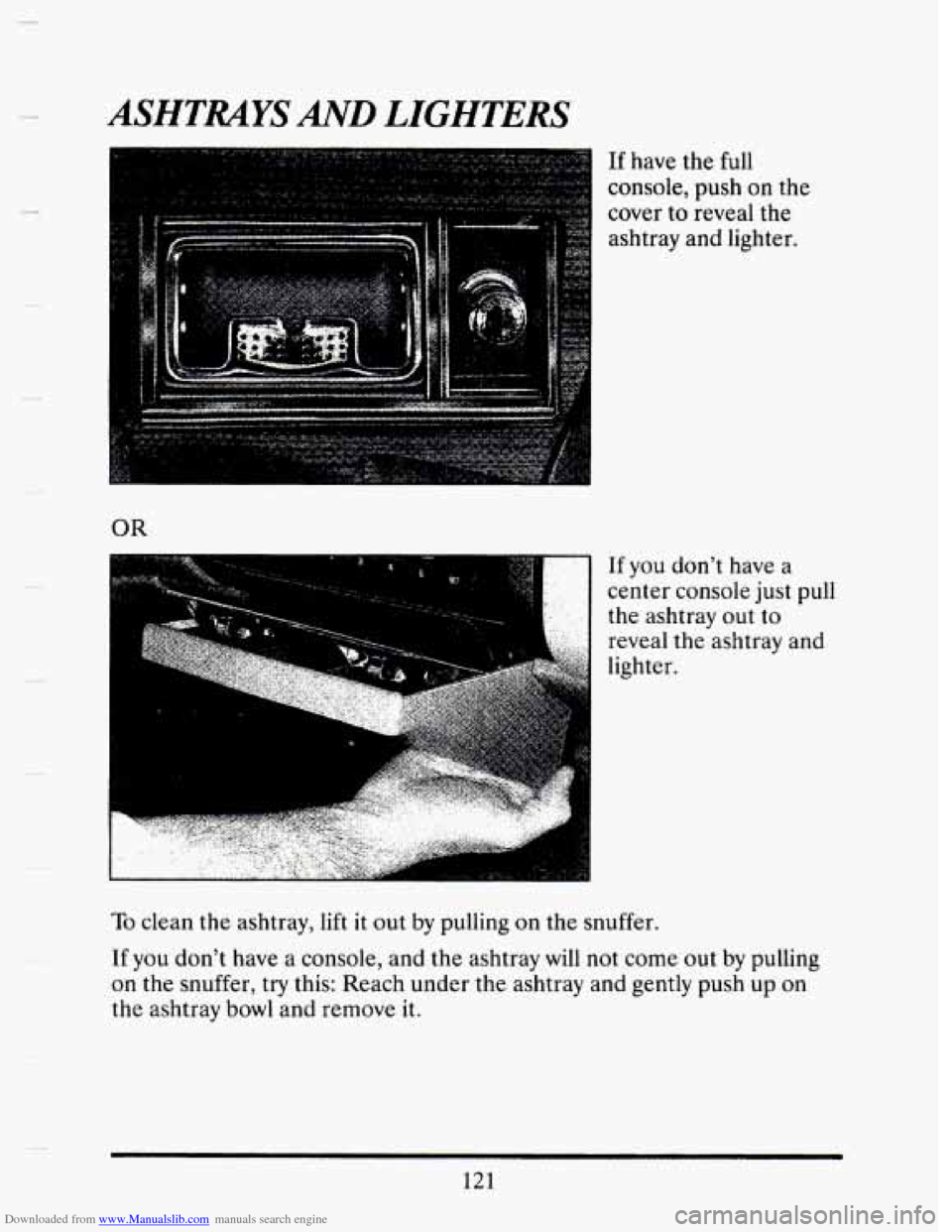

Downloaded from www.Manualslib.com manuals search engine ASHTRAYS AND LIGHTERS
If have the full
console, push on the
cover
to reveal the
ashtray and lighter.
OR
If you don’t have a
center console just pull
the ashtray out
to
reveal the ashtray and
lighter.
..
.. .
To clean the ashtray, lift it out by pulling on the snuffer.
If
you don’t have a console, and the ashtray will not come out by pulling
on the snuffer,
try this: Reach under the ashtray and gently push up on
the ashtray bowl and remove it.
121

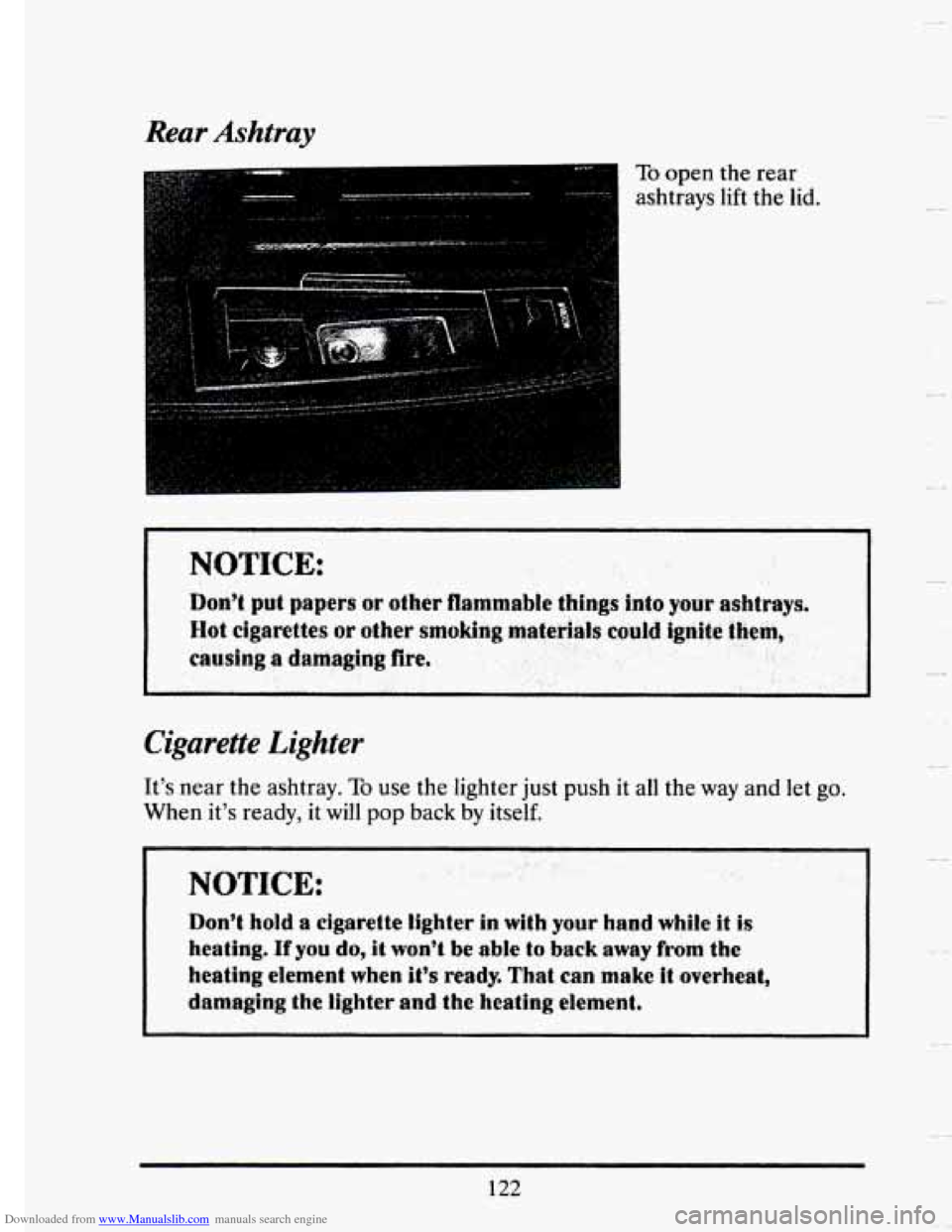

Downloaded from www.Manualslib.com manuals search engine Rear Ashtray
To open the rear
ashtrays lift the lid.
I NOTICE: ..
Cigarette Lighter
It’s near the ashtray. To use the lighter just push it all the way and let go.
When it’s ready,
it will pop back by itself.
NOTICE:
,.
Don’t hold a cigarette tighter in with your hand white it is
heating. If you bo, it, won’t be abfe to back away from the
heating dement when it’s ready. That can make Woverhea$,
damaging the lighter and the heating element.
122

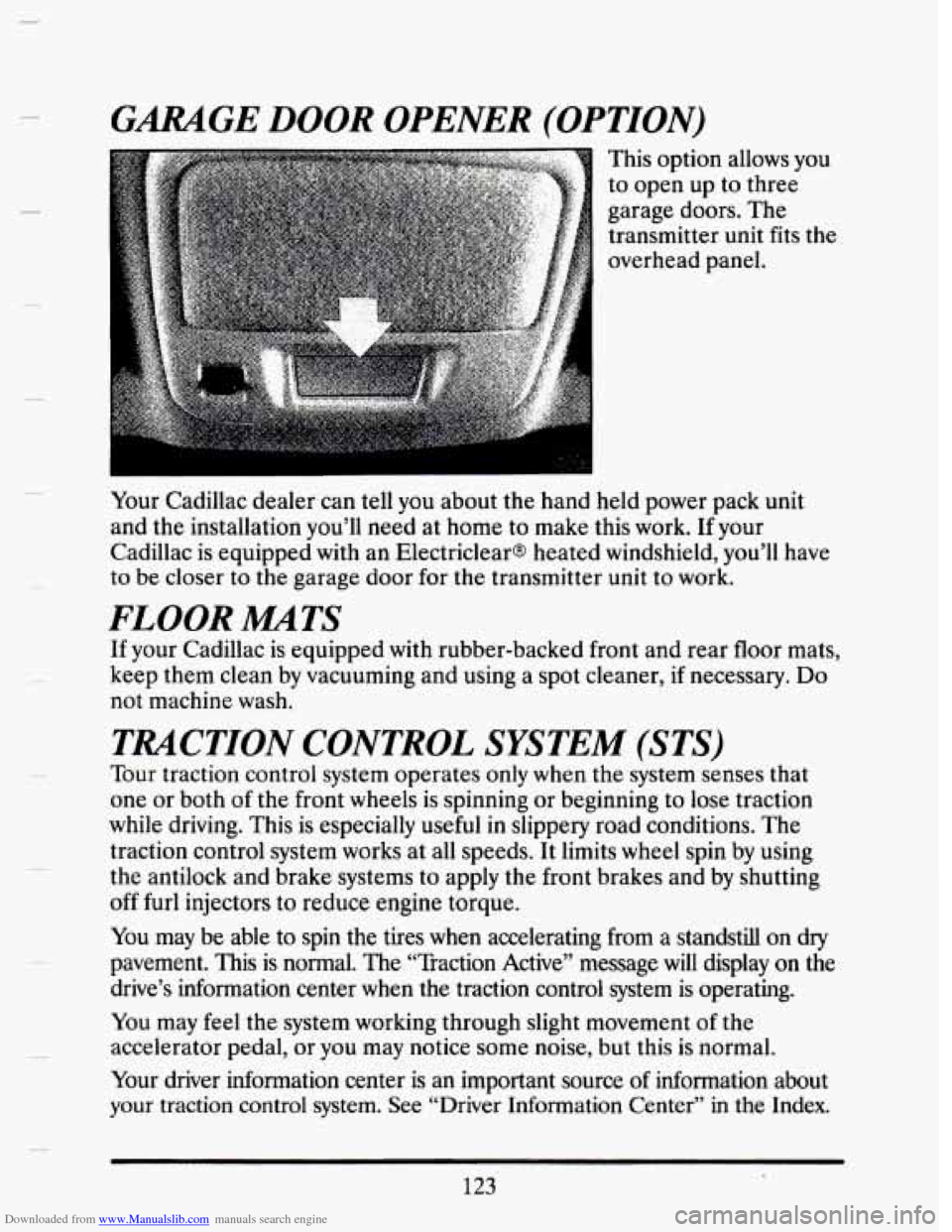

Downloaded from www.Manualslib.com manuals search engine GARAGE DOOR OPENER (OPTION)
This option allows you
to open up to three
garage doors. The
transmitter unit fits the
overhead panel.
Your Cadillac dealer can tell you about the hand held power pack unit
and the installation you’ll need at home to make this work. If your
Cadillac is equipped with an Electriclears heated windshield,
you’ll have
to be closer to the garage door for the transmitter unit to work.
FLOOR MATS
If your Cadillac is equipped with rubber-backed front and rear floor mats,
keep them clean by vacuuming and using a spot cleaner,
if necessary. Do
not machine wash.
TRACTION CONTROL SYSTEM (STS)
Tour traction control system operates only when the system senses that
one or both
of the front wheels is spinning or beginning to lose traction
while driving. This is especially useful
in slippery road conditions. The
traction control system works at all speeds. It limits wheel spin
by using
the antilock and brake systems
to apply the front brakes and by shutting
off furl injectors to reduce engine torque.
You may be able to spin the tires when accelerating from a standstill on
dry
pavement. This is normal. The “Traction Active” message will display on the
drive’s information center when the traction control system is operating.
You may feel the system working through slight movement
of the
accelerator pedal, or you may notice some noise, but this is normal.
Your driver information center is an important source
of information about
your traction control system. See “Driver Information Center” in the Index.
123

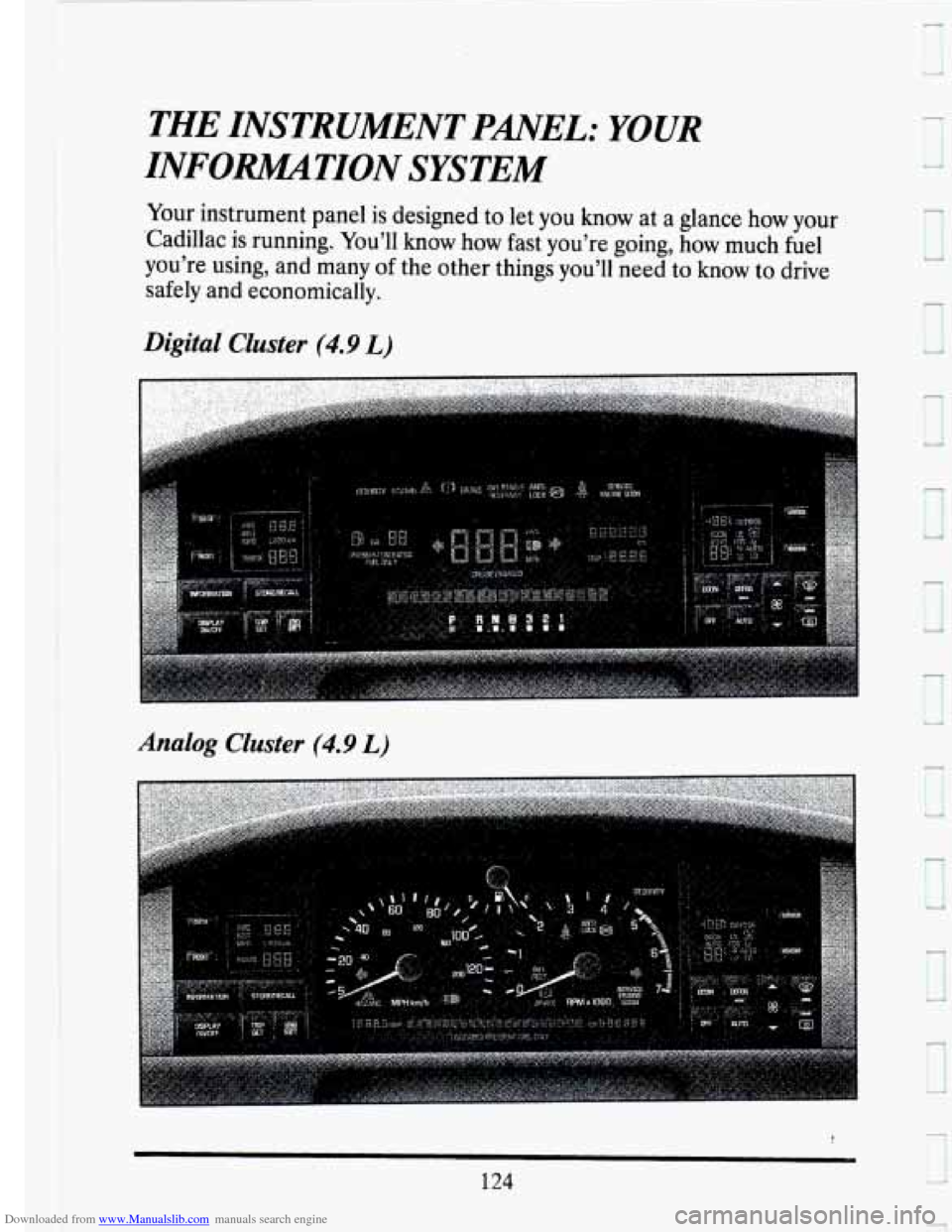

Downloaded from www.Manualslib.com manuals search engine THE INSTRUMENT PANEL: YOUR
INFOWTION SYSTEM
Your instrument panel is designed to let you know at a glance how your
'Cadillac is running. You'll
know how fast you're going, how much fuel
you're using, and many
of the other things you'll need to know to drive
safely and economically.
Analog Cluster (4.9 L)
3
124
u
U

Downloaded from www.Manualslib.com manuals search engine F

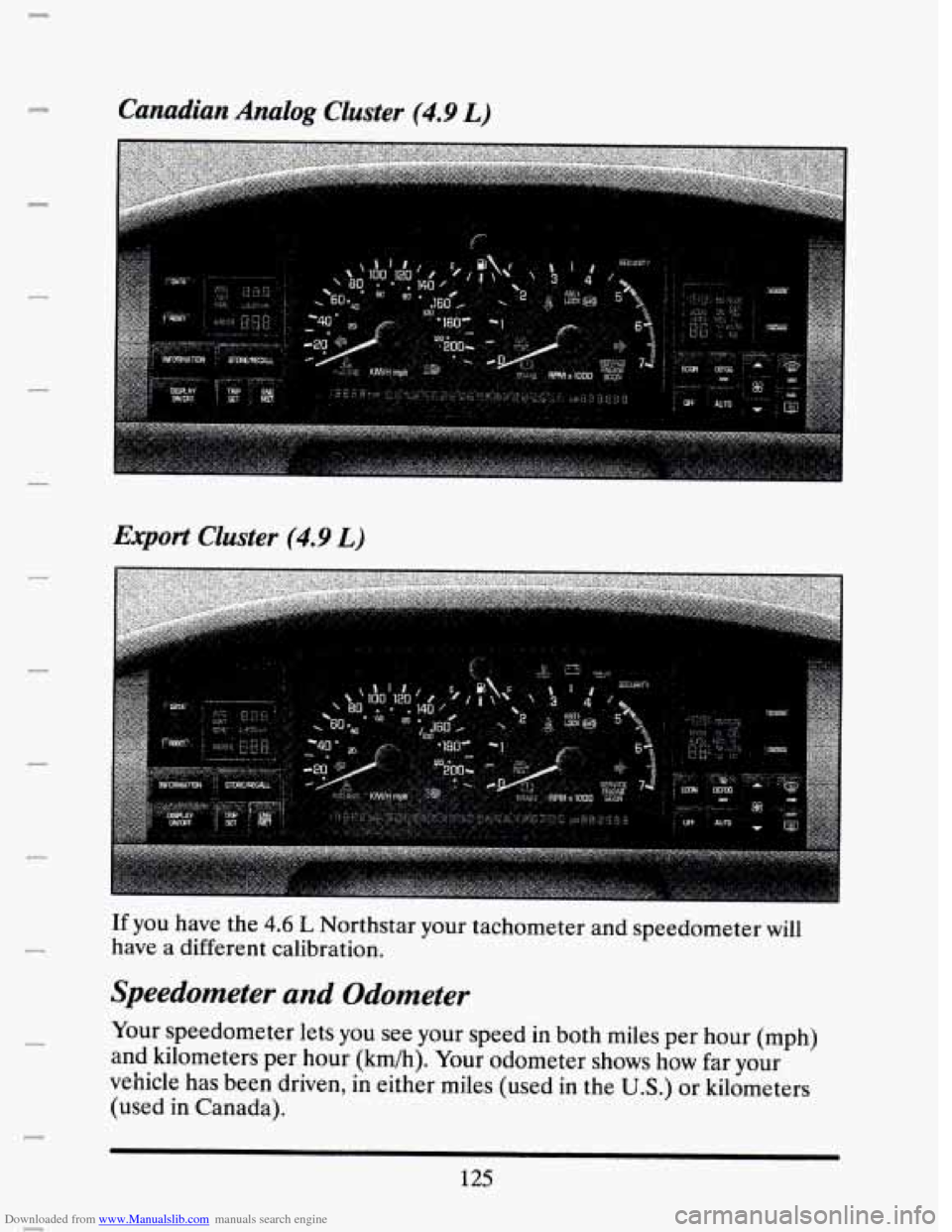

Eqort Cluster (4.9 L)
Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (km/h). Your odometer shows how far your
vehicle has been driven, in either miles (used in the
U.S.) or kilometers
(used in Canada).
c
125

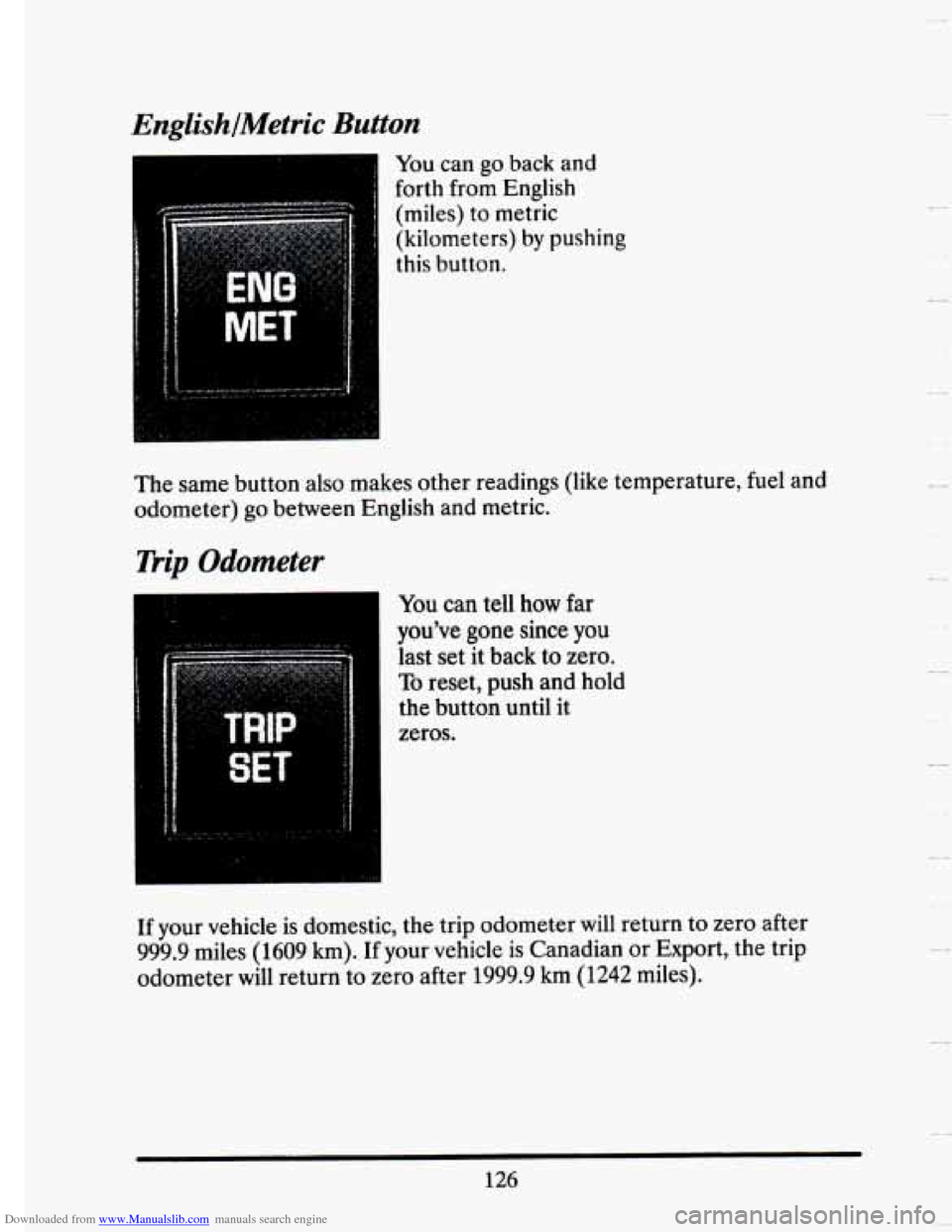

Downloaded from www.Manualslib.com manuals search engine EnglishlMetric Button
You can go back and
forth from English
(miles) to metric
(kilometers) by pushing
this button.
The same button also makes other readings (like temperature, fuel and
odometer) go between English and metric.
Trip Odometer
.. .. You can tell how far
you’ve gone since you
last set it back to zero.
To reset, push and hold
the button until it
zeros.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles (1609 km). If your vehicle is Canadian or Export, the trip
odometer
will return to zero after 1999.9 km (1242 miles).
