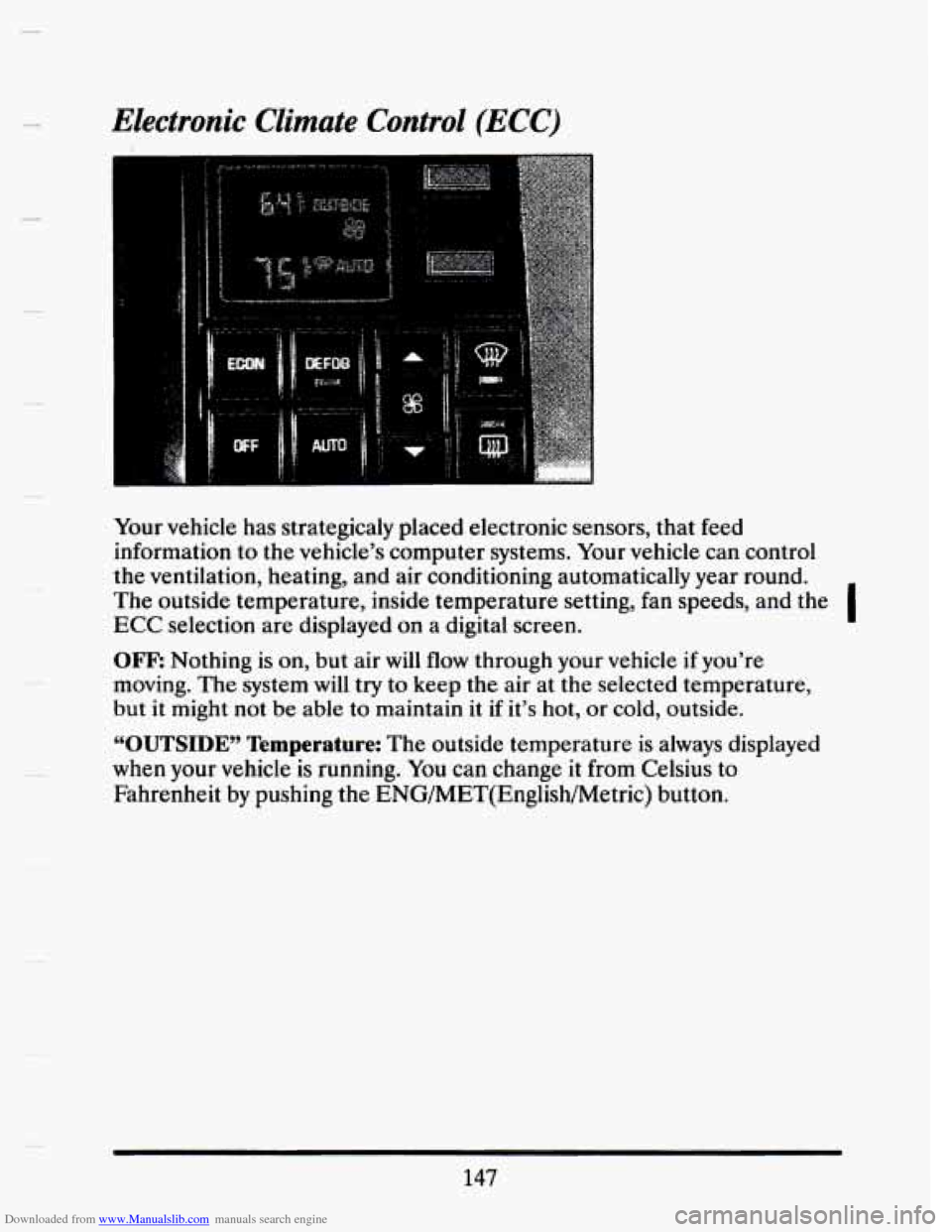

Downloaded from www.Manualslib.com manuals search engine Electronic Climate Control (ECC)
Your vehicle has strategicaly placed electronic sensors, that feed
information to the vehicle’s computer systems. Your vehicle can control
the ventilation, heating, and air conditioning automatically year round.
The outside temperature, inside temperature setting, fan speeds, and the
ECC selection are displayed on a digital screen. I
OFF: Nothing is on, but air will flow through your vehicle if you’re
moving. The system will try to keep the air at the selected temperature,
but it might not
be able to maintain it if it’s hot, or cold, outside.
“OUTSIDE” Temperature: The outside temperature is always displayed
when your vehicle is running. You can change it from Celsius
to
Fahrenheit by pushing the ENG/MET(English/Metric) button.
147

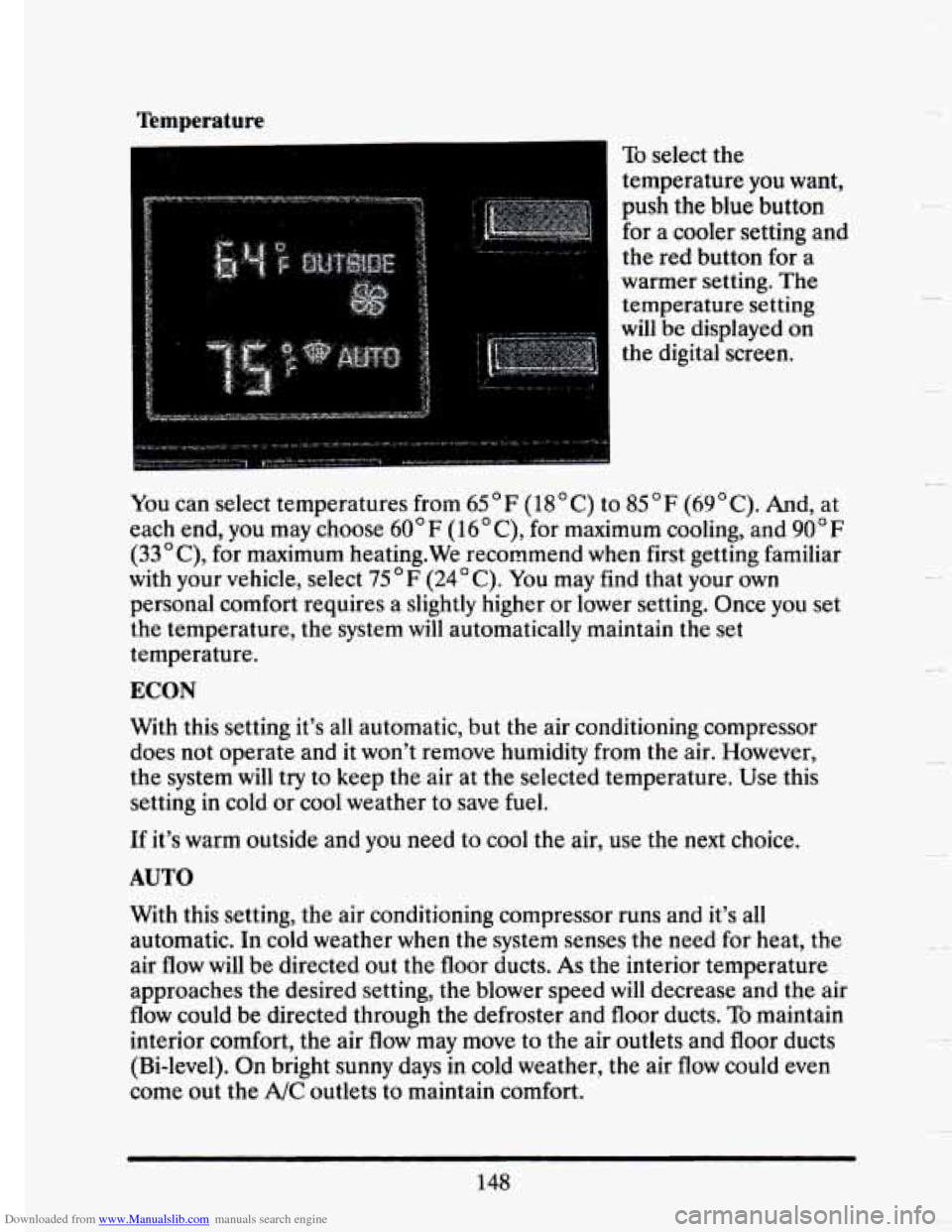

Downloaded from www.Manualslib.com manuals search engine Temperature
To select the
temperature you want,
push the blue button
for a cooler setting and
the red button for a
warmer setting. The
temperature setting
will be displayed on
the digital screen.
You can select temperatures from 65OF (18OC) to
85°F (69OC). And, at
each end, you may choose 60"
F (16OC), for maximum cooling, and 90°F
(33OC), for maximum heating.We recommend when first getting familiar
with your vehicle, select 75OF (24OC). You may find that your own
personal comfort requires a slightly higher or lower setting. Once you set
the temperature, the system
will automatically maintain the set
temperature.
ECON
With this setting it's all automatic, but the air conditioning compressor \
does not operate and it won't remove
humidity from the air. However,
the system
will try to keep the air at the selected temperature. Use this
setting
in cold or cool weather to save fuel.
If it's warm outside and you need to cool the air, use the next choice.
AUTO
With this setting, the air conditioning compressor runs and it's all
automatic. In cold weather when the system senses the need for\
heat, the
air flow
will be directed out the floor ducts. As the interior temperature
approaches the desired setting, the blower speed
will decrease and the air
flow could be directed through the defroster and floor ducts.
To maintain
interior comfort, the air flow may move to the air outlets and floor ducts
(Bi-level). On bright sunny days in cold weather, the air flow could even
come out the A/C outlets to maintain comfort.
148
-.

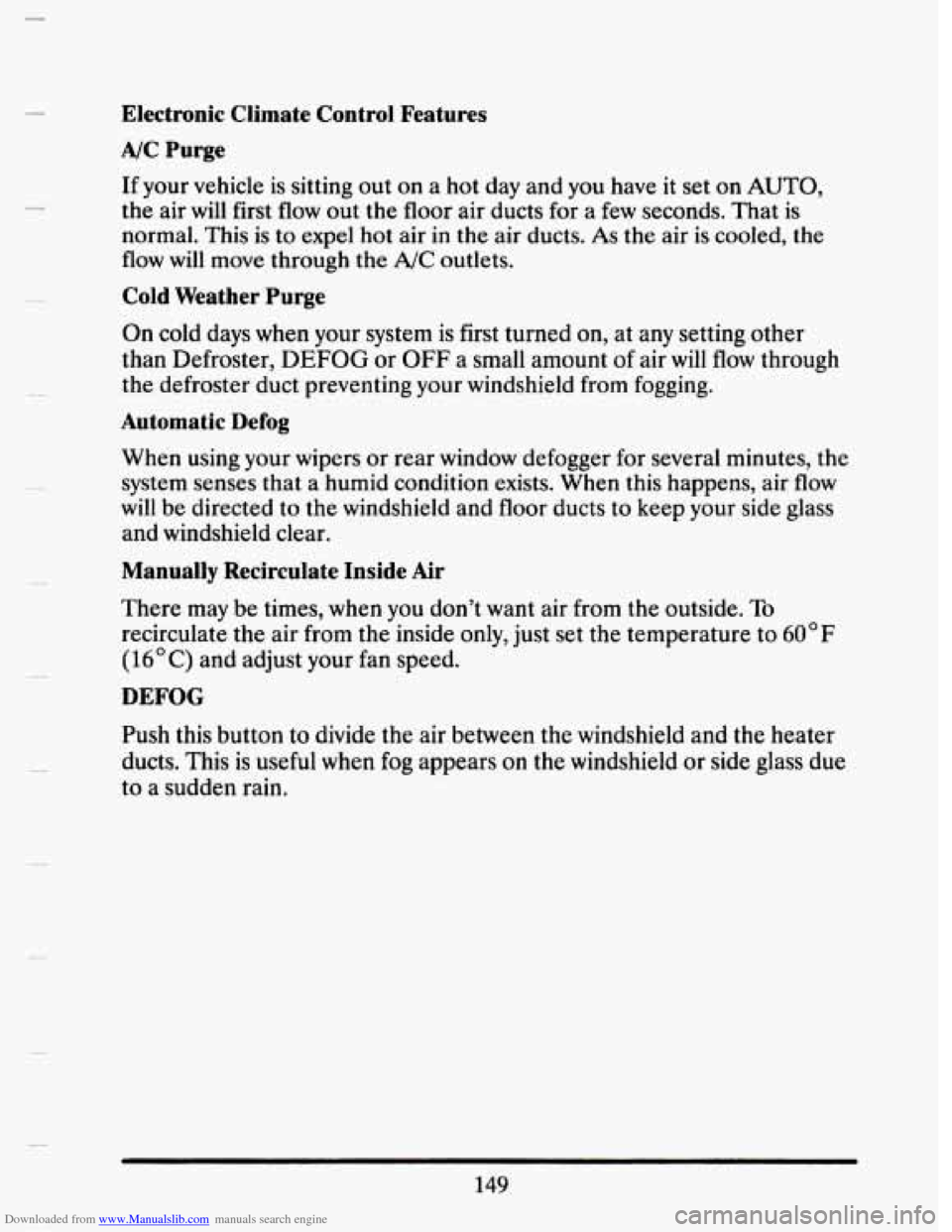

Downloaded from www.Manualslib.com manuals search engine Electronic Climate Control Features
A/C Purge
If your vehicle is sitting out on a hot day and you have it set on AUTO,
the air will first flow out the floor air ducts for a few seconds. That is
normal. This is to expel hot air in the air ducts.
As the air is cooled, the
flow will move through the A/C outlets.
Cold Weather Purge
On cold days when your system is first turned on, at any setting other
than Defroster, DEFOG or
OFF a small amount of air will flow through
the defroster duct preventing your windshield from fogging.
Automatic Defog
When using your wipers or rear window defogger for several minutes, the
system senses that a humid condition exists. When this happens, air flow
will be directed to the windshield and floor ducts to keep your side glass
and windshield clear.
Manually Recirculate Inside Air
There may be times, when you don’t want air from the outside. To
recirculate the air from the inside only, just set the temperature to 60°F
(16°C) and adjust your fan speed.
DEFOG
Push this button to divide the air between the windshield and the heater
ducts. This is useful when fog appears
on the windshield or side glass due
to a sudden
rain.
149

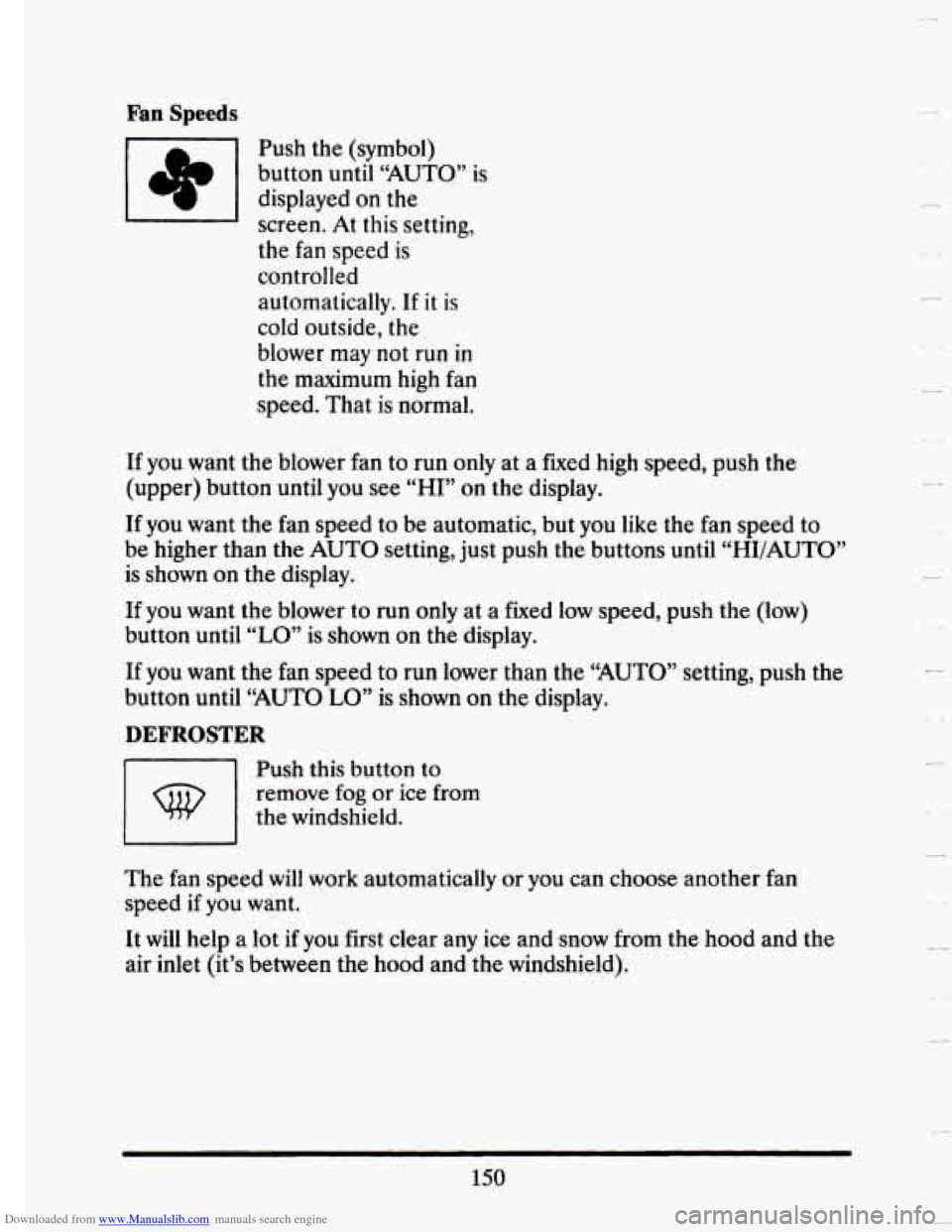

Downloaded from www.Manualslib.com manuals search engine Fan Speeds
Push the (symbol)
button until “AUTO” is
displayed
on the
screen. At this setting,
the fan speed is
controlled automatically.
If it is
cold outside, the
blower may
not run in
the maximum high fan
speed. That is normal.
If you want the blower fan to run only at a fixed high speed, push the
(upper) button until you see
“HI” on the display.
If you want the fan speed to be automatic, but you like the fan speed to
be higher than the AUTO setting, just push the buttons until “HI/AUTO”
is shown on the display.
If you want the blower to run only at a fixed low speed, push the (low)
button until “LO” is shown on the display.
If you want the fan speed to run lower than the “AUTO” setting, push the
button until “AUTO
LO” is shown on the display.
DEFROSTER
Push this button to
remove fog or ice from
the windshield.
The
fan speed will work automatically or you can choose another fan
speed
if you want.
It will help a lot if you first clear any ice and snow from the hood and the
air inlet (it’s between the hood and the windshield).
150

Downloaded from www.Manualslib.com manuals search engine Ip
i i

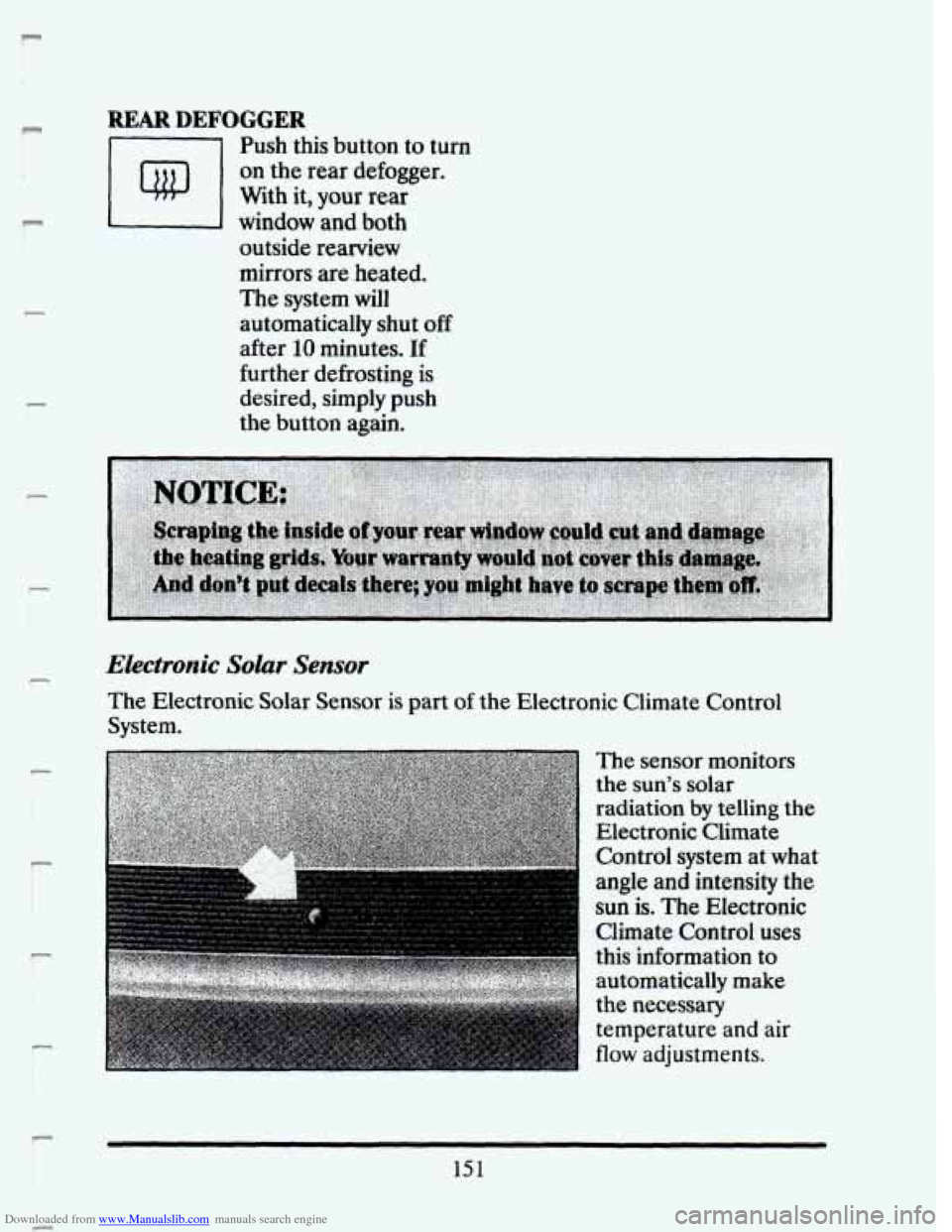

WAR DEFOGGER P
I"
c
P
P
F
F
r
Push this button to turn
on the rear defogger.
With it,
your rear
window and both
outside rearview
mirrors are
heated.
The system will
automatically shut
off
after 10 minutes. If
further defrosting is
desired, simply push
the button again.
Ekctronic Solar Sensor
The Electronic Solar Sensor is part of the Electronic Climate Control
System.
The sensor monitors
the sun's solar
radiation
by telling the
Electronic Climate
Control system at what
angle and intensity the
sun is. The Electronic
Climate Control uses
this information
to
automatically make
the necessary
temperature and
air
flow adjustments.
151

Downloaded from www.Manualslib.com manuals search engine Rear Seat Air Outlet
Move the switch to
adjust the blower
speed from
“LO” to
“HI.”
Move the “VENT”
lever to direct air flow
from either the upper
or floor outlets.
Heated Windshield (Option)
Front De-Ice
Here’s how to use your heated windshield in cold weather to remove ice
or frost quickly:
1. If any snow is piled up on the windshield, brush it away.
2. Start your Cadillac and leave it in P (“Park”).
3. Push the switch. A light will come on to tell you it is working.
152

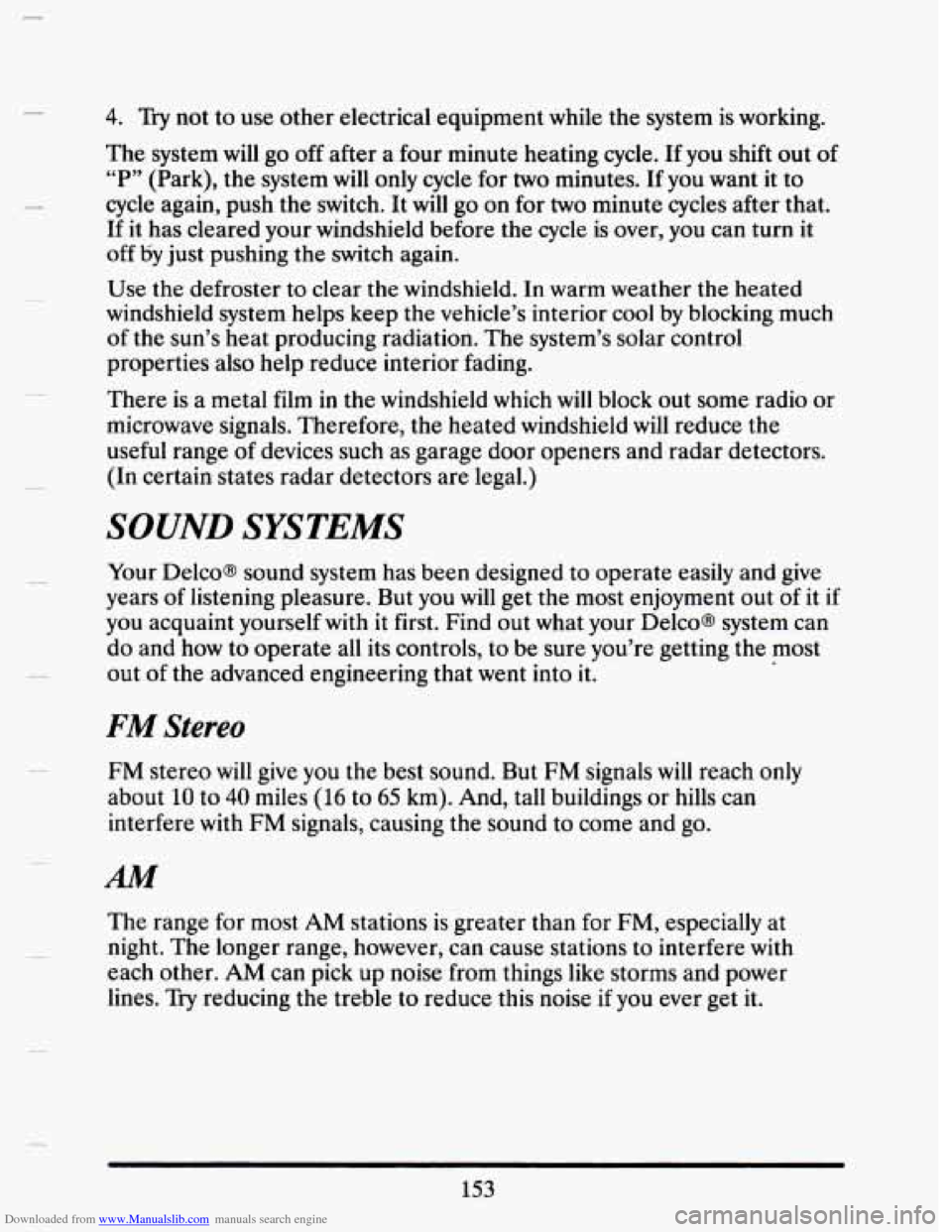

Downloaded from www.Manualslib.com manuals search engine 4. Try not to use other electrical equipment while the system is working.
The system will go
off after a four minute heating cycle. If you shift out of
“P7’ (Park), the system will only cycle for two minutes. If you want it to
cycle again, push the switch. It will go on
for two minute cycles after that.
If it has cleared your windshield before the cycle is over, you can turn it
off try just pushing the switch again.
Use
the defroster to clear the windshield. In warm weather the heated
windshield system helps keep the vehicle’s interior cool by blocking much
of the sun’s heat producing radiation. The system’s solar control
properties also help reduce interior fading.
There is
a metal film in the windshield which will block out some radio or
microwave signals. Therefore, the heated windshield
will reduce the
useful range
of devices such as garage door openers and radar detectors.
(In certain states radar detectors are legal.)
SOUND SYSTEMS
Your Delcoa sound system has been designed to operate easily and give
years
of listening pleasure. But you will get the most enjoyment out of it if
you acquaint yourself with it first. Find out what your Delcos system can
do and how to operate
all its controls, to be sure you’re getting the most
out
of the advanced engineering that went into it.
FM Stereo
FM stereo will give you the best sound. But FM signals will reach only
about
10 to 40 miles (16 to 65 km). And, tall buildings or hills can
interfere with
FM signals, causing the sound to come and go.
The range
for most AM stations is greater than for FM, especially at
night.
The longer range, however, can cause stations to interfere with
each other.
AM can pick up noise from things like storms and power
lines.
Try reducing the treble to reduce this noise if you ever get it.
153

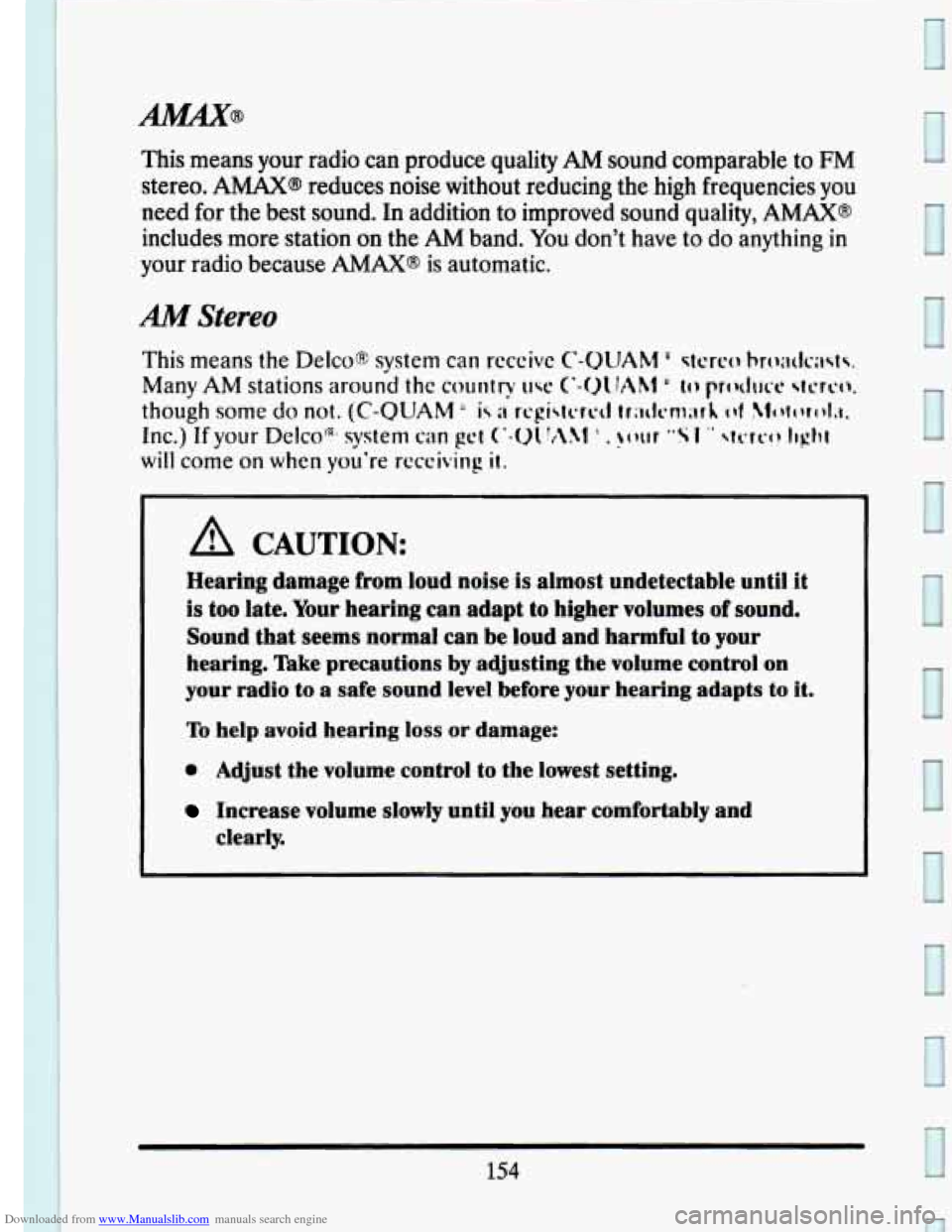

Downloaded from www.Manualslib.com manuals search engine This means your radio can produce quality AM sound comparable to FM
stereo. AMAX@ reduces noise without reducing the high frequencies you
need for the best sound.
In addition to improved sound quality, AMAX@
includes more station on the AM band. You don't have to do anything in
your radio because AMAX@ is automatic.
AM Stereo
I
A CAUTION:
Hearing damage from loud noise is almost undetectable until it
is too late. Your hearing can adapt to higher volumes of sound.
Sound that seems normal can be loud and harmful
to your
hearing.
Take precautions by agjusting the volume control on
your radio to
a safe sound level before your hearing adapts to it.
To help avoid hearing loss or damage:
I.
0 Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably and
clearly.
154
I
I
I

Downloaded from www.Manualslib.com manuals search engine -

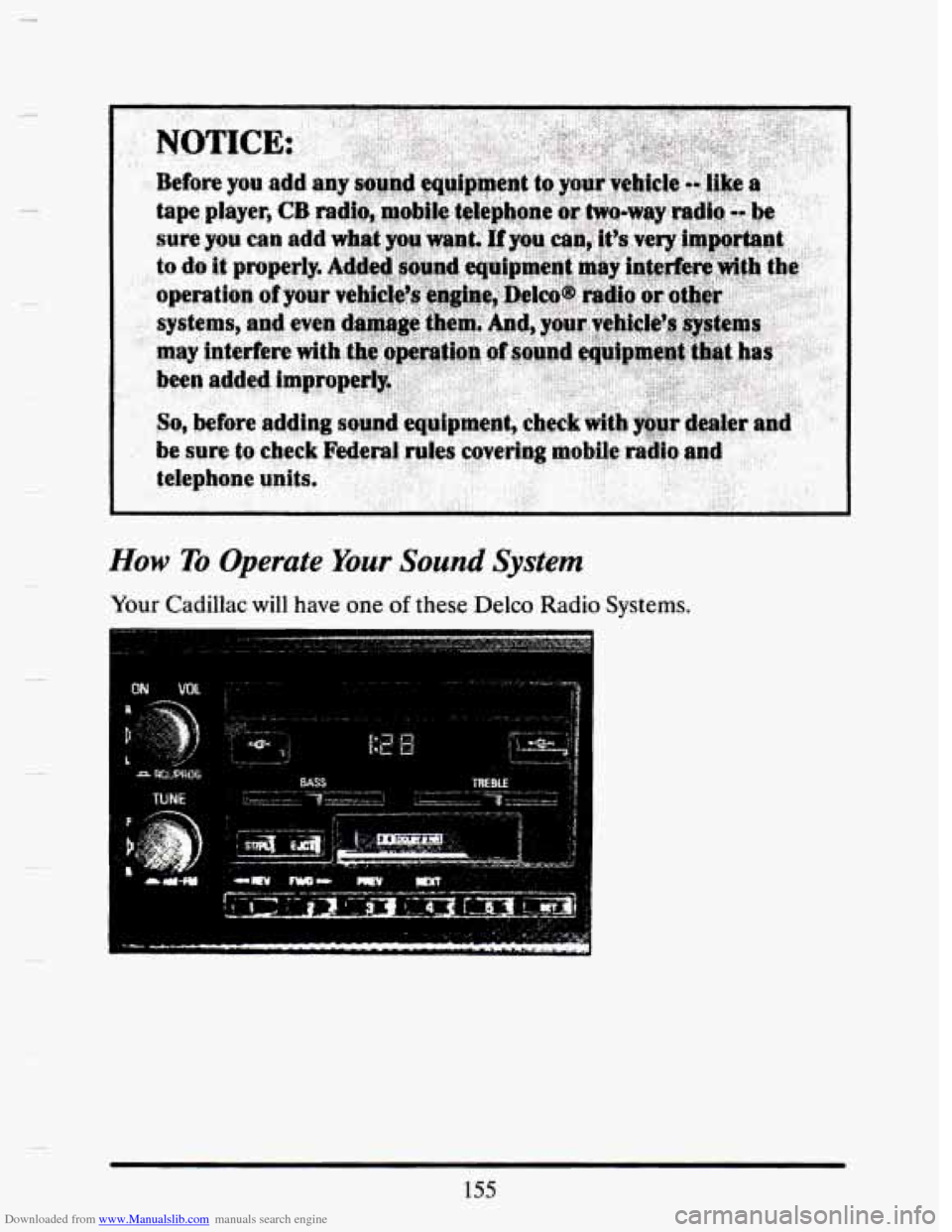

How To Operate Your Sound System
Your Cadillac will have one of these Delco Radio Systems.
ne
TUNE
155

Downloaded from www.Manualslib.com manuals search engine I
I
R
........................
.... *%.... ...r+,...m ,..F"..,?,.._l m. ,..t. ............. I" ...................... j.l~ -,-,,.,,
+-*, ":-. . ............................... :i
....... (. .. , .. -1
Please read the following to operate the radio portion of your Delco
radio system.
The Upper hob
The upper knob does these five things:
It turns the radio on and off.
It controls the volume.
