CADILLAC SEVILLE 1993 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Odometer

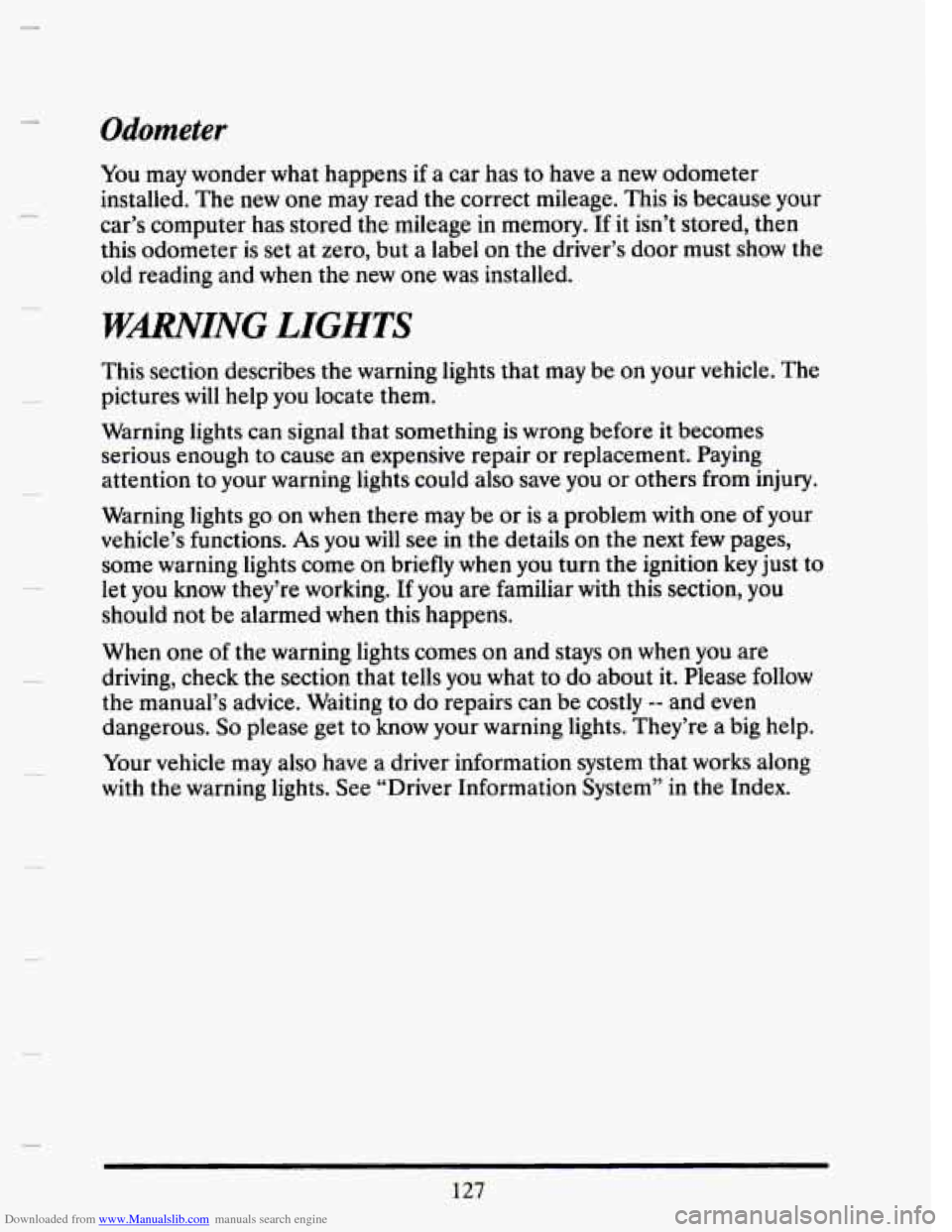

You may wonder what happens if a car has to have a new odometer
installed. The new one may read the correct mileage. This
is because your
car’s computer
has stored the mileage in memory. If it isn’t stored, then
this odometer
is set at zero, but a label on the driver’s door must show the
old reading and when the new one was installed.
WARNING LIGHTS
This section describes the warning lights that may De on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something is wrong before
it becomes
serious enough
to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you
or others from injury.
Warning lights go on when there may be or is a problem with one
of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition key just to
let you
know they’re working. If you are familiar with this section, you
should not be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
the manual’s advice. Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Your vehicle may also have a driver information system that works along
with.
. the ,. warning lights. See “Driver Information System” in the Index.

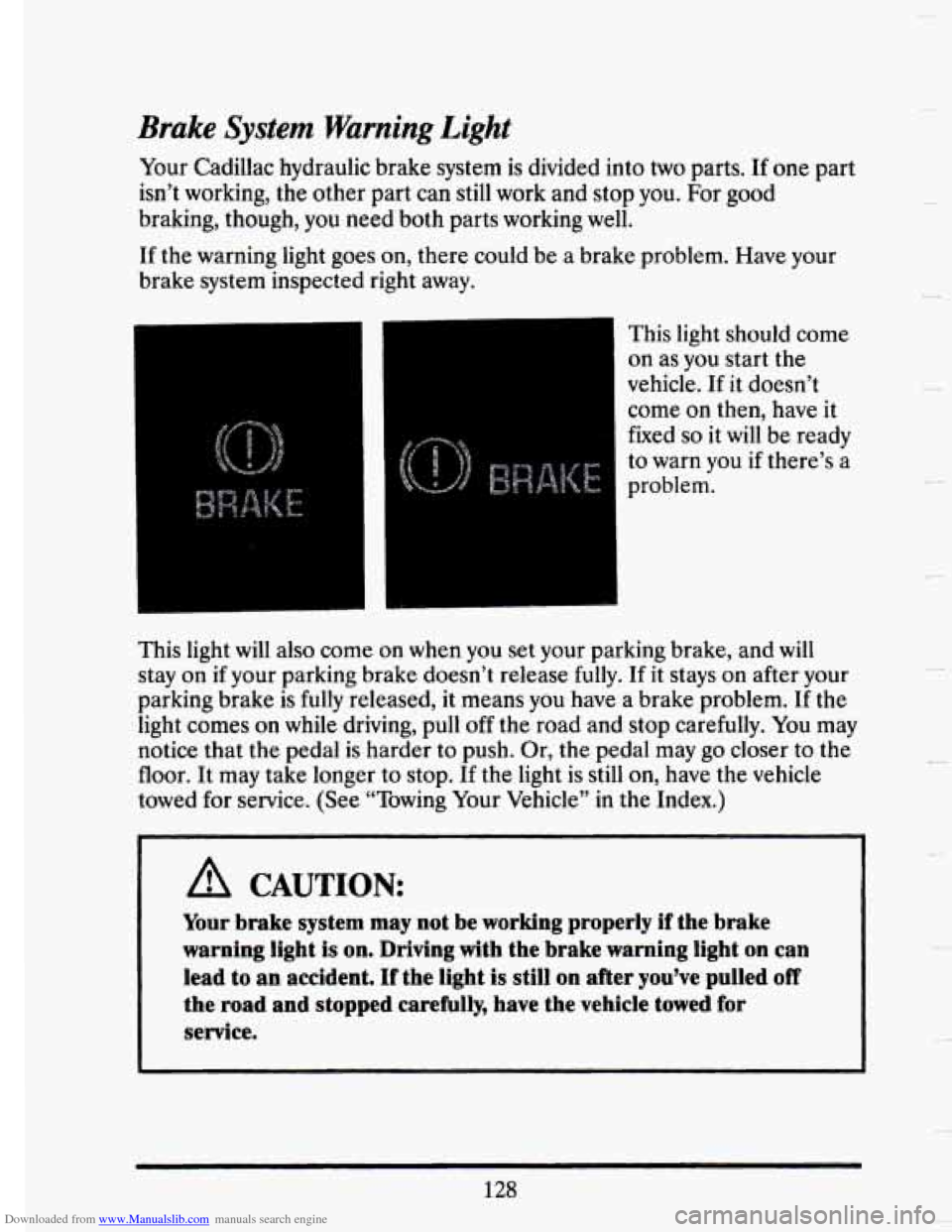

Downloaded from www.Manualslib.com manuals search engine Brake System Warning Light
Your Cadillac hydraulic brake system is divided into two parts. If one part
isn’t working, the other part can still work and stop
you. For good
braking, though, you need both parts working well.
If the warning light goes on, there could be a brake problem. Have your
brake system inspected right away.
This light should come
on as you start the
vehicle.
If it doesn’t
come
on then, have it
fixed
so it will be ready
to warn you if there’s a
problem.
This light
will also come on when you set your parking brake, and will
stay on if your parking brake doesn’t release fully. If it stays on after your
parking brake is fully released, it means you have a brake problem. If the
light comes
on while driving, pull off the road and stop carefully. You may
notice that the pedal is harder to push. Or, the pedal may go closer to the
floor. It may take longer to stop. If the light is still
on, have the vehicle
towed for service. (See “Towing Your Vehicle” in the Index.)
A CAUTION:
Your brake system may not be working properly if the brake
warning light is on. Driving with the brake warning light on can
lead to an accident. If the light
is still on after you’ve pulled off
the road and stopped carefully, have the vehicle towed for
service.
128
c

Downloaded from www.Manualslib.com manuals search engine F
P
!
r I

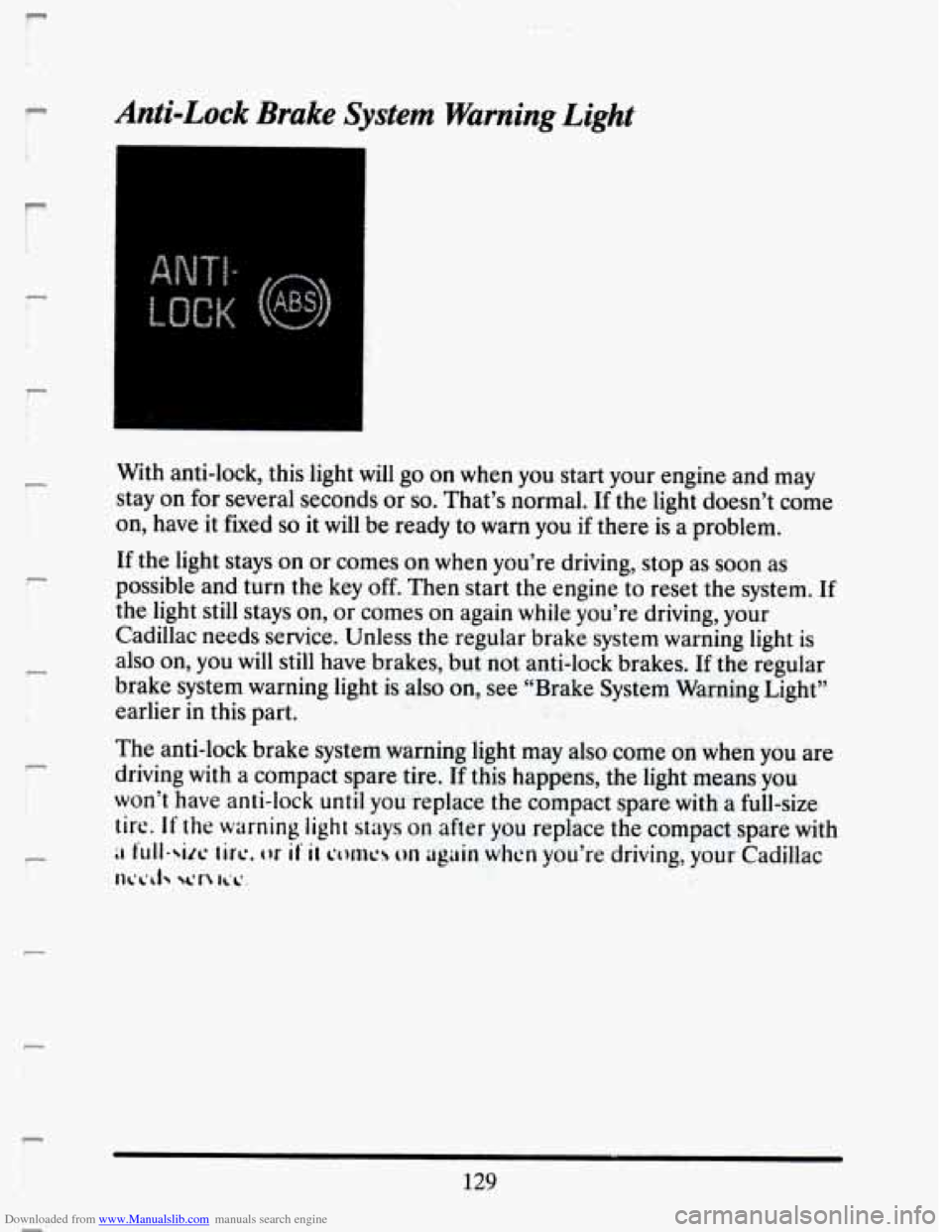

Anti-Lock Brake System Warnmg Light
With anti-lock, this light will go on when you start your engine and may
stay on for several seconds
or so. That’s normal. If the light doesn’t come
on, have it fixed
so it will be ready to warn you if there is a problem.
If the light stays on or comes on when you’re driving, stop as soon as
possible and turn the key
off. Then start the engine to reset the system. If
the light still stays
on, or comes on again while you’re driving, your
Cadillac needs service. Unless the regular brake system warning light
is
also on, you will still have brakes, but not anti-lock brakes. If the regular
brake system warning light is also on, see “Brake System Warning Light”
earlier in this part.
The anti-lock brake system warning light may also come
on when you are
driving with a compact spare tire. If this happens, the light means you
won’t have anti-lock
until you replace the compact spare with a full-size
tire. If the warning light stays on after you replace the compact spare with
;I full-six ticc, or if II corms on uguin when you’re driving, your Cadillac
llb*L~J yln lib’ I
129

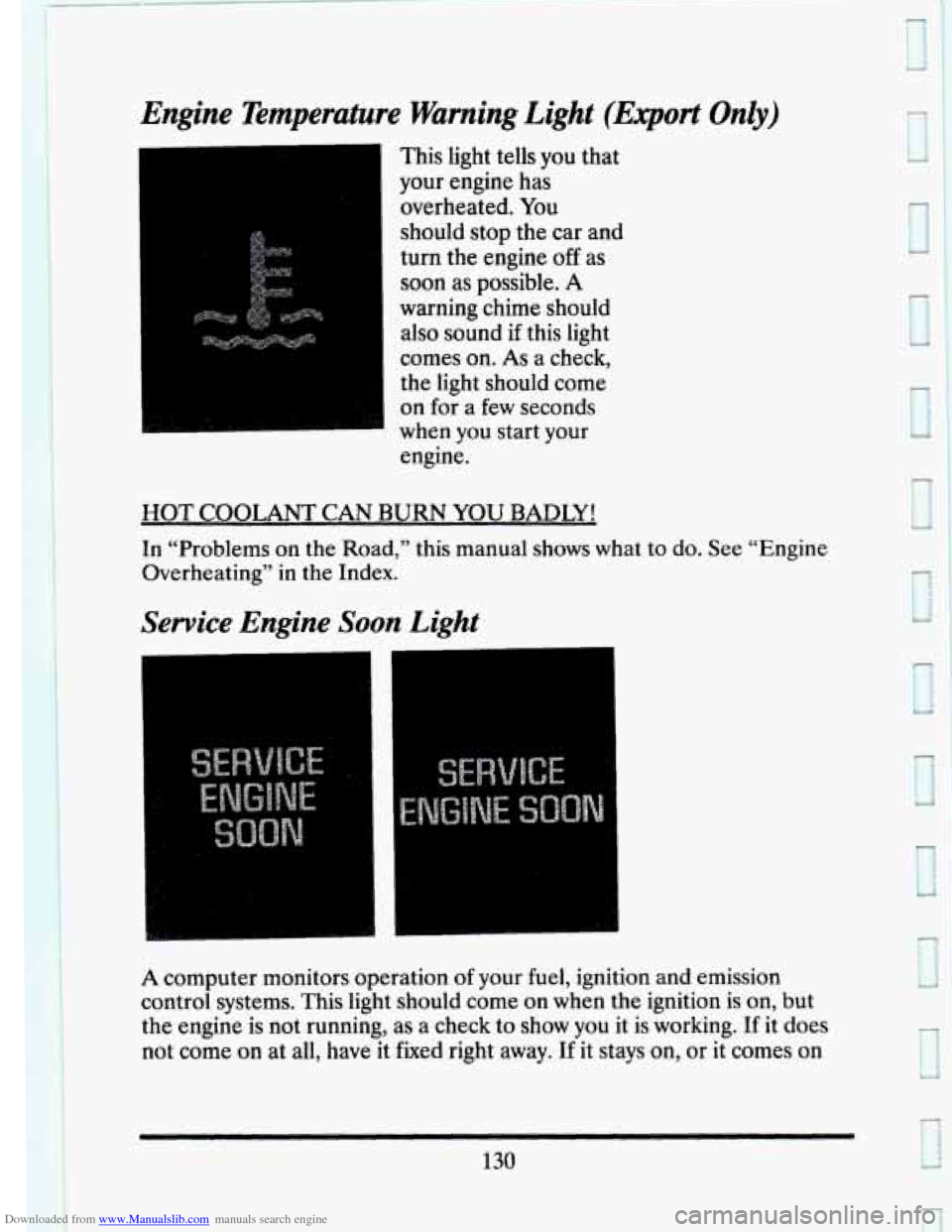

Downloaded from www.Manualslib.com manuals search engine Engine Temperature Warning Light (Export Only)
This light tells you that
your engine has
overheated. You
should stop the car and
turn the engine
off as
soon
as possible. A
warning chime should also sound if this light
comes on.
As a check,
the light should come
on for
a few seconds
when you start your
engine.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to do. See “Engine
Overheating”
in the Index.
Service Engine Soon Light
A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is on, but
the engine is not running, as a check to show
you it is working. If it does
not come
on at all, have it fixed right away. If it stays on, or it comes on
130
e

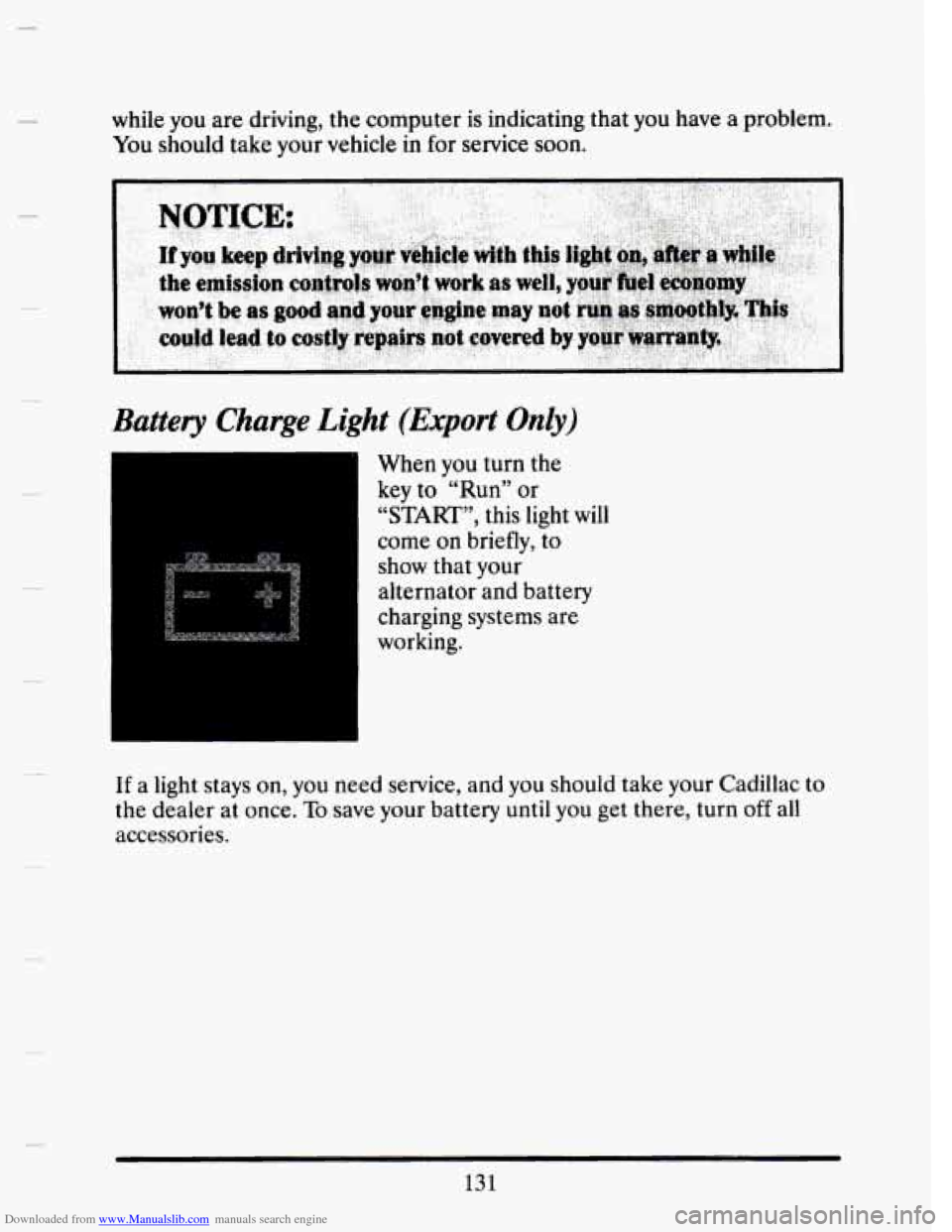

Downloaded from www.Manualslib.com manuals search engine while you are driving, the computer is indicating that you have a problem.
You should take your vehicle in for service soon.
Battery Charge Light (Export Only)
I 1 When you turn the
key to “Run” or
“START”, this light
will
come on briefly, to
show that your
alternator and battery
charging systems are
working.
If a light stays
on, you need service, and you should take your Cadillac to
the dealer at once. To save your battery until you get there, turn off all
accessories.
131

Downloaded from www.Manualslib.com manuals search engine Engine Oil Light (Export Only)
This light tells you if
there could be
a
j ’ problem with your
engine oil pressure.
The light goes on when
you turn your key to “Run” or “Start.” It goes off
once you start your engine. That’s just a check to be sure the light works.
If it doesn’t, be sure to have it fixed so it will be there to warn you if
something goes wrong.
When the light
comes on and stavs on, it means oil isn’t going through
your engine properly. You could be low on oil, or you might have some
other oil problem.
A CAUTION:
Don’t keep driving if the oil pressure is low. If you do, your
engine
can become so hot that it catches fire. You or others
could be burned. Check your oil as
soon as possible and have
your vehicle serviced.
132
I
I
I

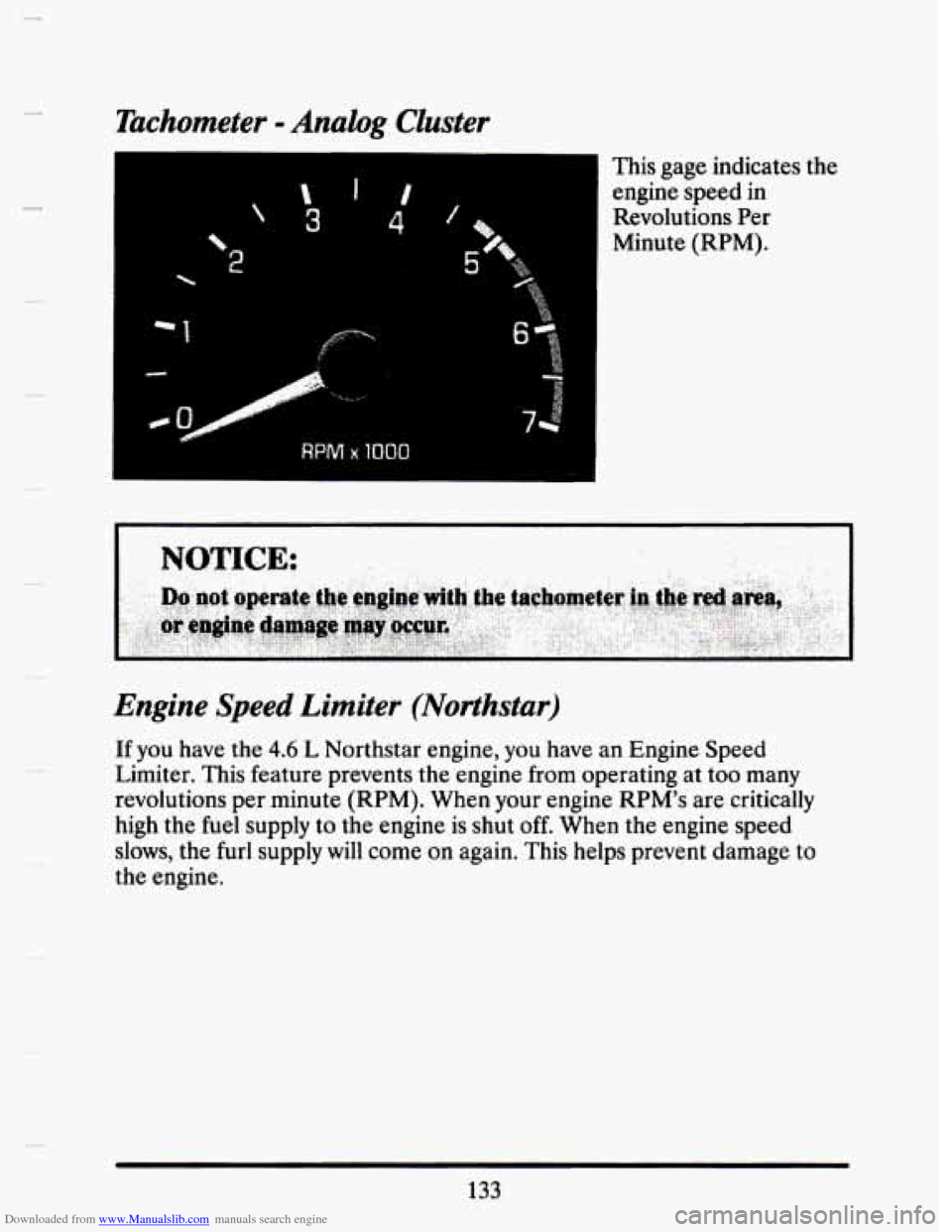

Downloaded from www.Manualslib.com manuals search engine Tachometer - Analog Cluster

2

1
3
I
4
This gage indicates the
engine speed in
Revolutions Per
Minute (RPM).
Engine Speed Limiter (Northstar)
If you have the 4.6 L Northstar engine, you have an Engine Speed
Limiter. This feature prevents the engine from operating at too many
revolutions per minute (RPM). When your engine
RPM's are critically
high the fuel supply to the engine is
shut off. When the engine speed
slows, the furl supply will come on again. This helps prevent damage to
the engine.
133

Downloaded from www.Manualslib.com manuals search engine Fuel Gage
Your fuel gage shows about how much fuel is in your tank. It works only
when the ignition is in the “RUN” position.
Digital Gage
If the fuel level is within approximately one gallon (3.9 liters) of being full
the letter
“F” is shown.
If the fuel
level is between 1 and 2 gallons (3.9 and 7.6 liters) from being
empty the letter
“E” is shown. If the fuel supply gets down to
approximately
1 gallon (3.9 liter) the “E” will flash, and the “ FUEL
LEVEL VERY
LOW” message will appear in the Driver Information
Center
(DIC). (On the analog fuel gage, the “FUEL LEVEL VERY
LOW”
message will also appear.)
Here are a few concerns some owners have had about the
fuel gage. All
these situations are normal and indicate nothing wrong with the fuel
gage*
the gas pump shuts
off before the gage reads “F”.
gas to fill up than the gage said. For example,
the gage said
“8 Gallons”, but it took more -- or less -- than the tank’s
remaining capacity to
fill it.
The gage changes when you turn (or stop, or speed up).
134
c
..

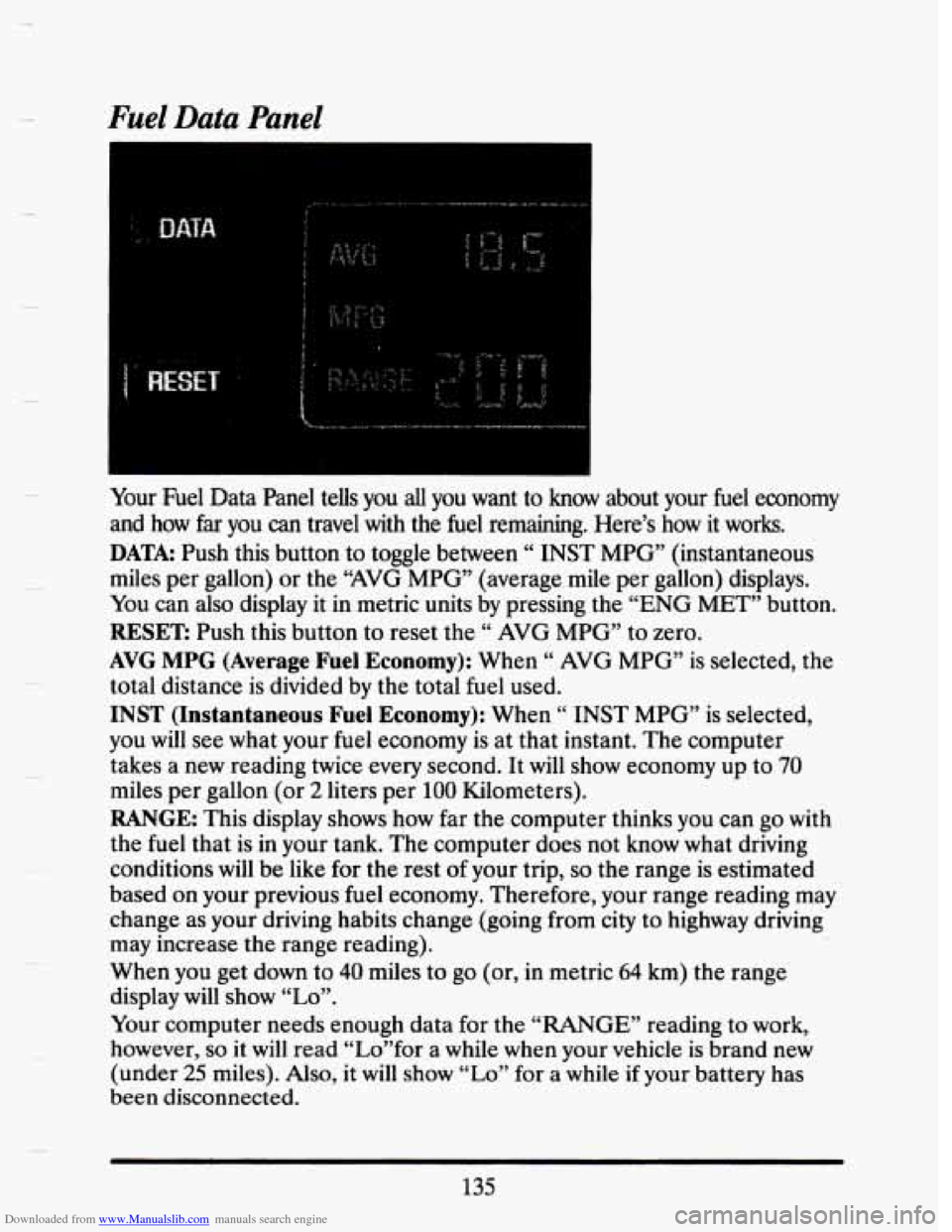

Downloaded from www.Manualslib.com manuals search engine Fuel Data Panel
6 i
c
Your Fuel Data Panel teUs you all you want to know about your fuel economy
and how
far you can travel with the fuel remaining. Here’s how it works.
DATA: Push this button to toggle between “ INST MPG” (instantaneous
miles per gallon) or the “AVG MPG” (average mile per gallon) displays.
You can also display it in metric units by pressing the “ENG MET” button.
RESET: Push this button to reset the “ AVG MPG” to zero.
AVG MPG (Average Fuel Economy): When “ AVG MPG” is selected, the
total distance is divided by the total fuel used.
INST (Instantaneous Fuel Economy): When “ INST MPG” is selected,
you
will see what your fuel economy is at that instant. The computer
takes a new reading twice
every second. It will show economy up to 70
miles per gallon (or 2 liters per 100 Kilometers).
RANGE: This display shows how far the computer thinks you can go with
the fuel that is in your tank. The computer does not know what driving
conditions
will be like for the rest of your trip, so the range is estimated
based on your previous fuel economy. Therefore, your range reading may
change as your driving habits change (going from city to highway driving
may increase the range reading).
When you get down to
40 miles to go (or, in metric 64 km) the range
display will show
“Lo”.
Your computer needs enough data for the “RANGE” reading to work,
however,
so it will read “Lo”for a while when your vehicle is brand new
(under
25 miles). Also, it will show “Lo” for a while if your battery has
been disconnected.
135

Downloaded from www.Manualslib.com manuals search engine Driver Information Center
.. .
t
Your Driver Information Center (DIC) display gives you the status of
many of your vehicle systems. The DIC is used to display driver selectable
information and warninustatus messages.
If more than one problem is detected, messages will automatically appear
in priority succession with the higher priority messages displayed first.
Driver Information Center Control Buttons
INFORMATION
Pressing this button successively will display the ENGINE RPM (Digital
Cluster only), ENGINE
COOLANT TEMP, BAmRY VOLTAGE, OIL
LIFE INDEX and
FUEL USED.
STORE/RECALL
Pressing this button will store any currently displayed message that is
indicating a system problem. Once
a message has been stored the next
message
of normal information is displayed.
When a message
is stored it is saved in the computer, but once the
ignition is turned off the message is lost. All messages stored when your
engine
is running can be viewed one at a time by pressing
"STORE/RECALE' button.
FUEL USED RESET
Display the fuel used, then press and hold the STORE/RECALL button
until
0 is displayed.
