CADILLAC SEVILLE 1993 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine F
P
r
I 1
P
c
c
c
c

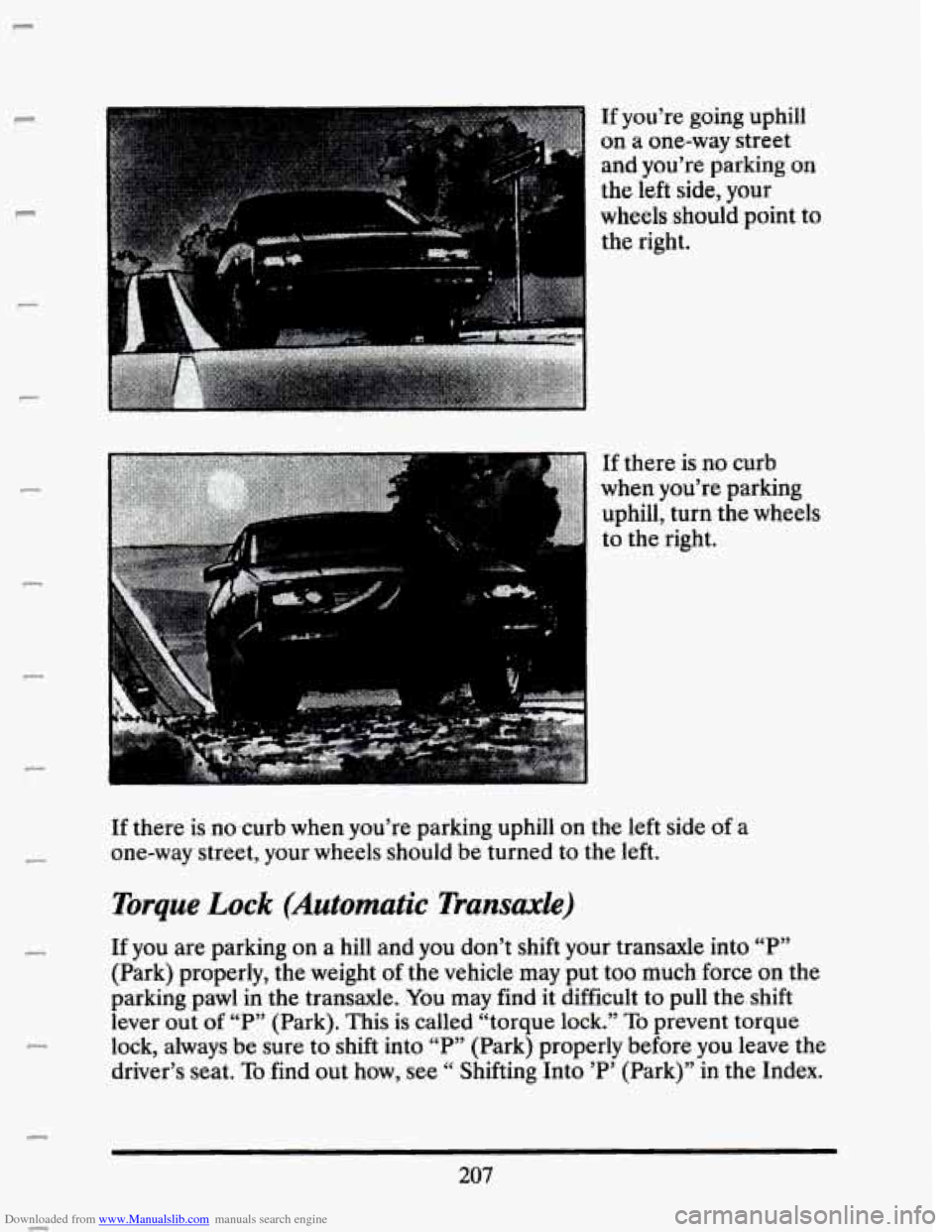

If you’re going uphill
on a one-way street
and you’re parking on
the left side, your
wheels should point to
the right.
.. , . -.
If there is no curb
when you’re parking
uphill, turn the wheels
to the right.
If there is no,curb when you’re parking uphill on the left side
of a
one-way street, your wheels should
be turned to the left.
Torque Lock (Automatic Transaxle)
If you are parking on a hill and you don’t shift your transaxle into “P”
(Park) properly, the weight
of the vehicle may put too much force on the
parking pawl in the transaxle. You may find it difficult to
pull the shift
lever out
of “P” (Park). This is called “torque lock.” To prevent torque
lock, always
be sure to shift into “P” (Park) properly before you leave the
driver’s seat.
To find out how, see “ Shifting Into ’P’ (Park)” in the Index.
c
207
P

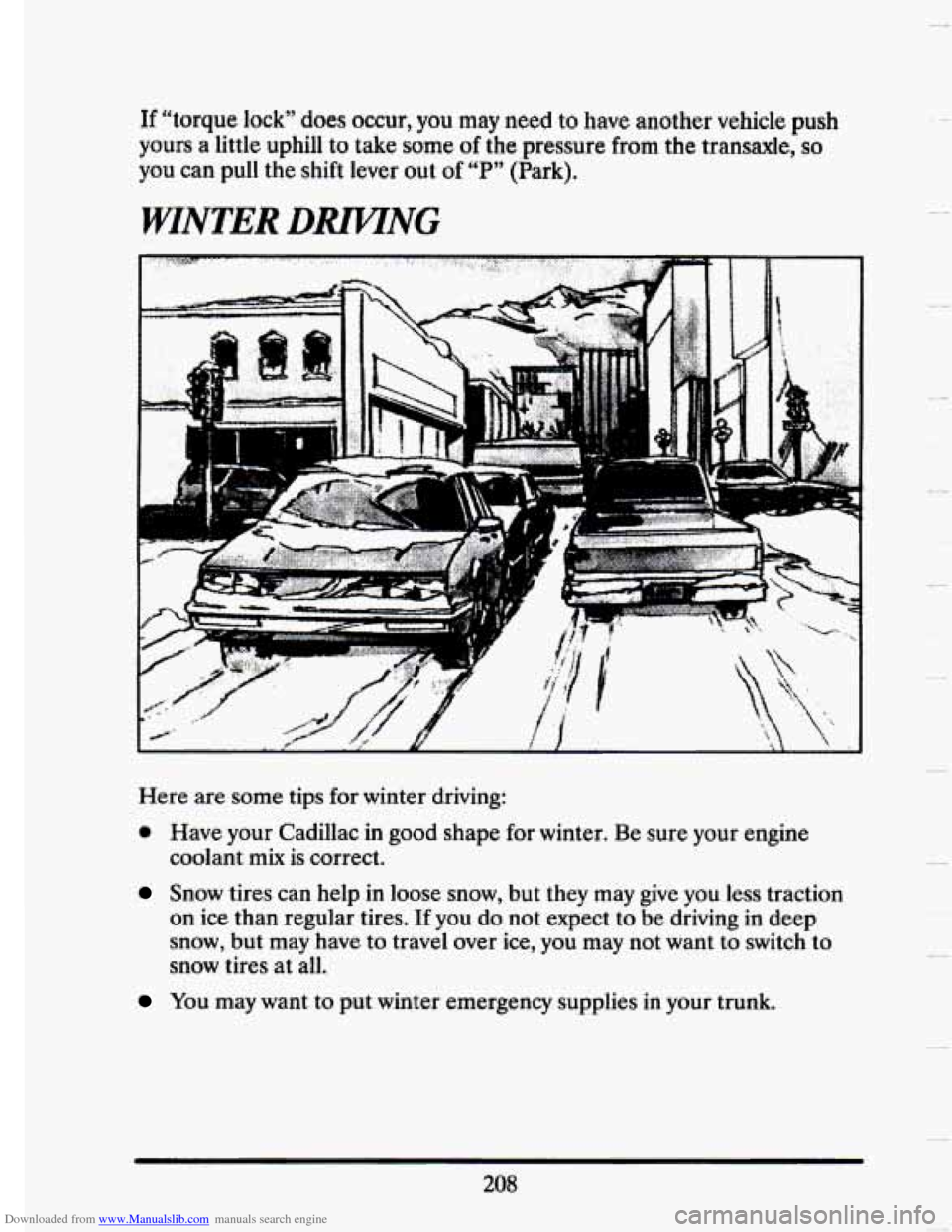

Downloaded from www.Manualslib.com manuals search engine If “torque lock” does occur, you may need to have another vehicle pusn
yours a little uphill to take some of the pressure from the transaxle, so
you can pull the shift lever out of “P” (Park).
‘WINTER DmNG
V
Here are some tips for winter driving:
0 Have your Cadillac in good shape for winter. Be sure your engine
coolant
mix is correct.
Snow tires can help in loose snow, but they may give you less traction
on ice than regular tires.
If you do not expect to be driving in deep
snow,
but may have to travel over ice, you may not want to switch to
snow tires at all.
You may want to put winter emergency supplies in your trunk.
208
U

Downloaded from www.Manualslib.com manuals search engine c

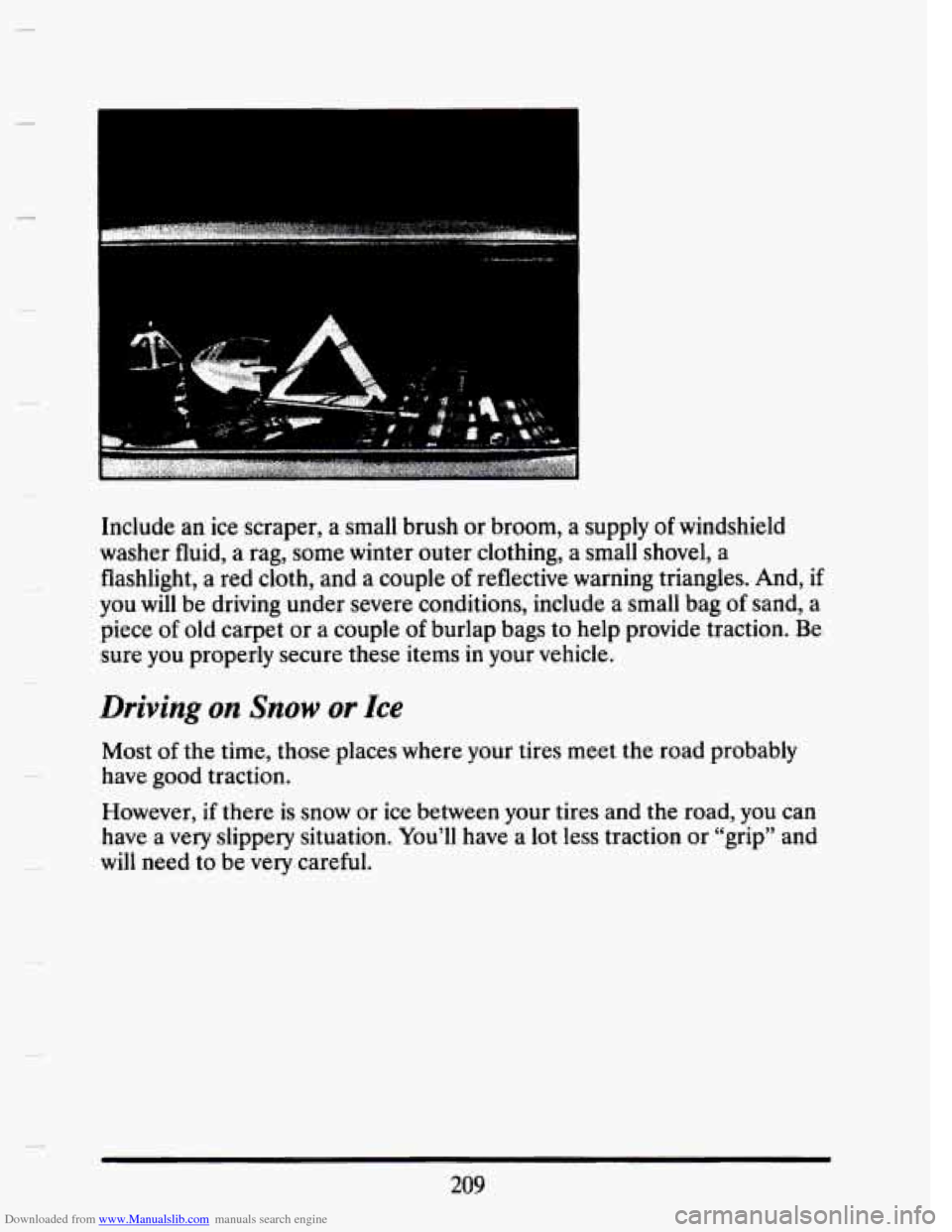

Include an ice scraper, a small brush or broom, a supply of windshield
washer fluid, a rag, some winter outer clothing, a small shovel,
a
flashlight, a red cloth, and a couple of reflective warning triangles. And, if
you will be driving under severe conditions, include a small bag of sand, a
piece of old carpet or a couple
of burlap bags to help provide traction. Be
sure you properly secure these items in your vehicle.
Driving on Snow or Ice
Most of the time, those places where your tires meet the road probably\

have
good traction.
However,
if there is snow or ice between your tires and the road, you can
have
a very slippery situation. You’ll have a lot less traction or “grip” and
will need to be very careful.
209

Downloaded from www.Manualslib.com manuals search engine ----
.

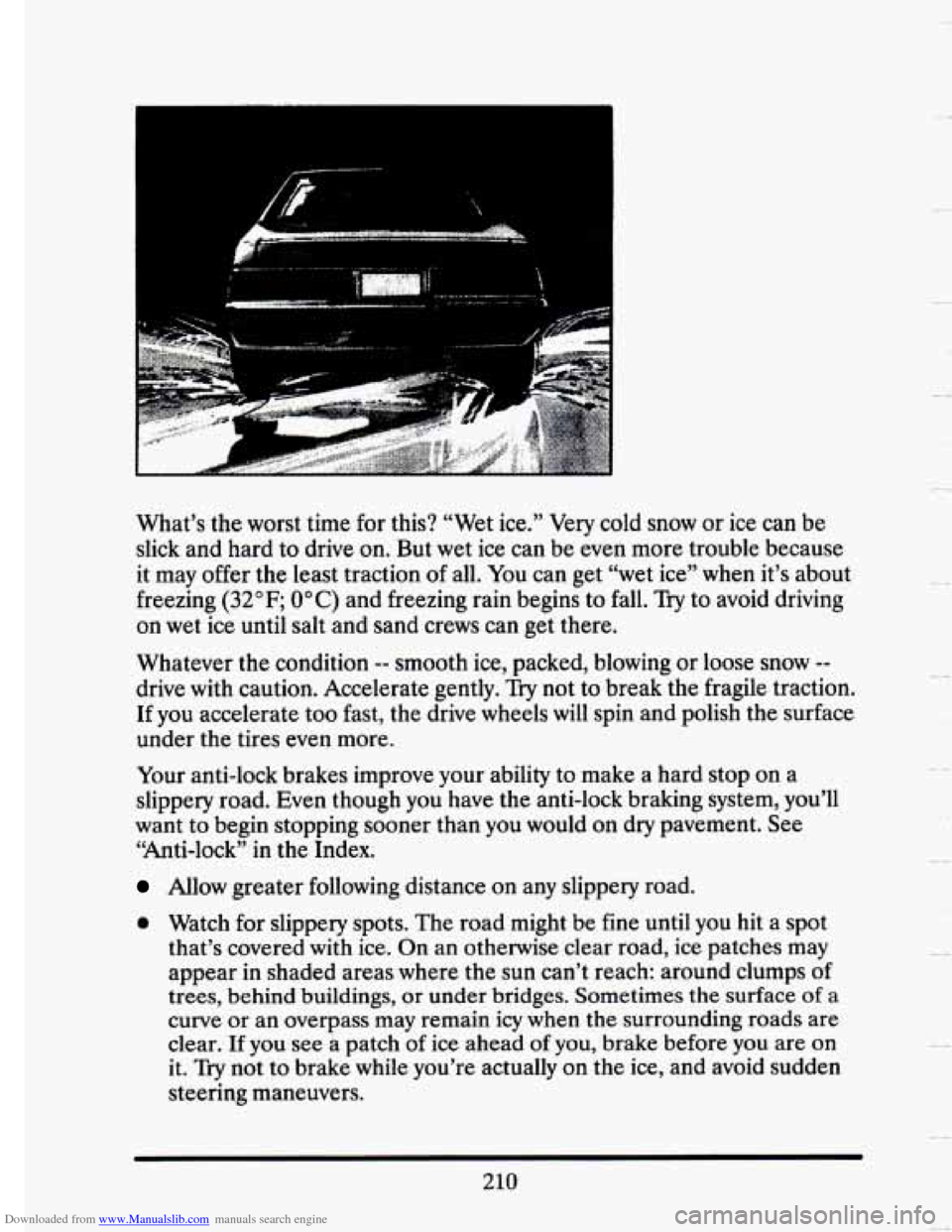

What’s the worst time for this? “Wet ice.” Very cold snow or ice can be
slick and hard to drive on. But wet ice can be
even more trouble because
it may offer the least traction
of all. You can get “wet ice” when it’s about
freezing
(32°F; O’C) and freezing rain begins to fall. Try to avoid driving
on wet ice until salt and sand crews can get there.
Whatever the condition
-- smooth ice, packed, blowing or loose snow --
drive with caution. Accelerate gently. Try not to break the fragile traction.
If you accelerate too fast, the drive wheels
will spin and polish the surface
under the tires even more.
Your anti-lock brakes improve your ability to make a hard stop on a
slippery road. Even though you have the anti-lock braking system, you’ll
want to begin stopping sooner than you would on dry pavement. See
“Anti-lock” in the Index.
Allow greater following distance on any slippery road.
0 Watch for slippery spots. The road might be fine until you hit a spot
that’s covered with ice.
On an otherwise clear road, ice patches may
appear
in shaded areas where the sun can’t reach: around clumps of
trees,
behind buildings, or under bridges. Sometimes the surface of a
curve or an overpass may remain icy when the surrounding roads are
clear. If you see a patch of ice ahead of you, brake before
you are on
it. Try not to brake while you’re actually on the ice, and avoid sudden
steering maneuvers.
210
....

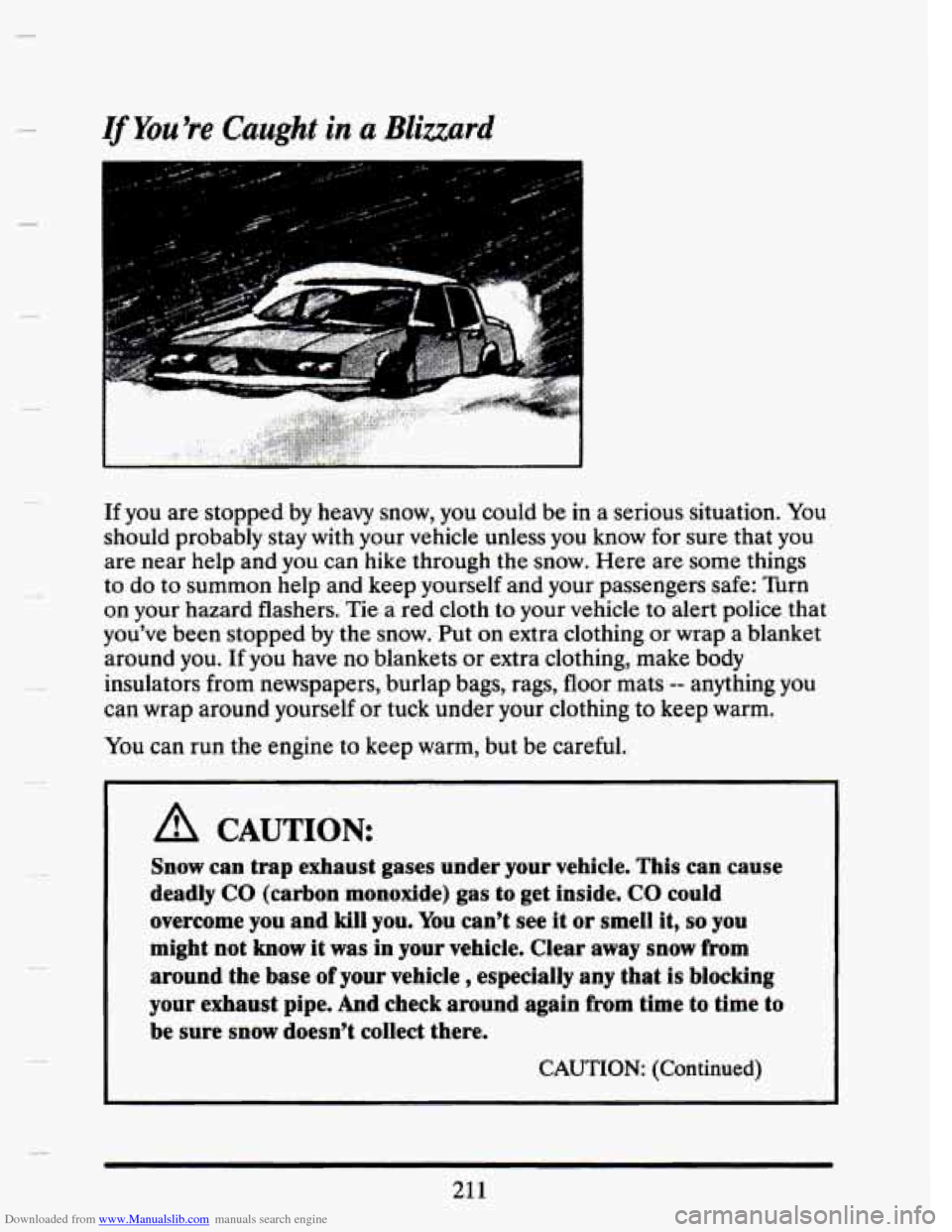

Downloaded from www.Manualslib.com manuals search engine If You're Caught in a Blizzard
If you are stopped by heavy snow, you could be in a serious situation. You
should probably stay with your vehicle unless you know for sure that you
are near help and you can
hike through the snow. Here are some things
to do to summon help and keep yourself and your passengers safe: Turn
on your hazard flashers. Tie a red cloth to your vehicle to alert police that
you've been stopped by the snow. Put
on extra clothing or wrap a blanket
around you. If you have no blankets or extra clothing, make body
insulators from newspapers, burlap bags, rags, floor mats
-- anything you
can wrap around yourself or tuck under your clothing to keep warm.
You can run the engine to keep warm, but be careful.
A CAUTION
Snow can trap exhaust gases under your vehicle. This can cause
deadly
CO (carbon monoxide) gas to get inside. CO could
overcome you and
kill you. You can't see it or smell it, so you
might not know it was in your vehicle. Clear away snow from
around the base
of your vehicle especially any that is blocking
your exhaust pipe. And check around again from time to time to
be sure snow doesn't collect there.
CAUTION: (Continued)
21 1

Downloaded from www.Manualslib.com manuals search engine L

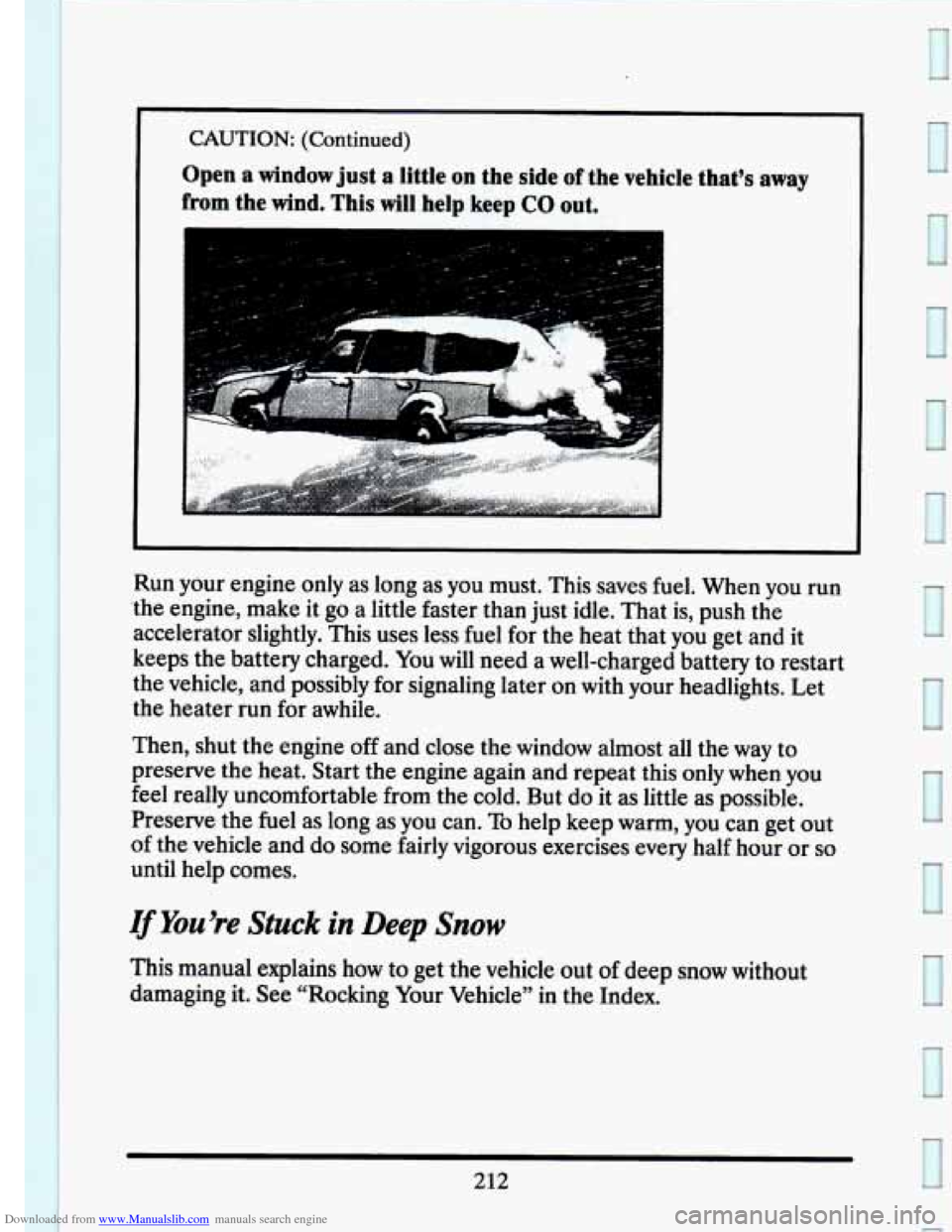

CAUTION: (Continued)
Open a window just a little on the side of the vehicle that's away
from the wind. This will help keep CO out.
Run your engine only as long as you must. This saves fuel. When you run
the engine, make it
go a little faster than just idle. That is, push the
accelerator slightly.
This uses less fuel for the heat that you get and it
keeps the battery charged. You will need a well-charged battery to restart
the vehicle, and possibly for signaling later on with your headlights. Let
the heater run for awhile.
Then, shut the engine
off and close the window almost all the way to
preserve
the heat. Start the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it as little as possible.
Preserve the fuel as long as you can. To help
keep warm, you can get out
of the vehicle and do some fairly vigorous exercises every half hour or so
until help comes.
VYou're Stuck in Deep Snow
This manual explains how to get the vehicle out of deep snow without
damaging it. See "Rocking Your Vehicle" in the Index.
212
e

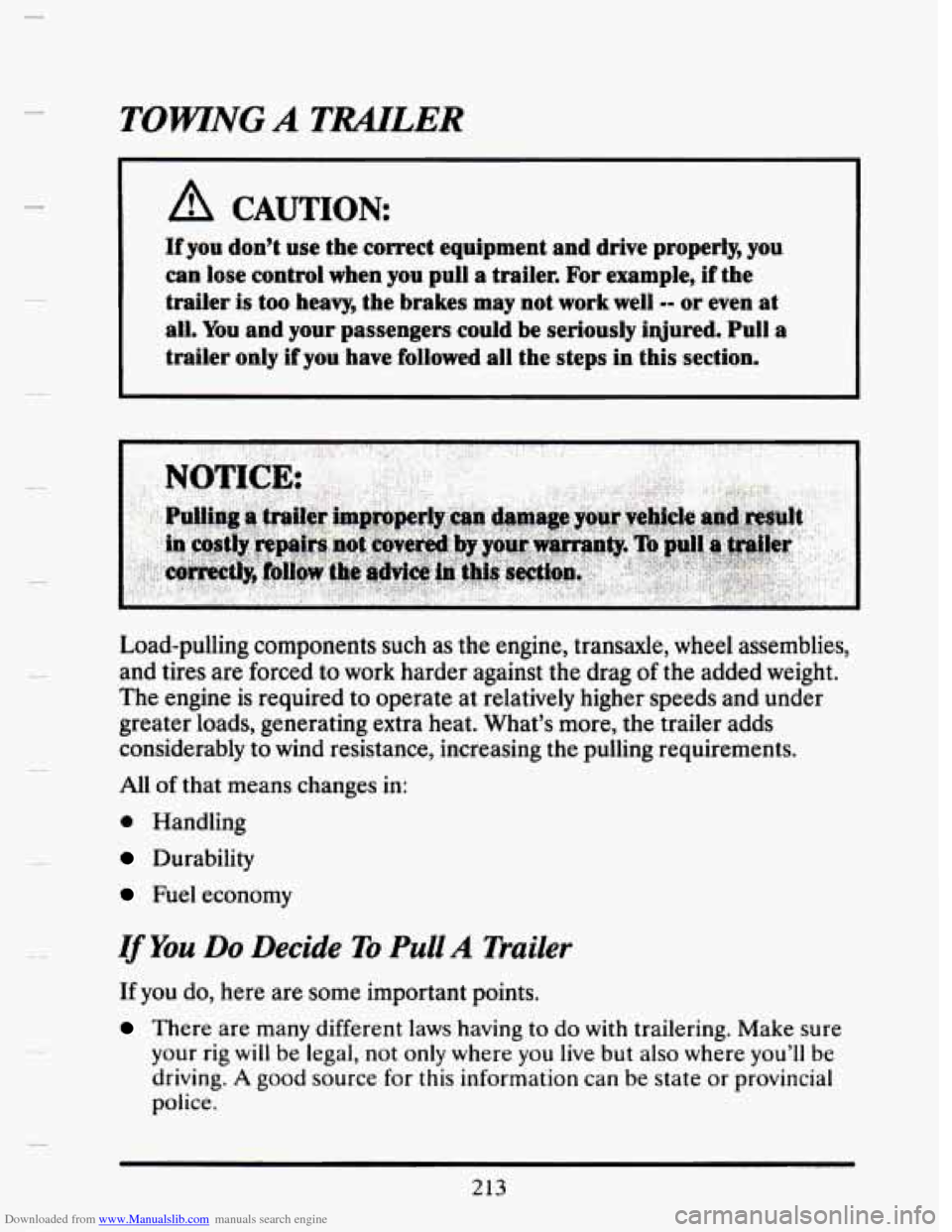

Downloaded from www.Manualslib.com manuals search engine TOWNG A TRAlrLER
A CAUTION:
If you don’t use the correct equipment and drive properly, you
can lose control when you pull
a trailer. For example, if the
trailer is too heavy, the brakes may not work well
-- or even at
all. You and your passengers could be seriously injured. Pull a
trailer only if you have followed all the steps in this section.
Load-pulling components such as the engine, transaxle, wheel assemblies,
and tires are forced
to work harder against the drag of the added weight.
The engine is required to operate at relatively higher speeds and under
greater loads, generating extra heat. What’s more, the trailer adds
considerably to wind resistance, increasing the pulling requirements.
All
of that means changes in:
e Handling
Durability
Fuel economy
If You Do Decide To Pull A Trailer
If you do, here are some important points.
There are many different laws having to do with trailering. Make sure
your rig
will be legal, not only where you live but also where you’ll be
driving. A good source for this information can be state or provincial
police.
213

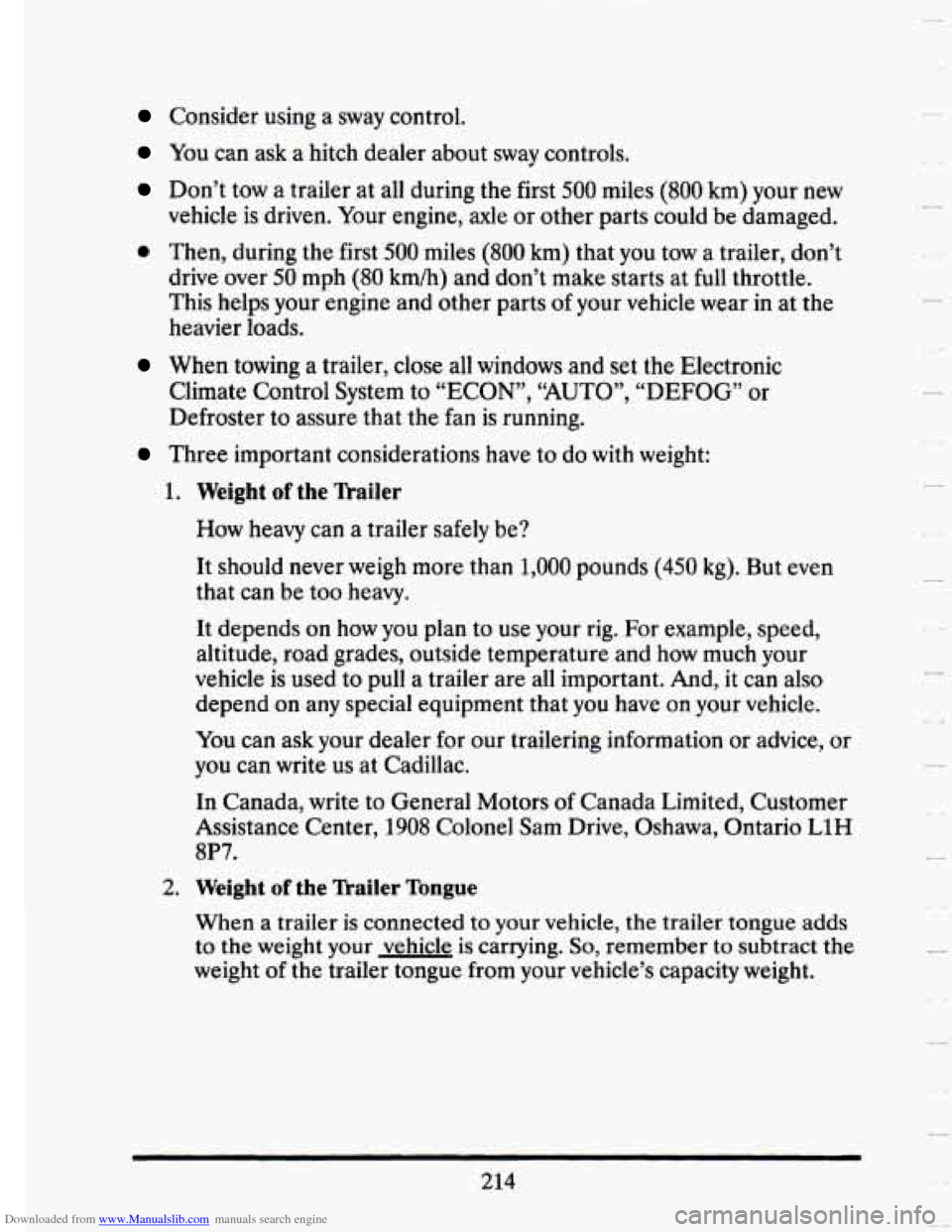

Downloaded from www.Manualslib.com manuals search engine Consider using a sway control.
u
-
You can ask a hitch dealer about sway controls.
Don’t tow a trailer at all during the first 500 miles (800 km) your new
vehicle is driven. Your engine, axle or other parts could be damaged.
0 Then, during the first 500 miles (800 km) that you tow a trailer, don’t
drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts
of your vehicle wear in at the
heavier loads.
When towing a trailer, close all windows and set the Electronic
Climate Control System to
“ECON”, “AUTO”, “DEFOG” or
Defroster to assure that the fan is running.
Three important considerations have to do with weight:
1. Weight of the nailer
How heavy can a trailer safely be?
It should never weigh more than
1,000 pounds (450 kg). But even
that can be too heavy.
It depends on how
you plan to use your rig. For example, speed,
altitude, road grades, outside temperature and how much your
vehicle is used
to pull a trailer are all important. And, it can also
depend on any special equipment that
you have on your vehicle.
You can ask your dealer for our trailering information or advice, or
you can write us at Cadillac.
In Canada, write to General Motors of Canada Limited, Customer
Assistance Center,
1908 Colonel Sam Drive, Oshawa, Ontario L1H
8P7.
2. Weight of the ’hailer Tongue
When a trailer is connected to your vehicle, the trailer tongue adds
to the weight your vehicle is carrying. So, remember to subtract the
weight of the trailer tongue from your vehicle’s capacity weight.
214
L-

Downloaded from www.Manualslib.com manuals search engine I
..
I -A
I ..

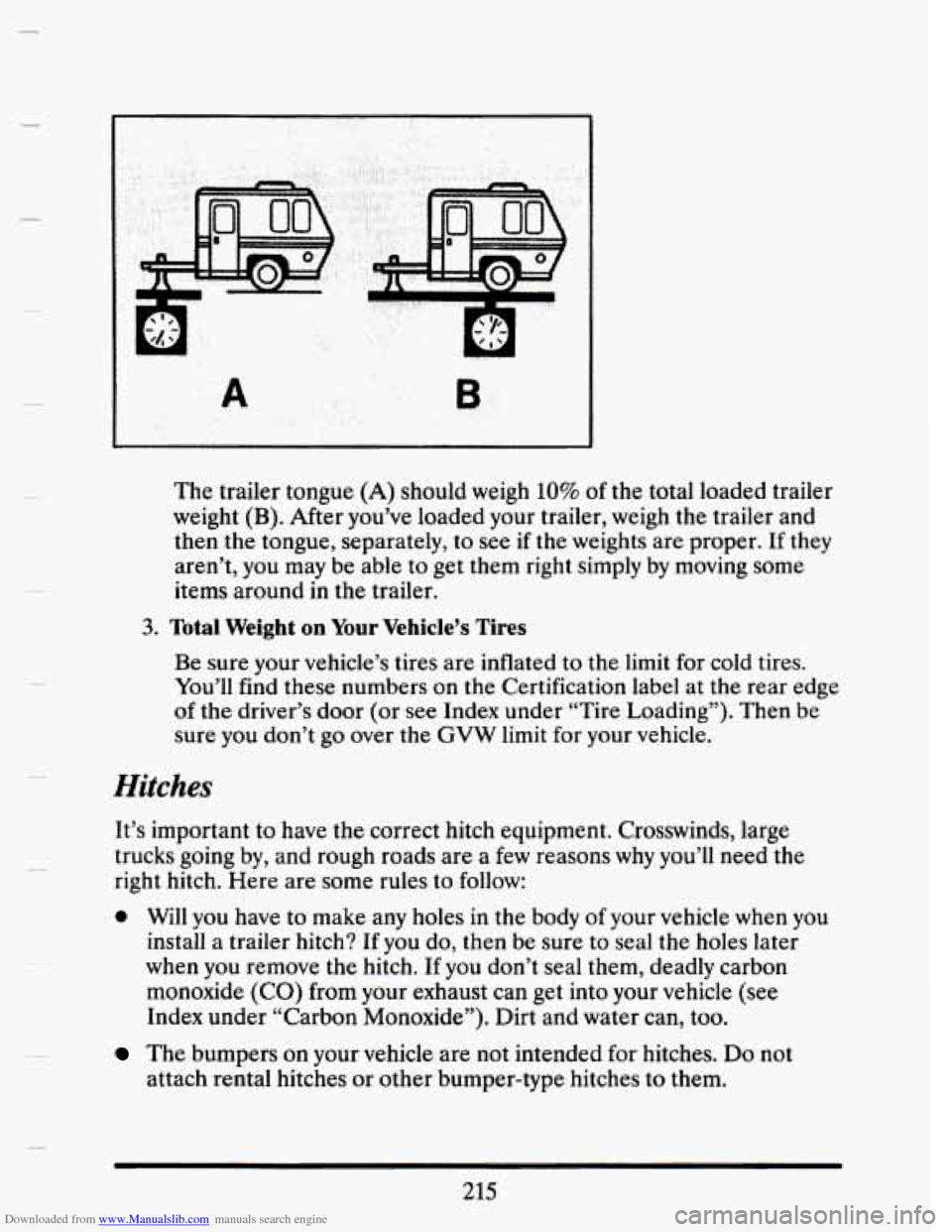

The trailer tongue (A) should weigh 10% of the total loaded trailer
weight
(B). After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately,
to see if the weights are proper. If they
aren’t, you may be able to get them right simply by moving some
items around in the trailer.
3. Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the limit for cold tires.
You’ll find these numbers on the Certification label at the rear edge
of the driver’s door (or see Index under “Tire Loading”). Then be
sure you don’t
go over the GVW limit for your vehicle.
Hitches
It’s important to have the correct hitch equipment. Crosswinds, large
trucks going by, and rough roads are a few reasons why you’ll need the
right hitch. Here are some rules to follow:
0 Will you have to make any holes in the body of your vehicle when you
install
a trailer hitch? If you do, then be sure to seal the holes later
when you remove the hitch. If you don’t seal them, deadly carbon
monoxide (CO) from your exhaust can get into your vehicle (see
Index under “Carbon Monoxide”). Dirt and water can, too.
The bumpers on your vehicle are not intended for hitches. Do not
attach rental hitches or other bumper-type hitches to them.
215

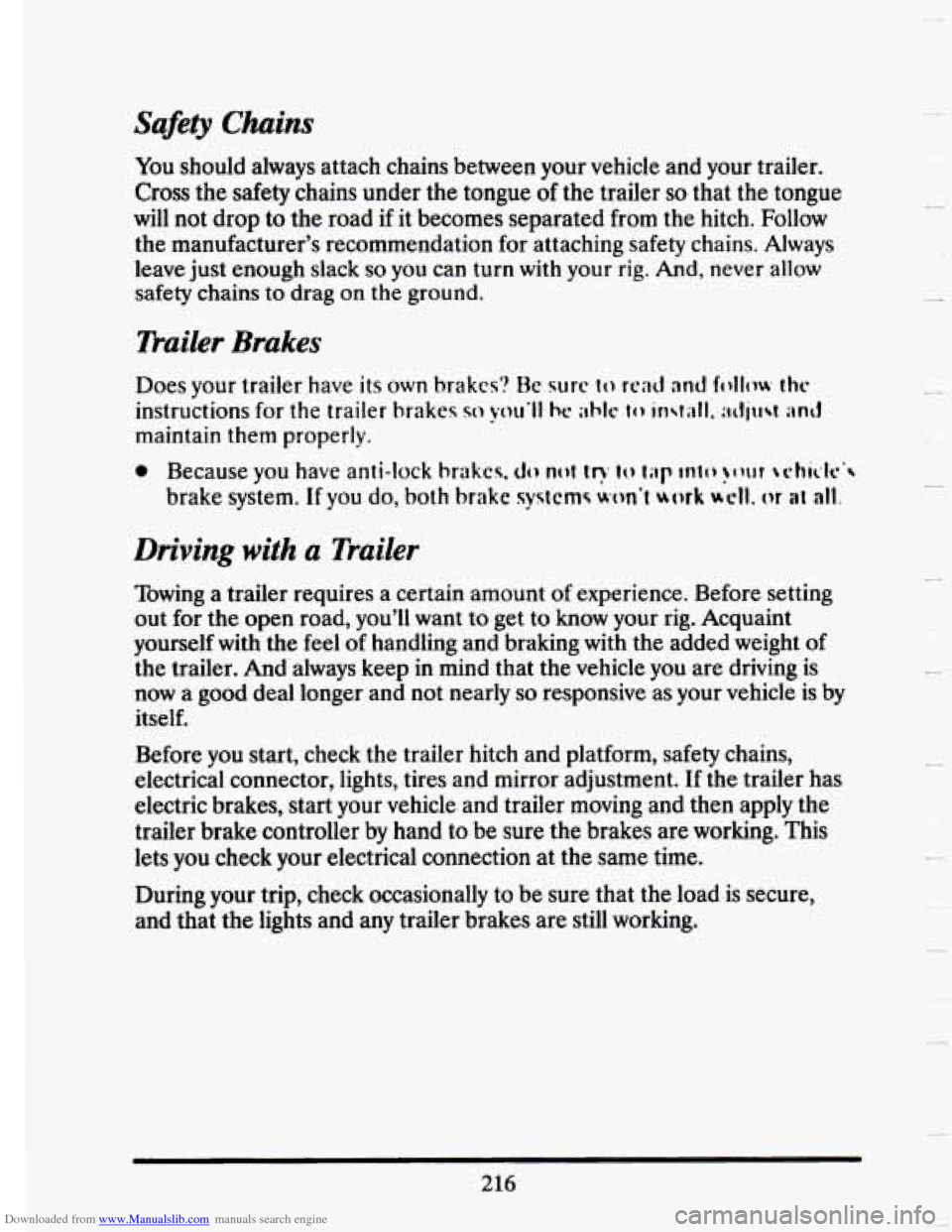

Downloaded from www.Manualslib.com manuals search engine Safety Chains
You should always attach chains between your vehicle and your trailer.
Cross the safety chains under the tongue
of the trailer so that the tongue
will not drop to the road if it becomes separated from the hitch. Follow
the manufacturer's recommendation for attaching safety chains. Always
leave just enough slack
so you can turn with your rig. And, never allow
safety chains to drag
on the ground.
Trailer Brakes
Does your trailer have its own brakcs'? He sure IO read and follow thc
instructions for the trailer brakes so you'll he ilblc to ir~ i~lI, ;rcliw an3
maintain them properly.
Driving with a Trailer
Towing a trailer requires a certain amount of experience. Before setting
out for the open road, you'll want to get to
know your rig. Acquaint
yourself with the feel of handling and braking with the added weight of
the trailer. And always keep
in mind that the vehicle you are driving is
now a good deal longer and not nearly so responsive as your vehicle is by
itself.
Before you start, check the trailer hitch and platform, safety chains,
electrical connector, lights, tires and mirror adjustment. If the trailer has
electric brakes, start your vehicle and trailer moving and then apply the
trailer brake controller by hand
to be sure the brakes are working. This
lets
you check your electrical connection at the same time.
During your trip, check occasionally to be sure that the load is secure,
and that the lights and any trailer brakes are still working.
216
L -4
c
L-
L-
C
