CADILLAC SEVILLE 1994 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine SURGE TANK PRESSURE CAP
1 NOTICE:
Your surge tank cap is a 15 psi (105 kPa) pressure-type cap and
must be tightly installed to prevent coolant loss and possible
engine damage from overheating. Be sure the arrows on the cap \
line up with the overflow tube on the radiator filler neck.
i
When you replace your surge tank pressure cap, an AC@ cap is
recommended.
THERMOSTAT
Engine coolant temperature is controlled by a thermostat in the engine
coolant system. The thermostat stops the
flow of coolant through the
radiator until the coolant reaches a preset temperature.
When you replace your thermostat, an
AC@ thermostat is recommended.
POWER STEERING FLUID
268

Downloaded from www.Manualslib.com manuals search engine How To Check Power Steering Fluid
Unscrew the cap and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again and look at the
fluid level on the dipstick.
When the engine
compartment is
hot, the level
should be at the
“HOT” mark.
When the engine
compartment
is
cool, the level
should be at the
“FULL COLD”
mark,
What to Add
Refer to the Maintenance Schedule to determine what kind of fluid to
use. See “Recommended Fluids and Lubricants” in the Index.
NOTICE:
When adding power steering fluid or making a complete fluid
change, always use the .proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
269

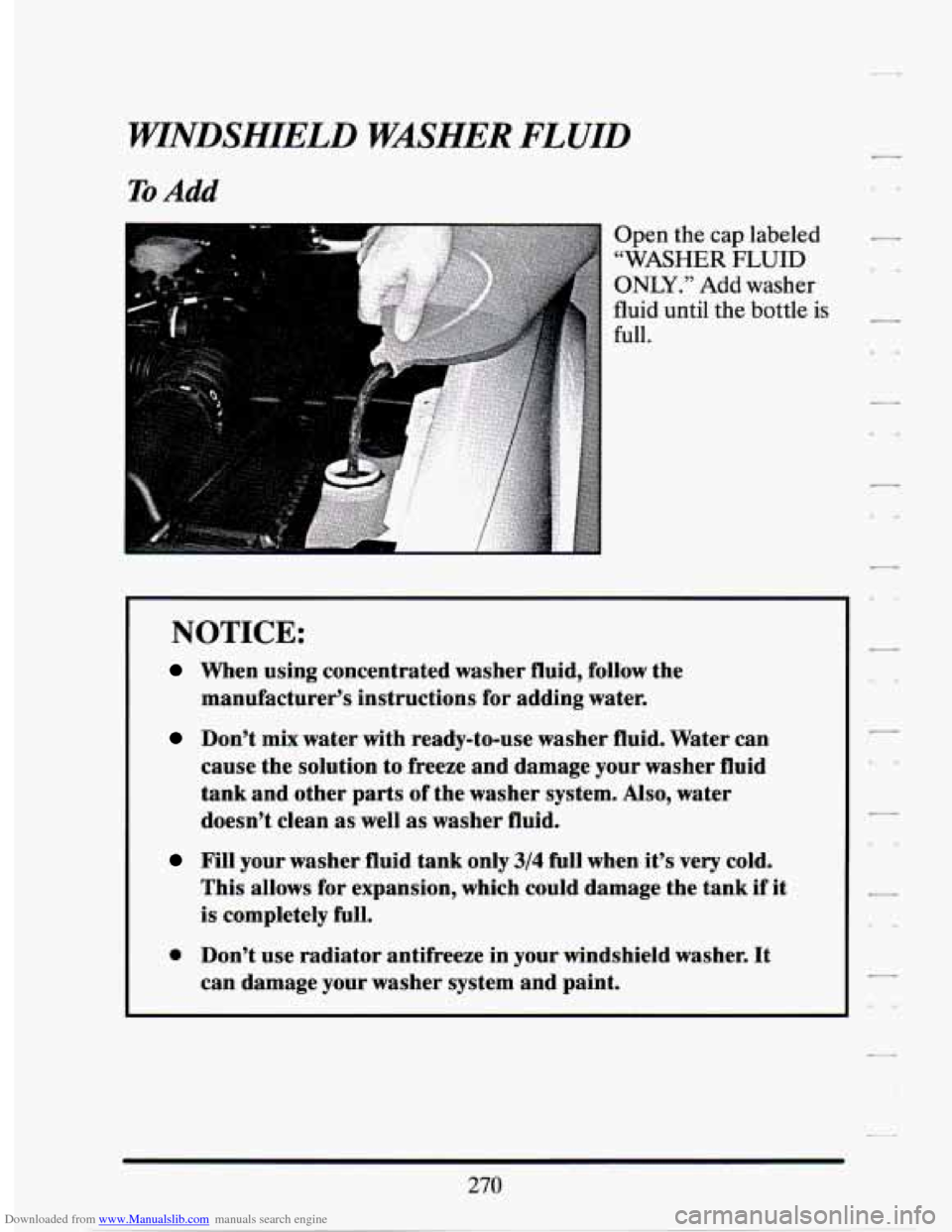

Downloaded from www.Manualslib.com manuals search engine FUNDSHIELD WASHER FLUID
To Add
Open the cap labeled
“WASHER FLUID
ONLY .” Add washer
fluid until the bottle
is
full.
NOTICE:
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts of the washer system.
Also, water
doesn’t clean as well
as washer fluid.
Fill your washer fluid tank only 3/4 full when. it’s very cold.
This allows for expansion, which could damage the tank
if it
is completely full.
0 Don’t use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
I-
I-
270

Downloaded from www.Manualslib.com manuals search engine HEmLIGHT WASHER FLUID
(EXPORT
ONLY)
To Add:
Open the cap labeled
“WASHER
FLUID
ONLY.” Add
windshield washer
fluid until the bottle is
full.
NOTICE:
0
0
0
0
When using concentrated washer fluid,. follow the
manufacturer instructions for adding water.
Don’t mix water with ready to use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts of the washer system.
Also, water
doesn’t clean
as well as washer fluid.
Fill your washer fluid tank only
3/4 full when it’s very cold.
This allows for expansion, which could damage the tank
if it
is completely full.
Don’t use radiator antifreeze in your windshield washer.
It
can damage your paint.

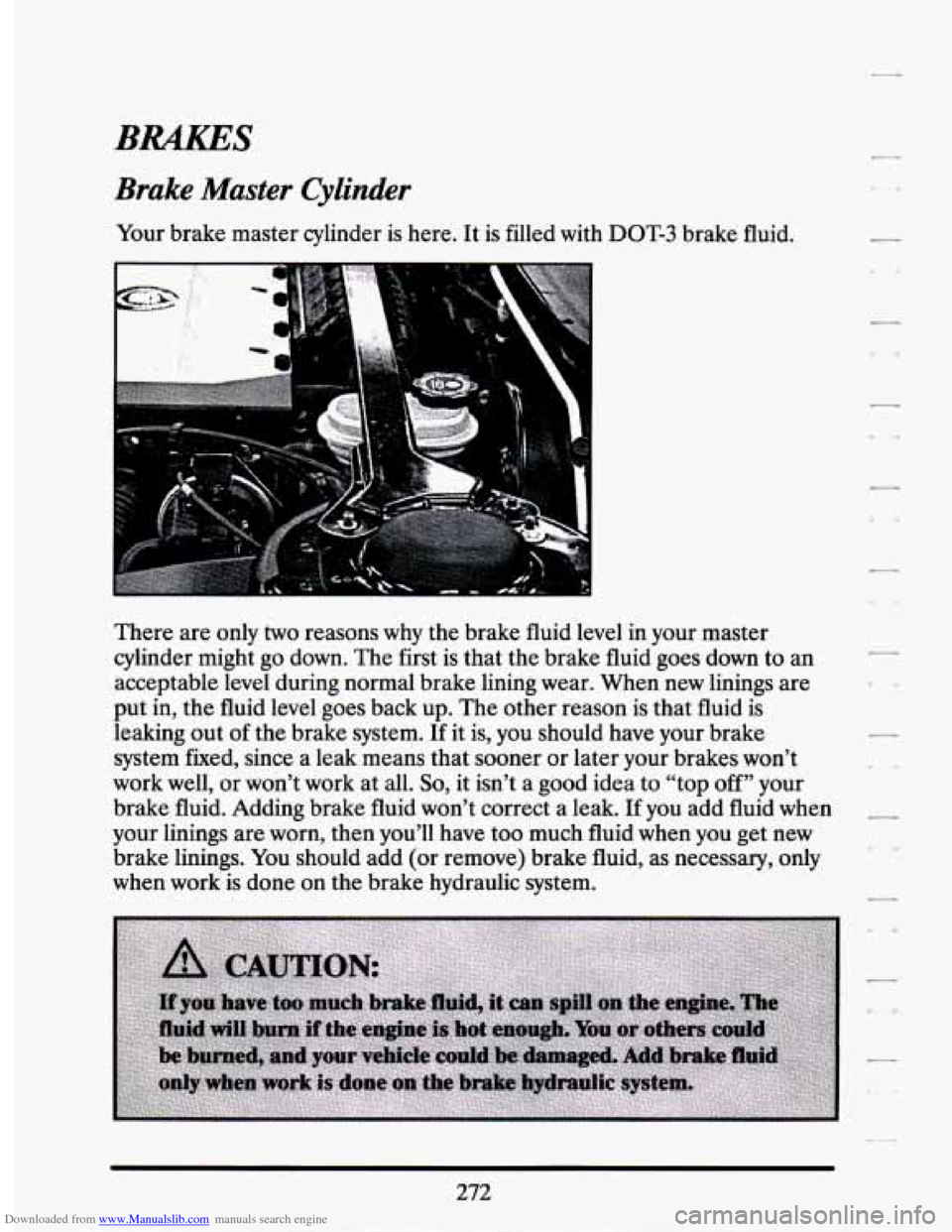

Downloaded from www.Manualslib.com manuals search engine BRAKES
Brake Master Cylinder
Your brake master cylinder is here. It is filled with DOT-3 brake fluid.
There are only
two reasons why the brake fluid level in your master
cylinder might go down. The first
is that the brake fluid goes down to an
acceptable level during normal brake lining wear. When new linings are
put in, the fluid level goes back up. The other reason is that fluid is
leaking out of the brake system.
If it is, you should have your brake
system fixed, since a leak means that sooner or later your brakes won’t
work well, or won’t work at all.
So, it isn’t a good idea to “top off’ your
brake fluid. Adding brake fluid won’t correct a leak. If you add fluid when
your linings are worn, then you’ll have too much fluid when you get new
brake linings. You should add (or remove) brake fluid, as necessary, only
when work is done on the brake hydraulic system.
272

Downloaded from www.Manualslib.com manuals search engine r
r
I I
!
r I
r

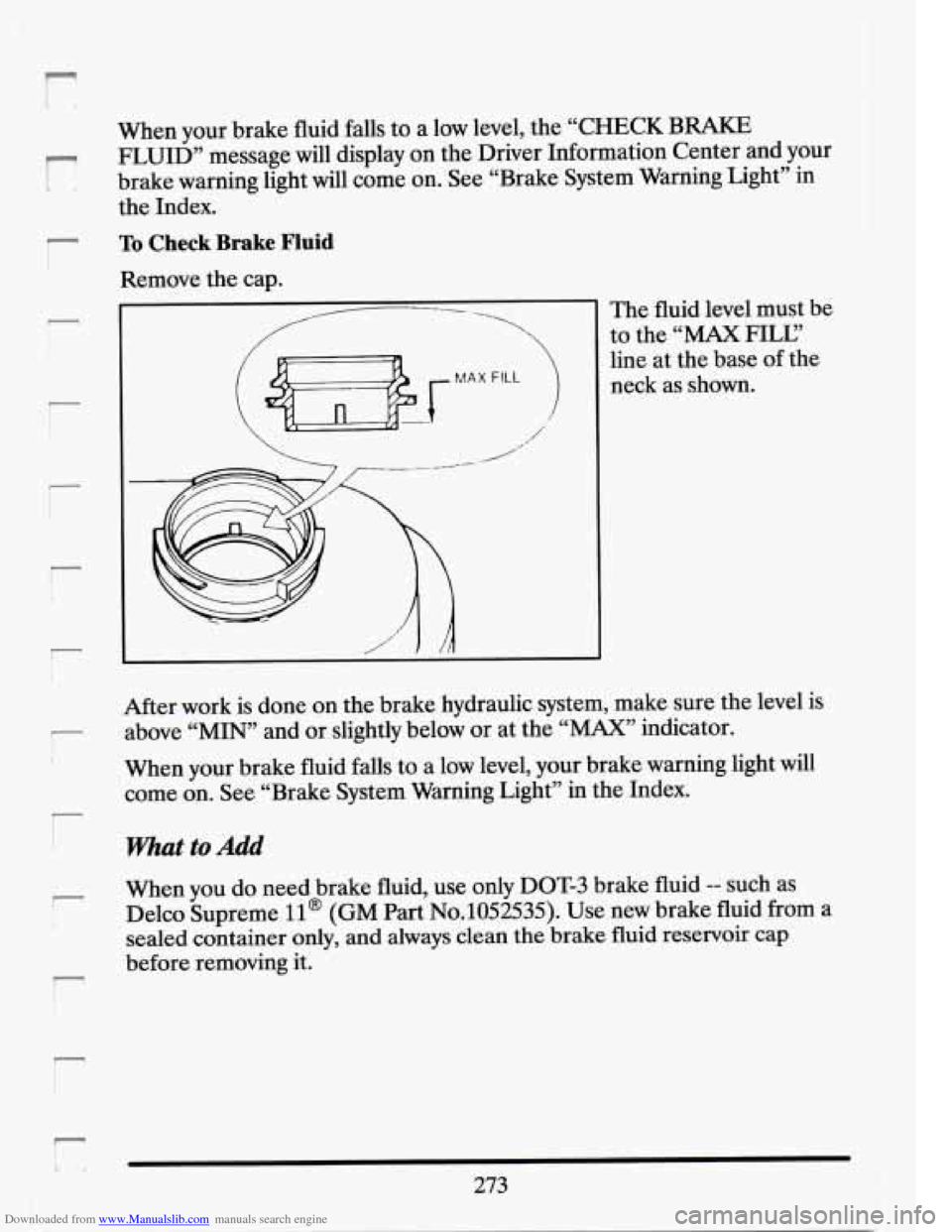

When your brake fluid falls to a low level, the “CHECK BRAKE
FLUID” message will display on the Driver Information Center and your
brake warning light will come on. See “Brake System Warning Light” in
the Index.
To Check Brake Fluid
Remove the cap.
i
MAX FILL
.i
/’
The fluid level must be
to the
“MAX FILE‘
line at the base of the
neck as shown.
After work is done on the brake hydraulic system, make sure the level is
above
“MIN” and or slightly below or at the “MAX” indicator.
When your brake fluid falls to a low level, your brake warning light
will
come on. See “Brake System Warning Light” in the Index.
?Khat to Add
When you do need brake fluid, use only DOT-3 brake fluid -- such as
Delco Supreme
ll@ (GM Part No.1052535). Use new brake fluid from a
sealed container
only, and always clean the brake fluid reservoir cap
before removing it.
i-
r I
r
273

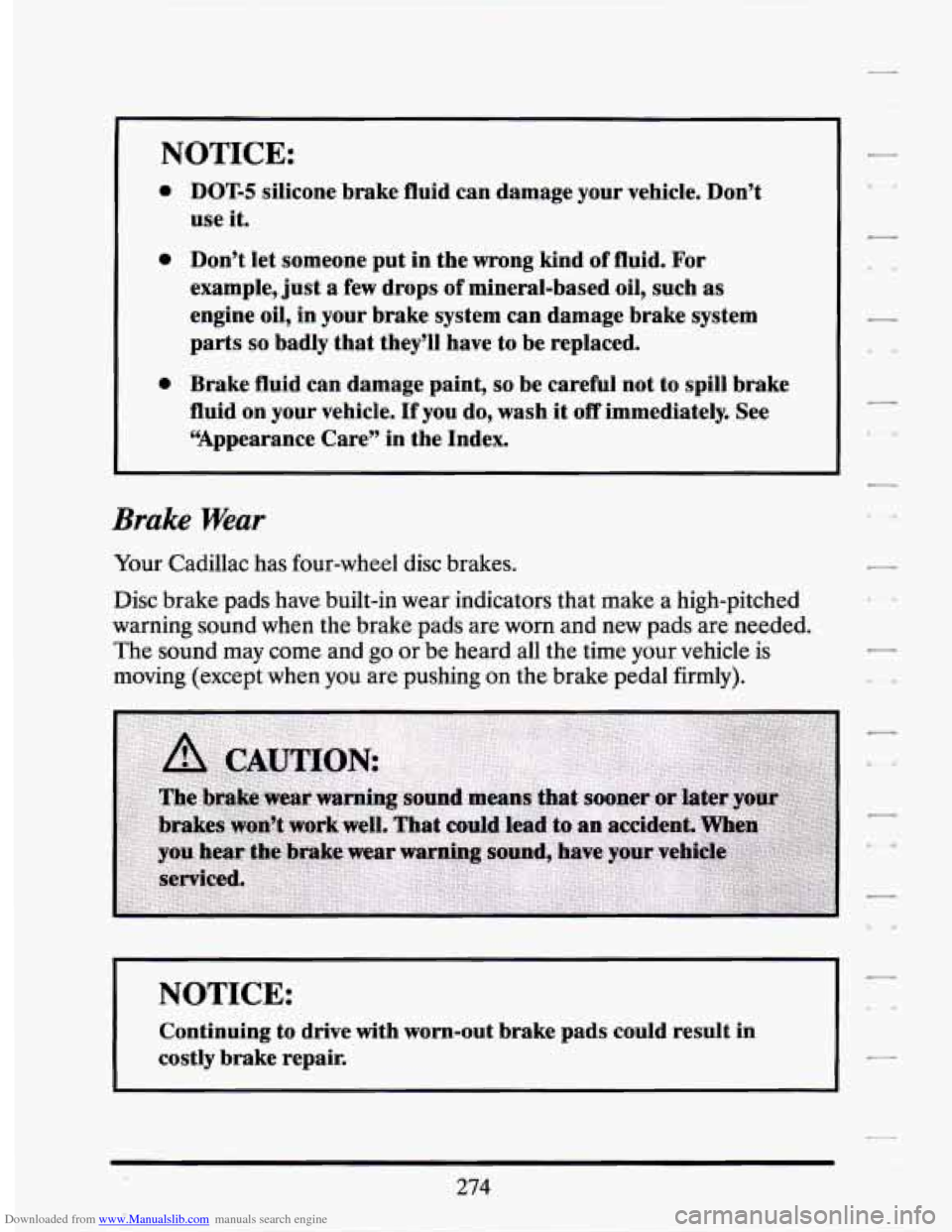

Downloaded from www.Manualslib.com manuals search engine NOTICE:
0
0
0
DOT4 silicone brake fluid can damage your vehicle. Don’t
use it.
Don’t let someone put in the wrong kind
of fluid. For
example, just
a few drops of mineral-based oil, such as
engine oil, in your brake system can damage brake system
parts
so badly that they’ll have to be replaced.
Brake fluid can damage paint,
so be careful not to spill brake
fluid on your vehicle.
If you do, wash it off immediately. See
“Appearance Care” in the Index.
Brake Wear
Your Cadillac has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that make a high-pitched
warning sound when the brake pads are worn and
new pads are needed.
The sound may come and
go or be heard all the time your vehicle is
moving (except when you are pushing on the brake pedal firmly).
NOTICE:
Continuing to drive with worn-out brake pads could result in
costly brake repair.
274

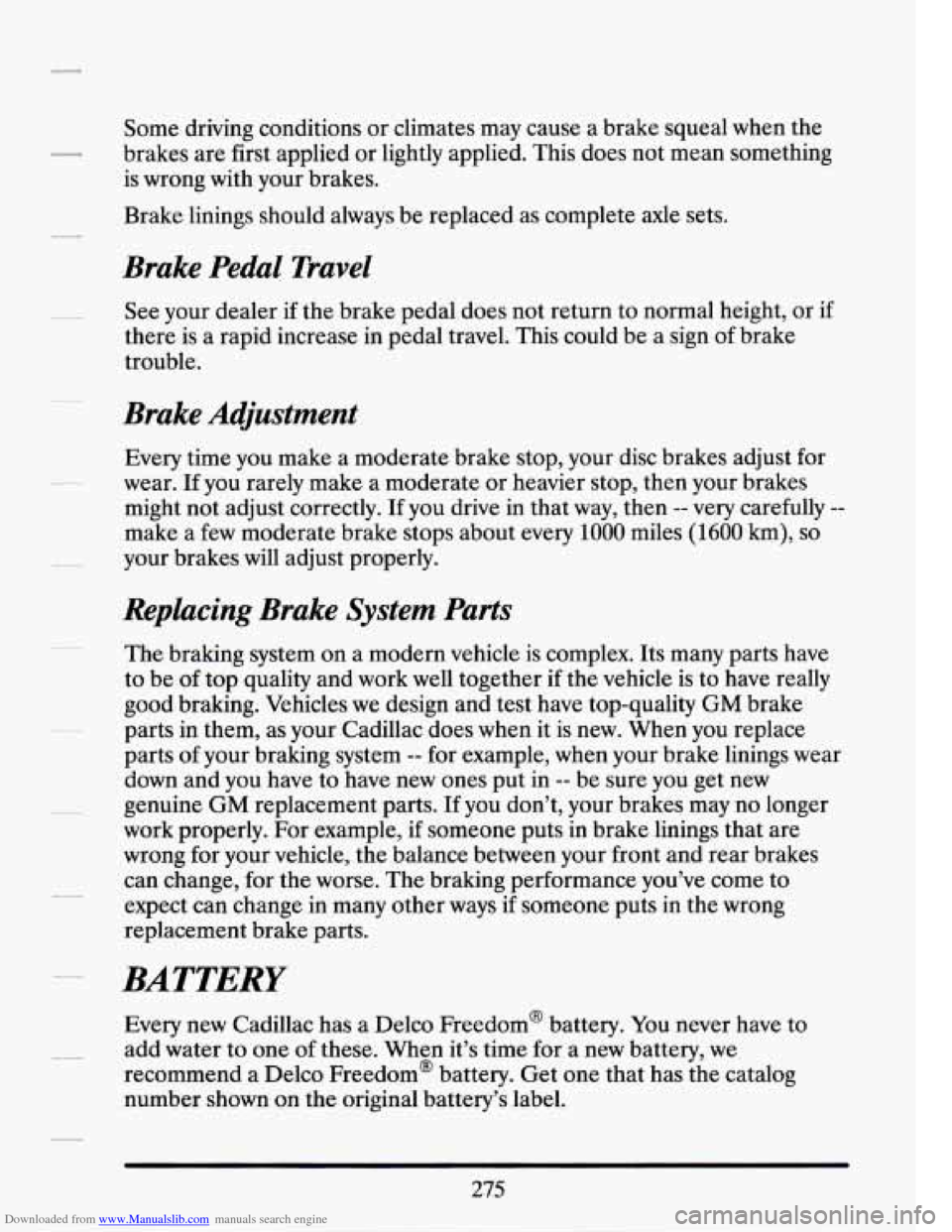

Downloaded from www.Manualslib.com manuals search engine Some driving conditions or climates may cause a brake squeal when the
brakes are first applied or lightly applied. This does not mean something
is wrong with your brakes.
Brake linings should always be replaced as complete
axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return to normal height, or if
there is a rapid increase in pedal travel. This could be a sign of brake
trouble.
Brake Adjustment
Every time you make a moderate brake stop, your disc brakes adjust for
wear. If you rarely make a moderate or heavier stop, then your brakes
might not adjust correctly.
If you drive in that way, then -- very carefully --
make a few moderate brake stops about every 1000 miles (1600 km), so
your brakes will adjust properly.
Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its many parts have
to be of top quality and work well together if the vehicle is to have really
good braking. Vehicles we design and test have top-quality
GM brake
parts in them, as your Cadillac does when it is
new. When you replace
parts
of your braking system -- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure you get new
genuine
GM replacement parts. If you don’t, your brakes may no longer
work properly. For example,
if someone puts in brake linings that are
wrong for your vehicle, the balance between your front and rear brakes
can change, for the worse. The braking performance you’ve come to
expect can change in many other ways if someone puts in the wrong
replacement brake parts.
BATTERY
Every new Cadillac has a Delco Freedom@ battery. You never have to
add water to one
of these. When it’s time for a new battery, we
recommend a Delco Freedom@ battery. Get one that has the catalog
number shown on the original battery’s label.
275

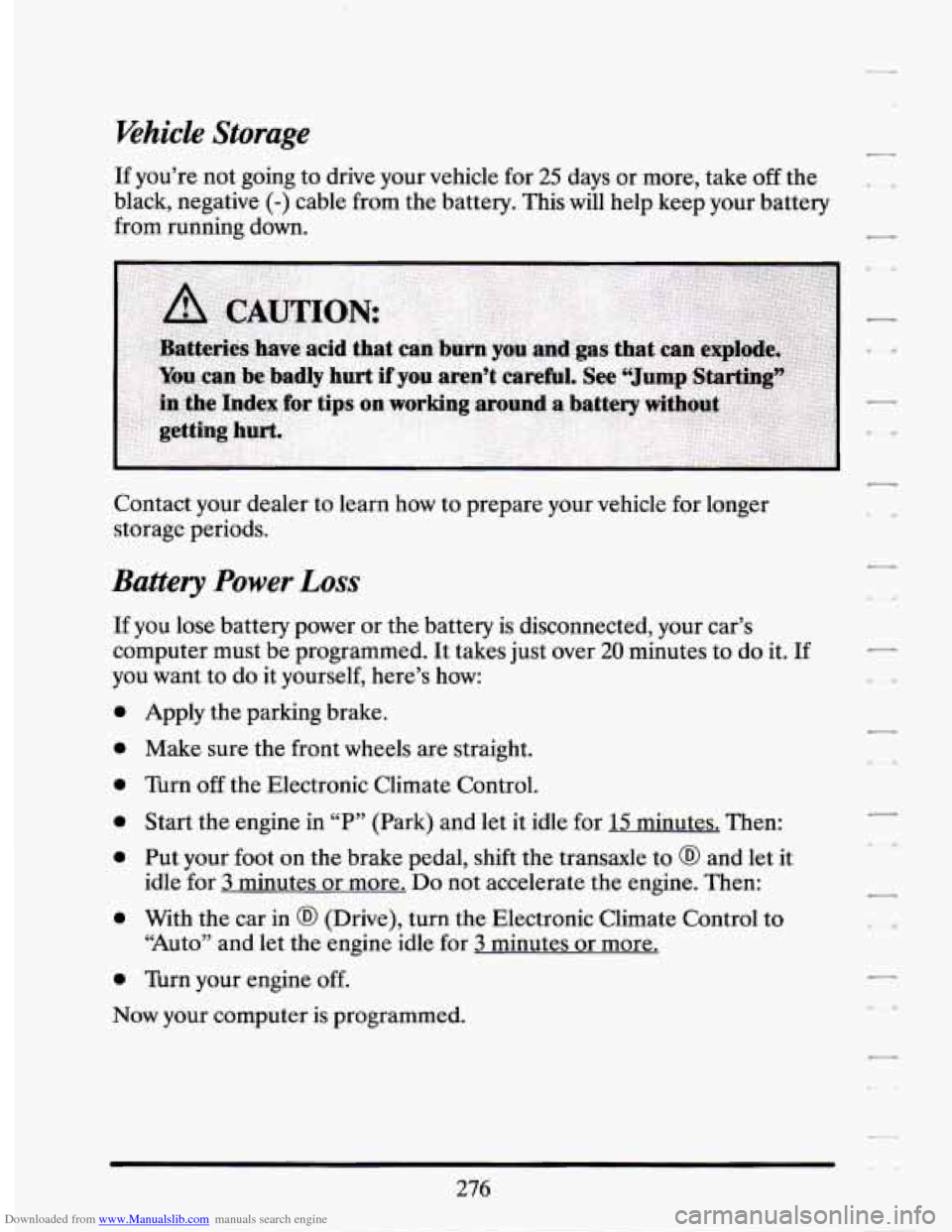

Downloaded from www.Manualslib.com manuals search engine Vehicle Storage
If you’re not going to drive your vehicle for 25 days or more, take off the
black, negative
(-) cable from the battery. This will help keep your battery
from running down.
Contact your dealer to learn how to prepare your vehicle for longer
storage periods.
Battery Power Loss
If you lose battery power or the battery is disconnected, your car’s
computer must be programmed. It takes just over
20 minutes to do it. If
you want to do it yourself, here’s how:
0
0
0
0
0
0
a
Apply the parking brake.
Make sure the front wheels are straight.
Turn off the Electronic Climate Control.
Start the engine in
“P” (Park) and let it idle for 15 minutes. Then:
Put your foot on the brake pedal, shift the transaxle to
@ and let it
idle for
3 minutes or more. Do not accelerate the engine. Then:
With the car in
@ (Drive), turn the Electronic Climate Control to
“Auto” and let the engine idle for
3 minutes or more.
Turn your engine off.
Now your computer is programmed.
276

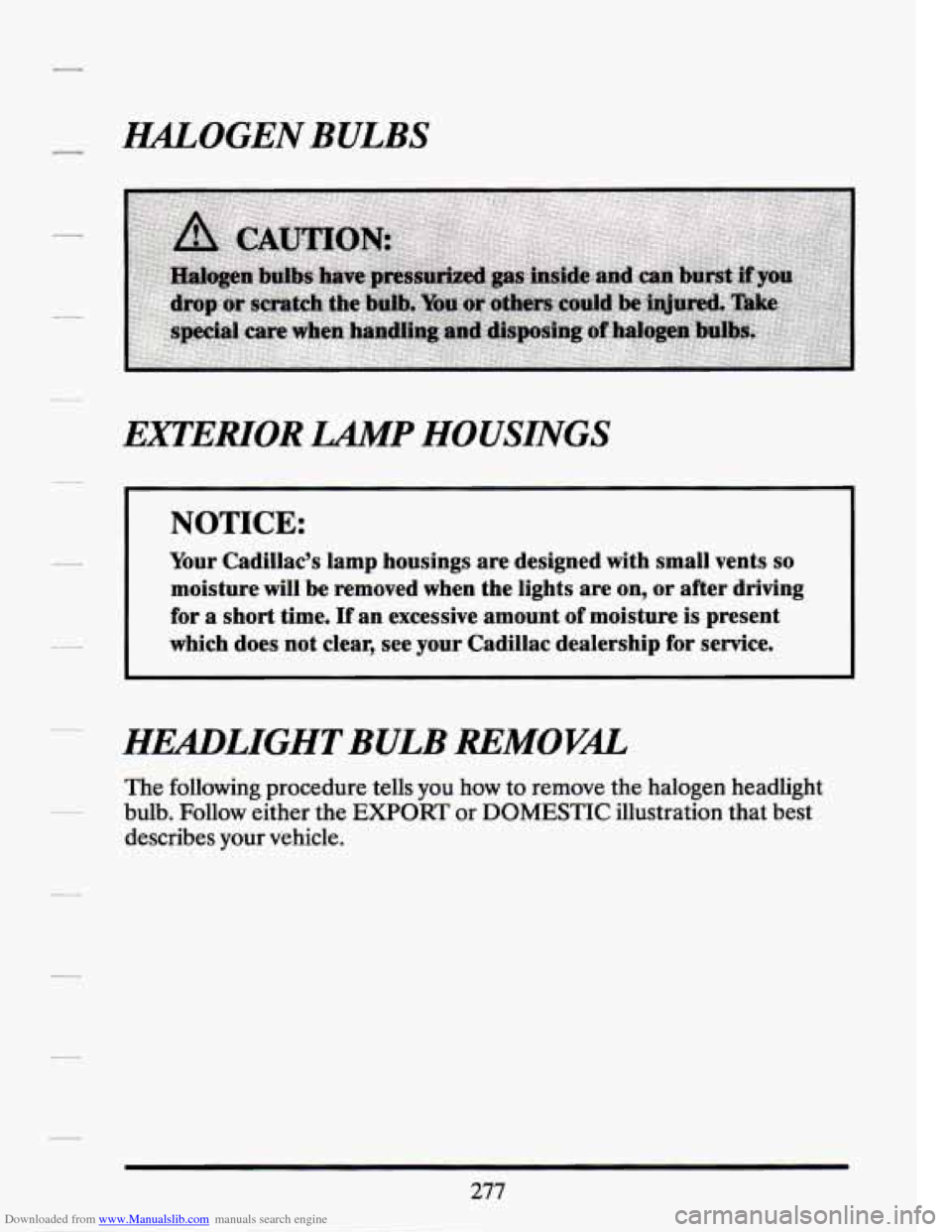

Downloaded from www.Manualslib.com manuals search engine I€4L,OGEN BULBS
EXTENOR
MP HOUSINGS
NOTICE:
Your Cadillac’s lamp housings are designed with small vents so
moisture will be removed when the lights are on, or after driving
for a short time.
If an excessive amount of moisture is present
which does not clear, see
your Cadillac dealership for service.
HEmLIGHT BULB REMOVL
The following procedure tells you how to remove the halogen headlight
bulb. Follow either the
EXPORT or DOMESTIC illustration that best
describes your vehicle.
