CADILLAC SEVILLE 1994 4.G Owners Manual

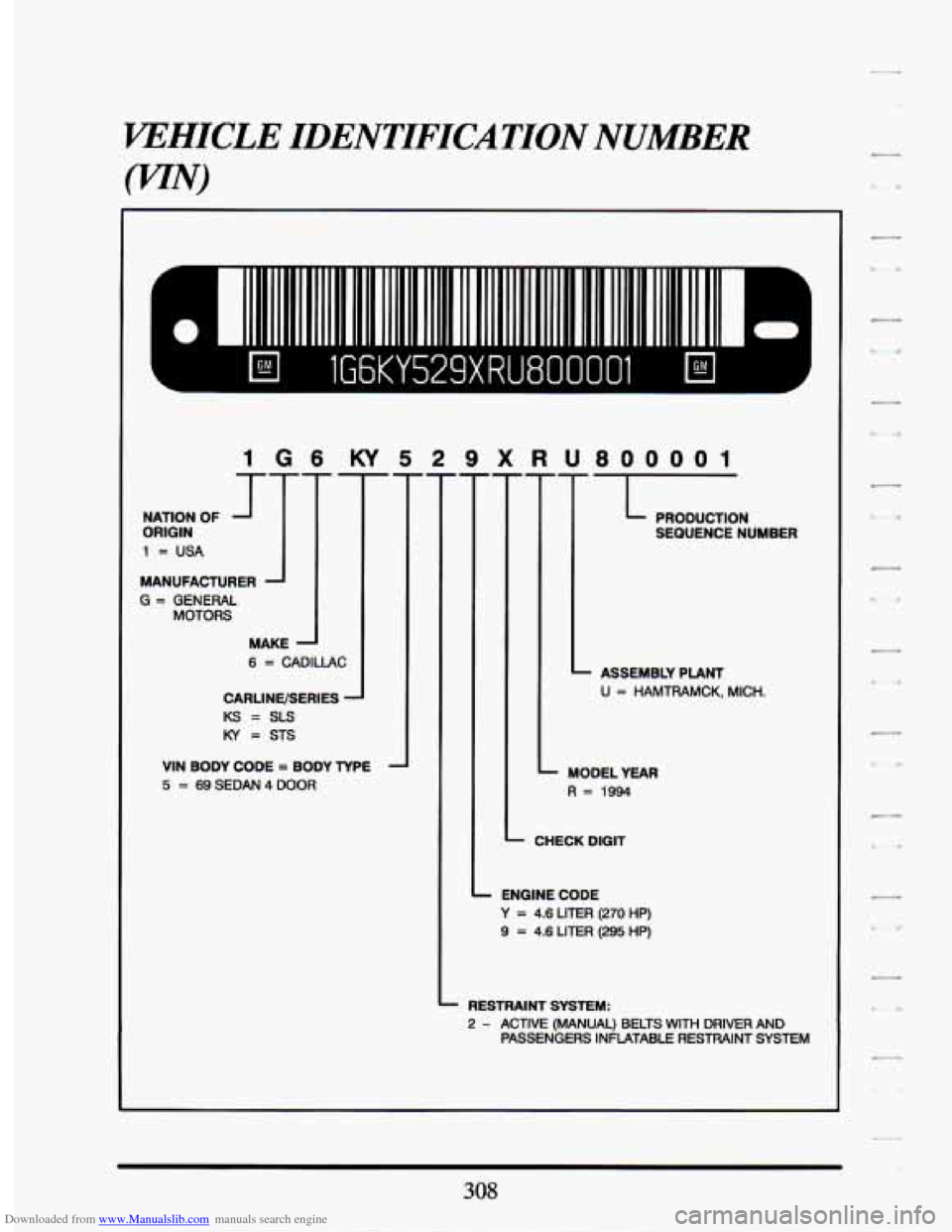

Downloaded from www.Manualslib.com manuals search engine WHICLE IDENTIFICATION NUMBER
(Jw)
Eil lG6KY529XRU800001
1 G 6 KY 5 2 9 X R U800001
G = GENERAL
MOTORS
MAKE
T
-
6 = CADILLAC
CARLINUSERIES
J
KS = SLS
KY = STS
VIN BODY CODE = BODY NPE -
5 = 69 SEDAN 4 DOOR
r
SEQUENCE NUMBER
U
= HAMTRAMCK, MICH.
- MODELYEAR
R = 1994
- CHECK DIGIT
- ENGINE CODE
Y = 4.6 LITER (270 HP)
9 = 4.6 LITER (295 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND PASSENGERS INFLATABLE RESTRAINT SYSTEM

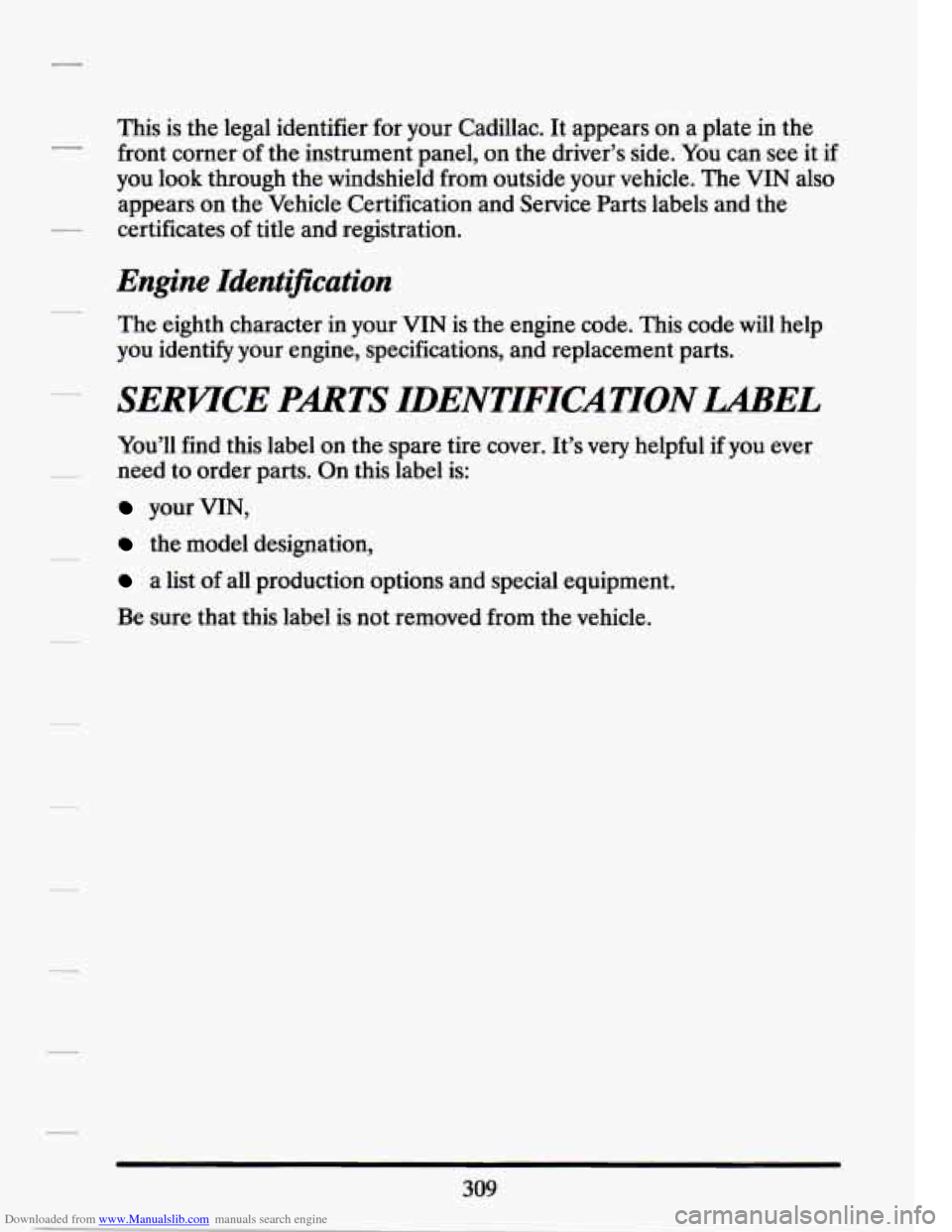

Downloaded from www.Manualslib.com manuals search engine This is the legal identifier for your Cadillac. It appears on a plate in the
front corner of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code. This code will help
you identify your engine, specifications, and replacement parts.
SERWCE PARTS IDENTIFICATIONLABEL
You’ll find this label on the spare tire cover. It’s very helpful if you ever
need to order parts. On this label is:
your VIN,
the model designation,
a list of all production options and special equipment.
Be sure that this label is not removed from the vehicle.
309

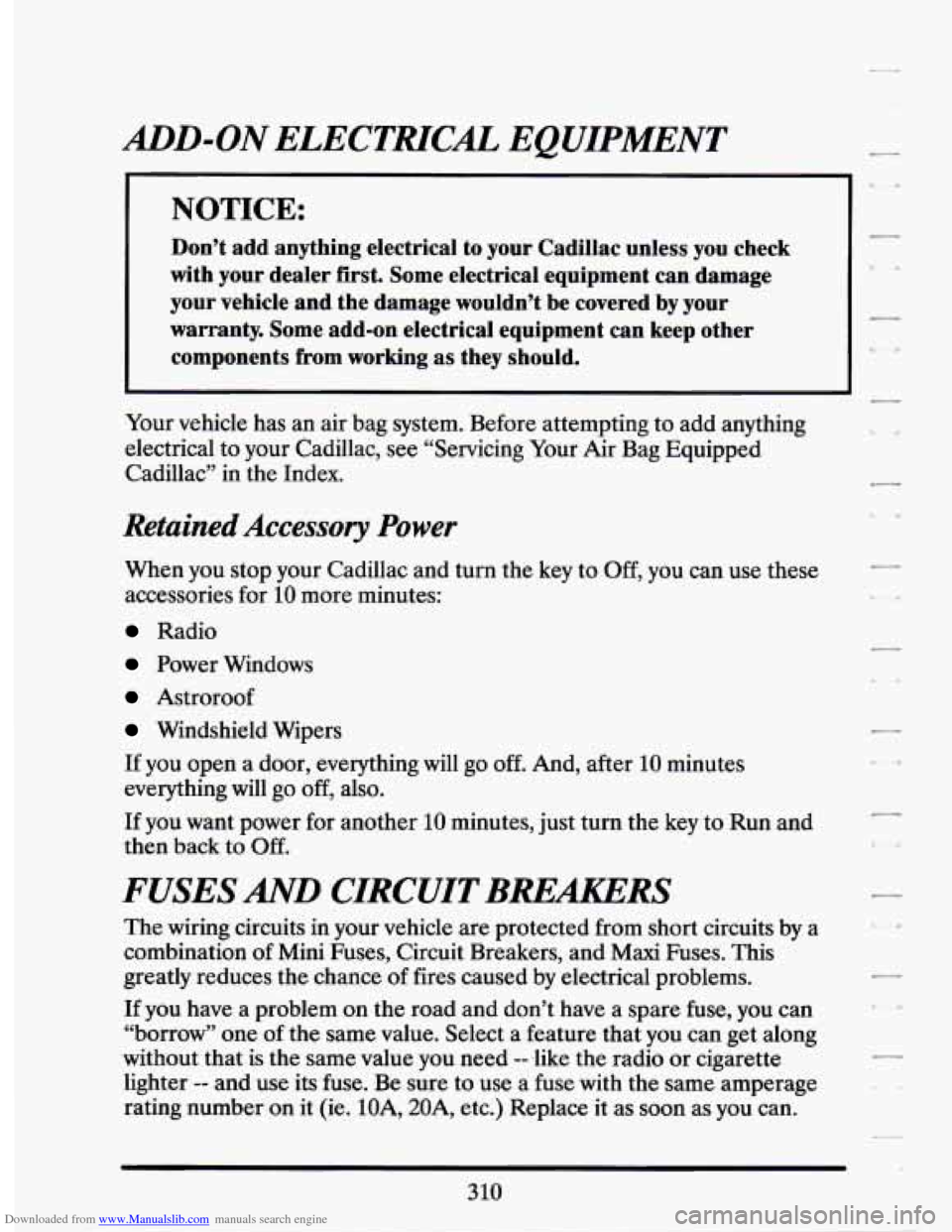

Downloaded from www.Manualslib.com manuals search engine ADD-ON ELECTRlcAL EQUIPMENT
NOTICE:
Don’t add anything electrical to your Cadillac unless you ch\
eck
with your.dealer first. Some .electrical equipment can damage
your vehicle and the damage wouldn’t .be covered by your
warranty. Some add-on electrical equipment can keep other components from working
as they should.
I-
Your vehicle has an air bag system. Before attempting to add anything
electrical to your Cadillac, see “Servicing Your Air Bag Equipped
Cadillac” in the Index.
Retained Accessory Power
When you stop your Cadillac and turn the key to Off, you can use these
accessories for
10 more minutes:
Radio
Power Windows
Astroroof
Windshield Wipers
If you open a door, everything will go off. And, after 10 minutes
everything will go
off, also.
If you want power for another
10 minutes, just turn the key to Run and
then
back to Off.
FUSES AND,CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination
of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one of the same value. Select a feature that you can get along
without that is the same value you need --like the radio or cigarette
lighter
-- and use its fuse. Be.sure to use a fuse with the same amperage
rating number on it
(ie. lOA, 20A, etc.) Replace it as soon as you can.
310

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
Muxi FuseslRehy Center
There is a fuse
removal tool and some
spare mini fuses in the
glove
box door, just lift
the cover up.
To gain access, lift the
cover.
The maxi fuse and relays are-located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
311

Downloaded from www.Manualslib.com manuals search engine DISTR PCM (IGN) IGN 1
, PC';":"), RTD BATT
~-1nmmmrl
A/C COMP HDLPS STOP LP TURNIHAZ
HTD
W/S LR STRUT RR STRUT LF STRUT RFSTRUT
LHDLPLO RHDLPLO LHDLPHI RHDLPHI
IGN
3 COOL FAN TRANS
~mmmrnmm~
FUSE CENTER IDENTIFICATION I
ENGINE COMPARTMENT FUSE BLOCK
DISTR 20A
SIR 20A - IGNITION CONTROL MODULE
- DIAGNOSTIC/ENERGY RESERVE
- DUAL POLE AR d ING SENSOR
MODULE (DERM PCM
(ION 1OA - PowEATmIN CONTROL MODULE - PASS-KevB DECODER MODULE INJ 1OA
- 1,4,6, AND 7 FUEL INJECTORS
- 2,3,5, AND 8 FUEL INJECTORS
- - - - - __ -
INJ 1OA
ION 1 1OA
- NC REFRIGERANT PRESSURE SWITCH ~~ ~
- TRANSAXLE RANGE SWITCH - STOP/BTSI/CRUISE BRAKE SWITCH - INSTRUMENT PANEL CLUSTER - KEYLESS ENTRY MODULE - DIAGNOSTWENERGY RESERVE MODULE
FERMl ~ ~. - ORN RING LIGHTS
- TURN/HAZARD SWITCH ASSY - CHIME MODULE - HEADLIGHT SWITCH - mlUGHT SEUTINEUDRL MODULE FUEL PUMP 20A
STOP LP 20A - STOP/BTSI/CRUISE SWITCH - STOPLIGHT SWITCH CAPACITOR TURN/HAZ 20A - HAZARD FLASHER - TURN FLASHER RELAY - TURN FLASHER MODULE ~ ~~ ~ ~~ DRL 1 OA (CANADA)
DRL 1OA (CANADA)
HTD
W/S 1OA
- DAMIME RUNNING LIGHTS (CANADA)
- LEFT AND RIGHT LO BEAM HEADLAMP
- HEATED WINDSHIELD CONTROL MODULE L HDLP LO 10A
R HDLP LO 1OA - LEFT LO BEAM HEADLAMP
- RIGHT LOBEAM HEADLAMP L HDLP HI 10A
R HDLP HI 1OA - LEFT HI BEAM HEADLAMP
- RIGHT HI BEAM HEADLAMP ION 3 -1 OA - REAR DEFOGGER RELAY - ELECTRONIC LEVEL CONTROL (ELC) - HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER
COOLING FAN 10A - CRUISE CONTROL
- EXTENDED TRAVEL BRAKE SWITCH - POWERTRAIN CONTROL MODULE (PCM) - COOLING FAN RELAYS 1.2. AND 3
- PUMP^
- OIL PRESSURE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
- POWERTRAIN CONTROL MODULE (PCM) PCM (BAT) 1OA
RTD BAT) 20A - FRONT AND REAR HEATED-OXYGEN SENSOR
A/C COMP 10A
HDLPS 3OA - EXHAUST GAS RECIRCULATION (EGR) VALVE
- SENSING SUSPENSlON (RSS) MODULE MODULE (EXPORT)
- NC COMPRESSOR CLUTCH - POWER STEERING PRESSURE SWITCH
- HEADLIGHT DIMMER SWITCH - TRANSAXLE SHIFT SOLENOIDS A & B - HEADLIGHT RELAY "D" (ENGINE COME - EVAPORATIVE EMISSION CONTROL
- DRL HEADLIGHT RELAY "E" (WITH DAYTIME - POWERTRAIN CONTROL MODULE (PCM)
- POWERS C13 - TCC BRAKE SWITCH
MICRO RELAY CENTER)
SOLENOID
RUNNING LIGHTS) - TORQUE CONVERTER CLUTCH SOLENOID
312

Downloaded from www.Manualslib.com manuals search engine 60A I
LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP) (STRG 1-2)
- RETAINED ACCESSORY POWER
(RADIO/WIPERS)
- STARTER
- TRUNK COMF! FUSES 61 1 AND 81 3
FUSE 2 (60 AMP) (BODY)
- ENGINE COMI? B11
- ROAD SENSING SUSPENSION
- FOG LIGHTS
- TRUNK COMI? FUSE C1, C3, C5, C7, C9, AND
c11
- TRUNK COME FUSE C13 (EXPORT)
- REAR FOG LIGHT (EXPORT)
CIRCUIT BREAKER 3 (30 AMP) (SEAT)
- LEFT AND RIGHT POWER SEAT SWITCHES
- LEFT AND RIGHT LUMBAR RELAYS
- POWER DOOR LOCKS
- KEYLESS ENTRY MODULE
- HORNS
- FUEL DOOR RELEASE SWITCH
- TRUNK RELEASE SWITCH
FUSE 4 (30 AMP) (IPC)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
- W/ILLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASS-Key@ DECODER MODULE
- THEFT DETERRENT
FUSE 5 (60 AMP) (HVAC)
- LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER
- LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP) (STRQ 3)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMI? FUSES Dl, 03, D5
- TRUNK COMI? FUSES A1 , A3, A5, A7, A9
RH MAXI@ FUSE BLOCK
CIRCUIT BREAKER 1 (30 AMP) (DAB)
- RETAINED ACCESSORY POWER (RAP)
(SUNROOF/POWER WINDOWS)
FUSE 2 (30 AMP) (RADIO)
- DELCO-BOSEB SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
FUSE 3 (50 AMP) (COOL)
FUSE
4 (40 AMP) HVAC BLOWER (BLOWER)
- COOLING FANS
- HVAC POWER MOTOR
- A/C COMPRESSOR
FUSE 5 (So AMP) ABS (BRAKES)
FUSE
6 (So AMP) (LAMPS)
- BRAKE PRESSURE MODULATOR VALVE
- TURN FLASHER MODULE
- HAZARD FLASHER
- STOP/BTSI/CRUISE BRAKE SWITCH
- PARKING LIGHTS
- DAY TIME RUNNING LIGHTS (CANADA)
- ENGINE COMI? FUSES Bl,B3 AND B5
- TRUNK COMI? FUSES Dl 1, Dl3
313

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
I,
314

Downloaded from www.Manualslib.com manuals search engine CRANK IGN 1 HDLP WASH SUSP IPC (IGN) CNSL SW
~mmmmmm~
mmmmmmri
WIPER RAD (IGN) R DEFOG HTD MlRR IPC (BATT) THEFT HVAC/DABIE
REAR FOG FOG LP CNSL FAN CIGAR BODY 2 BODY 1
~-lmmmmmr~
L PRK LP R PRK LP RAD (BAT) ANTflRK PLD R HTD SEAT L HTD SEAT
TRUNK COMPARTMENT FUSE BLOCK
CRANK 110 AMPI - RAP'/ILLUMINATED ENTRY MODULE ~~
- DIAGNOSTIC/ENERGY RESERVE
- TRANSAXLE RANGE SWITCH (NSSSI
MODULE (DERM)
IGN 1 (10 AMP)
- ELECTROCHROMIC MIRROR - FUEL LEVER SENSOR
fiP/ILLUMINATEDENTRYMODULE
THEFT DETERRENT MODULE
TURN FLASHER RELAY
"F" TRUNK C(
KEYLESS ENTRY MODULE
MICRO RELAY CENTER
CATALYTIC CONVERTER ALARM
MODULE (EXPORD
- HEADLIGHT WASHER MODULE HDLP WASH (30 AMP)-EXPORT ONLY
DM!?
MODI JLE
THEFT 110 AMPI
- PAS&Key@ DECODER MODULE - THEFT DETERRENT RELAY "D" (TRUNK COME
RELAY CENTER)
- THEFT DETERRENT MODULE
- HwTm Nc bROGRAMMER HVAC/DABIE (10 AMP
- RAP/ILLUMINATED ENTRY MODULE
- REAR FOG LIGHT RELAY A (WPoRn
REAR FOG (10 AMP)
FOG LP
(10 AMP)
CNSL
FAN (1OAMP) - FOG LIGHT RELAYS A AND F
- REAR BLOWER MOTOR - REAR BLOWER RELAY
CIGAR 120 AMPI - LT AND RT REAR CIGARETTE LIGHTERS (SEVILLE ONLY) - FRONT CIGARETTE LIGHTER - CHIME MODULE BODY 2 (10 AMP)
- RAPRELAY - POWER MIRROR SWITCH
- LOCK~UT INHIBIT RELAY "B (TRUNK COME I MICRO
- couRmx LIGk REMY "c" (TRUNK corn z MICRO
RELAY CENTER)
RELAY CENTER (WPORT)
RELAY CENTER)
- PANEL LIGHTS INHIBIT RELAY 'F" (TRUNK COMI? 3 MICRO
- KEYLESS ENTRY MODULE - RAP RELAY
"E" (TRUNK COMI? 2 MICRO RELAY CENTER)
- TRUNKLAMP - SEAT BELT RETRACTOR SOLENOIDS (ELDORADO ONLY)
- REAR DOOR LOCK SWITCHES (SEVILLE ONLY) - FRONT DOOR LOCK SWITCHES - GLOVE BOX LAMP - LT AND RT FOOTWEU COURTESY LAMPS - HEADLIGHT SWITCH
BODY 1 (10 AMP)
- LT AND RT FRONT HEADER LAMP - LT AND RT VANITY MIRROR - GARAGE DOOR OPENER - LT AND RT REAR HEADER LAMPS
READ LP (10 AMP)
- LT REAR TAdTOPmRN LAMPS L PRK LP (10 AMP
- LT FRONT PARWTURN LAMPS - FRONT AND REAR LEFT SIDE MARKER LAMPS - RADIO CONTROL HEAD - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER R PRK LP 110 AMP) - RT TAI'VSTOP TURN LAMPS - RT FRONT AND REAR SIDE MARKER LAMPS - RT FRONT PARK AND TURN LAMPS - ENGINE COMP LAMP - LICENSE PLATE LAMPS
- ED2 RAD A (10 AMP)
ANT/TRK PLD
(20 AMP)
- POWER ANTENNA - TRUNK LID PULL DOWN MOTOR
- LLEdNIC LEVEL CoNmoL (ELC)
- PASSENIERS HATED SEAT
- DRIER'& HEATED SEAT
ELC =AMP
R Hto SEAT 10 AMP
L HTD SEAT 10 AMP)
315

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload will cause the lights to go on and off, or in some
cases to remain off.
If this happens, have your headlight wiring checked
right away.
Windshield Wipers
The windshield wiDer motor
is protected by a circuit breaker
and a fuse.
If the motor overhkats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options r
1 Circuit breakers in the fuse panel protect the power windows and other power
accessories. When the current load
is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is fixed or goes away. 7
BULB CAMRT
DESCRIPTION BULB NO.
Backup Lights ......................................... 2057
Ash Tray
Illumination
.................................. 1445
Cornering Light
................................... 1156 DC7
Courtesy Reading Light
................................. 168
FogLight
.............................................. 886
Glove Compartment Light
............................... 194
Headlights Composite -Inner High Beam
....... ........................ 9005 HB3
-Outer Low Beam
................................ 9006 HB4
-Export Bulb ........................................... H4
Illumination Entry Lock Lamp ............................ 192
Instrument Panel Illumination
............................ 194
Instrument Panel Telltales
................................ 194
License Plate Light
..................................... 194
Park and Turn Signal
................................ 2357 NA
316

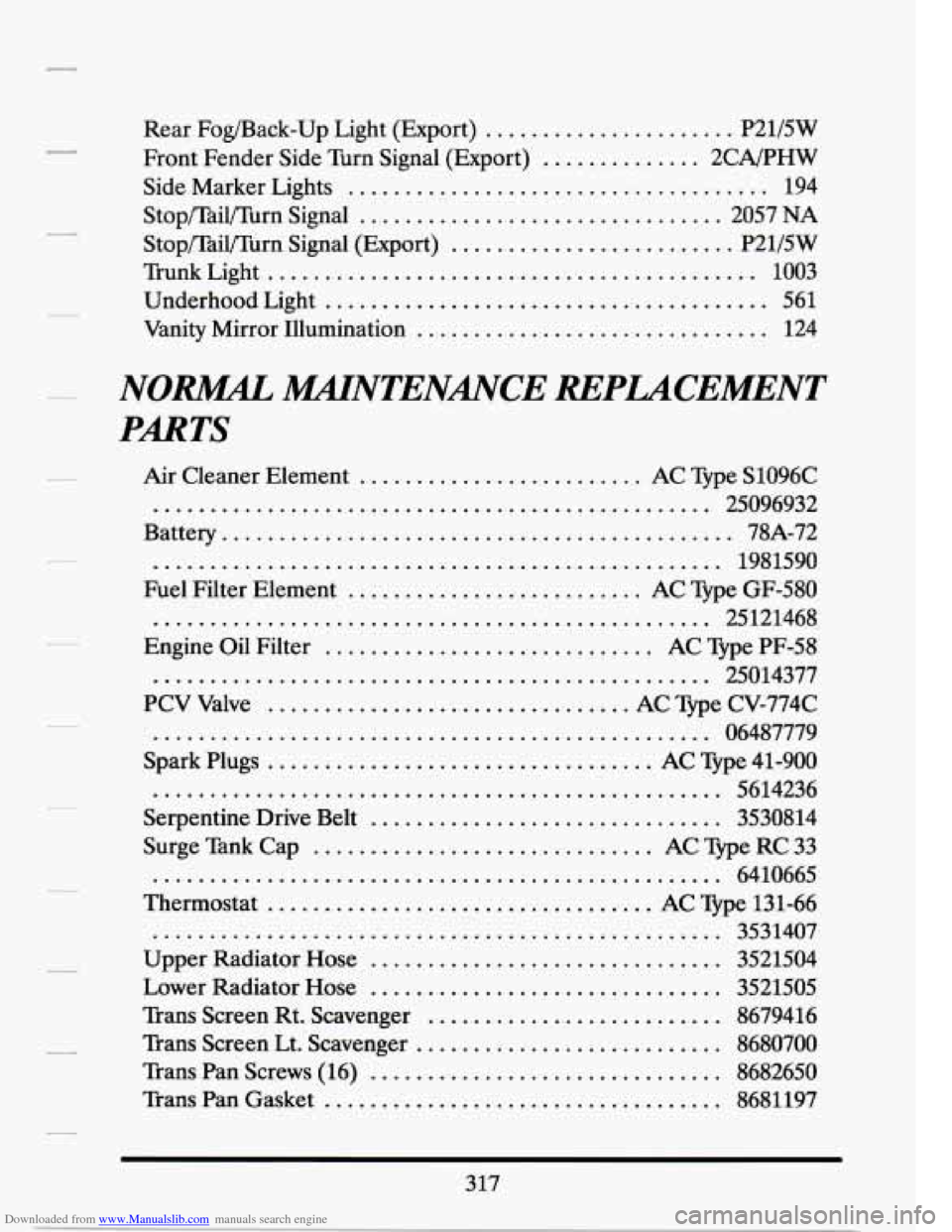

Downloaded from www.Manualslib.com manuals search engine .
.
.
.
.
.
.
.
.
Rear Fog/Back-Up Light (Export) ...................... P21/5W
Side Marker Lights
..................................... 194
Stop/Tail/Turn Signal
................................ 2057 NA
Stop/TaiVI'-urn Signal
(Export) ......................... P2WW
Trunk Light
........................................... 1003
Underhood Light
....................................... 561
Vanity Mirror Illumination
............................... 124
Front Fender
Side Turn Signal (Export)
.............. 2cA/PHw
NORMU WNTENMCE REPLACEMENT
PARTS
Air Cleaner Element ......................... AC Type S1096C
................................................. 25096932
Battery
............................................. 78A-72
.................................................. 1981590
Fuel Filter Element
.......................... AC Type GF-580
................................................. 25121468
Engine Oil Filter
............................. AC Type PF-58
................................................. 25014377
PCV Valve
................................ AC Type CV-774C
................................................. 06487779
Spark Plugs
.................................. AC Type 41-900
.................................................. 5614236
Serpentine Drive Belt
............................... 3530814
Surge Tank Cap
.............................. AC Type RC 33
.................................................. 6410665
Thermostat
.................................. AC Type 131-66
..................................................
Upper Radiator Hose ...............................
Lower Radiator Hose ...............................
Trans Screen Rt . Scavenger ..........................
Trans Screen Lt . Scavenger ...........................
Trans Pan Screws (16) ...............................
TransPanGasket ...................................
3531407
3521504
3521505
8679416
8680700
8682650
8681197
.
317
