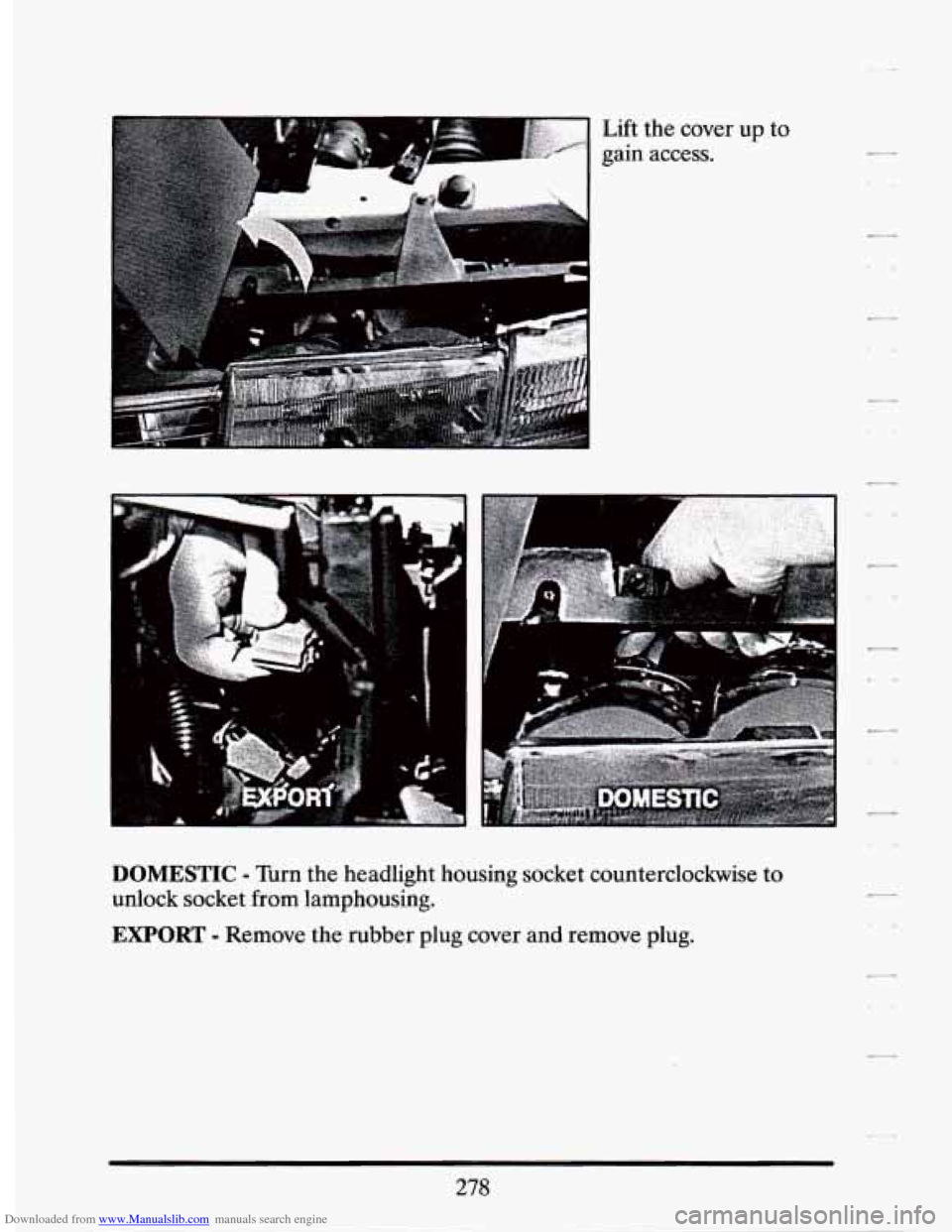

Downloaded from www.Manualslib.com manuals search engine Lift the cover up to
gain access.
DOMESTIC - Turn the headlight housing socket counterclockwise to
unlock socket from lamphousing.
EXPORT - Remove the rubber plug cover and remove plug.
278

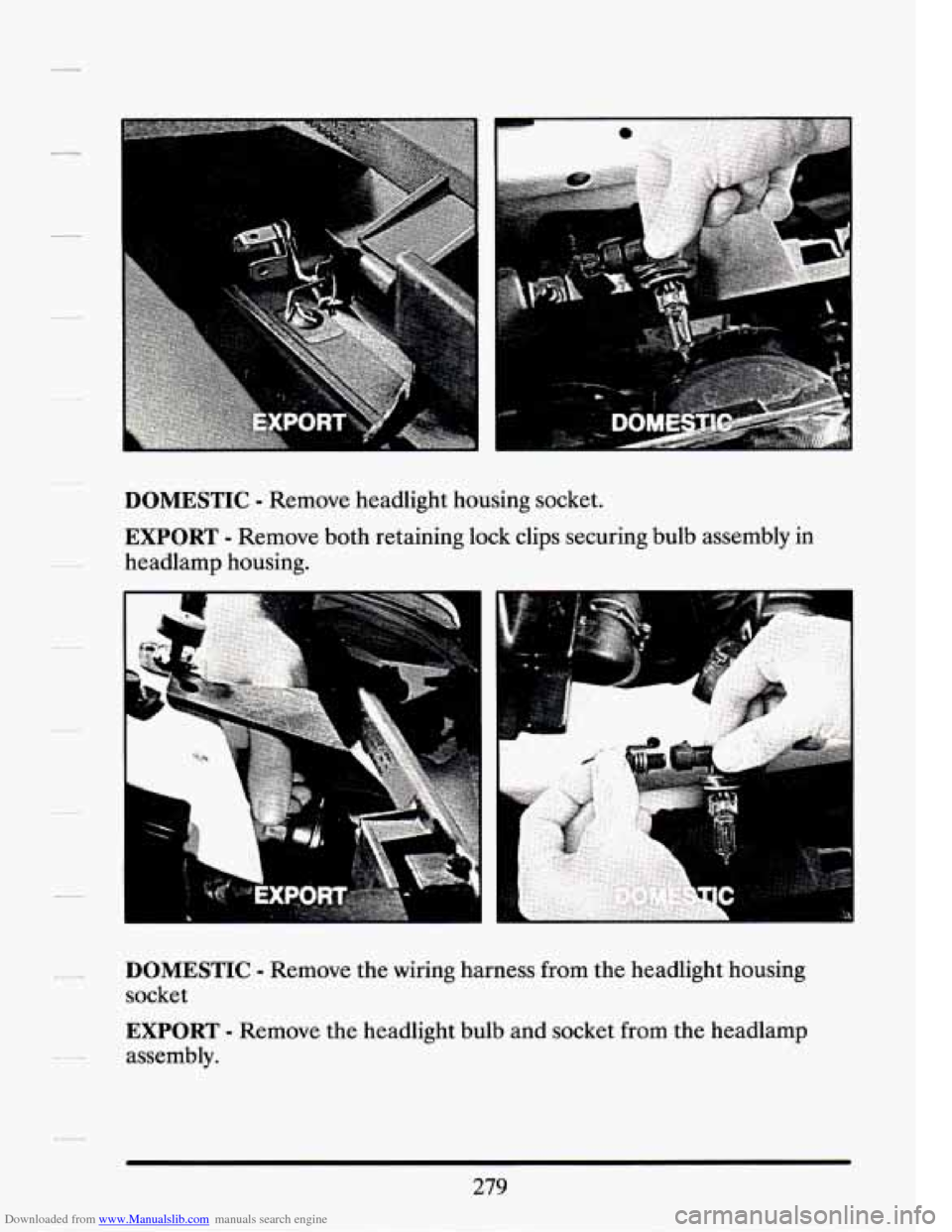

Downloaded from www.Manualslib.com manuals search engine DOMESTIC - Remove headlight housing socket.
EXPORT - Remove both retaining lock clips securing bulb assembly in
headlamp housing.
i
t L
DOMESTIC - Remove the wiring harness from the headlight housing
socket
EXPORT - Remove the headlight bulb and socket from the headlamp
assembly.
279

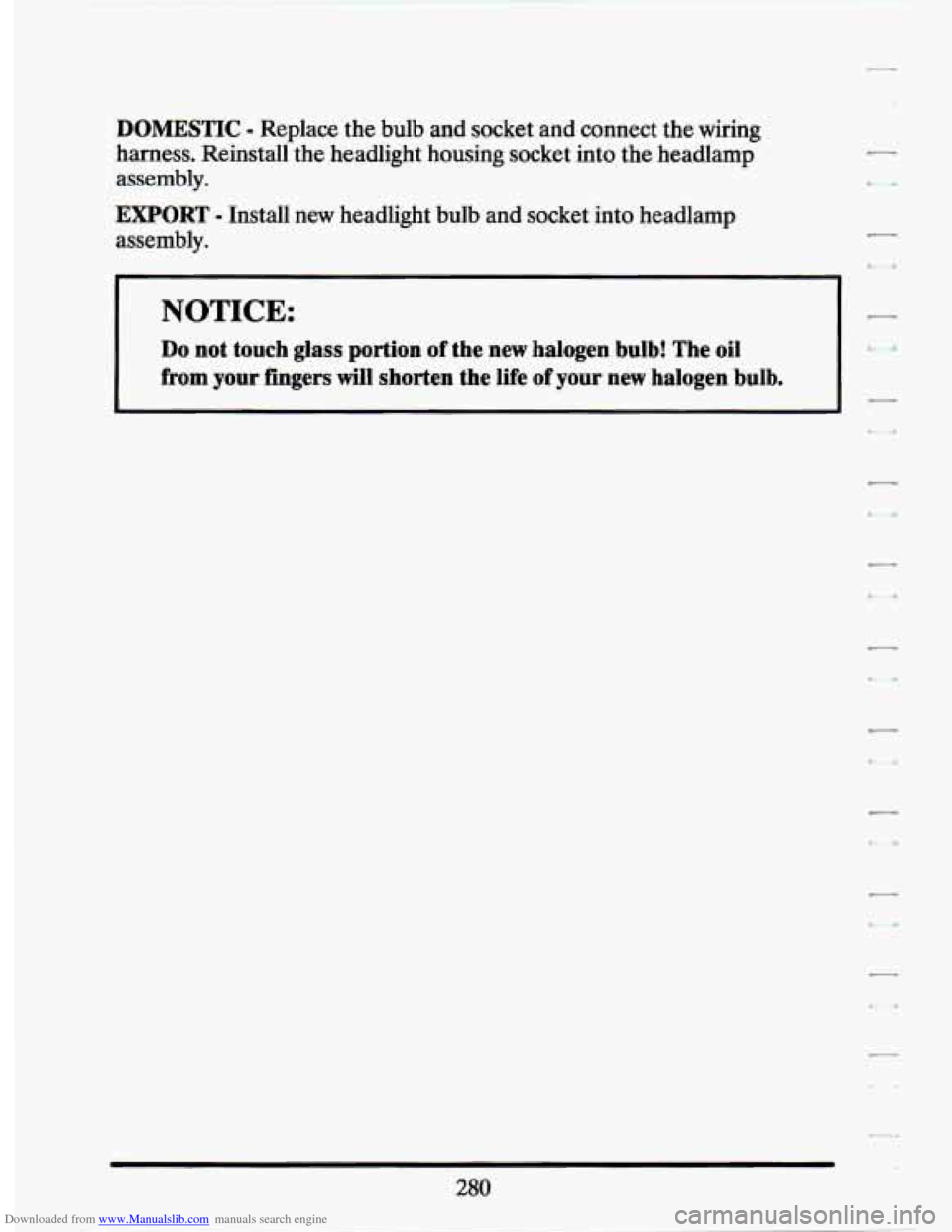

Downloaded from www.Manualslib.com manuals search engine DOMESTIC - Replace the bulb and socket and connect the wiring
harness. Reinstall the headlight housing socket into the headlamp
assembly.
EXPORT - Install new headlight bulb and socket into headlamp
assembly.
NOTICE: 7
I
Do not touch glass portion of the new halogen bulb! The oil
from your fingers will shorten the life of your new halogen bulb.
7
280
-.

Downloaded from www.Manualslib.com manuals search engine r

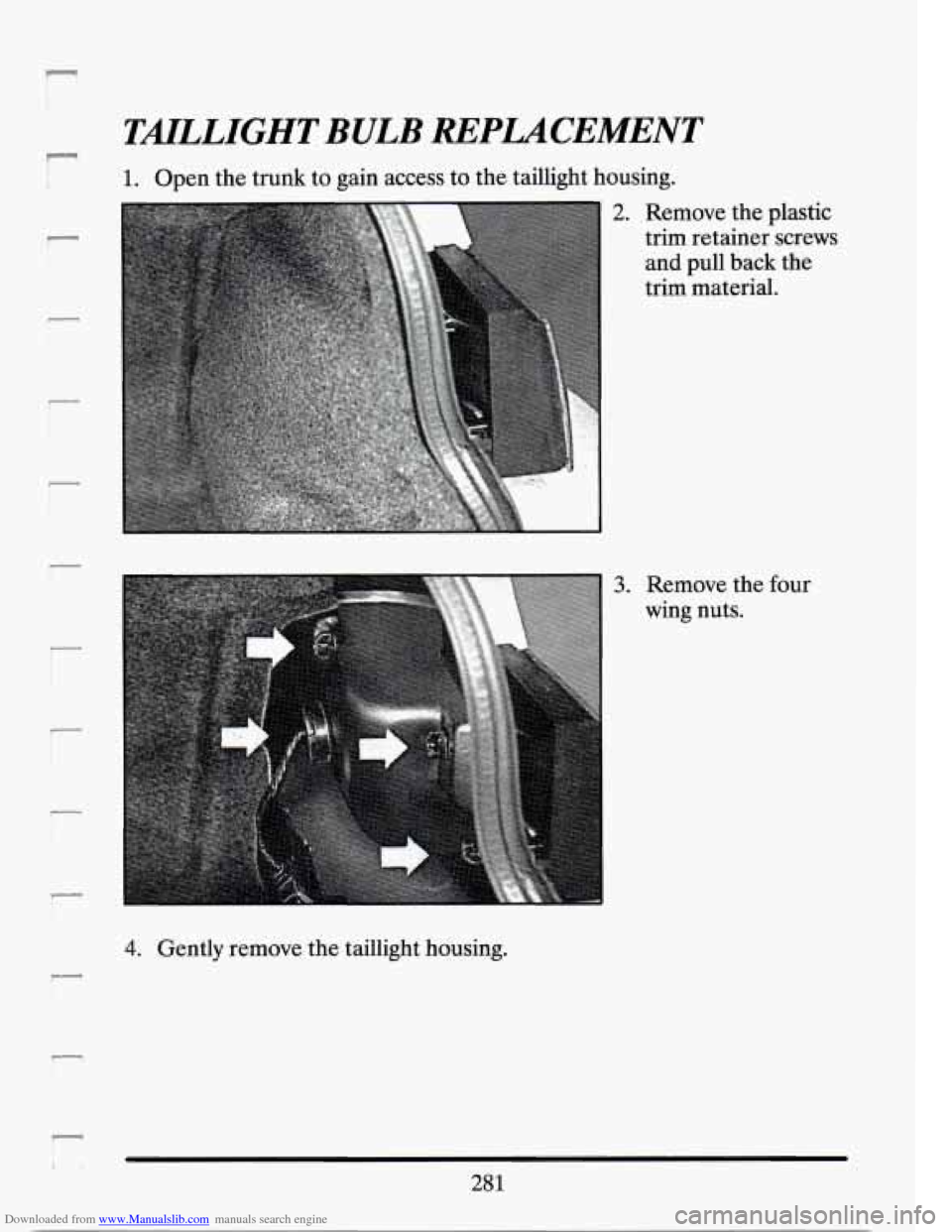

TMLLIGHT BULB REPUCEMENT
1. Open the trunk to gain access to the taillight housing.
2. Remove the plastic
trim retainer screws
and pull back the
trim 9aatr;rial.
I I
4. Gently remove the taillight housing.
3. Remove the
wing nuts. four
r_
281

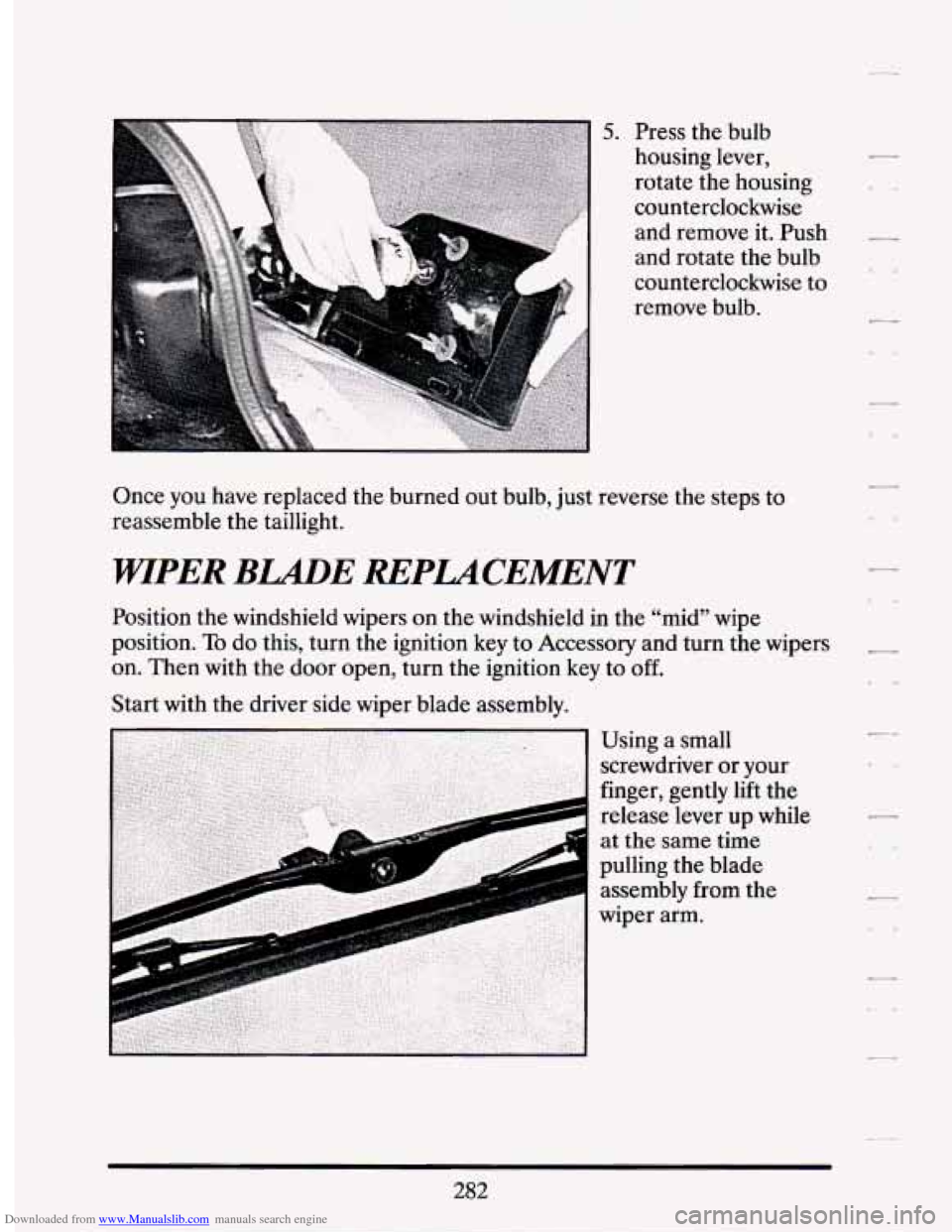

Downloaded from www.Manualslib.com manuals search engine 5. Press the bulb
housing lever,
rotate the housing
counterclockwise
and remove it. Push
and rotate the bulb
counterclockwise to
remove bulb.
Once you have replaced the burned out bulb, just reverse the steps to
reassemble the taillight.
VTPER BLADE REPLACEMENT
Position the windshield wipers on the windshield in the “mid” wipe
position.
To do this, turn the ignition key to Accessory and turn the wipers
on. Then with the door open, turn the ignition key to
off.
Start with the driver side wiper blade assembly.
Using a small
screwdriver or your
finger, gently lift the
release lever up while
at the same time
pulling the blade
assembly from the
wiper arm.
282

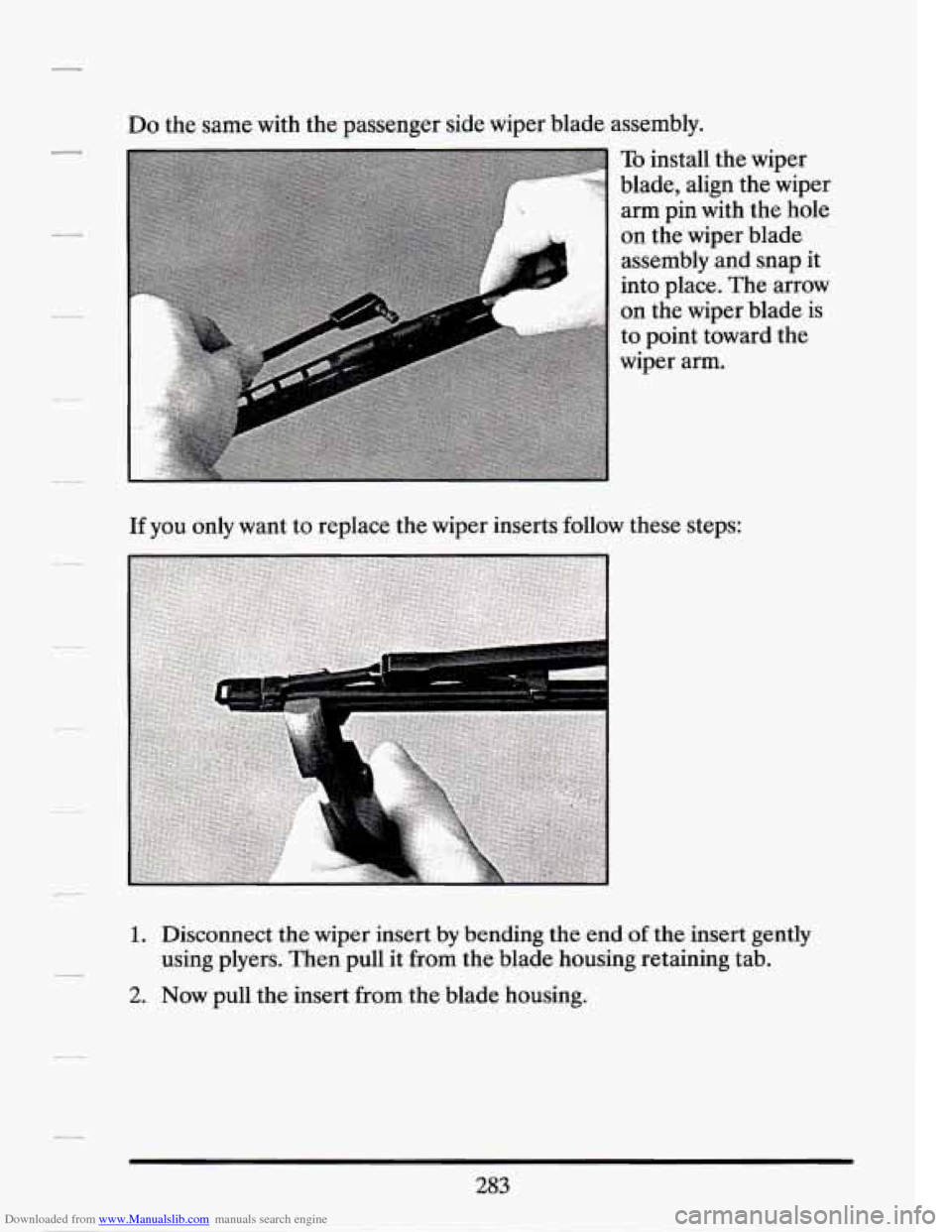

Downloaded from www.Manualslib.com manuals search engine Do the same-with the passenger side wiper blade assembly.
To install the wiper
blade, align the wiper
arm pin with the hole
on the wiper blade
assembly and snap it
into place. The arrow
on the wiper blade
is
to point toward the
wiper arm.
If you only want to replace the wiper inserts follow these steps:
1. Disconnect the wiper insert by bending the end of the insert gently
using plyers. Then pull it from the blade housing retaining tab.
2. Now pull the insert from the blade housing.
-
283

Downloaded from www.Manualslib.com manuals search engine 3. Reinstall the new insert by aligning the blade housing ram and the
edge
of the insert. Make sure that the insert is connected to all the
housing tabs.
4. Install the wiper blade assembly to the wiper arm.
AIR CLEANER FILTER REPLACEMENT
284

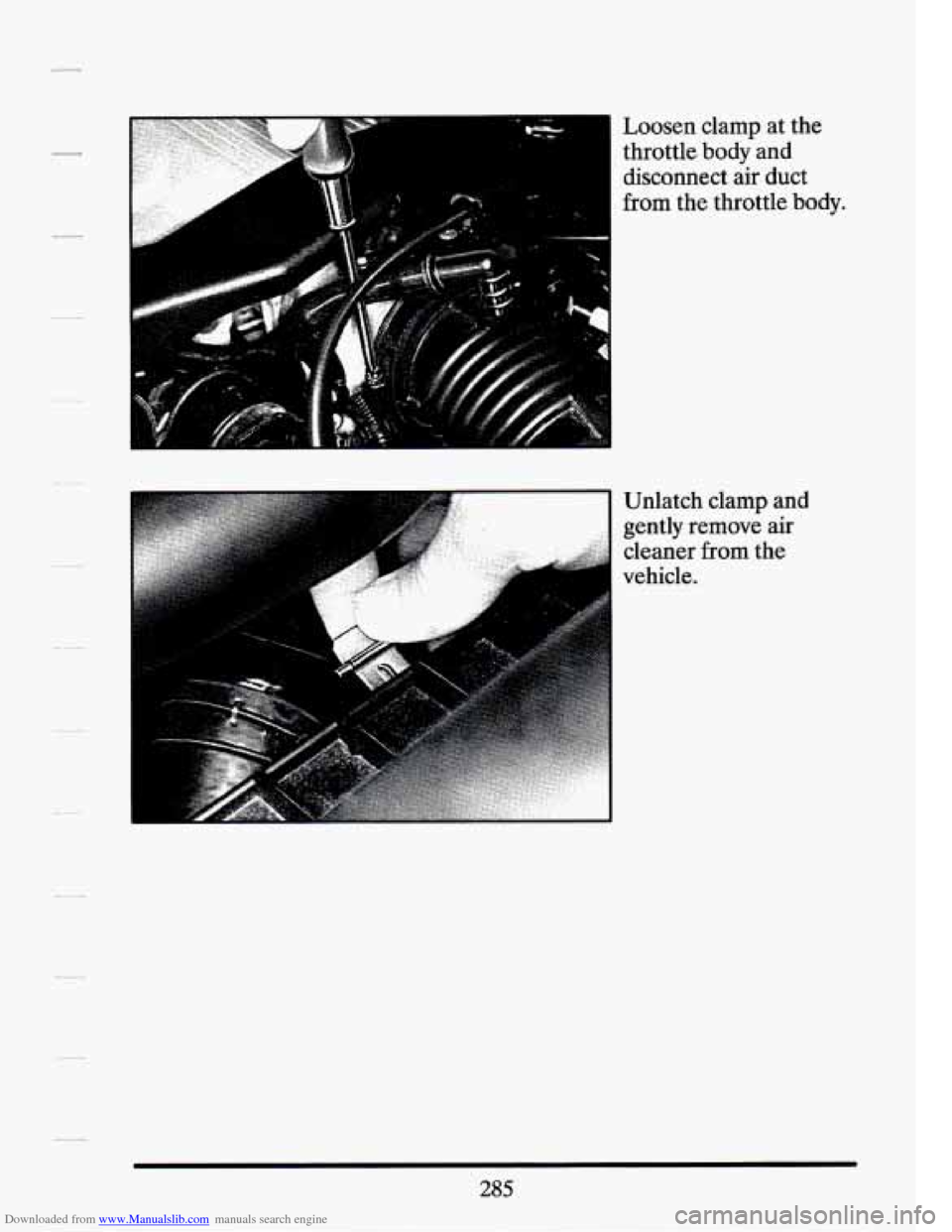

Downloaded from www.Manualslib.com manuals search engine LC
Loosen clamp at the
throttle
body and
disconnect air duct
; :.?. .. ..: , from the throttle body. .. . ,
285

Downloaded from www.Manualslib.com manuals search engine Push the two tabs and
pivot the top half
to
separate the air
cleaner.
Once
you have
replaced the air
cleaner filter, reverse
the steps
to reassemble
and install back into
your vehicle.
286
c. m
LS

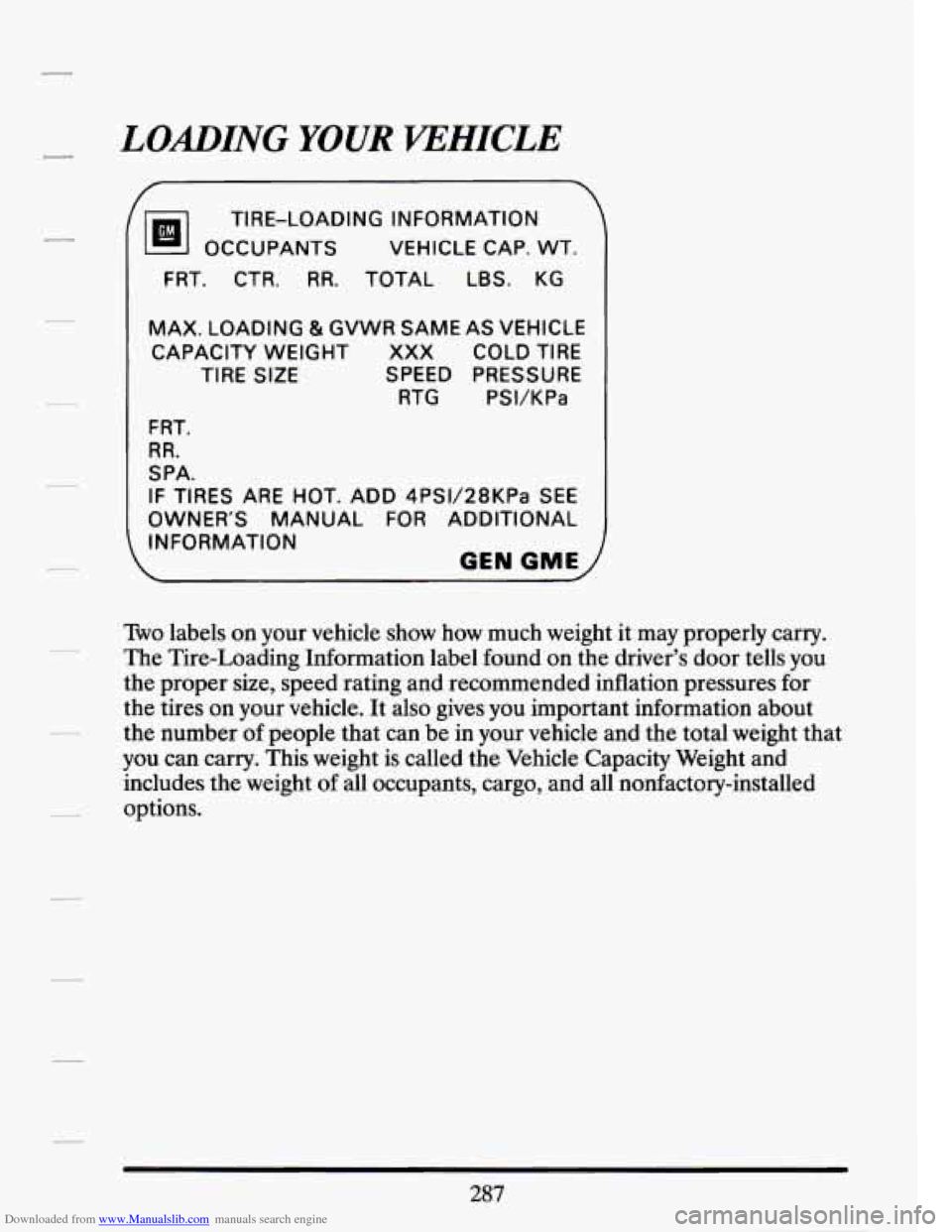

Downloaded from www.Manualslib.com manuals search engine LOADING YOUR VEHICLE

TIRE-LOADING INFORMATION
OCCUPANTS VEHICLE CAP. WT.
FRT. CTR.
RR. TOTAL LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE SIZE SPEED PRESSURE RTG PSI/KPa
F RT.
R R.
SPA.
IF TIRES ARE HOT. ADD 4PSV28KPa SEE
OWNER'S MANUAL FOR ADDITIONAL
GEN GM.E \'NFoRMAT1oN
Two labels on your vehicle show how much weight it may properly carry.
The Tire-Loading Information label found on the driver's door tells you
the proper
size, speed rating and recommended inflation pressures for
the tires on your vehicle. It also gives you important information about
the number of people that can be in your vehicle and the total weight that
you can carry. This weight is called the Vehicle Capacity Weight and
includes the weight
of all occupants, cargo, and all nonfactory-installed
options.
