CADILLAC SEVILLE 1998 4.G Owners Manual
Manufacturer: CADILLAC, Model Year: 1998, Model line: SEVILLE, Model: CADILLAC SEVILLE 1998 4.GPages: 378, PDF Size: 21.99 MB
Page 341 of 378
Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
Headlamps Composite High Beam
....................... 9005 HB3
Low Beam ........................ 9006 HB4
Front Turn Signal ..................... 2357 NA
Stop/Taillamp ........................... 3057
Rear Turn Signal
........................ 3057
Capacities and Specifications
Engine Specifications
Displacement ......... 279 cubic inches (4.565 cc)
Type
......................... 4.6 L DOHC V8
VIN Engine Code
SLS .................................... Y
STS .................................... 9
Horsepower
SLS ................... 275 (bhp) @ 5600 rpm
STS
................... 300 (bhp) @ 6000 rpm
205 (kW)
@ 5600 rpm
224 (kW)
@ 6000 rpm
Torque
SLS .................. 300 (lb-ft) @ 4000 rpm
407 (N-m)
@ 4000 rpm STS
.................. 295 (lb-ft) 63 4400 rpm
Firing Order
................... 1-2-7-3-4-5-6-8
400
(N-m)
@ 4400 rpm
Thermostat Starts To Open
, , 177- 184°F (8 1-85 “C)
Capacities
Please refer to “Recommended Fluids and Lubricants”
in your Maintenance Schedule booklet for more
information.
Transaxle
(4T80-E) .......... 15.0 quarts (14.2 L)
Crankcase (Engine Oil with Filter Change)
............... 7.5 quarts (7.1 L)
Engine Cooling System ........ 12.5 quarts (1 1.8 L)
R- 134a Refrigerant ............. 2.0 lbs. (0.9 1 kg)
Vehicle Dimensions
Wheel Base ............... 112.2 inches (285 cm)
Length
................. 200.9 inches (510.5 cm)
Height
................... 55.6 inches (141.4 cm)
Width
................... 74.9 inches (190.4 cm)
Front Tread
............... 62.7 inches (1 59.3 cm)
Rear Tread
............... 62.4 inches (158.6 cm)
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
Fuel Tank
.................. 18.5 gallons (70.0 L)
6-66
Page 342 of 378

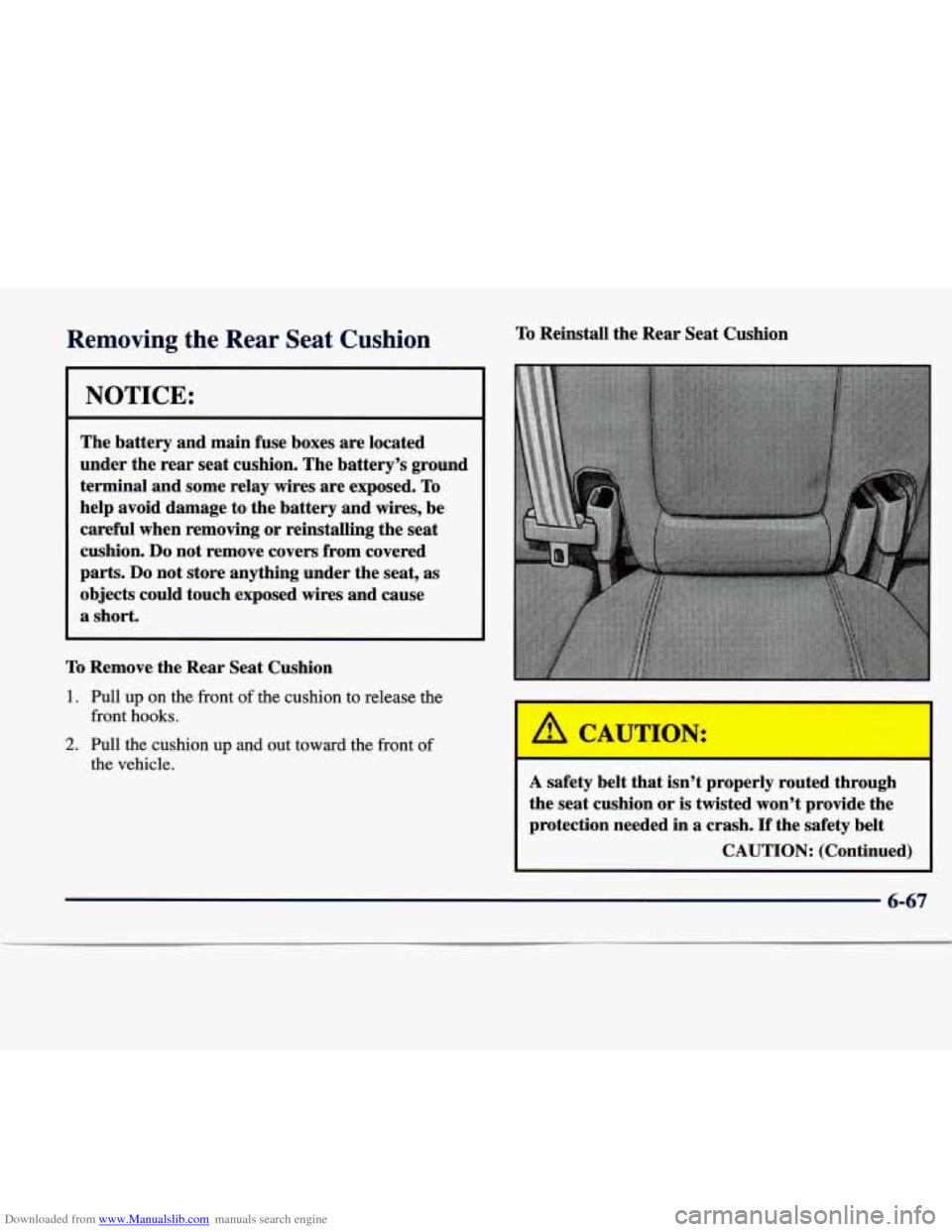

Downloaded from www.Manualslib.com manuals search engine Removing the Rear Seat Cushion
NOTICE:
The battery and main fuse boxes are located
under the rear seat cushion. The battery’s ground
terminal and some relay wires are exposed.
To
help avoid damage to the battery and wires, be
careful when removing or reinstalling the seat
cushion.
Do not remove covers from covered
parts.
Do not store anything under the seat, as
objects could touch exposed wires and cause
a short.
To Remove the Rear Seat Cushion
1. Pull up on the front of the cushion to release the
front
hooks.
2. hll the cushion up and out toward the front of
the vehicle.
To Reinstall the Rear Seat Cushion
A safety belt that isn’t properly routed through
the seat cushion or is twisted won’t provide the
protection needed in a crash.
If the safety belt
CAUTION: (Continued)
Page 343 of 378
Downloaded from www.Manualslib.com manuals search engine Air Conditioning Refrigerants
hasn’t been routed through the seat cushion at all, it won’t be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the
safety
belts are properly routed and are not twisted.
1.
2.
3.
4. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don’t let the safety belts get twisted.
Slide the rear of the cushion up and under the
seatback
so the rear-locating guides hook into the
wire loops on the back frame.
With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
Check to make sure the safety belts are properly
routed and that no portion of any safety belt is trapped under the seat. Also make sure the seat
cushion is secured. Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not
sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Filter Element ............. AC Type A1208C
25096932
Fuel Filter Element
............ AC Type GF-627
25121942
Engine Oil Filter
................ AC Type PF-58 25014377
PCV Valve
. . ............ AC Type CV-774C
06487779
Spark Plugs
................. AC Type 41-950
5614236
Thermostat
.................... AC Type 13 1-66
3531407
Windshield Wiper Blade (Hook Type)
.............. .22 inches (56.5 cm)
6-68
Page 344 of 378

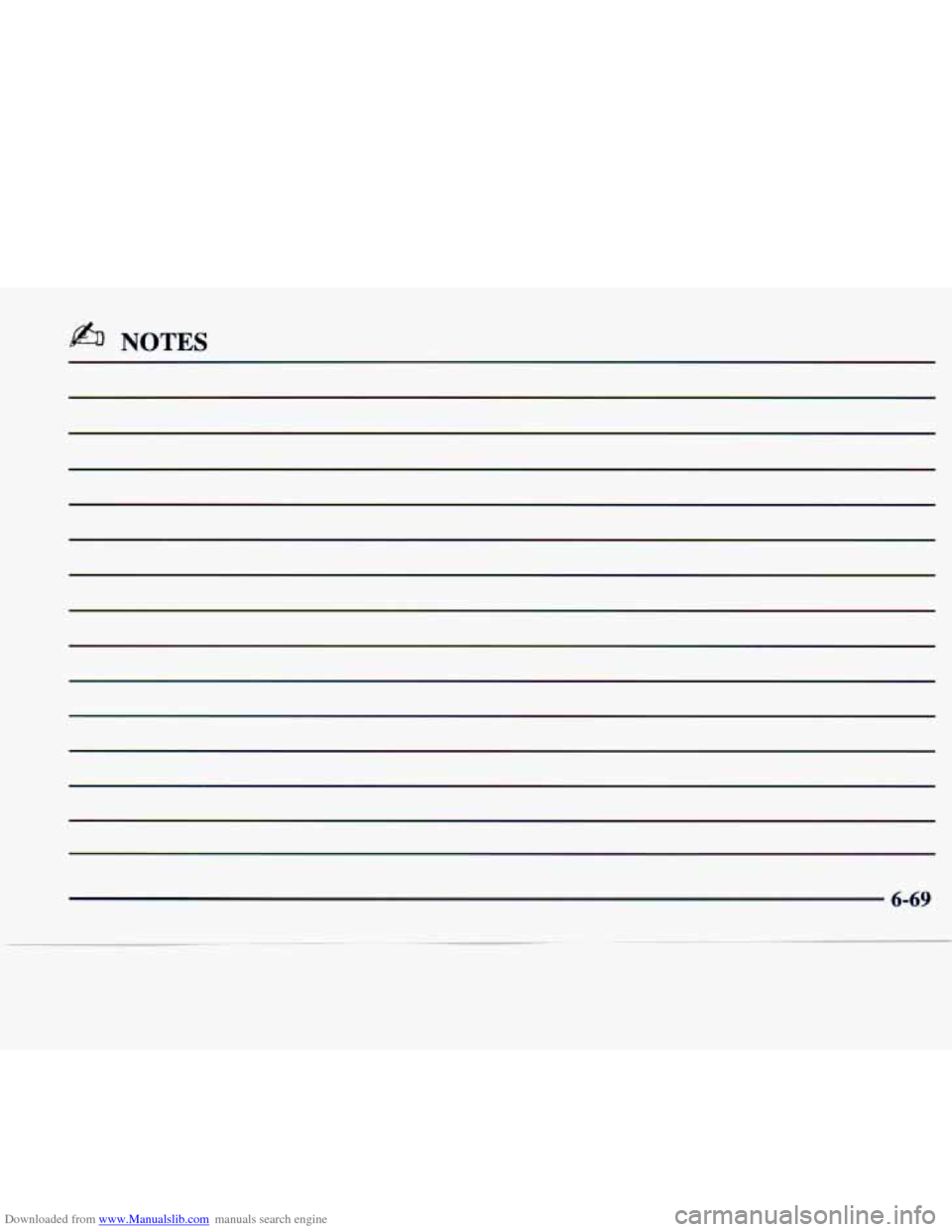

Downloaded from www.Manualslib.com manuals search engine @% NOTES
6-69
Page 345 of 378

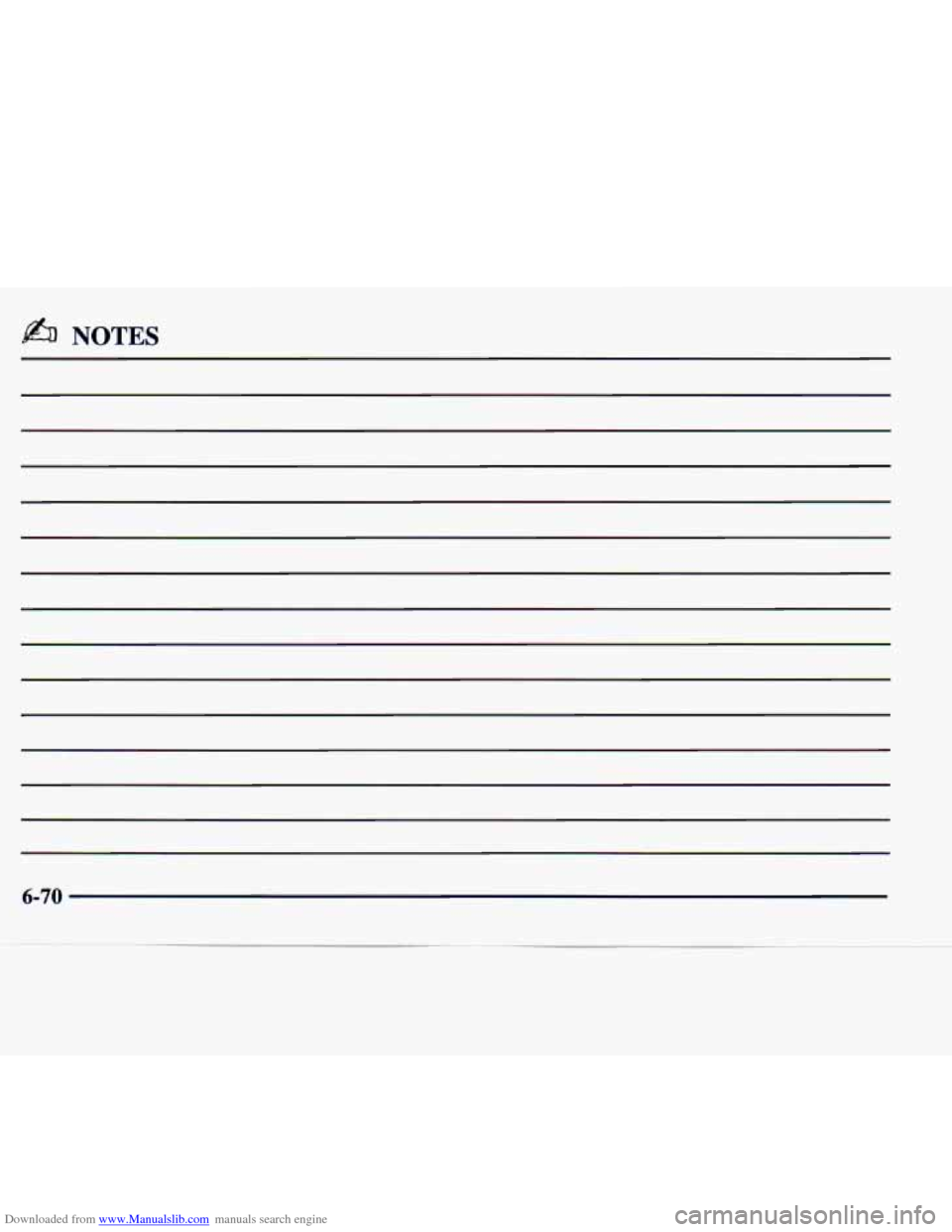

Downloaded from www.Manualslib.com manuals search engine b NOTES
6-70
Page 346 of 378
Downloaded from www.Manualslib.com manuals search engine /3- -a.

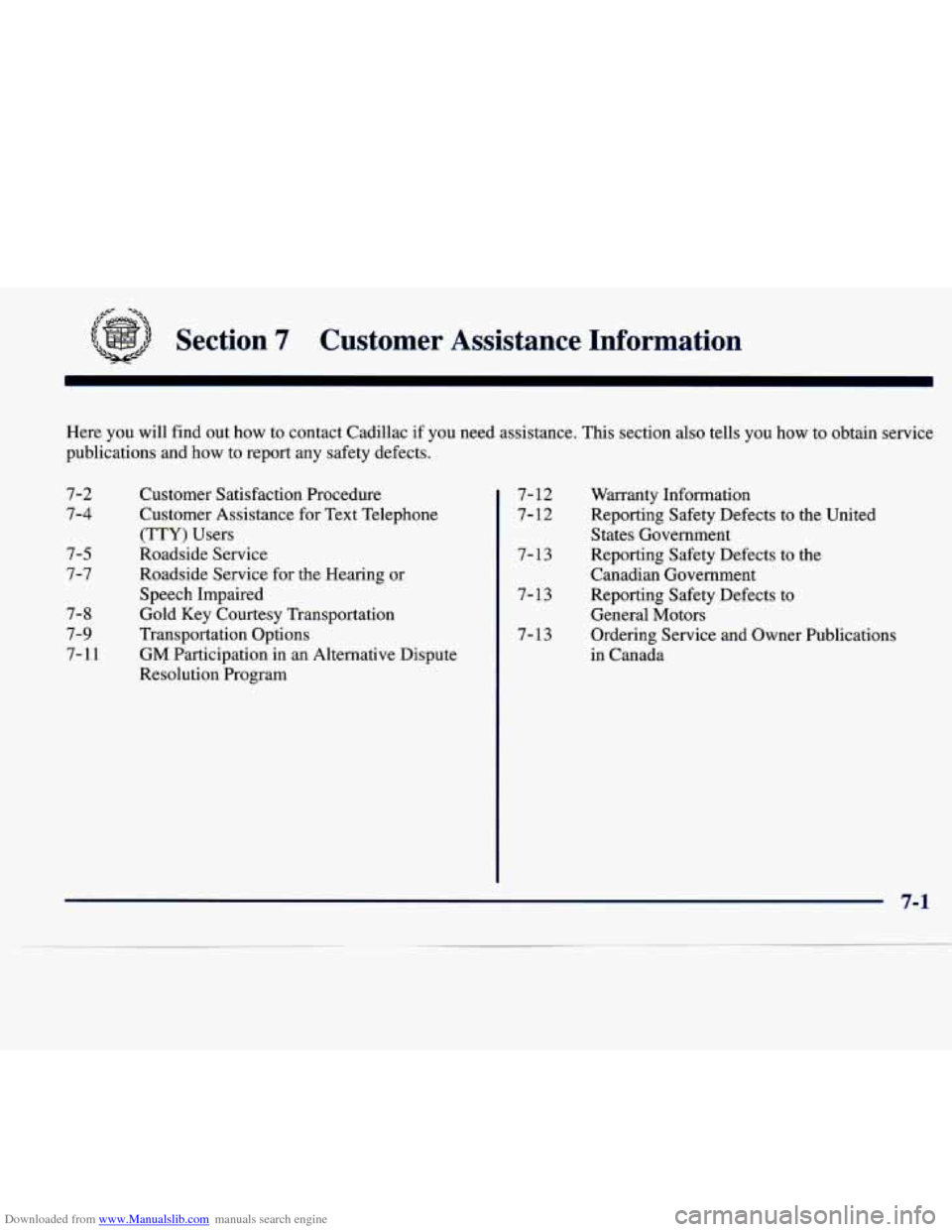

Section 7 Customer Assistance Information
Here you will find out how to contact Cadillac if you need assistance. This section a\
lso tells you how to obtain service
publications
and how to report any safety defects.
7-2
7-4
7-5
7-7
7-8
7-9
7-11
Customer Satisfaction Procedure
Customer Assistance
for Text Telephone
(TTY) Users
Roadside Service
Roadside Service for the Hearing
or
Speech Impaired
Gold Key Courtesy Transportation
Transportation Options
GM Participation in an Alternative Dispute
Resolution Program
7- 12
7- 12
7- 13
7-13
7-13 Warranty Information
Reporting Safety Defects to the United
States Government
Reporting Safety Defects to the
Canadian Government
Reporting Safety Defects to General Motors
Ordering Service and Owner Publications
in Canada
7-1
Page 347 of 378

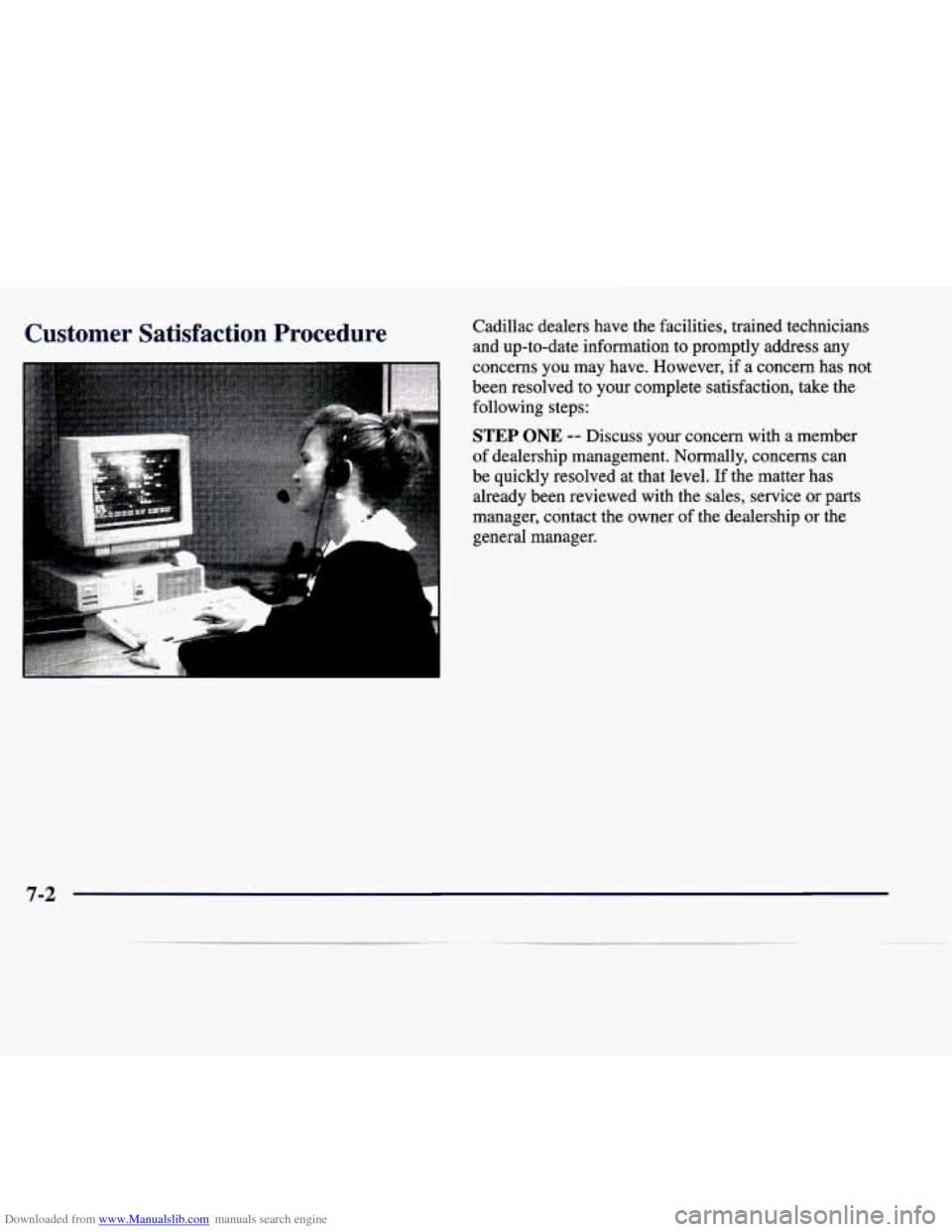

Downloaded from www.Manualslib.com manuals search engine Customer Satisfaction Procedure Cadillac dealers have the facilities, trained technicians and up-to-date information to promptly address any
concerns you may have. However,
if a concern has not
been resolved to your complete satisfaction, take the
following steps:
STEP ONE -- Discuss your concern with a member
of dealership management. Normally, concerns can
be quickly resolved at that level. If the matter has
already been reviewed with the sales, service or parts
manager, contact the owner
of the dealership or the
general manager.
7-2
Page 348 of 378

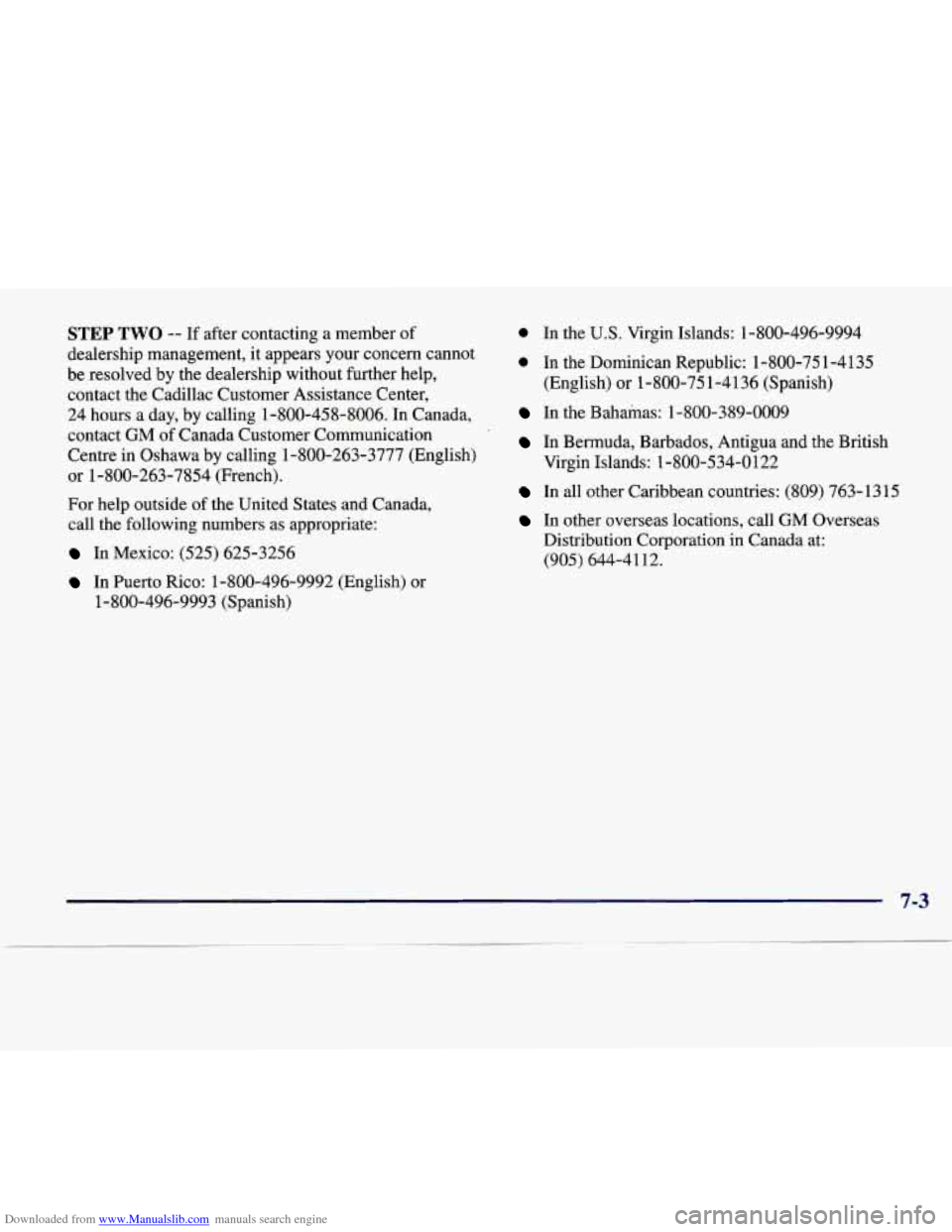

Downloaded from www.Manualslib.com manuals search engine STEP TWO -- If after contacting a member of
dealership management, it appears your concern cannot
be resolved by the dealership without further help,
contact the Cadillac Customer Assistance Center,
24 hours a day, by calling 1-800-458-8006.
In Canada,
contact
GM of Canada Customer Communication
Centre
in Oshawa by calling 1-800-263-3777 (English)
or 1-800-263-7854 (French).
For help outside of the United States and Canada,
call the following numbers as appropriate:
In Mexico: (525) 625-3256
In Puerto Rico: 1-800-496-9992 (English) or 1-800-496-9993 (Spanish)
0 In the U.S. Virgin Islands: 1-800-496-9994
0 In the Dominican Republic: 1-800-751-4135
In the Bahamas: 1-800-389-0009
(English) or 1-800-751-4136 (Spanish)
In Bermuda, Barbados, Antigua and the British
In all other Caribbean countries: (809) 763- 13
15
Virgin Islands: 1-800-534-0122
In other overseas locations, call GM Overseas
Distribution Corporation
in Canada at:
(905) 644-41 12.
Page 349 of 378

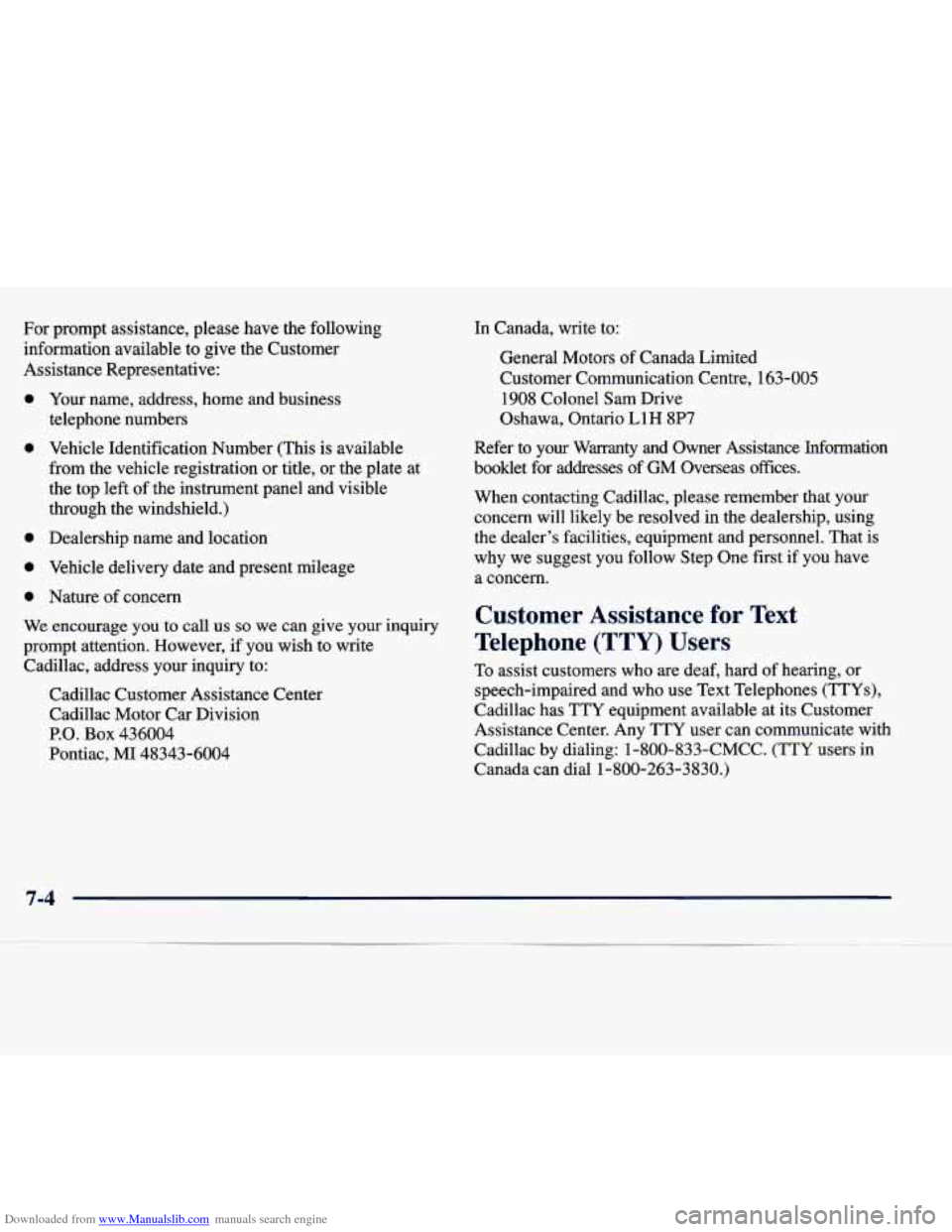

Downloaded from www.Manualslib.com manuals search engine For prompt assistance, please have the following
information available to give the Customer
Assistance Representative:
0 Your name, address, home and business
telephone numbers
0 Vehicle Identification Number (This is available
from the vehicle registration or title, or the plate at
the top left of the instrument panel and visible
through the windshield.)
0 Dealership name and location
0 Vehicle delivery date and present mileage
0 Nature of concern
We encourage you
to call us so we can give your inquiry
prompt attention. However, if you wish to write
Cadillac, address your inquiry to:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 436004
Pontiac,
MI 48343-6004 In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre,
163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H
8P7
Refer to your Warranty and Owner Assistance Information
booklet for addresses of GM Overseas offices.
When contacting Cadillac, please remember that
your
concern will likely be resolved in the dealership, using
the dealer’s facilities, equipment and personnel. That
is
why we suggest you follow Step One first if you have
a concern.
Customer Assistance for Text
Telephone (TTY) Users
To assist customers who are deaf, hard of hearing, or
speech-impaired and who use Text Telephones (TTYs),
Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with
Cadillac by dialing: 1-800-833-CMCC.
(TTY users in
Canada can dial 1-800-263-3830.)
7-4
Page 350 of 378

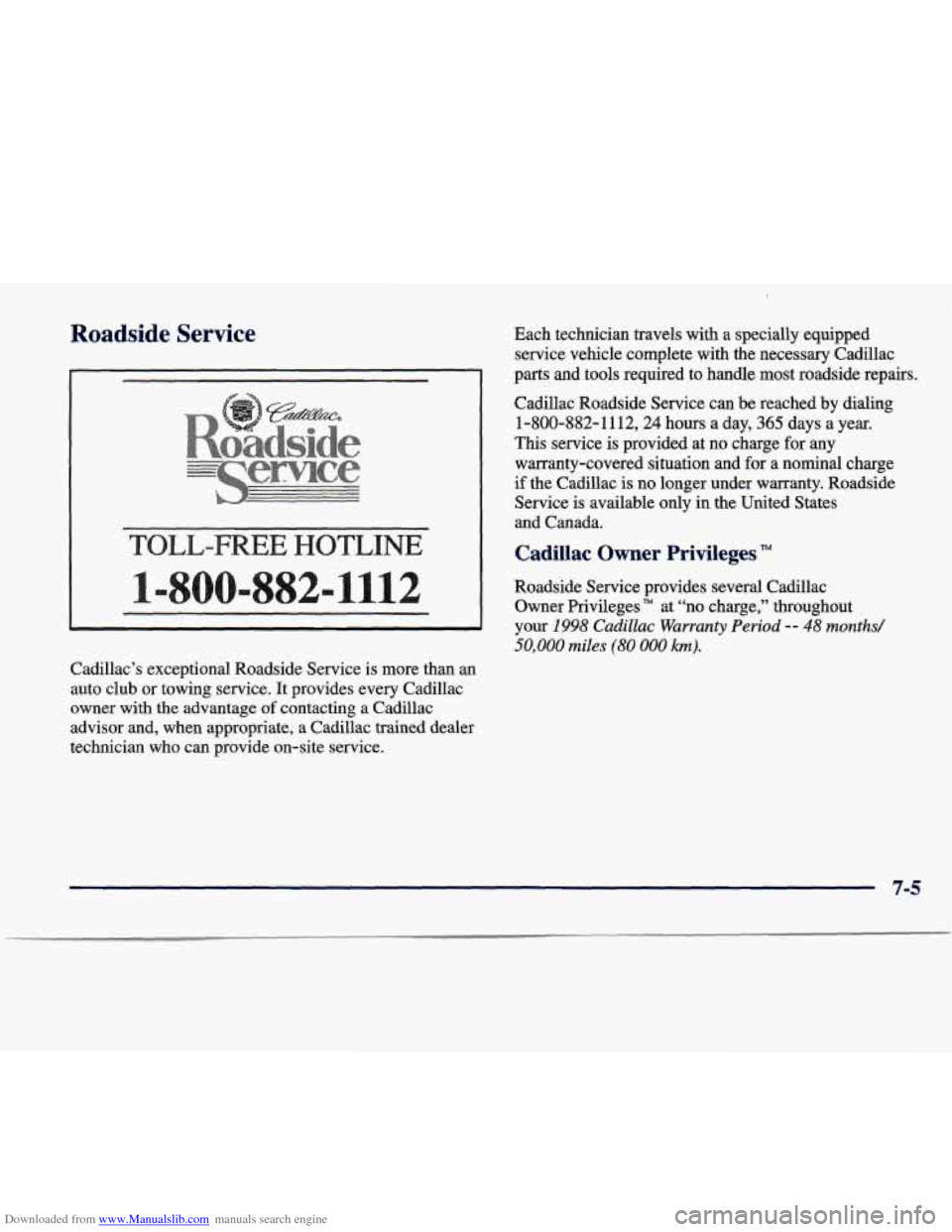

Downloaded from www.Manualslib.com manuals search engine Roadside Service
EE HOTLINE
1 1
Cadillac’s exceptional Roadside Service is more than an
auto club or towing service. It provides every Cadillac
owner with
the advantage of contacting a Cadillac
advisor and, when appropriate,
a Cadillac trained dealer
technician who can provide on-site service. Each technician travels with a specially equipped
service vehicle complete with the necessary Cadillac
parts and tools required to handle most roadside repairs.
Cadillac Roadside Service can be reached by dialing 1-800-882-1 112,24 hours a day,
365 days a year.
This service is provided at no charge for any
warranty-covered situation and for a nominal charge
if the Cadillac is no longer under warranty. Roadside
Service is available only in the United States
and Canada.
Cadillac Owner Privileges TM
Roadside Service provides several Cadillac Owner Privileges
TM at “no charge,” throughout
your
1998 Cadillac Warranty Period -- 48 months/
50,000 miles (80 000 km).
7-5
