CADILLAC SEVILLE 1998 4.G Repair Manual

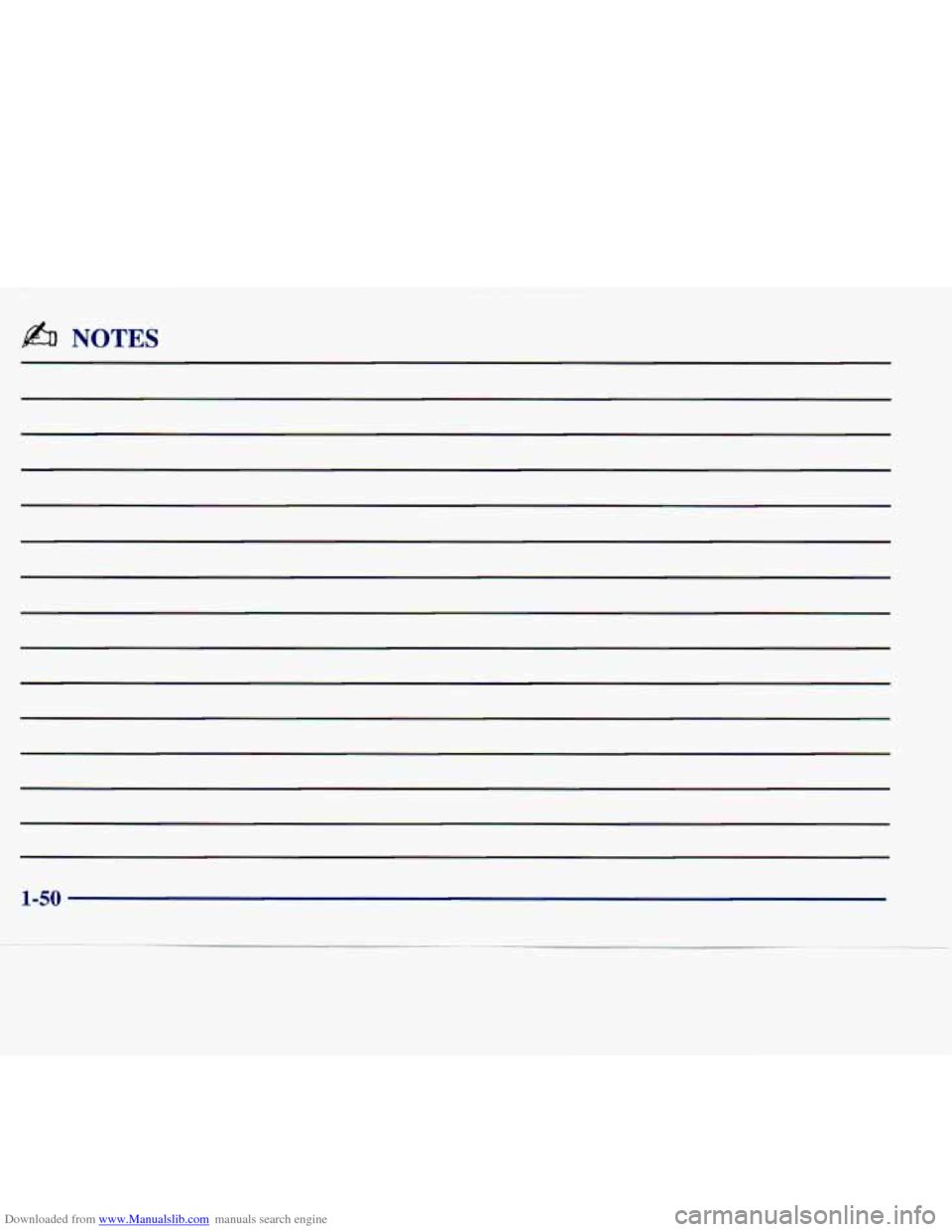

Downloaded from www.Manualslib.com manuals search engine $@ll NOTES
1-50

Downloaded from www.Manualslib.com manuals search engine a- ‘A-

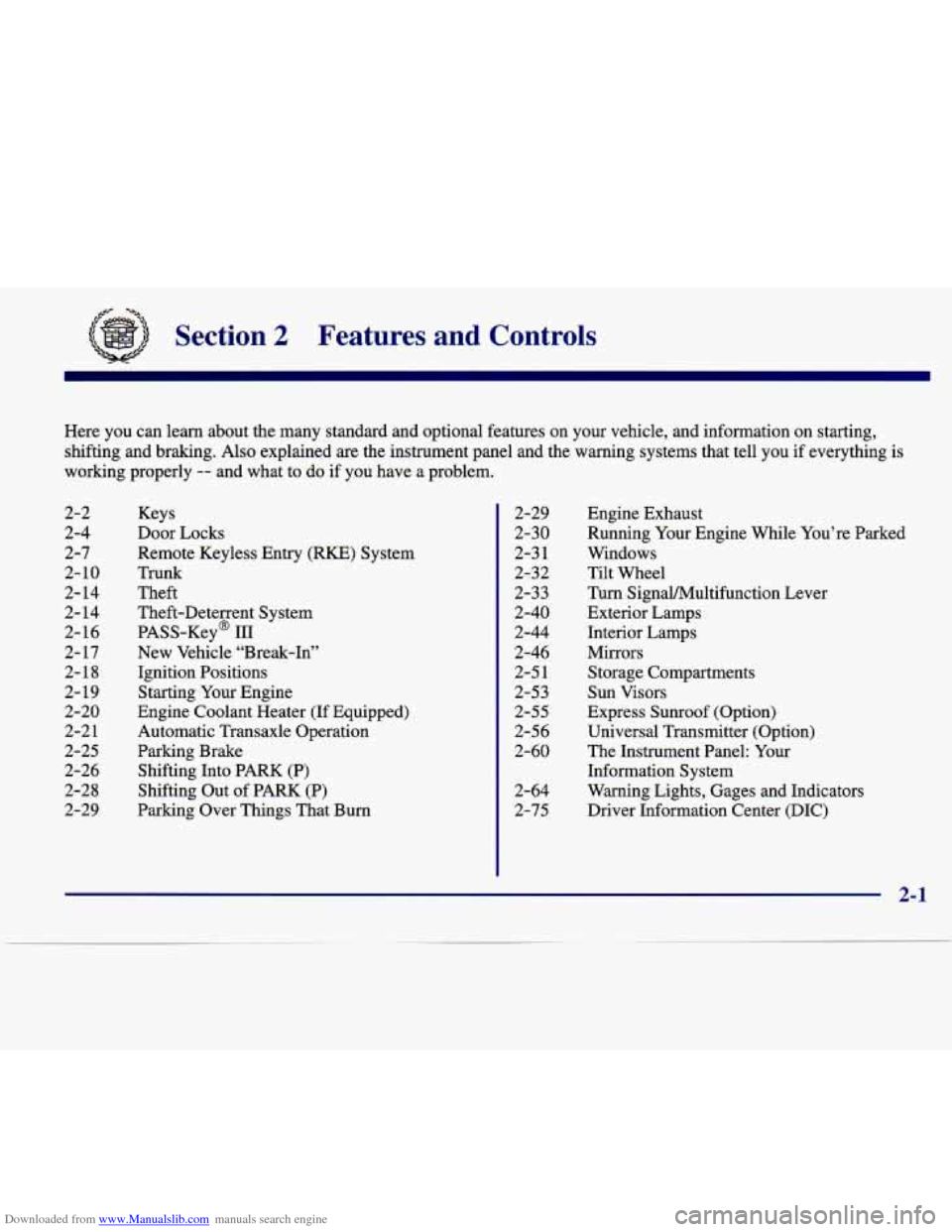

Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and inform\
ation on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2-2
2-4
2-7
2-10
2- 14
2- 14
2-16
2-17
2-18
2-
19
2-20
2-2
1
2-25
2-26
2-28
2-29 Keys
Door Locks
Remote Keyless Entry
(RKE) System
Trunk
Theft
Theft-Deterrent System
PASS-Key@
I11
New Vehicle “Break-In”
Ignition Positions Starting Your Engine
Engine Coolant Heater (If Equipped)
Automatic Transaxle Operation Parking Brake
Shifting Into PARK (P)
Shifting Out of PARK (P)
Parking Over Things That Burn 2-29
2-30
2-3
1
2-32
2-33
2-40
2-44
2-46
2-5 1
2-53
2-55
2-56
2-60
2-64
2-75
Engine Exhaust
Running Your Engine While You’re Parked
Windows
Tilt Wheel
Turn SignaVMultifunction Lever
Exterior Lamps
Interior Lamps
Mirrors
Storage Compartments
Sun Visors
Express
Sunroof (Option)
Universal Transmitter (Option)
The Instrument Panel: Your
Information System
Warning Lights, Gages and Indicators Driver Information Center (DIC)
2-1

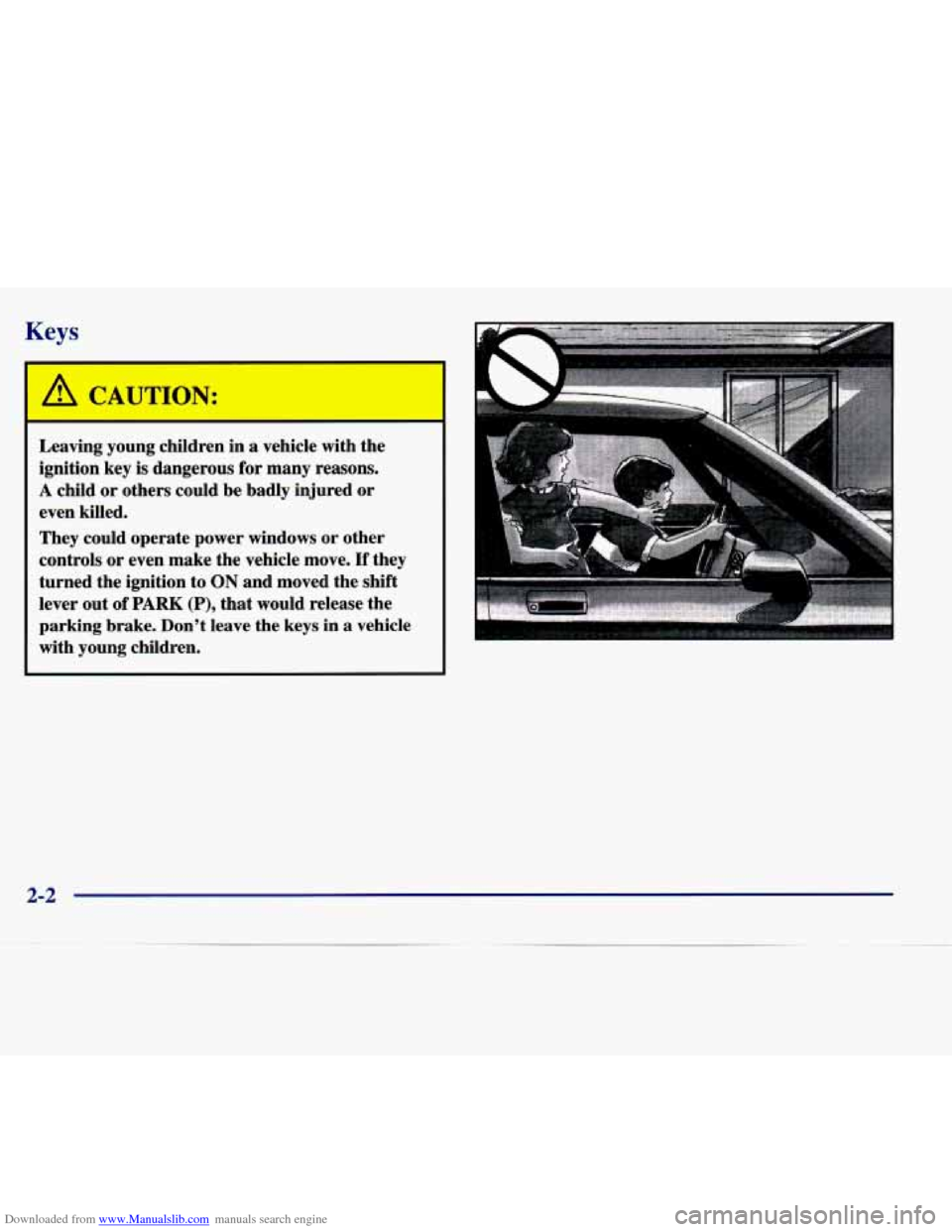

Downloaded from www.Manualslib.com manuals search engine Keys
-
A CAUTION:
Leaving young children in a vehicle with the
ignition key is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move. If they
turned the ignition to
ON and moved the shift
lever out of
PARK (P), that would release the
parking brake. Don't leave the
keys in a vehicle
with young children.
2-2

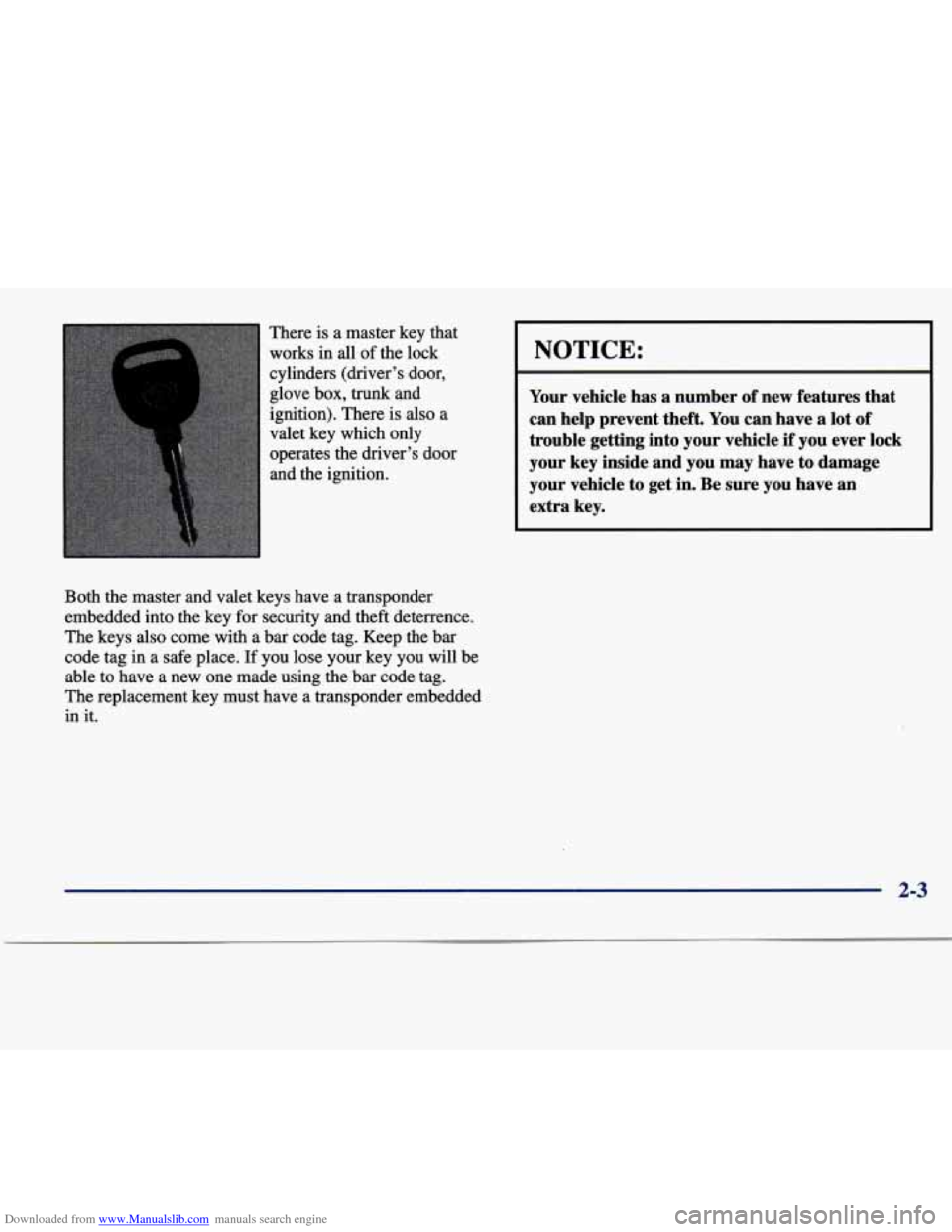

Downloaded from www.Manualslib.com manuals search engine There is a master key that
works in
all of the lock
cylinders (driver’s door, glove box,
trunk and
ignition). There is also a
valet key which only operates the driver’s door
and the ignition.
Both the master and valet keys have a transponder
embedded into the key for security and theft deterrence.
The keys also come with a bar code tag. Keep the bar
code tag in a safe place. If you lose your key you will be
able to have a new one made using the bar code tag.
The replacement key must have a transponder embedded
in it.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle
if you ever lock
your key inside and you may have to damage
your vehicle to get in. Be sure you have an extra key.
2-3

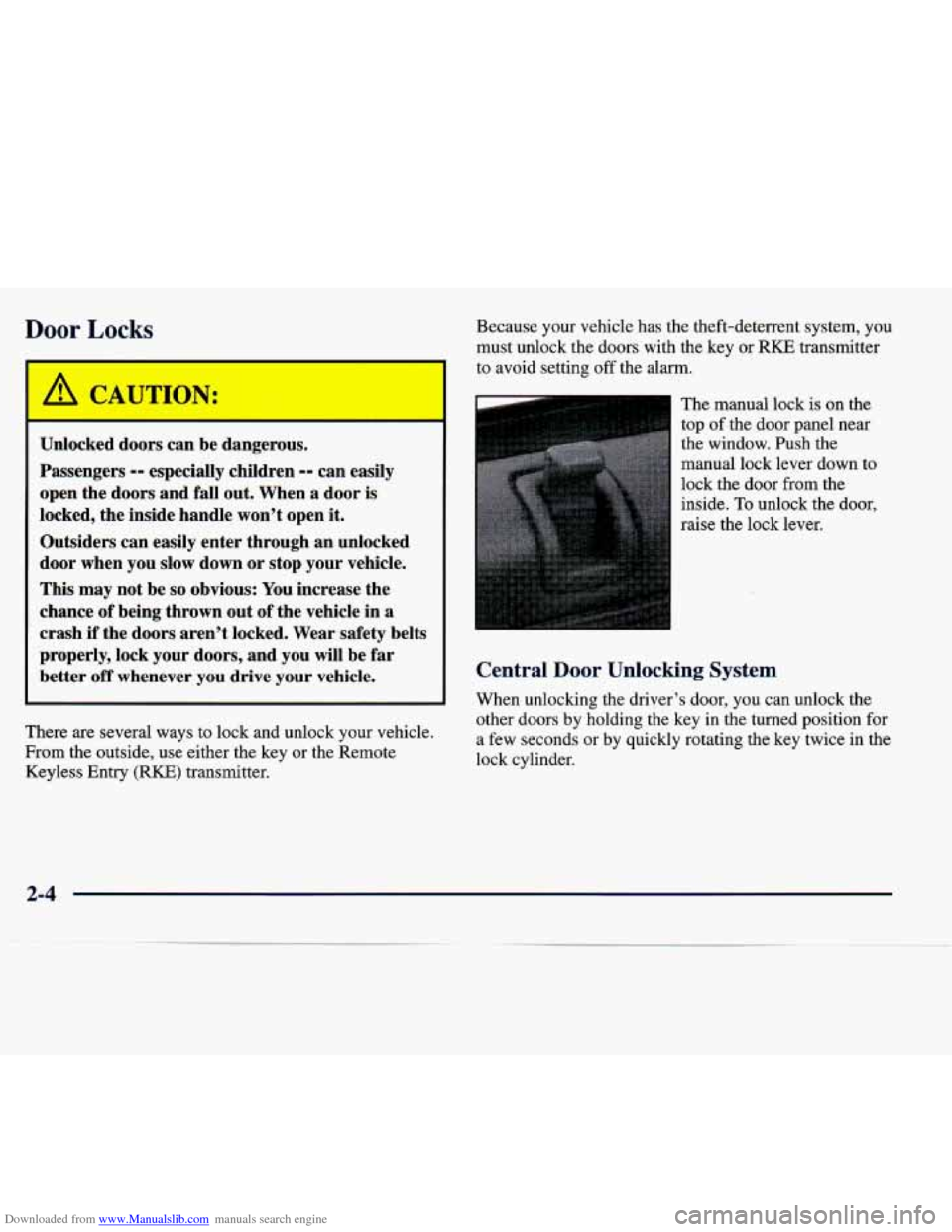

Downloaded from www.Manualslib.com manuals search engine Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance
of being thrown out of the vehicle in a
crash
if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better
off whenever you drive your vehicle.
rhere are several ways to lock and unlock your vehicle.
%om the outside, use either the key or the Remote
Keyless Entry (RKE) transmitter. Because your vehicle has the theft-deterrent system, you
must unlock
the
doors with the key or RKE transmitter
to avoid setting off the alarm.
I The manual lock is on the
top
of the door panel near
the window.
Push the
manual lock lever down to
lock the door from the
inside.
To unlock the door,
raise the lock lever.
Central Door Unlocking System
When unlocking the driver's door, you can unlock the
other doors by holding the key in the turned position for
a few seconds or by quickly rotating the key twice in the
lock cylinder.
2-4

Downloaded from www.Manualslib.com manuals search engine Power Door Locks
Press the up arrow on the
power door lock switch to
unlock all of the doors at
once. Press the down arrow
to lock the doors.
The rear power door lock switches only provide a
lock function as
a safety feature. They will not unlock
the doors.
Automatic Door Locks
Close your doors and turn on the ignition. Every time
you move the shift lever out of PARK (P), all of the
doors will lock. The doors will unlock
every time you
stop the vehicle and move the shift lever into PARK (P).
If someone needs to get out while your vehicle is not in
PARK
(P), have that person use the manual or power
lock. When the door is closed again, it will not lock automatically. Use the manual or power lock
to lock the
door again.
If you need to lock the doors before shifting
out of PARK (P), use the manual or power lock switch
to lock the doors.
Programmable Automatic Door Locks
With the vehicle in PARK (P) and the ignition in ON,
the door locks can be programmed through prompts
displayed by the Driver Information Center
(DIC).
These prompts allow the driver to choose various lock
and unlock settings. For programming information, see
“Memory and Personalization Features” in the Index.
2-5

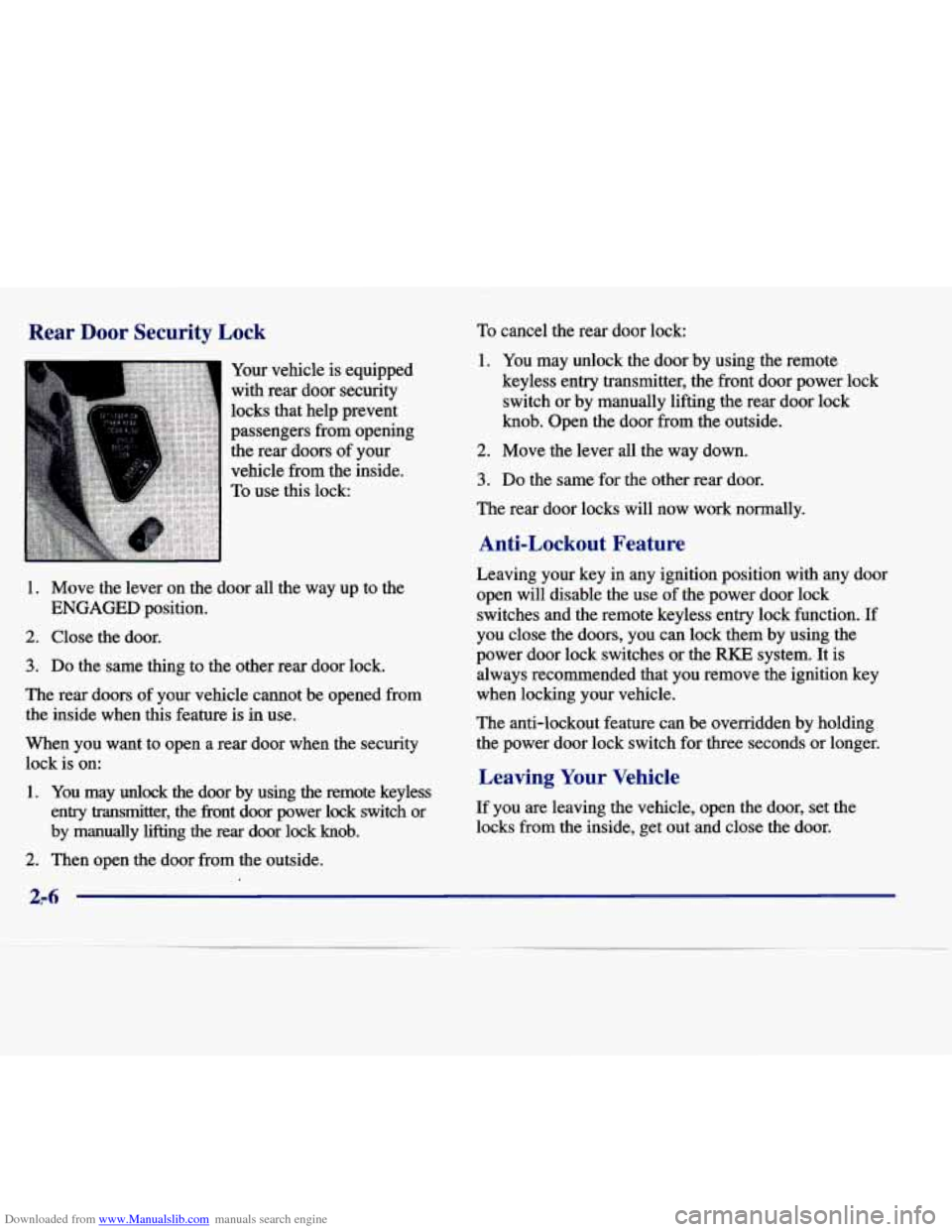

Downloaded from www.Manualslib.com manuals search engine Rear Door Security Lock
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To use this lock:
1. Move the lever on the door all the way up to the
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors of your vehicle cannot be opened from
the inside when this feature
is in use.
When you want to open a rear door when the security
lock is on:
1. You may unlock the door by using the remote keyless
entry transmitter, the
fkont door power lock switch or
by manually
lifting the rear door lock knob.
ENGAGED position.
2. Then open the door from the outside.
To cancel the rear door lock:
1. You may unlock the door by using the remote
keyless entry transmitter, the front door power lock
switch or by manually lifting the rear door lock
knob. Open the door from the outside.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
Leaving your key in any ignition position with any door
open will disable the use of the power door lock
switches and the remote keyless entry lock function. If
you close the doors,
you can lock them by using the
power door lock switches or the
RKE system. It is
always recommended that you remove the ignition key
when locking your vehicle.
The anti-lockout feature can be overridden by holding
the power door lock switch for three seconds or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.

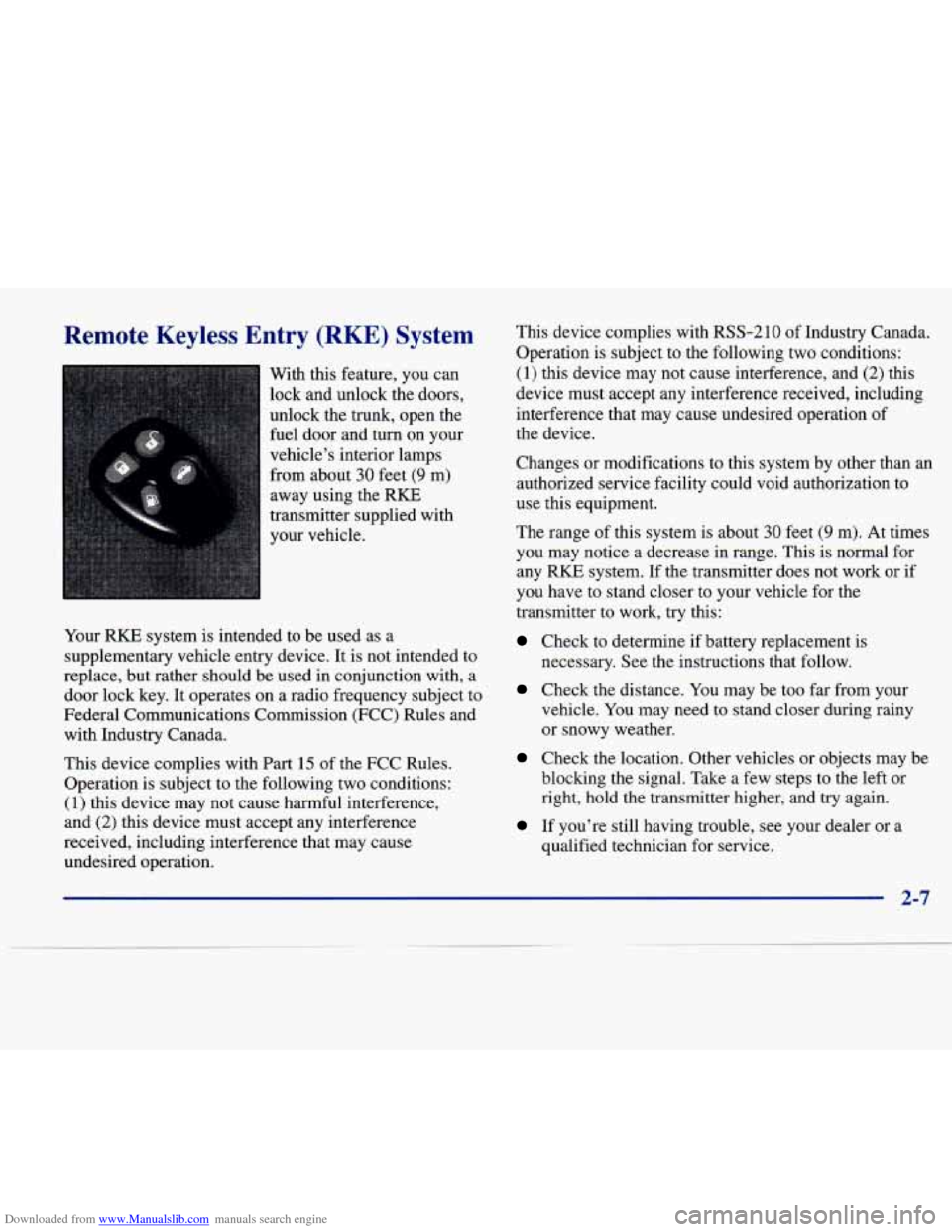

Downloaded from www.Manualslib.com manuals search engine Remote Keyless Entry (RKE) System
I
With this feature, you can
lock and unlock the doors,
unlock the trunk, open the
fuel door and turn on your
vehicle’s interior lamps
from about
30 feet (9 m)
away using the
RKE
transmitter supplied with
your vehicle.
Your
RKE system is intended to be used as a
supplementary vehicle entry device. It is not intended to
replace, but rather should be used in conjunction with, a
door lock key.
It operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules and
with Industry Canada.
This device complies with Part
15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation. This device complies with
RSS-210 of
Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation
of
the device.
Changes or modifications to this system by other than
an
authorized service facility could void authorization to
use this equipment.
The range of this system is about
30 feet (9 m). At times
you may notice
a decrease in range. This is normal for
any
RKE system. If the transmitter does not work or if
you have to stand closer to your vehicle for the
transmitter
to work, try this:
Check to determine if battery replacement is
necessary. See the instructions that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and
try again.
If you’re still having trouble, see your dealer or a
qualified technician for service.
2-7

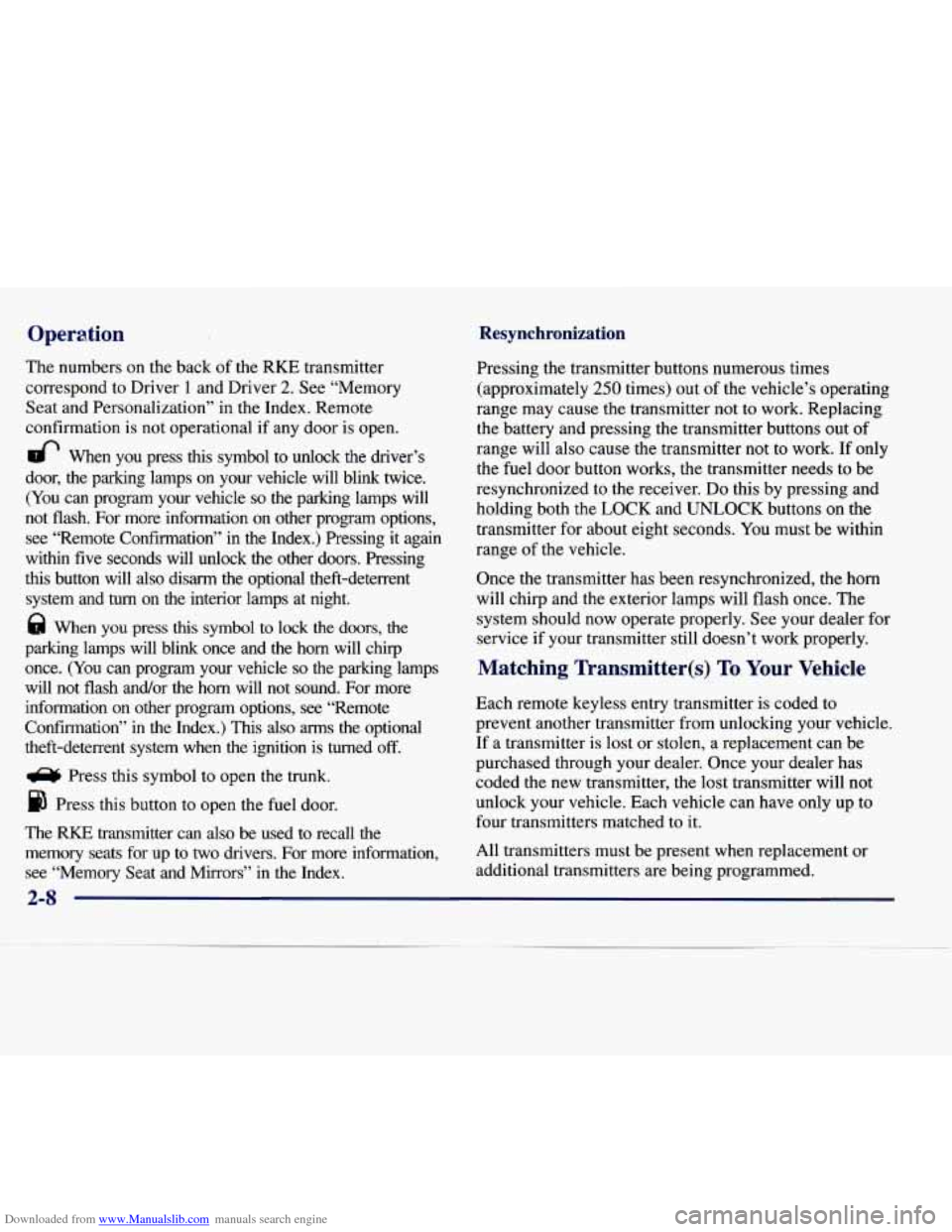

Downloaded from www.Manualslib.com manuals search engine Operation
The numbers on the back of the RKE transmitter
correspond
to Driver 1 and Driver 2. See “Memory
Seat and Personalization” in the Index. Remote
confirmation is not operational if any door
is open.
& When you press this symbol to unlock the driver’s
door, the parking lamps on your vehicle will blink twice.
(You can program your vehicle
so the parking lamps will
not flash. For more information on other program options,
see “Remote Confirmation” in the Index.) Pressing it agai\
n
within five seconds will unlock
the other doors. Pressing
this button will also disarm the optional theft-deterrent
system and
turn on the interior lamps at night.
9 When you press this symbol to lock the doors, the
parking lamps will blink once and the horn will chirp once. (You can program your vehicle
so the parking lamps
will not flash andor the horn will not sound. For more
information on other program options, see “Remote
Confirmation” in the Index.)
This also arrns the optional
theft-deterrent system when the ignition is turned
off.
a Press this symbol to open the trunk.
Press this button to open the fuel door.
The
RKE transmitter can also be used to recall the
memory seats for up to two drivers. For more information,
see “Memory Seat and Mirrors”
in the Index.
Resynchronization
Pressing the transmitter buttons numerous times
(approximately
250 times) out of the vehicle’s operating
range may cause the transmitter not
to work. Replacing
the battery and pressing the transmitter buttons out
of
range will also cause the transmitter not to work. If only
the fuel door button works, the transmitter needs to be
resynchronized to the receiver.
Do this by pressing and
holding both the
LOCK and UNLOCK buttons on the
transmitter for about eight seconds. You must be within
range of the vehicle.
Once the transmitter has been resynchronized, the horn
will chirp and the exterior lamps will flash once. The
system should now operate properly. See your dealer for
service if your transmitter still doesn’t work properly.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has coded the new transmitter, the lost transmitter will not
unlock your vehicle. Each vehicle can have only
up to
four transmitters matched to it.
All transmitters must be present when replacement or additional transmitters are being programmed.
2-8

Downloaded from www.Manualslib.com manuals search engine Battery Replacement

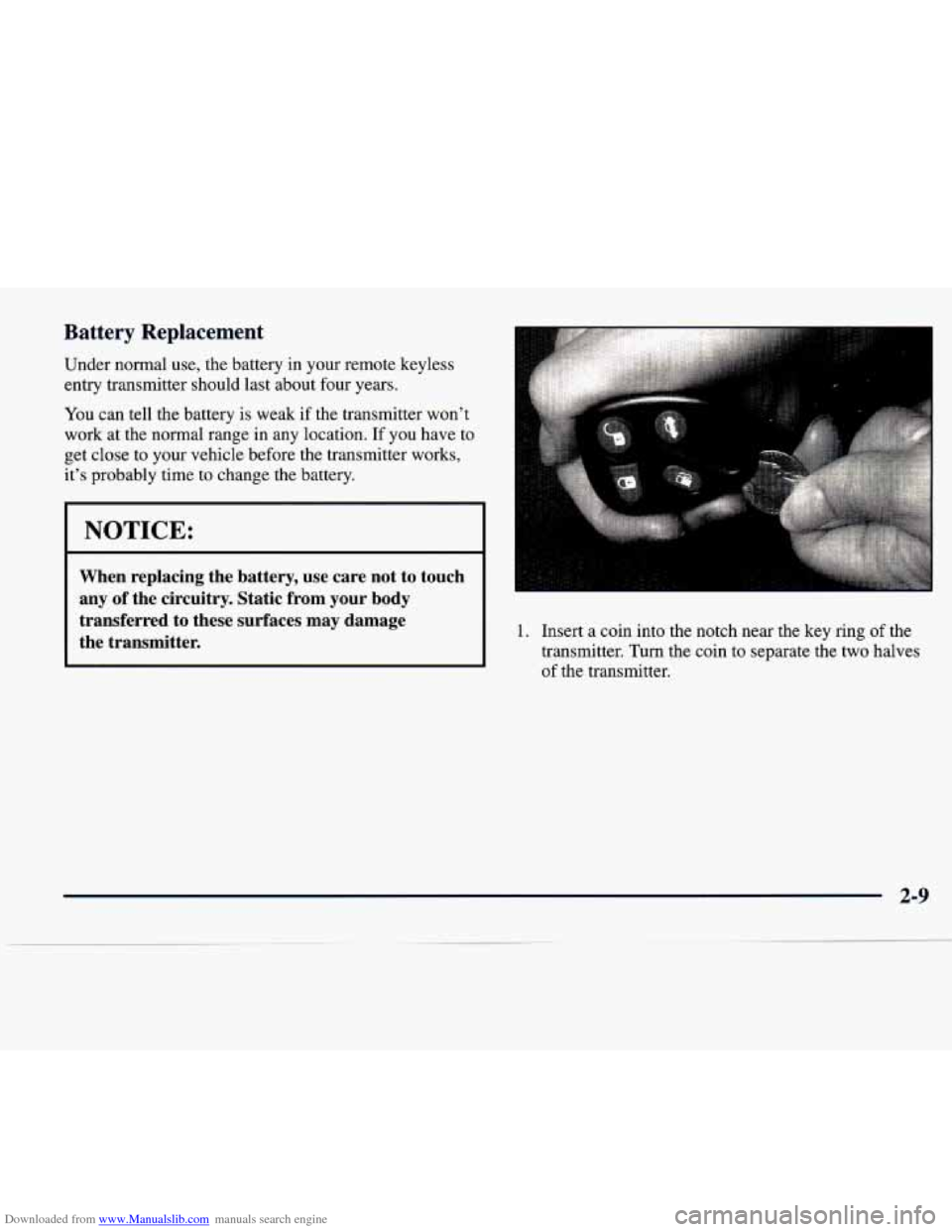

Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
I NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
1. Insert a coin into the notch near the key ring of the
transmitter.
Turn the coin to separate the two halves
of the transmitter.
2-9
