CADILLAC SEVILLE 2000 5.G Owners Manual

2-91 Doors Lock in Gear
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the DOORS
LOCK IN GEAR prompt appears. This feature will
automatically lock all doors when the vehicle is shifted
out of PARK (P) and all the doors are closed. To turn
the feature on, press ON/OFF until ON is displayed on
the DIC. To turn the feature off, press ON/OFF until
OFF is displayed.
Driver Unlock in PARK (P)
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the DRIVER
UNLOCK IN PARK (P) prompt appears. This feature
will automatically unlock only the driver's door when the
vehicle is shifted into PARK (P). To turn the feature on,
press ON/OFF until ON is displayed on the DIC. To turn
the feature off, press ON/OFF until OFF is displayed.
Driver Unlock Key Off
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the DRIVER
UNLOCK KEY OFF prompt appears. This feature will automatically unlock only the driver's
door when the ignition key is turned to OFF. To turn the
feature on, press ON/OFF until ON is displayed on the
DIC. To turn the feature off, press ON/OFF until OFF
is displayed.
Doors Unlock in PARK (P)
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the DOORS
UNLOCK IN PARK prompt appears. This feature
will automatically unlock all doors when the vehicle is
shifted into PARK (P). To turn the feature on, press
ON/OFF until ON is displayed on the DIC. To turn
the feature off, press ON/OFF until OFF is displayed.
Doors Unlock Key Off
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the DOORS
UNLOCK KEY OFF prompt appears. This feature will
automatically unlock all doors when the ignition key is
turned to OFF. To turn the feature on, press ON/OFF
until ON is displayed on the DIC. To turn the feature
off, press ON/OFF until OFF is displayed.

2-92 Mirror To Curb In Reverse (If Equipped)
Press the down arrow on the INFO button one or
more times until the MIRROR TO CURB IN REV
prompts appears on the DIC display. This feature will
move the passenger's outside rearview mirror to a curb
view position when the console shifter is placed in
REVERSE (R) and it will return the mirror to the last
known driving position when the console shifter is
moved out of REVERSE (R). To turn this feature on,
press the ON/OFF button until ON is displayed on the
DIC. To turn the feature off, press the ON/OFF button
until OFF is displayed. For more information, see
ªCurb View Assist Mirrorº in the Index.
Driver's Names Set/Recall (If Equipped)
After the FEATURE PROGRAMMING prompt is
displayed on the DIC and the ON/OFF button is pressed,
the prompts DRIVER NO 1 or DRIVER NO 2 will
appear. These prompts correspond to which RKE
transmitter button or memory recall button has been
pressed on the driver's door armrest. You may have
your name and a second driver's name displayed here, replacing the prompts DRIVER NO 1 and DRIVER
NO 2. A dealership can program your vehicle to display
the names you want. The names will appear whenever
the key is turned to ON only if RKE transmitters 1 or 2
are used to enter the vehicle or buttons 1 or 2 on the
driver's door are pressed.
Comfort Controls and Radio System
Personalization
These features allow both drivers to personalize their own
climate control settings as well as their radio settings. For
more information, see ªClimate Control Personalizationº
and ªRadio Personalizationº in the Index.
The outside temperature is always available for display
if it has been selected for a DIC display when your
vehicle is running unless an overriding DIC message
appears. You can change the temperature from
Fahrenheit to Celsius by pressing the ENG/MET
(English/metric) button on the instrument panel. For
more information on the DIC, see ªDIC Messagesº
in the Index.

2-93
The electronic sensor can be affected by road or engine
heat during idling, slow driving or when the engine is
first stared after a short trip. To ensure proper automatic
climate control operation, the outside air temperature
display may not update as quickly as expected. This is to
allow the air surrounding the outside temperature sensor
to be as close to the actual outside conditions as possible.
This is determined by how much time has elapsed since
the vehicle has been turned off and by vehicle speed.
Continuous Variable Road Sensing
Suspension (CVRSS)
The CVRSS automatically adjusts the ride of your
vehicle. Automatic ride control is achieved through a
computer used to control and monitor the suspension
system. The controller receives input from various
sensors to determine the proper system response.
If the controller detects a problem within the system,
the DIC will display a SERVICE SUSPENSION SYS
message. If this message appears, have your vehicle
serviced at your dealership.
Oil Life Indicator
This feature lets you know when to change the engine
oil. It's based on the engine oil temperatures and your
driving patterns. To see the display, press the INFO
button several times until ENGINE OIL LIFE appears.
If you see 99% ENGINE OIL LIFE, 99 percent of your
current oil life remains.
The DIC may display a CHANGE ENGINE OIL message.
Always keep a written record of the mileage and date
when you changed your oil. For more information, see
the Maintenance Schedule booklet. If you see CHANGE
ENGINE OIL, it means the oil life is gone and you should
change the oil right away. The system doesn't check how
much oil you have, so you'll still have to check for that.
To see how, see ªEngine Oilº in the Index.
When the oil is changed, you'll need to reset the system.
See ªOil Life Indicator, How to Resetº in the Index.

2-94

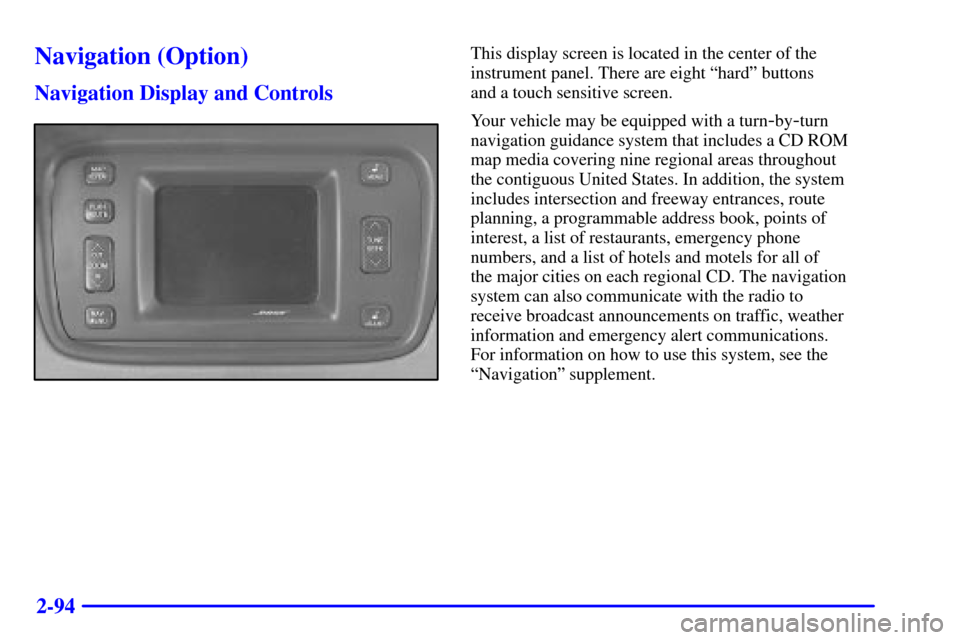

Navigation (Option)
Navigation Display and Controls
This display screen is located in the center of the
instrument panel. There are eight ªhardº buttons
and a touch sensitive screen.
Your vehicle may be equipped with a turn
-by-turn
navigation guidance system that includes a CD ROM
map media covering nine regional areas throughout
the contiguous United States. In addition, the system
includes intersection and freeway entrances, route
planning, a programmable address book, points of
interest, a list of restaurants, emergency phone
numbers, and a list of hotels and motels for all of
the major cities on each regional CD. The navigation
system can also communicate with the radio to
receive broadcast announcements on traffic, weather
information and emergency alert communications.
For information on how to use this system, see the
ªNavigationº supplement.

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Climate Control Panel
3
-6 Air Conditioning
3
-6 Heating
3
-7 Defrosting and Defogging
3
-7 Rear Window Defogger
3
-8 Ventilation System
3
-10 HVAC Steering Wheel Controls
3
-10 Climate Control Personalization (If Equipped)
3
-11 Audio Systems
3
-11 Setting the Clock
3
-11 AM-FM Stereo with Cassette Tape and
Compact Disc Player
3
-16 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data Systems
(RDS) and Digital Signal Processing (DSP)
(If Equipped)
3
-25 AM-FM Stereo with Cassette Tape and MiniDisc
Player with Radio Data Systems (RDS) and
Digital Signal Processing (DSP) (If Equipped)3
-34 AM-FM Stereo with Cassette Tape and
Radio Data Systems (RDS) with Digital
Signal Processing (DSP) and Communiport


Infotainment System (If Equipped)
3
-47 Radio Data Systems (RDS) Program
Type (PTY) Selections
3
-48 Navigation/Radio System (Option)
3
-48 CD Adapter Kits
3
-49 Console-Mounted CD Changer (Option)
3
-51 Radio Personalization with Home and Away
Feature (If Equipped)
3
-52 Theft-Deterrent Feature
3
-52 Audio Steering Wheel Controls
3
-53 Understanding Radio Reception
3
-53 Tips About Your Audio System
3
-54 Care of Your Cassette Tape Player
3
-55 Care of Your Compact Discs
3
-55 Care of Your Compact Disc Player
3
-56 Diversity Antenna System

3-2
Comfort Controls
This section tells you how to make your air system
work for you.

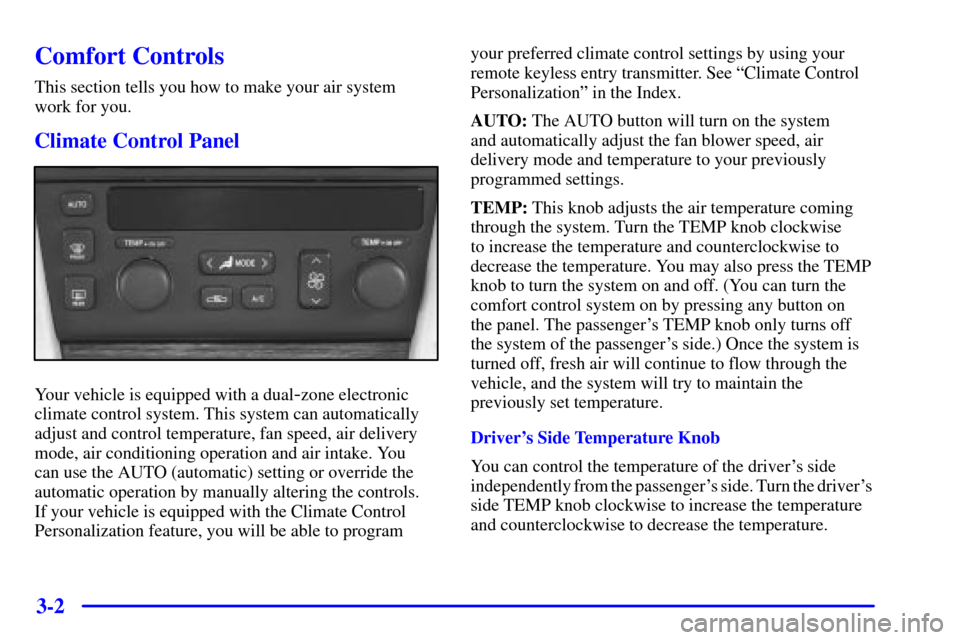

Climate Control Panel
Your vehicle is equipped with a dual-zone electronic
climate control system. This system can automatically
adjust and control temperature, fan speed, air delivery
mode, air conditioning operation and air intake. You
can use the AUTO (automatic) setting or override the
automatic operation by manually altering the controls.
If your vehicle is equipped with the Climate Control
Personalization feature, you will be able to program
your preferred climate control settings by using your
remote keyless entry transmitter. See ªClimate Control
Personalizationº in the Index.
AUTO: The AUTO button will turn on the system
and automatically adjust the fan blower speed, air
delivery mode and temperature to your previously
programmed settings.
TEMP: This knob adjusts the air temperature coming
through the system. Turn the TEMP knob clockwise
to increase the temperature and counterclockwise to
decrease the temperature. You may also press the TEMP
knob to turn the system on and off. (You can turn the
comfort control system on by pressing any button on
the panel. The passenger's TEMP knob only turns off
the system of the passenger's side.) Once the system is
turned off, fresh air will continue to flow through the
vehicle, and the system will try to maintain the
previously set temperature.
Driver's Side Temperature Knob
You can control the temperature of the driver's side
independently from the passenger's side. Turn the driver's
side TEMP knob clockwise to increase the temperature
and counterclockwise to decrease the temperature.

3-3
Passenger's Side Temperature Knob
The right front passenger can control the temperature
of air for both the front passenger and rear seat area.
(The passenger's and driver's knob adjust from 60
F
(16
C) to 90
F (32
C) independent of each other.
It is suggested, however, that the passenger's setting
stay no more than four degrees warmer or cooler in
temperature from the driver's setting.) To turn the
system on, press the passenger's side TEMP knob.
Turn the passenger's side TEMP knob clockwise to
increase the temperature and counterclockwise to
decrease the temperature. Press the passenger's side
TEMP knob again to turn off the passenger's side
system. If the passenger's side is turned off, the driver's
side will control the temperature of the entire vehicle.
Automatic Operation
When the system is set for automatic operation, sensors
will control the air delivery mode. Air will come from
the floor, the instrument panel or windshield outlets.
The fan speed will vary as the system maintains the
selected temperature setting.Be careful not to put anything over the electronic solar
sensors located near the ends of the instrument panel
near the windshield. These sensors are used by the
automatic system to regulate temperature.
To find your comfort zone, start with the 75
F (24
C)
setting and allow about 30 minutes for the system to
regulate. Turn the TEMP knob to adjust the temperature
if necessary. If you choose 60
F (16
C), the system
will remain at that maximum cooling setting and will
not regulate fan speed. If you choose 90
F (32
C),
the system will remain at that maximum heating
setting and will not regulate fan speed. Choosing either
maximum setting will not cause the system to heat
or cool any faster.
With the automatic setting, the air conditioning
compressor cycles when needed to cool the air.
In cold weather, when the system senses the need for
heat, the airflow will be directed out the floor outlets.
As the interior temperature approaches a desired setting,
the blower speed will decrease. To maintain interior
comfort, the airflow may move to the instrument panel
air outlets and floor outlets (bi
-level mode). On bright
sunny days in cold weather, the airflow may come out
of the air conditioning outlets (A/C mode) to maintain
comfort and prevent stuffiness.

3-4
If your vehicle is sitting out on a hot day and you have it
set on AUTO, the air will first flow out the floor outlets
for a few seconds. This is normal. This is to remove hot
air from the air outlets. As the air is cooled, the airflow
will move through the air conditioning outlets.
To avoid blowing cold air in cold weather, the system
will start at reduced fan speeds until warm air is
available. The length of reduction depends on the
outside air temperature, engine coolant temperature or
the time since the engine was last started. As the coolant
warms up, the blower fan speed will gradually increase
and air will flow from the heater outlets, with some
airflow to the windshield to prevent fogging under most
normal conditions. If you select defrost mode or a
manual fan speed, this function will be skipped.
If you leave your vehicle, the system will remember
the control setting the next time you start your engine,
except for recirculation and defrost. Each ignition cycle
cancels recirculation. Defrost will change to automatic
operation when the ignition is shut off and then turned
back on.Manual Operation
You may manually adjust the air delivery mode, fan
speed, air input and compressor operation using the
following controls.
DEFROST (FRONT): Press this button to
quickly remove fog or frost from the windshield. This
setting sends most of the airflow to the windshield with
only a small amount to the floor outlets.
RECIRCULATION: Press this button to limit
the amount of fresh air entering your vehicle. This is
helpful when you are trying to cool the air quickly or
limit odors entering your vehicle. In the AUTO mode,
the system will use recirculation as necessary to cool
the air. Pressing the recirculation button will change the
operation to a manual mode and the air will recirculate
non
-stop. Press this button again to turn off the
recirculation feature. If you notice the windows fogging,
press the recirculation button to exit the recirculation
mode. Recirculation is not available in the defrost mode.

3-5
A/C: Press this button to turn the air conditioning
compressor on and off. When you press the button,
an A/C OFF message appears on the climate control
panel's display. Press the button again and the air
conditioner will return to automatic control. The
system will cool and dehumidify the air inside the
vehicle. In the automatic mode, the air conditioning
compressor only operates when the system determines it
is needed. The A/C OFF function is not available in the
defrost mode.
MODE: Press this button (the right or left arrow)
to deliver air through the floor, instrument panel or
windshield outlets. The climate control system will
stay in the selected mode until the MODE button, the
DEFROST button or the AUTO button is pressed again.
Press the left or right arrow to cycle through the
following available modes.
UPPER: This setting directs airflow through
the middle instrument panel outlets. Your vehicle is
equipped with a driver's side lap cooler which will also
come on when the upper vents are being used.
BI-LEVEL: This setting directs air into your
vehicle in two ways. Cool air is directed to the upper
portion of your body through the four instrument panel
outlets while warmed air is directed to the floor.
DEFOG: This setting directs air to the floor
outlets and toward the windshield.
HEATER: This setting directs warmed air
through the floor outlets. Some warm air is diverted
to the windshield to minimize fogging.
FAN: The button with the fan symbol adjusts the
fan speed. Press the up arrow to increase fan speed and
the down arrow to decrease fan speed. Press the AUTO
button to set the fan speed for automatic operation.
If it is cold outside, the blower may not run in the
maximum high fan speed right away. The system
checks the temperature of the engine coolant to assure
it is warm enough to provide heat. When the engine
coolant is warm, the controller allows the fan to
gradually increase to a higher speed. This prevents cold
air from blowing into the passenger's compartment.
Selecting a manual fan speed will override this feature.

3-6 Electronic Solar Sensor
The sensor monitors the sun's solar radiation and is located
near the end of the instrument panel near the windshield.
The climate control panel uses this information to
automatically make the necessary temperature and
airflow adjustments to maintain your comfort. The
climate control system may supply cooler air to one side
of your vehicle, if that side is facing the sun. Be careful
not to put anything over the sensor on top of the
instrument panel.
Air Conditioning
On hot days, open the windows long enough to let hot
inside air escape. This reduces the time it takes for your
vehicle to cool down. Then keep your windows closed
for the air conditioner to work its best. Your A/C
setting may be adjusted automatically or manually.
It may also be set separately on the passenger's side
from the driver's side. See ªClimate Control Panelº
earlier in this section.
Heating
Adjust the interior temperature to a comfortable level
and if the fan speed needs adjusting, press the up or
down arrow. Adjusting the fan speed will cancel the
cold air delay.
Outside air will be brought in and sent through the floor,
air conditioning or bi
-level outlets. The heater works
best if you keep your windows closed while using it.
In automatic operation, your fan will not run at high
speed to minimize warm
-up time.
