Magnetic Ride Control
Your vehicle may have Magnetic Ride Control
that automatically adjusts the ride of your vehicle.
Automatic ride control is achieved through a
computer used to control and monitor the
suspension system. The controller receives input
from various sensors to determine the proper
system response. If the controller detects a
problem within the system, the DIC will display a
SERVICE SUSPENSION SYS message. See
DIC Warnings and Messages on page 220
for more information. See your dealer for service.
Limited-Slip Rear Axle
Your vehicle may have this feature. A limited-slip
rear axle can give you additional traction on
snow, mud, ice, sand or gravel. It works like a
standard axle most of the time, but when one of
the rear wheels has no traction and the other does,
this feature will allow the wheel with traction to
move the vehicle.
StabiliTrak®System
Your vehicle is equipped with a vehicle stability
enhancement system called StabiliTrak®.It
is an advanced computer controlled system that
assists you with directional control of the vehicle in
difficult driving conditions.
StabiliTrak
®activates when the computer senses
a discrepancy between your intended path
and the direction the vehicle is actually traveling.
StabiliTrak
®selectively applies braking pressure
at any one of the vehicle’s brakes to help steer the
vehicle in the direction which you are steering.
When the stability control system activates,
the traction control system and StabiliTrak
®light
will ash on the instrument panel cluster. This also
occurs when traction control is activated. You
may also hear a noise or feel vibration in the brake
pedal. This is normal. Continue to steer the
vehicle in the direction you want it to go.
283

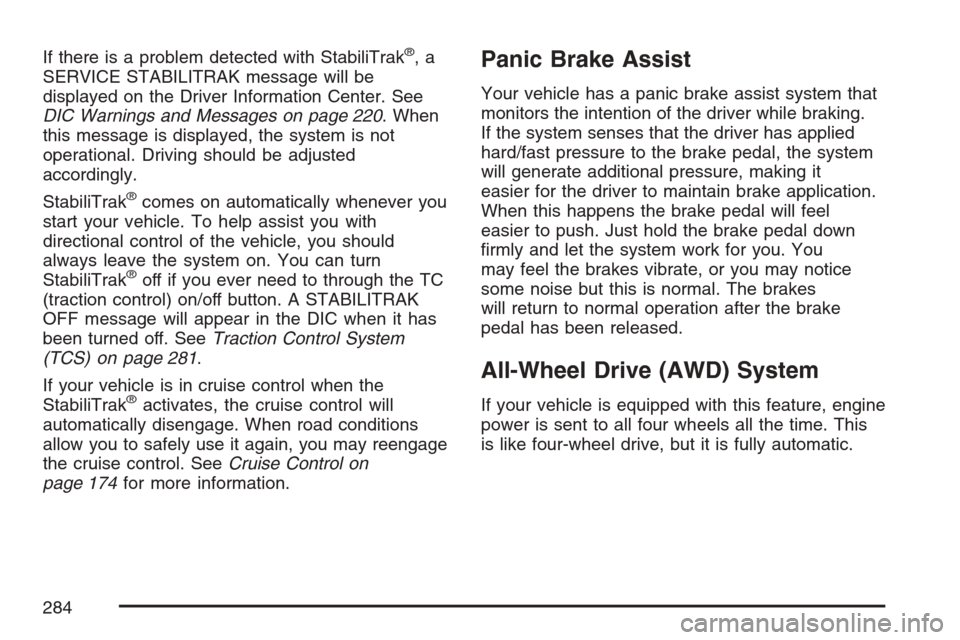

If there is a problem detected with StabiliTrak®,a
SERVICE STABILITRAK message will be
displayed on the Driver Information Center. See
DIC Warnings and Messages on page 220. When
this message is displayed, the system is not
operational. Driving should be adjusted
accordingly.
StabiliTrak
®comes on automatically whenever you
start your vehicle. To help assist you with
directional control of the vehicle, you should
always leave the system on. You can turn
StabiliTrak
®off if you ever need to through the TC
(traction control) on/off button. A STABILITRAK
OFF message will appear in the DIC when it has
been turned off. SeeTraction Control System
(TCS) on page 281.
If your vehicle is in cruise control when the
StabiliTrak
®activates, the cruise control will
automatically disengage. When road conditions
allow you to safely use it again, you may reengage
the cruise control. SeeCruise Control on
page 174for more information.
Panic Brake Assist
Your vehicle has a panic brake assist system that
monitors the intention of the driver while braking.
If the system senses that the driver has applied
hard/fast pressure to the brake pedal, the system
will generate additional pressure, making it
easier for the driver to maintain brake application.
When this happens the brake pedal will feel
easier to push. Just hold the brake pedal down
rmly and let the system work for you. You
may feel the brakes vibrate, or you may notice
some noise but this is normal. The brakes
will return to normal operation after the brake
pedal has been released.
All-Wheel Drive (AWD) System
If your vehicle is equipped with this feature, engine
power is sent to all four wheels all the time. This
is like four-wheel drive, but it is fully automatic.
284

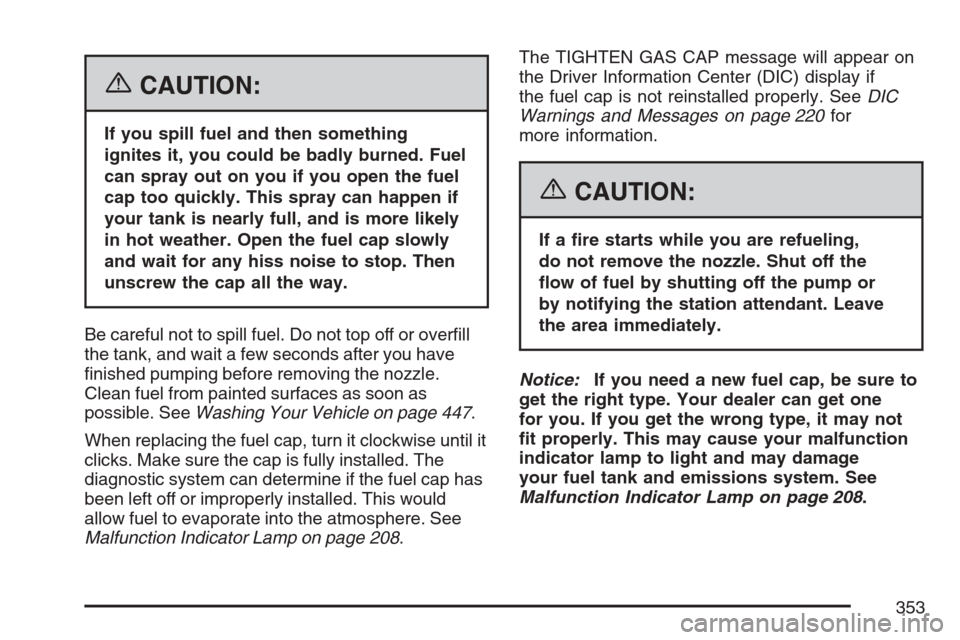

{CAUTION:
If you spill fuel and then something
ignites it, you could be badly burned. Fuel
can spray out on you if you open the fuel
cap too quickly. This spray can happen if
your tank is nearly full, and is more likely
in hot weather. Open the fuel cap slowly
and wait for any hiss noise to stop. Then
unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overll
the tank, and wait a few seconds after you have
nished pumping before removing the nozzle.
Clean fuel from painted surfaces as soon as
possible. SeeWashing Your Vehicle on page 447.
When replacing the fuel cap, turn it clockwise until it
clicks. Make sure the cap is fully installed. The
diagnostic system can determine if the fuel cap has
been left off or improperly installed. This would
allow fuel to evaporate into the atmosphere. See
Malfunction Indicator Lamp on page 208.The TIGHTEN GAS CAP message will appear on
the Driver Information Center (DIC) display if
the fuel cap is not reinstalled properly. SeeDIC
Warnings and Messages on page 220for
more information.
{CAUTION:
If a re starts while you are refueling,
do not remove the nozzle. Shut off the
ow of fuel by shutting off the pump or
by notifying the station attendant. Leave
the area immediately.
Notice:If you need a new fuel cap, be sure to
get the right type. Your dealer can get one
for you. If you get the wrong type, it may not
t properly. This may cause your malfunction
indicator lamp to light and may damage
your fuel tank and emissions system. See
Malfunction Indicator Lamp on page 208.
353

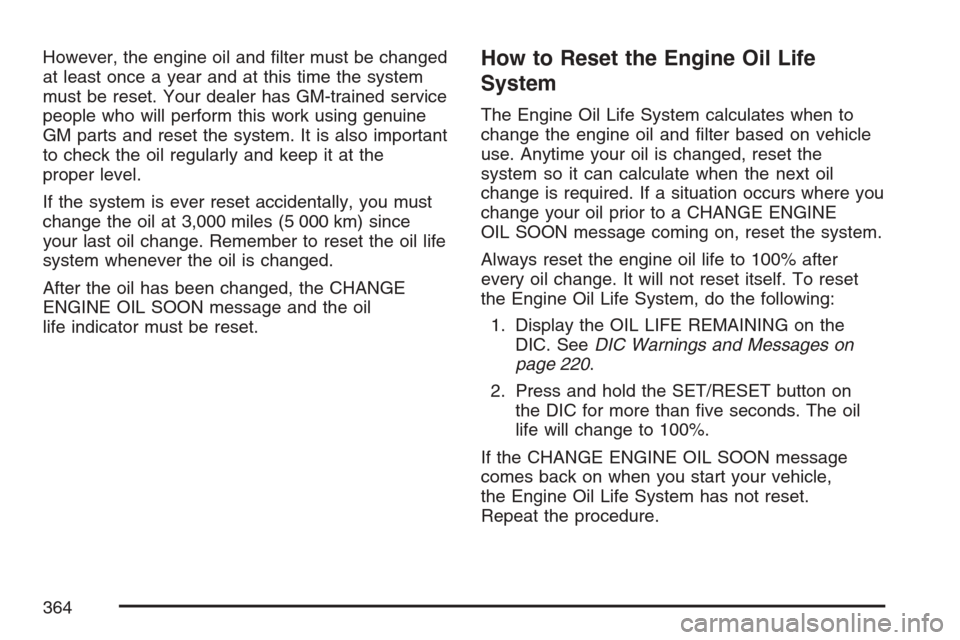

However, the engine oil and lter must be changed
at least once a year and at this time the system
must be reset. Your dealer has GM-trained service
people who will perform this work using genuine
GM parts and reset the system. It is also important
to check the oil regularly and keep it at the
proper level.
If the system is ever reset accidentally, you must
change the oil at 3,000 miles (5 000 km) since
your last oil change. Remember to reset the oil life
system whenever the oil is changed.
After the oil has been changed, the CHANGE
ENGINE OIL SOON message and the oil
life indicator must be reset.How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change the engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a CHANGE ENGINE
OIL SOON message coming on, reset the system.
Always reset the engine oil life to 100% after
every oil change. It will not reset itself. To reset
the Engine Oil Life System, do the following:
1. Display the OIL LIFE REMAINING on the
DIC. SeeDIC Warnings and Messages on
page 220.
2. Press and hold the SET/RESET button on
the DIC for more than ve seconds. The oil
life will change to 100%.
If the CHANGE ENGINE OIL SOON message
comes back on when you start your vehicle,
the Engine Oil Life System has not reset.
Repeat the procedure.
364

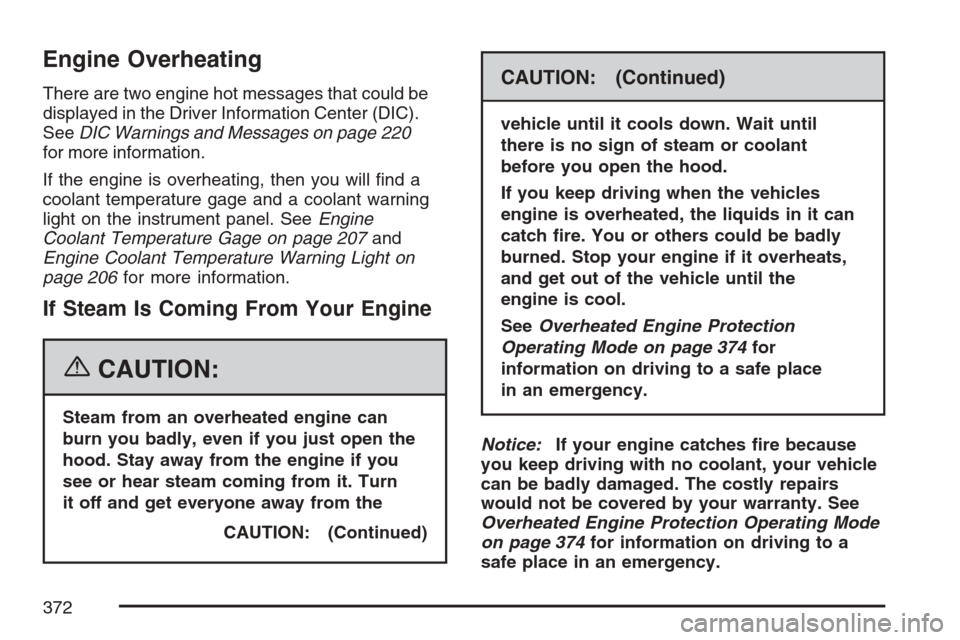

Engine Overheating
There are two engine hot messages that could be
displayed in the Driver Information Center (DIC).
SeeDIC Warnings and Messages on page 220
for more information.
If the engine is overheating, then you will nd a
coolant temperature gage and a coolant warning
light on the instrument panel. SeeEngine
Coolant Temperature Gage on page 207and
Engine Coolant Temperature Warning Light on
page 206for more information.
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can
burn you badly, even if you just open the
hood. Stay away from the engine if you
see or hear steam coming from it. Turn
it off and get everyone away from the
CAUTION: (Continued)
CAUTION: (Continued)
vehicle until it cools down. Wait until
there is no sign of steam or coolant
before you open the hood.
If you keep driving when the vehicles
engine is overheated, the liquids in it can
catch re. You or others could be badly
burned. Stop your engine if it overheats,
and get out of the vehicle until the
engine is cool.
SeeOverheated Engine Protection
Operating Mode on page 374for
information on driving to a safe place
in an emergency.
Notice:If your engine catches re because
you keep driving with no coolant, your vehicle
can be badly damaged. The costly repairs
would not be covered by your warranty. See
Overheated Engine Protection Operating Mode
on page 374for information on driving to a
safe place in an emergency.
372

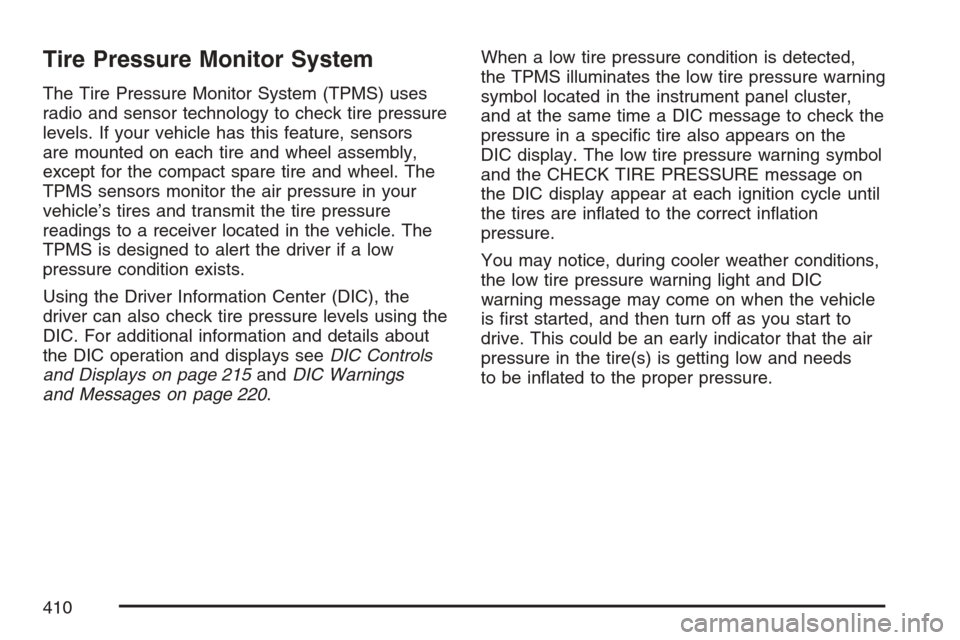

Tire Pressure Monitor System
The Tire Pressure Monitor System (TPMS) uses
radio and sensor technology to check tire pressure
levels. If your vehicle has this feature, sensors
are mounted on each tire and wheel assembly,
except for the compact spare tire and wheel. The
TPMS sensors monitor the air pressure in your
vehicle’s tires and transmit the tire pressure
readings to a receiver located in the vehicle. The
TPMS is designed to alert the driver if a low
pressure condition exists.
Using the Driver Information Center (DIC), the
driver can also check tire pressure levels using the
DIC. For additional information and details about
the DIC operation and displays seeDIC Controls
and Displays on page 215andDIC Warnings
and Messages on page 220.When a low tire pressure condition is detected,
the TPMS illuminates the low tire pressure warning
symbol located in the instrument panel cluster,
and at the same time a DIC message to check the
pressure in a specic tire also appears on the
DIC display. The low tire pressure warning symbol
and the CHECK TIRE PRESSURE message on
the DIC display appear at each ignition cycle until
the tires are inated to the correct ination
pressure.
You may notice, during cooler weather conditions,
the low tire pressure warning light and DIC
warning message may come on when the vehicle
is rst started, and then turn off as you start to
drive. This could be an early indicator that the air
pressure in the tire(s) is getting low and needs
to be inated to the proper pressure.
410

The TPM matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON with the
engine off.
3. Using the DIC, press the vehicle information
button until the PRESS
VTO RELEARN
TIRE POSITIONS message displays.
4. Press the Set/Reset button. The horn sounds
twice to indicate the TPMS receiver is ready,
and the TIRE LEARNING ACTIVE message
displays. The TPMS low tire warning light
ashes throughout the matching procedure.
5. Start with the driver’s side front tire.
6. Remove the valve cap from the valve stem.
Activate the TPM sensor by increasing or
decreasing the tire’s air pressure for
10 seconds, or until a horn chirp sounds. The
horn chirp, which may take up to 30 seconds to
sound, conrms that the sensor identication
code has been matched to this tire position. To
decrease the tire’s air-pressure use the pointed
end of the valve cap, a pencil-style air pressure
gage, or a key.7. Proceed to the passenger’s side front tire, and
repeat the procedure in Step 6.
8. Proceed to the passenger’s side rear tire, and
repeat the procedure in Step 6.
9. Proceed to the driver’s side rear tire, and
repeat the procedure in Step 6.
10. After hearing the conrming horn chirp, for
the driver’s side rear tire, the horn sounds
two more times to signal the tire learning
model is no longer active. Turn the ignition
switch to OFF.
11. Set all four tires to the recommended air
pressure level as indicated on the tire and
loading information label.
12. Put the valve caps back on the valve stems.
The spare tire does not have a TPMS sensor.

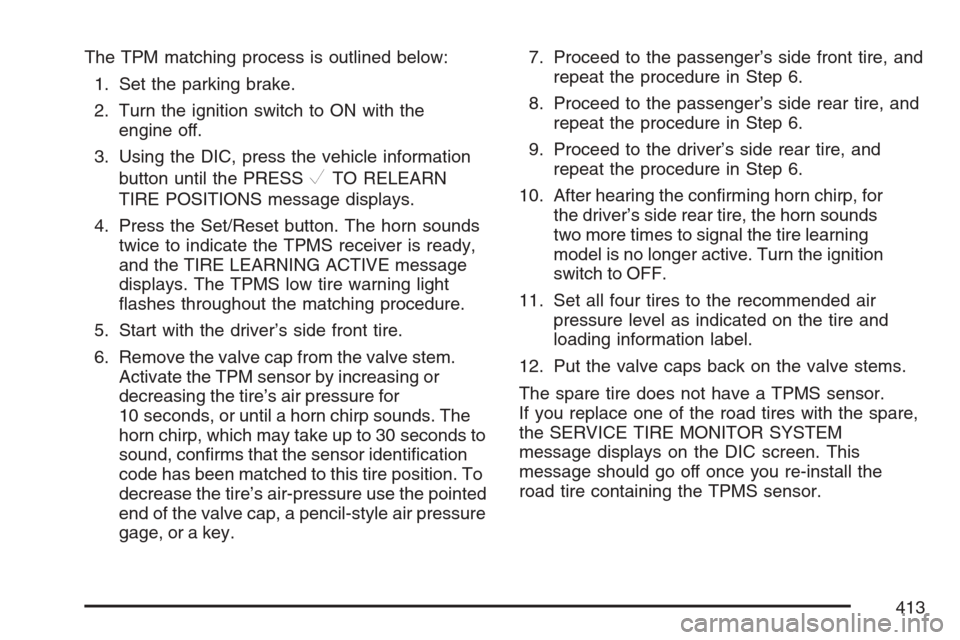

If you replace one of the road tires with the spare,
the SERVICE TIRE MONITOR SYSTEM
message displays on the DIC screen. This
message should go off once you re-install the
road tire containing the TPMS sensor.
413

J Case Fuses Usage
BLWR Front Blower Motor Assembly
RPDB 2RRPDB (Right Side Rear
Power Distribution Box)
Mini Fuses Usage
FRNT
WASHERFront Washer Pump
SPARE Spare
SPARE Spare
AIRBAGSensing Diagnostic Module (SDM),
Occupant Sensor Display,
Instrument Cluster
ABS IGNAnti-lock Braking System Ignition,
Variable Effort Steering
IGN SW Ignition Switch, Immobilizer Module
ECM/TCM IGNEngine Control Module/Transmission
Control Module Ignition Power
MISC IGN Air Quality Sensor
EMISSION 1Pre 02 Sensors, Cam Phasor (V6),
Canister Purge (V6), Intake Manifold
Tuning Valve (V6)
SPARE Spare
Mini Fuses Usage
DISPLAYInstrument Panel Cluster, Climate
Control Module, Front Blower Relay,
Diagnostic Link Connector
BCM 2LED Instrument Panel Dimming,
Overhead Lamps, Vanity Lamps
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
BCM 6Right Side Rear Stoplamp, Turn
Lamps, Key Capture Solenoid
RADIO Radio
ODD COILSOdd Ignition Coils, Odd Fuel
Injectors
BCM 1 Body Control Module (BCM) Power
LT HI BEAM Left Side High-Beam Headlamp
BCM 7/CLOCK Switch Dimming, Analog Clock
SPARE Spare
EMISSION 2Cooling Fan Relays, Air
Conditioning Clutch Relay, Post O2
Sensors, Mass Airow Sensor,
Canister Purge (V8)
ECM BATT Engine Control Module (ECM)
458

D
Daytime Running Lamps............................. 179
Defensive Driving........................................ 274
Delayed Locking.......................................... 102
Disc, MP3................................................... 257
Diversity Antenna System............................ 272
Doing Your Own Service Work.................... 348
Door
Central Door Unlocking System................ 101
Delayed Locking...................................... 102
Locks....................................................... 100
Power Door Locks................................... 101
Programmable Automatic Door Locks....... 102
Rear Door Security Locks........................ 103
Driver
Position, Safety Belt................................... 27
Driver Information Center (DIC)................... 214
DIC Controls and Displays....................... 215
DIC Vehicle Customization....................... 231
DIC Warnings and Messages................... 220
Driving
At Night................................................... 306
City.......................................................... 311
Defensive................................................. 274Driving (cont.)
Drunken................................................... 275
Freeway................................................... 312
Hill and Mountain Roads.......................... 315
In Rain and on Wet Roads...................... 308
Off-Road.................................................. 291
Rocking Your Vehicle to Get it Out.......... 322
Winter...................................................... 317
Dual Climate Control System....................... 189
DVD
Rear Seat Entertainment System............. 266
E
Electric Power Management........................ 183
Electrical System
Add-On Equipment................................... 454
Fuses and Circuit Breakers...................... 455
Power Windows and Other
Power Options...................................... 454
Rear Underseat Fuse Block............460, 462
Underhood Fuse Block............................. 455
Windshield Wiper Fuses........................... 454
511
