seat memory CADILLAC SRX 2007 1.G Owners Manual

Front Seats..................................................... 9
Manual Seats................................................ 9
Power Seats............................................... 10
Power Lumbar............................................. 10
Heated Seats.............................................. 11
Memory Seat and Mirrors............................ 12
Reclining Seatbacks.................................... 14
Head Restraints.......................................... 17
Rear Seats.................................................... 18
Rear Seat Operation................................... 18
Stowable Seat............................................. 20
Safety Belts.................................................. 22
Safety Belts: They Are for Everyone........... 22
Questions and Answers About Safety
Belts........................................................ 26
How to Wear Safety Belts Properly............. 27
Driver Position............................................. 27Safety Belt Use During Pregnancy.............. 35
Right Front Passenger Position................... 36
Rear Seat Passengers................................ 36
Rear Safety Belt Comfort Guides................ 39
Safety Belt Pretensioners............................ 42
Safety Belt Extender................................... 42
Child Restraints............................................ 43
Older Children............................................. 43
Infants and Young Children......................... 46
Child Restraint Systems.............................. 49
Where to Put the Restraint.......................... 53
Lower Anchors and Tethers for Children
(LATCH).................................................. 55
Securing a Child Restraint in a Rear
Seat Position........................................... 62
Securing a Child Restraint in the Right
Front Seat Position.................................. 65
Section 1 Seats and Restraint Systems
7

Memory Seat and Mirrors
If your vehicle has the memory feature, you can
program and recall memory settings for the driver’s
seating and outside rearview mirror driving
positions for up to two drivers. If your vehicle has
the adjustable throttle and brake pedal feature,
you can also program and recall memory settings
for the throttle and brake pedal driving positions.
The buttons for this feature are located on the
driver’s door armrest.
Use the following steps to program the buttons:
1. Adjust the driver’s seat including the seatback
recliner, both outside mirrors, and the throttle
and brake pedals. SeeOutside Power
Heated Mirrors on page 137andAdjustable
Throttle and Brake Pedal on page 120
for more information.2. Press and hold button 1 for at least
three seconds.
Two beeps will sound to conrm that the seat
and mirror positions have been saved.
3. Repeat the procedure for a second driver
using button 2.
The vehicle must be in PARK (P) to recall the
stored driving positions.
Press one of the numbered memory buttons to
recall the stored setting. Each time a memory
button is pressed, a single beep will sound.
A chime will sound and the setting will not be
recalled if you press button 1 or 2 when the vehicle
is not in PARK (P).
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the
remote keyless entry transmitter or when you place
the key in the ignition, seeDIC Vehicle
Customization on page 231.
To stop recall movement of the memory feature at
any time, press one of the power seat or mirror
controls.
12

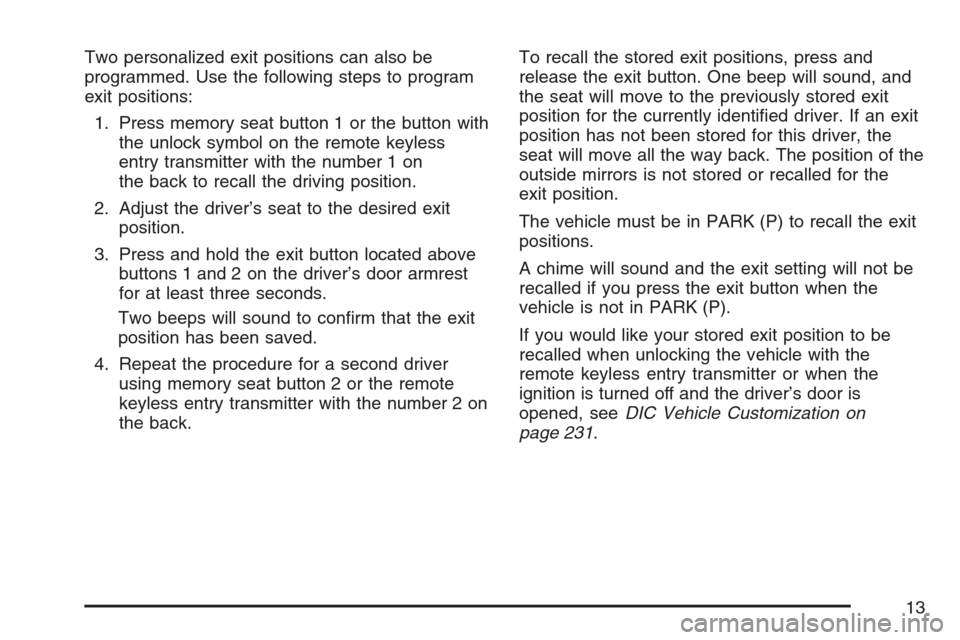

Two personalized exit positions can also be
programmed. Use the following steps to program
exit positions:
1. Press memory seat button 1 or the button with
the unlock symbol on the remote keyless
entry transmitter with the number 1 on
the back to recall the driving position.
2. Adjust the driver’s seat to the desired exit
position.
3. Press and hold the exit button located above
buttons 1 and 2 on the driver’s door armrest
for at least three seconds.
Two beeps will sound to conrm that the exit
position has been saved.
4. Repeat the procedure for a second driver
using memory seat button 2 or the remote
keyless entry transmitter with the number 2 on
the back.To recall the stored exit positions, press and
release the exit button. One beep will sound, and
the seat will move to the previously stored exit
position for the currently identied driver. If an exit
position has not been stored for this driver, the
seat will move all the way back. The position of the
outside mirrors is not stored or recalled for the
exit position.
The vehicle must be in PARK (P) to recall the exit
positions.
A chime will sound and the exit setting will not be
recalled if you press the exit button when the
vehicle is not in PARK (P).
If you would like your stored exit position to be
recalled when unlocking the vehicle with the
remote keyless entry transmitter or when the
ignition is turned off and the driver’s door is
opened, seeDIC Vehicle Customization on
page 231.
13

Resetting the Power Foldaway Mirrors
You will need to reset the power foldaway mirrors
if the following occurs:
The mirrors are accidentally obstructed while
folding.
They are accidentally manually
folded/unfolded.
The mirrors will not stay in the unfolded
position.
The mirrors shake and utter at normal driving
speeds.
To reset the power foldaway mirrors, fold and
unfold them one time using the mirror controls.
This will reset them to their normal position.
The mirrors can be manually folded inward to
prevent damage when going through an automatic
car wash or a conned space. To fold, push the
mirror toward the vehicle. To return the mirror to its
original position, push outward. Be sure to
return both mirrors to their original unfolded
position before driving.
The preferred position can be stored in memory if
the vehicle has the memory option. SeeMemory
Seat and Mirrors on page 12for more information.When the rear window defogger is turned on, both
outside rearview mirrors are heated to help
clear them of ice, snow, and condensation. See
“Rear Window Defogger” underDual Climate
Control System on page 189for more information.
Outside Automatic Dimming
Mirror
The driver’s outside mirror may have an automatic
dimming feature that helps to reduce glare from
other vehicles headlamps. This feature is
controlled by the on and off settings on the
automatic dimming rearview mirror. SeeAutomatic
Dimming Rearview Mirror with OnStar
®on
page 134.
Outside Curb View Assist Mirror
If the vehicle has memory seat and mirrors, the
driver’s or passenger’s mirror can tilt to a
preselected position when the vehicle is shifted
into REVERSE (R). Use this feature to view
the curb when parallel parking.
When the vehicle is shifted out of REVERSE (R)
and after a ve-second delay, both mirrors
return to their original position.
138

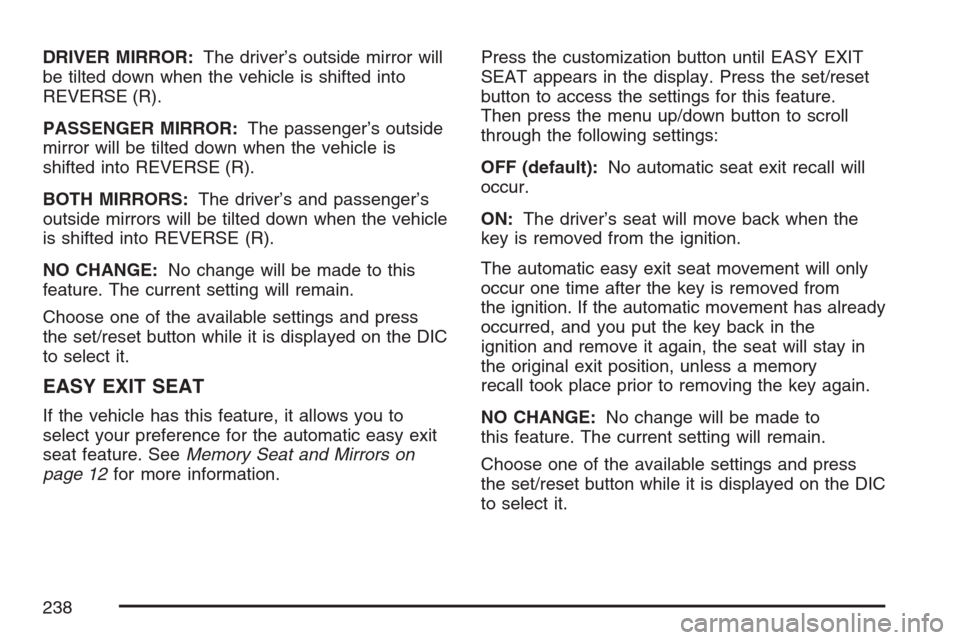

DRIVER MIRROR:The driver’s outside mirror will
be tilted down when the vehicle is shifted into
REVERSE (R).
PASSENGER MIRROR:The passenger’s outside
mirror will be tilted down when the vehicle is
shifted into REVERSE (R).
BOTH MIRRORS:The driver’s and passenger’s
outside mirrors will be tilted down when the vehicle
is shifted into REVERSE (R).
NO CHANGE:No change will be made to this
feature. The current setting will remain.
Choose one of the available settings and press
the set/reset button while it is displayed on the DIC
to select it.
EASY EXIT SEAT
If the vehicle has this feature, it allows you to
select your preference for the automatic easy exit
seat feature. SeeMemory Seat and Mirrors on
page 12for more information.Press the customization button until EASY EXIT
SEAT appears in the display. Press the set/reset
button to access the settings for this feature.
Then press the menu up/down button to scroll
through the following settings:
OFF (default):No automatic seat exit recall will
occur.
ON:The driver’s seat will move back when the
key is removed from the ignition.
The automatic easy exit seat movement will only
occur one time after the key is removed from
the ignition. If the automatic movement has already
occurred, and you put the key back in the
ignition and remove it again, the seat will stay in
the original exit position, unless a memory
recall took place prior to removing the key again.
NO CHANGE:No change will be made to
this feature. The current setting will remain.
Choose one of the available settings and press
the set/reset button while it is displayed on the DIC
to select it.
238

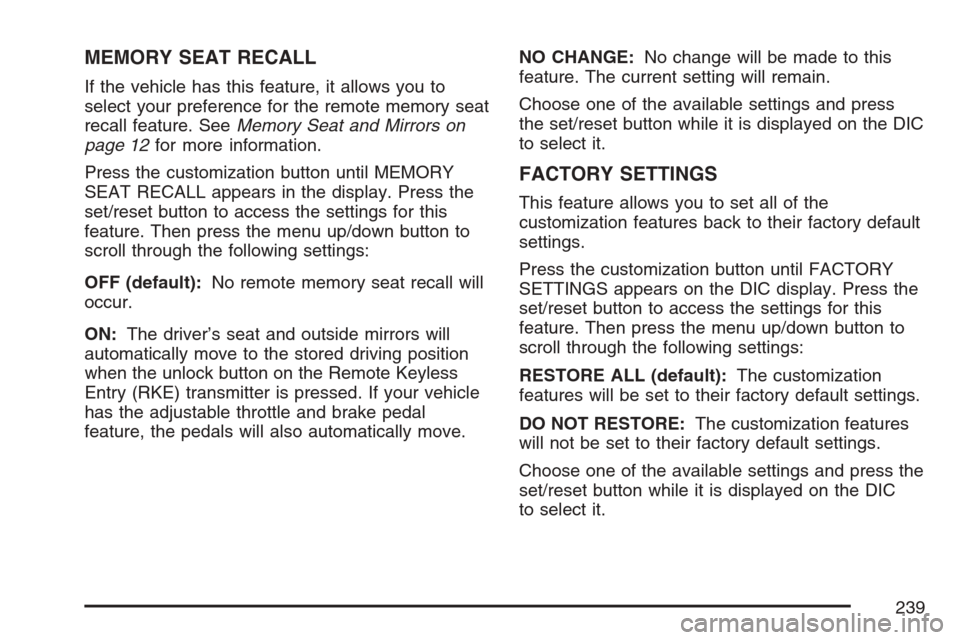

MEMORY SEAT RECALL
If the vehicle has this feature, it allows you to
select your preference for the remote memory seat
recall feature. SeeMemory Seat and Mirrors on
page 12for more information.
Press the customization button until MEMORY
SEAT RECALL appears in the display. Press the
set/reset button to access the settings for this
feature. Then press the menu up/down button to
scroll through the following settings:
OFF (default):No remote memory seat recall will
occur.
ON:The driver’s seat and outside mirrors will
automatically move to the stored driving position
when the unlock button on the Remote Keyless
Entry (RKE) transmitter is pressed. If your vehicle
has the adjustable throttle and brake pedal
feature, the pedals will also automatically move.NO CHANGE:No change will be made to this
feature. The current setting will remain.
Choose one of the available settings and press
the set/reset button while it is displayed on the DIC
to select it.
FACTORY SETTINGS
This feature allows you to set all of the
customization features back to their factory default
settings.
Press the customization button until FACTORY
SETTINGS appears on the DIC display. Press the
set/reset button to access the settings for this
feature. Then press the menu up/down button to
scroll through the following settings:
RESTORE ALL (default):The customization
features will be set to their factory default settings.
DO NOT RESTORE:The customization features
will not be set to their factory default settings.
Choose one of the available settings and press the
set/reset button while it is displayed on the DIC
to select it.
239

Mini Fuses Usage
RSM Rear Seat Module, Flip/Fold Motors
DRIVER DR
MODDriver Door Module (Locks, Outside
Rearview Mirror, Window Switches)
STOP LAMPS Not Used
MARKER
LAMPLicense Lamps
LH PRK POS
LAMPSLeft Side Taillamp, Left Side Front
Park Lamps, Sidemarker Lamps
RH PRK
LAMPSRight Side Taillamp, Right Side
Front Park Lamps, Sidemarker
Lamps
TRLR PRK
LAMPSTrailer Park Lamps
SPARE Spare
SPARE Spare
SPARE Spare
MEMORY RPAMemory Seat Module, Ultrasonic
Rear Parking Assist (URPA) Module
APO Rear Auxiliary Power Outlet
PRK LAMP LH
POSPark Lamp Relay
REAR FOG
LAMPNot Used
RH POS LAMP Right Side TaillampJ Case Fuses Usage
SPARE Spare
ELCElectronic Level Control (ELC)
Compressor
Circuit
BreakersUsage
PWR WNDWS Power Window Motors
Misc. Usage
FUSE PULLER Fuse Puller
JOINT
CONNECTORJoint Connector
461

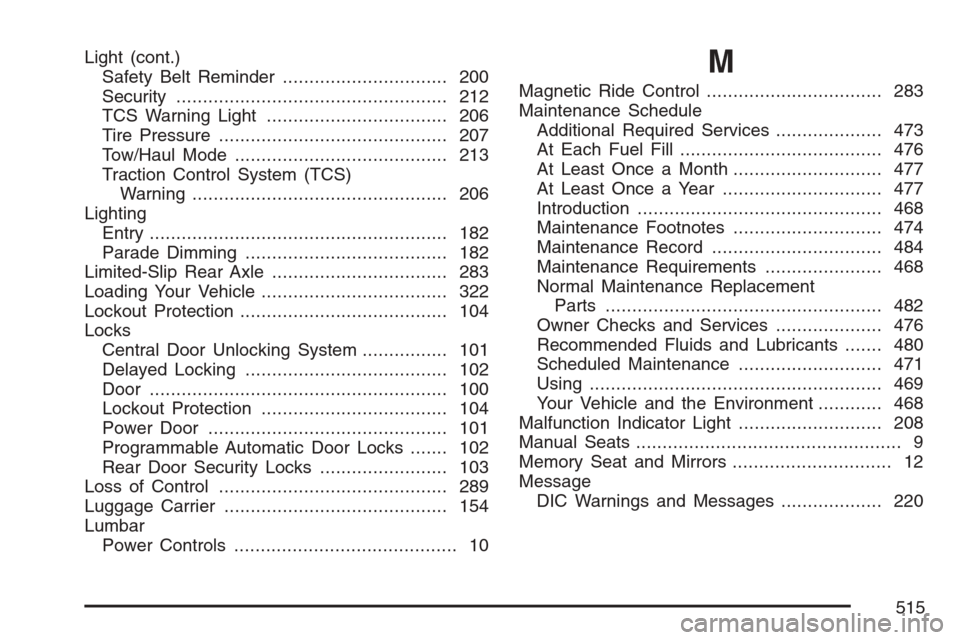

Light (cont.)
Safety Belt Reminder............................... 200
Security................................................... 212
TCS Warning Light.................................. 206
Tire Pressure........................................... 207
Tow/Haul Mode........................................ 213
Traction Control System (TCS)
Warning................................................ 206
Lighting
Entry........................................................ 182
Parade Dimming...................................... 182
Limited-Slip Rear Axle................................. 283
Loading Your Vehicle................................... 322
Lockout Protection....................................... 104
Locks
Central Door Unlocking System................ 101
Delayed Locking...................................... 102
Door........................................................ 100
Lockout Protection................................... 104
Power Door............................................. 101
Programmable Automatic Door Locks....... 102
Rear Door Security Locks........................ 103
Loss of Control........................................... 289
Luggage Carrier.......................................... 154
Lumbar
Power Controls.......................................... 10M
Magnetic Ride Control................................. 283
Maintenance Schedule
Additional Required Services.................... 473
At Each Fuel Fill...................................... 476
At Least Once a Month............................ 477
At Least Once a Year .............................. 477
Introduction.............................................. 468
Maintenance Footnotes............................ 474
Maintenance Record................................ 484
Maintenance Requirements...................... 468
Normal Maintenance Replacement
Parts.................................................... 482
Owner Checks and Services.................... 476
Recommended Fluids and Lubricants....... 480
Scheduled Maintenance........................... 471
Using....................................................... 469
Your Vehicle and the Environment............ 468
Malfunction Indicator Light........................... 208
Manual Seats.................................................. 9
Memory Seat and Mirrors.............................. 12
Message
DIC Warnings and Messages................... 220
515

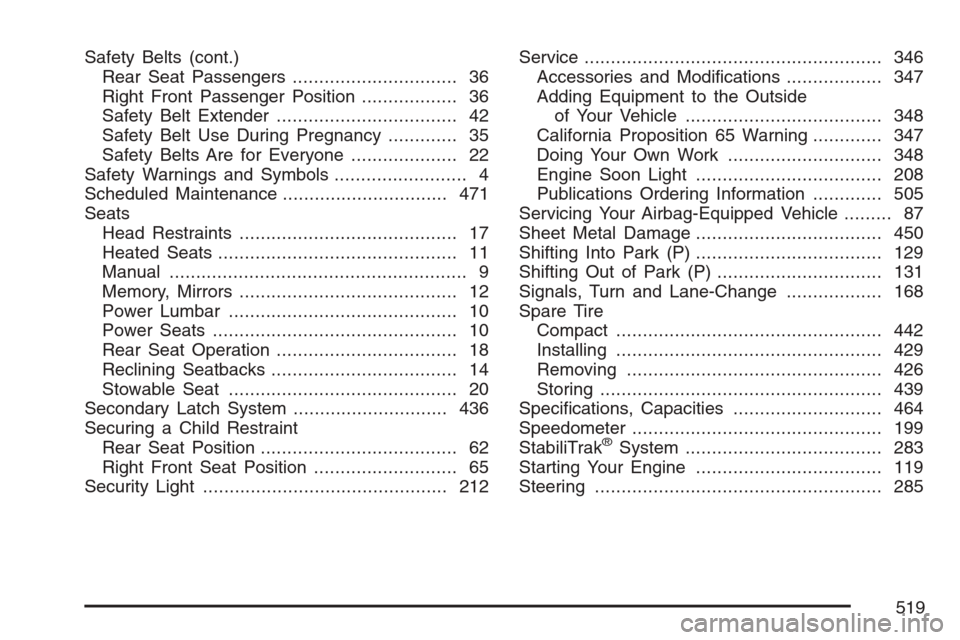

Safety Belts (cont.)
Rear Seat Passengers............................... 36
Right Front Passenger Position.................. 36
Safety Belt Extender.................................. 42
Safety Belt Use During Pregnancy............. 35
Safety Belts Are for Everyone.................... 22
Safety Warnings and Symbols......................... 4
Scheduled Maintenance............................... 471
Seats
Head Restraints......................................... 17
Heated Seats............................................. 11
Manual........................................................ 9
Memory, Mirrors......................................... 12
Power Lumbar........................................... 10
Power Seats.............................................. 10
Rear Seat Operation.................................. 18
Reclining Seatbacks................................... 14
Stowable Seat........................................... 20
Secondary Latch System............................. 436
Securing a Child Restraint
Rear Seat Position..................................... 62
Right Front Seat Position........................... 65
Security Light.............................................. 212Service........................................................ 346
Accessories and Modications.................. 347
Adding Equipment to the Outside
of Your Vehicle..................................... 348
California Proposition 65 Warning............. 347
Doing Your Own Work............................. 348
Engine Soon Light................................... 208
Publications Ordering Information............. 505
Servicing Your Airbag-Equipped Vehicle......... 87
Sheet Metal Damage................................... 450
Shifting Into Park (P)................................... 129
Shifting Out of Park (P)............................... 131
Signals, Turn and Lane-Change.................. 168
Spare Tire
Compact.................................................. 442
Installing.................................................. 429
Removing................................................ 426
Storing..................................................... 439
Specications, Capacities............................ 464
Speedometer............................................... 199
StabiliTrak
®System..................................... 283
Starting Your Engine................................... 119
Steering...................................................... 285
519
