CAUTION: (Continued)
We, therefore, recommend that rear-facing
child restraints be transported in vehicles with
a rear seat that will accommodate a rear-facing
child restraint, whenever possible.
If you need to secure a forward-facing child
restraint in the passenger seat, always move
the passenger seat as far back as it will go.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbags, it means
that something may be wrong with the airbag
system. The passenger’s airbags could inate
even though the switch is off.
CAUTION: (Continued)
CAUTION: (Continued)
If this ever happens, do not let anyone whom
the national government has identied as a
member of a passenger airbag risk group sit in
the passenger’s position (for example, do not
secure a rear-facing child restraint in your
vehicle) until you have your vehicle serviced.
SeeAirbag Off Switch on page 1-44.
1. Find the anchors in the passenger seat. SeeLower
Anchorages and Top Tethers for Children (LATCH
System) on page 1-28.
2. Put the child restraint on the seat.
3. Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint instructions
will show you how. SeeTop Strap on page 1-27if
your child restraint has one.
4. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, disconnect the anchor
points.
1-31

Securing a Child Restraint in the
Passenger Seat Position
Your vehicle has passenger airbags. There is an airbag
off switch in the glove box you can use to turn off the
passenger’s airbags. SeeAirbag Off Switch on page 1-44
for more on this, including important safety information.
Your vehicle will either have the Canadian switch design
(A) or the United States switch design (B).
A. Canadian Switch
B. United States SwitchUnless the passenger’s airbags have been turned off,
neverput a rear-facing child restraint in this vehicle.
Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the passenger’s
airbag inates. This is because the back of the
rear-facing child restraint would be very close
to the inating airbag. Do not use a rear-facing
child restraint in this vehicle unless the
passenger’s airbag has been turned off.
Even though the airbag off switch is designed
to turn off the passenger’s airbags under
certain conditions, no system is fail-safe, and
no one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We, therefore,
recommend that rear-facing child restraints be
transported in vehicles with a rear seat that
will accommodate a rear-facing child restraint,
whenever possible.
CAUTION: (Continued)
1-32

CAUTION: (Continued)
If you need to secure a forward-facing child
restraint in the passenger seat, always move
the passenger seat as far back as it will go.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbags, it means
that something may be wrong with the airbag
system. The passenger’s airbags could inate
even though the switch is off. If this ever
happens, do not let anyone whom the national
government has identied as a member of a
passenger airbag risk group sit in the
passenger’s position (for example, do not
secure a rear-facing child restraint in your
vehicle) until you have your vehicle serviced.
SeeAirbag Off Switch on page 1-44.If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-28.
There are no top strap anchors in this vehicle. Do not
secure a child seat in this vehicle if a national or
local law requires that the top strap be anchored, or if
the instructions that come with the restraint say that the
top strap must be anchored. SeeTop Strap on
page 1-27if the child restraint has one.
If your child restraint does not have the latch system,
you will be using the lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has passenger’s airbags. If you need
to use a rear-facing child restraint in this seat, make
sure the airbags are turned off. SeeAirbag Off
Switch on page 1-44. If your child restraint is
forward-facing, always move the seat as far back
as it will go before securing it in this seat. See
Power Seats on page 1-2.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-33

6. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. You may nd it helpful to use your knee to
push down on the child restraint as you tighten
the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.If you were using a rear-facing child restraint, turn on
the passenger’s airbags when you remove the
rear-facing child restraint from the vehicle unless the
person who will be sitting there is a member of a
passenger airbag risk group. SeeAirbag Off Switch on
page 1-44.
{CAUTION:
If the passenger’s airbags are turned off for a
person who is not in a risk group identied by
the national government, that person will not
have the extra protection of the airbags. In a
crash, the airbags would not be able to inate
and help protect the person sitting there. Do
not turn off the passenger’s airbags unless the
person sitting there is in a risk group. See
Airbag Off Switch on page 1-44for more on
this, including important safety information.
1-35

{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt, even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Front
occupants should not lean on or sleep against
the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-19orInfants and
Young Children on page 1-21.
1-37

If the vehicle has lost
battery power, you can
still open the trunk
using the key.
The key cylinder is located behind a cover on the
lower rear fascia on the driver’s side of the vehicle.
Use the key to pry open the door to access the
key cylinder.Emergency Trunk Release Handle
Notice:Using the emergency trunk release handle
as a tie-down or anchor point when securing
items in the trunk may damage it. Use the
emergency trunk release handle only to help you
open the trunk lid.
There is a glow-in-the-dark emergency trunk release
handle located inside the trunk near the latch.
This handle will glow following exposure to light.
Pull the release handle and push up on the trunk lid
to release the latch from the inside.
2-15

Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Theft-Deterrent System
Your vehicle is equipped with a theft-deterrent alarm
system.
With this system, the
security light will ash
when the door is open
and locked with the
power door lock switch.
If this light is on continuously while the engine is
running, your vehicle needs service.
Arming the System
Use one of the three following items listed here to arm
the system:
Press the lock button on the keyless access
transmitter.
Open the door. Lock the door with the power door
lock switch. The security light should ash. Remove
the keyless access transmitter from the interior of the
vehicle and close the door. The security light will stop
ashing and stay on. After 30 seconds, the light
should turn off.
The vehicle can be programmed to automatically
lock the doors and arm the system when you exit
the vehicle. SeeDIC Vehicle Personalization on
page 3-73.
Now, if a door or the trunk lid is opened without the
keyless access transmitter, the alarm will go off.
Your horn will sound for two minutes, then it will go off
to save battery power. And, your vehicle will not
start without a keyless transmitter present.
2-19

Valet Lockout Switch
The valet lockout switch
is located inside the
glove box.
Press the switch to ON to disable the use of the trunk
and convertible top. The trunk cannot be opened except
by using the key if the valet lockout is on.
Press the switch to OFF to enable the use of the trunk
and convertible top.
Locking the glove box with your key will also help to
secure your vehicle.
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
break-in. But it will perform better in the long run if
you follow these guidelines:
Keep your speed at 55 mph (88 km/h) or less
for the rst 500 miles (805 km).
Do not drive at any one speed — fast or
slow — for the rst 500 miles (805 km).
Do not make full-throttle starts.
Avoid making hard stops for the rst 200 miles
(322 km) or so. During this time your new brake
linings are not yet broken in. Hard stops with
new linings can mean premature wear and
earlier replacement. Follow this breaking-in
guideline every time you get new brake linings.
2-21

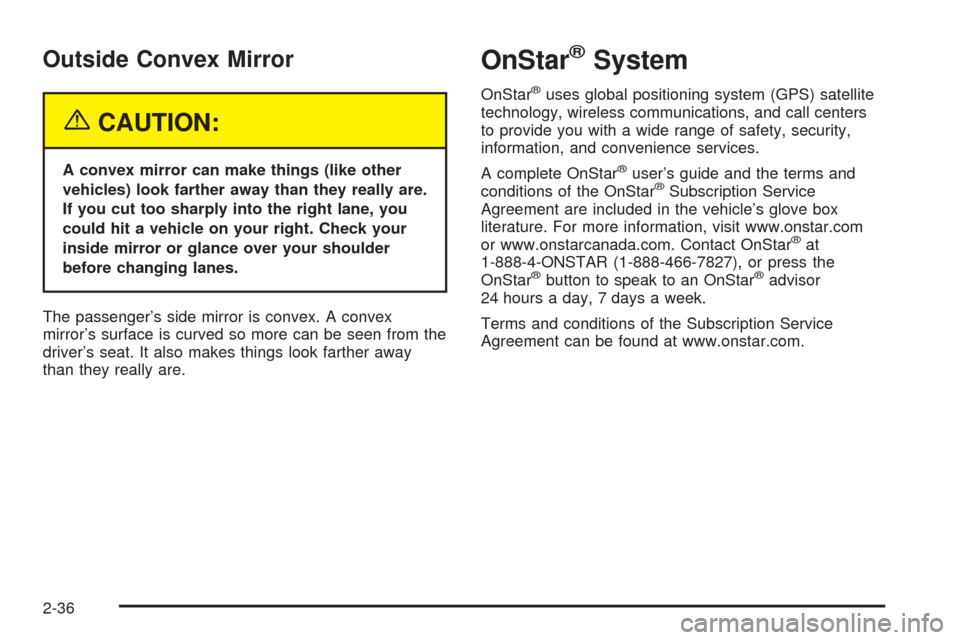

Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so more can be seen from the
driver’s seat. It also makes things look farther away
than they really are.
OnStar®System
OnStar®uses global positioning system (GPS) satellite
technology, wireless communications, and call centers
to provide you with a wide range of safety, security,
information, and convenience services.
A complete OnStar
®user’s guide and the terms and
conditions of the OnStar®Subscription Service
Agreement are included in the vehicle’s glove box
literature. For more information, visit www.onstar.com
or www.onstarcanada.com. Contact OnStar
®at
1-888-4-ONSTAR (1-888-466-7827), or press the
OnStar
®button to speak to an OnStar®advisor
24 hours a day, 7 days a week.
Terms and conditions of the Subscription Service
Agreement can be found at www.onstar.com.
2-36

HomeLink®Transmitter
If your vehicle has this feature, the control buttons are
located on the driver’s sun visor.
HomeLink
®, a combined universal transmitter and
receiver, provides a way to replace up to three hand−held
transmitters used to activate devices such as gate
operators, garage door openers, entry door locks,
security systems and home lighting. Additional
Homelink
®information can be found on the internet at
www.homelink.com or by calling 1-800-355-3515.If your vehicle is equipped with the HomeLink
®
Transmitter, it complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modications to this system by other than
an authorized service facility could void authorization
to use this equipment.
2-38
