CADILLAC XLR V 2007 1.G Owners Manual

LOW VOLTAGE
This message displays when the electrical system
is charging less than 10 volts or if the battery
has been drained. If this message displays
immediately after starting, it is possible that the
generator can still recharge the battery. The
battery should recharge while driving, but may
take a few hours to do so. Consider using
an auxiliary charger to boost the battery after
returning home or to a nal destination. Make sure
you follow the manufacturer’s instructions. If this
message displays while driving or after starting
your vehicle and stays on, have it checked
immediately by your dealer to determine the cause
of this problem. To help the generator recharge
the battery quickly, you can reduce the load on the
electrical system by turning off the accessories.
You can monitor battery voltage on the DIC
by pressing the INFO button. The normal range is
11.5 to 15.5 volts.
LOW WASHER FLUID
This message displays when the windshield
washer uid is low. Fill the windshield washer uid
reservoir as soon as possible. SeeEngine
Compartment Overview on page 374for the
location of the windshield washer uid reservoir.
Also, seeWindshield Washer Fluid on page 397
for more information.
MAX (Maximum) SPEED XX MPH
(XX KM/H)
This message displays when a failure in the
magnetic ride control system has occurred. The
Powertrain Control Module (PCM) determines
the speed to which your vehicle is limited. Have
your vehicle serviced by your dealer if this
message appears.
211

NO FOB DETECTED
This message displays if the vehicle does not
detect the presence of a keyless access
transmitter when you have attempted to start the
vehicle or a vehicle door has just closed. The
following conditions may cause this message to
appear:
Driver-added equipment plugged into the
accessory power outlet on the center console
is causing interference. Examples of these
devices are cell phones and cell phone
chargers, two-way radios, power inverters, or
similar items. Try moving the keyless
access transmitter away from these devices
when starting the vehicle. In addition,
PDA devices and remote garage and gate
openers may also generate Electromagnetic
Interference (EMI) that may interfere with
the keyless access transmitter. Do not carry
the keyless access transmitter in the same
pocket or bag as these devices.
The vehicle is experiencing Electromagnetic
Interference (EMI). Some locations, such as
airports, automatic toll booths, and some
gas stations, have EMI elds which may
interfere with your keyless access transmitter.If moving the transmitter to different locations
within the vehicle does not help, place the
transmitter in the glove box transmitter pocket
with the buttons facing to the right and then
press the START button.
The vehicle’s battery voltage is low. The
battery voltage must be above 10 volts for the
keyless access transmitter to be detected
properly.
212

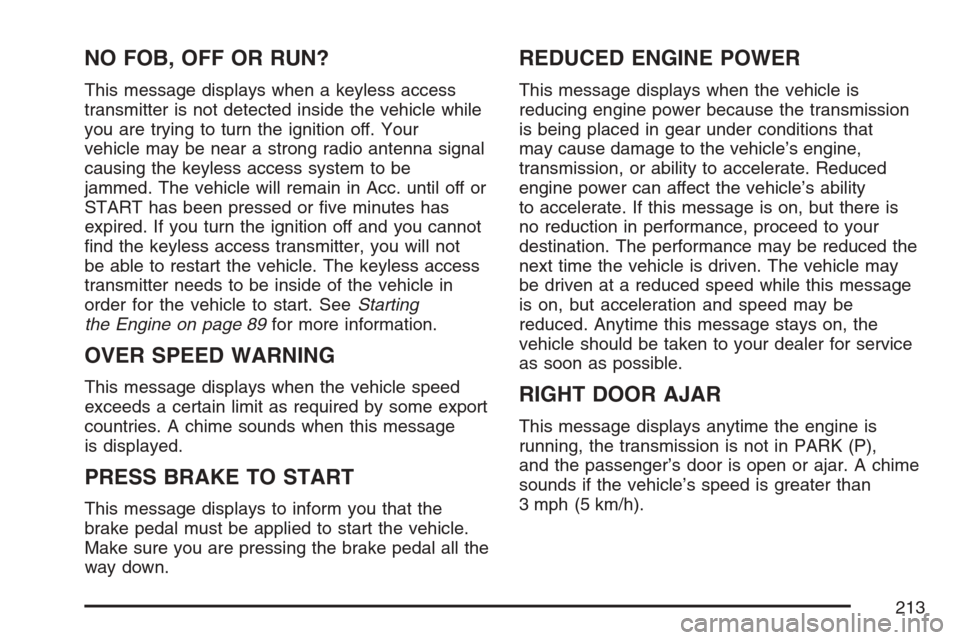

NO FOB, OFF OR RUN?
This message displays when a keyless access
transmitter is not detected inside the vehicle while
you are trying to turn the ignition off. Your
vehicle may be near a strong radio antenna signal
causing the keyless access system to be
jammed. The vehicle will remain in Acc. until off or
START has been pressed or ve minutes has
expired. If you turn the ignition off and you cannot
nd the keyless access transmitter, you will not
be able to restart the vehicle. The keyless access
transmitter needs to be inside of the vehicle in
order for the vehicle to start. SeeStarting
the Engine on page 89for more information.
OVER SPEED WARNING
This message displays when the vehicle speed
exceeds a certain limit as required by some export
countries. A chime sounds when this message
is displayed.
PRESS BRAKE TO START
This message displays to inform you that the
brake pedal must be applied to start the vehicle.
Make sure you are pressing the brake pedal all the
way down.
REDUCED ENGINE POWER
This message displays when the vehicle is
reducing engine power because the transmission
is being placed in gear under conditions that
may cause damage to the vehicle’s engine,
transmission, or ability to accelerate. Reduced
engine power can affect the vehicle’s ability
to accelerate. If this message is on, but there is
no reduction in performance, proceed to your
destination. The performance may be reduced the
next time the vehicle is driven. The vehicle may
be driven at a reduced speed while this message
is on, but acceleration and speed may be
reduced. Anytime this message stays on, the
vehicle should be taken to your dealer for service
as soon as possible.
RIGHT DOOR AJAR
This message displays anytime the engine is
running, the transmission is not in PARK (P),
and the passenger’s door is open or ajar. A chime
sounds if the vehicle’s speed is greater than
3 mph (5 km/h).
213

SERVICE A/C
This message displays when the electronic
sensors that control the air conditioning and
heating systems are no longer working. Have the
climate control system serviced by your dealer
if you notice a drop in heating and air conditioning
efficiency.
SERVICE ABS (Anti-lock Brake System)
If this message displays when you are driving,
stop as soon as possible and turn the ignition off.
Then start the engine again to reset the system.
If the message stays on, or comes back on again
while you are driving, your vehicle is in need of
service. See your dealer.
If the SERVICE ABS message is being displayed,
the Traction Control System (TCS) and
StabiliTrak
®System will also be disabled. The
Driver Information Center will scroll three
messages: SERVICE ABS, SERVICE TRACTION
SYS, and SERVICE STABILITRAK, and the
anti-lock brake system and traction control warning
lights on the instrument panel cluster will beilluminated. SeeAnti-Lock Brake System Warning
Light on page 193andTraction Control System
(TCS) Warning Light on page 194. The driver can
acknowledge these messages by pressing the
RESET button three times. When the service
message is displayed, the computer controlled
systems will not assist the driver and you should
have the system repaired by your dealer as
soon as possible. Adjust your driving accordingly.
SERVICE AFS (Adaptive Forward
Lighting System) LAMPS
This message displays when the Adaptive
Forward Lighting System (AFS) is disabled and
needs service. See your dealer. SeeAdaptive
Forward Lighting System on page 167for more
information.
SERVICE ELECT (Electrical) SYSTEM
This message displays if an electrical problem has
occurred within the Powertrain Control Module
(PCM). Have your vehicle serviced by your dealer.
214

SERVICE FUEL SYSTEM
This message displays when the Powertrain
Control Module (PCM) has detected a problem
within the fuel system. Have your vehicle serviced
by your dealer. This message will also be
displayed when the cluster is not getting fuel
information from the PCM.
SERVICE RADAR CRUISE
If your vehicle has this feature, this message
displays when the Adaptive Cruise Control (ACC)
system is disabled and needs service. See
your dealer.
SERVICE RIDE CONTROL
This message displays when there is a problem
with the Magnetic Ride Control System. Have your
vehicle serviced by your dealer.
SERVICE TRACTION SYS (System)
This message displays when there is a problem
with the Traction Control System (TCS). Have your
vehicle serviced by your dealer.
SERVICE STABILITRAK
If this message displays, it means there may be a
problem with the stability enhancement system.
If you see this message, try to reset the system.
Stop, turn off the engine, then start the engine
again. If this message still comes on, it means
there is a problem. You should see your dealer for
service. Reduce your speed and drive accordingly.
A single chime also sounds when this message
is displayed.
SERVICE TRANSMISSION
This message displays when there is a problem
with the transmission. Have your vehicle serviced
by your dealer.
SERVICE VEHICLE SOON
This message displays when a non-emissions
related powertrain malfunction occurs. Have your
vehicle serviced by your dealer as soon as
possible.
215

SHIFT TO PARK
This message displays if the vehicle is not in
PARK (P) when the engine is being turned off. The
vehicle will be in accessory mode. Once the
shift lever is moved to PARK (P), the vehicle will
turn off.
STABILITRAK ACTIVE
You may see this message on the DIC. It means
that an advanced, computer-controlled system
has come on to help your vehicle continue to go in
the direction in which you are steering. This
stability enhancement system activates when the
computer senses that your vehicle is just
starting to spin, as it might if you hit a patch of ice
or other slippery spot on the road. When the
system is on, you may hear a noise or feel
a vibration in the brake pedal. This is normal.
When this message is on, continue to steer in the
direction you want to go. The system is designed
to help you in bad weather or other difficult driving
situations by making the most of whatever roadconditions will permit. If this message comes on,
you will know that something has caused your
vehicle to start to spin, so consider slowing down.
A single chime also sounds when this message
is displayed.
STABILITRAK READY
If this message displays and a chime sounds, the
system has completed the functional check of
the StabiliTrak
®System.
STABILITRAK WARMING
When you rst start your vehicle and drive away,
especially during cold winter weather, this
message may display along with a chime and the
traction control warning light. This is normal.
You can acknowledge this message by pressing
the RESET button. The StabiliTrak
®System
performance is affected until the STABILITRAK
READY message is displayed in the DIC,
which can take up to 15 minutes.
216

SVC (Service) TIRE MONITOR
This message displays if a part on the Tire
Pressure Monitor (TPM) is not working properly.
If you drive your vehicle while any of the four
sensors are missing or inoperable, the warning
comes on in about 30 minutes. A sensor would be
missing, for example, if you put different wheels
on your vehicle without transferring the sensors.
If the warning comes on and stays on, there
may be a problem with the TPM. See your dealer.
TOO COLD TO MOVE TOP
This message displays when the retractable
hardtop button is pressed and the hardtop pump
motor temperature is below−4°F (−20°C). Wait for
the hardtop pump motor to warm up before
using the retractable hardtop.
TOP INOP (Inoperative) – VALET ON
This message displays when the retractable
hardtop button is pressed and the valet switch is
on. Turn off the valet switch before using the
retractable hardtop.
TOP INOP (Inoperative) OUT OF PARK
This message displays if the retractable hardtop
button is pressed while the vehicle is not in
PARK (P).
TOP MOTOR OVER TEMP
(Temperature)
This message displays when the retractable
hardtop button is pressed and the hardtop pump
motor temperature is over 221°F (105°C). Wait for
the hardtop pump motor to cool down before
using the retractable hardtop.
TOP NOT SECURE
This message displays when the retractable
hardtop button is released before the top open or
close operation is complete. Press and hold
the retractable hardtop button to fully open or close
the top.
217

TRAC (Traction) SYSTEM ACTIVE
This message displays when the Traction Control
System (TCS) is limiting wheel spin. Slippery
road conditions may exist if this message
is displayed, so adjust your driving accordingly.
This message stays on for a few seconds after the
TCS stops limited wheel spin.
TRAC (Traction)/STABILITRAK OFF
This message displays when both the Traction
Control System (TCS) and the StabiliTrak®System
are off. This message will remain until the
systems are turned on again.
TRAC (Traction)/STABILITRAK ON
This message displays when both the Traction
Control System (TCS) and the StabiliTrak®System
are on.
TRACTION SYSTEM OFF
This message displays when the Traction Control
System (TCS) is off, but the StabiliTrak®System
remains on.
TRACTION SYSTEM ON
This message displays when the Traction Control
System (TCS) is on.
TRUNK AJAR
This message displays when the trunk is open
while the vehicle is running and is not in PARK (P).
WAIT FOR STABILITRAK
This message displays after driving 19 mph
(30 km/h) for 10 seconds if the steering is not
centered. The StabiliTrak
®System is not available
until the steering centers itself and the
STABILITRAK READY message is displayed in
the DIC.
218

Other Messages
Here are more messages that you can receive on
your Driver Information Center (DIC). To
acknowledge a message and read another
message that may have come on at the same
time, press the RESET button.
ACCESSORY MODE ON
CHANGE OIL SOON
(SeeEngine Oil on page 377andEngine Oil
Life System on page 380.)
FOB BATTERY LOW
HIGH TIRE PRESS LF
HIGH TIRE PRESS RF
HIGH TIRE PRESS LR
HIGH TIRE PRESS RR
INTRUSION SENSOR OFF
INTRUSION SENSOR ON
KNOWN FOB
LEFT FRONT TIRE FLAT MAX SPD 55,
REDUCED HNDLG
LEFT REAR TIRE FLAT MAX SPD 55,
REDUCED HNDLG
LOW TIRE PRESS LF
LOW TIRE PRESS RF
LOW TIRE PRESS LR
LOW TIRE PRESS RR
MAX # FOBS LEARNED
OFF-ACC TO LEARN
READY FOR FOB #X
RIGHT FRT TIRE FLAT MAX SPD 55,
REDUCED HNDLG
RIGHT REAR TIRE FLAT MAX SPD 55,
REDUCED HNDLG
WAIT XX MINUTES
219

DIC Vehicle Personalization
Your vehicle has personalization capabilities that
allow you to program certain features to a
preferred setting for up to two drivers. The back of
the keyless access transmitters are labelled 1 or 2.
The current driver’s preferences are recalled
when one of the following occurs:
The lock or unlock button on the keyless
access transmitter, programmed as 1 or 2, is
pressed.
The appropriate memory button, 1 or 2,
located on the driver’s seat is pressed.
SeeMemory Seat, Mirrors and Steering Wheel
on page 10for more information.
A valid keyless access transmitter is detected
upon opening the driver’s door.
If more than one valid keyless access transmitter
is detected upon opening the driver’s door, the
driver preferences for the lowest driver number will
be recalled.
If a keyless access transmitter is programmed
as #3 or #4, the personalization system will
not recognize the transmitter. The Driver
Information Center (DIC) will not display a currentdriver number and the features that are normally
programmed through the DIC will be set to
the default states. Also, if the OPTIONS button is
pressed, the DIC does not display the menus
used to set personalizations, but instead displays
OPTIONS UNAVAILABLE for a few seconds.
Feature Programming
To change feature preferences, make sure the
vehicle is running and in PARK (P). To avoid
excessive drain on the battery, it is recommended
that the headlamps are turned off. Press the
OPTIONS button and the Driver Information Center
(DIC) will display the current driver for a few
seconds, then display the rst personalization
menu item. You can now use the OPTIONS button
to change the setting of the displayed feature.
Press the top or bottom of the information button
to scroll up or down the list of features. When
you get to a feature you want to change, press the
OPTIONS button again. When you are nished,
press the RESET button to exit the personalization
menu. If no button is pressed within 45 seconds,
the DIC will exit the personalization menu.
The following are DIC options that will be available
in the personalization menu.
220
