SEARCH:Touch this button to search to a certain
scene on the DVD. Depending on the type of
DVD you are using, this button may or may not be
available.
r(Rewind):Touch this button to rewind through
a scene during playback.
r(Resume):Touch this button to resume
playing a DVD.
c(Stop):Touch this button to stop the DVD.
j(Pause):Touch this button to pause the DVD.
[(Forward):Touch this button to advance
rapidly during playback.
L(Frame Advance):Touch this button to
advance by chapter during playback.
Radio Personalization with Home
and Away Feature
With this feature, you can recall the latest audio
system settings as adjusted the last time your
vehicle was operated. This feature allows
two different drivers to store and recall their own
audio system settings. The settings recalled by the
audio system are determined by which transmitter
(1 or 2) was used to enter the vehicle. The
number on the back of the transmitter corresponds
to driver 1 or to driver 2. The audio system
settings will automatically adjust to where they
were last set by the identied driver. The settings
can also be recalled by briey pressing the
MEMORY seat switches 1 or 2 located on the
driver’s door.
Your audio system can store HOME and AWAY
preset stations. HOME and AWAY preset stations
allow you to use one set of preset radio settings
in the area where you live, and another set
when you go out of town. That way, you will not
need to reprogram your preset stations every time
you travel.
311

To select HOME and AWAY preset stations, do
the following:
1. With the audio system on, touch the Audio
hard key and turn the audio system off.
2. Touch the HOME or AWAY button from the
main audio screen.
The next time the audio system is turned on,
the system will recall the last active preset
selection.
When battery power is removed and later applied,
you will not have to reset your home audio
system preset stations because the audio system
remembers them. However, you will have to
reset your away radio preset stations.
Voice Recognition
The navigation system’s voice recognition allows
for hands-free operation of navigation and
audio system features. Voice recognition can be
used when the ignition is on or when Retained
Accessory Power (RAP) is active.This feature only works if the map DVD is inserted
and I AGREE has been selected. If you try to
use voice recognition without the map DVD
inserted, the system will display “Please insert the
navigation map DVD to use the voice recognition
feature.”
To use navigation voice recognition, do the
following:
1. Press the talk
symbol steering
wheel control
and release it, when
you hear a beep.
The audio system, if
on, will mute.
2. Clearly state one of the commands listed on
the following pages. For example, say “FM1”.
3. The system will tell you the command being
implemented. For example, the system will
say “FM1 Radio” and change the audio
system to the FM1 source.
312

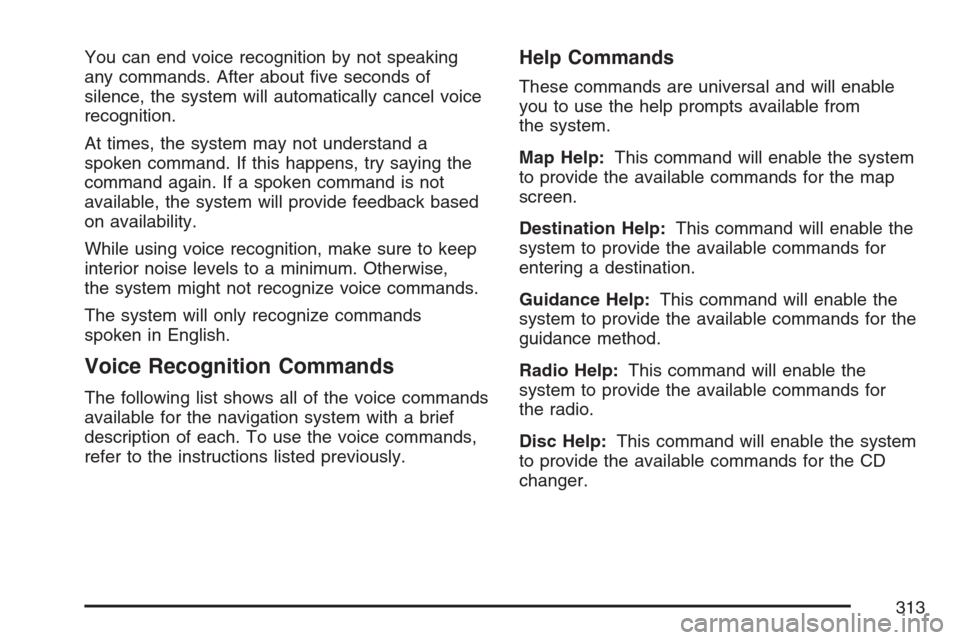

You can end voice recognition by not speaking
any commands. After about ve seconds of
silence, the system will automatically cancel voice
recognition.
At times, the system may not understand a
spoken command. If this happens, try saying the
command again. If a spoken command is not
available, the system will provide feedback based
on availability.
While using voice recognition, make sure to keep
interior noise levels to a minimum. Otherwise,
the system might not recognize voice commands.
The system will only recognize commands
spoken in English.
Voice Recognition Commands
The following list shows all of the voice commands
available for the navigation system with a brief
description of each. To use the voice commands,
refer to the instructions listed previously.
Help Commands
These commands are universal and will enable
you to use the help prompts available from
the system.
Map Help:This command will enable the system
to provide the available commands for the map
screen.
Destination Help:This command will enable the
system to provide the available commands for
entering a destination.
Guidance Help:This command will enable the
system to provide the available commands for the
guidance method.
Radio Help:This command will enable the
system to provide the available commands for
the radio.
Disc Help:This command will enable the system
to provide the available commands for the CD
changer.
313

Radio Commands
Radio:This command will change the audio
system to the next radio audio source.
AM:This command will change the audio system
to the AM audio source.
FM1:This command will change the audio
system to the FM1 audio source.
FM2:This command will change the audio
system to the FM2 audio source.
XM1:This command will change the audio
system to the XM1 audio source.
XM2:This command will change the audio
system to the XM2 audio source.
CD Changer:This command will change the
audio system to the CD changer audio source.
WX, Weather Band:These commands will
change the audio system to the weather band
audio source.Power On, Audio On:These commands will turn
the system’s power on.
Power Off, Audio Off:These commands will turn
the system’s power off.
Seek Up:This command will cause the selected
audio source to seek up to the next strongest
signal.
Seek Down:This command will cause the
selected audio source to seek down to the next
strongest signal.
Stop Scan:This command will cause the audio
source to stop scanning for the next strongest
signal.
CD Changer Commands
Track Up:This command will cause the CD
changer to skip up to the next track.
Previous Track, Track Down:This command will
cause the CD changer to go to the previous track.
314

Screen Commands
Screen Day Mode, Day Mode On:These
commands will adjust the system’s screen setting
to the day mode.
Screen Night Mode, Night Mode On:These
commands will adjust the system’s screen setting
to the night mode.
Screen Auto Mode, Auto Mode On:These
commands will adjust the system’s screen setting
to auto mode.
Screen Off:This command will turn the system’s
screen display off.
Position Commands
Current Position, Current Location, Show
Current Position, Show Current
Location:These commands will cause the
system to display the vehicle’s current location on
the map screen.
Map:This command will cause the system to
display the map screen.
Map Commands
Zoom In:This command will cause the system to
zoom in when on the map screen.
Zoom Out:This command will cause the system
to zoom out when on the map screen.
Maximum Scale:This command will cause the
system to zoom out to the maximum available map
scale when on the map screen.
Minimum Scale:This command will cause the
system to zoom in to the minimum available map
scale when on the map screen.
Heading Up, Change to Heading Up:These
commands will cause the system to display
the Vehicle Up heading when on the map screen.
The map scale should be set for under 2 miles
(4 km).
North Up, Change to North Up:These
commands will cause the system to display the
North Up heading when on the map screen if the
map scale is set to 2 miles (4 km) or less.
315

Map Direction, Change Map Direction:These
commands will cause the system to change
the vehicle’s direction from North Up to Heading
Up or Heading Up to North Up on the map screen
if the map scale is set to 2 miles (4 km) or less.
Mark, Mark This Point:These commands
will cause the system to mark the location as a
memory point while on the map screen.
Destination Commands
Home, Go Home:These commands will cause
the system to enter the Home destination, if one
is set.
Go To Starting Point, Previous Starting
Point:These commands will cause the system to
enter the last available starting point as a
destination.
Guidance Commands
Repeat Guidance, Repeat Voice:These
commands will cause the system to repeat the last
available voice prompt guidance command if a
destination has been set.Louder:This command will cause the system to
increase the volume of the navigation voice
prompts if a destination has been set.
Softer:This command will cause the system to
decrease the volume of the navigation voice
prompts if a destination has been set.
Voice Guidance Off:This command will cause
the system to turn off the navigation voice prompts
if a destination has been set.
Voice Guidance On:This command will cause
the system to turn on the navigation voice prompts
if a destination has been set.
Open Guidance, Open Guidance Screen, Open
Guide, Open Guide Screen:These commands
will cause the system to open the Guidance
Appearance menu if a destination has been set.
Close Guidance, Close Guidance Screen, Close
Guide, Close Guide Screen:These commands
will cause the system to close the Guidance
Appearance menu if a destination has been set.
316

Arrow Guidance, Arrow Guide, Change To
Arrow Guidance, Change To Arrow
Guide:These commands will cause the system
to change to Arrow Guidance screen view in
the Guidance Menu if a destination has been set.
Turn List Guidance, Turn List Guide, Change
to Turn List Guidance, Change to Turn
List Guide:These commands will cause the
system to change to Turn List Guidance screen
view in the Guidance Menu if a destination
has been set.
Entire Route, Entire Route Map, Route
Overview:These commands will cause the
system to display the entire route if a destination
has been set.
Reroute:This command will cause the system to
generate an alternate route to a set destination
while on a planned route.
Detour, Detour Entire Route:These commands
will cause the system to activate the detour
feature when driving a planned route.
Delete Destination, Cancel Destination:These
commands will cancel a destination if one has
been set.Next Waypoint Map:This command will cause
the system to display the map view of the
next waypoint location if one has been set.
First Waypoint Map:This command will cause
the system to display the map view of the rst
waypoint location if one has been set.
Second Waypoint Map:This command will
cause the system to display the map view of the
second waypoint location if more than one
waypoint has been set.
Third Waypoint Map:This command will cause
the system to display the map view of the third
waypoint location if more than two waypoints have
been set.
Fourth Waypoint Map:This command will cause
the system to display the map view of the fourth
waypoint location if more than three waypoints
have been set.
Fifth Waypoint Map:This command will cause
the system to display the map view of the fth
waypoint location if more than four waypoints have
been set.
Destination Map:This command will cause the
system to display the map view of the nal
destination location if one has been set.
317

Point of Interest (POI) Commands
The following commands will cause the system to
display icons if they are available on the map
screen when the map scale is set to a half mile
(eight-tenths km) or less.
Restaurant, I’m Hungry:These commands will
cause the system to display restaurant POI icons.
American Restaurant, American Food:These
commands will cause the system to display
American restaurant POI icons.
Chinese Restaurant, Chinese Food:These
commands will cause the system to display
Chinese restaurant POI icons.
Continental Restaurant, Continental Food:
These commands will cause the system to display
Continental restaurant POI icons.
French Restaurant, French Food:These
commands will cause the system to display French
restaurant POI icons.
Italian Restaurant, Italian Food:These
commands will cause the system to display Italian
restaurant POI icons.Japanese Restaurant, Japanese Food:These
commands will cause the system to display
Japanese restaurant POI icons.
Mexican Restaurant, Mexican Food:These
commands will cause the system to display
Mexican restaurant POI icons.
Seafood Restaurant, Seafood:These
commands will cause the system to display
Seafood restaurant POI icons.
Other Restaurant, Other Food:These
commands will cause the system to display other
types of restaurant POI icons.
Shopping, Shopping Mall:These commands will
cause the system to display mall POI icons.
Grocery Store:This command will cause the
system to display grocery store POI icons.
Gas Station, Gas:These commands will cause
the system to display gas station POI icons.
Parking Garage:This command will cause the
system to display parking garage POI icons.
Parking Lot:This command will cause the system
to display parking lot POI icons.
318

Rental Car Agency:This command will cause
the system to display rental car POI icons.
Automobile Club, Triple A:These commands
will cause the system to display auto club
POI icons.
Auto Service And Maintenance, Auto Service,
Maintenance:These commands will cause
the system to display auto service POI icons.
Hotel:This command will cause the system to
display hotel POI icons.
Golf Course:This command will cause the
system to display golf course POI icons.
Ski Resort, Skiing:These commands will cause
the system to display ski resort POI icons.
Amusement Park:This command will cause the
system to display amusement park POI icons.
Sport Complex, Stadium:These commands will
cause the system to display sports complex
POI icons.
Casino:This command will cause the system to
display casino POI icons.
Marina:This command will cause the system to
display marina POI icons.Tourist Attraction:This command will cause the
system to display tourist attraction POI icons.
Winery:This command will cause the system to
display winery POI icons.
City Hall:This command will cause the system to
display city hall POI icons.
Police Station:This command will cause the
system to display police station POI icons.
Library:This command will cause the system to
display library POI icons.
Hospital:This command will cause the system to
display hospital POI icons.
Park & Recreation, Parks & Recreation:These
commands will cause the system to display
parks and recreation POI icons.
Civic Center, Community Center:These
commands will cause the system to display
community center POI icons.
Convention Center, Exhibition Center:These
commands will cause the system to display
convention center POI icons.
319

Court House:This command will cause the
system to display court house POI icons.
Train Station:This command will cause the
system to display train station POI icons.
Airport:This command will cause the system to
display airport POI icons.
Bus Station:This command will cause the
system to display bus station POI icons.
Commuter Rail Station:This command will
cause the system to display commuter rail station
POI icons.
Ferry Terminal:This command will cause the
system to display ferry terminal POI icons.
Park & Ride:This command will cause the
system to display park & ride POI icons.
Rest Area, Rest Stop:These commands will
cause the system to display rest area POI icons.
Tourist Information:This command will
cause the system to display tourist information
POI icons.Historical Monument:This command will
cause the system to display historical monument
POI icons.
Performing Arts:This command will cause the
system to display performing arts POI icons.
Museum:This command will cause the system to
display museum POI icons.
Bank:This command will cause the system to
display bank POI icons.
School:This command will cause the system to
display school POI icons.
ATM:This command will cause the system to
display ATM POI icons.
Higher Education, University, College:These
commands will cause the system to display higher
education POI icons.
Business Facility:This command will cause the
system to display business facility POI icons.
City Center:This command will cause the system
to display city center POI icons.
POI Off:This command will cause the system to
turn off POIs so they do not appear on the
map screen.
320
