Page 241 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
240 Driving and Operating
Avoid driving on wet ice or in
freezing rain until roads can be
treated.
For Slippery Road Driving:
.Accelerate gently.
Accelerating too quickly
causes the wheels to spin
and makes the surface under
the tires slick.
.Turn on Traction Control.
See Traction Control/
Electronic Stability Control
0267.
.The Antilock Brake System
(ABS) improves vehicle
stability during hard stops,
but the brakes should be
applied sooner than when on
dry pavement. See Antilock
Brake System (ABS) 0264.
.Allow greater following
distance and watch for
slippery spots. Icy patches
can occur on otherwise clear
roads in shaded areas. The
surface of a curve or an
overpass can remain icy
when the surrounding roads are clear. Avoid sudden
steering maneuvers and
braking while on ice.
.Turn off cruise control.
.Select All-Wheel Drive (AWD)
Mode for vehicles equipped
with AWD. Select Snow/Ice
Mode for FWD only vehicles.
See Driver Mode Control
0
269 and
All-Wheel Drive 0263.
Cold Weather Mode
In very low temperatures, a
cold weather message may
display on the Driver
Information Center (DIC). The
engine speed, transmission
shift patterns, and cabin fan
speed may operate differently
to enable the vehicle to warm
up quicker. You can manually
override the cabin fan speed in
cold weather mode.
Blizzard Conditions
Stop the vehicle in a safe
place and signal for help. Stay
with the vehicle unless there is
help nearby. If possible, use Roadside Assistance. See
Roadside Assistance Program
0
439. To get help and keep
everyone in the vehicle safe:
.Turn on the hazard warning
flashers.
.Tie a red cloth to an outside
mirror.
{Warning
Snow can trap engine
exhaust under the vehicle.
This may cause exhaust
gases to get inside. Engine
exhaust contains carbon
monoxide (CO), which cannot
be seen or smelled. It can
cause unconsciousness and
even death.
If the vehicle is stuck
in snow:
.Clear snow from the base
of the vehicle, especially
any blocking the
exhaust pipe.
(Continued)
Page 268 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 267
release under other
conditions. Do not rely on HSA
to hold the vehicle.
HSA is available when the
vehicle is facing uphill in a
forward gear, or when facing
downhill in R (Reverse). The
vehicle must come to a
complete stop on a grade for
HSA to activate.
Ride Control
Systems
Traction Control/
Electronic Stability
Control
System Operation
The vehicle has a Traction
Control System (TCS) and
StabiliTrak/Electronic Stability
Control (ESC). These systems
help limit wheel spin and assist
the driver in maintaining
control, especially on slippery
road conditions.TCS activates if it senses that
any of the drive wheels are
spinning or beginning to lose
traction. On an All-Wheel Drive
(AWD) vehicle in AWD or Sport
Mode, the system will operate
if it senses that any of the
wheels are spinning or
beginning to lose traction.
When this happens, TCS
applies the brakes to the
spinning wheels and reduces
engine power to limit
wheel spin.
StabiliTrak/ESC activates
when the system senses a
discrepancy between the
intended path and the
direction the vehicle is actually
traveling. StabiliTrak/ESC
selectively applies braking
pressure at any one of the
vehicle's brakes to help steer
the vehicle in the direction
which you are steering.
If cruise control is being used
and traction control or
StabiliTrak/ESC begins to limit
wheel spin, cruise control willdisengage. Cruise control may
be turned back on when road
conditions allow. TCS and
StabiliTrak/ESC will
automatically turn on when
cruise control is set.
Both systems come on
automatically when the vehicle
is started and begins to move.
The systems may be heard or
felt while they are operating
or while performing diagnostic
checks. This is normal and
does not mean there is a
problem with the vehicle.
It is recommended to leave
both systems on for normal
driving conditions, but it may
be necessary to turn TCS off
if the vehicle gets stuck in
sand, mud, ice, or snow. See If
the Vehicle Is Stuck
0241 and
“Turning the Systems Off and
On” later in this section.
Page 271 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
270 Driving and Operating
Sport Mode modifies steering
efforts, transmission shifting,
and AWD torque, if equipped.
The Performance Algorithm
Liftfoot (PAL) feature is
enabled in Sport Mode. PAL
allows the transmission to
hold the current gear after a
quick release of a heavily
applied accelerator pedal. This
provides greater engine
braking and enhanced vehicle
control.
When PAL is activated, there
may be an additional gear
symbol that appears in the
instrument cluster display. See
Performance Shifting Light
0130.
Off-Road Mode : Use this
mode for off-road recreational
driving. When active, Off–Road
Mode should be used to
improve driving at moderate
speeds, on grass, gravel, dirt,
unpaved roads,
or snow-covered roads. The
accelerator pedal is tuned for off-road use. This mode
modifies pedal mapping, AWD,
ESC, and TCS Performance.
Snow/Ice Mode :
Snow/Ice
Mode improves vehicle
acceleration on snow and ice
covered roads. When active,
Snow/Ice Mode will adjust
acceleration to optimize
traction on slippery surfaces.
This can compromise the
acceleration on dry asphalt.
This feature is not intended
for use when the vehicle is
stuck in sand, mud, ice, snow,
or gravel. If the vehicle
becomes stuck, see If the
Vehicle Is Stuck 0241.
Cruise Control
{
Warning
Cruise control can be
dangerous where you
cannot drive safely at a (Continued)
Warning (Continued)
steady speed. Do not use
cruise control on winding
roads or in heavy traffic.
Cruise control can be
dangerous on slippery roads.
On such roads, fast changes
in tire traction can cause
excessive wheel slip, and
you could lose control. Do
not use cruise control on
slippery roads.
With cruise control, a speed of
about 40 km/h (25 mph) or
more can be maintained
without keeping your foot on
the accelerator. Cruise control
does not work at speeds
below about 40 km/h (25 mph).
Page 272 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 271

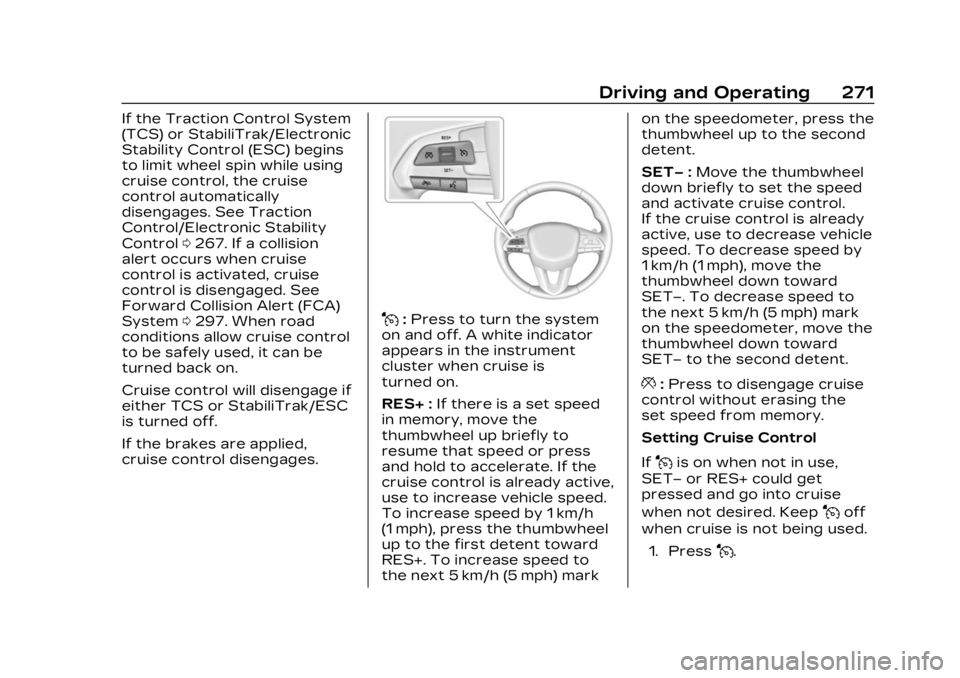

If the Traction Control System
(TCS) or StabiliTrak/Electronic
Stability Control (ESC) begins
to limit wheel spin while using
cruise control, the cruise
control automatically
disengages. See Traction
Control/Electronic Stability
Control0267. If a collision
alert occurs when cruise
control is activated, cruise
control is disengaged. See
Forward Collision Alert (FCA)
System 0297. When road
conditions allow cruise control
to be safely used, it can be
turned back on.
Cruise control will disengage if
either TCS or StabiliTrak/ESC
is turned off.
If the brakes are applied,
cruise control disengages.
J: Press to turn the system
on and off. A white indicator
appears in the instrument
cluster when cruise is
turned on.
RES+ : If there is a set speed
in memory, move the
thumbwheel up briefly to
resume that speed or press
and hold to accelerate. If the
cruise control is already active,
use to increase vehicle speed.
To increase speed by 1 km/h
(1 mph), press the thumbwheel
up to the first detent toward
RES+. To increase speed to
the next 5 km/h (5 mph) mark on the speedometer, press the
thumbwheel up to the second
detent.
SET−
:Move the thumbwheel
down briefly to set the speed
and activate cruise control.
If the cruise control is already
active, use to decrease vehicle
speed. To decrease speed by
1 km/h (1 mph), move the
thumbwheel down toward
SET−. To decrease speed to
the next 5 km/h (5 mph) mark
on the speedometer, move the
thumbwheel down toward
SET− to the second detent.
*:Press to disengage cruise
control without erasing the
set speed from memory.
Setting Cruise Control
If
Jis on when not in use,
SET− or RES+ could get
pressed and go into cruise
when not desired. Keep
Joff
when cruise is not being used.
1. Press
J.
Page 273 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
272 Driving and Operating
2. Get up to the desiredspeed.
3. Move the thumbwheel down to SET−. The desired
set speed briefly appears
in the instrument cluster.
4. Remove your foot from the accelerator.
When the cruise control has
been set to the desired speed,
a green cruise control
indicator appears on the
instrument cluster and a
cruise set speed message
appears on the Head-Up
Display (HUD), if equipped.
Resuming a Set Speed
If the cruise control is set at a
desired speed and then the
brakes are applied or
*is
pressed, the cruise control is
disengaged without erasing
the set speed from memory.
Once the vehicle speed
reaches about 40 km/h
(25 mph) or more, move the thumbwheel up toward RES+
briefly. The vehicle returns to
the previous set speed.
Increasing Speed While Using
Cruise Control
If the cruise control system is
already activated:
.Move the thumbwheel up
toward RES+ until the
desired speed is reached,
then release it.
.To increase vehicle speed in
small increments, move the
thumbwheel up toward
RES+ briefly. For each press,
the vehicle goes about
1 km/h (1 mph) faster.
.To increase vehicle speed in
larger increments, move the
thumbwheel up toward
RES+ to the second detent.
For each press, the vehicle
speed increases to the next
5 km/h (5 mph) mark on the
speedometer.
The speedometer reading can
be displayed in either English
or metric units. See
Instrument Cluster
0119. The
increment value used depends
on the units displayed.
Reducing Speed While Using
Cruise Control
If the cruise control system is
already activated:
.Move the thumbwheel down
toward SET− until the
desired lower speed is
reached, then release it.
.To decrease the vehicle
speed in small increments,
move the thumbwheel down
toward SET− briefly. For
each press, the vehicle goes
about 1 km/h (1 mph) slower.
.To decrease the vehicle
speed in larger increments,
move the thumbwheel down
toward SET− to the second
detent. For each press, the
vehicle speed decreases to
the next 5 km/h (5 mph) mark
on the speedometer.
Page 274 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 273
The cruise control system may
automatically brake to slow
the vehicle down.
The speedometer reading can
be displayed in either English
or metric units. See
Instrument Cluster0119. The
increment value used depends
on the units displayed.
Passing Another Vehicle
While Using Cruise Control
Use the accelerator pedal to
increase the vehicle speed.
When you take your foot off
the pedal, the vehicle will slow
down to the previous set
cruise speed.
While pressing the accelerator
pedal or shortly following the
release to override cruise,
briefly moving the thumbwheel
down toward SET− will result
in cruise set to the current
vehicle speed.
Using Cruise Control on Hills
How well the cruise control will
work on hills depends upon
the vehicle speed, load, and the steepness of the hills.
When going up steep hills, you
might have to step on the
accelerator pedal to maintain
your speed. When going
downhill, the cruise control
system may automatically
brake to slow the vehicle
down. Also, you may have to
brake or shift to a lower gear
to keep your speed down.
If the brake pedal is applied,
cruise control disengages.
Ending Cruise Control
There are four ways to end
cruise control:
.Step lightly on the brake
pedal.
.Press*.
.Shift the transmission to
N (Neutral).
.PressJ.
Erasing Speed Memory
The cruise control set speed is
erased from memory if
Jis
pressed or if the ignition is
turned off.
Adaptive Cruise
Control (Advanced)
If equipped with Adaptive
Cruise Control (ACC), it allows
the driver to select the cruise
control set speed and
following gap. Read this entire
section before using this
system. The following gap is
the following time between
your vehicle and a vehicle
detected directly ahead in
your path, moving in the same
direction. If no vehicle is
detected in your path, ACC
works like regular cruise
control. ACC uses camera and
radar sensors. See Radio
Frequency Statement 0446.
If a vehicle is detected in your
path, ACC can apply
acceleration or limited,
moderate braking to maintain
the selected following gap. To
disengage ACC, apply the
brake. If ACC is controlling
your vehicle speed when the
Traction Control System (TCS)
or StabiliTrak/Electronic
Page 276 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 275
J:Press to turn the system
on or off. The indicator turns
white on the instrument
cluster when ACC is
turned on.
RES+ : Press briefly to resume
the previous set speed or to
increase vehicle speed if ACC
is already activated. To
increase speed by 1 km/h
(1 mph), press RES+ to the first
detent. To increase speed to
the next 5 km/h (5 mph) mark
on the speedometer, press
RES+ to the second detent. SET–
:Press briefly to set the
speed and activate ACC or to
decrease vehicle speed if ACC
is already activated. To
decrease speed by 1 km/h
(1 mph), press SET− to the first
detent. To decrease speed to
the next 5 km/h (5 mph) mark
on the speedometer, press
SET− to the second detent.
*:Press to disengage ACC
without erasing the selected
set speed.
[: Press to select a
following gap time (or
distance) setting for ACC of
Far, Medium, or Near.
Switching Between ACC and
Regular Cruise Control
To switch between ACC and
regular cruise control, press
and hold
*. A Driver
Information Display (DIC)
message displays. See Vehicle
Messages 0143.
ACC IndicatorRegular Cruise
Control
Indicator
When ACC is engaged, a
green
oindicator will be lit on
the instrument cluster and the
following gap will be displayed.
When the regular cruise
control is engaged, a green
J
indicator will be lit on the
instrument cluster; the
following gap will not display.
It is recommended to switch
from ACC to regular Cruise
Control when there are no
vehicles ahead of your vehicle.
When the vehicle is turned on,
the cruise control mode will be
set to the last mode used
before the vehicle was
turned off.
Page 277 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
276 Driving and Operating
{Warning
Always check the cruise
control indicator on the
instrument cluster to
determine which mode
cruise control is in before
using the feature. If ACC is
not active, the vehicle will
not automatically brake for
other vehicles, which could
cause a crash if the brakes
are not applied manually.
You and others could be
seriously injured or killed.
Setting Adaptive Cruise
Control
If
Jis on when not in use, it
could get pressed and go into
cruise when not desired. Keep
Joff when cruise is not
being used.
Select the set speed desired
for cruise. This is the vehicle
speed when no vehicle is
detected in its path. ACC will not set at a speed
less than 25 km/h (15 mph),
although it can be resumed
when driving at lower speeds.
The minimum allowable set
speed is 25 km/h (15 mph).
To set ACC while moving:
1. Press
J.
2. Get up to the desired speed.
3. Press and release SET–.
4. Remove your foot from the accelerator.
After ACC is set, it may
immediately apply the brakes if
a vehicle ahead is detected
closer than the selected
following gap.
ACC can also be set while the
vehicle is stopped if ACC is on
and the brake pedal is applied. The ACC indicator displays on
the instrument cluster and
Head-Up Display (HUD),
if equipped. When ACC is
turned on, the indicator will be
lit white. When ACC is
engaged, the indicator will turn
green.
Be mindful of speed limits,
surrounding traffic speeds,
and weather conditions when
selecting the set speed.
Resuming a Set Speed
If the ACC is set at a desired
speed and then the brakes are
applied, ACC is disengaged
without erasing the set speed
from memory.
To begin using ACC again,
press RES+ up briefly.
.If the vehicle is moving more
than 5 km/h (3 mph), it
returns to the previous set
speed.
.If the vehicle is stopped with
the brake pedal applied,
press RES+ and release the
Page 281 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
280 Driving and Operating
Warning (Continued)
change. Always be ready to
manually accelerate or brake
to complete the pass or lane
change.
Stationary or Very
Slow-Moving Objects
{Warning
ACC may not detect and
react to stopped or
slow-moving vehicles ahead
of you. For example, the
system may not brake for a
vehicle it has never detected
moving. This can occur in
stop-and-go traffic or when
a vehicle suddenly appears
due to a vehicle ahead
changing lanes. Your vehicle
may not stop and could
cause a crash. Use caution
when using ACC. Your
complete attention is always (Continued)
Warning (Continued)
required while driving and
you should be ready to take
action and apply the brakes.
Irregular Objects
Affecting ACC
ACC may have difficulty
detecting the following
objects:
.Vehicles with cargo
extending from the back end.
.Non-standard shaped
vehicles, such as vehicle
transport, vehicles with a
side car fitted, or horse
carriages.
.Objects that are close to the
front of your vehicle.
ACC Automatically
Disengages
ACC may automatically
disengage and the driver will
need to manually apply the
brakes to slow the
vehicle when:
.The sensors are blocked.
.The Traction Control System
(TCS) or StabiliTrak/ESC
system has activated or
been disabled.
.There is a fault in the
system.
.The radar falsely reports
blockage when driving in a
desert or remote area with
no other vehicles or
roadside objects. A DIC
message may display to
indicate that ACC is
temporarily unavailable.
The ACC indicator will turn
white when ACC is no longer
active.
In some cases, when ACC is
temporarily unavailable,
regular cruise control may be
used. See “Switching Between
ACC and Regular Cruise
Control” in this section. Always
consider driving conditions
before using either cruise
control system.
Page 284 of 476

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 283
ACC may occasionally provide
an alert and/or braking that is
considered unnecessary.
It could respond to vehicles in
different lanes, signs,
guardrails, and other
stationary objects when
entering or exiting a curve.
This is normal operation. The
vehicle does not need service.
Other Vehicle Lane Changes
ACC will not detect a vehicle
ahead until it is completely in
the lane. The brakes may need
to be manually applied.Objects Not Directly in Front
of Your Vehicle
The detection of objects in
front of the vehicle may not be
possible if:
.The vehicle or object ahead
is not within your lane.
.The vehicle ahead is shifted,
not centered, or is shifted to
one side of the lane.
Driving in Narrow Lanes
Vehicles in adjacent traffic
lanes or roadside objects may
be incorrectly detected when
located along the roadway.
Do Not Use ACC on Hills
Do not use ACC when driving
on steep hills as ACC may not
detect a vehicle ahead.
Do Not Use ACC When
Towing a Trailer
ACC should not be used when
towing a trailer.
Disengaging ACC
There are three ways to
disengage ACC:
.Step lightly on the brake
pedal.
.Press*.
.PressJ.
Erasing Speed Memory
The cruise control set speed is
erased from memory if
Jis
pressed or if the ignition is
turned off.
Weather Conditions
Affecting ACC
System operation may be
limited under snow, heavy rain,
or road spray conditions.
