CADILLAC XT4 2023 Owners Manual

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
360 Vehicle Care
Relays Usage94 –
98 –
Instrument Panel
Fuse Block
The instrument panel fuse
block is on the driver side of
the instrument panel, between the steering wheel and the
door. To access the fuses,
remove the panel, starting at
the top. Once clips are
disengaged, the tabs along the
bottom of the door can be
disengaged from the
instrument panel to remove
the door.
To reinstall the door, place the
bottom tabs into the slots, and
rotate the door into position,
engaging the clips.
The vehicle may not be
equipped with all of the fuses,
relays, and features shown.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 361
Fuses UsageF1 WNDW LT –Left
Power Window
F2 WNDW RT –Right
Power Window
F3 –
F4 DC-DC BAT 2/1 –
Direct Current to
Direct Current
Converter 2 Fuses Usage
F5 APO CARGO –
Auxiliary Power
Outlet –Cargo
F6 HTD SEAT BATT 1 –
Heated Seat
Battery 1
– Fuses Usage
F7 HTD SEAT RR 2 –
Not Used
–
F8 BCM 3 –Body
Control Module 3 –
LED Headlamp Low
Beam Right Control
Signal, Right Front
Turn Lamp Control
Signal, Left Front
Side Marker and
Auxiliary Park, Left
Rear Tail/Side Marker
Control Signal, Left
Daytime Running
Lamps Control Signal
F9 ELEC PRK/BRK –
Electric Park Brake

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
362 Vehicle Care
Fuses UsageF10 BCM 2 SS –Body
Control Module 2
(Stop/Start) –Interior
Lamps Control Signal,
Door Handle Puddle
Lamp (LED), Left
Cornering Lamp,
Right Cornering
Lamp, Interior Lamps
Control Signal,
Backup Lamp Supply
Voltage, License
Plate Lamp Control
Signal, Rear Closure
Cargo Lamp Control
Signal, Center High
Mounted Stop Lamp
LED Lamp Control
Signal
F11 –
F12 –
F13 –
F14 –
F15 TCM SS –
Transmission Control
Module (Stop/Start) Fuses Usage
F16 AMP –Amplifier
F17 –
F18 VPM –Video
Processing Module
–
F19 PWR STR COL –
Power Steering
Column
–
F20 BCM 6 –Body
Control Module 6 –
LED Backlight
Control, Interior
Lighting Inadvertent
Load Control Signal,
Fuel Door Lock
Control Signal, LED
Backlight Control
Signal Fuses Usage
F21 BCM 4 –Body
Control Module 4 –
LED Headlamp Low
Beam Left Control
Signal, Right Front
Side Marker and
Auxiliary Park, Right
Rear Tail/Side Marker
Control Signal, Left
Rear Stop Lamp
Control Signal, Left
Rear Stop/Turn Lamp
Control Signal, Right
DRL Control Signal
F22 BCM 7 –Body
Control Module 7 –
Right Rear Stop
Lamp Control Signal,
Right Rear Stop/Turn
Lamp Control Signal,
Left Front Turn Lamp
Control Signal, Right
Rear Turn Control
Signal
F23 –
F24 Airbag

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 363
Fuses UsageF25 DLC –Data Link
Connector
F26 –
F27 –
F28 –
F29 BCM 8 –Body
Control Module 8 –
Internal Driver/Fuel
Door Unlock Relay
Control Signal,
Internal Non-Driver
Door Lock Relay
Control Signal,
Internal All Door
Unlock Relay Control
Signal
F30 OVERHD CNSL –
Overhead Console
F31 STR/WHL/CNTRL –
Steering Wheel
Controls
F32 – Fuses Usage
F33 HVAC –Heating
Ventilation and Air
Conditioning Control
Module
F34 CGM –Central
Gateway Module
F35 HEATED SW –
Heated Seat Switch/
Hazard Switch
–
F36 Wireless Charger Module/USB
Charge Port
F37 APO FRT –Not Used
F38 OnStar
F39 Displays –Shifter
Interface Board/
Center Stack/Head
Up Display/
Instrument Panel
Cluster/HVAC
Display Fuses Usage
F40 OBS DET –Long
Range Radar Sensor/
Ultrasonic Park
Assist Module/
Camera Module/
External Object
Calculating Module/
Side Blind Zone Alert
Modules/Front
Camera Module

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
364 Vehicle Care
Fuses UsageF41 BCM 1 SS –Body
Control Module 1
(Stop/Start) –LED
Indicator Lighting
Control, Accessory
LED Control,
Run-Start LED
Control, Ambient
Lighting LED
Control 2, Liftgate
Latch Motor Control
Signal, Rear Wiper
Control Signal, High
Beam Lamp Control
(Direct Drive), Rear
Fog LED Lamp
Control Signal,
Windshield Washer
Pump Motor Control
Signal, Run/Crank
Relay Control Signal,
ECM/TCM ACC
Wakeup Control
Signal, Left Rear Turn
Control Signal, Rear
Wiper Wash Pump
Control Signal, Brake
Pedal Apply Signal Fuses Usage
F42 RDO –Radio
F43 APO CNSL –Console
Auxiliary Power
Outlet (Circuit
Breaker)
–
F44 Spare –
Relay Usage K1 –
K2 RAP/ACCY
–
Retained
Accessory Power
K3 Content Theft
–
Not Used
K4 –
K5 –Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer.
See the warranty manual
for information regarding
the tire warranty and
where to get service. For
additional information refer
to the tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires
are dangerous.
.Overloading the tires
can cause overheating
as a result of too much
flexing. There could be
a blowout and a serious
crash. See Vehicle Load
Limits0242.
(Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22

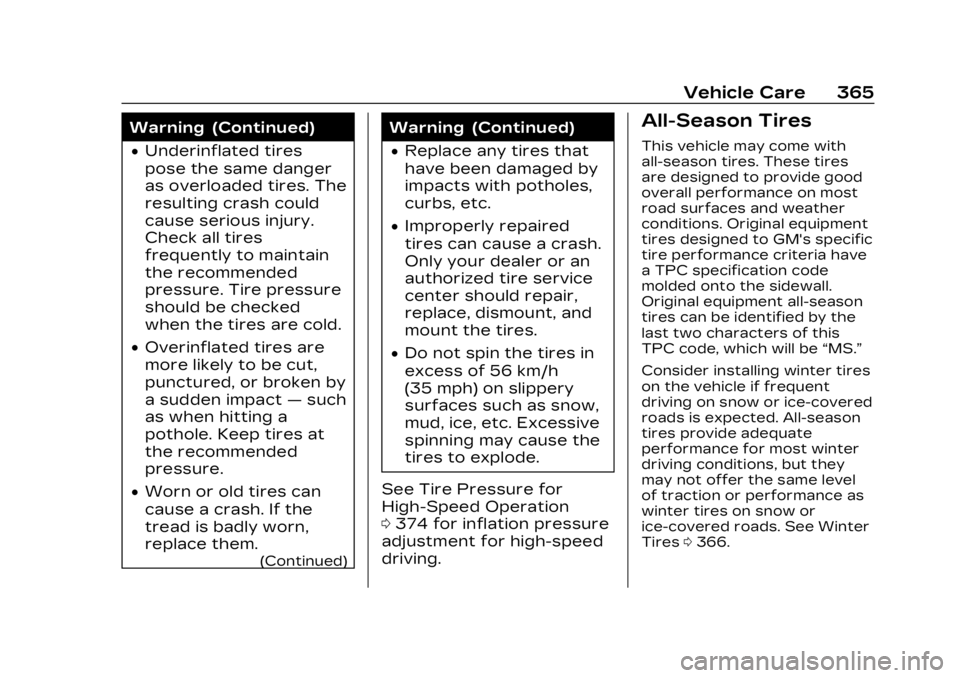

Vehicle Care 365
Warning (Continued)
.Underinflated tires
pose the same danger
as overloaded tires. The
resulting crash could
cause serious injury.
Check all tires
frequently to maintain
the recommended
pressure. Tire pressure
should be checked
when the tires are cold.
.Overinflated tires are
more likely to be cut,
punctured, or broken by
a sudden impact—such
as when hitting a
pothole. Keep tires at
the recommended
pressure.
.Worn or old tires can
cause a crash. If the
tread is badly worn,
replace them.
(Continued)
Warning (Continued)
.Replace any tires that
have been damaged by
impacts with potholes,
curbs, etc.
.Improperly repaired
tires can cause a crash.
Only your dealer or an
authorized tire service
center should repair,
replace, dismount, and
mount the tires.
.Do not spin the tires in
excess of 56 km/h
(35 mph) on slippery
surfaces such as snow,
mud, ice, etc. Excessive
spinning may cause the
tires to explode.
See Tire Pressure for
High-Speed Operation
0 374 for inflation pressure
adjustment for high-speed
driving.
All-Season Tires
This vehicle may come with
all-season tires. These tires
are designed to provide good
overall performance on most
road surfaces and weather
conditions. Original equipment
tires designed to GM's specific
tire performance criteria have
a TPC specification code
molded onto the sidewall.
Original equipment all-season
tires can be identified by the
last two characters of this
TPC code, which will be “MS.”
Consider installing winter tires
on the vehicle if frequent
driving on snow or ice-covered
roads is expected. All-season
tires provide adequate
performance for most winter
driving conditions, but they
may not offer the same level
of traction or performance as
winter tires on snow or
ice-covered roads. See Winter
Tires 0366.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
366 Vehicle Care
Winter Tires
This vehicle was not originally
equipped with winter tires.
Winter tires are designed for
increased traction on snow
and ice-covered roads.
Consider installing winter tires
on the vehicle if frequent
driving on ice or snow covered
roads is expected. See your
dealer for details regarding
winter tire availability and
proper tire selection. Also, see
Buying New Tires0383.
With winter tires, there may
be decreased dry road
traction, increased road noise,
and shorter tread life. After
changing to winter tires, be
alert for changes in vehicle
handling and braking.
If using winter tires:
.Use tires of the same brand
and tread type on all four
wheel positions.
.Use only radial ply tires of
the same size, load range,
and speed rating as the
original equipment tires.
Winter tires with the same
speed rating as the original
equipment tires may not be
available for H, V, W, Y, and ZR
speed rated tires. If winter
tires with a lower speed rating
are chosen, never exceed the
tire's maximum speed
capability.
Summer Tires
This vehicle may come with
235/55R18 or 245/45R20
high performance summer
tires. These tires have a
special tread and compound
that are optimized for
maximum dry and wet road
performance. This special
tread and compound will have
decreased performance in
cold climates, and on ice and
snow. It is recommended that
winter tires be installed on the
vehicle if frequent driving at
temperatures below approximately 5 °C (40 °F) or
on ice or snow covered roads
is expected. See Winter Tires
0
366.
Caution
High performance summer
tires have rubber
compounds that lose
flexibility and may develop
surface cracks in the tread
area at temperatures below
−7 °C (20 °F). Always store
high performance summer
tires indoors and at
temperatures above −7 °C
(20 °F) when not in use. If the
tires have been subjected to
−7 °C (20 °F) or less, let them
warm up in a heated space
to at least 5 °C (40 °F) for
24 hours or more before
being installed or driving a
vehicle on which they are
installed. Do not apply heat
or blow heated air directly (Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 367
Caution (Continued)
on the tires. Always inspect
tires before use. See Tire
Inspection0380.
Tire Sidewall Labeling
Useful information about a
tire is molded into its
sidewall. The examples
show a typical passenger
vehicle tire and a compact
spare tire sidewall.
Passenger Tire Example
(1) Tire Size:The tire size
is a combination of letters
and numbers used to
define a particular tire's
width, height, aspect ratio,
construction type, and
service description. See the
“Tire Size” illustration in
this section.
(2) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall.
GM's TPC specifications
meet or exceed all federal
safety guidelines.
(3) DOT (Department of
Transportation)
:The
Department of
Transportation (DOT) code
indicates that the tire is in
compliance with the U.S. Department of
Transportation Motor
Vehicle Safety Standards.
DOT Tire Date of
Manufacture
:The last
four digits of the TIN
indicate the tire
manufactured date. The
first two digits represent
the week and the last two
digits, the year. For
example, the third week of
the year 2020 would have
a 4-digit DOT date of 0320.
Week 01 is the first full
week (Sunday through
Saturday) of each year.
(4) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT (Department of
Transportation) code are
the Tire Identification
Number (TIN). The TIN
shows the manufacturer
and plant code, tire size,

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
368 Vehicle Care
and date the tire was
manufactured. The TIN is
molded onto both sides of
the tire, although only one
side may have the date of
manufacture.
(5) Tire Ply Material
:The
type of cord and number of
plies in the sidewall and
under the tread.
(6) Uniform Tire Quality
Grading (UTQG)
:Tire
manufacturers are required
to grade tires based on
three performance factors:
tread wear, traction, and
temperature resistance.
For more information see
Uniform Tire Quality
Grading 0385.
(7) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load.
Compact Spare Tire Example
(1) Tire Ply Material:The
type of cord and number of
plies in the sidewall and
under the tread.
(2) Temporary Use Only
:
The compact spare tire or
temporary use tire should
not be driven at speeds
over 80 km/h (50 mph). The
compact spare tire is for
emergency use when a
regular road tire has lost
air and gone flat. If the
vehicle has a compact spare tire, see Compact
Spare Tire
0404 and
If a Tire Goes Flat 0389.
(3) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT (Department of
Transportation) code are
the Tire Identification
Number (TIN). The TIN
shows the manufacturer
and plant code, tire size,
and date the tire was
manufactured. The TIN is
molded onto both sides of
the tire, although only one
side may have the date of
manufacture.
(4) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 369
(5) Tire Inflation:The
temporary use tire or
compact spare tire should
be inflated to 420 kPa
(60 psi). For more
information on tire
pressure and inflation see
Tire Pressure 0372.
(6) Tire Size
:A
combination of letters and
numbers define a tire's
width, height, aspect ratio,
construction type, and
service description. The
letter “T”as the first
character in the tire size
means the tire is for
temporary use only.
(7) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall. GM's TPC specifications
meet or exceed all federal
safety guidelines.
Tire Designations
Tire Size
The example shows a
typical passenger vehicle
tire size.
Passenger (P-Metric) Tire
(1) Passenger (P-Metric)
Tire
:The United States
version of a metric tire
sizing system. The letter
"P" as the first character in
the tire size means a
passenger vehicle tire
engineered to standards
set by the U.S. Tire and Rim
Association. (2) Tire Width
:The 3-digit
number indicates the tire
section width in millimeters
from sidewall to sidewall.
(3) Aspect Ratio
:A 2-digit
number that indicates the
tire height-to-width
measurements. For
example, if the tire size
aspect ratio is 75, as
shown in item (3) of the
illustration, it would mean
that the tire's sidewall is
75 percent as high as it
is wide.
(4) Construction Code
:A
letter code is used to
indicate the type of ply
construction in the tire. The
letter "R" means radial ply
construction; the letter "D"
means diagonal or bias ply
construction.
(5) Rim Diameter
:
Diameter of the wheel in
inches.
