290 Driving and Operating

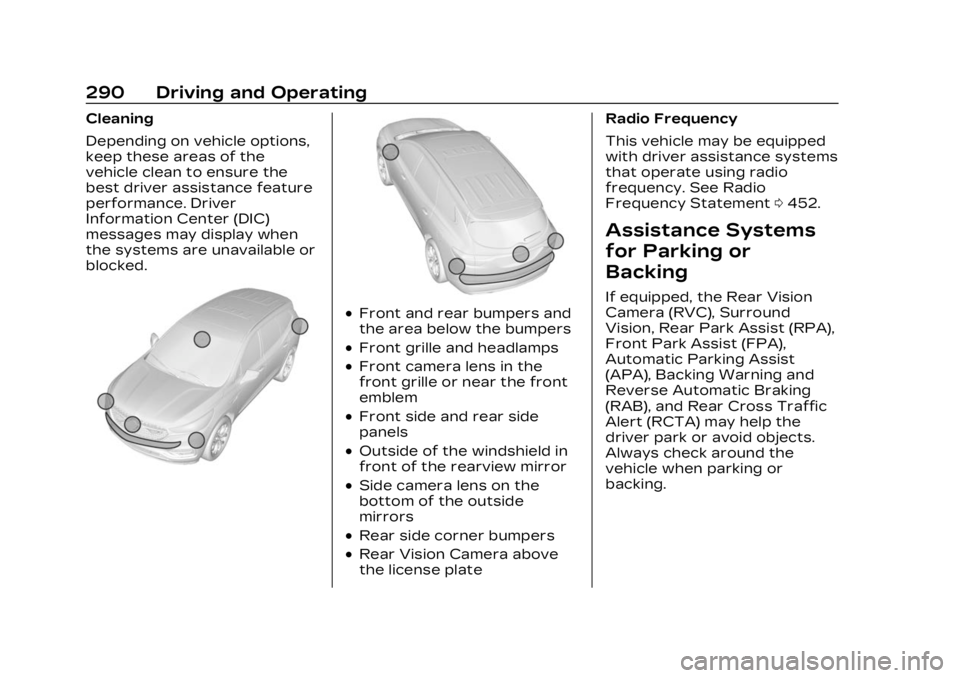

Cleaning
Depending on vehicle options,
keep these areas of the
vehicle clean to ensure the
best driver assistance feature
performance. Driver
Information Center (DIC)
messages may display when
the systems are unavailable or
blocked.
.Front and rear bumpers and
the area below the bumpers
.Front grille and headlamps
.Front camera lens in the
front grille or near the front
emblem
.Front side and rear side
panels
.Outside of the windshield in
front of the rearview mirror
.Side camera lens on the
bottom of the outside
mirrors
.Rear side corner bumpers
.Rear Vision Camera above
the license plateRadio Frequency
This vehicle may be equipped
with driver assistance systems
that operate using radio
frequency. See Radio
Frequency Statement
0452.
Assistance Systems
for Parking or
Backing
If equipped, the Rear Vision
Camera (RVC), Surround
Vision, Rear Park Assist (RPA),
Front Park Assist (FPA),
Automatic Parking Assist
(APA), Backing Warning and
Reverse Automatic Braking
(RAB), and Rear Cross Traffic
Alert (RCTA) may help the
driver park or avoid objects.
Always check around the
vehicle when parking or
backing.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 291
Rear Vision
Camera (RVC)
When the vehicle is shifted
into R (Reverse), the Rear
Vision Camera (RVC) displays
an image of the area behind
the vehicle in the infotainment
display. The previous screen
displays when the vehicle is
shifted out of R (Reverse)
after a short delay. To return
to the previous screen sooner,
press Home or Back on the
infotainment system, shift into
P (Park), or reach a vehicle
speed of approximately
12 km/h (8 mph) while in
D (Drive).
1. View Displayed by theCamera
1. View Displayed by theCamera
2. Corners of the Rear Bumper
Displayed images may be
farther or closer than they
appear. The area displayed is
limited and objects that are
close to either corner of the
bumper or under the bumper
do not display.
A warning triangle may appear
on the infotainment display to
show that Rear Park Assist
(RPA) or Rear Cross Traffic
Alert (RCTA) has detected an
object. This triangle changes
from amber to red and
increases in size the closer the
object.
{Warning
The camera(s) do not display
children, pedestrians,
bicyclists, crossing traffic,
animals, or any other object
outside of the cameras’ field
of view, below the bumper,
or under the vehicle. Shown
distances may be different
from actual distances. Do
not drive or park the vehicle
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
292 Driving and Operating
Warning (Continued)
using only these camera(s).
Always check behind and
around the vehicle before
driving. Failure to use proper
care may result in injury,
death, or vehicle damage.
Surround Vision
System
If equipped, Surround Vision
shows an image of the area
surrounding the vehicle, along
with the front or rear camera
views on the infotainment
display. The front camera is in
the grille or near the front
emblem, the side cameras are
on the bottom of the outside
mirrors, and the rear camera is
above the license plate.
The Surround Vision system
can be accessed by selecting
CAMERA in the infotainment
display or when the vehicle is
shifted into R (Reverse). To
return to the previous screensooner, when not in
R (Reverse) press the Home or
Back on the infotainment
system, shift into P (Park),
or reach a vehicle speed of
approximately 12 km/h (8 mph)
while in D (Drive).
{Warning
The Surround Vision
cameras have blind spots
and will not display all
objects near the corners of
the vehicle. Folding outside
mirrors that are out of
position may not display
surround view correctly.
Always check around the
vehicle when parking or
backing.1. Views Displayed by the
Surround Vision Cameras
2. Area Not Shown
1. Views Displayed by the Surround Vision Cameras
2. Area Not Shown

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 293
{Warning
The camera(s) do not display
children, pedestrians,
bicyclists, crossing traffic,
animals, or any other object
outside of the cameras’field
of view, below the bumper,
or under the vehicle. Shown
distances may be different
from actual distances. Do
not drive or park the vehicle
using only these camera(s).
Always check behind and
around the vehicle before
driving. Failure to use proper
care may result in injury,
death, or vehicle damage. Camera Views
Touch the camera view
buttons along the bottom of
the infotainment display.
Front/Rear Standard View :
Displays an image of the area
in front or behind the vehicle.
Touch Front/Rear Standard
View on the infotainment
display when a camera view is
active. Touching the button
multiple times will toggle
between front and rear
camera views. If equipped, the front view
camera also displays when the
Park Assist system detects an
object within 30 cm (12 in).
Front/Rear Overhead View :
Displays a front or rear
overhead view of the vehicle.
Touching the button will
toggle between the two views.
Side Forward/Rearward
View :
Displays a view that
shows objects next to the
front or rear sides of the
vehicle. Touch Side Forward/
Rearward View on the
infotainment display when a
camera view is active.
Touching the button multiple
times will toggle between
forward and rearward views.
Park Assist and RCTA
overlays are not available
when Side Forward/Rearward
view is active.
Hitch View : If equipped,
assists while connecting to a
trailer. Displays a zoomed-in
view of the hitch to help align
the vehicle’s hitch ball with the

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
294 Driving and Operating
trailer coupler. Shifting into
P (Park) while in this view will
automatically engage the
Electronic Parking
Brake (EPB).
Guidance Lines :Displays
available guidelines. The
horizontal markings represent
distance from the vehicle.
Top Down View : Displays an
image of the area surrounding
the vehicle, along with other
views in the infotainment
display. Top Down can be
enabled or disabled by
touching the Top Down View
button multiple times.
Hitch Guidance
If equipped, this feature
displays a single, centered
guideline on the camera
display to assist with aligning a
vehicle’s hitch ball with a
trailer coupler. Select the
trailer guidance line button,
then align the trailer guidance
line over the trailer coupler.
Continuously steer the vehicle
to keep the guidance line centered on the coupler when
backing. RVC Park Assist
overlays will not display when
the trailer guidance line is
active. Hitch Guidance is only
available in Standard View.
To check the trailer when in a
forward gear above 12 km/h
(8 mph), touch CAMERA on
the infotainment display to
view the rear camera. Touch X
to exit the view or it will be
removed automatically after
eight seconds.
{Warning
Use Hitch Guidance only to
help back the vehicle to a
trailer hitch or, when
traveling above 12 km/h
(8 mph), to briefly check the
status of your trailer. Do not
use for any other purpose,
such as making lane change
decisions. Before making a
lane change, always check
the mirrors and glance over
(Continued)
Warning (Continued)
your shoulder. Improper use
could result in serious injury
to you or others.
Park Assist
The vehicle may be equipped
with Front and Rear Park
Assist (FRPA). Under certain
conditions, the Park Assist
system can assist the driver
during backing and parking
maneuvers when the vehicle is
driven at no more than 9 km/h
(6 mph). An illuminated
indicator in the Park Assist
button indicates the system is
ready.
Sensors located in the
bumpers measure the
distance between the vehicle
and objects using sonar
technology. These sensors are
designed to detect certain
objects up to 2.5 m (8 ft)
behind and 1.2 m (4 ft) in front
of your vehicle that are taller
than 25 cm (10 in).

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 295
Different environmental
conditions may affect whether
and how far the Park Assist
system can detect objects.
Keep the sensors clean of
mud, dirt, snow, ice, and slush;
and clean sensors after a car
wash in freezing
temperatures. Sensors that
are not clean may not detect
objects or may cause the
system to alert when not
required.
{Warning
The Park Assist System is
no substitute for careful and
attentive driving. The Park
Assist system does not
detect children, pedestrians,
bicyclists, animals, or objects
located below the bumper or
that are too close or too far
from the vehicle. It is not
available at speeds greater
than 9 km/h (6 mph). To
prevent injury, death,
or vehicle damage, even with(Continued)
Warning (Continued)
Park Assist, always check
the area around the vehicle
and check all mirrors before
moving forward or backing.
How the System Works
The vehicle may have a Park
Assist amphitheatre-like
display on the cluster with
bars that represent the
estimated location of a
detected object and the
vehicle’s distance from the
object. As a detected object
becomes closer, more bars
light up and change color from
yellow to amber to red.
When an object is first
detected in the rear, one beep
will be heard from the rear,
or the driver's seat will pulse
two times, if equipped with
Safety Alert Seat. When an
object is very close, five beeps
will sound from the front or
rear (depending on the
object's location), or the driver's seat will pulse five
times. Beeps for front are
higher pitched than the rear.
Turning the System On
and Off
The Park Assist System can
be turned on or off using the
infotainment system. To view
available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select
“Vehicle”to
display the list of available
options and select “Collision/
Detection Systems”.
The
Xbutton is used to turn
on or off the Park Assist,
which also turns on or off the
Backing Warning and Reverse

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
296 Driving and Operating
Automatic Braking (RAB) at
the same time. When the
system is turned off, a system
off message is shown on the
display. This message
disappears after a short
period of time.
Turn off Park Assist when
towing a trailer to prevent
unwanted beeps and when a
bike rack is attached to ensure
proper operation.
When the System Does Not
Seem to Work Properly
If a service message displays,
check the following conditions:
.The sensors may not be
clean. Keep the vehicle's
front and rear bumpers free
of mud, dirt, snow, ice, and
slush. For cleaning
instructions, see Exterior
Care0416.
.The Park Assist sensors may
be covered by frost or ice.
Frost or ice can form around
and behind the sensors and
may not always be seen; this
can occur after washing the vehicle in cold weather. The
message may not clear until
the frost or ice has melted.
If a service message displays
and the above conditions do
not exist, take the vehicle to
your dealer for repairs.
If the Park Assist System does
not activate due to a
temporary condition, a system
off message is shown on the
display. This can occur under
the following conditions:
.The driver has disabled the
system.
.An object is currently
blocking the rear sensors
(for example, bike rack,
tailgate, trailer hitch, etc.).
Once the object is removed,
Park Assist will return to
normal operation.
.The bumper is damaged.
Take the vehicle to your
dealer for repairs.
.Other conditions, such as
vibrations from a
jackhammer or the
compression of air brakes on a very large truck, are
affecting system
performance.
Automatic Parking
Assist (APA)
Automatic Parking Assist
(APA) with Braking
If equipped, under certain
conditions APA with Braking
can use sensors based on
sonar technology along the
vehicle’s front, rear and sides
to detect a parking spot, and
automatically park the vehicle
with some driver assistance.
The vehicle will automatically
maneuver into a detected spot
moving at or near idle speed.
It does this by automatically
steering and braking while the
driver is responsible for
acceleration and gear shifting
as needed. The driver must
always be prepared to apply
braking or additional
acceleration, as needed.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 297
A display and audible beeps
help to guide the parking
maneuvers.
{Warning
APA may not always detect
objects in the parking space,
objects that are not rigid
(e.g. shrubs and chain-link
fences), objects below the
bumper, objects high off the
ground (e.g. flatbed trucks),
hanging objects, objects
below ground level (e.g. large
potholes), or moving objects
(e.g. pedestrians, cyclists,
vehicles). Always verify that
the parking space is
appropriate for parking a
vehicle. APA may not
respond to changes in the
parking space, such as
movement of an adjacent
vehicle, or a person or
object entering the parking
space. APA does not detect
or avoid traffic that is(Continued)
Warning (Continued)
behind or alongside of the
vehicle. Always be prepared
to stop the vehicle during
the parking maneuver.
How to Activate Automatic
Parking
To activate APA, press the
soft-touch button or hard
switch
Ofor the system to
begin searching for a parking
space while driving forward at
no greater than
30 km/h (18 mph). By default,
APA searches for parallel
parking spaces to the right of
the vehicle up to the sensors’
range of 1.5 m (5 ft). To search
for a parking space to the left,
turn on the left turn signal or,
if available, change the side
selection in the infotainment
display. To switch the parking
mode between parallel and
perpendicular press and hold
Owhile searching for a valid parking spot or, if available,
change the parking mode in
the infotainment display.
APA cannot park in all empty
parking spots. The parking
spot must:
.Be sufficiently large to fit the
vehicle comfortably.
.Have an adjacent vehicle,
wall, or pillar for the system
to align to.
After completely passing an
eligible parking spot, a beep
sounds and a red stop symbol
is displayed in the driver
information center. Generally,
APA selects the nearest
empty parking spot behind the
vehicle, but under some
conditions may select a space

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
298 Driving and Operating
that is further back. Slow
down and bring the vehicle to
a complete stop to begin.
Follow the displayed
instructions. When instructed
to drive in reverse, shift to
R (Reverse) while holding the
brakes. The steering wheel will
vibrate briefly as a reminder to
remove hands from the
steering wheel. After the
vibration stops, check your
surroundings and release the
brakes to begin automatic
parking. As the vehicle
automatically steers, and
brakes into the parking spot,
check surroundings and
continue to apply acceleration
if necessary and shift gears as
needed. Be prepared to stop
to avoid vehicles, pedestrians,
or objects.
A progress arrow displays the
status of the parking
maneuver. Once automatic
parking is finished and the
vehicle has come to a full stop,
APA will beep and display amessage indicating parking is
complete. Shift the vehicle to
P (Park) and apply the parking
brake
Automatic Parking
Automatic Unparking
How to Cancel Automatic
Parking
To cancel automatic parking
or automatic unparking at any
time, press
O. Be prepared to
resume full control of the
vehicle. APA holds the vehicle
until the parking brake or
brake is applied, or the vehicle
is shifted into P (Park). To start
driving away, press the brakes
and shift into D (Drive).
Certain vehicle conditions and
driver interferences may also
cancel automatic parking:
.The driver manually steers
the vehicle.
.The maximum allowed speed
is exceeded.
.There is a failure with the
APA system.
.Electronic stability control or
antilock brakes are
activated.
.The parking brake is applied.
.Driver unbuckles the seat
belt and opens the door.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 299
System Limitations
Automatic Parking Assist has
certain limitations. The system
cannot:
.Continue to operate if the
maneuver speed exceeds
5 km/h (3 mph).
.Detect whether a parking
space is legal or restricted.
.Detect pavement markings
or lines.
.Park the vehicle closely lined
up with the vehicle next to it,
particularly if the spot is
approached at an angle or if
the parking space is angled.
.Park exactly centered in a
very large spot.
.Always detect short curbs.
.Operate while towing any
trailer.
.Function the vehicle is raised
or lowered by air
suspension,if equipped.When the System Does Not
Seem to Work Properly
If the vehicle does not reverse
into the expected parking
space, the system could be
maneuvering the vehicle into a
previously detected space.
Reverse Automatic
Braking (RAB)
Backing Warning and
Reverse Automatic
Braking (RAB)
If equipped, vehicles with
Adaptive Cruise Control (ACC)
have the Backing Warning
System and Reverse
Automatic Braking (RAB)
system. When in R (Reverse),
Backing Warning alerts of rear
objects at vehicle speeds
greater than 8 km/h (5 mph),
and RAB may automatically
brake hard at speeds between
1–32 km/h (0.5–20 mph).
The Backing Warning System
will beep once from the rear
when an object is first detected, or pulse twice on
both sides of the Safety Alert
Seat. When the system
detects a potential crash,
beeps will be heard from the
rear, or five pulses will be felt
on both sides of the Safety
Alert Seat. There may also be
a brief, sharp application of
the brakes.
{Warning
The Backing Warning
System only operates at
speeds greater than 8 km/h
(5 mph). It does not detect
children, pedestrians,
bicyclists, animals, or objects
below the bumper or that
are too close or too far from
the vehicle. In some
situations, such as at higher
backing speeds, there may
not be enough time for the
short, sharp application of
the vehicle brake system to
occur. To prevent injury,
death, or vehicle damage,
(Continued)
