360 Vehicle Care
Warning (Continued)
damaged. Add brake fluid
only when work is done on
the brake hydraulic system.
When the brake fluid falls to a
low level, the brake warning
light comes on. See Brake
System Warning Light 0131.
Brake fluid absorbs water over
time which degrades the
effectiveness of the brake
fluid. Replace brake fluid at the
specified intervals to prevent
increased stopping distance.
See Maintenance Schedule
0 429.
What to Add
Use only GM approved DOT 4
brake fluid from a clean, sealed
container. See Recommended
Fluids and Lubricants 0433.
{Warning
The wrong or contaminated
brake fluid could result in
damage to the brake
system. This could result in
the loss of braking leading to
a possible injury. Always use
the proper GM approved
brake fluid.
Caution
If brake fluid is spilled on the
vehicle's painted surfaces,
the paint finish can be
damaged. Immediately wash
off any painted surface.
Battery - North
America
The original equipment battery
is maintenance free. Do not
remove the cap and do not
add fluid. Refer to the replacement
number on the original battery
label when a new battery is
needed. For replacement of
the battery, see your dealer.
The vehicle has an Absorbent
Glass Mat (AGM) 12-volt
battery. Installation of a
standard 12-volt battery will
result in reduced 12-volt
battery life.
When using a 12-volt battery
charger on the 12-volt AGM
battery, some chargers have
an AGM battery setting on the
charger. If available, use the
AGM setting on the charger,
to limit charge voltage to
14.8 volts.
{Warning
WARNING:
Battery posts,
terminals and related
accessories can expose you
to chemicals including lead
and lead compounds, which
are known to the State of
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 361
Warning (Continued)
California to cause cancer
and birth defects or other
reproductive harm. Wash
hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See California Proposition
65 Warning 01.
Stop/Start System
This vehicle has a Stop/Start
system to shut off the engine
to help conserve fuel. See
Stop/Start System 0255.
Vehicle Storage
{Warning
Batteries have acid that can
burn you and gas that can
explode. You can be badly
hurt if you are not careful.
Always wear eye protection.
(Continued)
Warning (Continued)
See Jump Starting - North
America0409 for tips on
working around a battery
without getting hurt.
Infrequent Usage: Remove the
black, negative (−) cable from
the battery to keep the
battery from running down.
Extended Storage: Remove
the black, negative (−) cable
from the battery or use a
battery trickle charger.
All-Wheel Drive
Transfer Case
Under normal driving
conditions, transfer case fluid
does not require maintenance
unless there is a fluid leak or
unusual noise. If required, have
the transfer case serviced by
your dealer.
Park Brake and
P (Park) Mechanism
Check
{Warning
When you are doing this
check, the vehicle could
begin to move. You or
others could be injured and
property could be damaged.
Make sure there is room in
front of the vehicle in case it
begins to roll. Be ready to
apply the regular brake at
once should the vehicle
begin to move.
Park on a fairly steep hill, with
the vehicle facing downhill.
Keeping your foot on the
regular brake, set the parking
brake.
.To check the parking brake's
holding ability: With the
engine running and the
transmission in N (Neutral),
slowly remove foot pressure
from the regular brake pedal.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
362 Vehicle Care
Do this until the vehicle is
held by the parking
brake only.
.To check the P (Park)
mechanism's holding ability:
With the engine running,
shift to P (Park). Then
release the parking brake
followed by the regular
brake.
Contact your dealer if service
is required.
Wiper Blade
Replacement
Windshield wiper blades
should be inspected for wear
or cracking.
It is a good idea to clean or
replace the wiper blade
assembly on a regular basis or
when worn. For proper
windshield wiper blade length
and type, see Maintenance
Replacement Parts 0434.
Caution
Allowing the wiper arm to
touch the windshield when
no wiper blade is installed
could damage the
windshield. Any damage that
occurs would not be
covered by the vehicle
warranty. Do not allow the
wiper arm to touch the
windshield.

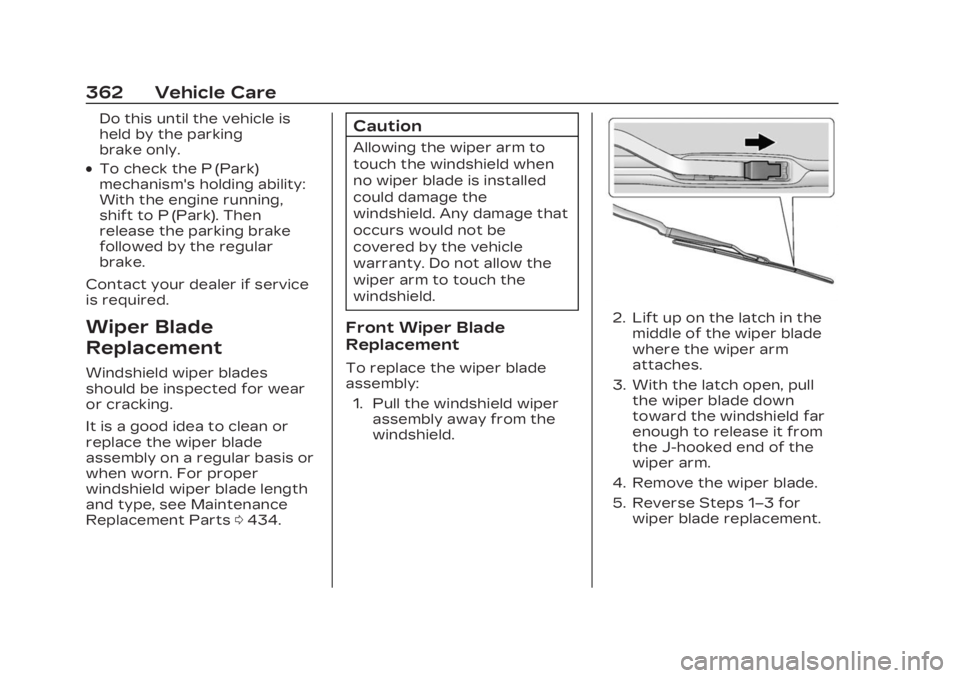

Front Wiper Blade
Replacement
To replace the wiper blade
assembly:
1. Pull the windshield wiper assembly away from the
windshield.
2. Lift up on the latch in themiddle of the wiper blade
where the wiper arm
attaches.
3. With the latch open, pull the wiper blade down
toward the windshield far
enough to release it from
the J-hooked end of the
wiper arm.
4. Remove the wiper blade.
5. Reverse Steps 1–3 for wiper blade replacement.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 363
Rear Wiper Blade
Replacement
To remove the wiper blade:
1. Put the vehicle inaccessory mode and turn
on the rear windshield
wiper. The wiper will stop
pointing down. See Rear
Window Wiper/Washer
0116.
2. Push ENGINE START/ STOP to turn the
vehicle off.
3. Lift the wiper arm away from the window.
4. Push the release lever (2) to disengage the hook and
push the wiper arm (1) out
of the blade assembly (3). 5. Push the new blade
assembly securely on the
wiper arm until the release
lever clicks into place.
6. Start the engine and the rear wiper will return to its
normal position.
Windshield
Replacement
HUD System
The windshield is part of the
HUD system. If the windshield
needs to be replaced, a GM
windshield designed for HUD
is recommended. The
replacement windshield must
be installed according to GM
specifications. If it is not, the
HUD image may look out of
focus.
Driver Assistance
Systems
If the windshield needs to be
replaced and the vehicle is
equipped with a front camera
sensor for the Driver Assistance Systems, a GM
replacement windshield is
recommended. The
replacement windshield must
be installed according to GM
specifications for proper
alignment. If it is not, these
systems may not work
properly, they may display
messages, or they may not
work at all. See your dealer for
proper windshield
replacement.
Acoustic Windshield
The vehicle is equipped with
an acoustic windshield. If the
windshield needs to be
replaced be sure to get an
acoustic windshield so you will
continue to have the benefits
an acoustic windshield can
provide.
Gas Strut(s)
Your vehicle may be equipped
with gas strut(s) to provide
assistance in lifting and

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
364 Vehicle Care
holding open the hood/trunk/
liftgate system in full open
position.
{Warning
If the gas struts that hold
open the hood, trunk, and/or
liftgate fail, you or others
could be seriously injured.
Take the vehicle to your
dealer for service
immediately. Visually inspect
the gas struts for signs of
wear, cracks, or other
damage periodically. Check
to make sure the hood/
trunk/liftgate is held open
with enough force. If struts
are failing to hold the hood/
trunk/liftgate, do not
operate. Have the vehicle
serviced.
Caution
Do not apply tape or hang
any objects from gas struts.
Also do not push down or
pull on gas struts. This may
cause damage to the
vehicle.
See Maintenance Schedule
0 429.
Hood
Trunk
Liftgate

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 365
Headlamp Aiming
Front Headlamp
Aiming
Headlamp aim has been preset
and should need no further
adjustment.
If the vehicle is damaged in a
crash, the headlamp aim may
be affected. If adjustment to
the headlamps is necessary,
see your dealer.
Bulb Replacement
For the proper type of
replacement bulbs, or any bulb
changing procedure not listed
in this section, contact your
dealer.
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
LED Lighting
This vehicle has several LED
lamps. For replacement of any
LED lighting assembly, contact
your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses and
circuit breakers to protect
against an electrical system
overload.
When the current electrical
load is too heavy, the circuit
breaker opens and closes,
protecting the circuit until the
current load returns to normal
or the problem is fixed. This
greatly reduces the chance of
circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers
protect power devices in the
vehicle.If there is a problem on the
road and a fuse needs to be
replaced, the same amperage
fuse can be borrowed. Choose
some feature of the vehicle
that is not needed to use and
replace it as soon as possible.
To check a fuse, look at the
band inside the fuse. If the
band is broken or melted,
replace the fuse. Be sure to
replace a bad fuse with a fuse
of the identical size and rating.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
366 Vehicle Care
Replacing a Blown Fuse
1. Turn off the vehicle.
2. Locate the fuse puller inthe engine compartment
fuse block.
3. Use the fuse puller toremove the fuse from the
top or side, as shown
above. 4. If the fuse must be
replaced immediately,
borrow a replacement fuse
with the same amperage
from the fuse block.
Choose a vehicle feature
that is not needed to
safely operate the vehicle.
Repeat Steps 2-3.
5. Insert the replacement fuse into the empty slot of
the blown fuse.
At the next opportunity, see
your dealer to replace the
blown fuse.
Headlamp Wiring
An electrical overload may
cause the lamps to go on and
off, or in some cases to remain
off. Have the headlamp wiring
checked right away if the
lamps go on and off or
remain off.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 367
Windshield Wipers
If the wiper motor overheats
due to heavy snow or ice, the
windshield wipers will stop
until the motor cools and will
then restart.
Although the circuit is
protected from electrical
overload, overload due to
heavy snow or ice may cause
wiper linkage damage. Always
clear ice and heavy snow from
the windshield before using
the windshield wipers.
If the overload is caused by an
electrical problem and not
snow or ice, be sure to get it
fixed.
Fuses and Circuit
Breakers
The wiring circuits in the
vehicle are protected from
short circuits by a combination
of fuses and circuit breakers.
This greatly reduces the
chance of damage caused by
electrical problems.
{Danger
Fuses and circuit breakers
are marked with
their ampere rating. Do not
exceed the
specified amperage rating
when replacing fuses and
circuit breakers. Use of an
oversized fuse or circuit
breaker can result in a
vehicle fire. You and others
could be seriously injured or
killed.
{Warning
Installation or use of fuses
that do not meet GM’s
original fuse specifications is
dangerous. The fuses could
fail, and result in a fire. You
or others could be injured or
killed, and the vehicle could
be damaged.
See Accessories and
Modifications 0338 and
General Information 0338.
To check or replace a blown
fuse, see Electrical System
Overload 0365.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
368 Vehicle Care
Engine Compartment
Fuse Block
The underhood fuse block is in
the engine compartment, on
the driver side of the vehicle.
Caution
Do not pull the engine
compartment fuse block
lever, since it is intended
only for service purposes.
If pulled, vehicle malfunction
may occur.
Caution
Spilling liquid on any
electrical component on the
vehicle may damage it.
Always keep the covers on
any electrical component.To remove the fuse block
cover, press the clips on the
cover and lift it straight up.
The vehicle may not be
equipped with all of the fuses,
relays, and features shown.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 369
Fuses UsageF1 Antilock Brake System Fuses Usage
F2 Starter 1 Fuses Usage
F3 DC DC Transformer 1
F4 –
F5 DC DC Transformer 2
F6 Amplifier 1 F7 Front Blower
F8 Starter 3
F9 –
F10 –
F11 –
F12 Front Wiper
F13 Starter 2
F14 LED/Automatic Headlamp
Leveling
F15 Rear Wiper 1
F16 –
F17 –
F18 Automatic Headlamp
Leveling Module
