CADILLAC XT5 2023 Owners Manual

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
400 Vehicle Care
Warning (Continued)
When replacing wheels, use
a new GM original
equipment wheel.
Caution
The wrong wheel can also
cause problems with bearing
life, brake cooling,
speedometer or odometer
calibration, headlamp aim,
bumper height, vehicle
ground clearance, and tire or
tire chain clearance to the
body and chassis.
Tire Chains
{Warning
If the vehicle has 235/
55R20h size tires, do not
use tire chains. There is not
enough clearance. Tire
chains used on a vehicle
without the proper amount(Continued)
Warning (Continued)
of clearance can cause
damage to the brakes,
suspension, or other vehicle
parts. The area damaged by
the tire chains could cause
loss of control and a crash.
Use another type of traction
device only if its
manufacturer recommends
it for the vehicle's tire size
combination and road
conditions. Follow that
manufacturer's instructions.
To avoid vehicle damage,
drive slow and readjust or
remove the traction device if
it contacts the vehicle. Do
not spin the wheels. If
traction devices are used,
install them on the front
tires.
Caution
If the vehicle is equipped
with a tire size other than
235/55R20, use tire chains
only where legal and only
when necessary. Use low
profile chains that add no
more than 12 mm thickness
to the tire tread and inner
sidewall. Use chains that are
the proper size for the tires.
Install them on the tires of
the front axle. Do not use
chains on the tires of the
rear axle. Tighten them as
tightly as possible with the
ends securely fastened.
Drive slowly and follow the
chain manufacturer's
instructions. If the chains
contact the vehicle, stop and
retighten them. If the
contact continues, slow
down until it stops. Driving
too fast or spinning the
wheels with chains on will
damage the vehicle.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 401

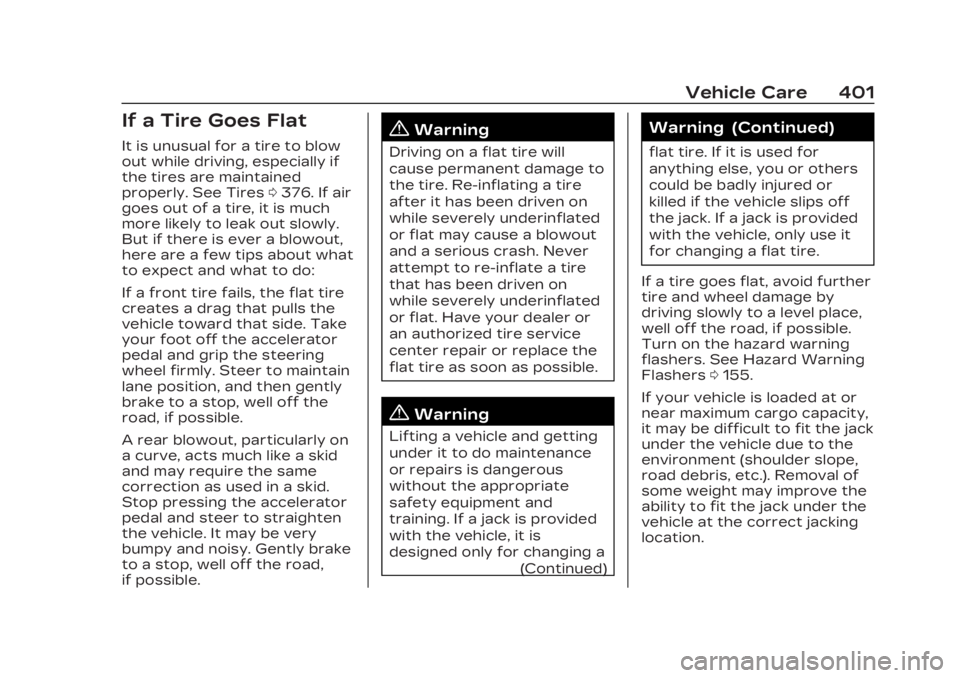

If a Tire Goes Flat
It is unusual for a tire to blow
out while driving, especially if
the tires are maintained
properly. See Tires0376. If air
goes out of a tire, it is much
more likely to leak out slowly.
But if there is ever a blowout,
here are a few tips about what
to expect and what to do:
If a front tire fails, the flat tire
creates a drag that pulls the
vehicle toward that side. Take
your foot off the accelerator
pedal and grip the steering
wheel firmly. Steer to maintain
lane position, and then gently
brake to a stop, well off the
road, if possible.
A rear blowout, particularly on
a curve, acts much like a skid
and may require the same
correction as used in a skid.
Stop pressing the accelerator
pedal and steer to straighten
the vehicle. It may be very
bumpy and noisy. Gently brake
to a stop, well off the road,
if possible.{Warning
Driving on a flat tire will
cause permanent damage to
the tire. Re-inflating a tire
after it has been driven on
while severely underinflated
or flat may cause a blowout
and a serious crash. Never
attempt to re-inflate a tire
that has been driven on
while severely underinflated
or flat. Have your dealer or
an authorized tire service
center repair or replace the
flat tire as soon as possible.
{Warning
Lifting a vehicle and getting
under it to do maintenance
or repairs is dangerous
without the appropriate
safety equipment and
training. If a jack is provided
with the vehicle, it is
designed only for changing a
(Continued)
Warning (Continued)
flat tire. If it is used for
anything else, you or others
could be badly injured or
killed if the vehicle slips off
the jack. If a jack is provided
with the vehicle, only use it
for changing a flat tire.
If a tire goes flat, avoid further
tire and wheel damage by
driving slowly to a level place,
well off the road, if possible.
Turn on the hazard warning
flashers. See Hazard Warning
Flashers 0155.
If your vehicle is loaded at or
near maximum cargo capacity,
it may be difficult to fit the jack
under the vehicle due to the
environment (shoulder slope,
road debris, etc.). Removal of
some weight may improve the
ability to fit the jack under the
vehicle at the correct jacking
location.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
402 Vehicle Care
{Warning
Changing a tire can be
dangerous. The vehicle can
slip off the jack and roll over
or fall causing injury or
death. Find a level place to
change the tire. To help
prevent the vehicle from
moving:1. Set the parking brake firmly.
2. Put the vehicle in P (Park).
3. Turn the vehicle off and do not restart the vehicle
while it is raised.
4. Do not allow passengers to remain in the vehicle.
5. Place wheel blocks, if equipped, on both sides
of the tire at the
opposite corner of the
tire being changed. When the vehicle has a flat
tire (2), use the following
example as a guide to assist in
the placement of the wheel
blocks (1), if equipped.
1. Wheel Block (If Equipped)
2. Flat Tire
The following information
explains how to repair or
change a tire.
Tire Changing
Performance Brake
Package RPO J56
The original spare tire/wheel
will not fit onto the front axle if
equipped with the
performance brake package RPO J56. If there is a flat tire
on the front axle, a tire/wheel
from the rear axle must be
used to make the repair. The
spare tire will then replace the
tire/wheel that is removed
from the rear axle.
If equipped with the
performance brake package
RPO J56, and the flat tire is on
the front axle, stop after
performing all steps in
Removing the Spare Tire and
Tools and do the following.
Otherwise, continue with the
procedure:

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 403
1. Remove the rear tire andreplace it with the spare
tire by performing all steps
in Removing the Flat Tire
and Installing the
Spare Tire.
2. Perform all steps in Removing the Flat Tire and
Installing the Spare Tire
again this time replacing
the flat front tire with the
rear tire.
3. Proceed to Storing a Flat or Spare Tire and Tools.
Removing the Spare Tire
and Tools
To access the spare tire and
tools:
1. Open the liftgate. See Liftgate 025.
2. Remove the cargo management system
divider. See Cargo
Management System
0108.
3. Pull up on the handle to lift
the load floor. Use the
hook to hold the load floor
open. See Rear Storage
0104.4. Turn the wing nut (4)
counterclockwise to
remove the jack (1), wheel
wrench (2), and strap (3).
Place the jack and tools
near the tire being
changed.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
404 Vehicle Care
5. Remove the nut retainingthe spare tire.
6. Remove the spare tire and place it next to the tire
being changed.
Removing the Flat Tire
and Installing the
Spare Tire
1. Do a safety check beforeproceeding. See If a Tire
Goes Flat 0401.
2. Turn the wheel wrench
counterclockwise to loosen
all the wheel nuts, but do
not remove them yet.
{Warning
Getting under a vehicle
when it is lifted on a jack is
dangerous. If the vehicle
slips off the jack, you could
be badly injured or killed.
Never get under a vehicle
when it is supported only by
a jack.
{Warning
Raising the vehicle with the
jack improperly positioned
can damage the vehicle and
even make the vehicle fall.
To help avoid personal injury
and vehicle damage, be sure
to fit the jack lift head into
the proper location before
raising the vehicle.
{Warning
Lifting a vehicle and getting
under it to do maintenance
or repairs is dangerous
without the appropriate
safety equipment and
training. If a jack is provided
with the vehicle, it is
designed only for changing a
flat tire. If it is used for
anything else, you or others
could be badly injured or
killed if the vehicle slips off
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 405
Warning (Continued)
the jack. If a jack is provided
with the vehicle, only use it
for changing a flat tire.
Caution
Using a jack to raise the
vehicle without positioning it
correctly could damage your
vehicle. When raising your
vehicle on a jack, be sure to
position it correctly under
the frame and avoid contact
with the plastic molding.
3. Attach the wrench to the jack by fitting the hex end
of the wrench over the hex
head of the jack.
4. Place the jack under the vehicle.
Caution
Make sure that the jack lift
head is in the correct
position or you may damage
(Continued)
Caution (Continued)
your vehicle. The repairs
would not be covered by
your warranty.
5. Position the jack lift headat the jack location nearest
the tire being changed.
The jacking location is
indicated by a half circle
notch in the metal flange.
The jack must not be used
in any other position.
6. Turn the wheel wrenchclockwise to raise the jack
until the slot in the jack lift
head fits into the metal
flange located behind the
cut out on the plastic
molding.
7. Raise the vehicle by turning the jack handle
clockwise. Raise the
vehicle far enough off the
ground so there is enough
room for the road tire to
clear the ground.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
406 Vehicle Care
8. Remove all of thewheel nuts.
9. Remove the tire being changed.
{Warning
Rust or dirt on a wheel,
or on the parts to which it
is fastened, can cause
wheel nuts to become
loose over time. The
wheel could come off and
cause a crash. When
changing a wheel, remove
any rust or dirt from
(Continued)
Warning (Continued)
places where the wheel
attaches to the vehicle. In
an emergency, a cloth or
paper towel can be used;
however, use a scraper
or wire brush later to
remove all rust or dirt.
10. Remove any rust or dirt from the wheel bolts,
mounting surfaces, and
spare wheel.
11. Place the spare tire on the wheel-mounting surface.
{Warning
Never use oil or grease on
bolts or nuts because the
nuts might come loose. The
vehicle's wheel could fall off,
causing a crash.
12. Reinstall the wheel nuts. Tighten each nut by hand
until the wheel is held
against the hub.
13. Lower the vehicle by turning the jack handle
counterclockwise.
{Warning
Wheel nuts that are
improperly or incorrectly
tightened can cause the
wheels to become loose or
come off. The wheel nuts
should be tightened with a
torque wrench to the proper
torque specification after
replacing. Follow the torque
specification supplied by the
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 407
Warning (Continued)
aftermarket manufacturer
when using accessory
locking wheel nuts. See
Capacities and
Specifications0438 for
original equipment wheel nut
torque specifications.
Caution
Improperly tightened wheel
nuts can lead to brake
pulsation and rotor damage.
To avoid expensive brake
repairs, evenly tighten the
wheel nuts in the proper
sequence and to the proper
torque specification. See
Capacities and
Specifications 0438 for the
wheel nut torque
specification.14. Tighten the wheel nuts firmly in a crisscross
sequence, as shown.
15. Lower the jack all the way and remove the jack from
under the vehicle.
16. Tighten the wheel nuts firmly with the wheel
wrench.
Storing a Flat or Spare
Tire and Tools
{Warning
Storing a jack, a tire,
or other equipment in the
passenger compartment of
the vehicle could cause
injury. In a sudden stop or
collision, loose equipment
could strike someone. Store
all these in the proper place.
To store the flat or spare tire
and tools: 1. Open the liftgate. See Liftgate 025.
2. Replace the tools as they were stored in the rear
storage compartment and
put the compartment
cover back on.
3. Place the tire, lying flat, in the rear storage
compartment.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
408 Vehicle Care
4. Place the loop end of thestrap through the cargo
tie-down. Place the hook
end of the strap through
the loop and pull it until the
strap is fastened securely
to the tie-down.5. Route the strap hookthrough the wheel, as
shown.
6. Attach the strap to the other cargo tie-down in the
rear of the vehicle.
7. Tighten the strap and secure it using the buckle.
The compact spare is for
temporary use only. Replace
the compact spare tire with a
full-size tire as soon as
you can.
Compact Spare Tire
{Warning
Driving with more than one
compact spare tire at a time
could result in loss of
braking and handling. This
could lead to a crash and
you or others could be
injured. Use only one
compact spare tire at a time.
If this vehicle has a compact
spare tire, it was fully inflated
when new; however, it can
lose air over time. Check the
inflation pressure regularly.
It should be 420 kPa (60 psi).
Stop as soon as possible and
check that the spare tire is
correctly inflated after being
installed on the vehicle. The
compact spare tire is designed
for temporary use only. The
vehicle will perform differently
with the spare tire installed
and it is recommended that
the vehicle speed be limited to
80 km/h (50 mph). To conserve

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22

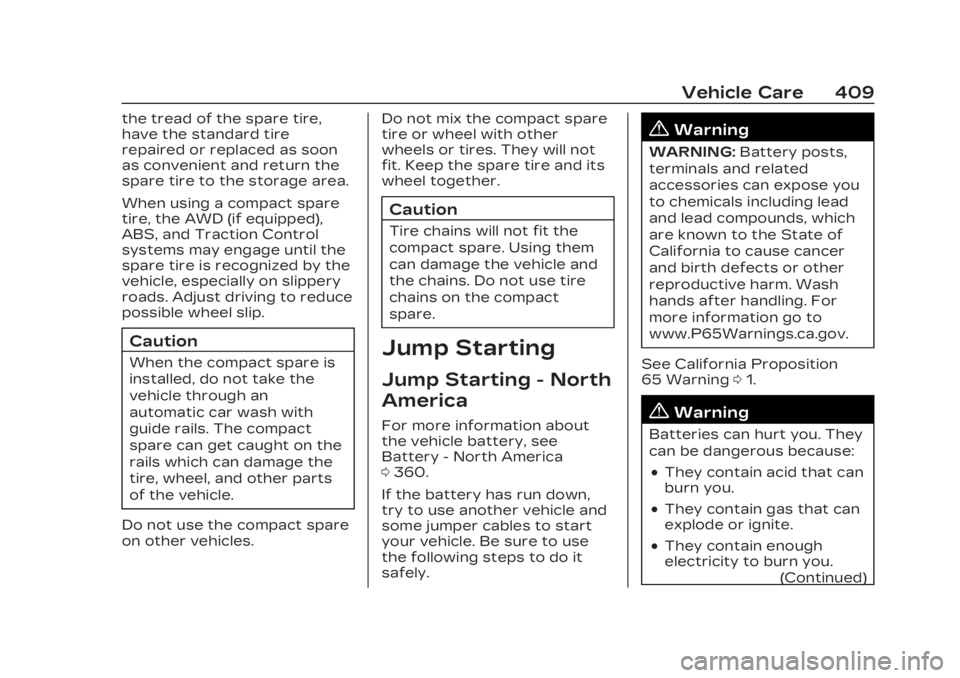

Vehicle Care 409
the tread of the spare tire,
have the standard tire
repaired or replaced as soon
as convenient and return the
spare tire to the storage area.
When using a compact spare
tire, the AWD (if equipped),
ABS, and Traction Control
systems may engage until the
spare tire is recognized by the
vehicle, especially on slippery
roads. Adjust driving to reduce
possible wheel slip.
Caution
When the compact spare is
installed, do not take the
vehicle through an
automatic car wash with
guide rails. The compact
spare can get caught on the
rails which can damage the
tire, wheel, and other parts
of the vehicle.
Do not use the compact spare
on other vehicles. Do not mix the compact spare
tire or wheel with other
wheels or tires. They will not
fit. Keep the spare tire and its
wheel together.
Caution
Tire chains will not fit the
compact spare. Using them
can damage the vehicle and
the chains. Do not use tire
chains on the compact
spare.
Jump Starting
Jump Starting - North
America
For more information about
the vehicle battery, see
Battery - North America
0
360.
If the battery has run down,
try to use another vehicle and
some jumper cables to start
your vehicle. Be sure to use
the following steps to do it
safely.
{Warning
WARNING: Battery posts,
terminals and related
accessories can expose you
to chemicals including lead
and lead compounds, which
are known to the State of
California to cause cancer
and birth defects or other
reproductive harm. Wash
hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See California Proposition
65 Warning 01.
{Warning
Batteries can hurt you. They
can be dangerous because:
.They contain acid that can
burn you.
.They contain gas that can
explode or ignite.
.They contain enough
electricity to burn you.
(Continued)
