CADILLAC XT6 2023 Owners Manual

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
100 Seats and Restraints
2.1. Find the lower anchorsfor the desired seating
position.
2.2. To access the lower anchors in the second
row, it may help to
recline the seatback.
Third row seatbacks
must be upright before
placing the child
restraint on the seat.
2.3.Put the child restraint on the seat.
2.4.Attach and tighten the lower attachments on
the child restraint to
the lower anchors.
If necessary, adjust the
angle of the second
row seatback to
achieve a tight
installation. Make sure
the second row bench
seatbacks are aligned
at the same angle.
3. If the child restraint manufacturer recommends
that the top tether be
attached, adjust the top tether to its full length and
attach it to the anchor.
Refer to the child restraint
instructions and the
following steps:
3.1. Find the top tether
anchor.
3.2.Route, attach, and tighten the top tether
according to your child
restraint instructions
and the following
instructions:
If the position you are
using does not have a
head restraint and you
are using a single
tether, route the tether
over the seatback.
If the position you are
using does not have a
head restraint and you
are using a dual tether,
route the tether over
the seatback.
If the position you are
using has an adjustable
headrest or head
restraint, adjust it
accordingly to allow

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 101
proper fitment. If you
are using a single
tether, route the tether
in between the
headrest or head
restraint posts.
If the position you are
using has a fixed
headrest or head
restraint and you are
using a single tether,
route the tether
around the inboard or
outboard side of the
headrest or head
restraint.
If the position you are
using has an adjustable
headrest or head
restraint, adjust it
accordingly to allow
proper fitment. If you
are using a dual tether,
route the tether
around the headrest or
head restraint posts.
If the child restraint is
installed next to a
center seat, make sure
the top tether does not
interfere with the
center seating position
shoulder belt/retractor.
If it does, find another
suitable seating
position to install the
child restraint.4. Before placing a child in
the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the
LATCH path and attempt
to move it side to side and
back and forth. There
should be no more than
2.5 cm (1 in) of movement,
for proper installation.
Replacing LATCH
System Parts After a
Crash
{Warning
A crash can damage the
LATCH system in the
vehicle. A damaged LATCH
system may not properly
secure the child restraint,
resulting in serious injury or
even death in a crash. To
help make sure the LATCH
system is working properly
after a crash, see your
(Continued)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
102 Seats and Restraints
Warning (Continued)
dealer to have the system
inspected and any
necessary replacements
made as soon as possible.
If the vehicle has the LATCH
system and it was being used
during a crash, new LATCH
system parts may be needed.
New parts and repairs may be
necessary even if the LATCH
system was not being used at
the time of the crash.
Securing Child
Restraints (With the
Seat Belt in the
Rear Seat)
When securing a child
restraint with the seat belts in
a rear seat position, study the
instructions that came with
the child restraint to make
sure it is compatible with this
vehicle. If the child restraint has the
LATCH system, see Lower
Anchors and Tethers for
Children (LATCH System)
092
for how and where to install
the child restraint using
LATCH. If a child restraint is
secured in the vehicle using a
seat belt and it uses a top
tether, see Lower Anchors
and Tethers for Children
(LATCH System) 092 for top
tether anchor locations.
Do not secure a child seat in a
position without a top tether
anchor if a national or local law
requires that the top tether be
anchored, or if the instructions
that come with the child
restraint say that the top
tether must be anchored.
In Canada, the law requires
that forward-facing child
restraints have a top tether,
and that the tether be
attached. If the child restraint or vehicle
seat position does not have
the LATCH system, you will be
using the seat belt to secure
the child restraint. Be sure to
follow the instructions that
came with the child restraint.
If more than one child restraint
needs to be installed in the
rear seat, be sure to read
Where to Put the Restraint
0
91.
1. Put the child restraint on the seat.
2. Pick up the latch plate and run the lap and shoulder
portions of the vehicle
seat belt through or
around the child restraint.
Ensure the seat belt
webbing is routed as
directly as possible and is
not caught on seat handles
or plastic trim. The child
restraint instructions will
show you how.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 103

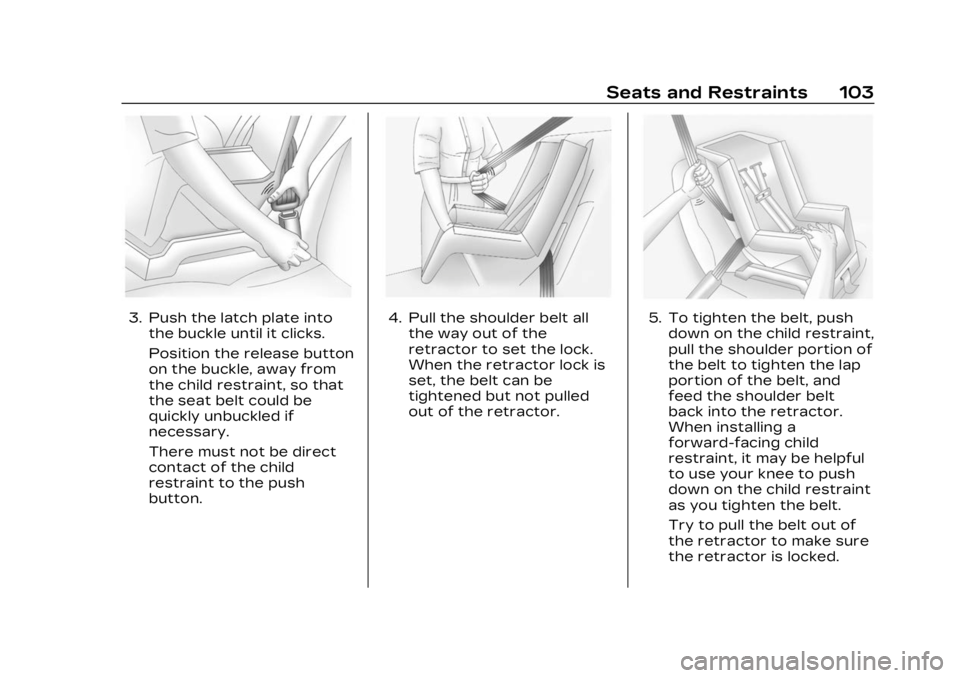

3. Push the latch plate intothe buckle until it clicks.
Position the release button
on the buckle, away from
the child restraint, so that
the seat belt could be
quickly unbuckled if
necessary.
There must not be direct
contact of the child
restraint to the push
button.4. Pull the shoulder belt allthe way out of the
retractor to set the lock.
When the retractor lock is
set, the belt can be
tightened but not pulled
out of the retractor.5. To tighten the belt, pushdown on the child restraint,
pull the shoulder portion of
the belt to tighten the lap
portion of the belt, and
feed the shoulder belt
back into the retractor.
When installing a
forward-facing child
restraint, it may be helpful
to use your knee to push
down on the child restraint
as you tighten the belt.
Try to pull the belt out of
the retractor to make sure
the retractor is locked.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
104 Seats and Restraints
If the retractor is not
locked, repeat
Steps 4 and 5.
6. If the child restraint has a top tether, follow the child
restraint manufacturer's
instructions regarding the
use of the top tether. See
Lower Anchors and
Tethers for Children
(LATCH System) 092.
7. Before placing a child in the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the seat
belt path and attempt to
move it side to side and
back and forth. When the
child restraint is properly
installed, there should be
no more than 2.5 cm (1 in)
of movement.
To remove the child restraint,
unbuckle the vehicle seat belt
and let it return to the stowed
position. If the top tether is
attached to a top tether
anchor, disconnect it.Securing Child
Restraints (With the
Seat Belt in the
Front Seat)
This vehicle has airbags.
A rear seat is a safer place to
secure a forward-facing child
restraint. See Where to Put
the Restraint 091.
In addition, the vehicle has a
passenger sensing system
which is designed to turn off
the front outboard passenger
frontal airbag under certain
conditions. See Passenger
Sensing System 078 and
Passenger Airbag Status
Indicator 0133 for more
information, including
important safety information.
Never put a rear-facing child
seat in the front. This is
because the risk to the
rear-facing child is so great,
if the airbag deploys.
{Warning
A child in a rear-facing child
restraint can be seriously
injured or killed if the front
outboard passenger frontal
airbag inflates. This is
because the back of the
rear-facing child restraint
would be very close to the
inflating airbag. A child in a
forward-facing child
restraint can be seriously
injured or killed if the front
outboard passenger frontal
airbag inflates and the
passenger seat is in a
forward position.
Even if the passenger
sensing system has turned
off the front outboard
passenger frontal airbag, no
system is fail-safe. No one
can guarantee that an
airbag will not deploy under
some unusual circumstance,
even though it is turned off.
(Continued)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 105
Warning (Continued)
Secure rear-facing child
restraints in a rear seat,
even if the airbag is off.
If you secure a
forward-facing child
restraint in the front
outboard passenger seat,
always move the seat as far
back as it will go. It is better
to secure the child restraint
in a rear seat.
See Passenger Sensing
System078 for additional
information.
If the child restraint uses a top
tether, see Lower Anchors
and Tethers for Children
(LATCH System) 092 for top
tether anchor locations.
Do not secure a child seat in a
position without a top tether
anchor if a national or local law
requires that the top tether be
anchored, or if the instructions that come with the child
restraint say that the top
tether must be anchored.
In Canada, the law requires
that forward-facing child
restraints have a top tether,
and that the tether be
attached.
When using the lap-shoulder
belt to secure the child
restraint in this position, follow
the instructions that came
with the child restraint and the
following instructions:
1. Move the seat as far back as it will go before
securing the
forward-facing child
restraint. Move the seat
upward or the seatback to
an upright position,
if needed, to get a tight
installation of the child
restraint. There must be
finger clearance between
the push button and the
child restraint. When the passenger
sensing system has turned
off the front outboard
passenger frontal airbag,
the OFF indicator on the
passenger airbag status
indicator should light and
stay lit when you start the
vehicle. See Passenger
Airbag Status Indicator
0
133.
2. Put the child restraint on the seat.
3. Pick up the latch plate and run the lap and shoulder
portions of the vehicle
seat belt through or
around the restraint.
Ensure the seat belt
webbing is routed as direct
as possible and is not
caught on seat handles or
plastic trim. The child
restraint instructions will
show you how.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
106 Seats and Restraints

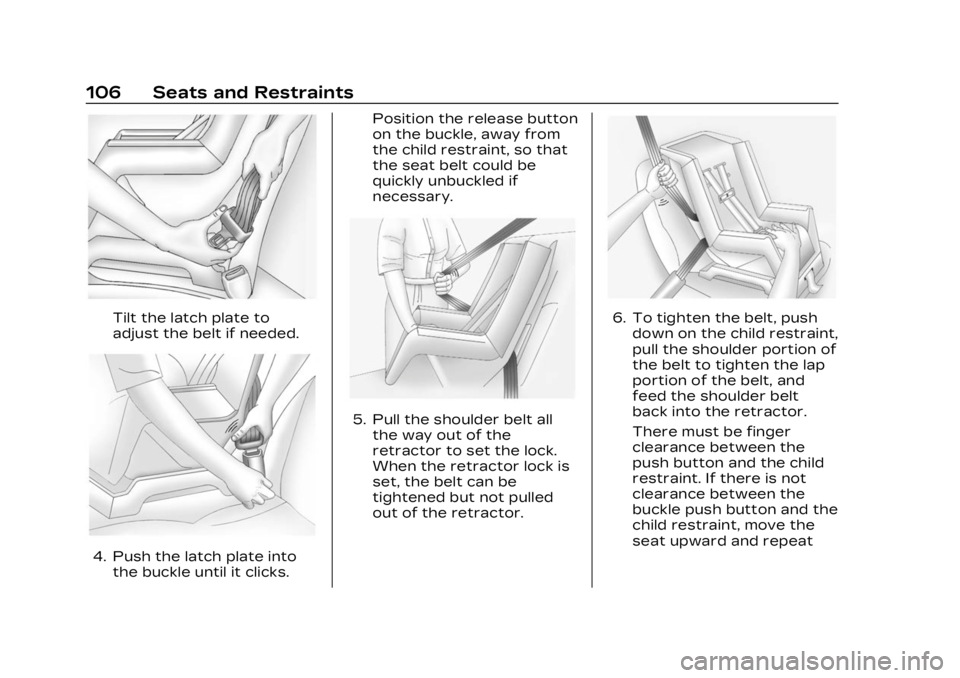

Tilt the latch plate to
adjust the belt if needed.
4. Push the latch plate intothe buckle until it clicks. Position the release button
on the buckle, away from
the child restraint, so that
the seat belt could be
quickly unbuckled if
necessary.
5. Pull the shoulder belt all
the way out of the
retractor to set the lock.
When the retractor lock is
set, the belt can be
tightened but not pulled
out of the retractor.
6. To tighten the belt, pushdown on the child restraint,
pull the shoulder portion of
the belt to tighten the lap
portion of the belt, and
feed the shoulder belt
back into the retractor.
There must be finger
clearance between the
push button and the child
restraint. If there is not
clearance between the
buckle push button and the
child restraint, move the
seat upward and repeat

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 107
prior installation steps.
Otherwise secure the child
restraint in a rear seat.
When installing a
forward-facing child
restraint, it may be helpful
to use your knee to push
down on the child restraint
as you tighten the belt.
Try to pull the belt out of
the retractor to make sure
the retractor is locked.
If the retractor is not
locked, repeat
Steps 5 and 6.
7. Before placing a child in the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the seat
belt path and attempt to
move it side to side and
back and forth. When the
child restraint is properly
installed, there should be
no more than 2.5 cm (1 in)
of movement. If the airbag is off, the OFF
indicator in the passenger
airbag status indicator will
come on and stay on when the
vehicle is started.
If a child restraint has been
installed and the ON indicator
is lit, see
“If the On Indicator Is
Lit for a Child Restraint” under
Passenger Sensing System
0 78.
To remove the child restraint,
unbuckle the vehicle seat belt
and let it return to the stowed
position.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
108 Storage
Storage
Storage Compartments
StorageCompartments . . . . . . . . . . . . 108
Glove Box . . . . . . . . . . . . . . . . . . . . 108
Cupholders . . . . . . . . . . . . . . . . . . 108
Rear Storage . . . . . . . . . . . . . . . 109
Center Console Storage . . . . . . . . . . . . . . . . . . . . . 109
Additional Storage
Features
Cargo Cover . . . . . . . . . . . . . . . . . 110
Cargo Tie-Downs . . . . . . . . . . . 113
Cargo ManagementSystem . . . . . . . . . . . . . . . . . . . . . . . 113
Convenience Net . . . . . . . . . . . 114
Roof Rack System
Roof Rack System . . . . . . . . . . 114
Storage
Compartments
{
Warning
Do not store heavy or sharp
objects in storage
compartments. In a crash,
these objects may cause the
cover to open and could
result in injury.
Glove Box
Lift the handle to open the
glove box. Close until it
latches. Use the vehicle key to
lock or unlock.
Cupholders
Front Cupholders
Cupholders in the center
console are under a cover. Do
not place items on the cover.
To open, slide the cover
forward.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Storage 109
To close, press the button and
the cover will close
automatically.
Rear Cupholders
If equipped with cupholders in
the back center console, pull
on the handle to access.
If equipped, the rear seat
armrest may have cupholders.
Pull the armrest down to
access the cupholders.
Rear Storage
There is storage in the floor of
the rear cargo area. Lift the
handle to access.
Center Console
Storage
The SD card is used for
navigation. Do not remove the
card from the holder. See the
infotainment section.
