Page 1091 of 1903

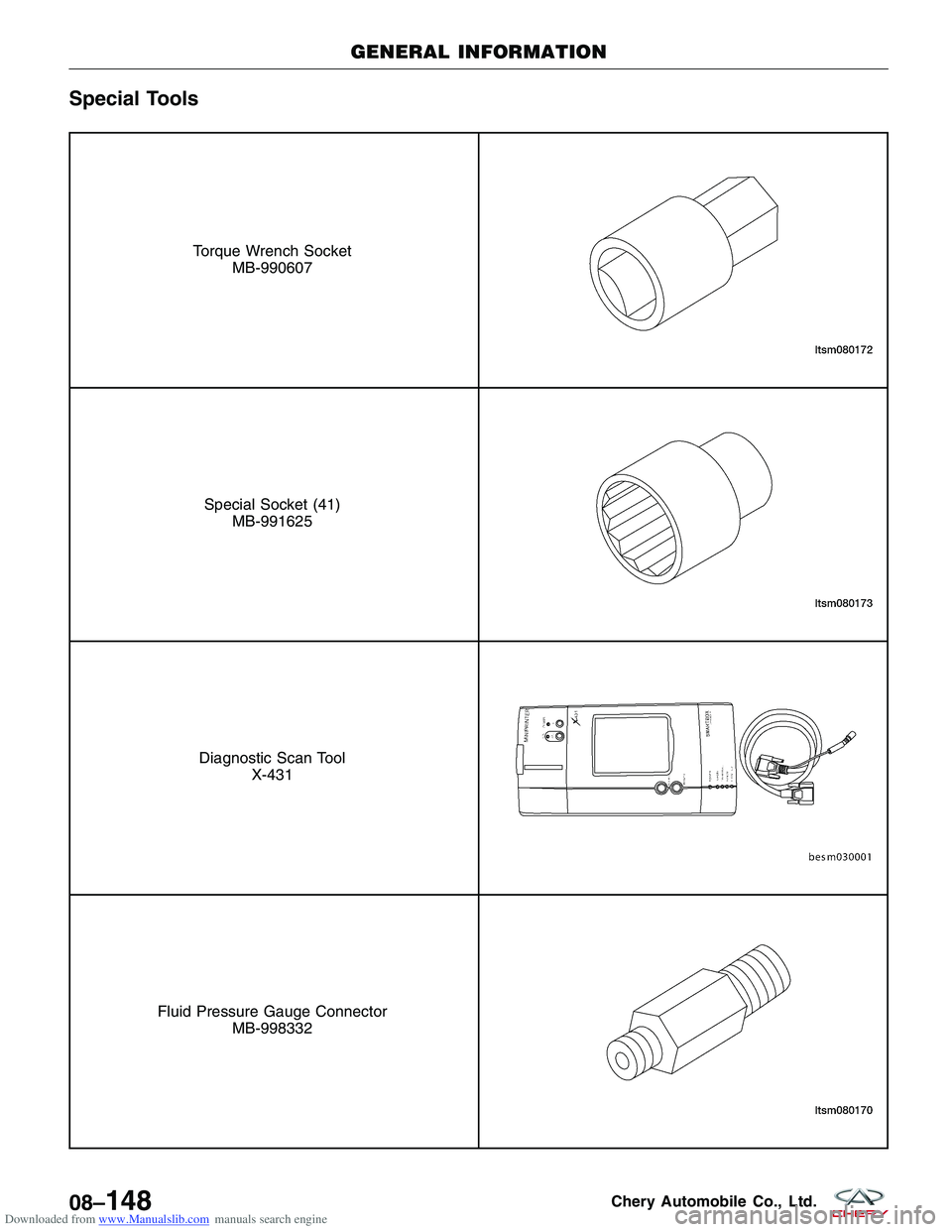

Downloaded from www.Manualslib.com manuals search engine Special Tools
Torque Wrench SocketMB-990607
Special Socket (41)MB-991625
Diagnostic Scan Tool X-431
Fluid Pressure Gauge Connector MB-998332
GENERAL INFORMATION
08–148Chery Automobile Co., Ltd.
Page 1092 of 1903

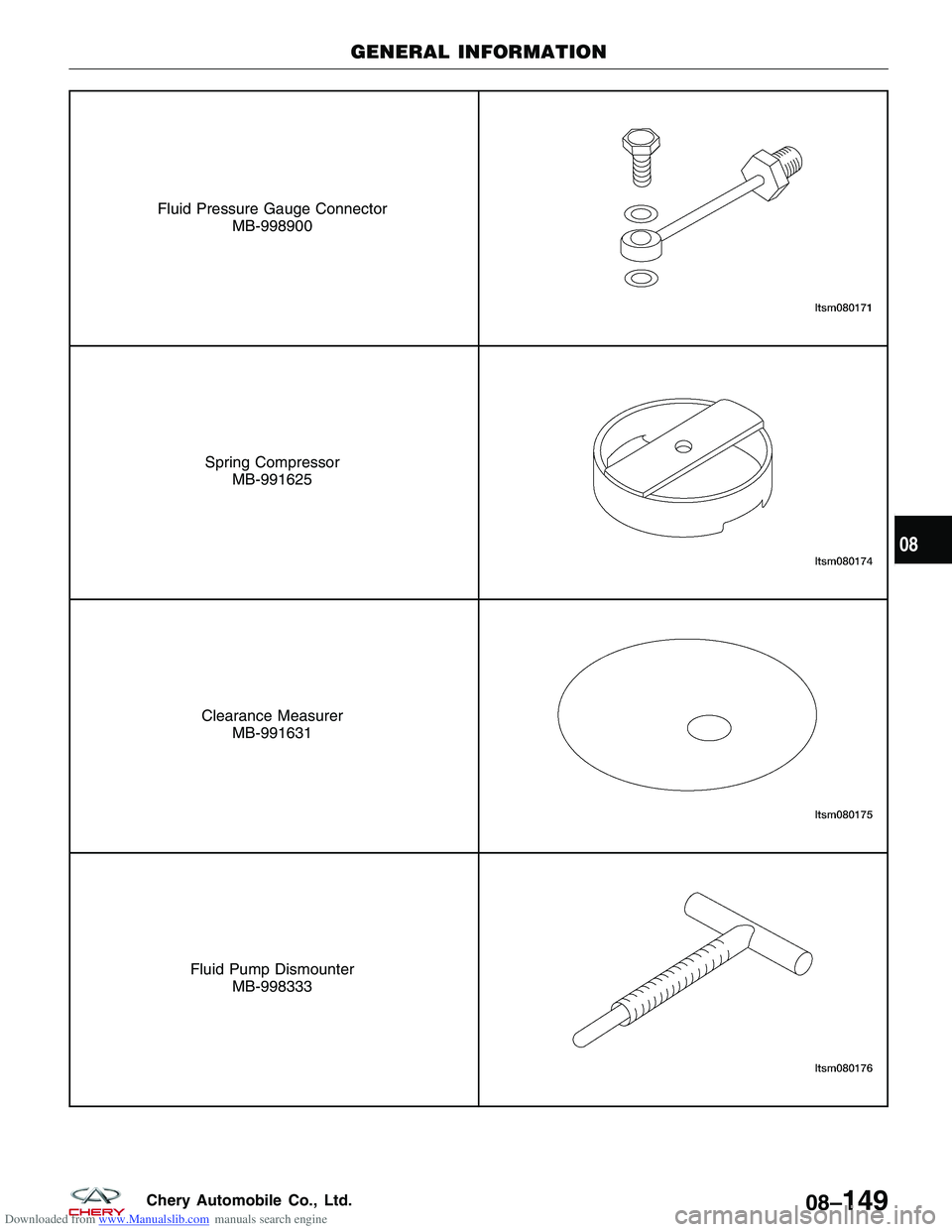

Downloaded from www.Manualslib.com manuals search engine Fluid Pressure Gauge ConnectorMB-998900
Spring CompressorMB-991625
Clearance Measurer MB-991631
Fluid Pump Dismounter MB-998333
GENERAL INFORMATION
08
08–149Chery Automobile Co., Ltd.
Page 1093 of 1903

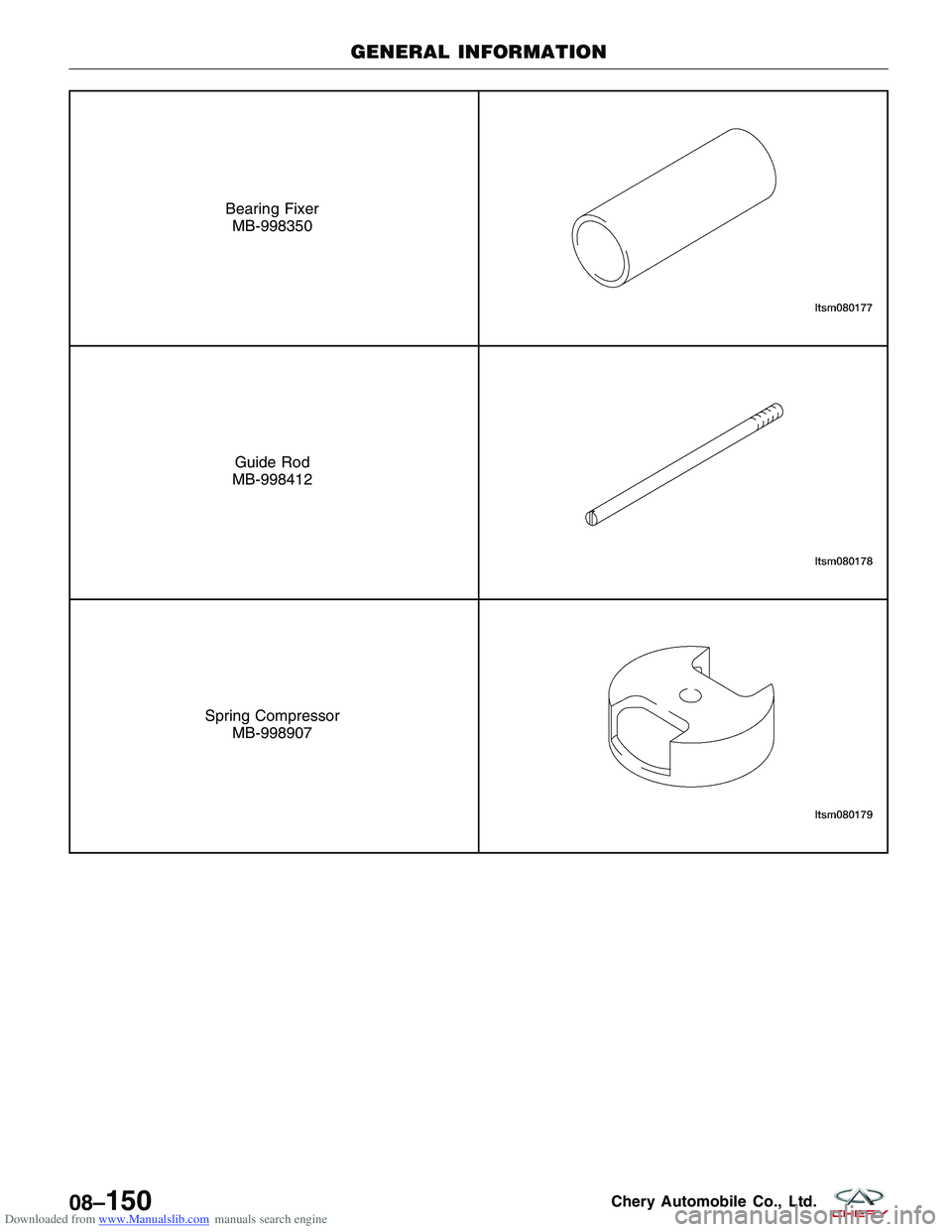

Downloaded from www.Manualslib.com manuals search engine Bearing FixerMB-998350
Guide Rod
MB-998412
Spring Compressor MB-998907
GENERAL INFORMATION
08–150Chery Automobile Co., Ltd.
Page 1094 of 1903

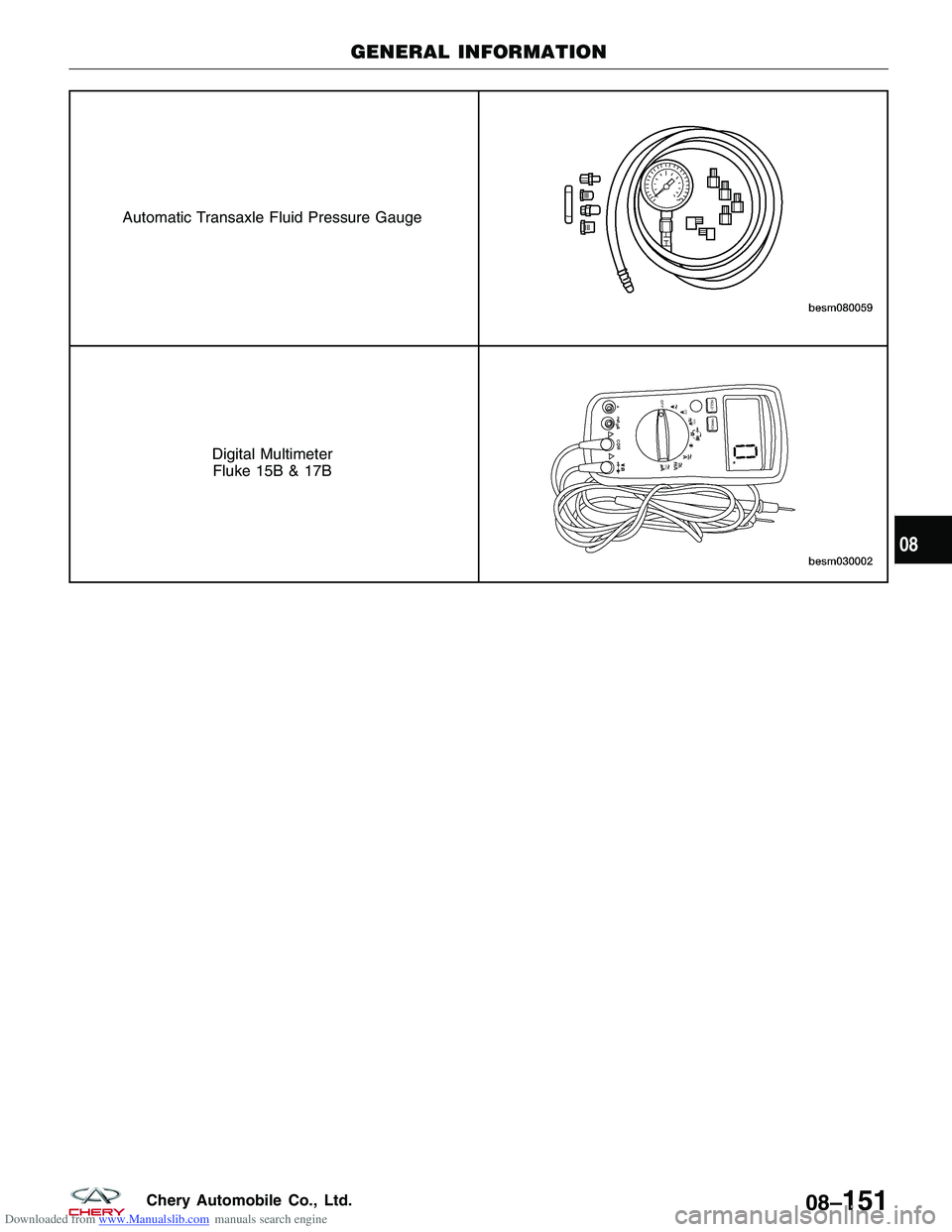

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle Fluid Pressure Gauge
Digital MultimeterFluke 15B & 17B
GENERAL INFORMATION
08
08–151Chery Automobile Co., Ltd.
Page 1095 of 1903

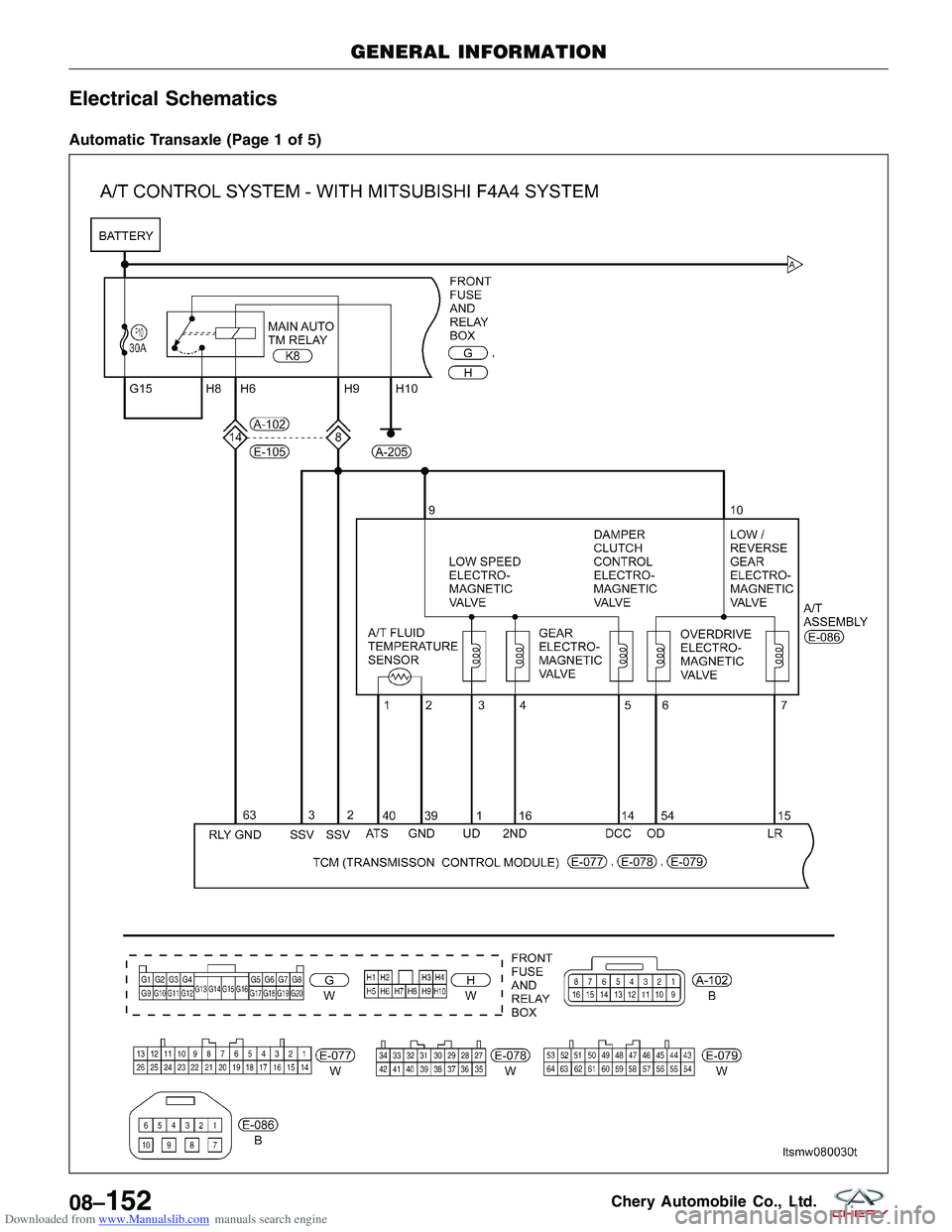

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Automatic Transaxle (Page 1 of 5)
GENERAL INFORMATION
LTSMW080030T
08–152Chery Automobile Co., Ltd.
Page 1096 of 1903

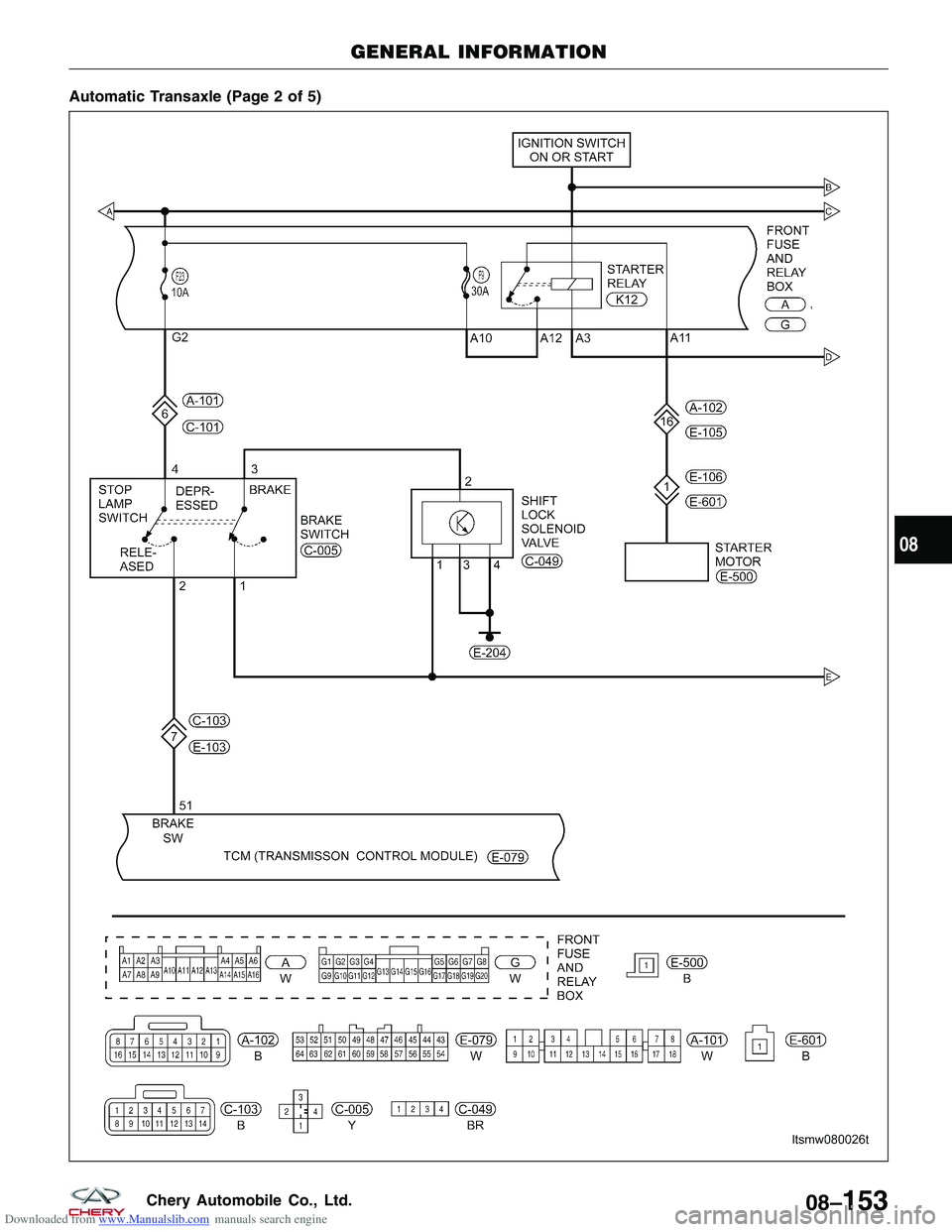

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 2 of 5)
GENERAL INFORMATION
LTSMW080026T
08
08–153Chery Automobile Co., Ltd.
Page 1097 of 1903

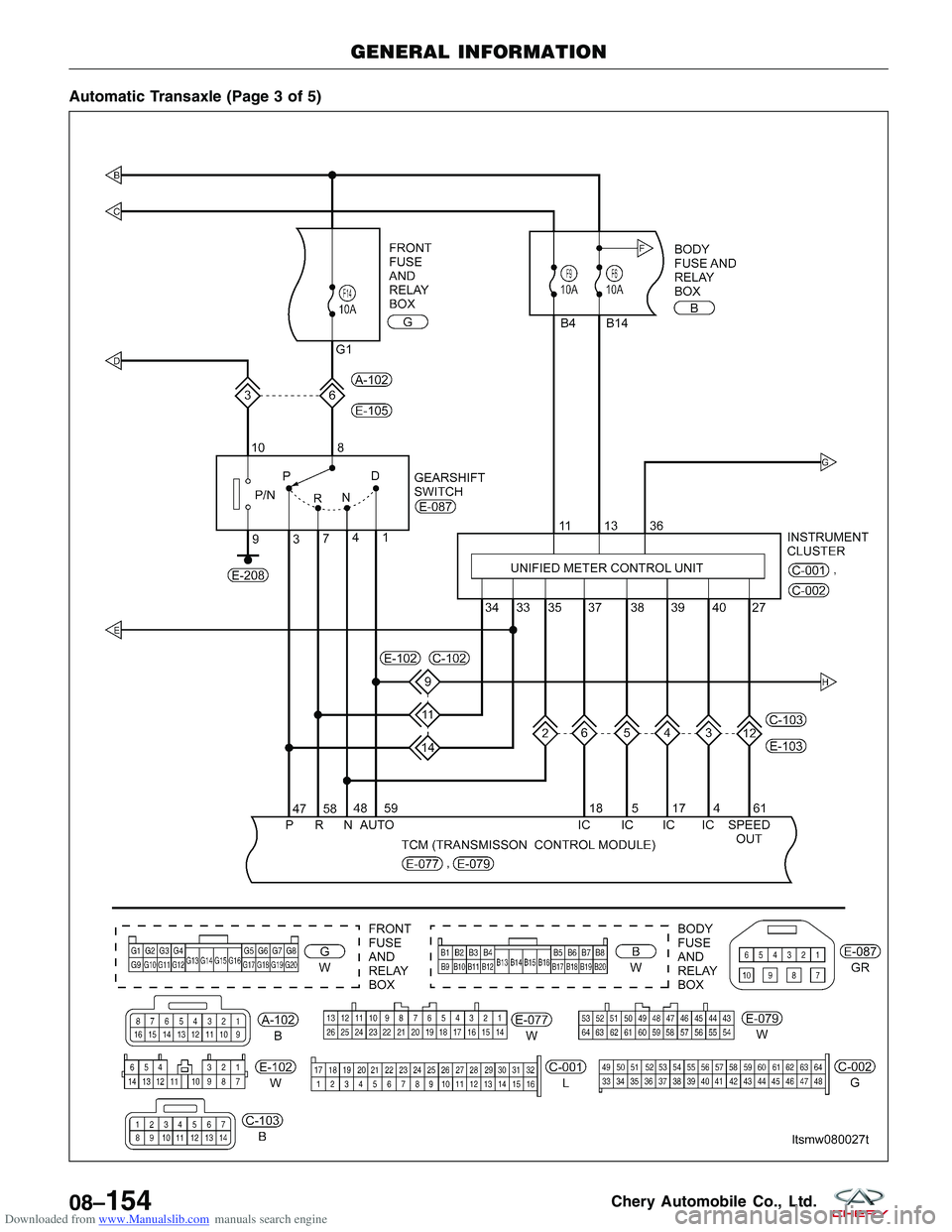

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 3 of 5)
GENERAL INFORMATION
LTSMW080027T
08–154Chery Automobile Co., Ltd.
Page 1098 of 1903

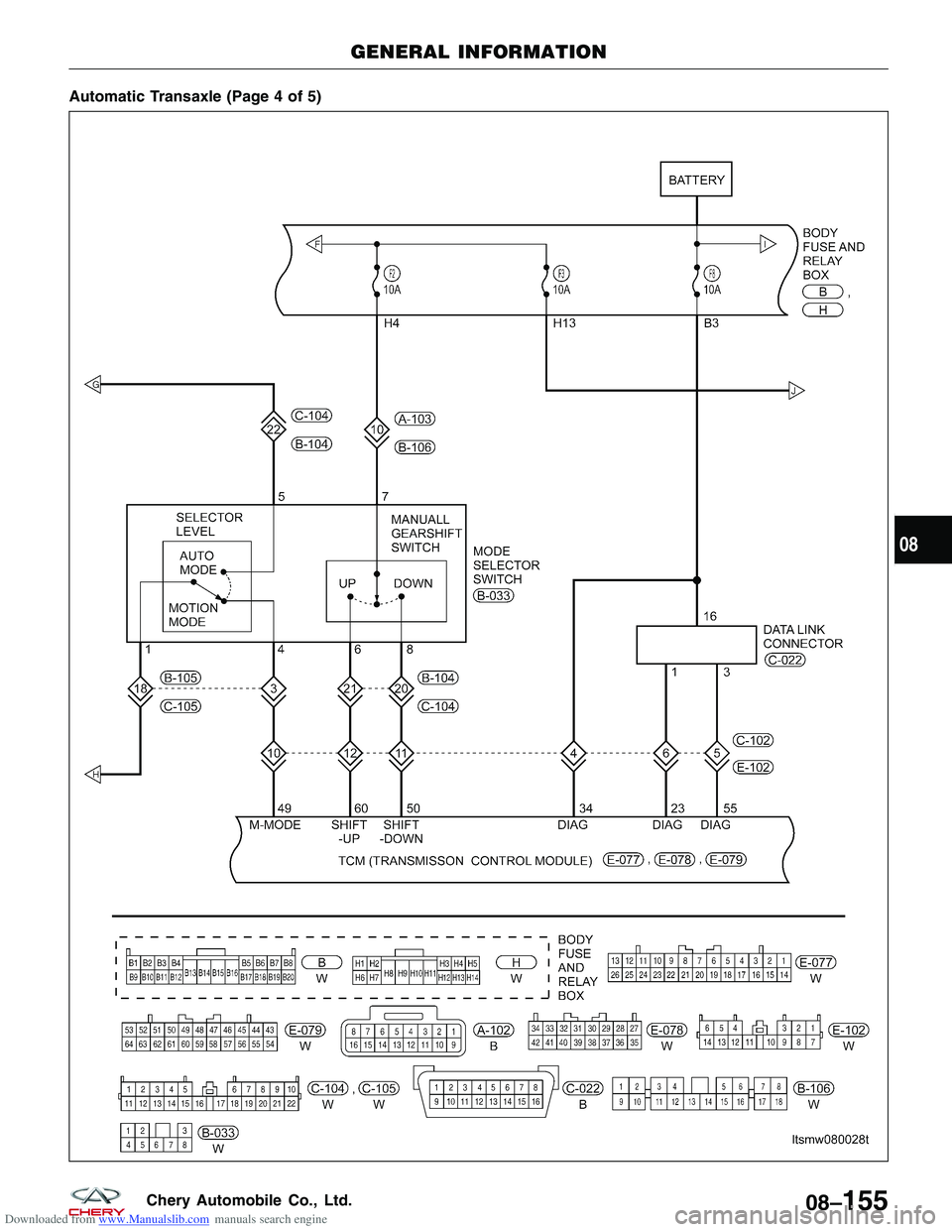

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 4 of 5)
GENERAL INFORMATION
LTSMW080028T
08
08–155Chery Automobile Co., Ltd.
Page 1099 of 1903

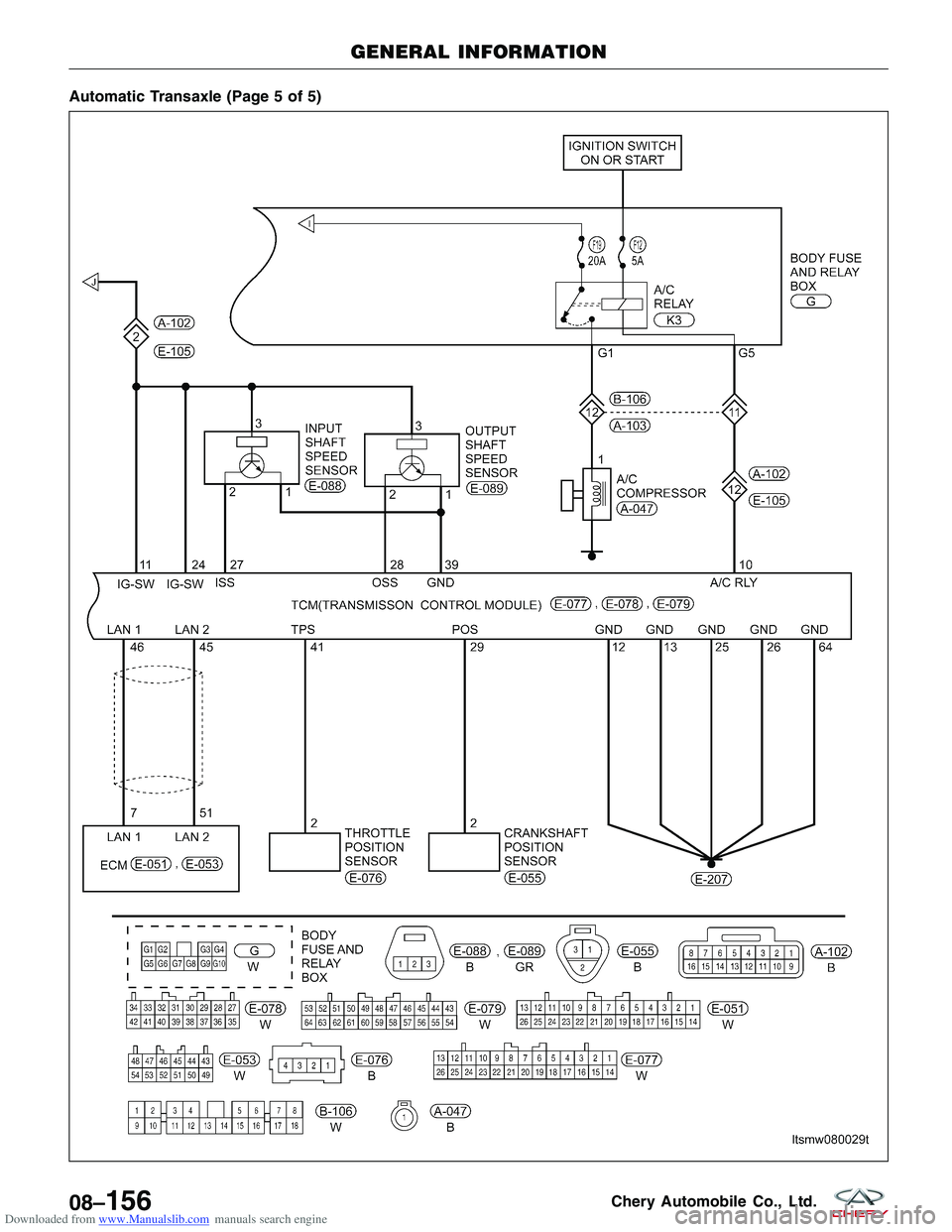

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 5 of 5)
GENERAL INFORMATION
LTSMW080029T
08–156Chery Automobile Co., Ltd.
Page 1100 of 1903

Downloaded from www.Manualslib.com manuals search engine Transaxle Control Module (TCM) Connector Pin-Out Table
TCM PIN-OUT TABLE
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 Low Speed Electromagnetic Valve 33 -
2 Relay Supply 34Data Link Connector
3 Relay Supply 35-
4 To Instrument Cluster 36-
5 To Instrument Cluster 37-
6 -38 -
7 -39GND
8 -40TFT Sensor
9 -41 TPS
10 A/C Relay Control 42-
11 Ignition Supply 43-
12 GND 44-
13 GND 45To ECM
14 Damper Clutch Control Electromagnetic
Valve 46
To ECM
15 Low/Reverse Gear Electromagnetic Valve 47 Manual Gearshift Proof SwitchP
16 Gear Electromagnetic Valve 48Manual Gearshift Proof Switch N
17 To Instrument Cluster 49Shifter Selector-Motion Vehicle Mode
AUTO
18 To Instrument Cluster 50 Shifter Selector-Gearshift Switch UP
19 -51Brake Switch
20 -52 -
21 -53 -
22 -54Overdrive Electromagnetic Valve
23 Data Link Connector 55Data Link Connector
24 Ignition Supply 56-
25 GND 57-
26 GND 58Manual Gearshift Proof Switch R
27 Input Shaft Speed Sensor 59Manual Gearshift Proof Switch D
28 Output Shaft Speed Sensor 60 Shifter Selector-Gearshift Switch DOWN
29 Crankshaft Position Sensor 61To Instrument Cluster
30 -62 -
31 -63Main Auto TM Relay Control
32 -64GND
GENERAL INFORMATION
08
08–157Chery Automobile Co., Ltd.
