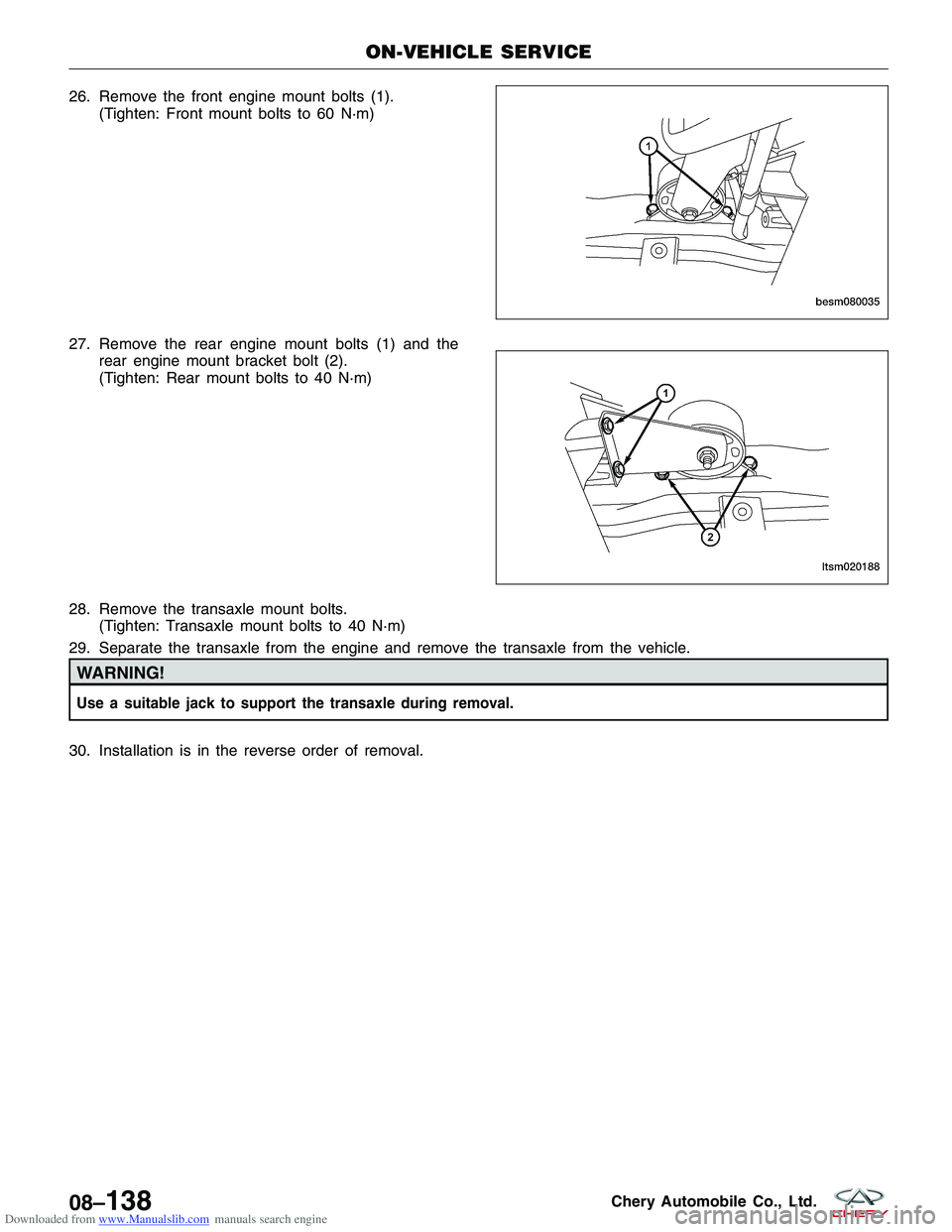

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 26. Remove the front engine mount bolts (1).(Tighten: Front mount bolts to 60 N·m)
27. Remove the rear engine mount bolts (1) and the rear eng

Page 1082 of 1903

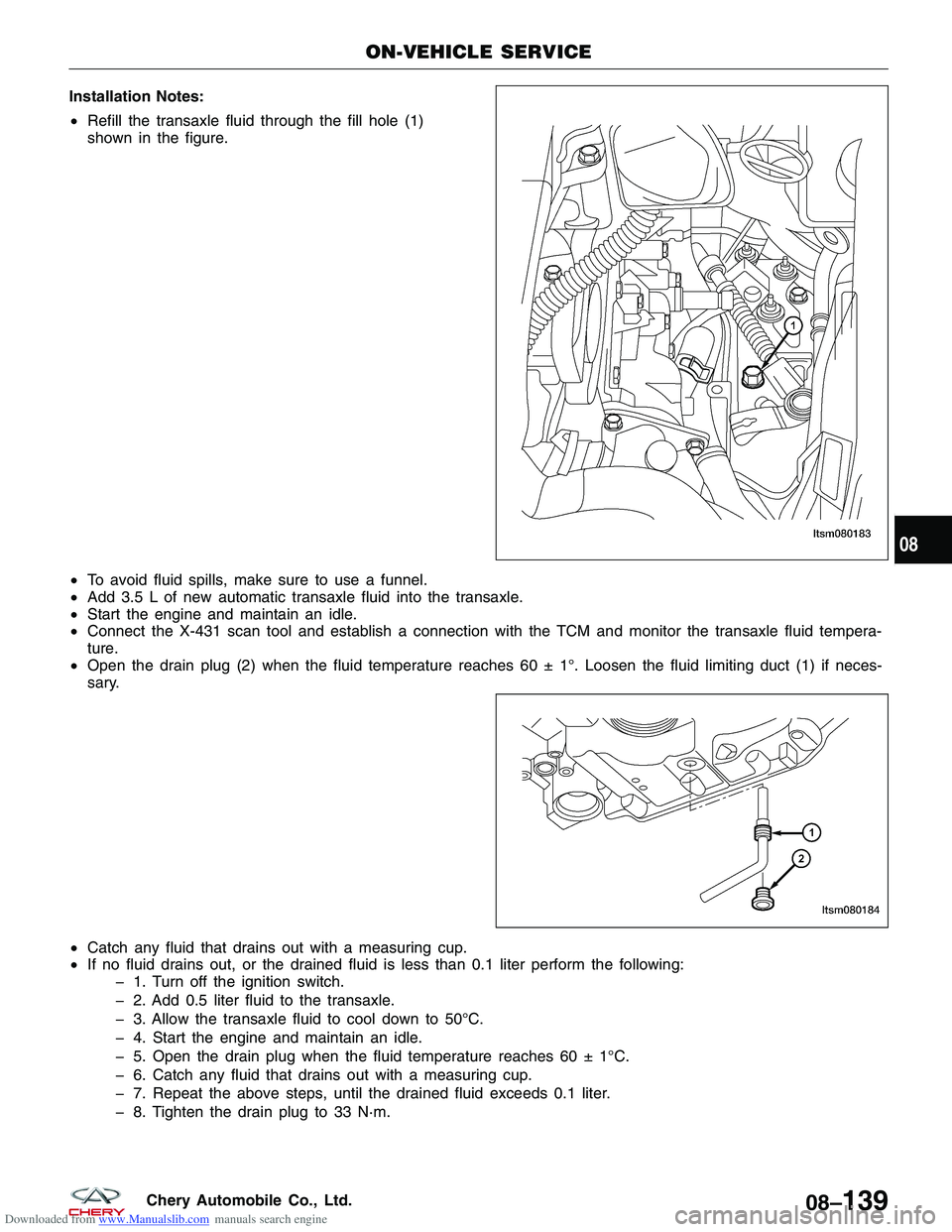

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Installation Notes:
•Refill the transaxle fluid through the fill hole (1)
shown in the figure.
• To avoid fluid spills, make sure to use a

Page 1083 of 1903

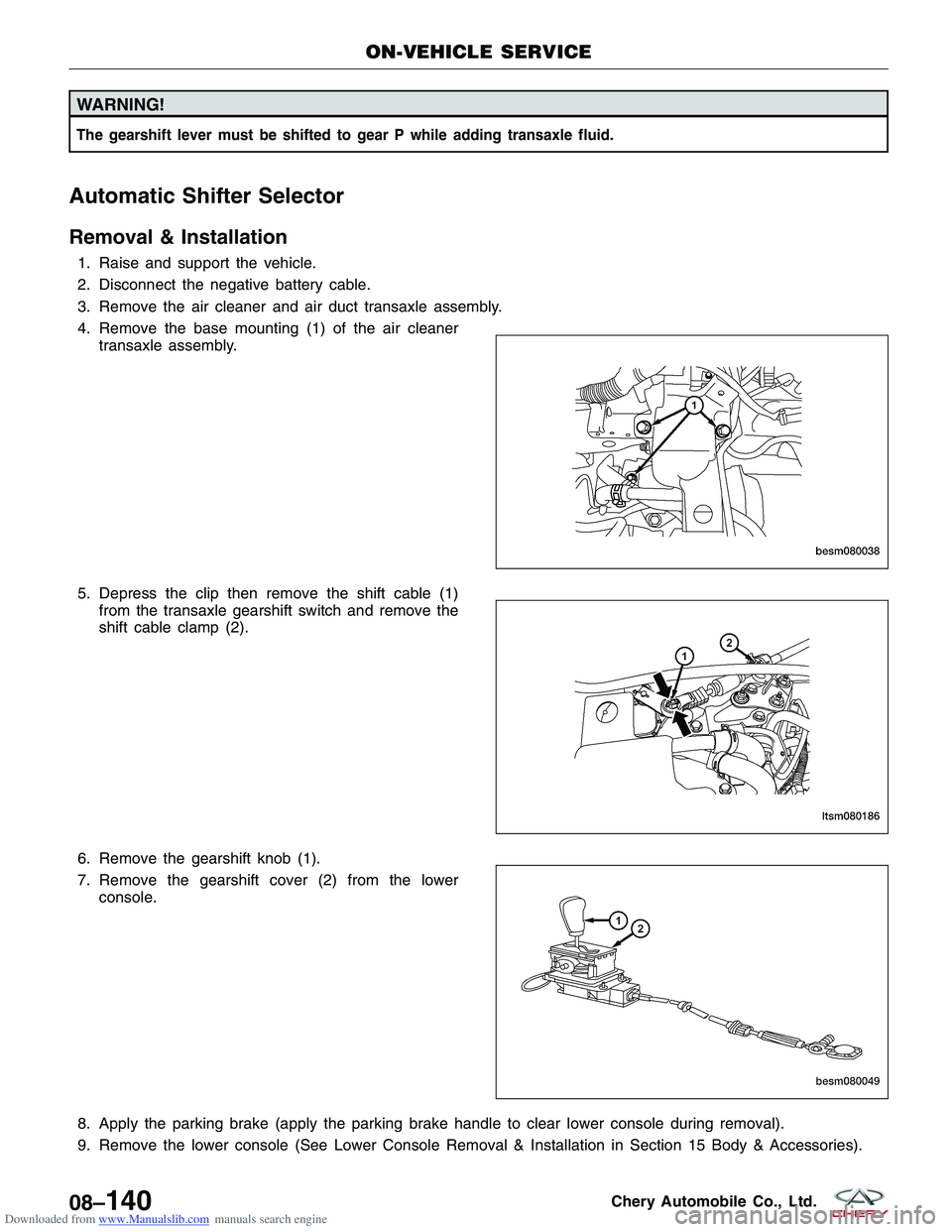

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine WARNING!
The gearshift lever must be shifted to gear P while adding transaxle fluid.
Automatic Shifter Selector
Removal & Installation
1. Raise

Page 1084 of 1903

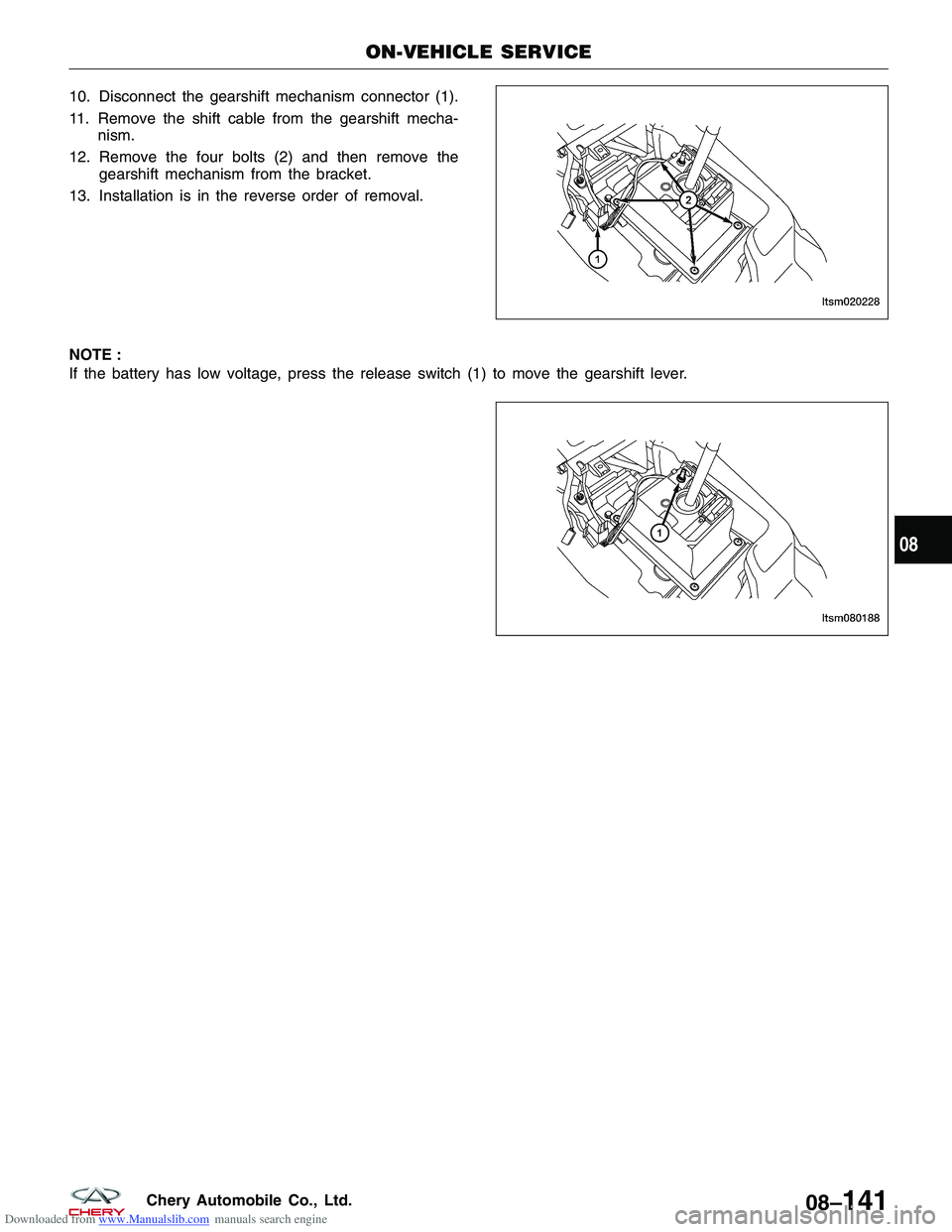

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 10. Disconnect the gearshift mechanism connector (1).
11. Remove the shift cable from the gearshift mecha-nism.
12. Remove the four bolts (2) a

Page 1085 of 1903

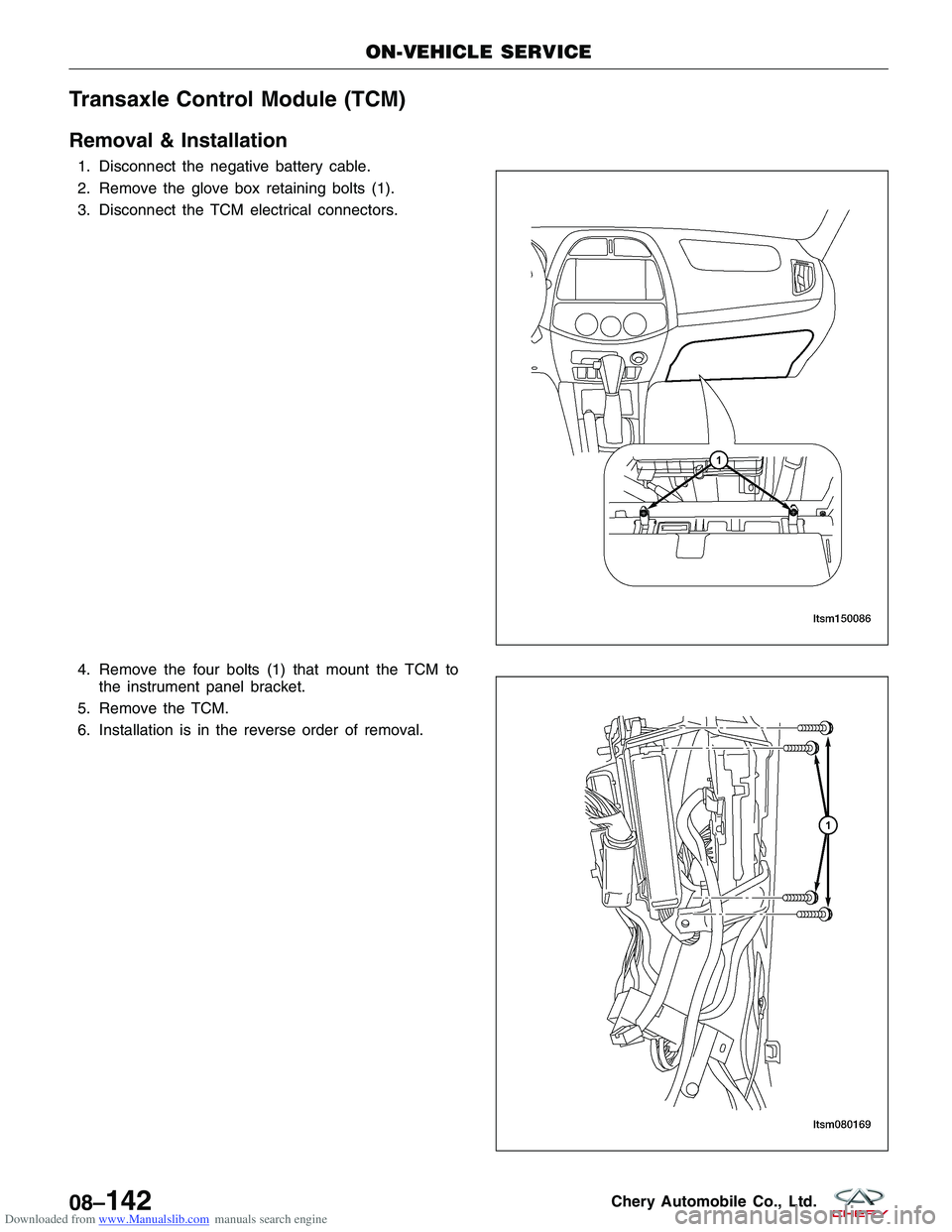

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Transaxle Control Module (TCM)
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the glove box retaining bolts (1).
3.

Page 1086 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine F4A4 AUTOMATIC TRANSAXLE
GENERAL INFORMATION08-144
Description 08-144
Operation 08-145
Specifications 08-147
Special Tools 08-148
Electrical Sc

Page 1087 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The transaxle gear train is comprised of two rows of planetary gear set, one one-way clutch and five actuators

Page 1088 of 1903

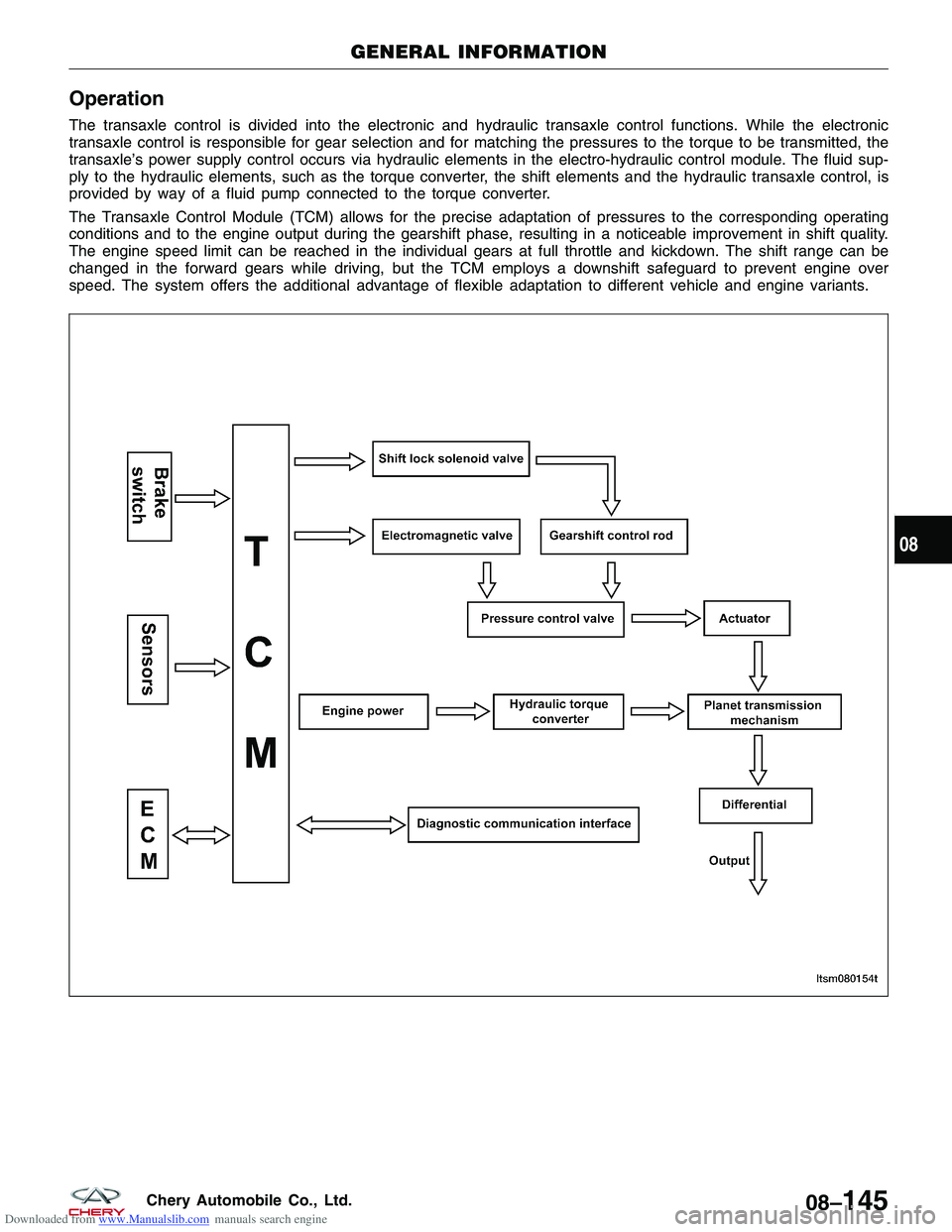

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Operation
The transaxle control is divided into the electronic and hydraulic transaxle control functions. While the electronic
transaxle contro

Page 1089 of 1903

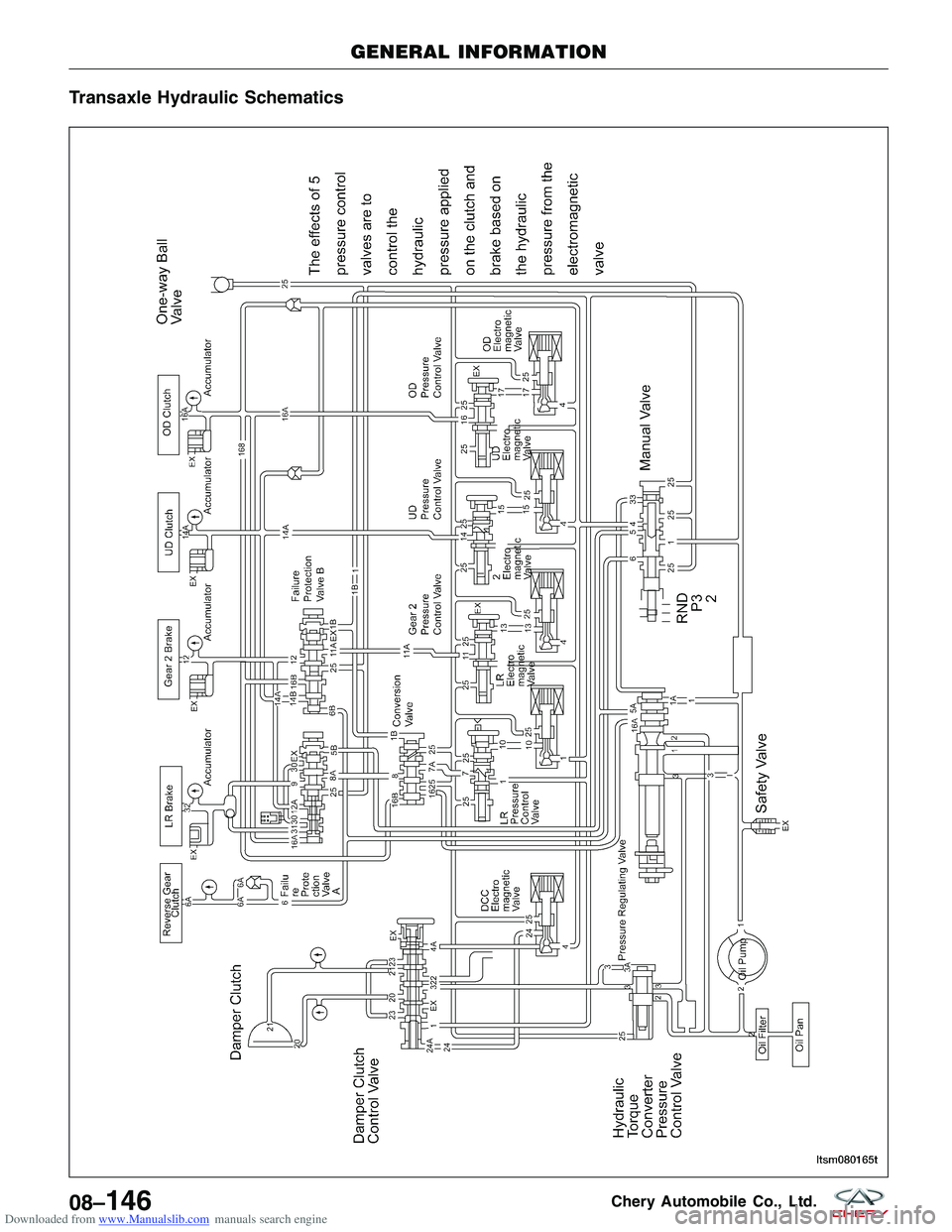

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Transaxle Hydraulic Schematics
GENERAL INFORMATION
LTSM080165T
08–146Chery Automobile Co., Ltd.

Page 1090 of 1903

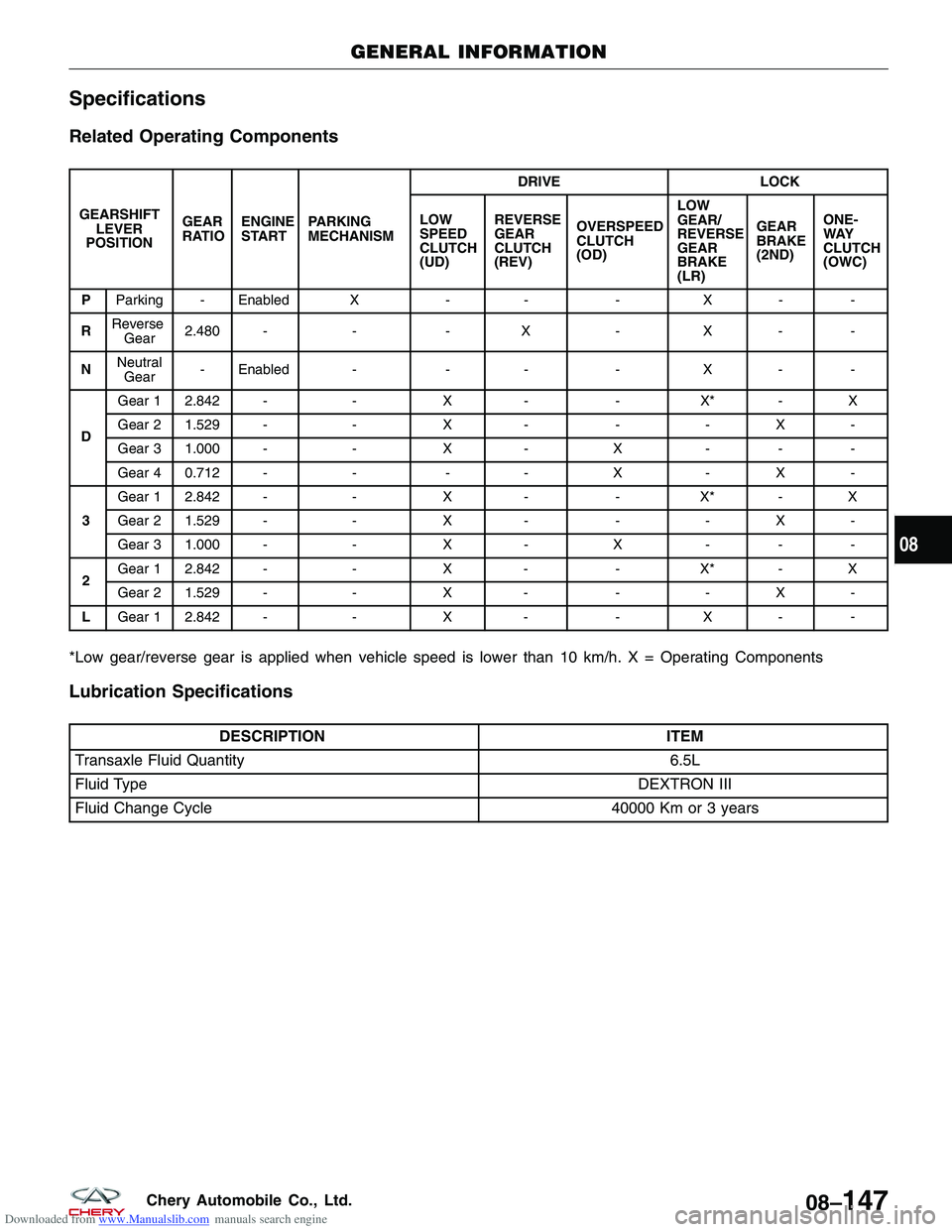

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Specifications
Related Operating Components
GEARSHIFTLEVER
POSITION GEAR
RATIO
ENGINE
START PARKING
MECHANISM DRIVE
LOCK
LOW
SPEED
CLUTCH
(UD)
