CHERY TIGGO 2009 Service Repair Manual

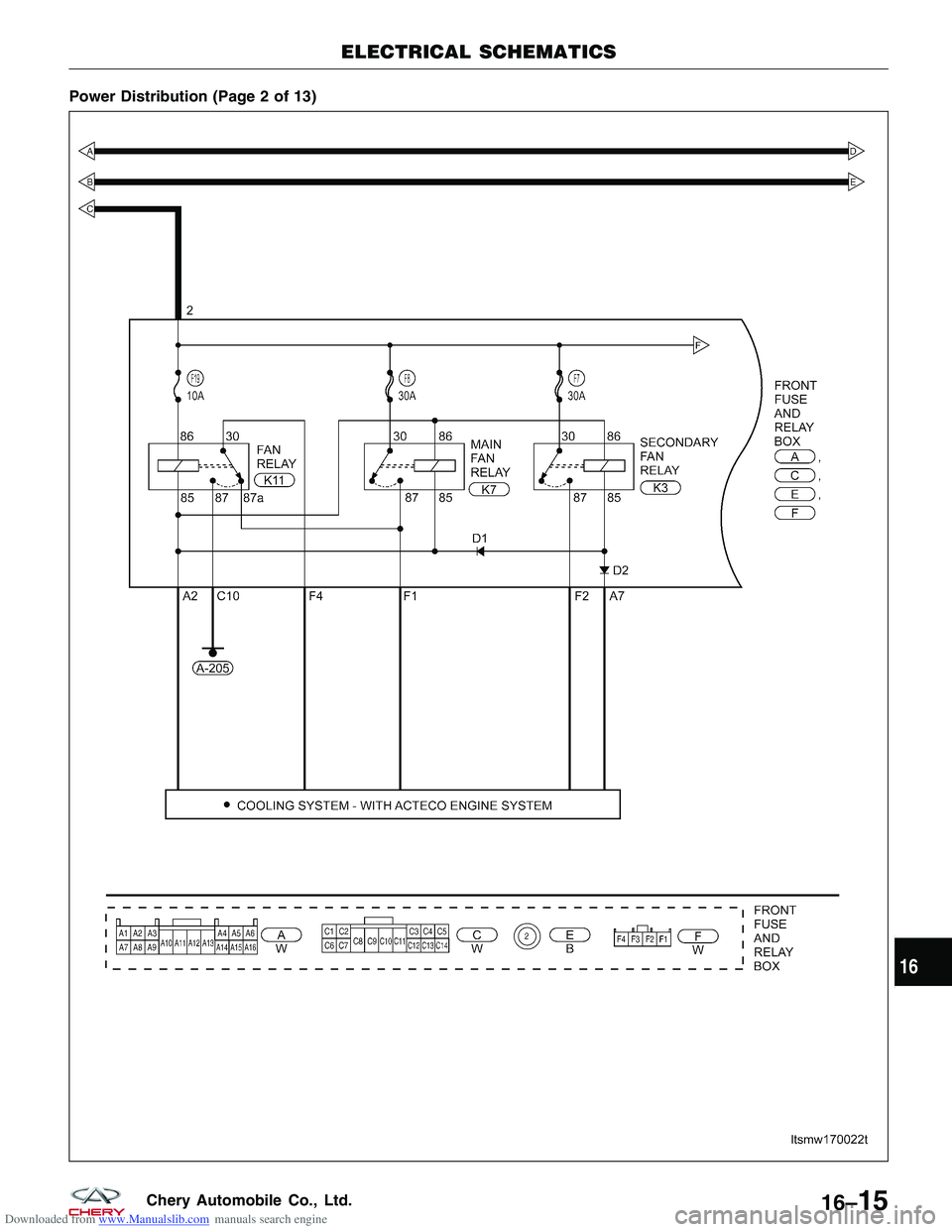

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 2 of 13)
ELECTRICAL SCHEMATICS
LTSMW170022T
16
16–15Chery Automobile Co., Ltd.

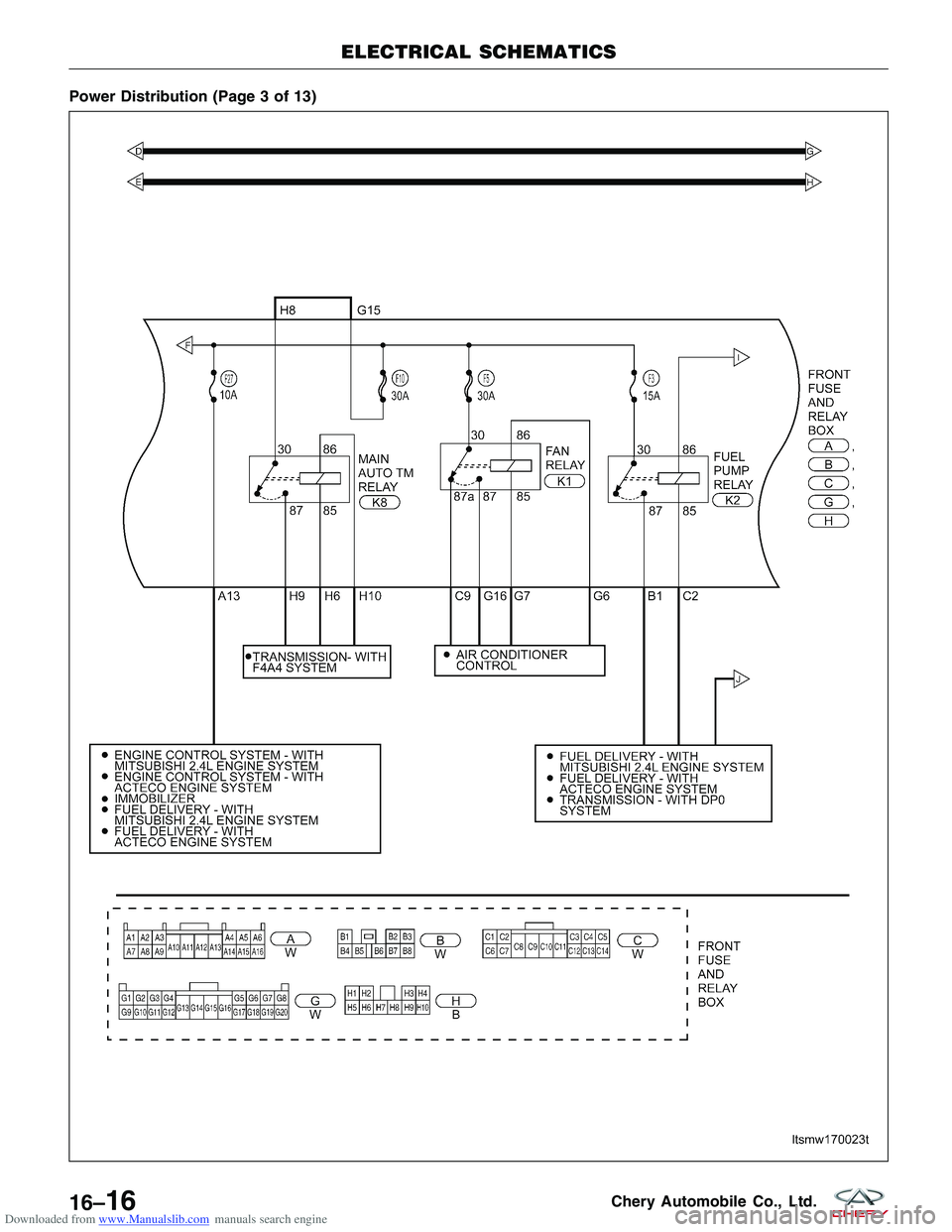

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 3 of 13)
ELECTRICAL SCHEMATICS
LTSMW170023T
16–16Chery Automobile Co., Ltd.

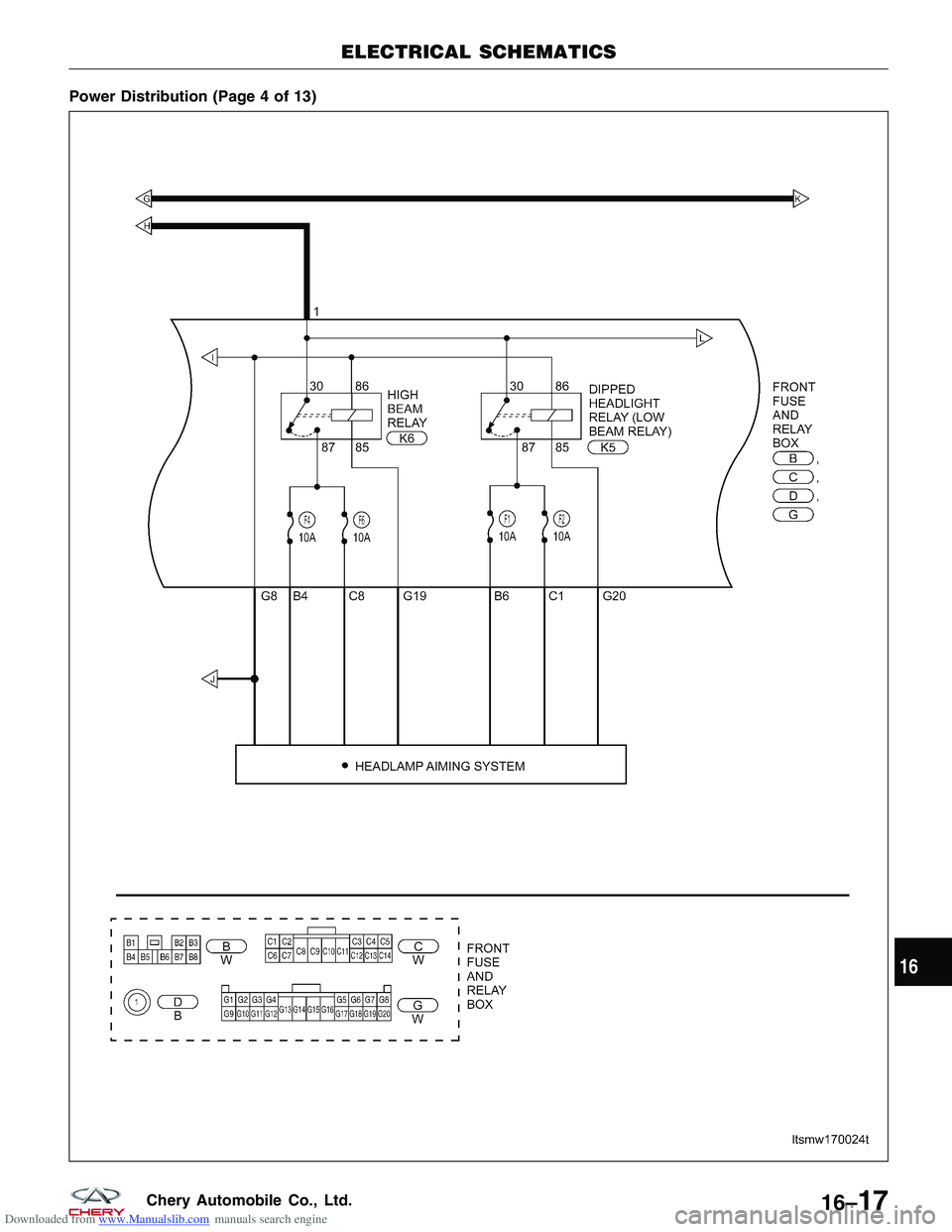

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 4 of 13)
ELECTRICAL SCHEMATICS
LTSMW170024T
16
16–17Chery Automobile Co., Ltd.

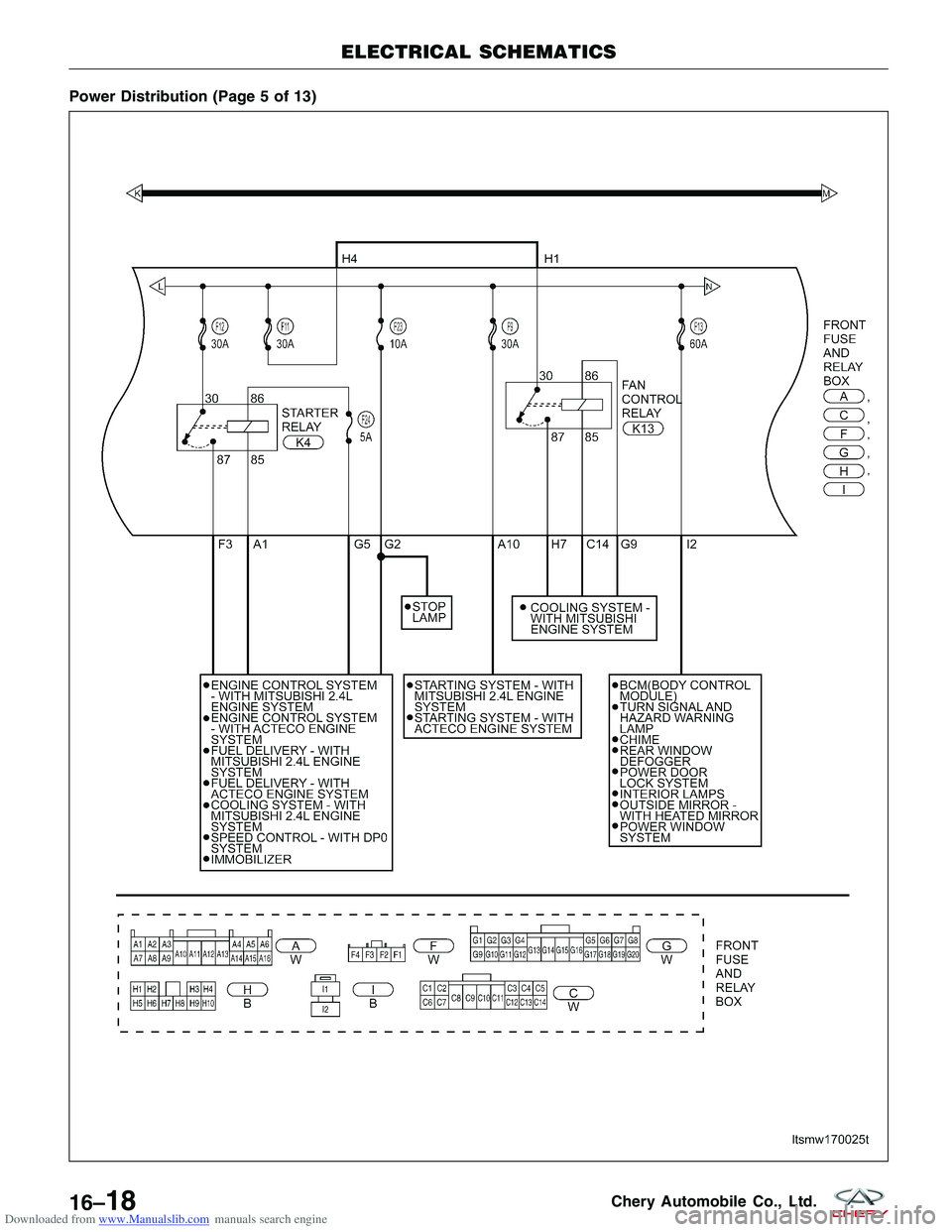

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 5 of 13)
ELECTRICAL SCHEMATICS
LTSMW170025T
16–18Chery Automobile Co., Ltd.

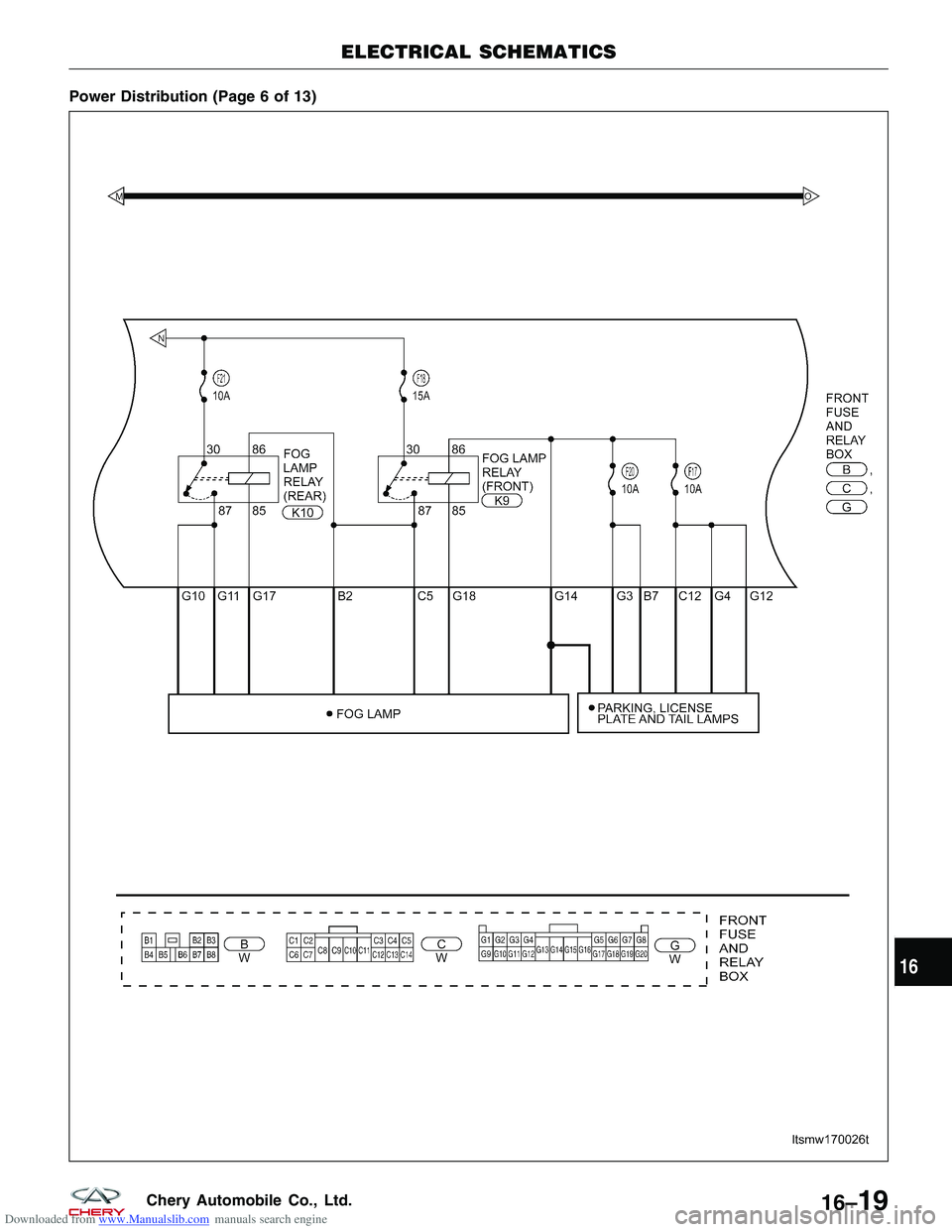

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 6 of 13)
ELECTRICAL SCHEMATICS
LTSMW170026T
16
16–19Chery Automobile Co., Ltd.

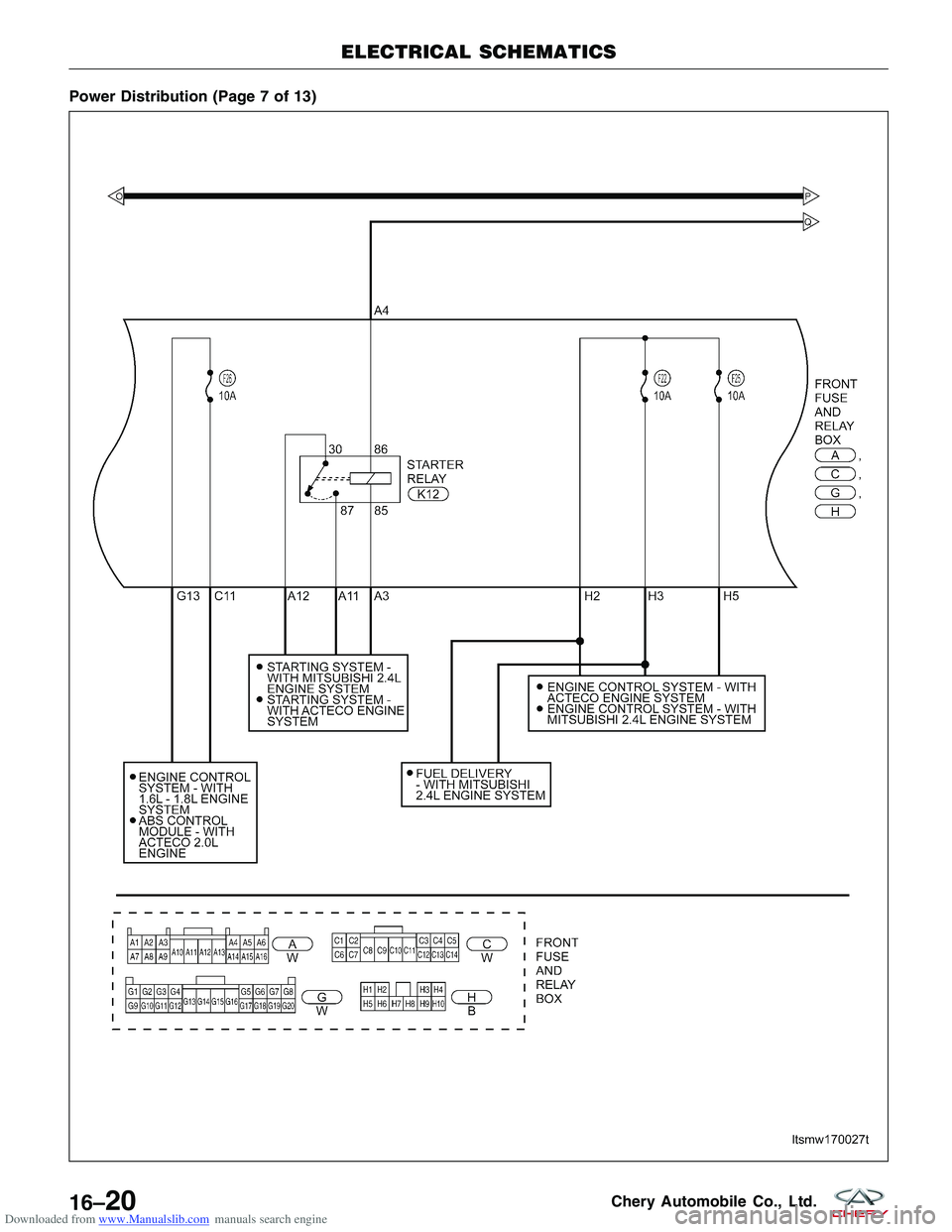

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 7 of 13)
ELECTRICAL SCHEMATICS
LTSMW170027T
16–20Chery Automobile Co., Ltd.

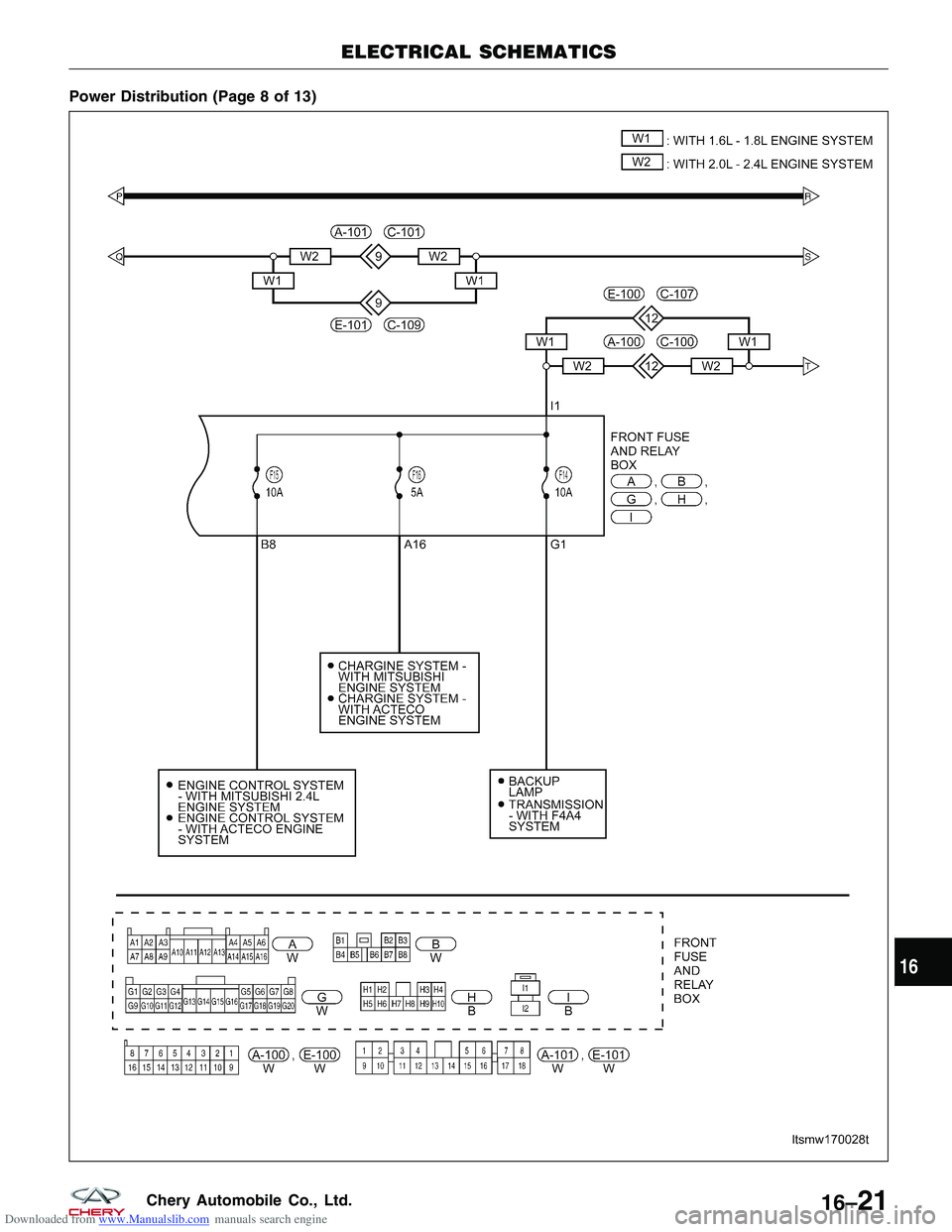

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 8 of 13)
ELECTRICAL SCHEMATICS
LTSMW170028T
16
16–21Chery Automobile Co., Ltd.

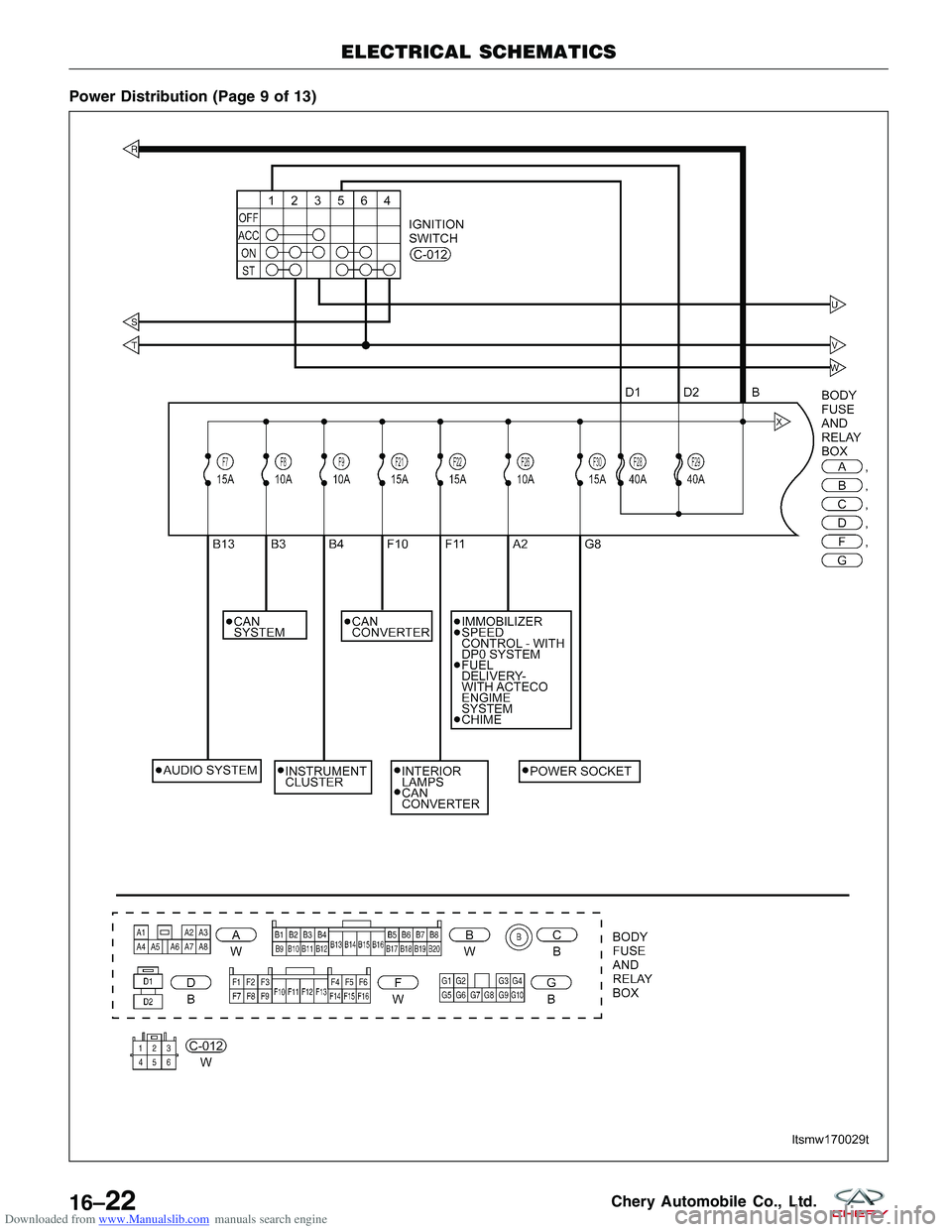

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 9 of 13)
ELECTRICAL SCHEMATICS
LTSMW170029T
16–22Chery Automobile Co., Ltd.

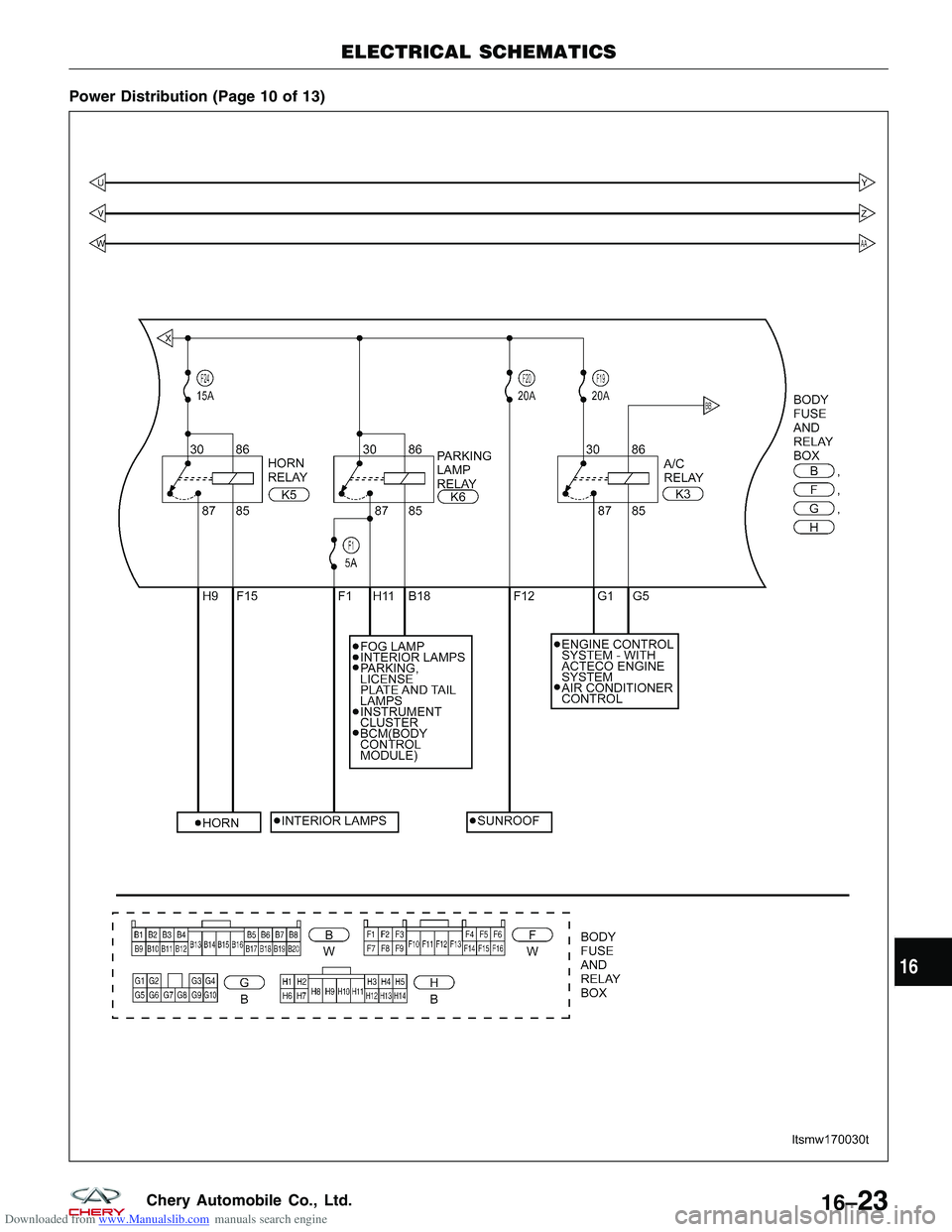

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 10 of 13)
ELECTRICAL SCHEMATICS
LTSMW170030T
16
16–23Chery Automobile Co., Ltd.

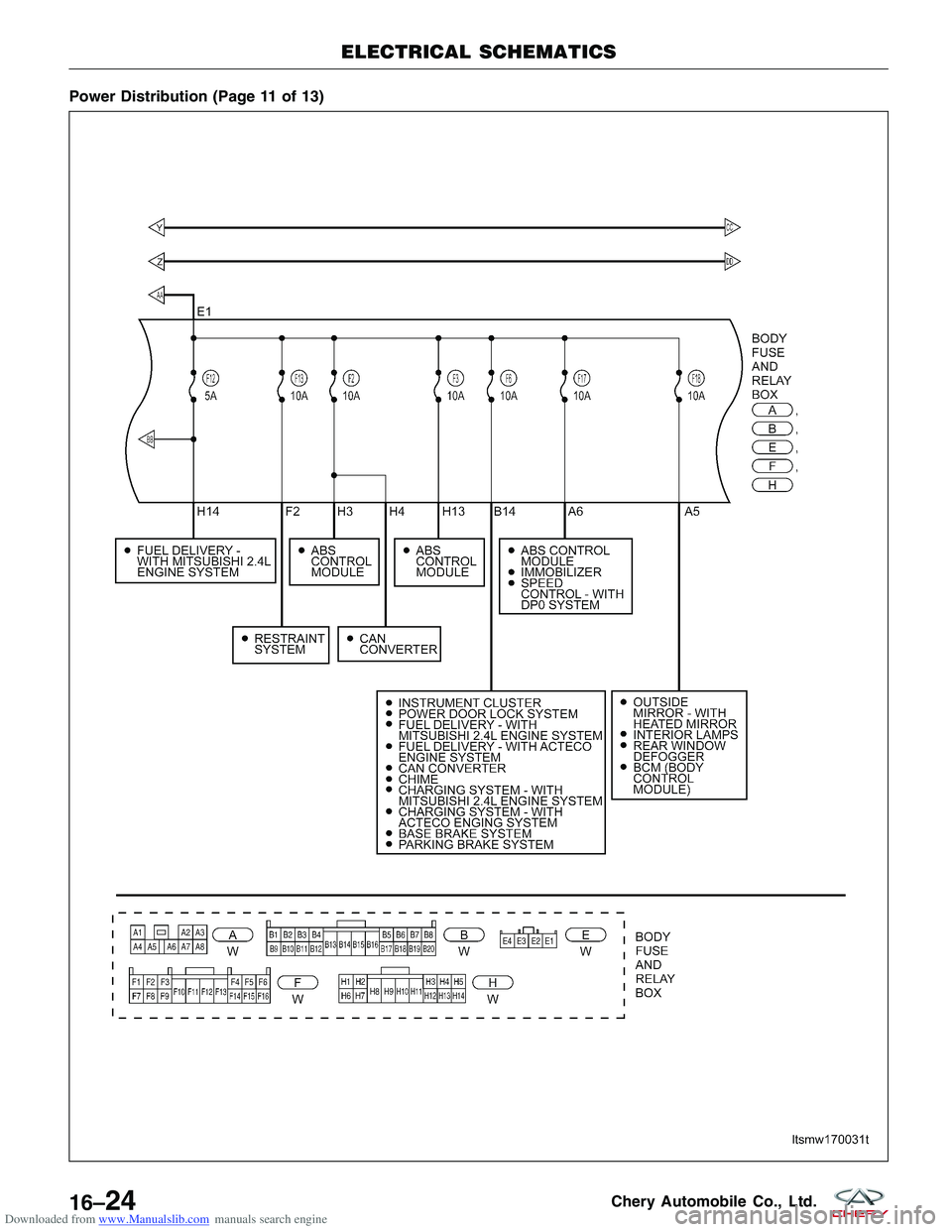

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 11 of 13)
ELECTRICAL SCHEMATICS
LTSMW170031T
16–24Chery Automobile Co., Ltd.
