CHERY TIGGO 2009 Service Repair Manual

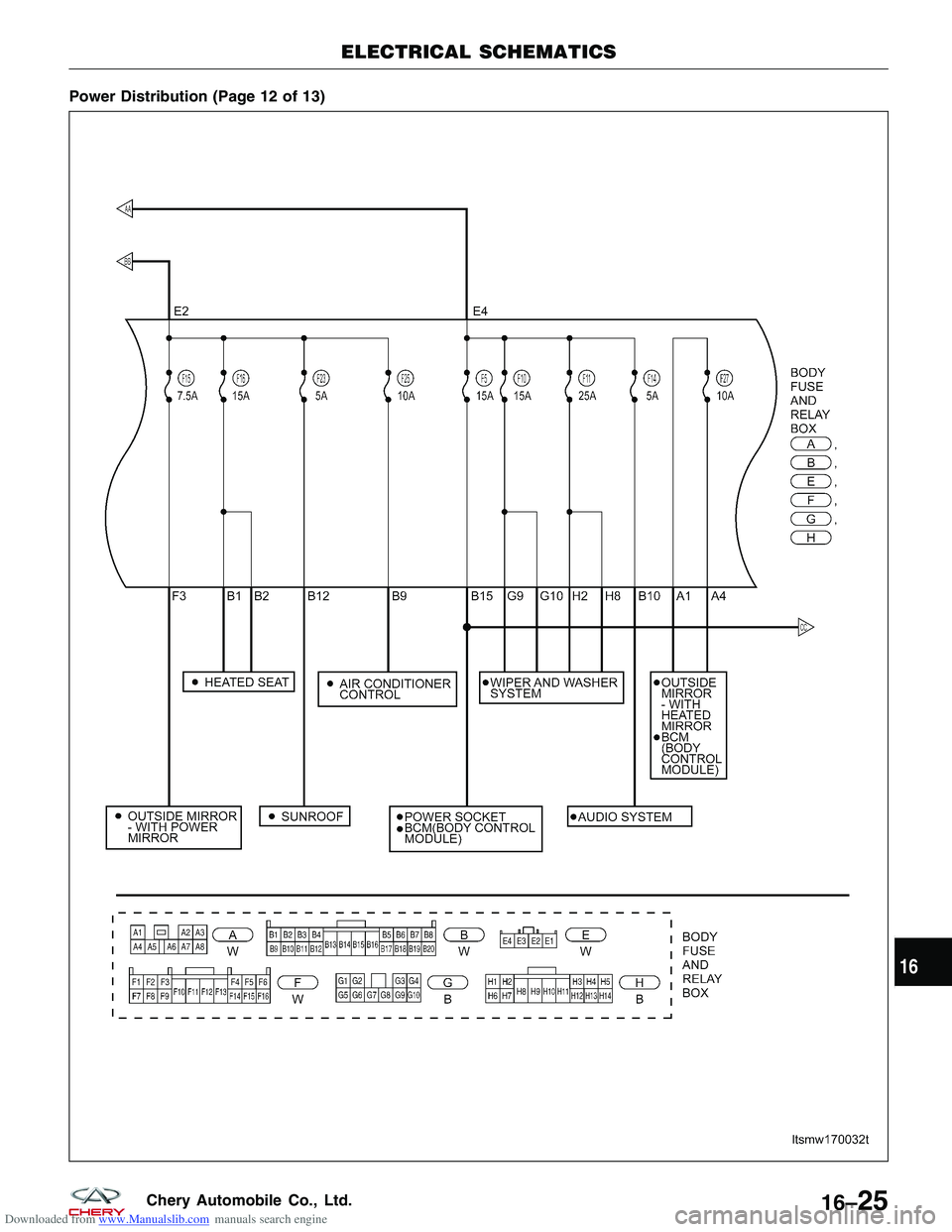

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 12 of 13)
ELECTRICAL SCHEMATICS
LTSMW170032T
16
16–25Chery Automobile Co., Ltd.

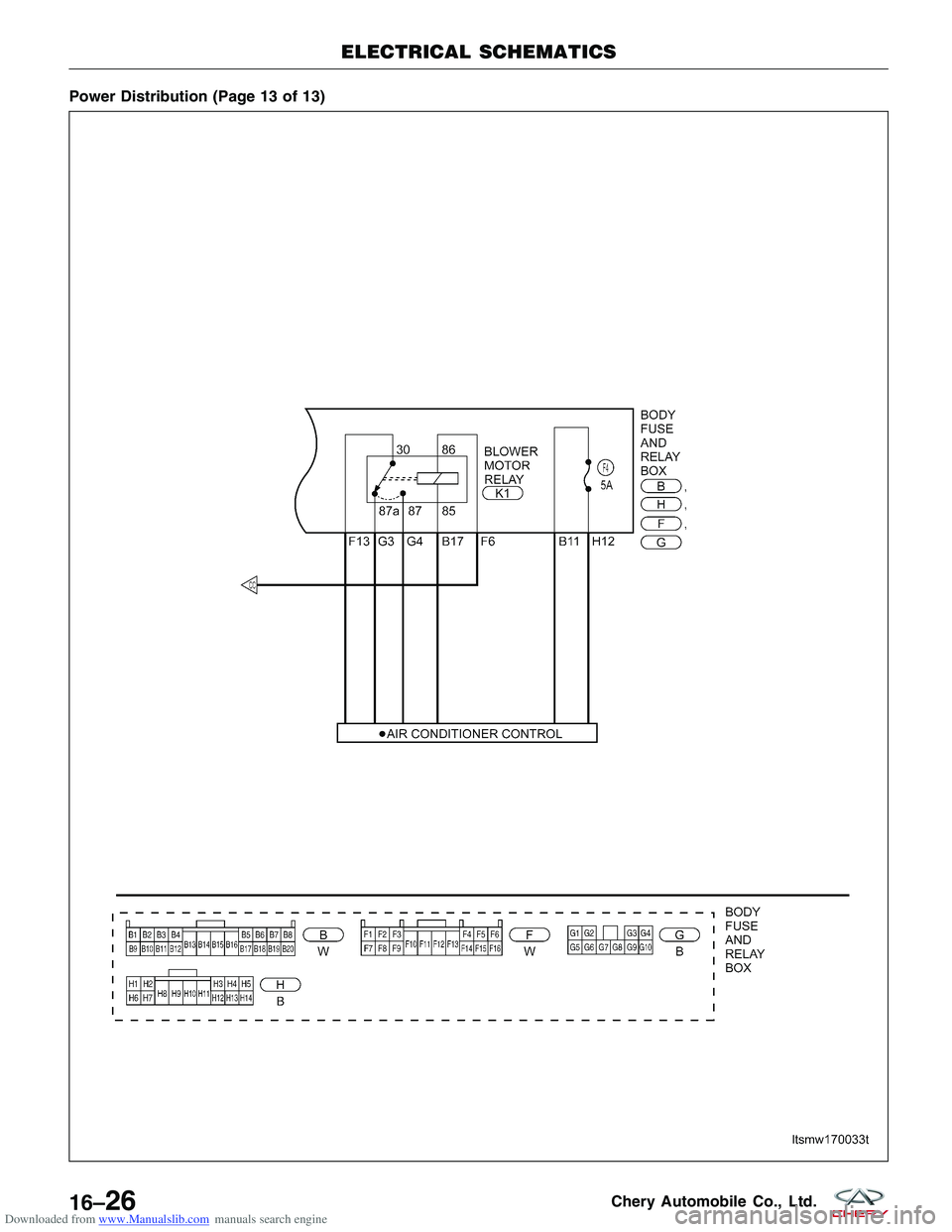

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 13 of 13)
ELECTRICAL SCHEMATICS
LTSMW170033T
16–26Chery Automobile Co., Ltd.

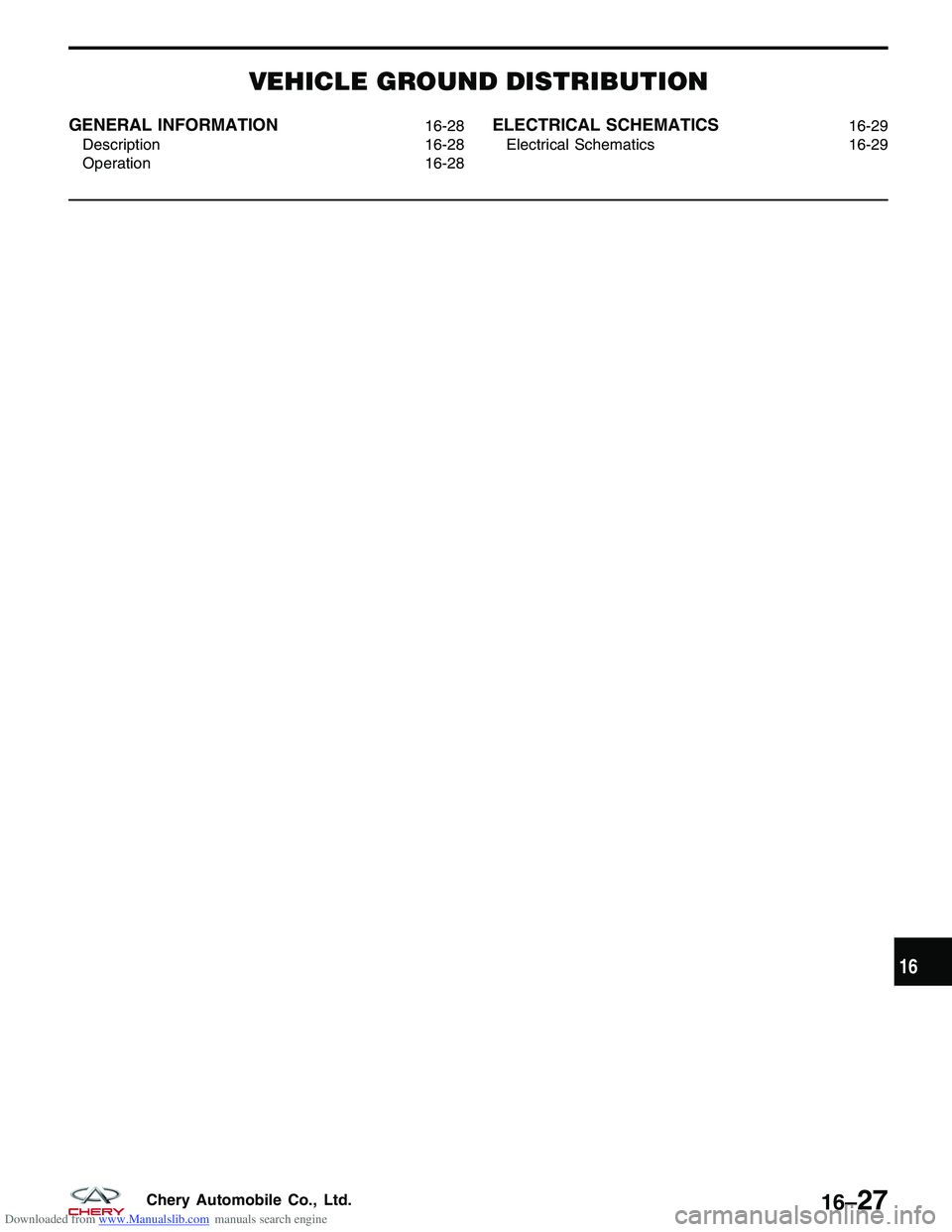

Downloaded from www.Manualslib.com manuals search engine VEHICLE GROUND DISTRIBUTION
GENERAL INFORMATION16-28
Description 16-28
Operation 16-28ELECTRICAL SCHEMATICS16-29
Electrical Schematics 16-29
16
16–27Chery Automobile Co., Ltd.

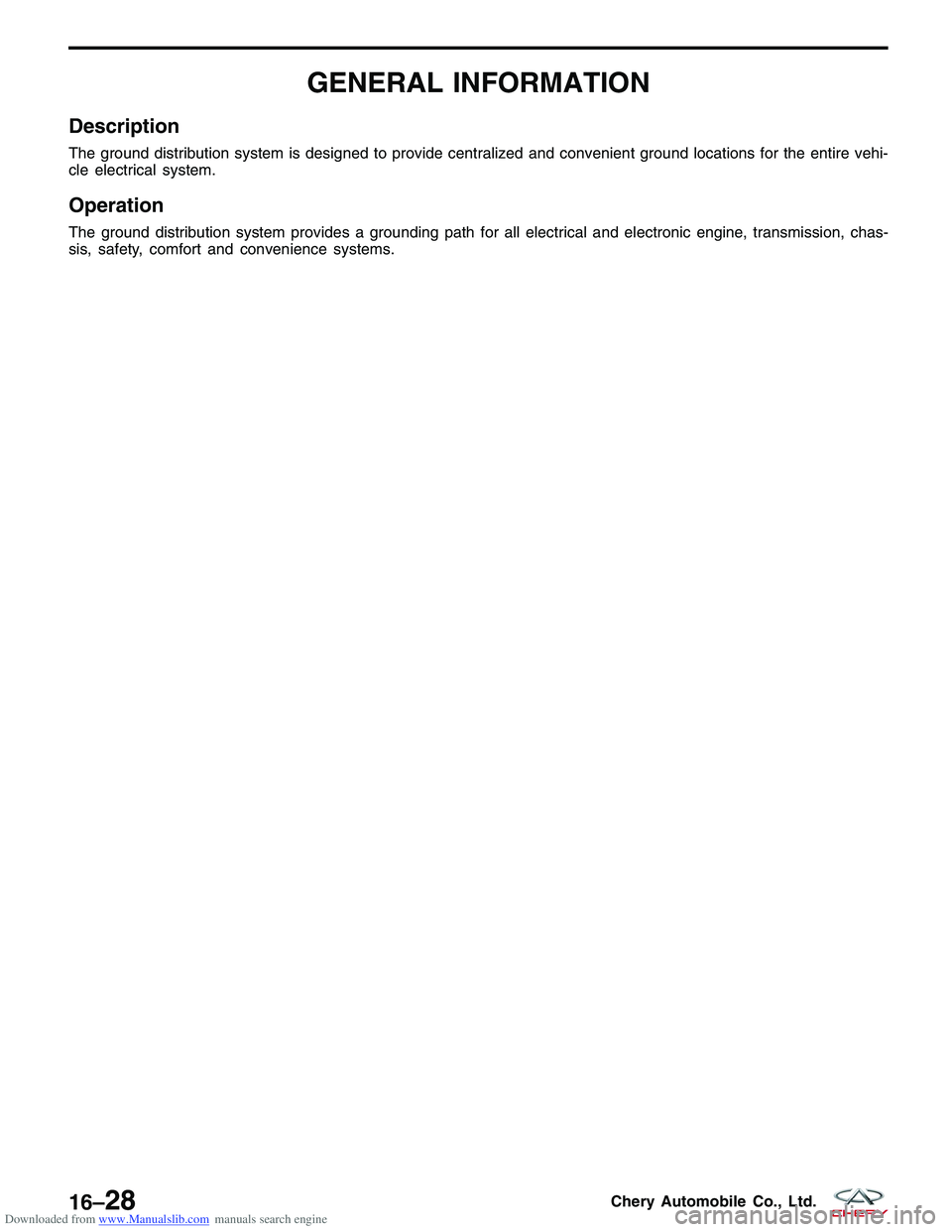

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The ground distribution system is designed to provide centralized and convenient ground locations for the entire vehi-
cle electrical system.
Operation
The ground distribution system provides a grounding path for all electrical and electronic engine, transmission, chas-
sis, safety, comfort and convenience systems.
16–28Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ELECTRICAL SCHEMATICS
Electrical Schematics
The ground distribution electrical schematics include all wiring information detailed on the ground side of all vehicle
circuits. This is helpful when attempting to troubleshoot a specific electrical failure, and shows connector pin-out infor-
mation and splices.

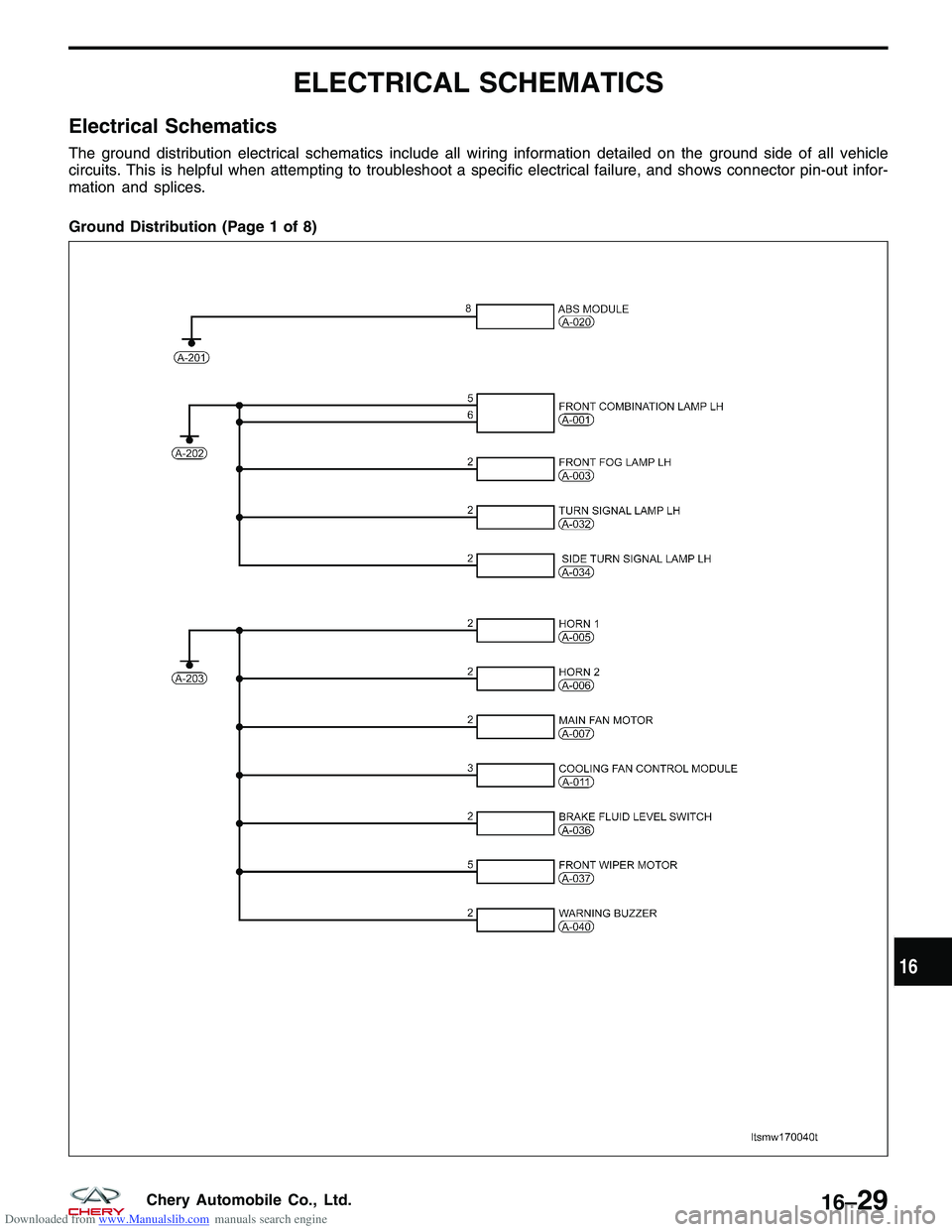

Ground Distribution (Page 1 of 8)
LTSMW170040T
16
16–29Chery Automobile Co., Ltd.

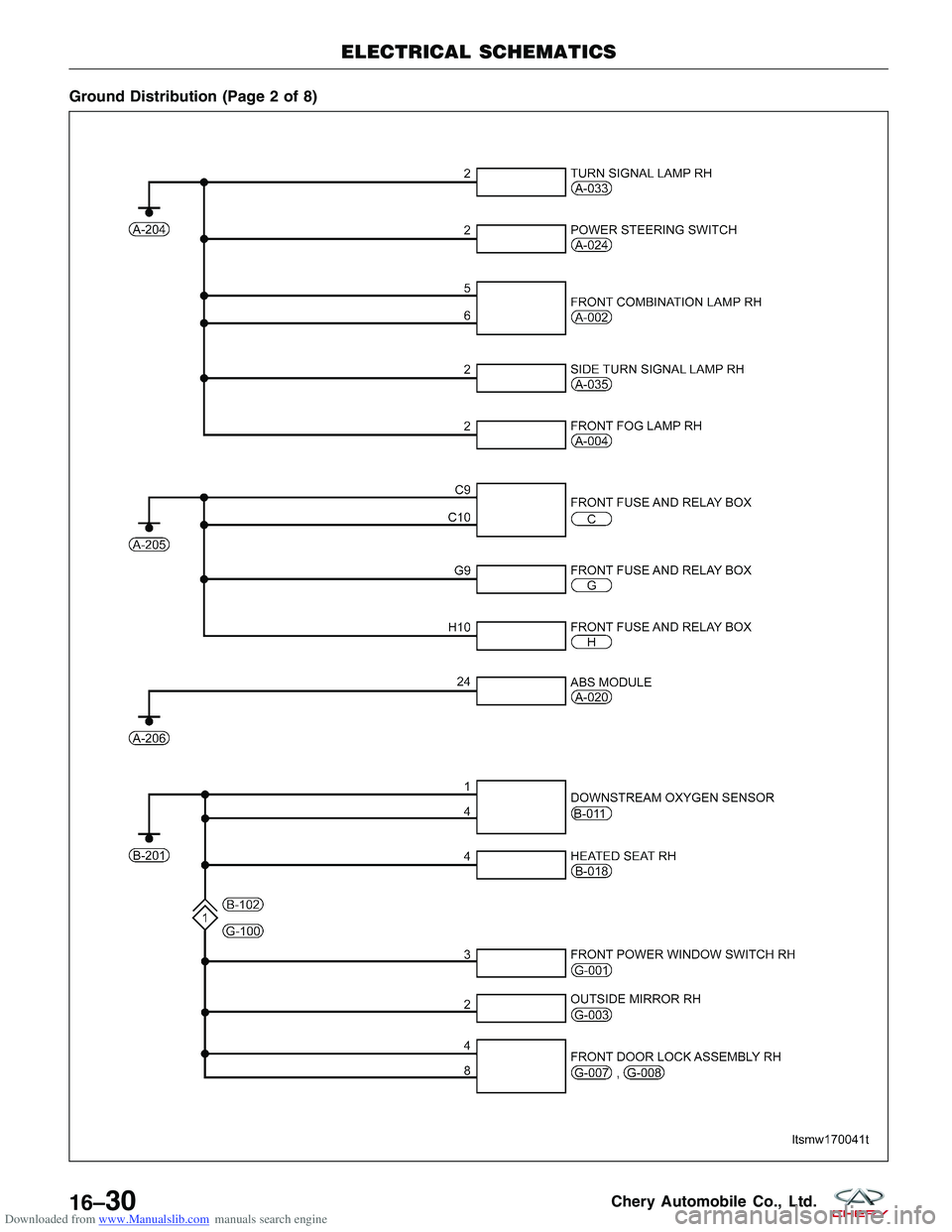

Downloaded from www.Manualslib.com manuals search engine Ground Distribution (Page 2 of 8)
ELECTRICAL SCHEMATICS
LTSMW170041T
16–30Chery Automobile Co., Ltd.

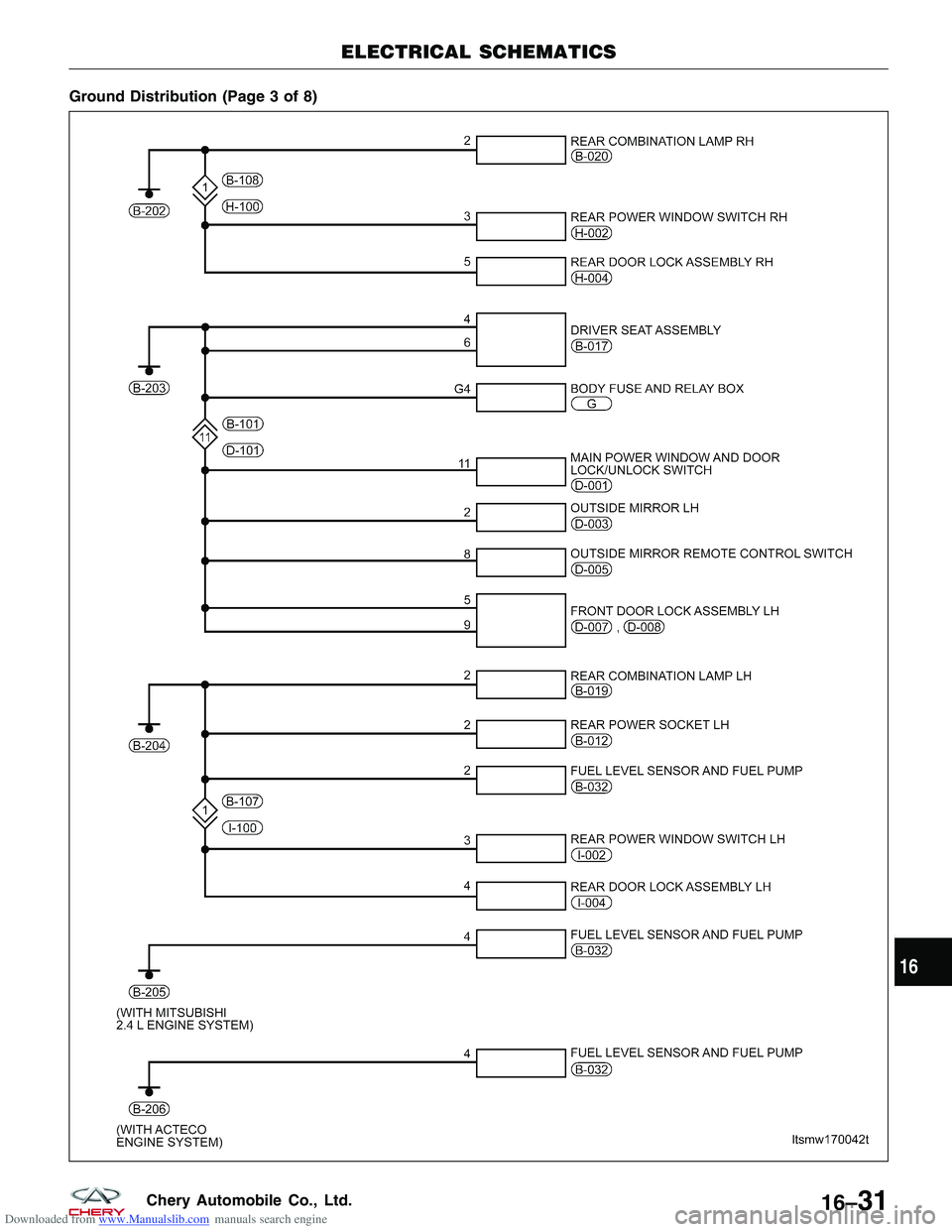

Downloaded from www.Manualslib.com manuals search engine Ground Distribution (Page 3 of 8)
ELECTRICAL SCHEMATICS
LTSMW170042T
16
16–31Chery Automobile Co., Ltd.

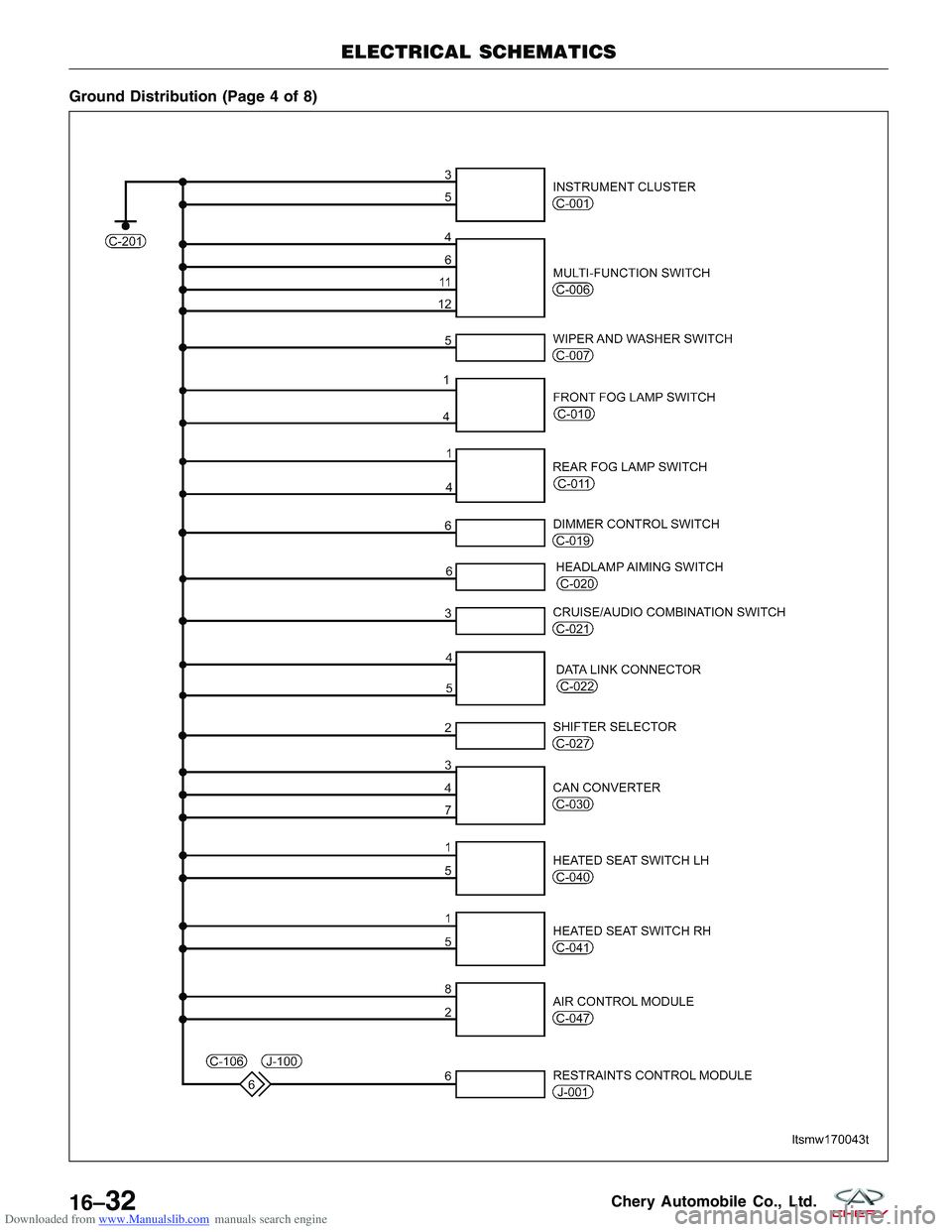

Downloaded from www.Manualslib.com manuals search engine Ground Distribution (Page 4 of 8)
ELECTRICAL SCHEMATICS
LTSMW170043T
16–32Chery Automobile Co., Ltd.

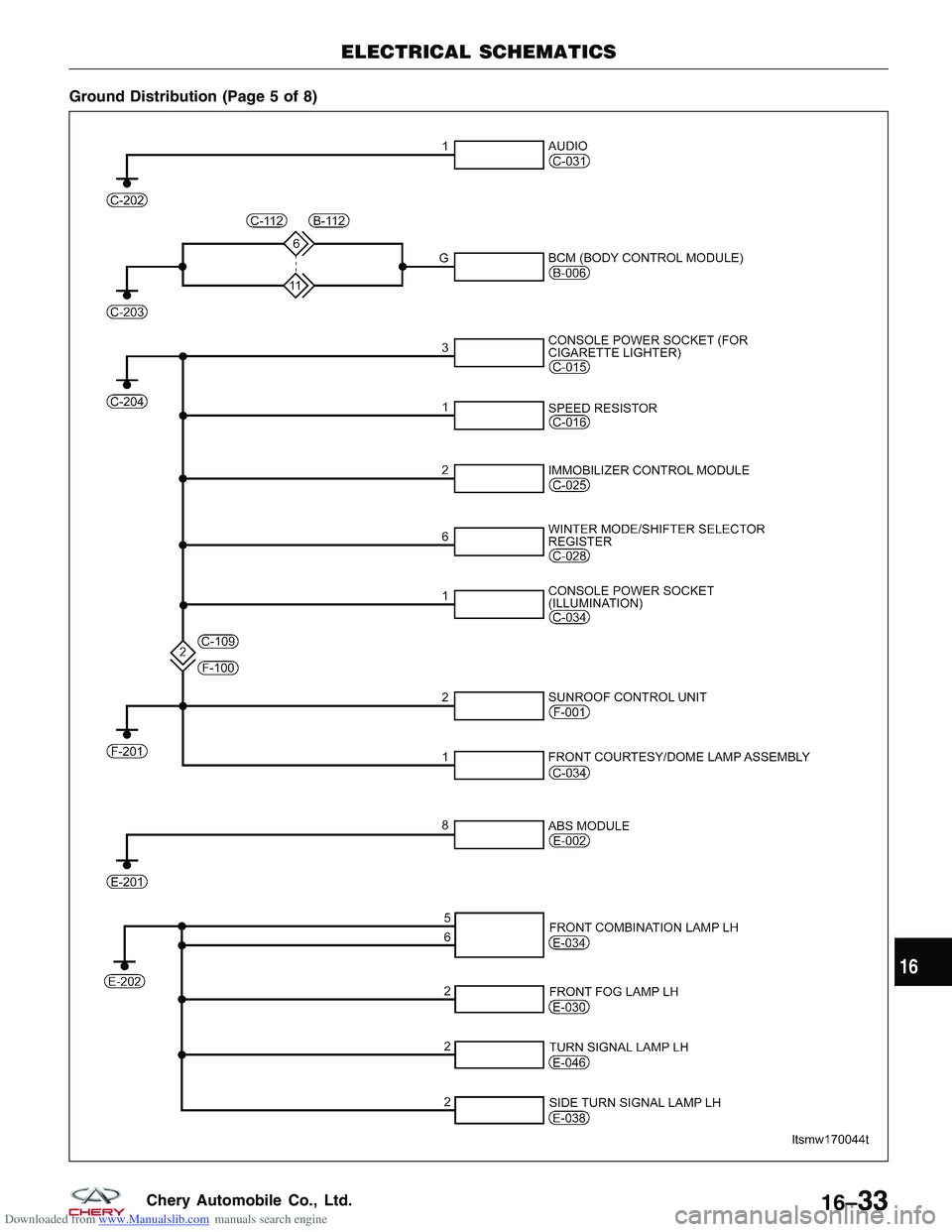

Downloaded from www.Manualslib.com manuals search engine Ground Distribution (Page 5 of 8)
ELECTRICAL SCHEMATICS
LTSMW170044T
16
16–33Chery Automobile Co., Ltd.

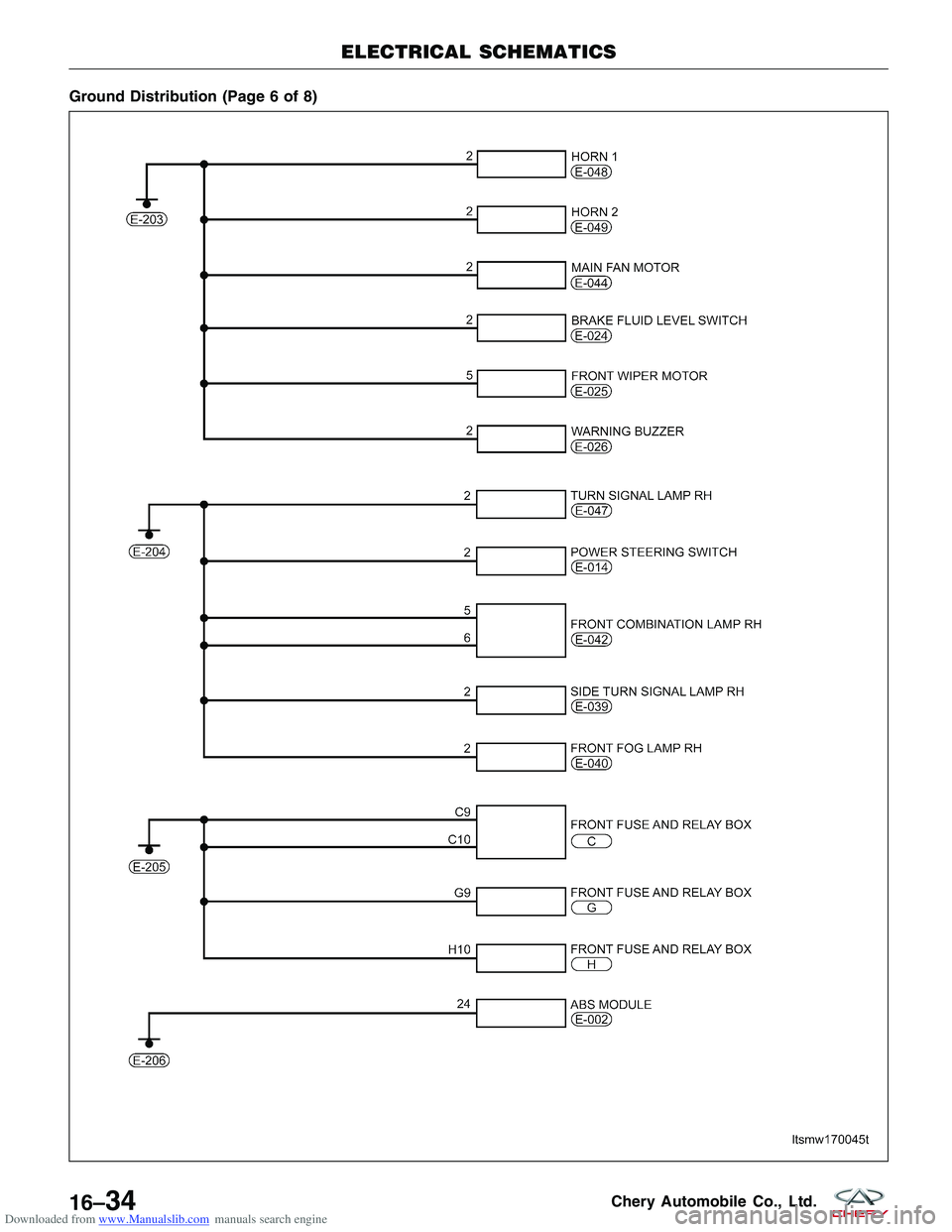

Downloaded from www.Manualslib.com manuals search engine Ground Distribution (Page 6 of 8)
ELECTRICAL SCHEMATICS
LTSMW170045T
16–34Chery Automobile Co., Ltd.
