CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine 4.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors E-102, C-102
Harness open and short between APP sensor 1 and ECM
Is the check result normal?
Ye s>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
No
>>Repair or replace malfunctioning part.
5.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
• Check APP sensor supply voltage between sensor
terminal 3 and ground in the sensor electrical con-
nector C-009.
• Approximately 5 V should exist.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
6.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors E-102, C-102
Harness open and short between APP sensor 2 and ECM
Is the check result normal?
Ye s>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
No
>>Repair or replace malfunctioning part.
7.CHECK TPS POWER SUPPLY CIRCUIT
• Check harness for short to power and short to ground, between following terminals.
Check TPS Power Supply
ECM TERMINAL TPS TERMINAL
32 3
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for a short to ground or short to power in harness or connectors.
DIAGNOSIS & TESTING
LTSMD030066
03
03–417Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 8.CHECK TPS
• Connect all harness connectors disconnected.
• Turn ignition switch on.
• Check voltage between ECM terminals 54 (TPS1) and ground, terminal 38 (TPS2) and ground under the follow-
ing conditions:
TPS
TERMINAL NO. ITEM
CONDITION VOLTAGE
(DC
VOLTAGE)
5 Electronic
throttlecontrol
actuator (TPS2)
Ignition
switch:
ON •
Engine
stopped
•
Accelerator
pedal:
Fully
released 4.24 V
• Engine
stopped
•
Accelerator
pedal:
Fully
depressed 0.72 V
6 Electronic
throttlecontrol
actuator (TPS1) •
Engine
stopped
•
Accelerator
pedal:
Fully
released 0.74 V
• Engine
stopped
•
Accelerator
pedal:
Fully
depressed 4.62 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace TPS circuits for open or short.
If the TPS circuits are normal, replace electronic throttle control actuator. Perform throttle valve posi-
tion self-learning.
9.CHECK APP SENSOR GROUND CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between APP sensor terminal 2 and ECM terminal 35, APP sensor terminal 5 and
ECM terminal 36.
• Continuity should exist.
• Also check harness for short to power.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for an open or short to power in harness or connectors.
DIAGNOSIS & TESTING
03–418Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 10.CHECK APP SENSOR CIRCUIT FOR AN OPEN OR SHORT
• Check harness continuity between APP sensor 1 terminal 4 and ECM terminal 16, APP sensor 2 terminal 1 and
ECM terminal 40.
• Continuity should exist.
• Also check harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for an open or short to power or short to ground in harness or connectors.
11 .CHECK APP SENSOR
• Connect all harness connectors disconnected.
• Turn ignition switch on.
• Check voltage between ECM terminals 16 (APP sensor 1 signal), 40 (APP sensor 2 signal) and ground under
the following conditions:
TERMINAL NO. ITEM CONDITION DATA (DC
VOLTAGE)
16 Accelerator Pedal
Position sensor
Turn ignition switchon •
Engine stopped
• Accelerator pedal:
Fully released 0.72 - 0.74 V
• Engine stopped
• Accelerator pedal:
Fully depressed 3.95 V
40 Accelerator Pedal
Position sensor •
Engine stopped
• Accelerator pedal:
Fully released 0.36 - 0.37 V
• Engine stopped
• Accelerator pedal:
Fully depressed 1.97 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace accelerator pedal assembly.
Perform Accelerator pedal position self-learning.
12.CHECK DTC
• With the X-431 scan tool, read ECM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P2138 still present?
Ye s>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
03
03–419Chery Automobile Co., Ltd.

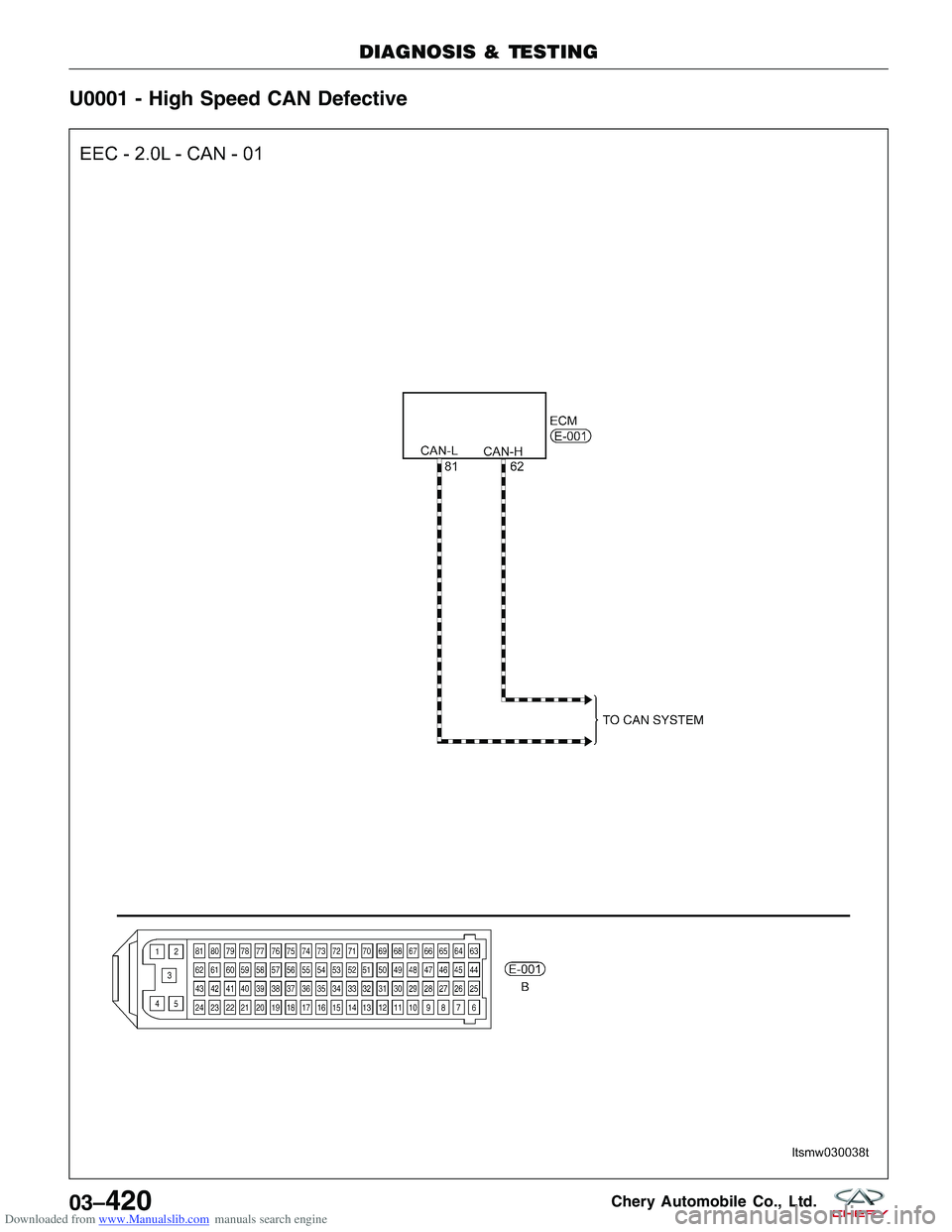

Downloaded from www.Manualslib.com manuals search engine U0001 - High Speed CAN Defective
DIAGNOSIS & TESTING
LTSMW030038T
03–420Chery Automobile Co., Ltd.

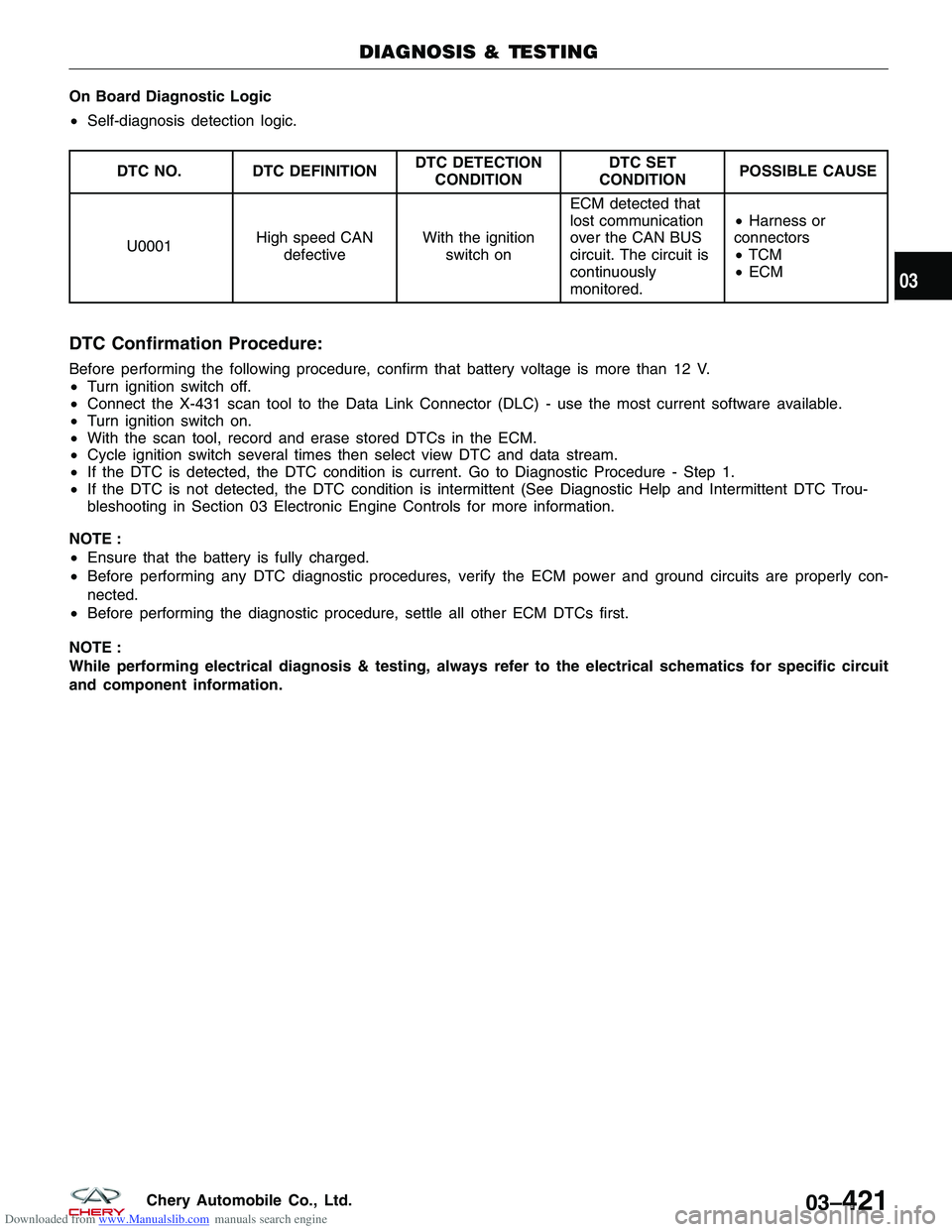

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
U0001 High speed CAN
defective With the ignition
switch on ECM detected that
lost communication
over the CAN BUS
circuit. The circuit is
continuously
monitored. •
Harness or
connectors
• TCM
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ECM.
• Cycle ignition switch several times then select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
• Ensure that the battery is fully charged.
• Before performing any DTC diagnostic procedures, verify the ECM power and ground circuits are properly con-
nected.
• Before performing the diagnostic procedure, settle all other ECM DTCs first.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
03
03–421Chery Automobile Co., Ltd.

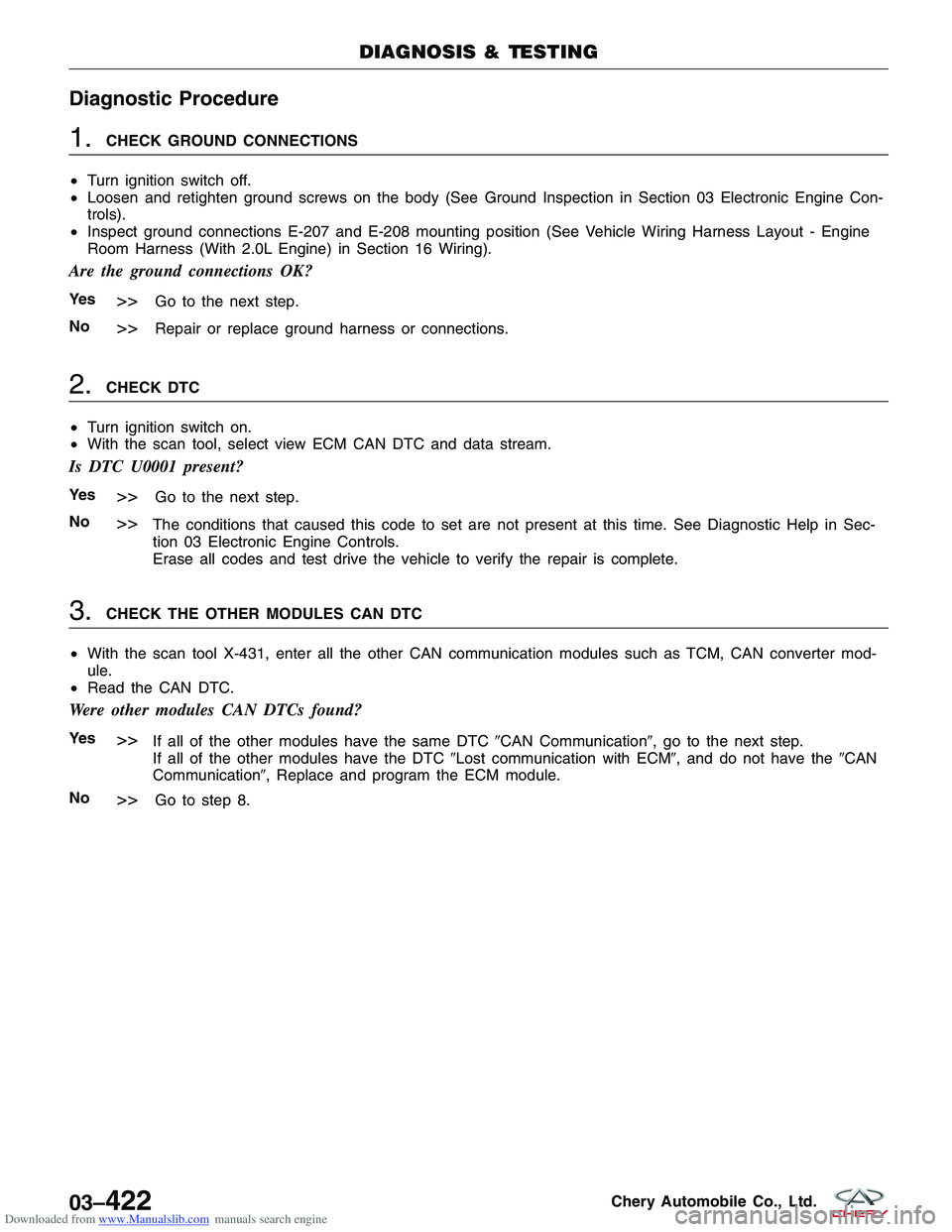

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK GROUND CONNECTIONS
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect ground connections E-207 and E-208 mounting position (See Vehicle Wiring Harness Layout - Engine
Room Harness (With 2.0L Engine) in Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground harness or connections.
2.CHECK DTC
• Turn ignition switch on.
• With the scan tool, select view ECM CAN DTC and data stream.
Is DTC U0001 present?
Ye s>>Go to the next step.
No
>>The conditions that caused this code to set are not present at this time. See Diagnostic Help in Sec-
tion 03 Electronic Engine Controls.
Erase all codes and test drive the vehicle to verify the repair is complete.
3.CHECK THE OTHER MODULES CAN DTC
• With the scan tool X-431, enter all the other CAN communication modules such as TCM, CAN converter mod-
ule.
• Read the CAN DTC.
Were other modules CAN DTCs found?
Ye s>>If all of the other modules have the same DTC CAN Communication, go to the next step.
If all of the other modules have the DTC Lost communication with ECM, and do not have the CAN
Communication, Replace and program the ECM module.
No
>>Go to step 8.
DIAGNOSIS & TESTING
03–422Chery Automobile Co., Ltd.

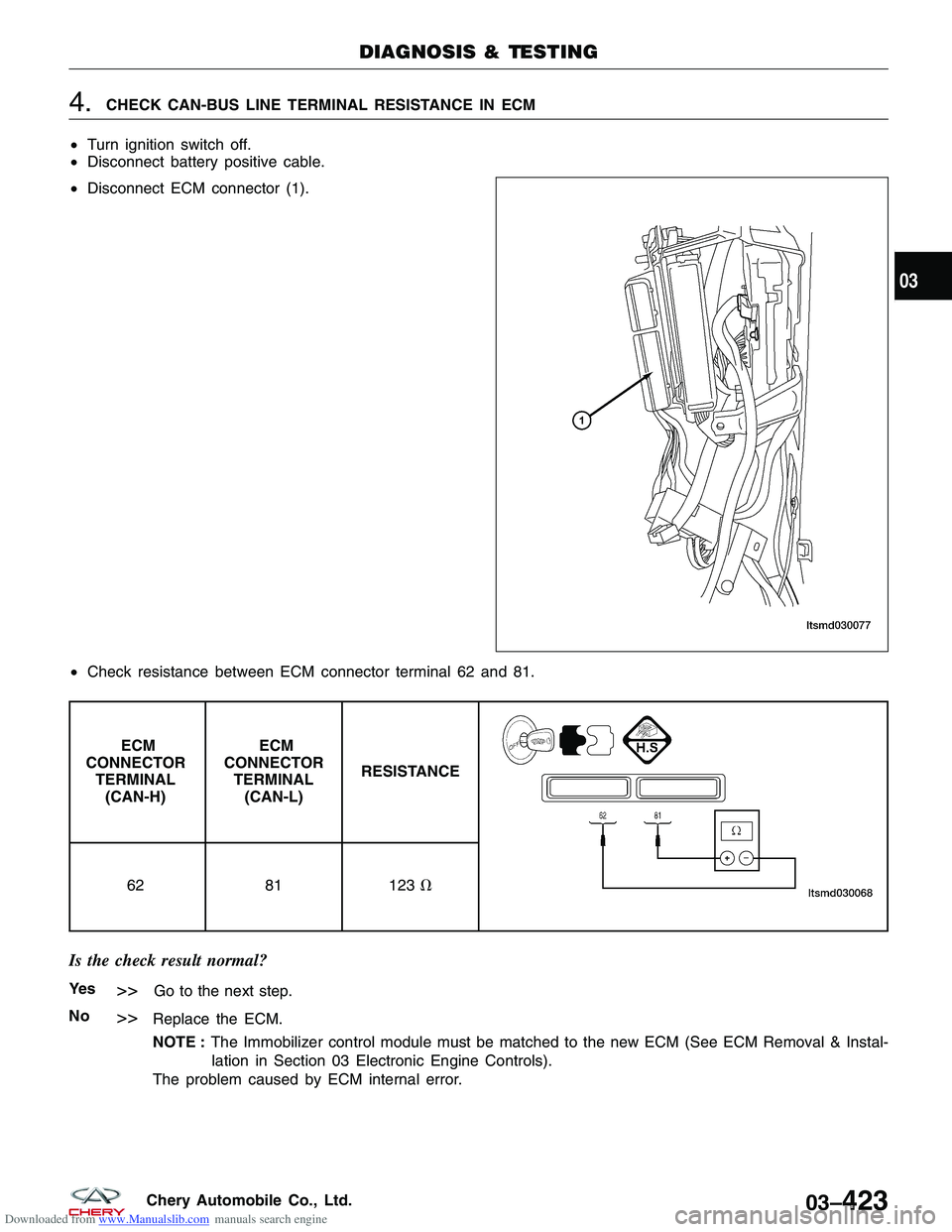

Downloaded from www.Manualslib.com manuals search engine 4.CHECK CAN-BUS LINE TERMINAL RESISTANCE IN ECM
• Turn ignition switch off.
• Disconnect battery positive cable.
• Disconnect ECM connector (1).
• Check resistance between ECM connector terminal 62 and 81.
ECM
CONNECTOR TERMINAL (CAN-H) ECM
CONNECTOR TERMINAL (CAN-L) RESISTANCE
62
81123
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
The problem caused by ECM internal error.
DIAGNOSIS & TESTING
LTSMD030077
03
03–423Chery Automobile Co., Ltd.

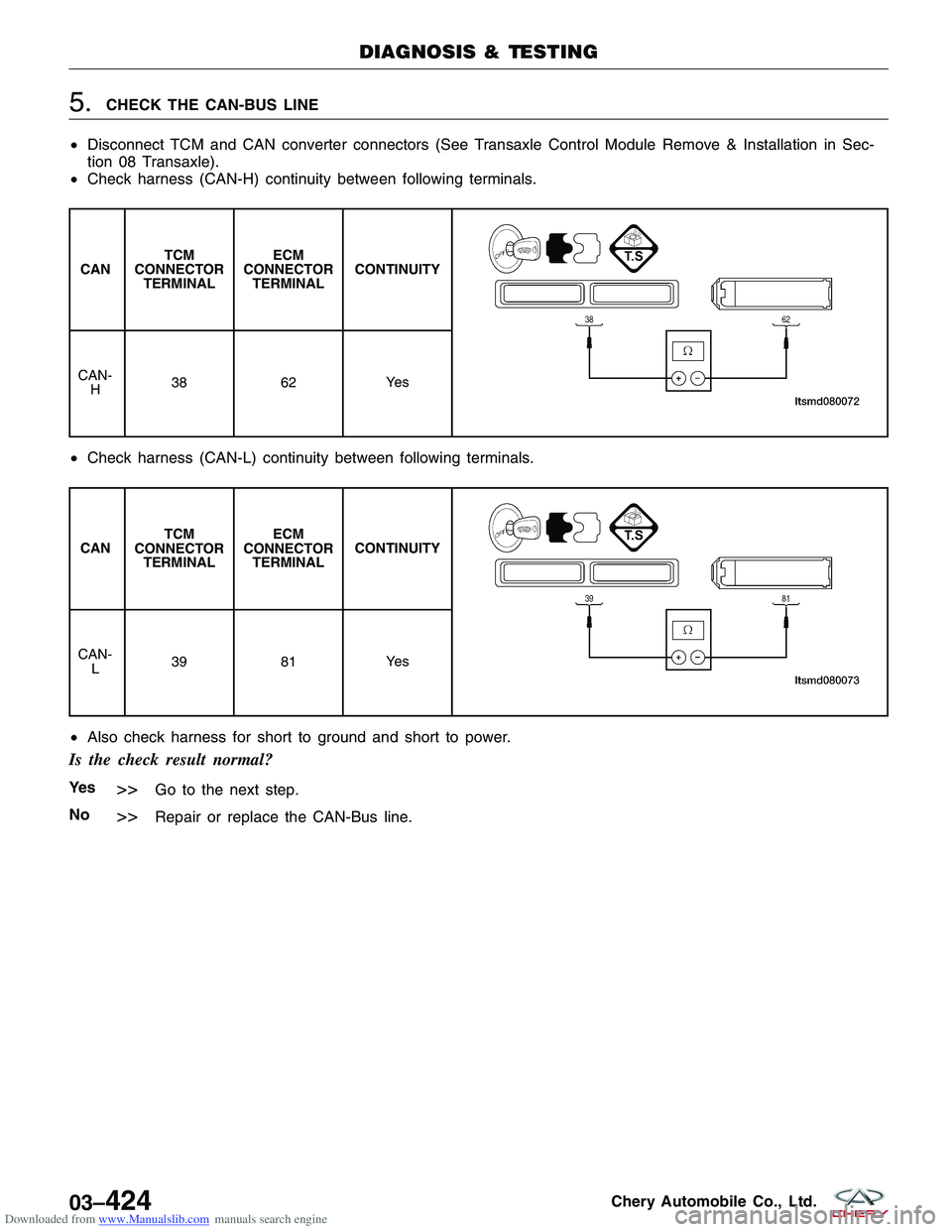

Downloaded from www.Manualslib.com manuals search engine 5.CHECK THE CAN-BUS LINE
• Disconnect TCM and CAN converter connectors (See Transaxle Control Module Remove & Installation in Sec-
tion 08 Transaxle).
• Check harness (CAN-H) continuity between following terminals.
CAN TCM
CONNECTOR TERMINAL ECM
CONNECTOR TERMINAL CONTINUITY
CAN-
H 38
62Ye s
•
Check harness (CAN-L) continuity between following terminals.
CAN TCM
CONNECTOR TERMINAL ECM
CONNECTOR TERMINAL CONTINUITY
CAN-
L 39
81Ye s
•
Also check harness for short to ground and short to power.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the CAN-Bus line.
DIAGNOSIS & TESTING
03–424Chery Automobile Co., Ltd.

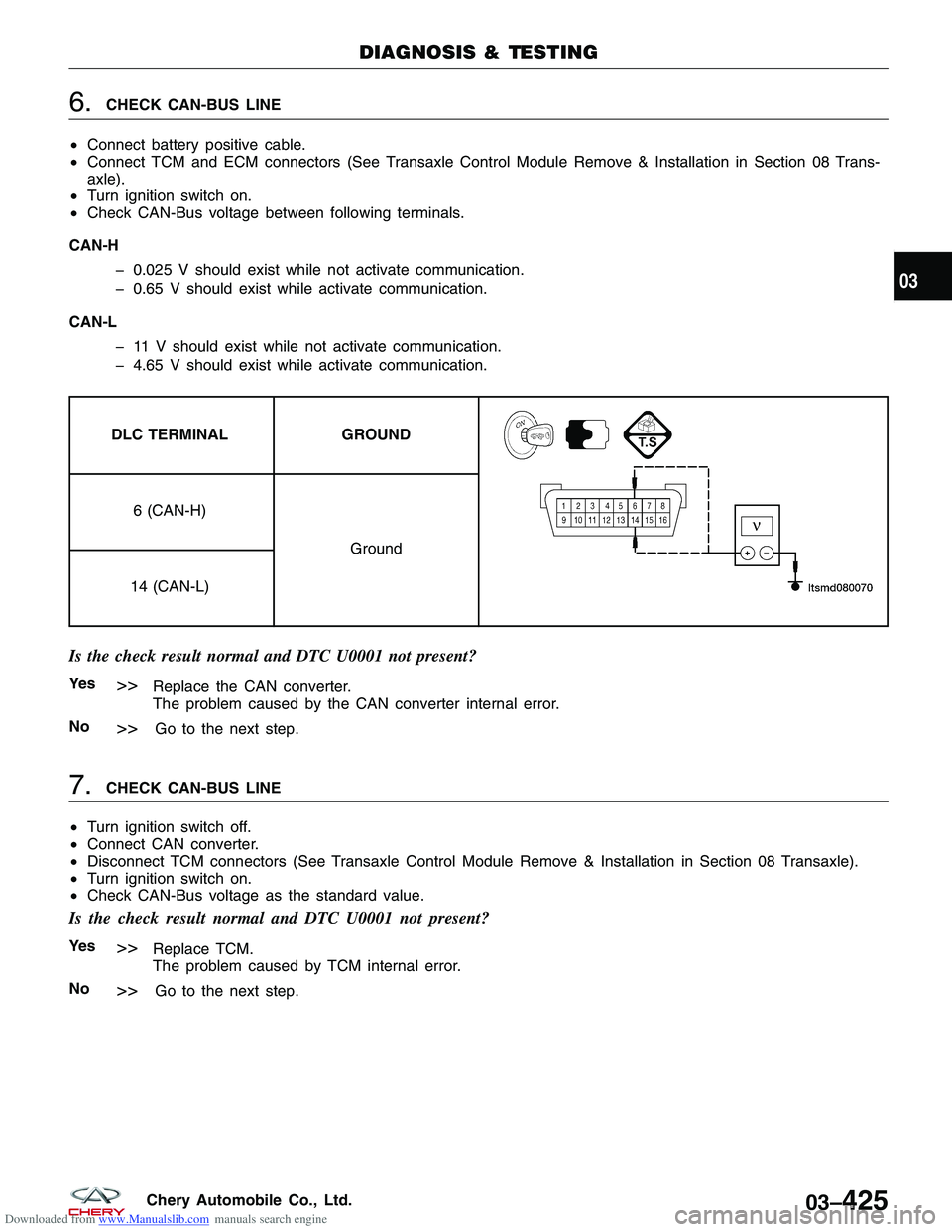

Downloaded from www.Manualslib.com manuals search engine 6.CHECK CAN-BUS LINE
• Connect battery positive cable.
• Connect TCM and ECM connectors (See Transaxle Control Module Remove & Installation in Section 08 Trans-
axle).
• Turn ignition switch on.
• Check CAN-Bus voltage between following terminals.
CAN-H 0.025 V should exist while not activate communication.
0.65 V should exist while activate communication.
CAN-L 11 V should exist while not activate communication.
4.65 V should exist while activate communication.
DLC TERMINAL GROUND
6 (CAN-H)
Ground
14 (CAN-L)
Is the check result normal and DTC U0001 not present?
Ye s>>Replace the CAN converter.
The problem caused by the CAN converter internal error.
No
>>Go to the next step.
7.CHECK CAN-BUS LINE
• Turn ignition switch off.
• Connect CAN converter.
• Disconnect TCM connectors (See Transaxle Control Module Remove & Installation in Section 08 Transaxle).
• Turn ignition switch on.
• Check CAN-Bus voltage as the standard value.
Is the check result normal and DTC U0001 not present?
Ye s>>Replace TCM.
The problem caused by TCM internal error.
No
>>Go to the next step.
DIAGNOSIS & TESTING
03
03–425Chery Automobile Co., Ltd.

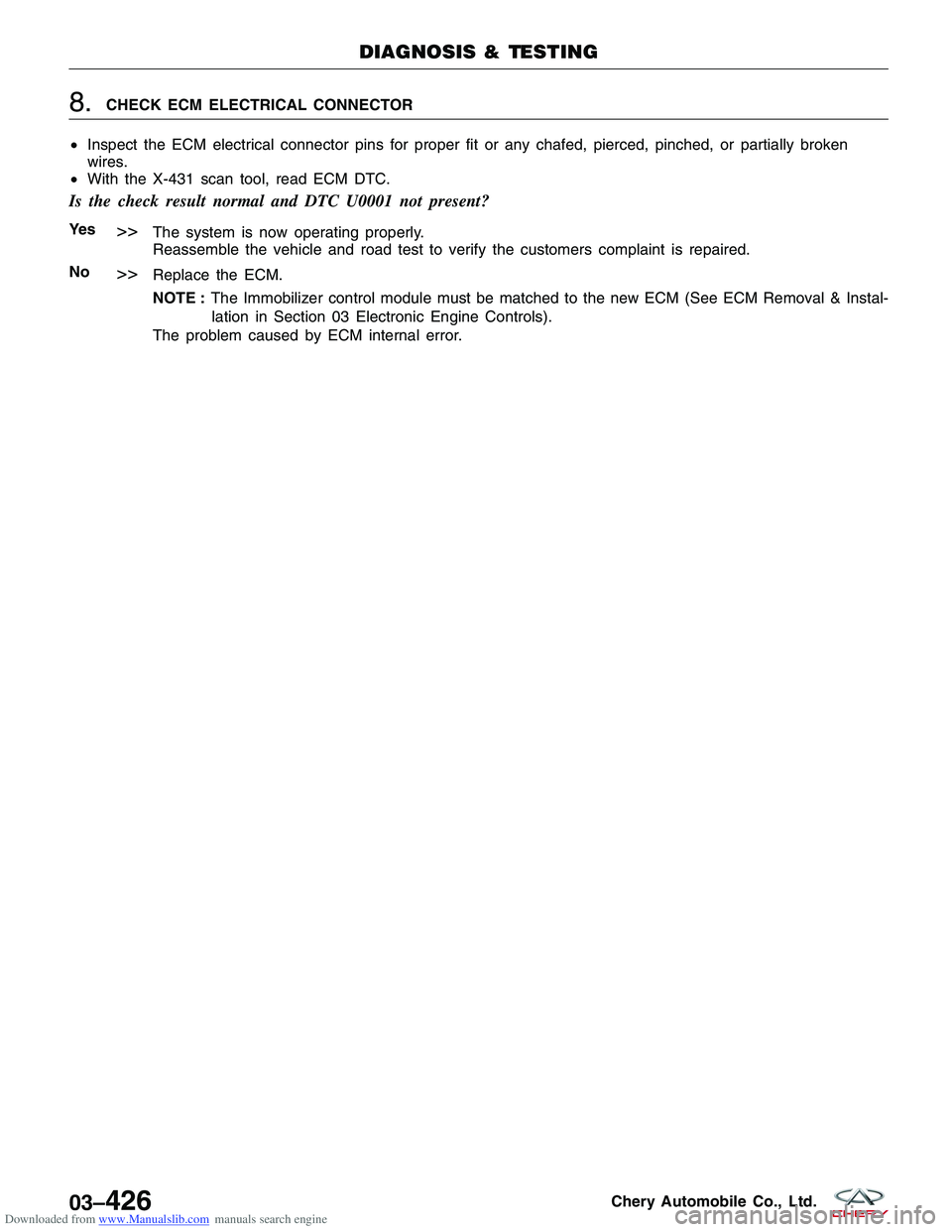

Downloaded from www.Manualslib.com manuals search engine 8.CHECK ECM ELECTRICAL CONNECTOR
• Inspect the ECM electrical connector pins for proper fit or any chafed, pierced, pinched, or partially broken
wires.
• With the X-431 scan tool, read ECM DTC.
Is the check result normal and DTC U0001 not present?
Ye s>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
No
>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
The problem caused by ECM internal error.
DIAGNOSIS & TESTING
03–426Chery Automobile Co., Ltd.
