FOREWORD
This manual contains on-vehicle service
and diagnosis procedures for the Chery Tiggo.
A thorough familiarization with this manual
is important for proper repair and
maintenance. It should always be kept in a
handy place for quick and easy reference.
The contents of this manual, including
drawings and specifications, are the latest
available at the time of printing. As
modifications affecting repair or
maintenance occur, relevant information
supplementary to this volume will be made
available at Chery dealers. This manual
should be kept up-to-date.
Chery Automobile Company, Ltd. reserves the
right to alter the specifications and
contents of this manual without obligation
or advance notice.
All rights reserved. No part of this book
may be reproduced or used in any form or
by any means, electronic or mechanical—
including photocopying and recording and the
use of any kind of information storage and
retrieval system—without permission in
writing.
NOTE:
This Tiggo service manual only applies to the fol-
lowing engines and transaxles:
• 1.6L with M/T
• 1.8L with M/T
• 2.0L with A/T
• 2.4L with A/T
Chery Automobile Company, Ltd.Wuhu, Anhui Province, CHINA
CONTENTS
Title Section
GENERAL INFORMATION01
ENGINE02
ELECTRONIC ENGINE CONTROLS03
FUEL DELIVERY04
STARTING & CHARGING05
COOLING06
EXHAUST07
TRANSAXLE & TRANSFER CASE08
DRIVELINE & AXLE09
SUSPENSION10
STEERING11
BRAKES12
HEATING & AIR CONDITIONING13
RESTRAINTS14
BODY & ACCESSORIES15
WIRING16
ALPHABETICAL INDEXAI
© 2009 Chery Automobile Co., Ltd.
PRINTED NOVEMBER, 2009
Page 27 of 1903
Downloaded from www.Manualslib.com manuals search engine SERVICE MANUAL CHAPTERCOMPONENT / VEHICLE SYSTEM
08 - Transaxle & Transfer Case •
Transaxle Control Module (TCM)
• Automatic Transaxle Shifter Selector
• Automatic Transaxle Assembly
• Manual Transaxle Assembly
• Winter Mode Switch
• EPDE Solenoid Valve
• Backup Lamp Switch
• Integrated Torque Management (ITM) Control Module
09 - Driveline & Axle •None
10 - Suspension •None
11 - Steering •Power Steering Switch
12 - Brakes •
Antilock Brake System (ABS) Module
• Wheel Speed Sensors
• Brake Switch
• Parking Brake Switch
• Brake Fluid Level Switch
13 - Heating & Air Conditioning •
Manual Temperature Control System
• Blower Motor
• A/C Compressor
• Refrigerant Pressure Switch
14 - Restraints •
Restraints Control Module
• Seat Belt Buckle Switch
• Front Crash Sensors
• Driver Airbag
• Passenger Airbag
HOW TO LOCATE ELECTRICAL SCHEMATICS IN THE SERVICE MANUAL
01–26Chery Automobile Co., Ltd.
Page 839 of 1903

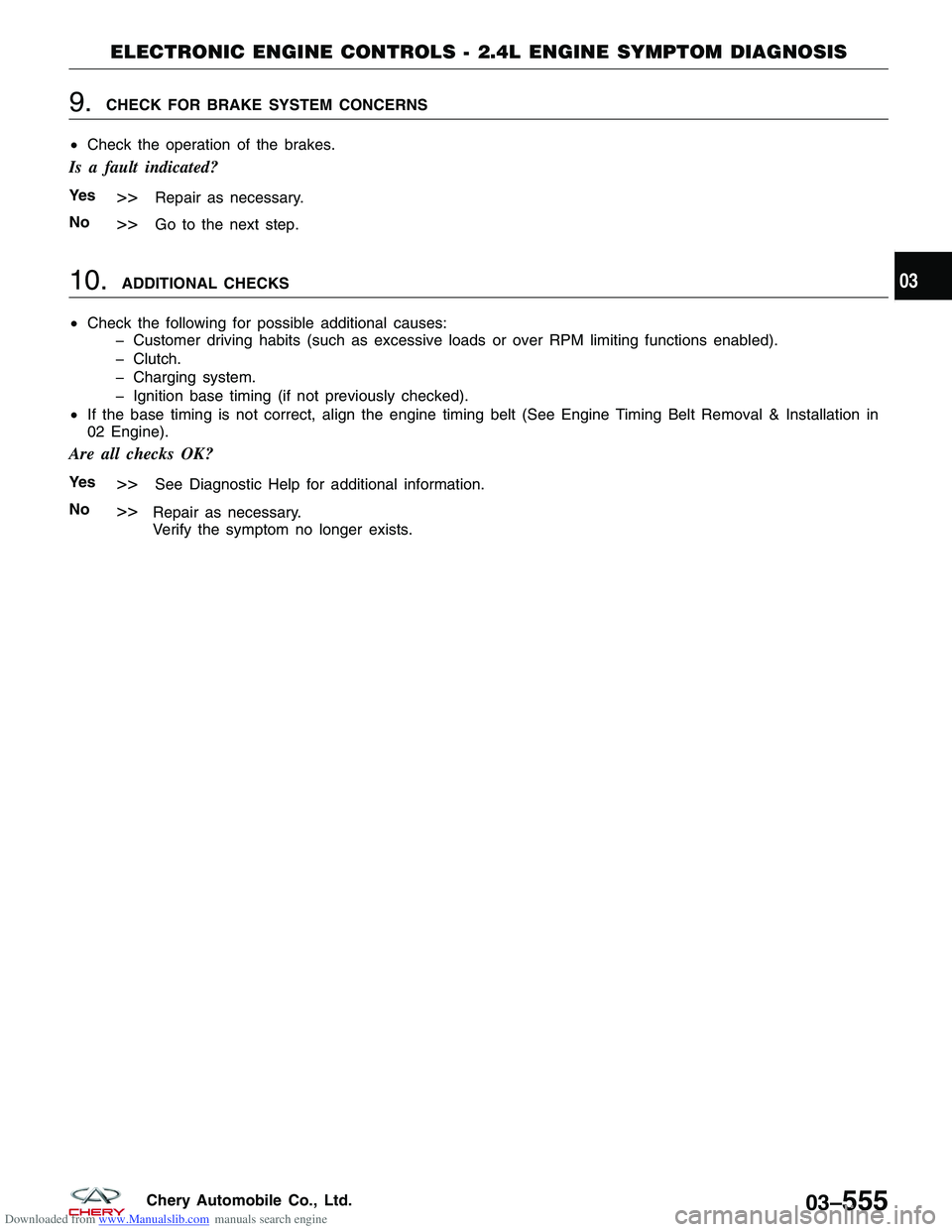

Downloaded from www.Manualslib.com manuals search engine 9.CHECK FOR BRAKE SYSTEM CONCERNS
• Check the operation of the brakes.
Is a fault indicated?
Ye s>>Repair as necessary.
No
>>Go to the next step.
10.ADDITIONAL CHECKS
• Check the following for possible additional causes:
Customer driving habits (such as excessive loads or over RPM limiting functions enabled).
Clutch.
Charging system.
Ignition base timing (if not previously checked).
• If the base timing is not correct, align the engine timing belt (See Engine Timing Belt Removal & Installation in
02 Engine).
Are all checks OK?
Ye s>>See Diagnostic Help for additional information.
No
>>Repair as necessary.
Verify the symptom no longer exists.
ELECTRONIC ENGINE CONTROLS - 2.4L ENGINE SYMPTOM DIAGNOSIS
03
03–555Chery Automobile Co., Ltd.
Page 1074 of 1903
Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
U0001 CAN
Communication Error With the ignition
switch on The Transaxle
Control Module
(TCM) lost
communication over
the CAN-Bus circuit.
The circuit is
continuously
monitored. •
CAN Converter
• Harness or
connectors (The
sensor circuit is open
or shorted)
• ECM
• Transaxle Control
Module (TCM)
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Start the engine and warm it to normal operating temperature.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
• Ensure that the battery is fully charged.
• Before performing any DTC diagnostic procedures, verify the TCM power and ground circuits are properly con-
nected.
• Before performing the diagnostic procedure, repair all other TCM DTCs first.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 12 Brakes).
• Inspect the ground connection C-201 mounting position (See Vehicle Wiring Harness Layout - Main Harness in
Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace the ground connections.
DIAGNOSIS & TESTING
08
08–131Chery Automobile Co., Ltd.
Page 1087 of 1903
Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The transaxle gear train is comprised of two rows of planetary gear set, one one-way clutch and five actuators (three
composite disc clutches and two composite disc brakes.
It is controlled with adaptive electronic controls and monitors. The hydraulic system of the transaxle consists of the
transaxle fluid, fluid passages, hydraulic valves, fluid pump, and various line pressure control components.
The Transaxle Control Module (TCM) is the heart of the electronic control system and relies on information from
various direct and indirect inputs (sensors, switches, etc.) to determine driver demand and vehicle operating condi-
tions. With this information, the ECM/TCM can calculate and perform timely and quality shifts through various output
or control devices.
The TCM also performs certain self-diagnostic functions and provides comprehensive information (sensor data,
DTCs, etc.) which is helpful in proper diagnosis and repair. This information can be viewed with the X-431 scan tool.
1 - Low Speed Clutch
2 - Reverse Gear Clutch
3 - Overdrive Clutch4 - Gear 2 Brake
5 - Low/Reverse Gear Brake
6 - Output Shaft/Transfer Case Driven Gear
LTSM080158
08–144Chery Automobile Co., Ltd.
Page 1180 of 1903
Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
54 Electrical relay open
circuit Ignition switch on •
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
detected that the
A/T control voltage
is below 7 V.
• If the DTC was
set, then the A/T will
be locked in 3rd
gear (D gear) or
shifted to low gear
when in sports
mode. •
A/T control relay
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn the ignition switch on.
• With the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 12 Brakes).
• Inspect the ground connection C-201 mounting position (See Vehicle Wiring Harness Layout - Main Harness in
Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace the ground connections.
DIAGNOSIS & TESTING
08
08–237Chery Automobile Co., Ltd.
Page 1279 of 1903
Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Front Hub and Bearing
Removal & Installation
NOTE :
The following special tools are required to perform the repair procedure:
•Bearing Puller
1. Raise and support the vehicle.
2. Remove the wheel mounting nuts and the tire and wheel assembly. (Tighten: Wheel mounting nuts to 110 N·m)
3. Remove the front axle hub nut (1) from the front knuckle.
(Tighten: Front axle hub nut to 135 N·m)
4. Remove the front brake rotor (See Front Brake Rotor Removal & Installation in Section 12 Brakes).
5. Remove the wheel speed sensor mounting bolt (1), then remove the wheel speed sensor.
6. Using the bearing puller, remove the wheel hub bearing from the knuckle.
7. Installation is in the reverse order of removal.
LTSM090006
LTSM100045
LTSM090003
09
09–5Chery Automobile Co., Ltd.
Page 1286 of 1903
Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Rear Hub and Bearing
Removal & Installation
1. Raise and support the vehicle.
2. Remove the wheel mounting nuts and the tire and wheel assembly.(Tighten: Wheel mounting nuts to 110 N·m)
3. Disconnect the ABS wheel speed sensor electrical connector.
4. While an assistant applies the brakes (to keep the hub from rotating), remove the hub nut from the axle half shaft.
(Tighten: Hub nut to 135 N·m)
5. Remove the rear brake rotor (See Rear Brake Rotor Removal & Installation in Section 12 Brakes).
6. Remove the hub and bearing mounting nuts (1). (Tighten: Hub and bearing mounting nuts to 65
N·m)
7. Take out the rear hub and bearing.
8. Installation is in the reverse order of the removal.
LTSM090001
09–12Chery Automobile Co., Ltd.
Page 1309 of 1903
Downloaded from www.Manualslib.com manuals search engine 4. While a helper applies the brakes to keep the hubfrom rotating, remove the front axle shaft nut (1).
(Tighten: Front axle shaft nut to 135 N·m)
5. Access and remove the front brake rotor (See Front Brake Rotor Remove & Installation in Section 12 Brakes).
6. Remove the wheel speed sensor mounting bolt (1). (Tighten: Wheel speed sensor mounting bolt to 10
± 1 N·m)
7. Remove the wheel speed sensor and set it aside.
8. Remove the lower ball joint mounting nut (1) attaching the lower control arm to the knuckle.
(Tighten: Control arm to steering knuckle nut to
120 ± 10 N·m)
9. Remove the nut (1) attaching the outer tie rod end to the steering knuckle.
(Tighten: Outer tie rod end nut to 32 - 38 N·m)
ON-VEHICLE SERVICE
LTSM090006
LTSM100045
LTSM100006
LTSM110034
10–8Chery Automobile Co., Ltd.
Page 1338 of 1903

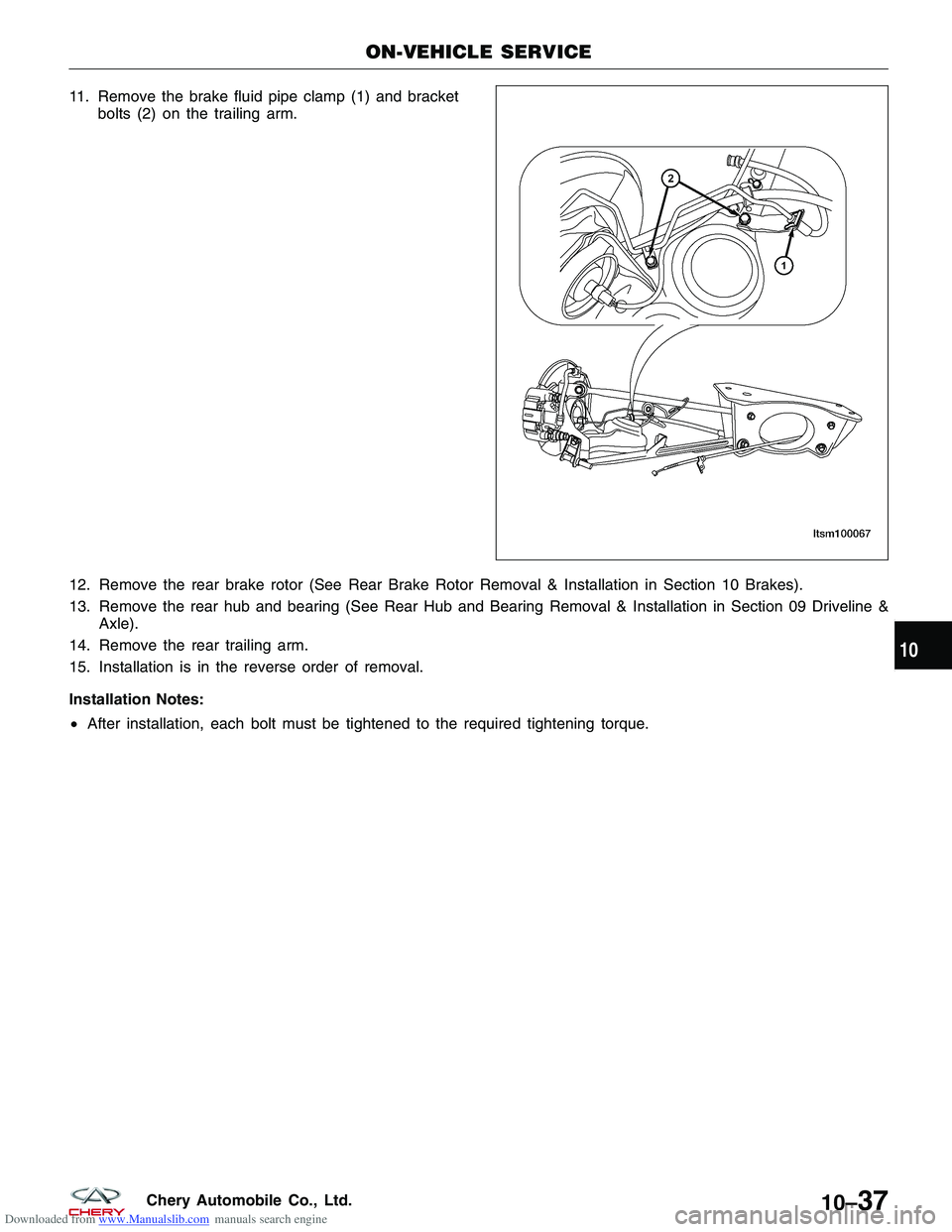

Downloaded from www.Manualslib.com manuals search engine 11. Remove the brake fluid pipe clamp (1) and bracketbolts (2) on the trailing arm.
12. Remove the rear brake rotor (See Rear Brake Rotor Removal & Installation in Section 10 Brakes).
13. Remove the rear hub and bearing (See Rear Hub and Bearing Removal & Installation in Section 09 Driveline & Axle).
14. Remove the rear trailing arm.
15. Installation is in the reverse order of removal.
Installation Notes:
• After installation, each bolt must be tightened to the required tightening torque.
ON-VEHICLE SERVICE
LTSM100067
10
10–37Chery Automobile Co., Ltd.
