Page 28 of 1903
Downloaded from www.Manualslib.com manuals search engine SERVICE MANUAL CHAPTERCOMPONENT / VEHICLE SYSTEM
15 - Body & Accessories •
Windshield Wiper Motor
• Windshield Washer Motor
• Rear Window Defroster
• Power Door Locks
• Power Windows
• Power Mirrors
• Sunroof Control Unit
• Radio
• Interior Lights
• Exterior Lights
• Oil Pressure Switch
• Warning Buzzer
• Body Control Module (BCM)
• Instrument Cluster
• Key Switch
• Power Outlet
• Data Link Connector
• Immobilizer Control Module
• Horn
16 - Wiring •
Power Distribution
• Front Fuse and Relay Box
• Power Fuse Box
• Ignition Switch
• Ground Distribution
Abbreviation List
TERM ABBREVIATION
Antilock Brake System ABS
Accelerator Sensor AES
Accelerator Pedal Position Sensor APS
Automatic Temperature Control ATC
Automatic Transaxle Fluid ATF
Body Control Module BCM
Brake Pressure Sensor BPS
Camshaft Position Sensor CMP
Clutch Pedal Position Switch CPP Switch
Crankshaft Position Sensor CKP
Data Link Connector DLC
Diagnostic Trouble Code DTC
Engine Control Module ECM
Engine Coolant Temperature ECT
Engine Speed RPM
Evaporative Emission EVAP
Evaporative Emission Canister EVAP Canister
Evaporative Emission System EVAP System
Exhaust Gas Recirculation Valve EGR Valve
HOW TO LOCATE ELECTRICAL SCHEMATICS IN THE SERVICE MANUAL
01
01–27Chery Automobile Co., Ltd.
Page 1208 of 1903

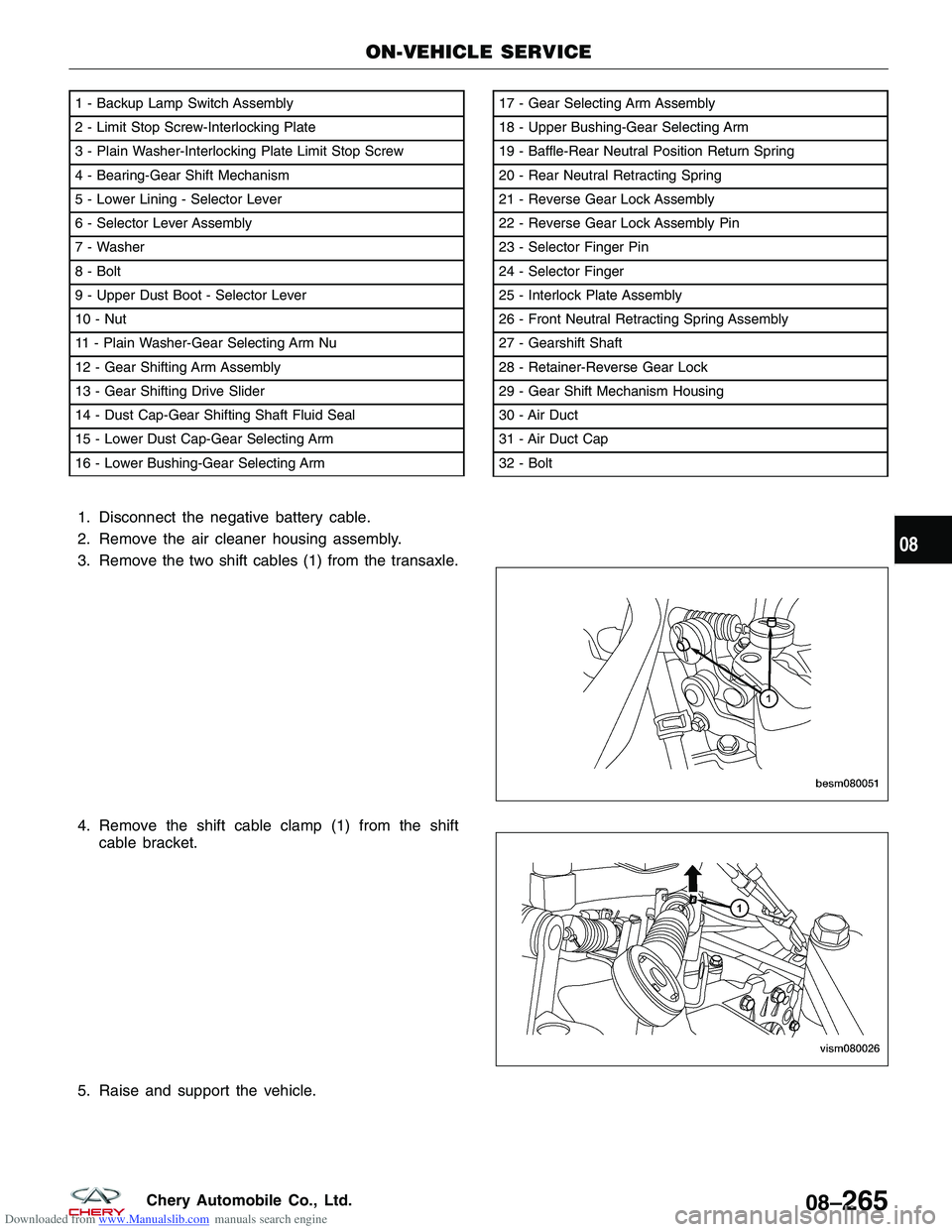

Downloaded from www.Manualslib.com manuals search engine 1. Disconnect the negative battery cable.
2. Remove the air cleaner housing assembly.
3. Remove the two shift cables (1) from the transaxle.
4. Remove the shift cable clamp (1) from the shiftcable bracket.
5. Raise and support the vehicle.
1 - Backup Lamp Switch Assembly
2 - Limit Stop Screw-Interlocking Plate
3 - Plain Washer-Interlocking Plate Limit Stop Screw
4 - Bearing-Gear Shift Mechanism
5 - Lower Lining - Selector Lever
6 - Selector Lever Assembly
7 - Washer
8 - Bolt
9 - Upper Dust Boot - Selector Lever
10 - Nut
11 - Plain Washer-Gear Selecting Arm Nu
12 - Gear Shifting Arm Assembly
13 - Gear Shifting Drive Slider
14 - Dust Cap-Gear Shifting Shaft Fluid Seal
15 - Lower Dust Cap-Gear Selecting Arm
16 - Lower Bushing-Gear Selecting Arm17 - Gear Selecting Arm Assembly
18 - Upper Bushing-Gear Selecting Arm
19 - Baffle-Rear Neutral Position Return Spring
20 - Rear Neutral Retracting Spring
21 - Reverse Gear Lock Assembly
22 - Reverse Gear Lock Assembly Pin
23 - Selector Finger Pin
24 - Selector Finger
25 - Interlock Plate Assembly
26 - Front Neutral Retracting Spring Assembly
27 - Gearshift Shaft
28 - Retainer-Reverse Gear Lock
29 - Gear Shift Mechanism Housing
30 - Air Duct
31 - Air Duct Cap
32 - Bolt
ON-VEHICLE SERVICE
LTSM080087
BESM080051 VISM080026
08
08–265Chery Automobile Co., Ltd.
Page 1248 of 1903
Downloaded from www.Manualslib.com manuals search engine Transaxle Main Housing Assembly
Assembly
NOTE :
The following special tools are required to perform the repair procedure:
•MD-998325 - Fluid Installer
1 - Transaxle Housing
2 - Bearing-Gear Shifting Mechanism
3 - Pin GB119
4 - Outer Race Of Front/Rear Bearing Of Differential
5 - Adjustment Gasket-Differential Rear Bearing
6 - Fluid Seal-Differential7 - Fluid Baffle
8 - Fluid Draining Screw Plug
9 - Plain Washer-Fluid Draining Screw Plug
10 - Plain Washer-Fluid Limiting Screw Plug
11 - Fluid Limiting Screw Plug
MANUAL TRANSAXLE UNIT REPAIR
LTSM080106
08
08–305Chery Automobile Co., Ltd.
Page 1287 of 1903

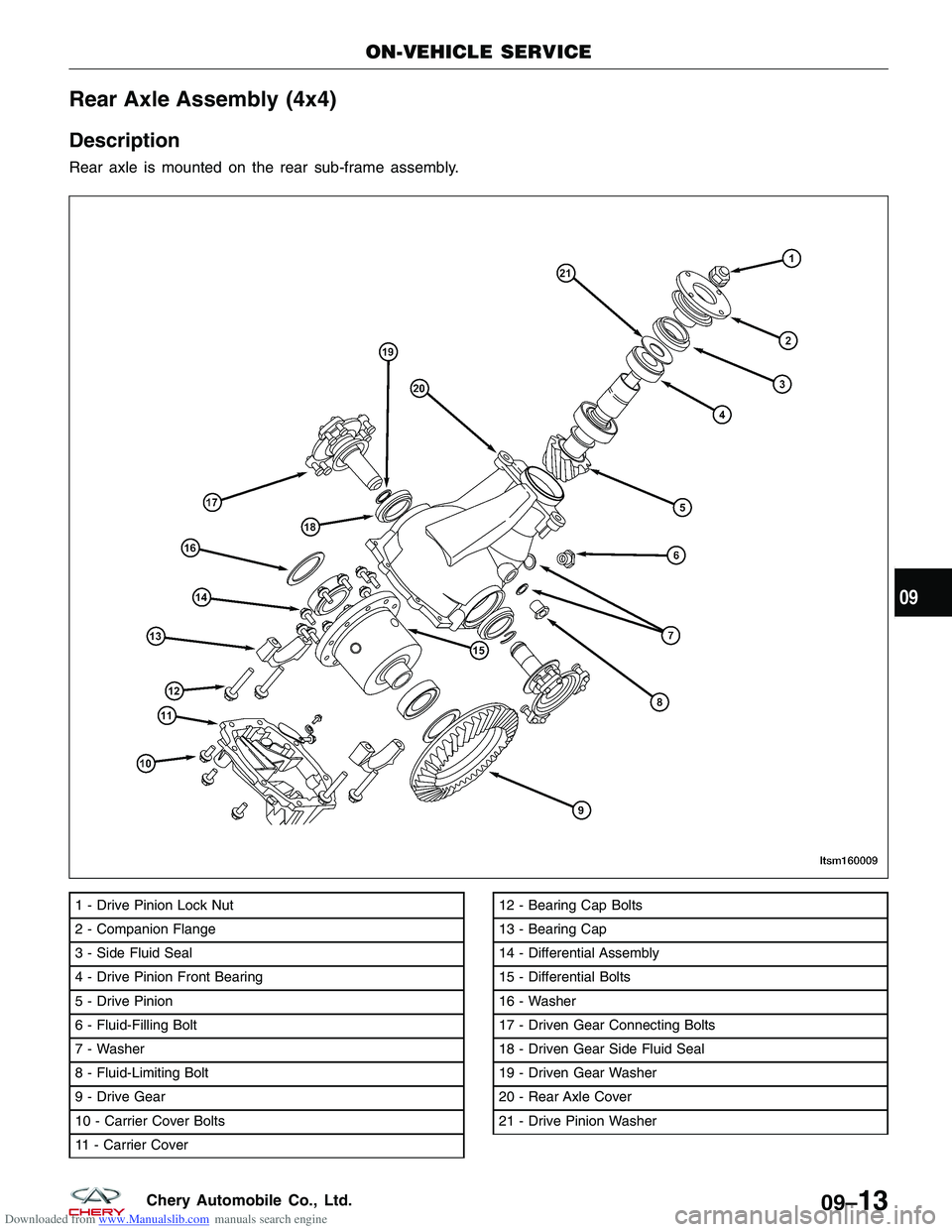

Downloaded from www.Manualslib.com manuals search engine Rear Axle Assembly (4x4)
Description
Rear axle is mounted on the rear sub-frame assembly.
1 - Drive Pinion Lock Nut
2 - Companion Flange
3 - Side Fluid Seal
4 - Drive Pinion Front Bearing
5 - Drive Pinion
6 - Fluid-Filling Bolt
7 - Washer
8 - Fluid-Limiting Bolt
9 - Drive Gear
10 - Carrier Cover Bolts
11 - Carrier Cover12 - Bearing Cap Bolts
13 - Bearing Cap
14 - Differential Assembly
15 - Differential Bolts
16 - Washer
17 - Driven Gear Connecting Bolts
18 - Driven Gear Side Fluid Seal
19 - Driven Gear Washer
20 - Rear Axle Cover
21 - Drive Pinion Washer
ON-VEHICLE SERVICE
LTSM160009
09
09–13Chery Automobile Co., Ltd.
Page 1825 of 1903

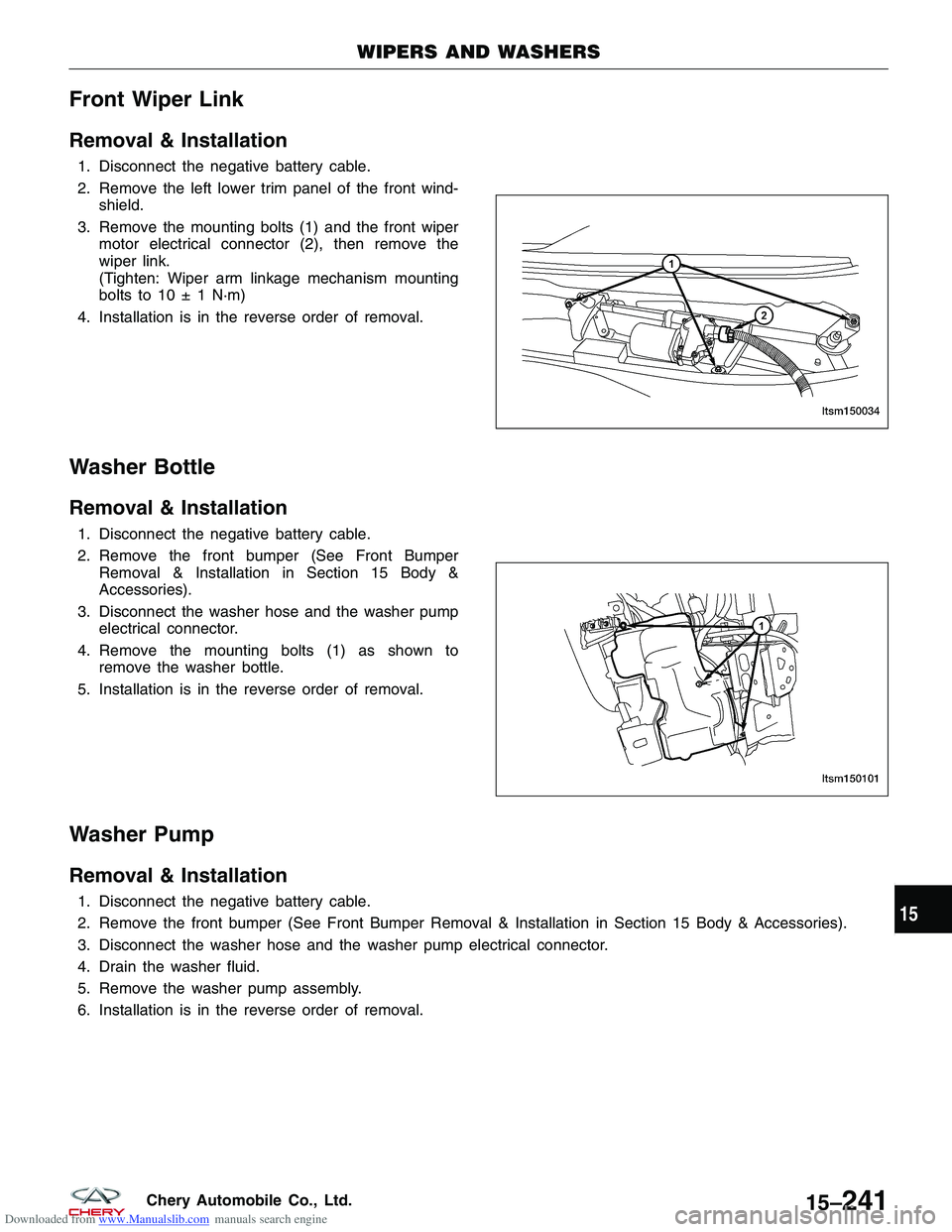

Downloaded from www.Manualslib.com manuals search engine Front Wiper Link
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the left lower trim panel of the front wind-shield.
3. Remove the mounting bolts (1) and the front wiper motor electrical connector (2), then remove the
wiper link.
(Tighten: Wiper arm linkage mechanism mounting
bolts to 10 ± 1 N·m)
4. Installation is in the reverse order of removal.
Washer Bottle
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the front bumper (See Front Bumper Removal & Installation in Section 15 Body &
Accessories).
3. Disconnect the washer hose and the washer pump electrical connector.
4. Remove the mounting bolts (1) as shown to remove the washer bottle.
5. Installation is in the reverse order of removal.
Washer Pump
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the front bumper (See Front Bumper Removal & Installation in Section 15 Body & Accessories).
3. Disconnect the washer hose and the washer pump electrical connector.
4. Drain the washer fluid.
5. Remove the washer pump assembly.
6. Installation is in the reverse order of removal.
WIPERS AND WASHERS
LTSM150034
LTSM150101
15
15–241Chery Automobile Co., Ltd.
Page 1882 of 1903
Downloaded from www.Manualslib.com manuals search engine A/1Power Fuse Box B3
B /1Power Fuse Box B3
C /1Power Fuse Box B3
D /1Power Fuse Box B4
E /1Power Fuse Box B4
A-001 B/10 Front Combination Lamp LH B5
A-002 B/10 Front Combination Lamp RH B1
A-003 B/2Front Fog Lamp LH A5
A-004 B/2Front Fog Lamp RH A1
A-005 GR/1 Horn 1 B5
A-006 GR/2 Horn 2 B5
A-007 B/2Main Fan Motor B3
A-008 B/2Secondary Fan Motor B4
A-011 GR/3 Cooling Fan Control Module B4
A-017 W/14 Body Fuse And Relay Box (H) D5
A-018 B/1Body Fuse And Relay Box (C) D5
A-020 B/25 ABS Hydraulic Control Module C2
A-021 B/2Front Wheel Speed Sensor LH D5
A-022 B/2Front Wheel Speed Sensor RH D1
A-023 B/2A/C Compressor B2
A-024 B/1Power Steering Switch C2
A-025 W/16 Front Fuse And Relay Box (A) D2
A-026 W/8 Front Fuse And Relay Box (B) D2
A-027 W/14 Front Fuse And Relay Box (C) D2
A-028 B/1Front Fuse And Relay Box (D) D2
A-029 B/3Accelerator Sensor C2
A-032 B/2Turn Signal Lamp LH C5
A-033 B/2Turn Signal Lamp RH C1
A-034 B/2Side Turn Signal Lamp LH D5
A-035 B/2Side Turn Signal Lamp RH D1
A-036 GR/2 Brake Fluid Level Switch D4
A-037 GR/5 Front Wiper Motor D4
A-038 W/2 Front Washer Motor B1
A-039 B/2Rear Washer Motor B1
A-040 B/2Siren D3
A-041 B/1A/C Pressure Switch D2
A-042 B/1Front Fuse And Relay Box (E) D2
A-043 W/4 Front Fuse And Relay Box (F) D2
A-044 W/20 Front Fuse And Relay Box (G) D2
A-045 B/10 Front Fuse And Relay Box (H) D2
A-046 B/2Front Fuse And Relay Box (I) D2
BB B/1BCM (Body Control Module) (Battery) D2
A-100 W/18 To C-100 D4
A-101 W/18 To C-101 D4
VEHICLE HARNESS ROUTING MAPS
16–56Chery Automobile Co., Ltd.
