CHEVROLET ASTRO PASSENGER 1994 1.G Owners Manual

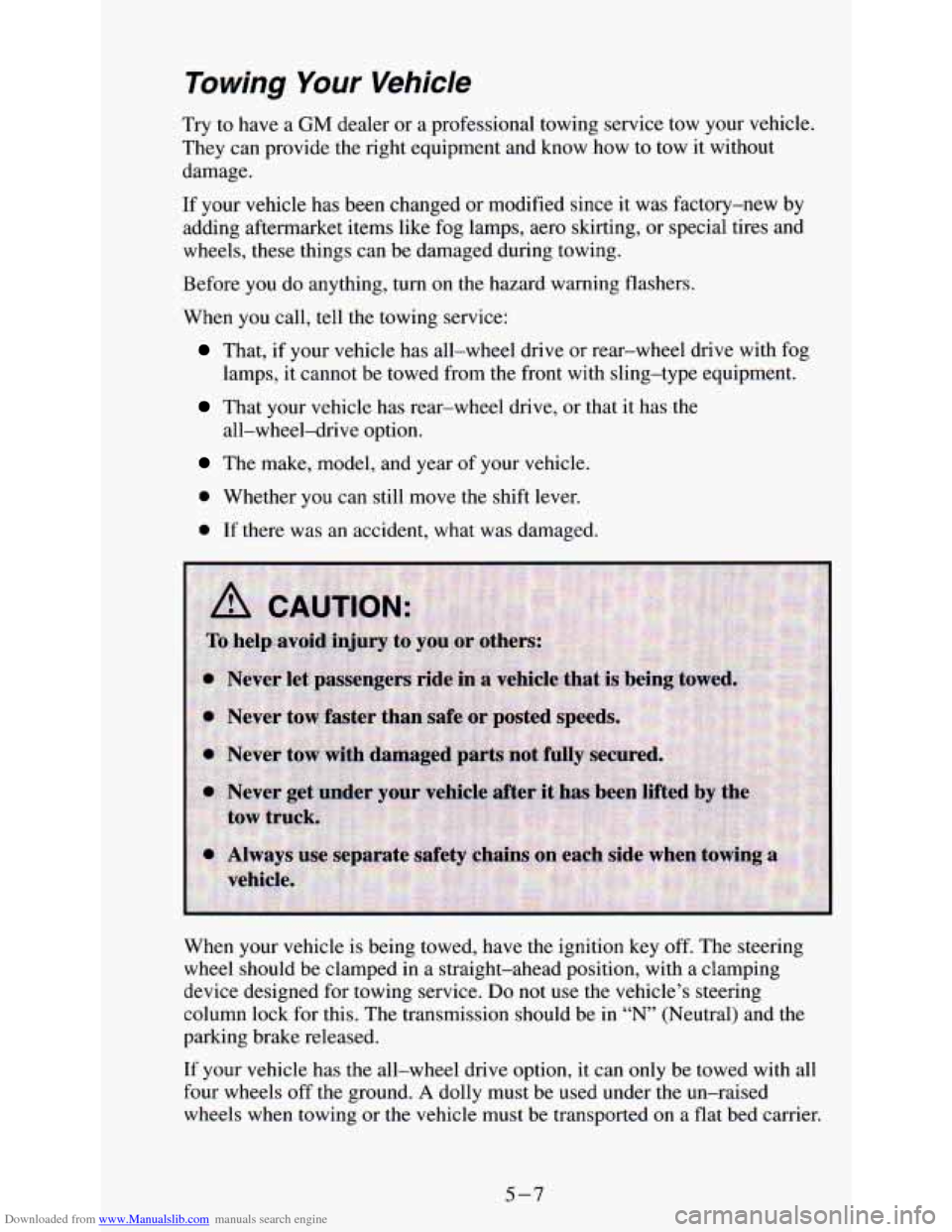

Downloaded from www.Manualslib.com manuals search engine Towing Your Vehicle
Try to have a GM dealer or a professional towing service tow your vehicle.
They can provide the right equipment and know how
to tow it without
damage.
If your vehicle has been changed or modified since it was factory-new by
adding aftermarket items like fog lamps, aero skirting, or special tires and
wheels, these things can be damaged during towing.
Before you do anything, turn on the hazard warning flashers.
When you call, tell the towing service:
That, if your vehicle has all-wheel drive or rear-wheel drive \
with fog
lamps, it cannot be towed from the front with sling-type equipment.
That your vehicle has rear-wheel drive, or that it has the
The make, model, and year of your vehicle.
all-wheel-drive
option.
0 Whether you can still move the shift lever.
0 If there was an accident, what was damaged.
When your vehicle is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with a clamping
device designed for towing service.
Do not use the vehicle’s steering
column lock for this. The transmission should be in “N” (Neutral) and the
parking brake released.
If your vehicle has the all-wheel drive option, it can only be towed with all
four wheels off the ground.
A dolly must be used under the un-raised
wheels when towing or the vehicle must be transported
on a flat bed carrier.
5-7

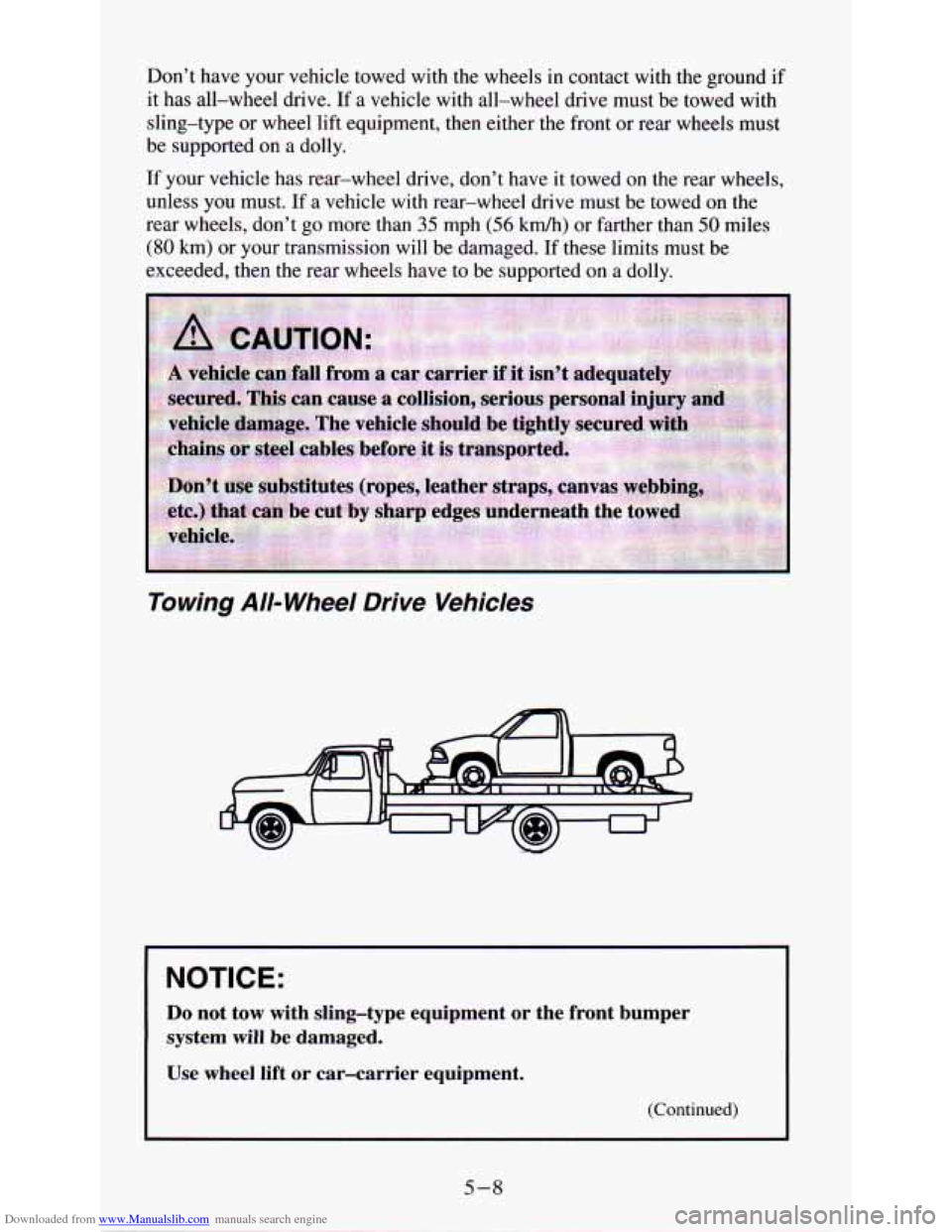

Downloaded from www.Manualslib.com manuals search engine Don't have your vehicle towed with the wheels in contact with the ground if
it has all-wheel drive.
If a vehicle with all-wheel drive must be towed with
sling-type
or wheel lift equipment, then either the front or rear wheels must
be supported on a dolly.
If your vehicle has rear-wheel drive, don't have it towed on the rear wheels,
unless you must.
If a vehicle with rear-wheel drive must be towed on the
rear wheels, don't go more than
35 mph (56 kmh) or farther than 50 miles
(80 km) or your transmission will be damaged. If these limits must be
exceeded, then the rear wheels have to
be supported on a dolly.
Towing AI!= Wheel Drive Vehicles
NOTICE:
Do not tow with sling-type equipment or the front bumper
system will be damaged.
Use wheel lift
or car-carrier equipment.
(Continued)
I

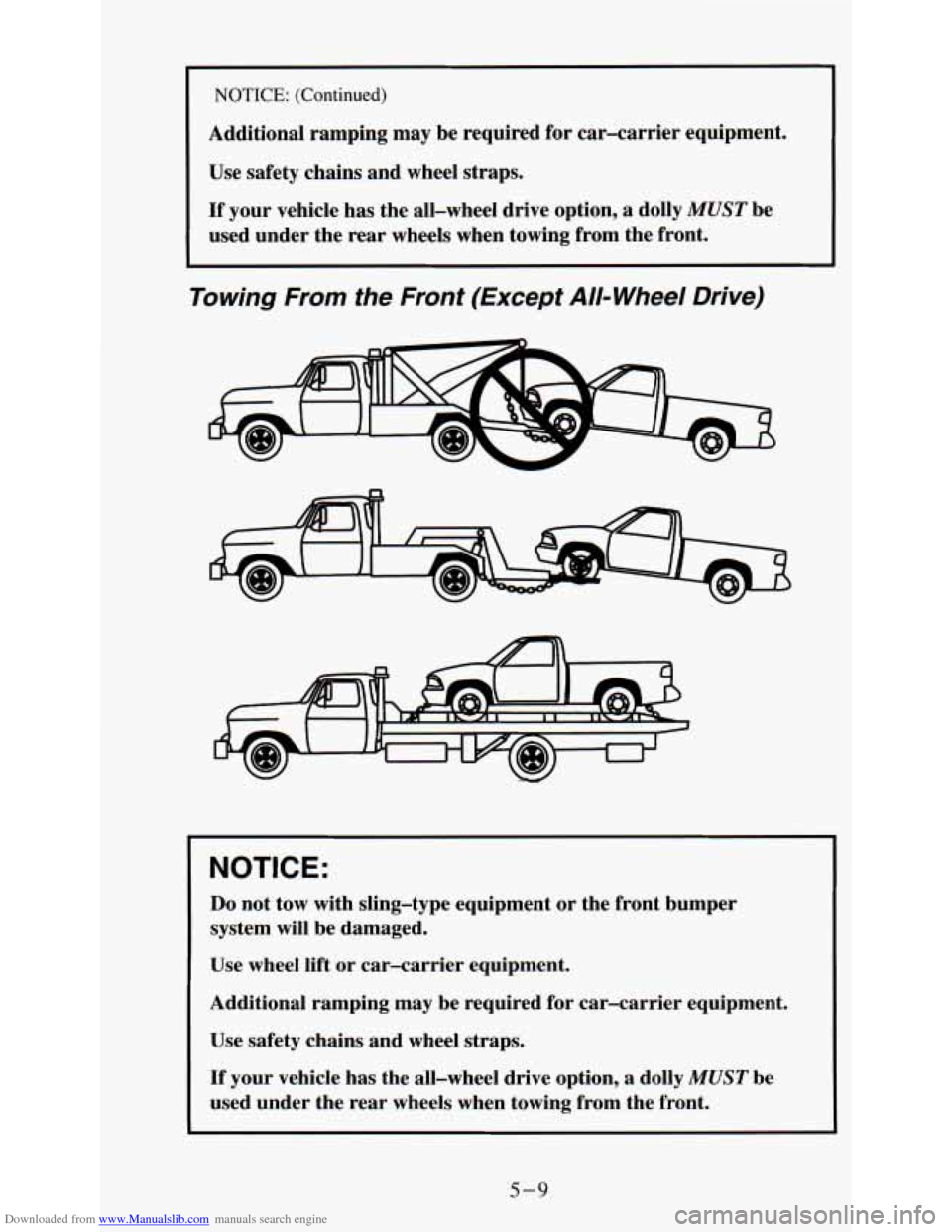

Downloaded from www.Manualslib.com manuals search engine NOTICE: (Continued)
Additional ramping may be required for car-carrier equipment.
Use safety chains and wheel straps.
If your vehicle has the all-wheel drive option,
a dolly MUST be
used under the rear wheels when towing from the front.
Towing From the Front (Except AII-Wheel Drive)
m
-G
L I L
NOTICE:
Do not tow with sling-type equipment or the front bumper
system will be damaged.
Use wheel lift or car-carrier equlpment.
Additional ramping may be required for car-carrier equipment.
Use safety chains and wheel straps.
If your vehicle has the all-wheel drive option, a dolly MUST be
used under the rear wheels when towing from the front.
5-9

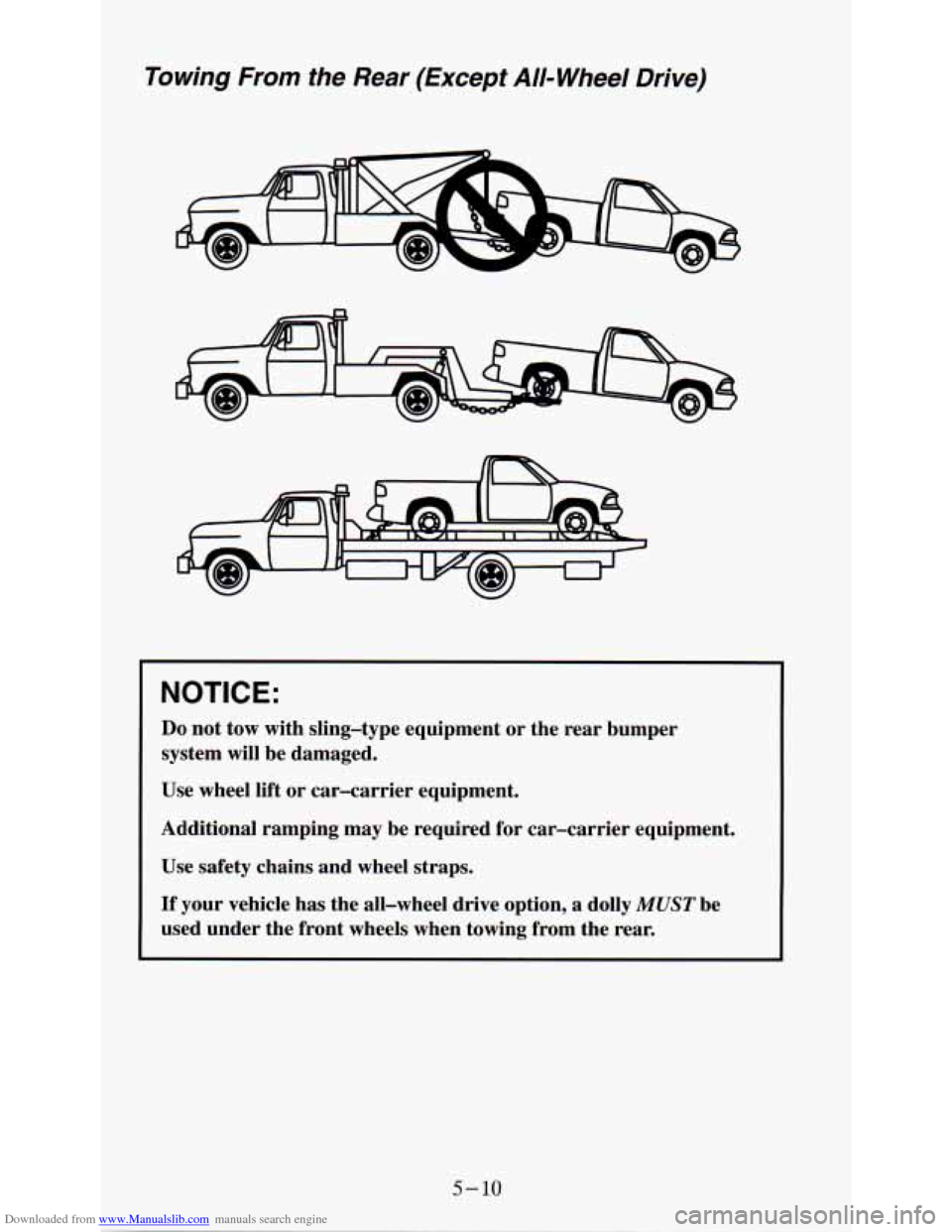

Downloaded from www.Manualslib.com manuals search engine Towing From the Rear (Except All- Wheel Drive)
NOTICE:
Do not tow with sling-type equipment or the rear bumper
system will be damaged.
Use wheel lift or car-carrier equipment.
Additional ramping may be required for car-carrier equipment. Use safety chains and wheel straps.
If your vehicle has the all-wheel drive option, a dolly MUST be
used under the front wheels when towing from the rear.
5-10

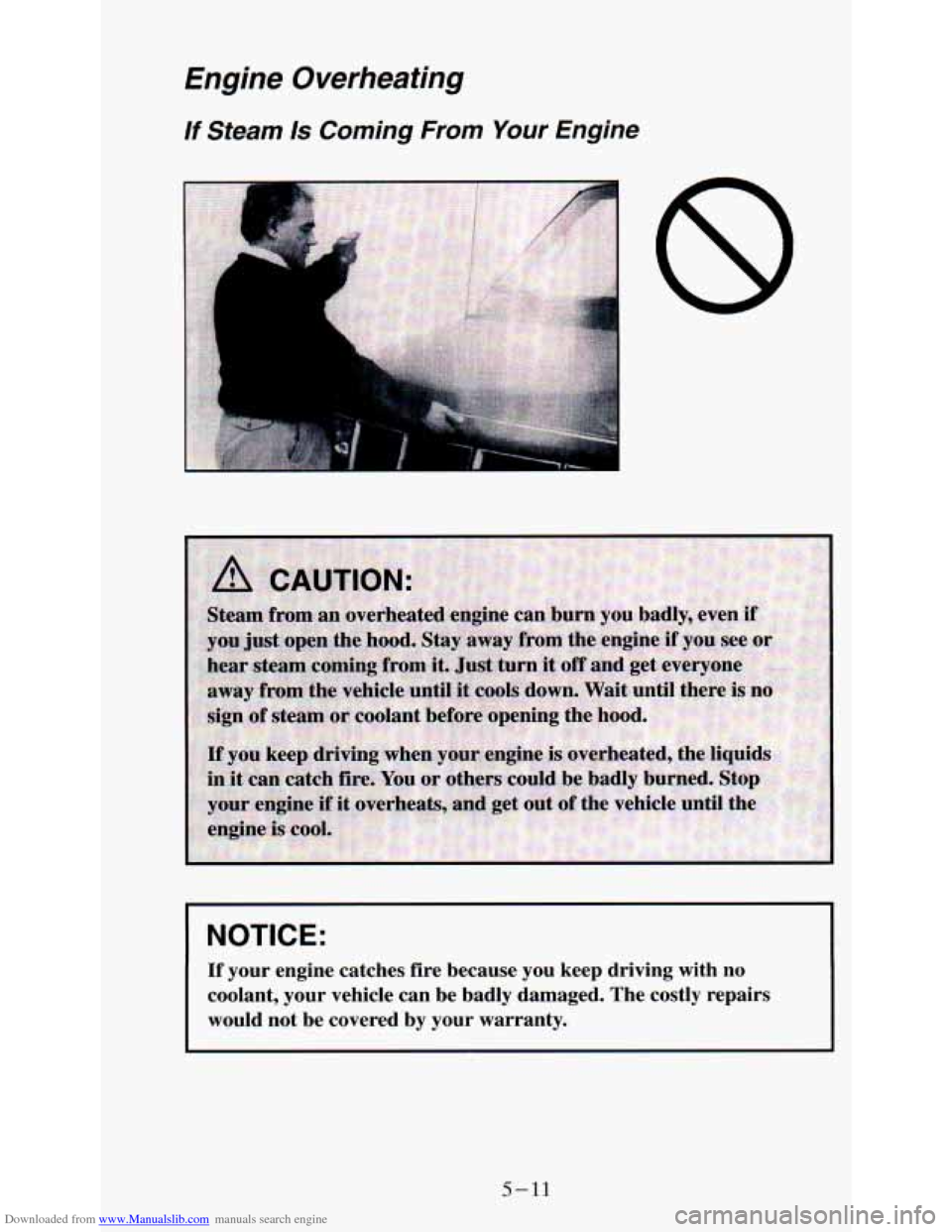

Downloaded from www.Manualslib.com manuals search engine Engine Overheating
If Steam Is Coming From Your Enaine
NOTICE:
If your engine catches fire because you keep driving with no
coolant, your vehicle can be badly damaged. The costly repairs \
would not be covered by your warranty.
5-11

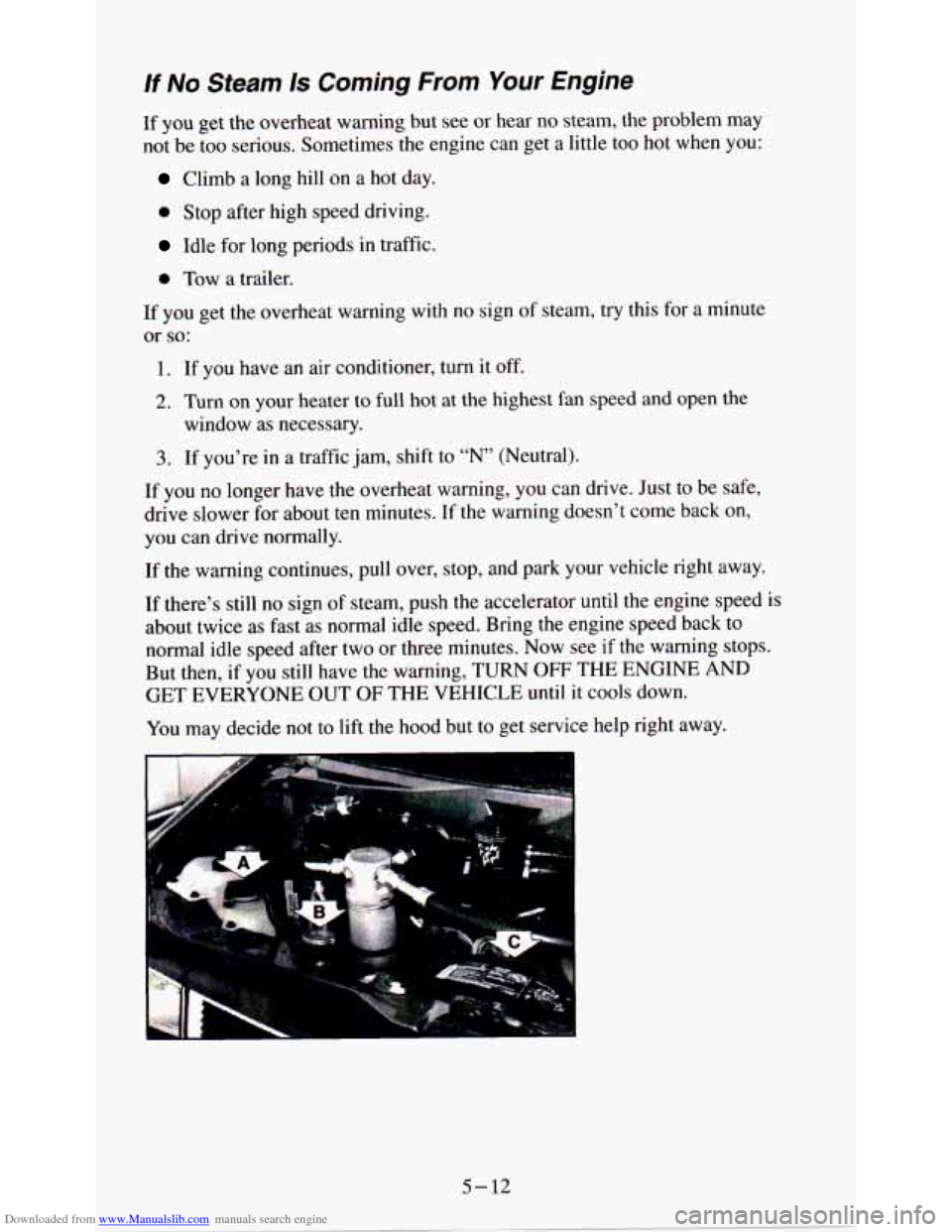

Downloaded from www.Manualslib.com manuals search engine If No Steam Is Coming From Your Engine
If you get the overheat warning but see or hear no steam, the problem may
not be too serious. Sometimes the engine can get a little
too hot when you:
Climb a long hill on a hot day.
0 Stop after high speed driving.
Idle for long periods in traffic.
0 Tow a trailer.
If you get the overheat warning
with no sign of steam, try this for a minute
or
so:
1. If you have an air conditioner, turn it off.
2. Turn on your heater to full hot at the highest fan speed and open the
3. If you’re in a traffic jam, shift to “N” (Neutral).
window as necessary.
If you no
longer have the overheat warning, you can drive. Just to be safe,
drive slower for about ten minutes.
If the warning doesn’t come back on,
you can drive normally.
If the warning continues, pull over, stop, and park your vehicle right away.
If there’s still
no sign of steam, push the accelerator until the engine speed is
about twice as fast as normal idle speed. Bring the engine speed back to
normal idle speed after two or three minutes. Now see if the warning stops.
But then, if you still have the warning, TURN
OFF THE ENGINE AND
GET EVERYONE OUT OF THE VEHICLE until it cools down.
You may decide not to lift the hood but to get service help right away.
5-12

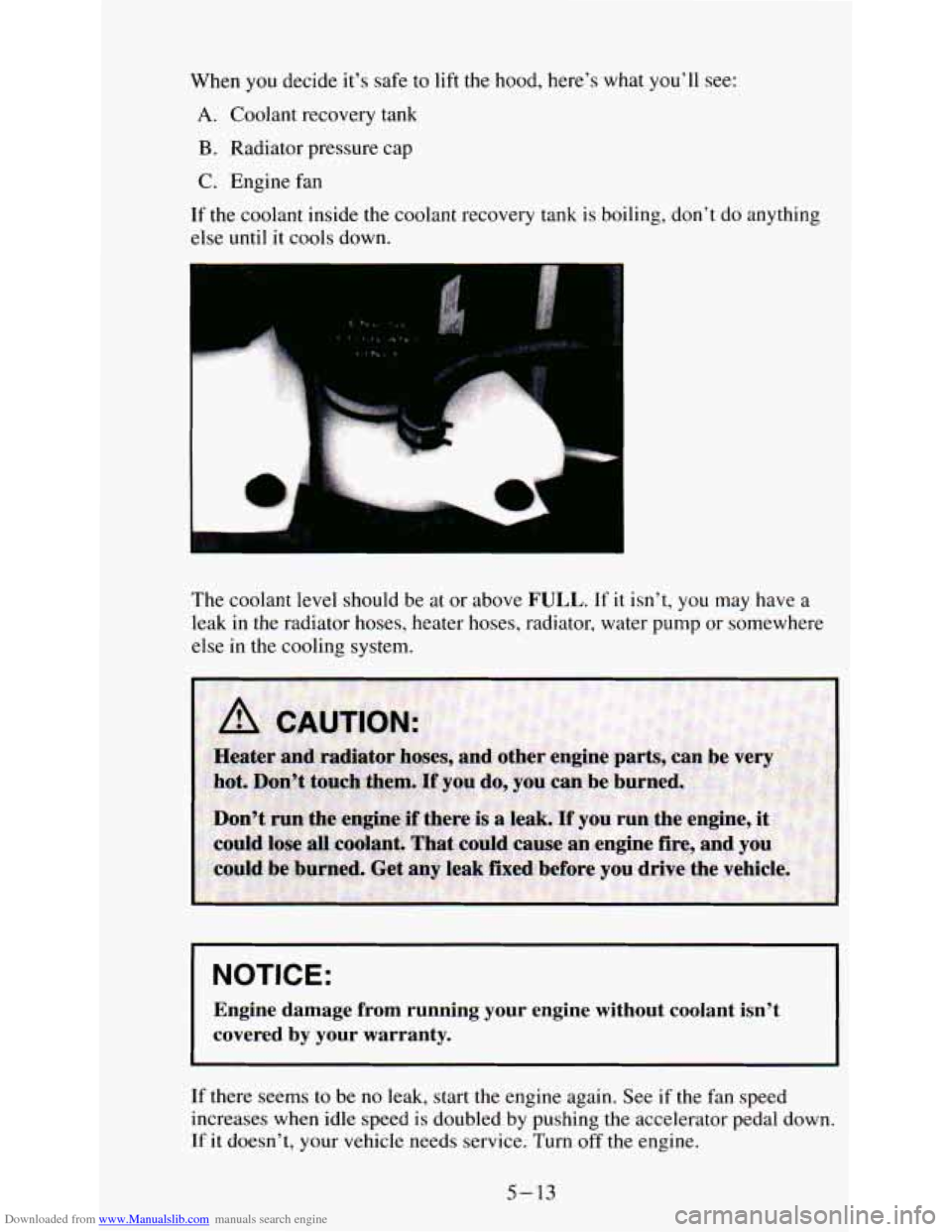

Downloaded from www.Manualslib.com manuals search engine When you decide it’s safe to lift the hood, here’s what you’ll see:
A. Coolant recovery tank
B. Radiator pressure cap
C. Engine fan
If the coolant inside the coolant recovery tank is boiling, don’t do anything
else until it cools down.
The
coolant level should be at or above FULL. If it isn’t, you may have a
leak in the radiator hoses, heater hoses, radiator, water pump or somewhere
else in the cooling system.
NOTICE:
Engine damage from running your engine without coolant isn’t \
covered by your warranty.
If there seems to be no leak, start the engine again. See if the fan speed
increases when idle speed
is doubled by pushing the accelerator pedal down.
If it doesn’t, your vehicle needs service. Turn
off the engine.
5-13

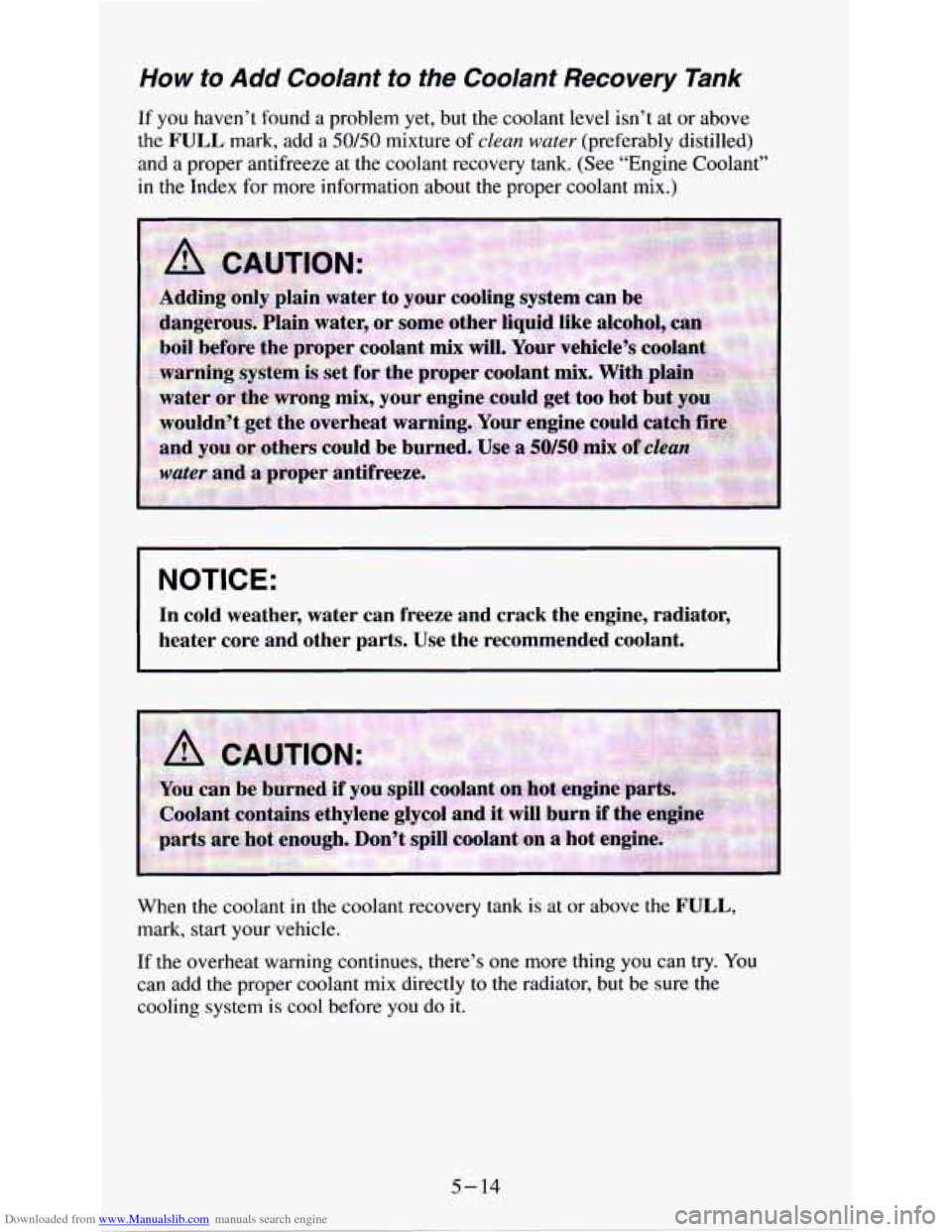

Downloaded from www.Manualslib.com manuals search engine How to Add Coolant to the Coolant Recovery Tank
If you haven’t found a problem yet, but the coolant level \
isn’t at or above
the
FULL mark, add a 50/50 mixture of clean water (preferably distilled)
and
a proper antifreeze at the coolant recovery tank. (See “Engine Coolant”
in the Index for more information about the proper coolant mix.)
..
..
I NOTICE:
In cold weather, water can freeze and crack the engine, radiator,
heater core and other parts. Use the recommended coolant.
When the coolant in the coolant recovery tank is at or above the FULL,
mark, start your vehicle.
If the overheat warning continues, there’s one more thing
you can try. You
can add
the proper coolant mix directly to the radiator, but be sure the
cooling system
is cool before you do it.

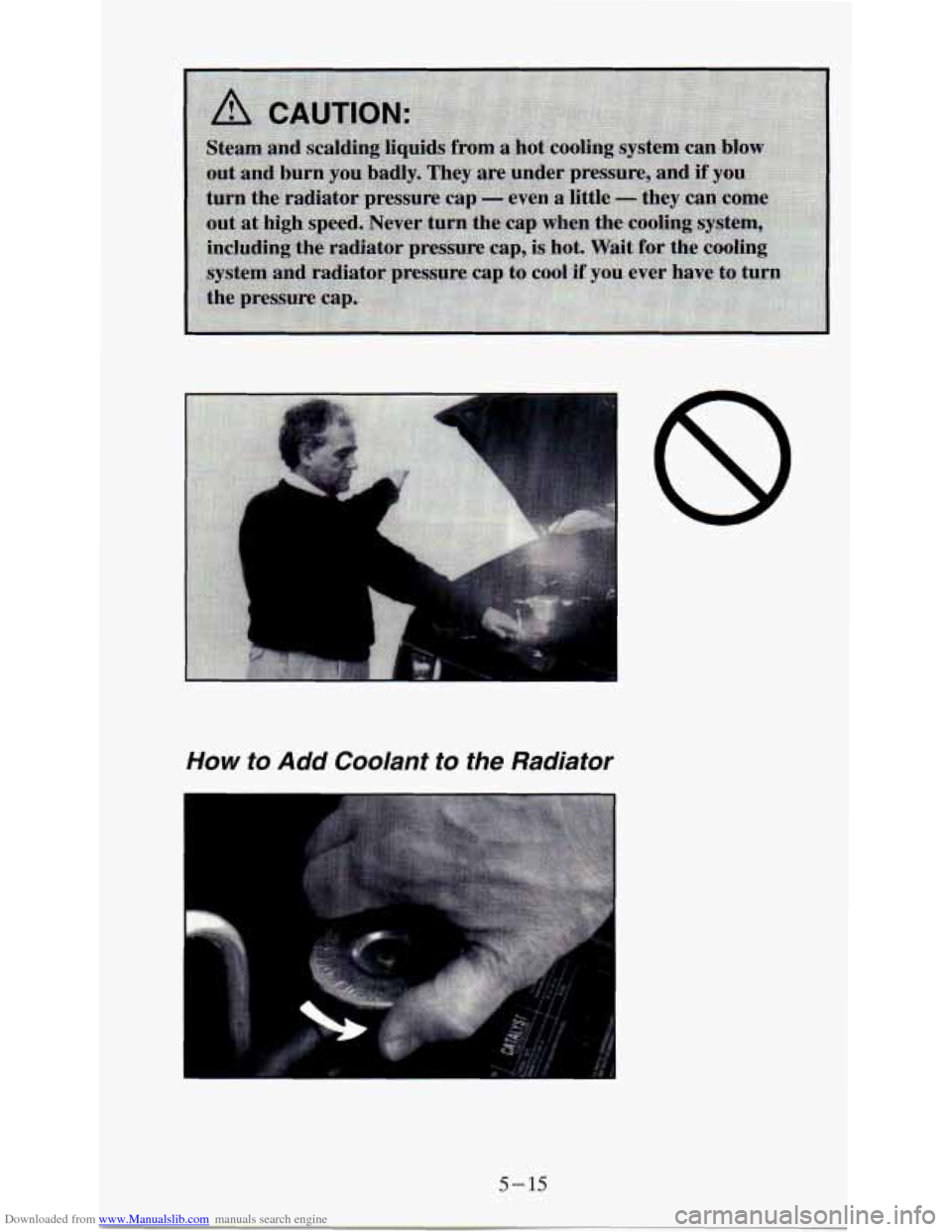

Downloaded from www.Manualslib.com manuals search engine How to Add Coolant to the Radiator
5-15

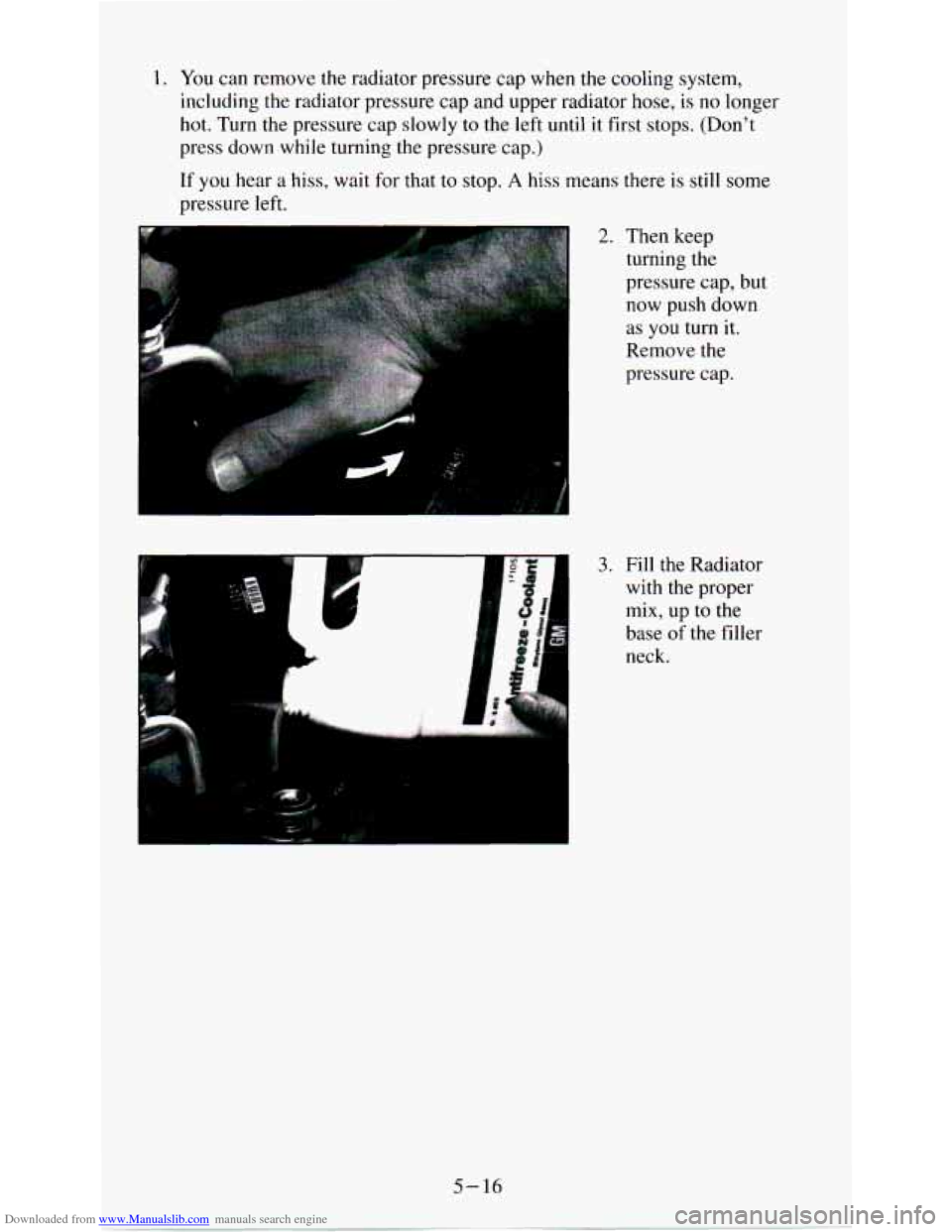

Downloaded from www.Manualslib.com manuals search engine 1 . You can remove the radiator pressure cap when the cooling system,
including the radiator pressure cap and upper radiator hose, is no longer
hot. Turn the pressure cap slowly to the left until it first stops. (Don't
press down while turning the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means there is still some
pressure left.
2. Then keep
turning
the
I
pressure cap, but
now push down
as you turn it.
Remove the
pressure cap.
3. Fill the Radiator
with
the proper
mix, up to the
base
of the filler
neck.
5-16
