Fig. 40: Removing Shift Control Lever Assembly & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
6. Remove the shift control lever assembly mounting bolts.
7. Remove the shift control lever assembly.
Installation Procedure

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 52 © 2005 Mitchell Repair Information Company, LLC.

Fig. 41: Installing Shift Control Lever Assembly & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
1. Install the shift control lever assembly and mounting bolts.
Tighten: Ti
ghten the shift control lever assembly mounting bolts to 8 N.m (71 lb in).
NOTE: Refer to Fastener Notice .

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 53 © 2005 Mitchell Repair Information Company, LLC.

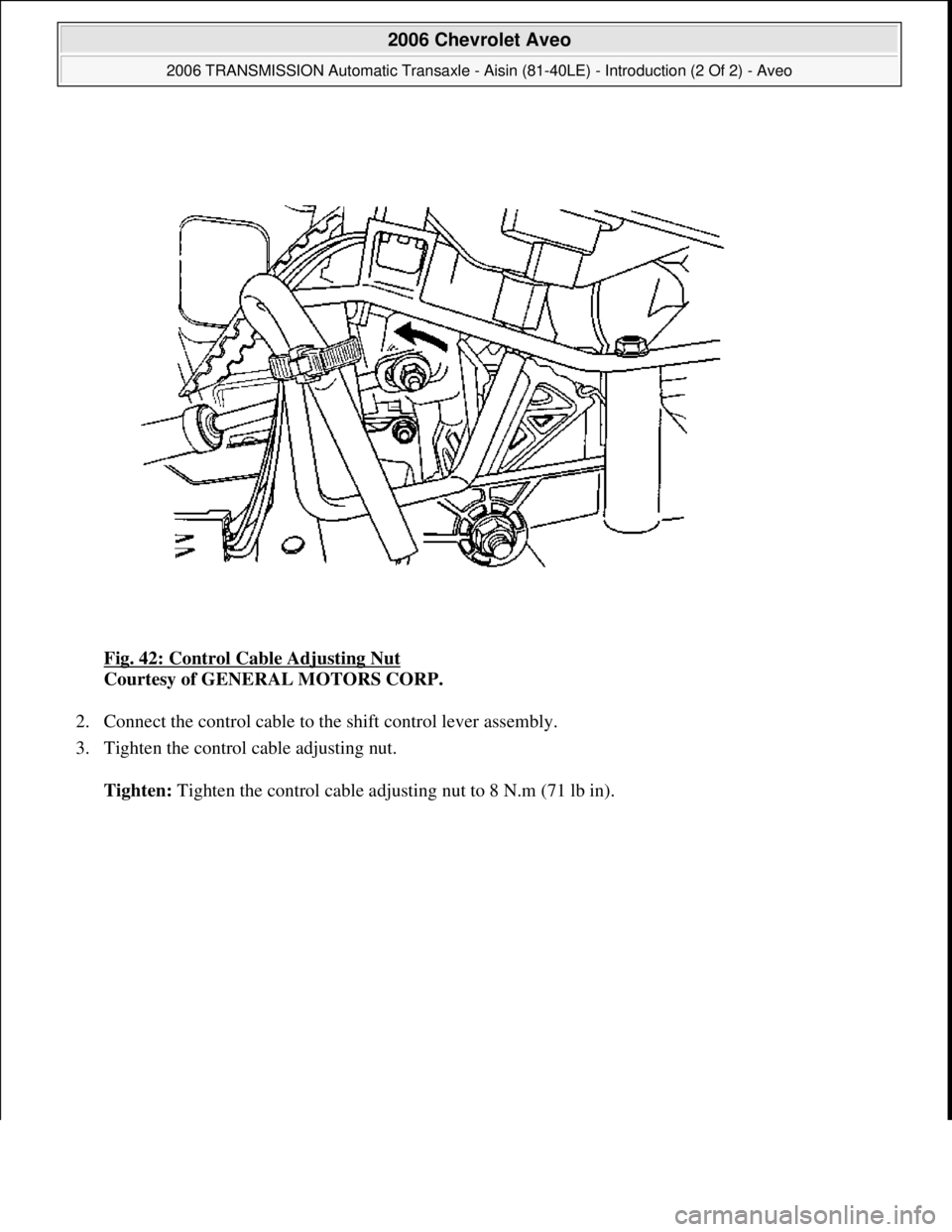

Fig. 42: Control Cable Adjusting Nut
Courtesy of GENERAL MOTORS CORP.
2. Connect the control cable to the shift control lever assembly.
3. Tighten the control cable adjusting nut.
Tighten: Ti
ghten the control cable adjusting nut to 8 N.m (71 lb in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 54 © 2005 Mitchell Repair Information Company, LLC.

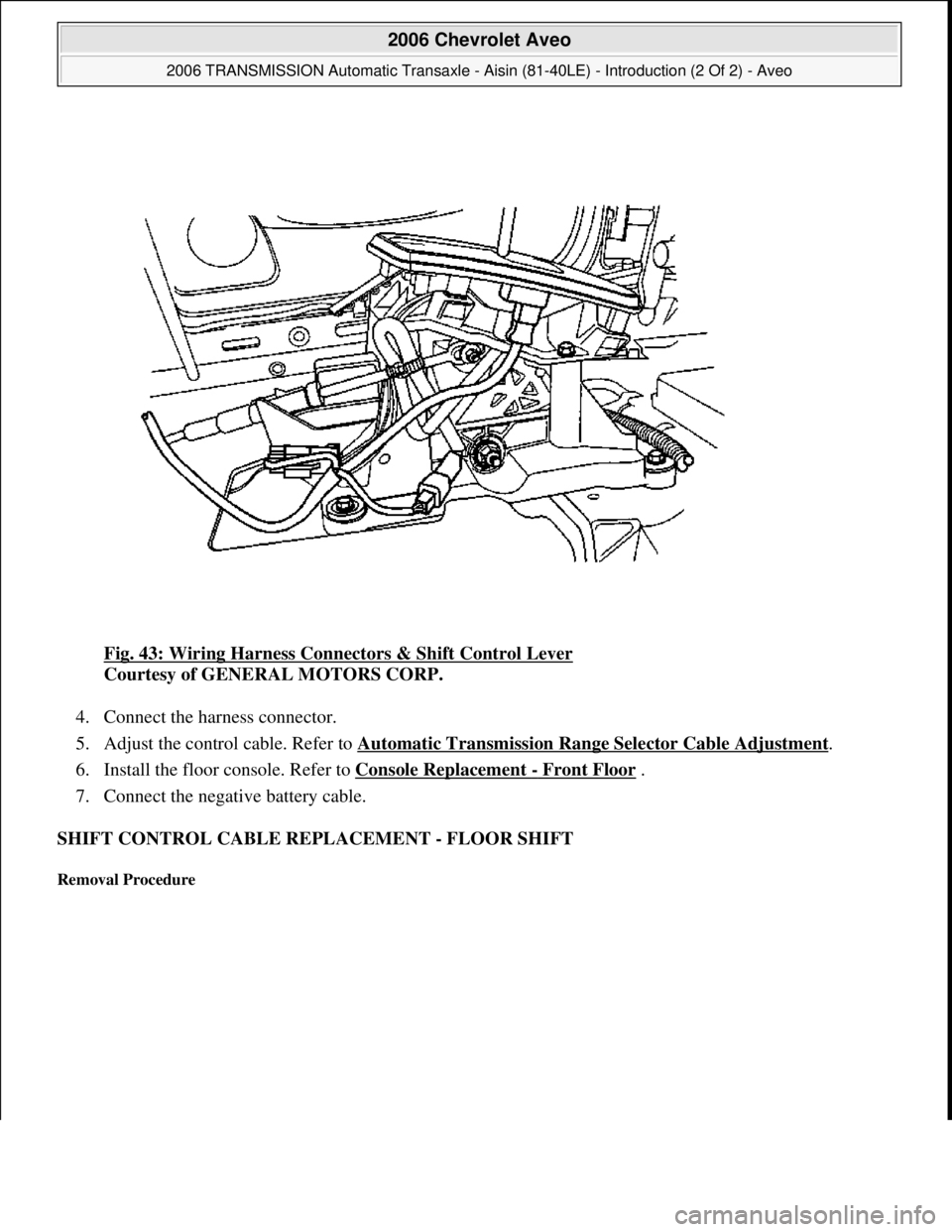

Fig. 43: Wiring Harness Connectors & Shift Control Lever
Courtesy of GENERAL MOTORS CORP.
4. Connect the harness connector.
5. Adjust the control cable. Refer to Automatic Transmission Range Selector Cable Adjustment
.
6. Install the floor console. Refer to Console Replacement
- Front Floor .
7. Connect the negative battery cable.
SHIFT CONTROL CABLE REPLACEMENT - FLOOR SHIFT
Removal Procedure

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 55 © 2005 Mitchell Repair Information Company, LLC.

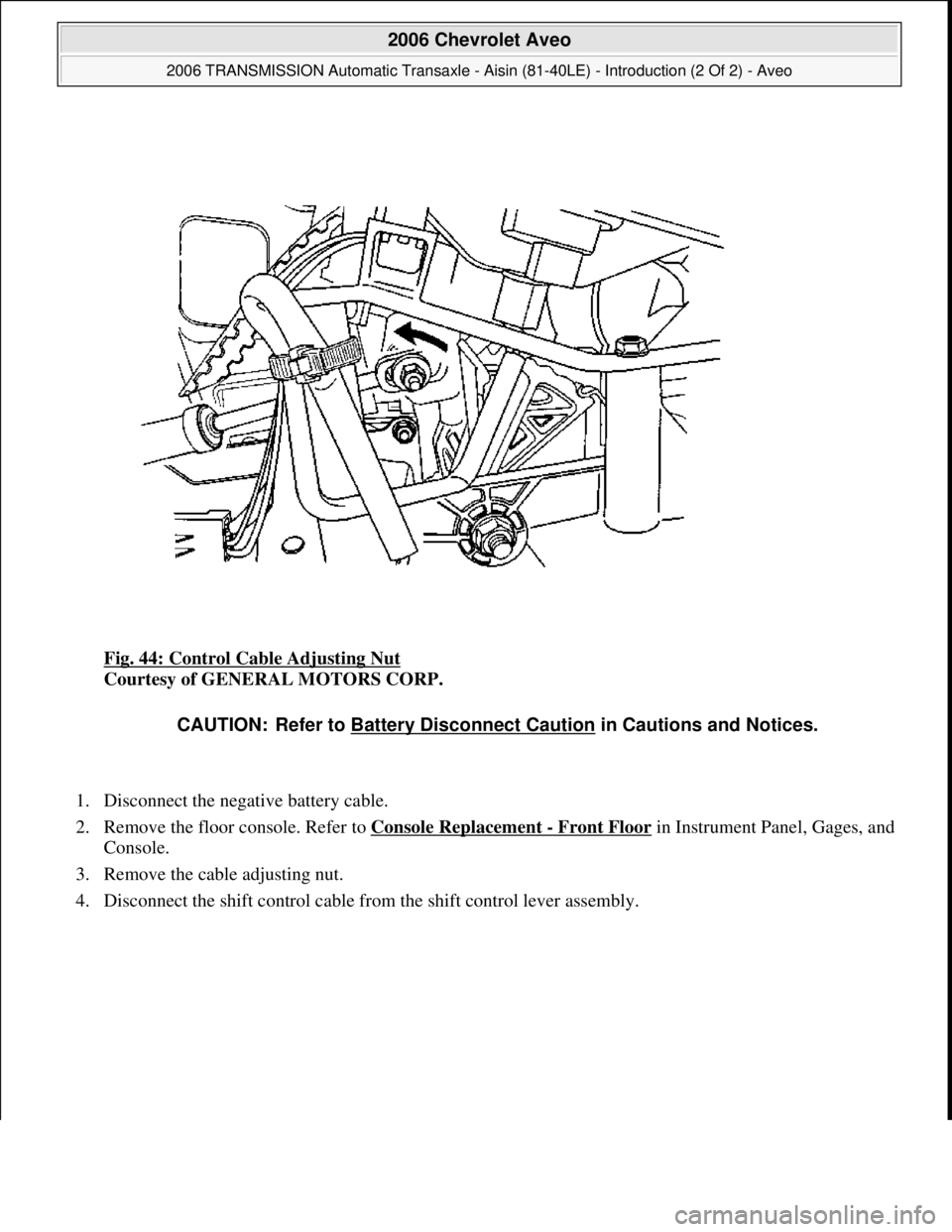

Fig. 44: Control Cable Adjusting Nut
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the floor console. Refer to Console Replacement
- Front Floorin Instrument Panel, Gages, and
Console.
3. Remove the cable adjusting nut.
4. Disconnect the shift control cable from the shift control lever assembly.
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 56 © 2005 Mitchell Repair Information Company, LLC.

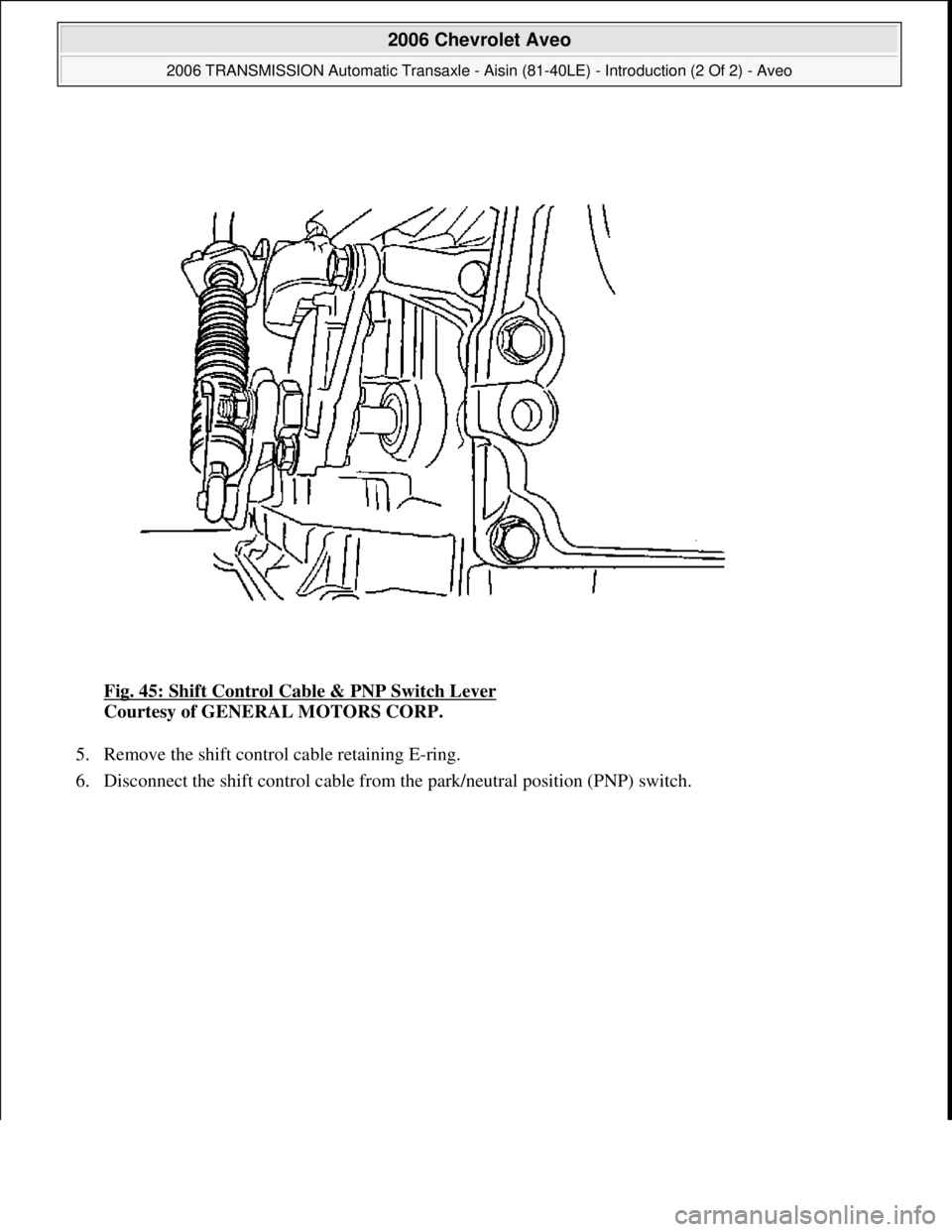

Fig. 45: Shift Control Cable & PNP Switch Lever
Courtesy of GENERAL MOTORS CORP.
5. Remove the shift control cable retaining E-ring.
6. Disconnect the shift control cable from the park/neutral position (PNP) switch.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 57 © 2005 Mitchell Repair Information Company, LLC.

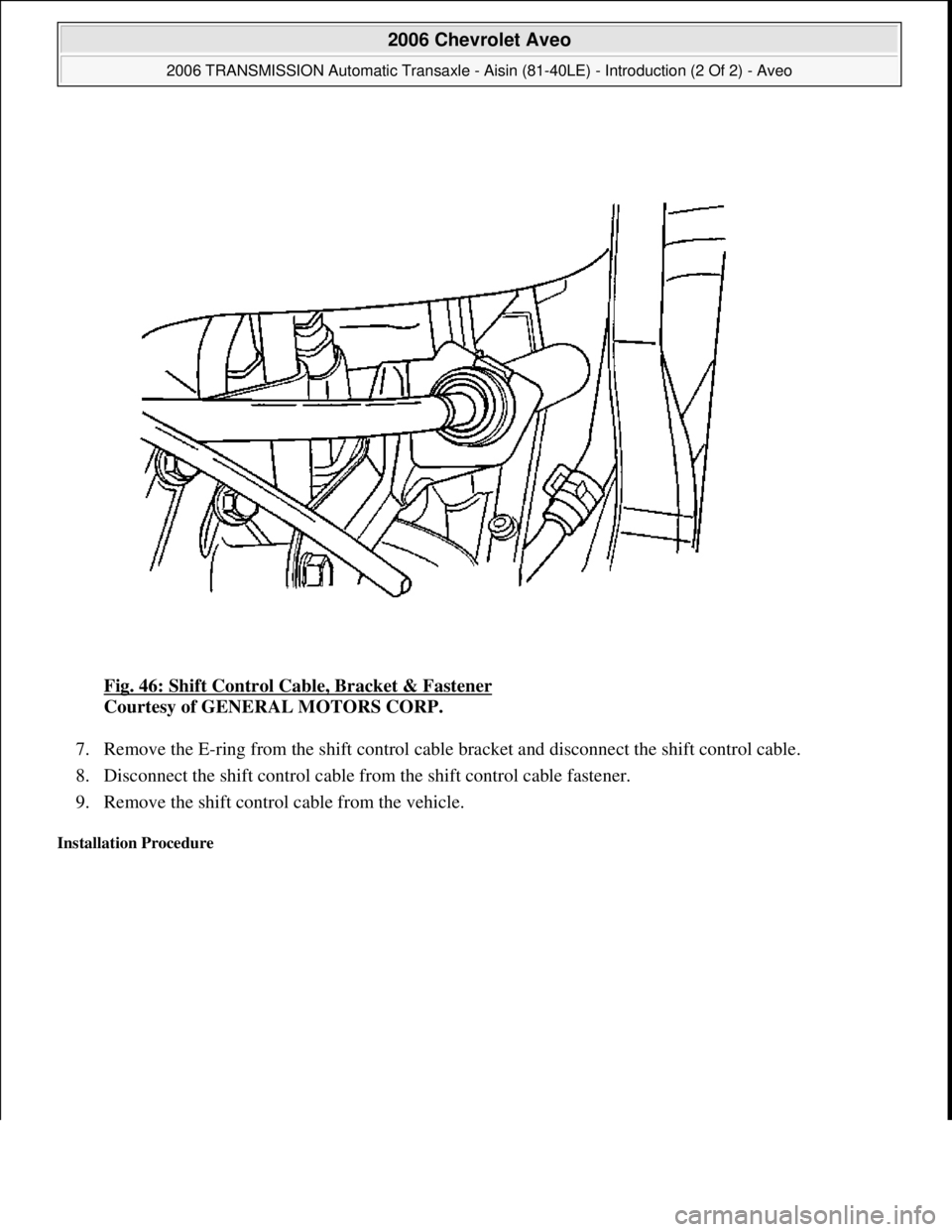

Fig. 46: Shift Control Cable, Bracket & Fastener
Courtesy of GENERAL MOTORS CORP.
7. Remove the E-ring from the shift control cable bracket and disconnect the shift control cable.
8. Disconnect the shift control cable from the shift control cable fastener.
9. Remove the shift control cable from the vehicle.
Installation Procedure

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 58 © 2005 Mitchell Repair Information Company, LLC.

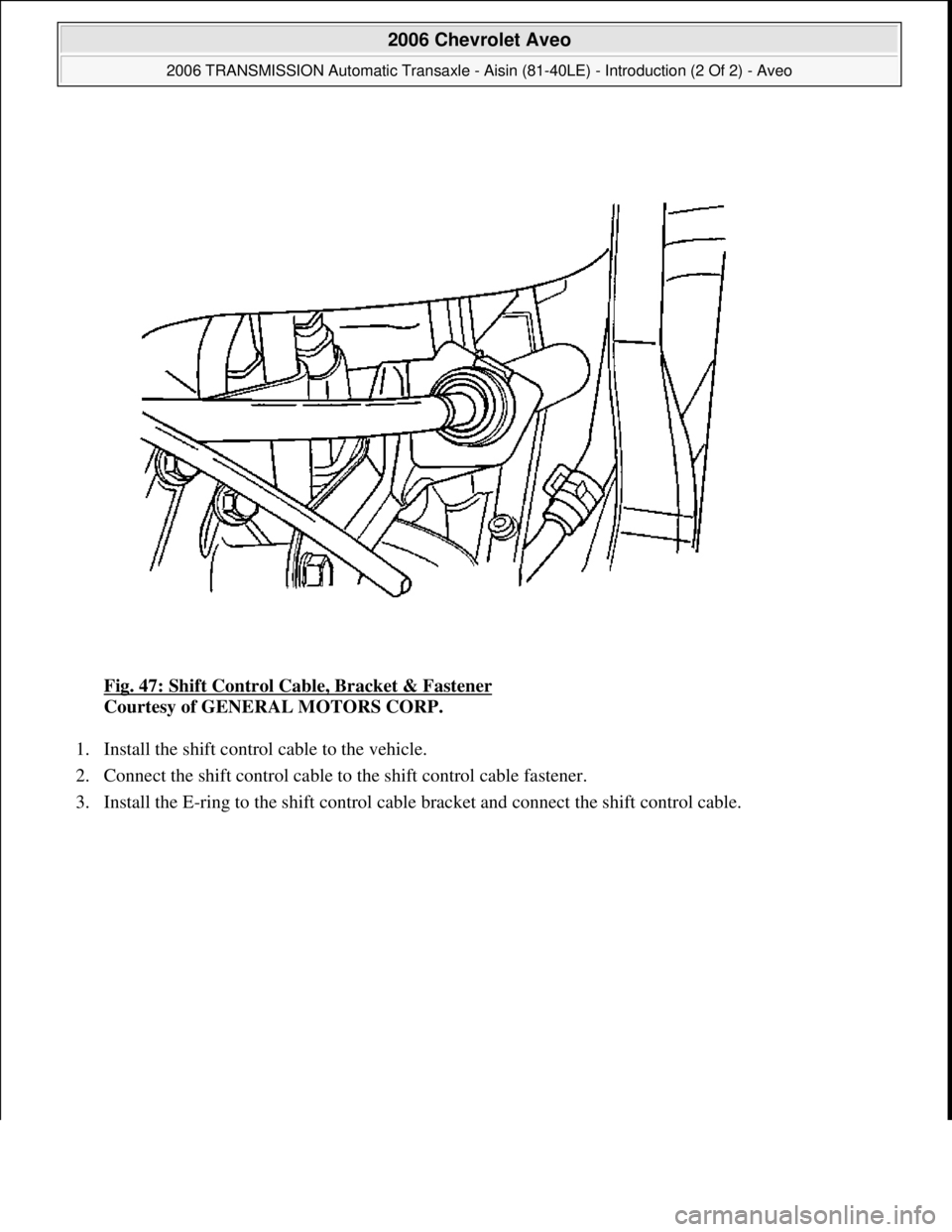

Fig. 47: Shift Control Cable, Bracket & Fastener
Courtesy of GENERAL MOTORS CORP.
1. Install the shift control cable to the vehicle.
2. Connect the shift control cable to the shift control cable fastener.
3. Install the E-ring to the shift control cable bracket and connect the shift control cable.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 59 © 2005 Mitchell Repair Information Company, LLC.

Fig. 48: Shift Control Cable & PNP Switch Lever
Courtesy of GENERAL MOTORS CORP.
4. Connect the shift control cable to the PNP switch.
5. Install the shift control cable retainin
g E-ring.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:18 PMPage 60 © 2005 Mitchell Repair Information Company, LLC.

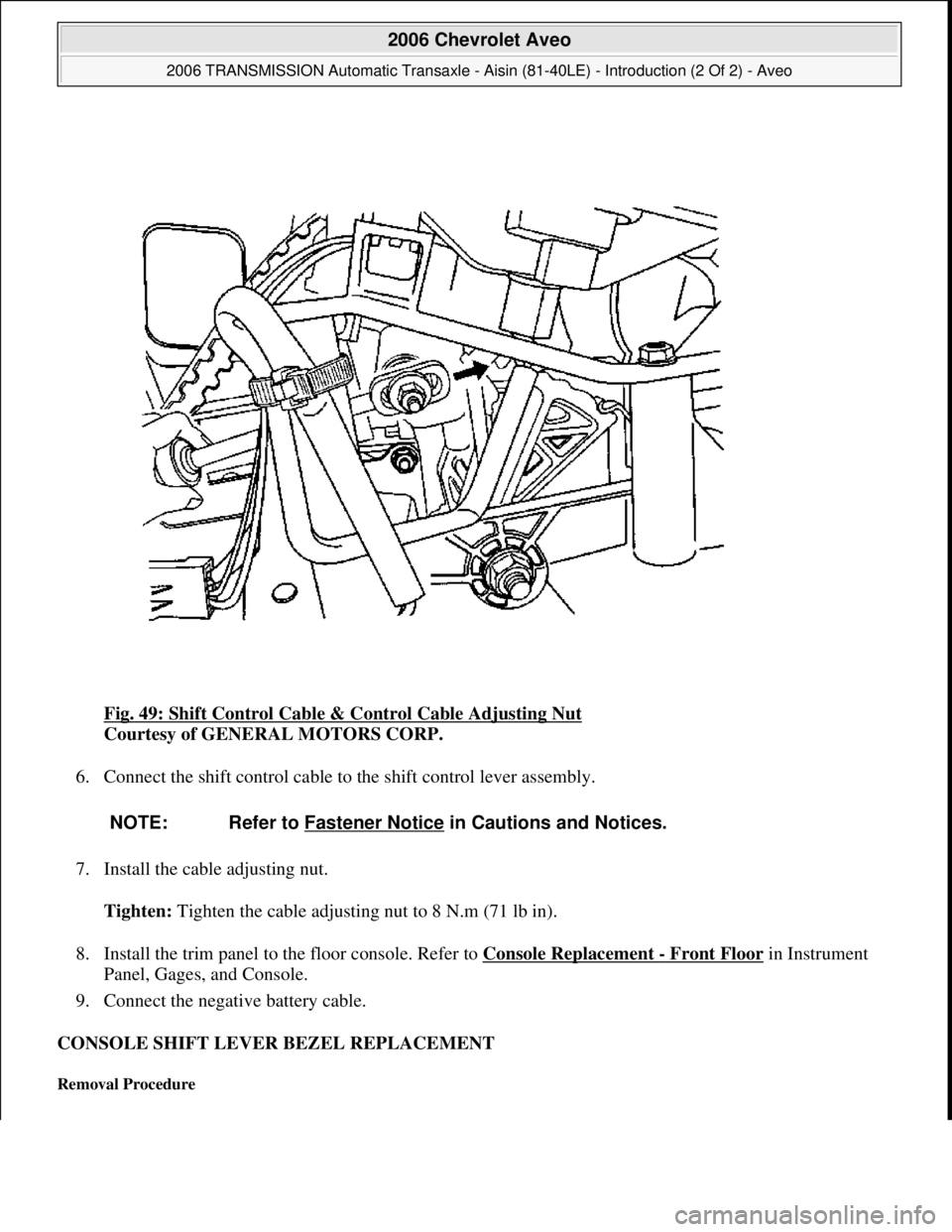

Fig. 49: Shift Control Cable & Control Cable Adjusting Nut
Courtesy of GENERAL MOTORS CORP.
6. Connect the shift control cable to the shift control lever assembly.
7. Install the cable adjusting nut.
Tighten: Tighten the cable adjusting nut to 8 N.m (71 lb in).
8. Install the trim panel to the floor console. Refer to Console Replacement
- Front Floor in Instrument
Panel, Gages, and Console.
9. Connect the negative battery cable.
CONSOLE SHIFT LEVER BEZEL REPLACEMENT
Removal Procedure
NOTE: Refer to Fastener Notice in Cautions and Notices.
