Fig. 80: Removing Upper Transaxle-To-Engine & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
16. Remove the 3 upper transaxle-to-en
gine mounting bolts.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 92 © 2005 Mitchell Repair Information Company, LLC.

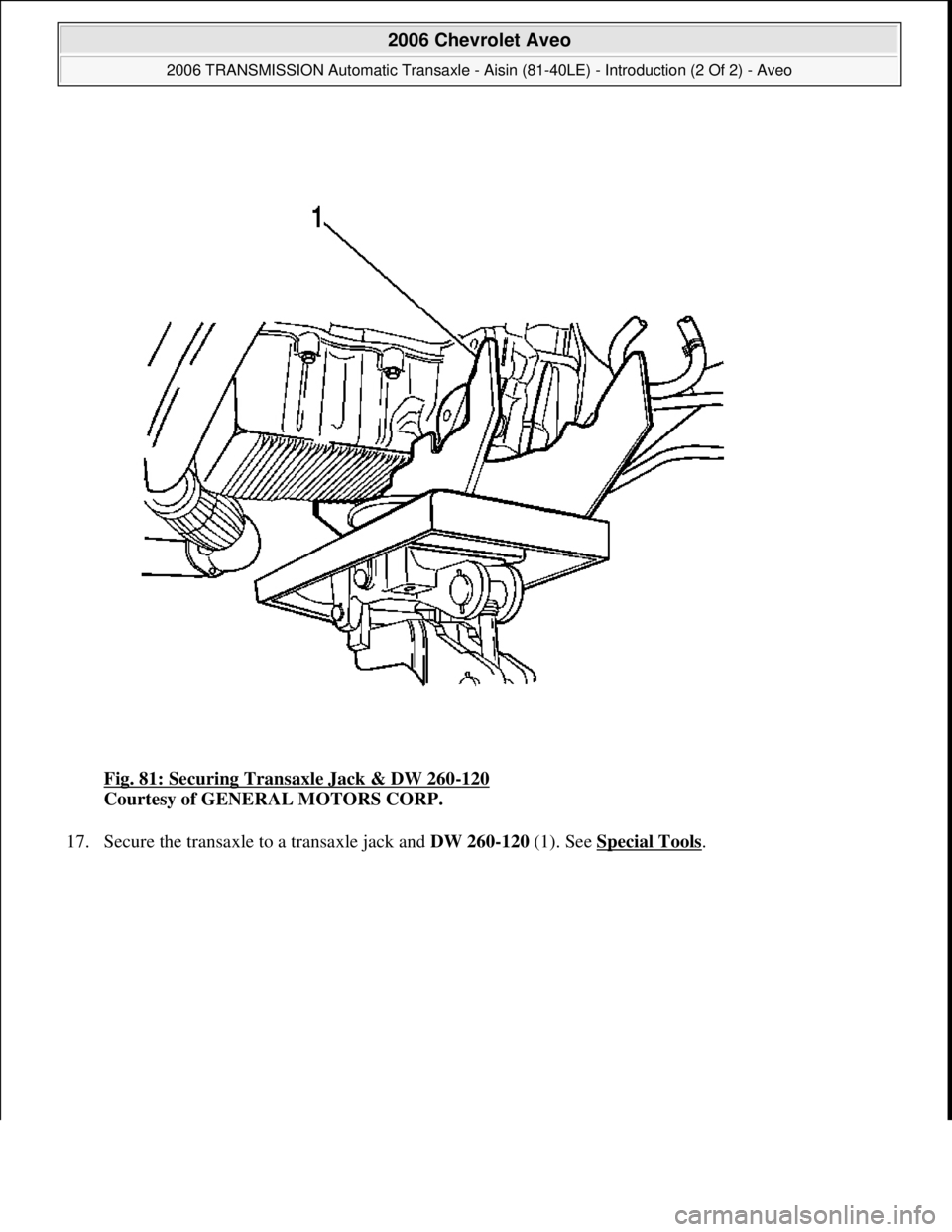

Fig. 81: Securing Transaxle Jack & DW 260-120
Courtesy of GENERAL MOTORS CORP.
17. Secure the transaxle to a transaxle jack and DW 260-120(1). See Special Tools
.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 93 © 2005 Mitchell Repair Information Company, LLC.

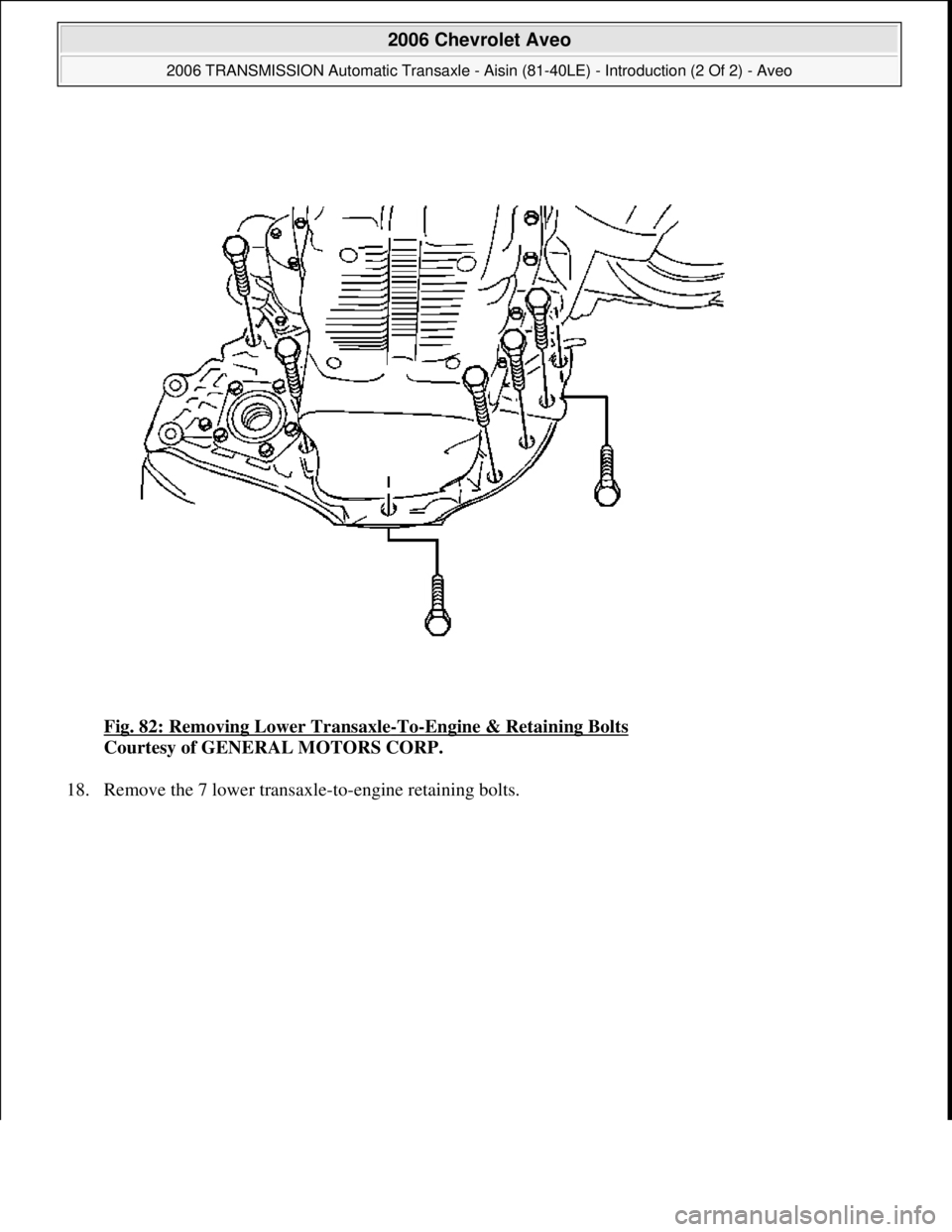

Fig. 82: Removing Lower Transaxle-To-Engine & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
18. Remove the 7 lower transaxle-to-en
gine retaining bolts.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 94 © 2005 Mitchell Repair Information Company, LLC.

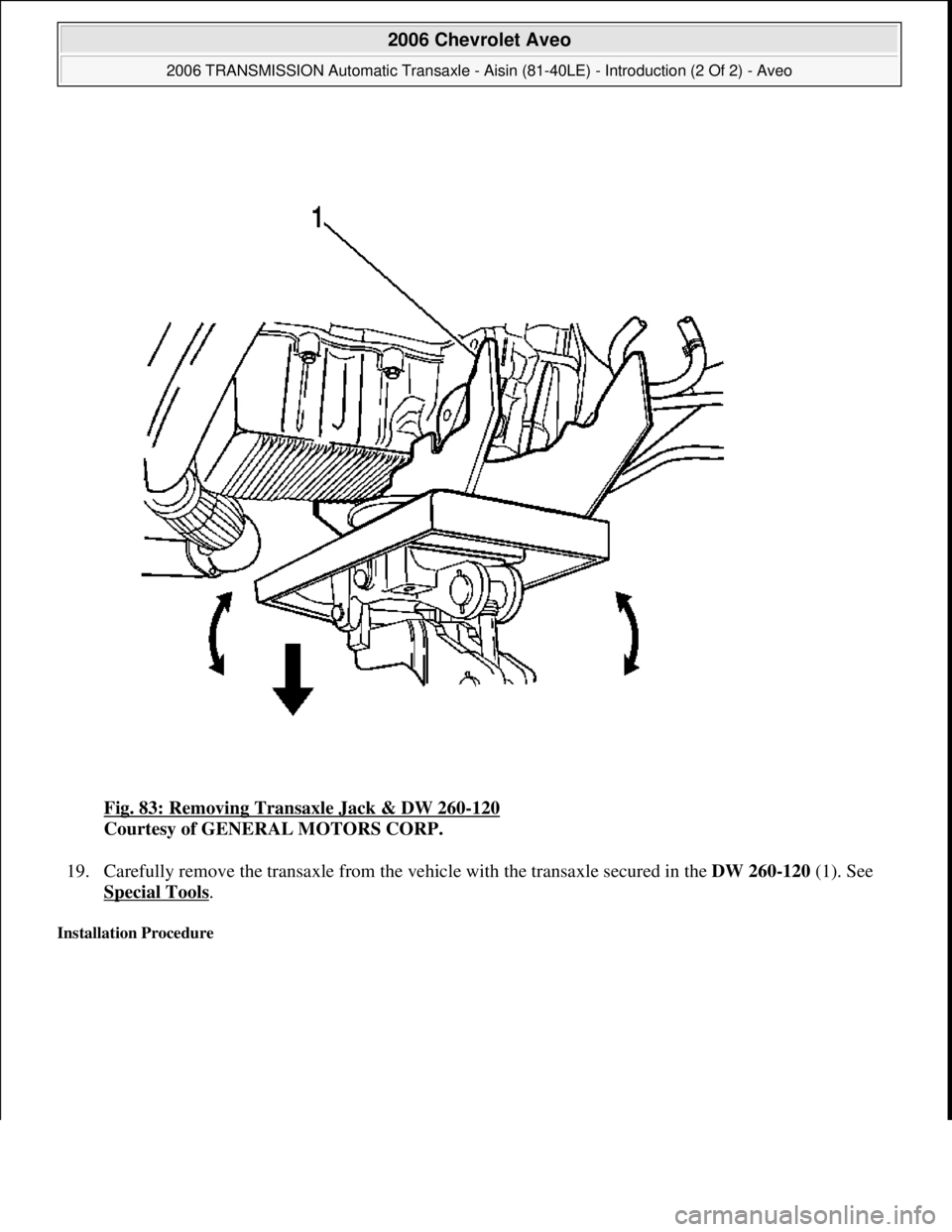

Fig. 83: Removing Transaxle Jack & DW 260-120
Courtesy of GENERAL MOTORS CORP.
19. Carefully remove the transaxle from the vehicle with the transaxle secured in the DW 260-120 (1). See
Special Tools
.
Installation Procedure

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 95 © 2005 Mitchell Repair Information Company, LLC.

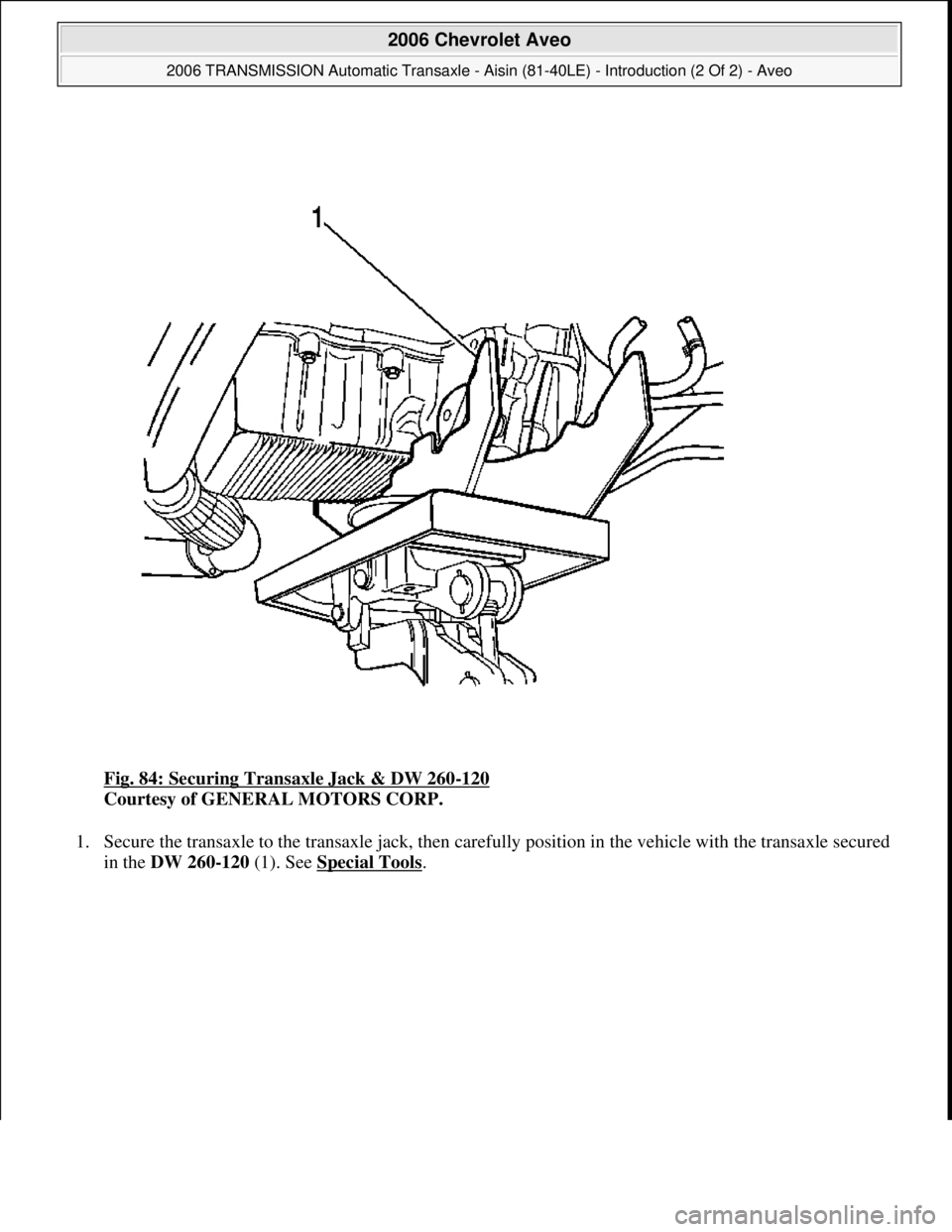

Fig. 84: Securing Transaxle Jack & DW 260-120
Courtesy of GENERAL MOTORS CORP.
1. Secure the transaxle to the transaxle jack, then carefully position in the vehicle with the transaxle secured
in the DW 260-120 (1). See Special Tools
.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 96 © 2005 Mitchell Repair Information Company, LLC.

Fig. 85: Installing Transaxle Lower & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
2. Install the 7 lower transaxle-to-engine retaining bolts.
Tighten:
Tighten the bolts (1) to 73 N.m (54 lb ft).
Tighten the bolts (3) to 31 N.m (23 lb ft).
Tighten the bolts (2) to 21 N.m (15 lb ft).
NOTE: Refer to Fastener Notice .

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 97 © 2005 Mitchell Repair Information Company, LLC.

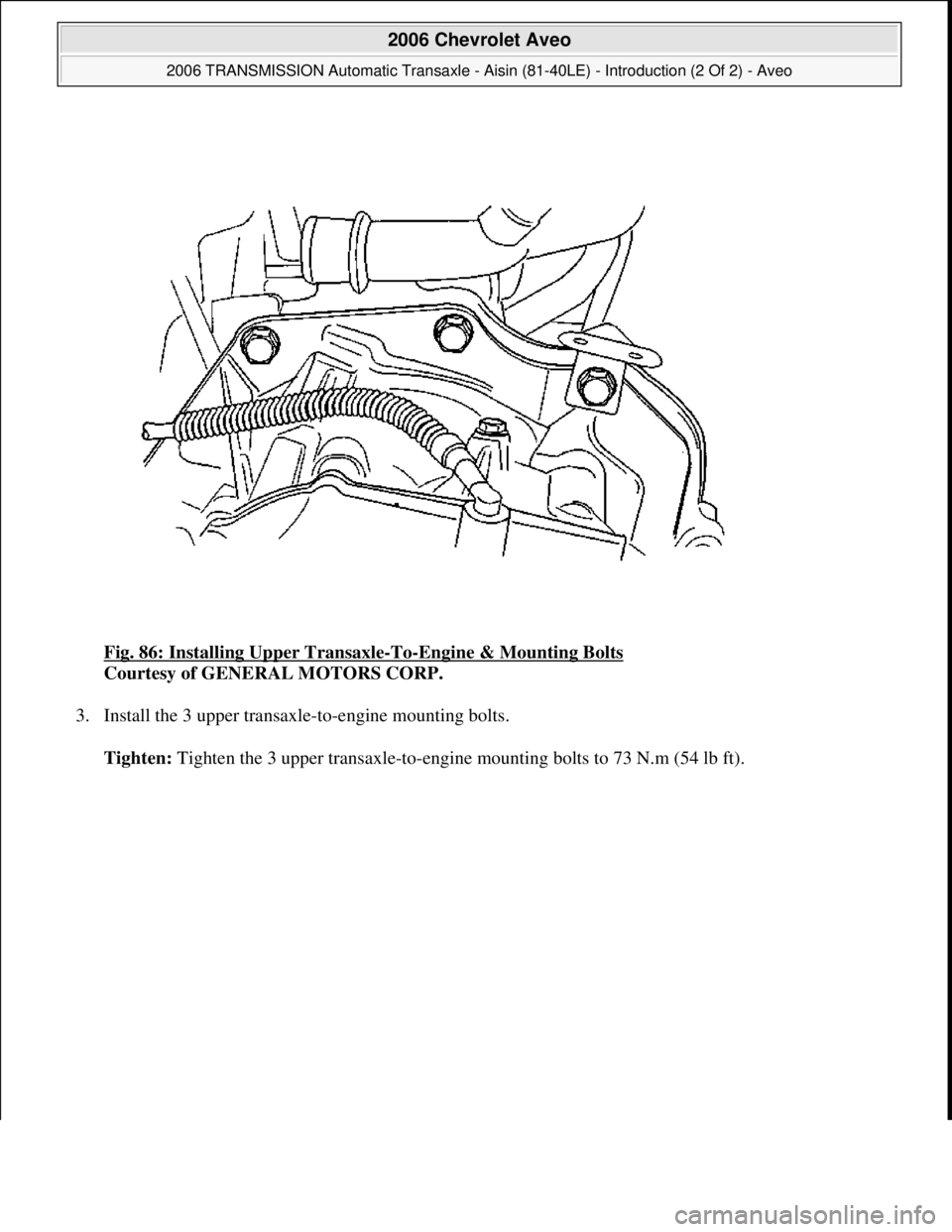

Fig. 86: Installing Upper Transaxle-To-Engine & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
3. Install the 3 upper transaxle-to-engine mounting bolts.
Tighten: Ti
ghten the 3 upper transaxle-to-engine mounting bolts to 73 N.m (54 lb ft).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 98 © 2005 Mitchell Repair Information Company, LLC.

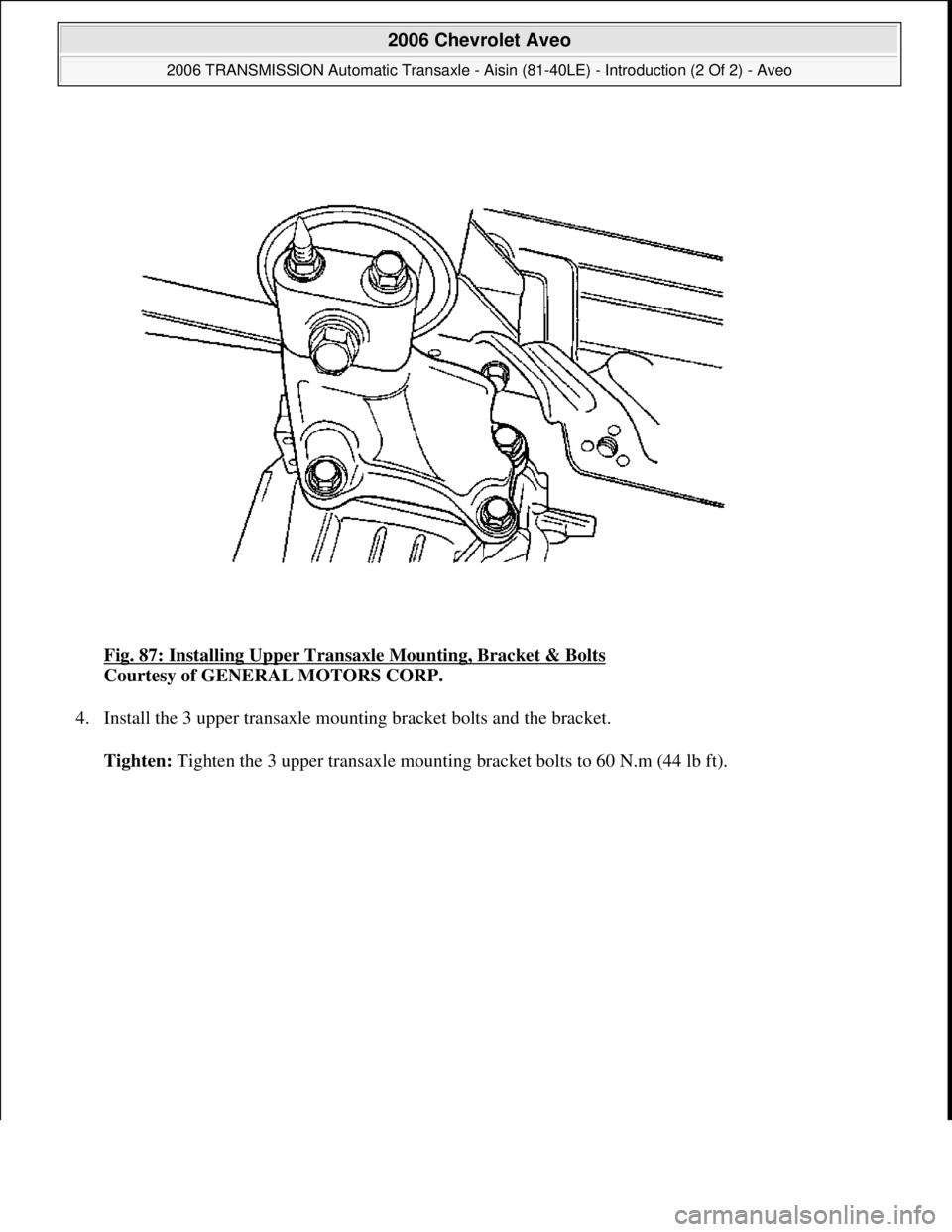

Fig. 87: Installing Upper Transaxle Mounting, Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
4. Install the 3 upper transaxle mounting bracket bolts and the bracket.
Tighten: Ti
ghten the 3 upper transaxle mounting bracket bolts to 60 N.m (44 lb ft).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 99 © 2005 Mitchell Repair Information Company, LLC.

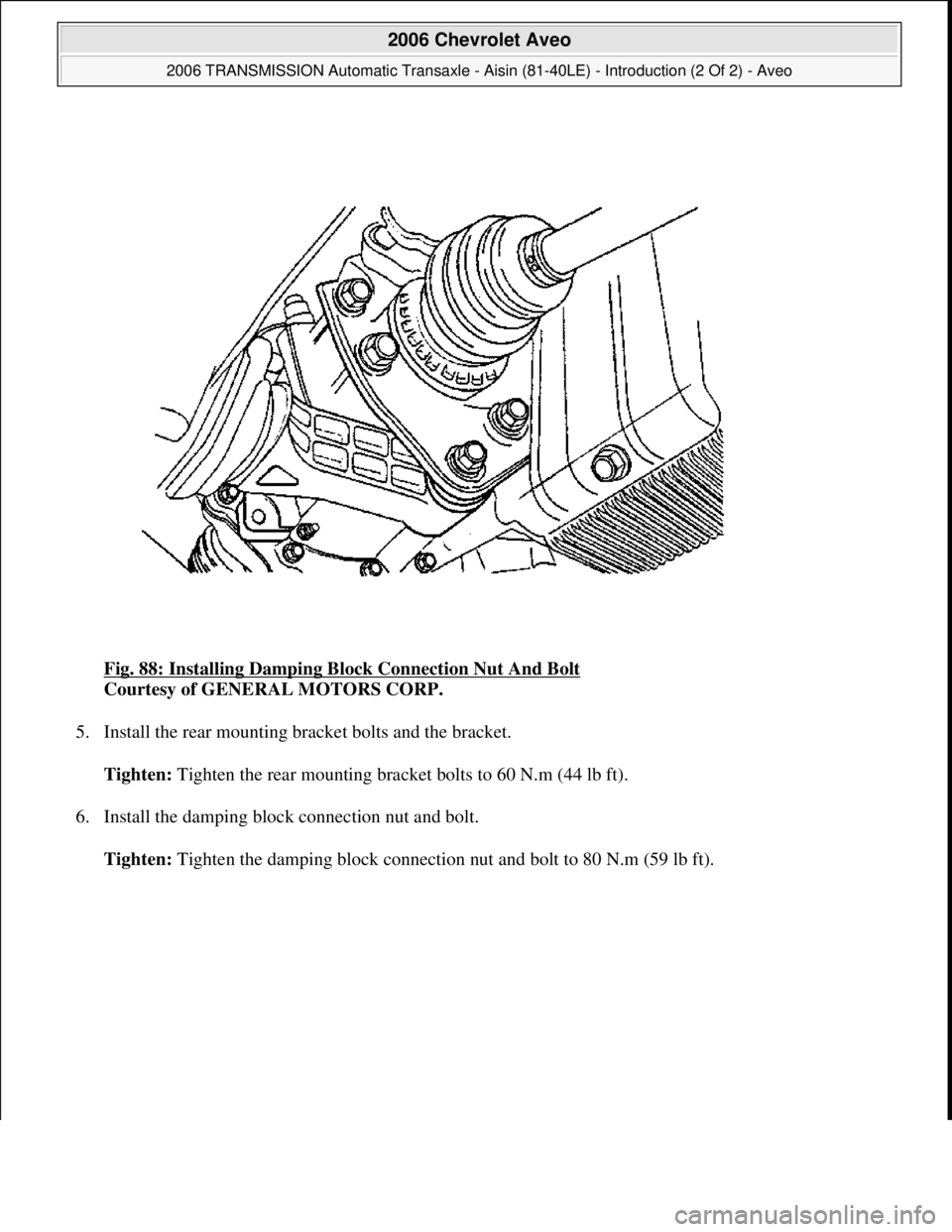

Fig. 88: Installing Damping Block Connection Nut And Bolt
Courtesy of GENERAL MOTORS CORP.
5. Install the rear mounting bracket bolts and the bracket.
Tighten: Tighten the rear mounting bracket bolts to 60 N.m (44 lb ft).
6. Install the damping block connection nut and bolt.
Tighten: Tighten the damping block connection nut and bolt to 80 N.m (59 lb ft).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 100 © 2005 Mitchell Repair Information Company, LLC.

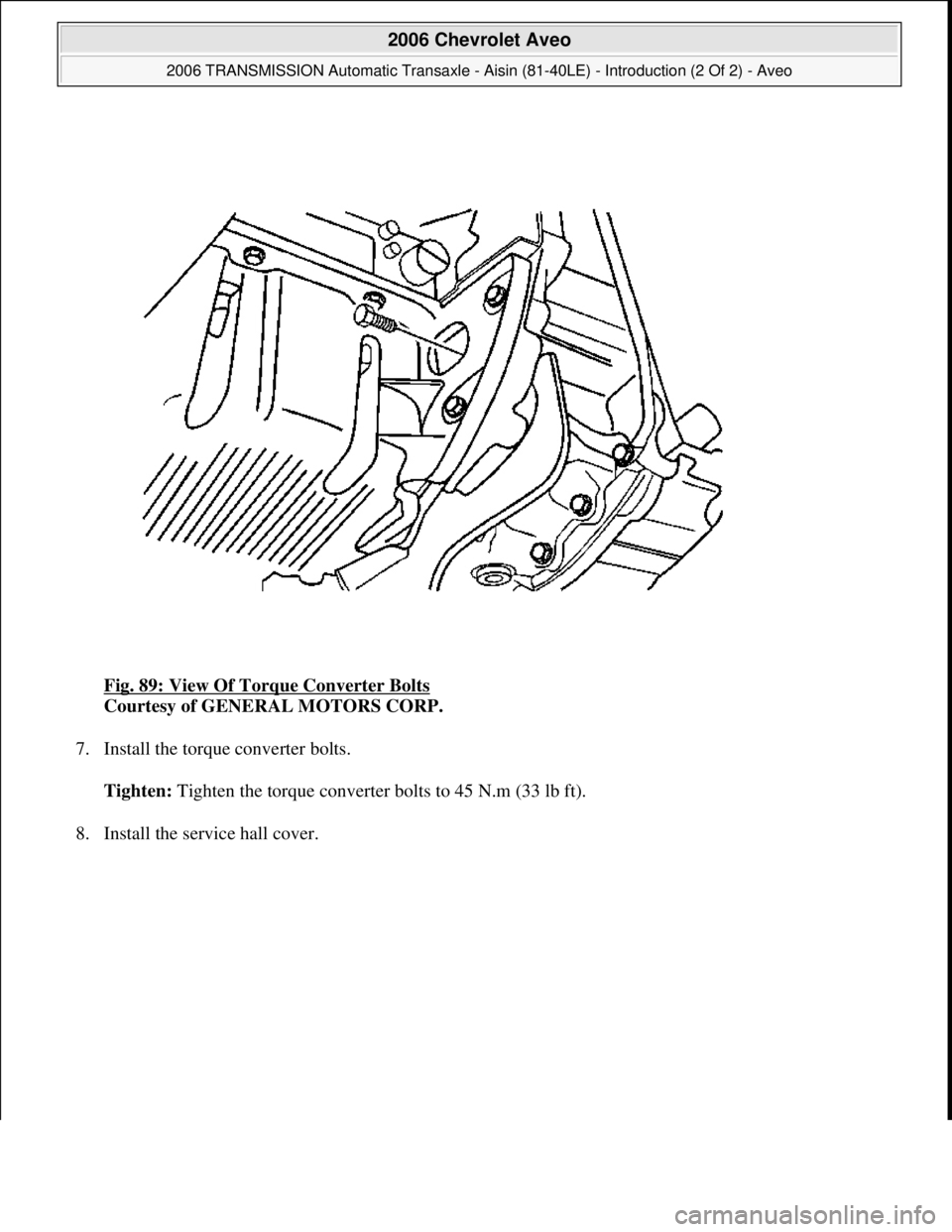

Fig. 89: View Of Torque Converter Bolts
Courtesy of GENERAL MOTORS CORP.
7. Install the torque converter bolts.
Tighten: Tighten the torque converter bolts to 45 N.m (33 lb ft).
8. Install the service hall cover.
