Fig. 360: Turning Rear Planetary Sun Gear & One-Way Clutch
Courtesy of GENERAL MOTORS CORP.
4. Install the one-way clutch and thrust washer to the rear planetary sun gear.
5. Hold the rear planetary sun gear and turn the one-way clutch. The one-way clutch should turn freely
clockwise and should lock counterclockwise.
FORWARD AND REVERSE CLUTCH DISASSEMBLE
Tools Required
DT 46451 (DW240-020) Brake/Clutch Spring Compressor. See Special Tools.
DT 46452 (DW240-030) Forward Clutch Adapter. See Special Tools.
DT 46520 (DW240-120) Measuring Terminal. See Special Tools.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:29 PMPage 372 © 2005 Mitchell Repair Information Company, LLC.

Fig. 361: Measuring Reverse Clutch Pack Clearance While Applying Compressed Air
Courtesy of GENERAL MOTORS CORP.
1. Install the forward and reverse clutch and thrust needle roller bearing on the transaxle rear cover.
2. Usin
g a dial indicator, measure the reverse clutch pack clearance while applying and releasing 392 kPa
NOTE: Refer to Compressed Air Should Not Exceed 98 kPa (14 psi) Notice .

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:29 PMPage 373 © 2005 Mitchell Repair Information Company, LLC.

(57 psi) of compressed air.
If the stroke is non-standard, inspect the discs, plates, and flange.
Specifications: The pack clearance is 0.4-1 mm (0.0157-0.0394 in).
Fig. 362: Measuring Forward Clutch Pack Clearance While Applying Compressed Air

Courtesy of GENERAL MOTORS CORP.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:29 PMPage 374 © 2005 Mitchell Repair Information Company, LLC.

3. Install the forward and reverse clutch and thrust needle roller bearing on the transaxle rear cover.
4. Using a dial indicator and the DT 46520 (1), measure the forward clutch pack clearance while applying
and releasing 392 kPa (57 psi) of compressed air. See Special Tools
.
The forward and reverse clutch will come out as you apply the compressed air. Therefore, while the
checking is being done, press on the input shaft of the forward and reverse clutch using stamping
machine or alike so that the pressure is not applied on the forward and reverse clutch.
If the stroke is non-standard, inspect the discs, plates and flange.
Specifications: The pack clearance is 1.1-1.5 mm (0.043-0.059 in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:29 PMPage 375 © 2005 Mitchell Repair Information Company, LLC.

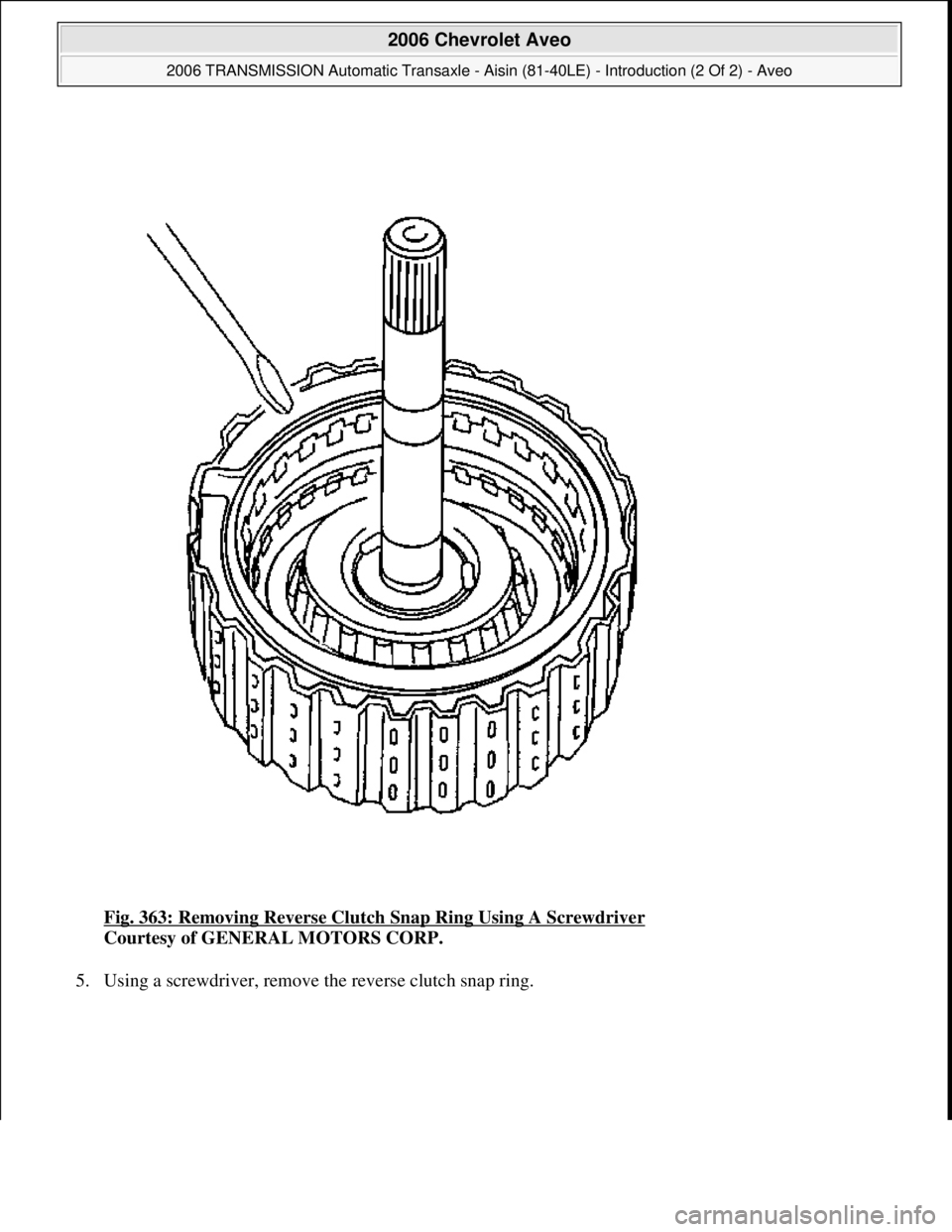

Fig. 363: Removing Reverse Clutch Snap Ring Using A Screwdriver
Courtesy of GENERAL MOTORS CORP.
5. Usin
g a screwdriver, remove the reverse clutch snap ring.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:30 PMPage 376 © 2005 Mitchell Repair Information Company, LLC.

Fig. 364: Flanges, Discs, Plate & Reverse Clutch Drum
Courtesy of GENERAL MOTORS CORP.
6. Remove the 2 flan
ges (1), the 2 discs (3), and the plate (2) from the reverse clutch drum.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:30 PMPage 377 © 2005 Mitchell Repair Information Company, LLC.

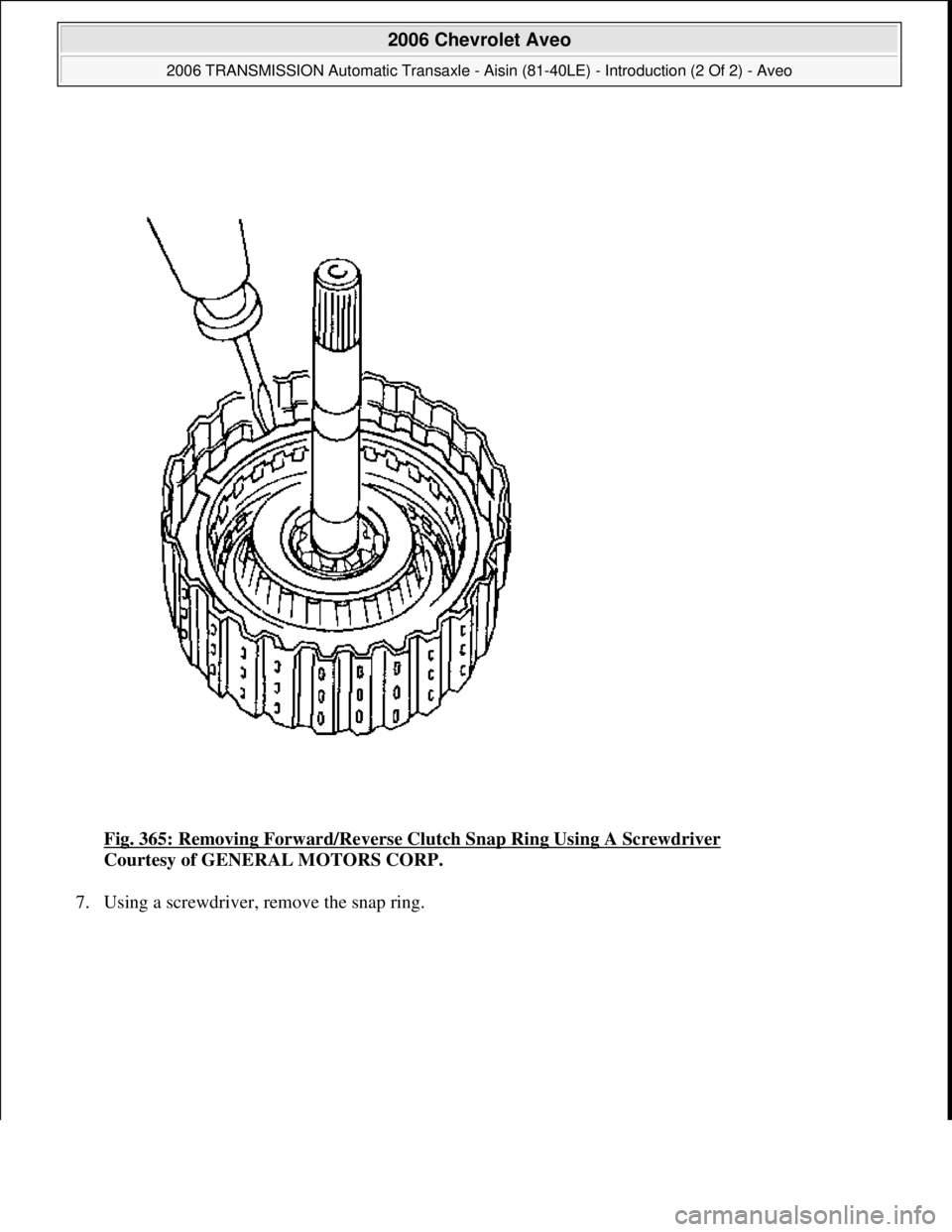

Fig. 365: Removing Forward/Reverse Clutch Snap Ring Using A Screwdriver
Courtesy of GENERAL MOTORS CORP.
7. Using a screwdriver, remove the snap ring.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:30 PMPage 378 © 2005 Mitchell Repair Information Company, LLC.

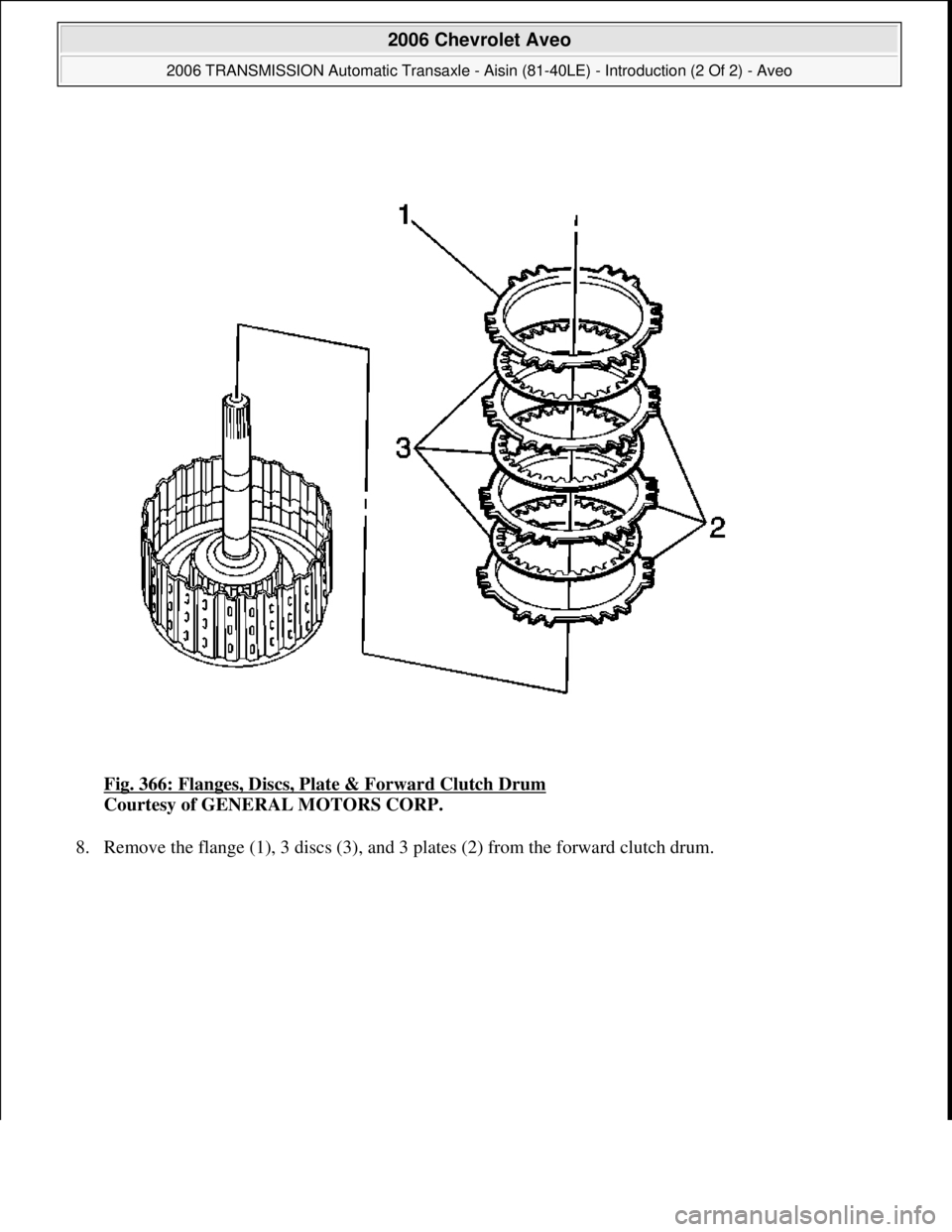

Fig. 366: Flanges, Discs, Plate & Forward Clutch Drum
Courtesy of GENERAL MOTORS CORP.
8. Remove the flange (1), 3 discs (3), and 3 plates (2) from the forward clutch drum.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:30 PMPage 379 © 2005 Mitchell Repair Information Company, LLC.

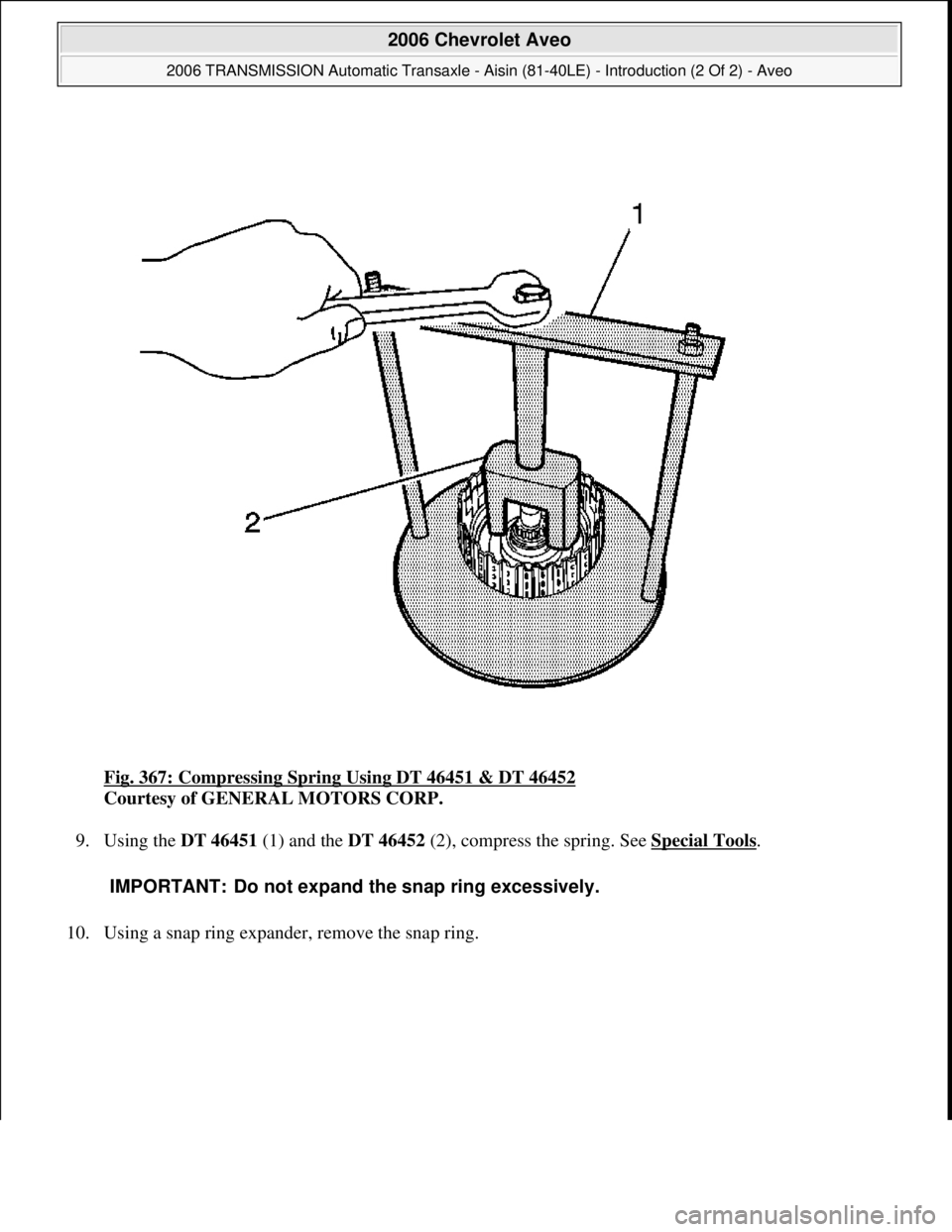

Fig. 367: Compressing Spring Using DT 46451 & DT 46452
Courtesy of GENERAL MOTORS CORP.
9. Using the DT 46451 (1) and the DT 46452 (2), compress the spring. See Special Tools
.
10. Usin
g a snap ring expander, remove the snap ring.
IMPORTANT: Do not expand the snap ring excessively.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:30 PMPage 380 © 2005 Mitchell Repair Information Company, LLC.

Fig. 368: Clutch Balancer & Forward Clutch Return Spring
Courtesy of GENERAL MOTORS CORP.
11. Remove the clutch balancer and forward clutch return sprin
g.
